DATA SHEET
Product specification
File under Integrated Circuits, IC04
January 1995
INTEGRATED CIRCUITS
HEF40194B
MSI
4-bit bidirectional universal shift
register
For a complete data sheet, please also download:
The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
January 1995
2
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
DESCRIPTION
The HEF40194B is a 4-bit bidirectional shift register with
two mode control inputs (S
0
and S
1
), a clock input (CP), a
serial data shift left input (D
SL
), a serial data shift right input
(D
SR
), four parallel data inputs (P
0
to P
3
), an overriding
asynchronous master reset input (MR), and four buffered
parallel outputs (O
0
to O
3
). When LOW, MR resets all
stages and forces O
0
to O
3
LOW, overriding all other input
conditions. When MR is HIGH, the operation mode is
controlled by S
0
and S
1
as shown in the function table.
Serial and parallel operation are edge-triggered on the
LOW to HIGH transition of CP. The inputs at which the
data are to be entered and S
0
, S
1
must be stable for a
set-up time before the LOW to HIGH transition of CP.

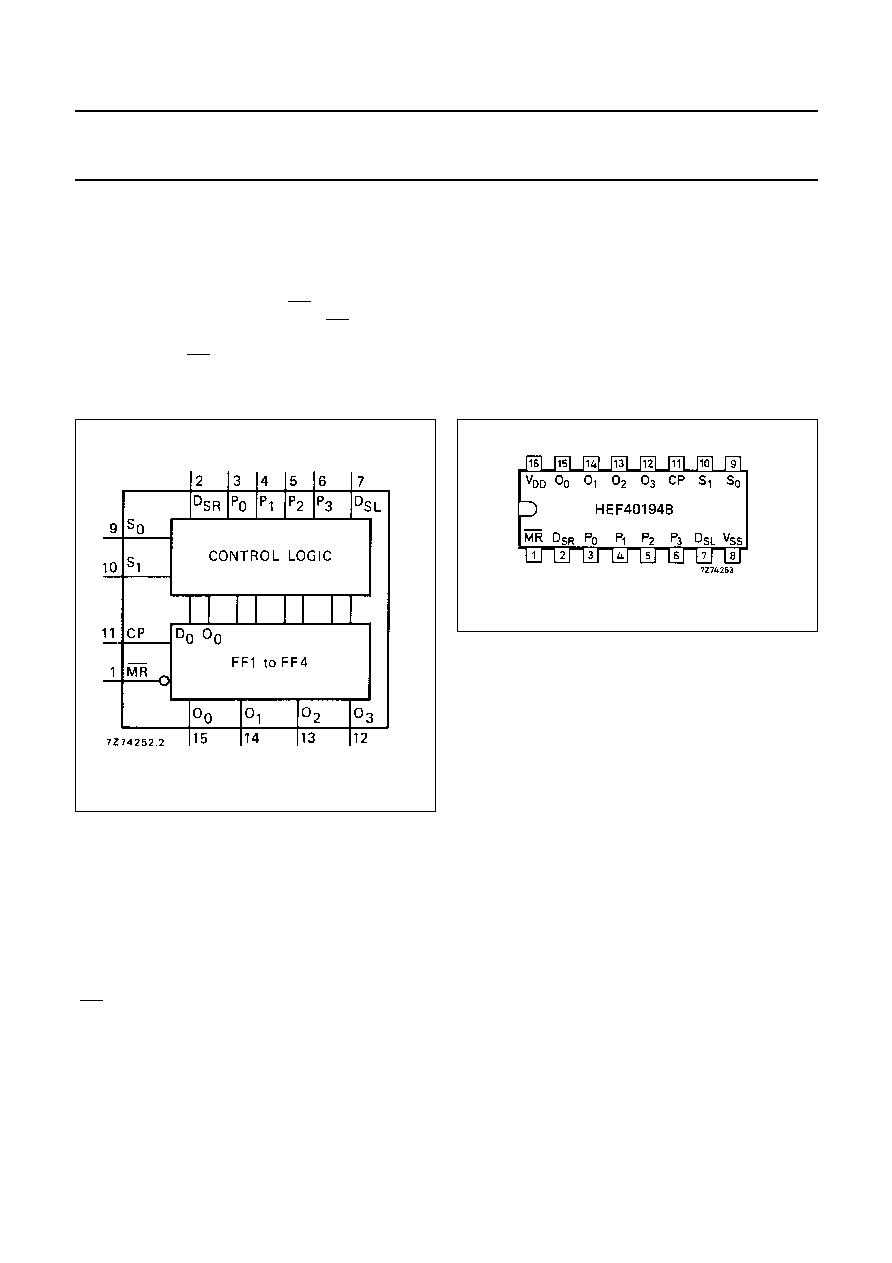

Fig.1 Functional diagram.
HEF40194BP(N):
16-lead DIL; plastic
(SOT38-1)
HEF40194BD(F):
16-lead DIL; ceramic (cerdip)
(SOT74)
HEF40194BT(D):
16-lead SO; plastic
(SOT109-1)
( ): Package Designator North America
Fig.2 Pinning diagram.
PINNING
S
0
, S
1
mode control inputs
P
0
to P
3
parallel data inputs
D
SR
serial data shift right input
D
SL
serial data shift left input
CP
clock input (LOW to HIGH edge-triggered)
MR
master reset input (active LOW)
O
0
to O
3
buffered parallel outputs
FAMILY DATA, I
DD
LIMITS category MSI
See Family Specifications
January 1995
3
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

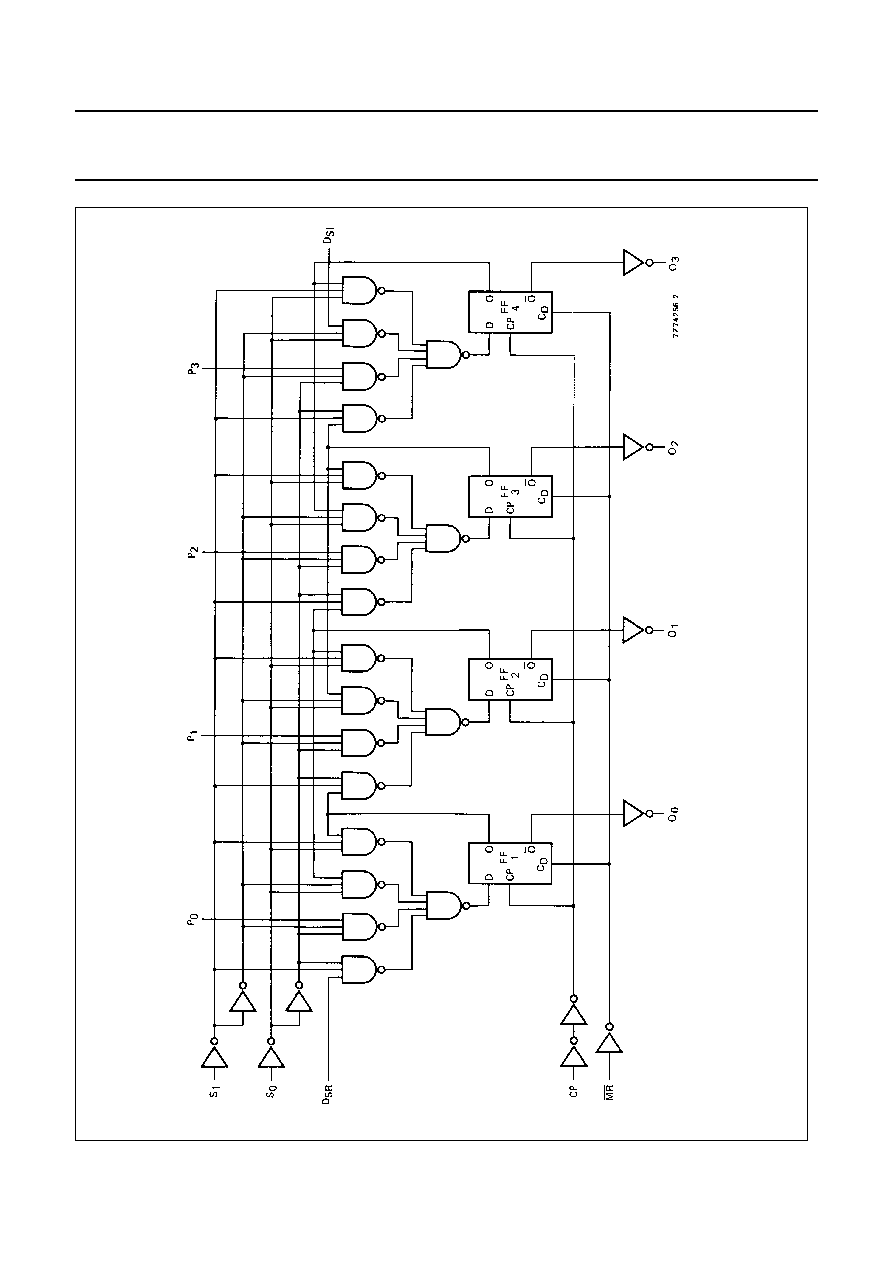

Fig.3 Logic diagram.
January 1995
4
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
FUNCTION TABLE
Notes
1. H = HIGH state (the more positive voltage)
2. L = LOW state (the less positive voltage)
3. X = state is immaterial
4. t
n
+
1
= state after next LOW to HIGH transition of CP
AC CHARACTERISTICS
V
SS
= 0 V; T
amb
= 25
C; input transition times
20 ns
INPUTS (MR = HIGH)
OUTPUTS AT T
n
+
1
OPERATING MODE
S
1
S
0
D
SR
D
SL
P
0
TO P
3
O
0
O
1
O
2
O
3
hold
L
L
X
X
X
O
0
O
1
O
2
O
3
shift left
H
L
X
L
X
O
1
O
2
O
3
L
H
L
X
H
X
O
1
O
2
O
3
H
shift right
L
H
L
X
X
L
O
0
O
1
O
2
L
H
H
X
X
H
O
0
O
1
O
2
parallel load
H
H
X
X
L
L
L
L
L
H
H
X
X
H
H
H
H
H
V
DD
V
TYPICAL FORMULA FOR P (
W)
Dynamic power
5
1 500 f
i
+
(f
o
C
L
)
V
DD
2
where
dissipation per
10
6 900 f
i
+
(f
o
C
L
)
V
DD
2
f
i
= input freq. (MHz)
package (P)
15
18 900 f
i
+
(f
o
C
L
)
V
DD
2
f
o
= output freq. (MHz)
C
L
= load cap. (pF)
(f
o
C
L
) = sum of outputs
V
DD
= supply voltage (V)
January 1995
5
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
AC CHARACTERISTICS
V
SS
= 0 V; T
amb
= 25
C; C
L
= 50 pF; input transition times
20 ns
V
DD
V
SYMBOL
MIN.
TYP.
MAX.
TYPICAL EXTRAPOLATION
FORMULA
Propagation delays
CP
O
n
5
100
205
ns
73 ns
+
(0,55 ns/pF) C
L
HIGH to LOW
10
t
PHL
40
85
ns
29 ns
+
(0,23 ns/pF) C
L
15
30
60
ns
22 ns
+
(0,16 ns/pF) C
L
5
80
165
ns
53 ns
+
(0,55 ns/pF) C
L
LOW to HIGH
10
t
PLH
35
70
ns
24 ns
+
(0,23 ns/pF) C
L
15
25
55
ns
17 ns
+
(0,16 ns/pF) C
L
MR
O
n
5
85
175
ns
58 ns
+
(0,55 ns/pF) C
L
HIGH to LOW
10
t
PHL
40
80
ns
29 ns
+
(0,23 ns/pF) C
L
15
30
60
ns
22 ns
+
(0,16 ns/pF) C
L
Output transition times
5
60
120
ns
10 ns
+
(1,0 ns/pF) C
L
HIGH to LOW
10
t
THL
30
60
ns
9 ns
+
(0,42 ns/pF) C
L
15
20
40
ns
6 ns
+
(0,28 ns/pF) C
L
5
60
120
ns
10 ns
+
(1,0 ns/pF) C
L
LOW to HIGH
10
t
TLH
30
60
ns
9 ns
+
(0,42 ns/pF) C
L
15
20
40
ns
6 ns
+
(0,28 ns/pF) C
L
January 1995
6
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
Set-up times
5
80
40
ns
see also waveforms
Figs 4 and 5
P
n
, D
SR
, D
SL
CP
10
t
su
30
15
ns
15
20
10
ns
5
140
70
ns
S
n
CP
10
t
su
60
30
ns
15
40
20
ns
Hold times
5
10
-
30
ns
P
n
, D
SR
, D
SL
CP
10
t
hold
5
-
10
ns
15
5
-
5
ns
5
25
-
45
ns
S
n
CP
10
t
hold
15
-
15
ns
15
10
-
10
ns
Minimum clock
5
50
25
ns
pulse width; LOW
10
t
WCPL
20
10
ns
15
20
10
ns
Minimum MR
5
80
40
ns
pulse width; LOW
10
t
WMRL
40
20
ns
15
30
15
ns
Recovery time
5
30
10
ns
for MR
10
t
RMR
15
5
ns
15
15
5
ns
Maximum clock
5
6
12
MHz
pulse frequency
10
f
max
15
30
MHz
15
20
40
MHz
V
DD
V
SYMBOL
MIN.
TYP.
MAX.
TYPICAL EXTRAPOLATION
FORMULA
January 1995
7
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

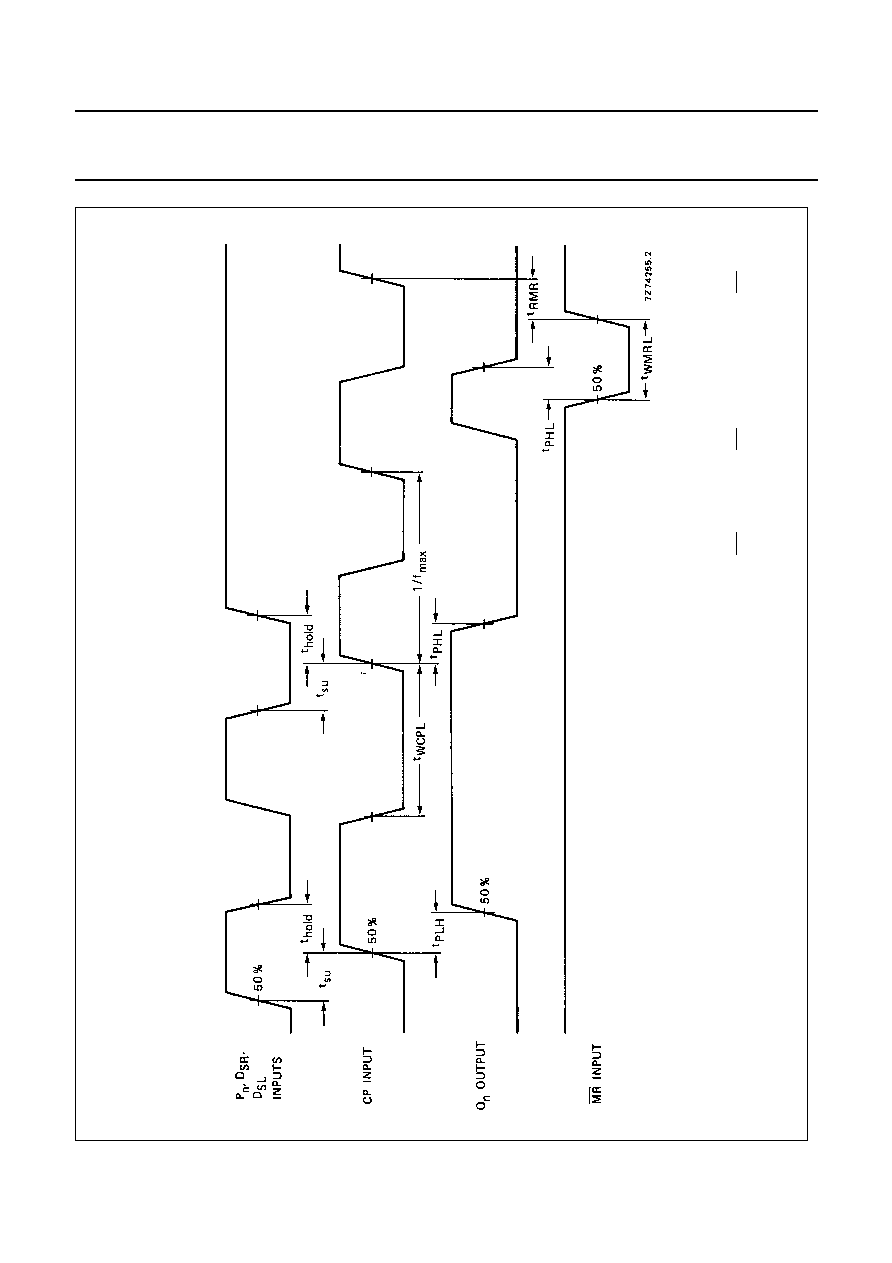

Fig.4
Waveforms showing set-up times, hold times for D
SR
, D
SL
and P
n
inputs; minimum MR pulse width, MR to output delays and MR to CP
recovery time; minimum CP pulse width and CP to output delays. Set-up and hold times are shown as positive values but may be
specified as negative values.
January 1995
8
Philips Semiconductors
Product specification
4-bit bidirectional universal shift register
HEF40194B
MSI
APPLICATION INFORMATION
Some examples of applications for the HEF40194B are:
Arithmetic unit register
Serial/parallel converter.

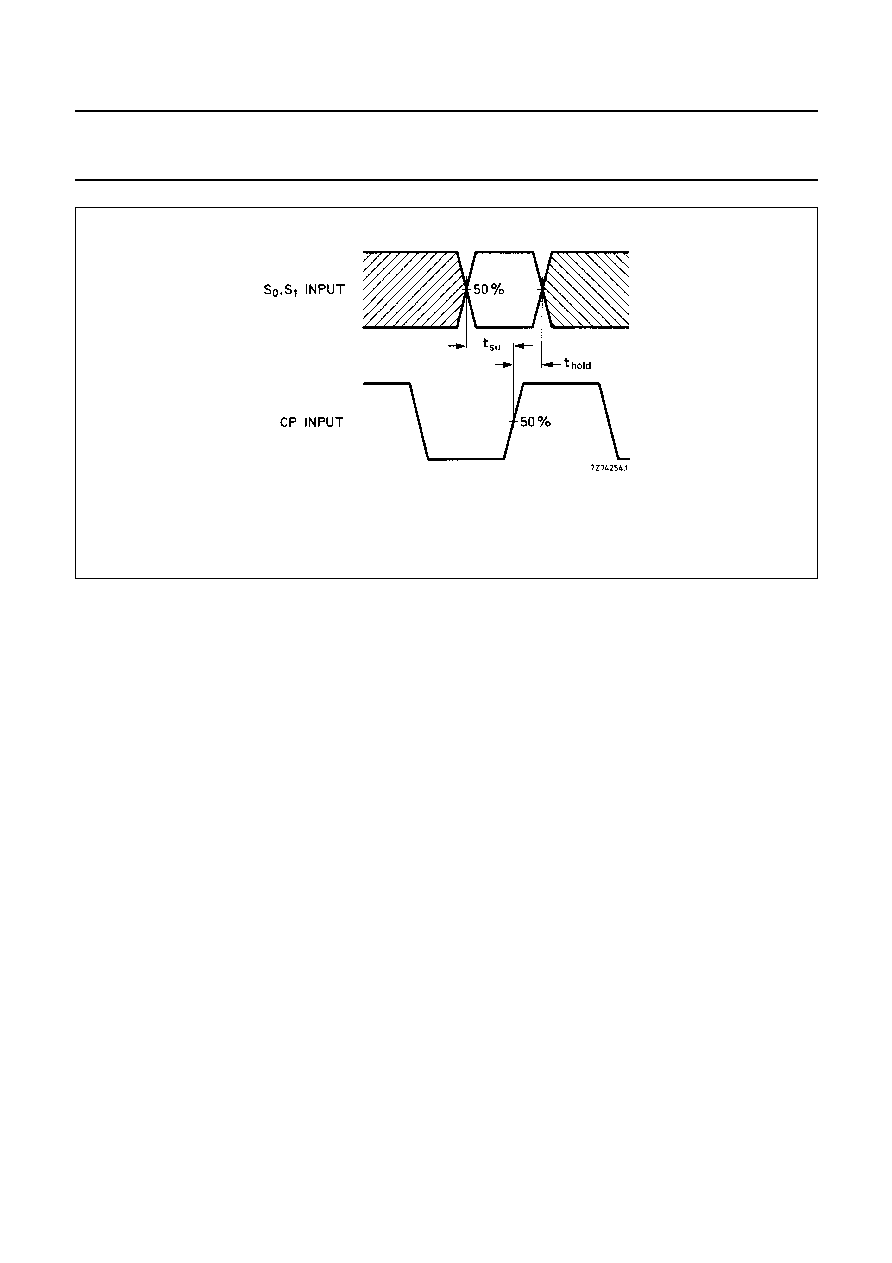

Fig.5
Waveforms showing set-up times and hold times for S
0
and S
1
inputs. Set-up and hold times are shown
as positive values but may be specified as negative values.
