Philips
Semiconductors
74F02
Quad 2-input NOR gate
Product specification
IC15 Data Handbook
1990 Oct 04
INTEGRATED CIRCUITS
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
2
1990 Oct 04
853-0326 00622
FEATURE
Industrial temperature range available (40
C to +85
C)
TYPE
TYPICAL
PROPAGATION
DELAY
TYPICAL SUPPLY
CURRENT
(TOTAL)
74F02
3.4ns
4.4mA
PIN CONFIGURATION
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
V
CC
D2b
D2a
Q2
D3a
Q3
D3b
D0a
D0b
Q1
Q0
D1a
D1b
SF00007
ORDERING INFORMATION
ORDER CODE
DESCRIPTION
COMMERCIAL RANGE
V
CC
= 5V
10%, T
amb
= 0
C to +70
C
INDUSTRIAL RANGE
V
CC
= 5V
10%, T
amb
= 40
C to +85
C
PKG DWG #
14-pin plastic DIP
N74F02N
I74F02N
SOT27-1
14-pin plastic SO
N74F02D
I74F02D
SOT108-1
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS
DESCRIPTION
74F (U.L.) HIGH/LOW
LOAD VALUE HIGH/LOW
Dna, Dnb
Data inputs
1.0/1.0
20
A/0.6mA
Qn
Data output
50/33
1.0mA/20mA
NOTE:
One (1.0) FAST unit load is defined as: 20
A in the high state and 0.6mA in the low state.
LOGIC DIAGRAM
D0a
D0b
D1a
D1b
D2a
Q0
D2b
D3a
D3b
Q1
Q2
Q3
V
CC
= Pin 14
GND = Pin 7
1
4
10
13
2
3
5
6
8
9
11
12
SF00008
FUNCTION TABLE
INPUTS
OUTPUT
Dna
Dnb
Qn
L
L
H
L
H
L
H
L
L
H
H
L
NOTES:
1
H = High voltage level
2
L = Low voltage level
LOGIC SYMBOL
D0a D0b D1a
D2a D2b D3a D3b
D1b
Q0 Q1 Q2 Q3
1
4
10 13
2
3
5
6
8
9
11
12
V
CC
= Pin 14
GND = Pin 7
SF00009
IEC/IEEE SYMBOL
2
3
5
6
8
9
11
12
1
4
10
13
SF00010
1
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
3
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free air temperature range.)
SYMBOL
PARAMETER
RATING
UNIT
V
CC
Supply voltage
0.5 to +7.0
V
V
IN
Input voltage
0.5 to +7.0
V
I
IN
Input current
30 to +5
mA
V
OUT
Voltage applied to output in high output state
0.5 to V
CC
V
I
OUT
Current applied to output in low output state
40
mA
T
amb
Operating free air temperature range
Commercial range
0 to +70
C
Industrial range
40 to +85
C
T
stg
Storage temperature range
65 to +150
C
RECOMMENDED OPERATING CONDITIONS
SYMBOL
PARAMETER
LIMITS
UNIT
MIN
NOM
MAX
V
CC
Supply voltage
4.5
5.0
5.5
V
V
IH
High-level input voltage
2.0
V
V
IL
Low-level input voltage
0.8
V
I
Ik
Input clamp current
18
mA
I
OH
High-level output current
1
mA
I
OL
Low-level output current
20
mA
T
amb
Operating free air temperature range
Commercial range
0
+70
C
Industrial range
40
+85
C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
SYMBOL
PARAMETER
TEST CONDITIONS
1
LIMITS
UNIT
MIN
TYP
2
MAX
V
OH
High-level output voltage
V
CC
= MIN, V
IL
= MAX
10%V
CC
2.5
V
V
IH
= MIN, I
OH
= MAX
5%V
CC
2.7
3.4
V
V
OL
Low-level output voltage
V
CC
= MIN, V
IL
= MAX
10%V
CC
0.30
0.50
V
V
IH
= MIN, I
Ol
= MAX
5%V
CC
0.30
0.50
V
V
IK
Input clamp voltage
V
CC
= MIN, I
I
= I
IK
-0.73
-1.2
V
I
I
Input current at maximum input
voltage
V
CC
= MAX, V
I
= 7.0V
100
A
I
IH
High-level input current
V
CC
= MAX, V
I
= 2.7V
20
A
I
IL
Low-level input current
V
CC
= MAX, V
I
= 0.5V
-0.6
mA
I
OS
Short-circuit output current
3
V
CC
= MAX
-60
-150
mA
I
CC
Supply current (total)
4
I
CCH
V
CC
= MAX
3.0
5.6
mA
I
CCL
V
CC
= MAX
7.0
13.0
mA
NOTES:
1
For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2
All typical values are at V
CC
= 5V, T
amb
= 25
C.
3
Not more than one output should be shorted at a time. For testing I
OS
, the use of high-speed test apparatus and/or sample-and-hold
techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting
of a high output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I
OS
tests should be performed last.
4
I
CC
is measured with outputs open.
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
4
AC ELECTRICAL CHARACTERISTICS
LIMITS
TEST
V
CC
= +5.0V
V
CC
= +5.0V
10%
V
CC
= +5.0V
10%
SYMBOL
PARAMETER
TEST
CONDITION
T
amb
= +25
C
T
amb
= 0
C to +70
C
T
amb
= 40
C to +85
C
UNIT
CONDITION
C
L
= 50pF, R
L
= 500
C
L
= 50pF, R
L
= 500
C
L
= 50pF, R
L
= 500
MIN
TYP
MAX
MIN
MAX
MIN
MAX
t
PLH
t
PHL
Propagation delay
Dna, Dnb to Qn
Waveform 1
2.5
2.0
4.4
3.2
5.5
4.3
2.5
2.0
6.5
5.3
2.5
1.5
7.0
6.0
ns
AC WAVEFORMS
For all waveforms, V
M
= 1.5V.
VM
VM
VM
VM
Qn
Dna, Dnb
tPHL
tPLH
SF00005
Waveform 1.
Propagation delay for inverting outputs
TEST CIRCUIT AND WAVEFORM
tw
90%
VM
10%
90%
VM
10%
90%
VM
10%
90%
VM
10%
NEGATIVE
PULSE
POSITIVE
PULSE
tw
AMP (V)
0V
0V
tTHL (tf
)
INPUT PULSE REQUIREMENTS
rep. rate
t
w
t
TLH
t
THL
1MHz
500ns
2.5ns
2.5ns
Input Pulse Definition
VCC
family
74F
D.U.T.
PULSE
GENERATOR
RL
CL
RT
VIN
VOUT
Test Circuit for Totem-Pole Outputs
DEFINITIONS:
R
L
= Load resistor;
see AC ELECTRICAL CHARACTERISTICS for value.
C
L
= Load capacitance includes jig and probe capacitance;
see AC ELECTRICAL CHARACTERISTICS for value.
R
T
= Termination resistance should be equal to Z
OUT
of
pulse generators.
tTHL (tf
)
tTLH (tr
)
tTLH (tr
)
AMP (V)
amplitude
3.0V
1.5V
V
M
SF00006
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
5

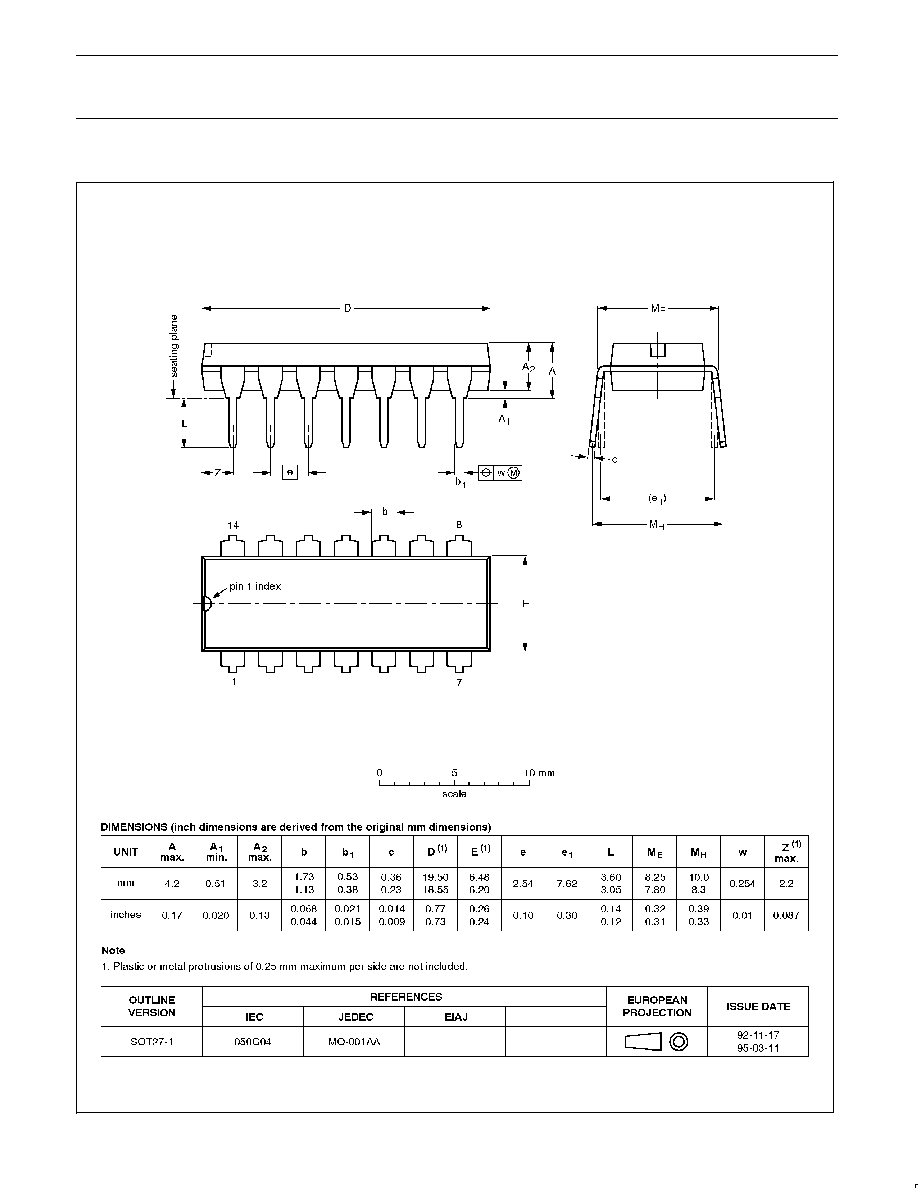

DIP14:
plastic dual in-line package; 14 leads (300 mil)
SOT27-1
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
6

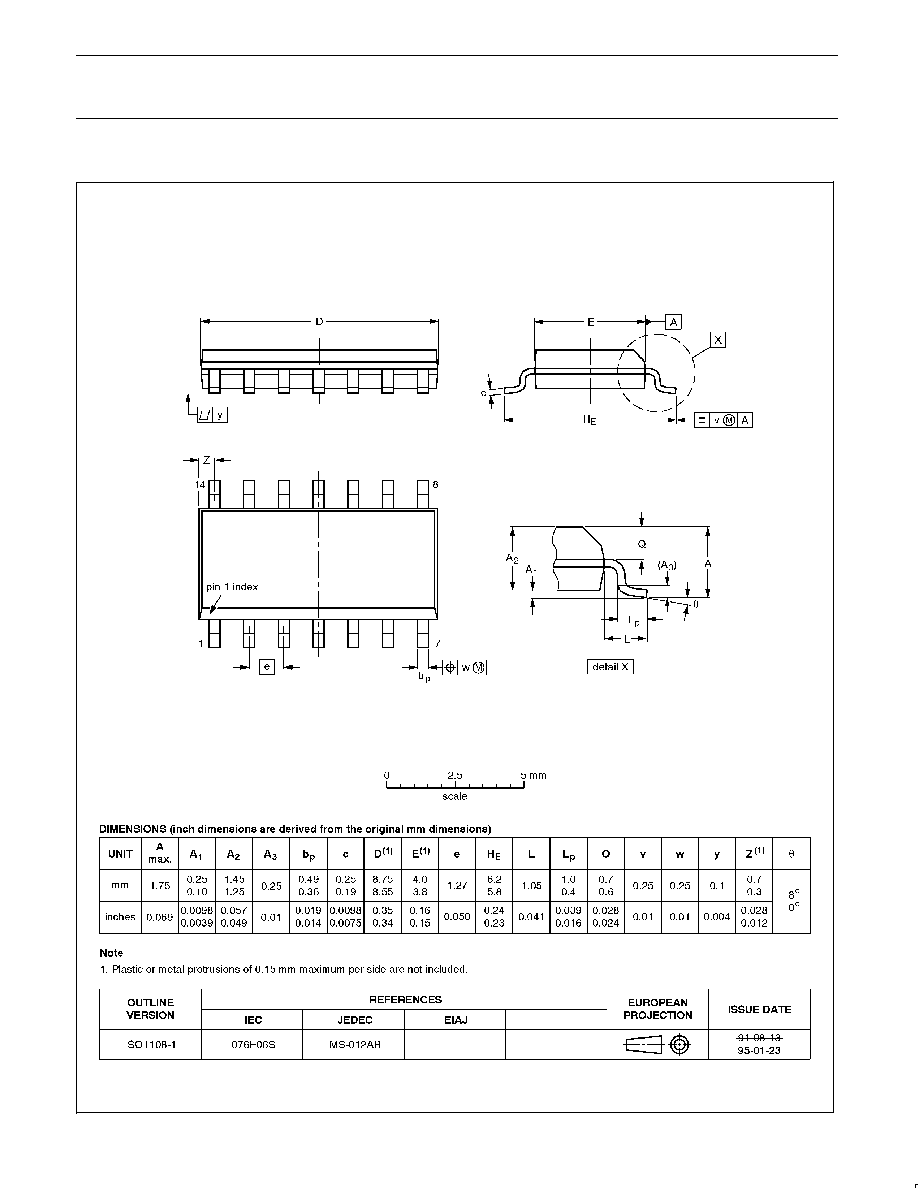

SO14:
plastic small outline package; 14 leads; body width 3.9 mm
SOT108-1
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
7
NOTES
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
8
DIP14:
plastic dual in-line package; 14 leads (300 mil)
SOT27-1
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
9
SO14:
plastic small outline package; 14 leads; body width 3.9 mm
SOT108-1
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
10
NOTES
Philips Semiconductors
Product specification
74F02
Quad 2-input NOR gate
1990 Oct 04
11
