Philips
Semiconductors
74F64
4-2-3-2-input AND-OR-invert gate
Product specification
1996 Mar 14
INTEGRATED CIRCUITS
IC15 Data Handbook
Philips Semiconductors
Product specification
74F64
4-2-3-2-input AND-OR-invert gate
2
1996 Mar 14
8530334 16574
TYPE
TYPICAL
PROPAGATION
DELAY
TYPICAL
SUPPLY CURRENT
(TOTAL)
74F64
4.0ns
2.5mA
ORDERING INFORMATION
DESCRIPTION
COMMERCIAL RANGE
V
CC
= 5V
10%,
T
amb
= 0
C to +70
C
PKG. DWG. #
14-pin plastic DIP
N74F64N
SOT27-1
14-pin plastic SO
N74F64D
SOT108-1
PIN CONFIGURATION
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
V
CC
Dk
Dj
Q
Df
Dd
De
Dc
Da
Di
Db
Dg
Dh
SF00094
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS
DESCRIPTION
74F (U.L.) HIGH/LOW
LOAD VALUE HIGH/LOW
Dn
Data inputs
1.0/1.0
20
A/0.6mA
Q
Data output
50/33
1.0mA/20mA
NOTE: One (1.0) FAST unit load is defined as: 20
A in the High state and 0.6mA in the Low state.
LOGIC SYMBOL
Q
8
3
1
13
12
11
4
5
6
V
CC
= Pin 14
GND = Pin 7
SF00095
2
9
10
Da
Db
Dc
Dd
De
Df
Dg
Dh
Di
Dj
Dk
IEC/IEEE SYMBOL
SF00096
1
8
2
3
1
13
12
11
4
5
6
9
&
&
&
&
10
Philips Semiconductors
Product specification
74F64
4-2-3-2-input AND-OR-invert gate
1996 Mar 14
3
LOGIC DIAGRAM
V
CC
= Pin 14
GND = Pin 7
SF00097
1
13
12
9
10
Dc
Dd
De
Dj
Dk
Q
8
4
5
6
Dg
Dh
Di
2
3
Da
Db
11
Df
FUNCTION TABLE
INPUTS
OUTPUT
Da
Db
Dc
Dd
De
Df
Dg
Dh
Di
Dj
Dk
Q
H
H
X
X
X
X
X
X
X
X
X
L
X
X
H
H
H
H
X
X
X
X
X
L
X
X
X
X
X
X
H
H
H
X
X
L
X
X
X
X
X
X
X
X
X
H
H
L
All other combinations
H
NOTES:
1. H = High voltage level
2. L = Low voltage level
3. X = Don't care
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limits set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free-air temperature range.)
SYMBOL
PARAMETER
RATING
UNIT
V
CC
Supply voltage
0.5 to +7.0
V
V
IN
Input voltage
0.5 to +7.0
V
I
IN
Input current
30 to +5
mA
V
OUT
Voltage applied to output in High output state
0.5 to V
CC
V
I
OUT
Current applied to output in Low output state
40
mA
T
amb
Operating free-air temperature range
0 to +70
C
T
stg
Storage temperature range
65 to +150
C
Philips Semiconductors
Product specification
74F64
4-2-3-2-input AND-OR-invert gate
1996 Mar 14
4
RECOMMENDED OPERATING CONDITIONS
SYMBOL
PARAMETER
LIMITS
UNIT
SYMBOL
PARAMETER
MIN
NOM
MAX
UNIT
V
CC
Supply voltage
4.5
5.0
5.5
V
V
IH
High-level input voltage
2.0
V
V
IL
Low-level input voltage
0.8
V
I
IK
Input clamp current
18
mA
I
OH
High-level output current
1
mA
I
OL
Low-level output current
20
mA
T
amb
Operating free-air temperature range
0
+70
C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
SYMBOL
PARAMETER
TEST CONDITIONS
1
LIMITS
UNIT
SYMBOL
PARAMETER
TEST CONDITIONS
1
MIN
TYP
2
MAX
UNIT
V
O
High level output voltage
V
CC
= MIN, V
IL
= MAX
10%V
CC
2.5
V
V
OH
High-level output voltage
V
IH
= MIN, I
OH
= MAX
5%V
CC
2.7
3.4
V
V
O
Low level output voltage
V
CC
= MIN, V
IL
= MAX
10%V
CC
0.30
0.50
V
V
OL
Low-level output voltage
V
IH
= MIN, I
OL
= MAX
5%V
CC
0.30
0.50
V
V
IK
Input clamp voltage
V
CC
= MIN, I
I
= I
IK
0.73
1.2
V
I
I
Input current at maximum input
voltage
V
CC
= MAX, V
I
= 7.0V
100
A
I
IH
High-level input current
V
CC
= MAX, V
I
= 2.7V
20
A
I
IL
Low-level input current
V
CC
= MAX, V
I
= 0.5V
0.6
mA
I
OS
Short-circuit output current
3
V
CC
= MAX
60
150
mA
I
CC
Supply current (total)
I
CCH
V
CC
= MAX
V
IN
= GND
1.9
2.8
mA
I
CC
Supply current (total)
I
CCL
V
CC
= MAX
V
IN
= 4.5V
3.1
4.7
mA
NOTES:
1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2. All typical values are at V
CC
= 5V, T
amb
= 25
C.
3. Not more than one output should be shorted at a time. For testing I
OS
, the use of high-speed test apparatus and/or sample-and-hold
techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting
of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I
OS
tests should be performed last.
Philips Semiconductors
Product specification
74F64
4-2-3-2-input AND-OR-invert gate
1996 Mar 14
5
AC ELECTRICAL CHARACTERISTICS
LIMITS
TEST
V
CC
= +5.0V
V
CC
= +5.0V
10%
SYMBOL
PARAMETER
TEST
CONDITION
T
amb
= +25
C
T
amb
= 0
C to +70
C
UNIT
CONDITION
C
L
= 50pF, R
L
= 500
C
L
= 50pF, R
L
= 500
MIN
TYP
MAX
MIN
MAX
t
PLH
t
PHL
Propagation delay
Dn to Q
Waveform 1
2.5
2.0
4.6
3.2
6.0
4.5
2.5
2.0
7.0
5.5
ns
AC WAVEFORMS
For all waveforms, V
M
= 1.5V.
VM
VM
VM
VM
Q
Dn
tPHL
tPLH
SF00098
Waveform 1.
Propagation Delay for Inverting Outputs
TEST CIRCUIT AND WAVEFORM
tw
90%
VM
10%
90%
VM
10%
90%
VM
10%
90%
VM
10%
NEGATIVE
PULSE
POSITIVE
PULSE
tw
AMP (V)
0V
0V
tTHL (tf
)
INPUT PULSE REQUIREMENTS
rep. rate
t
w
t
TLH
t
THL
1MHz
500ns
2.5ns
2.5ns
Input Pulse Definition
VCC
family
74F
D.U.T.
PULSE
GENERATOR
RL
CL
RT
VIN
VOUT
Test Circuit for Totem-Pole Outputs
DEFINITIONS:
R
L
= Load resistor;
see AC ELECTRICAL CHARACTERISTICS for value.
C
L
= Load capacitance includes jig and probe capacitance;
see AC ELECTRICAL CHARACTERISTICS for value.
R
T
= Termination resistance should be equal to Z
OUT
of
pulse generators.
tTHL (tf
)
tTLH (tr
)
tTLH (tr
)
AMP (V)
amplitude
3.0V
1.5V
V
M
SF00006
Philips Semiconductors
Product specification
74F64
4-2-3-2 Input AND-OR Invert Gate
1996 Mar 14
6

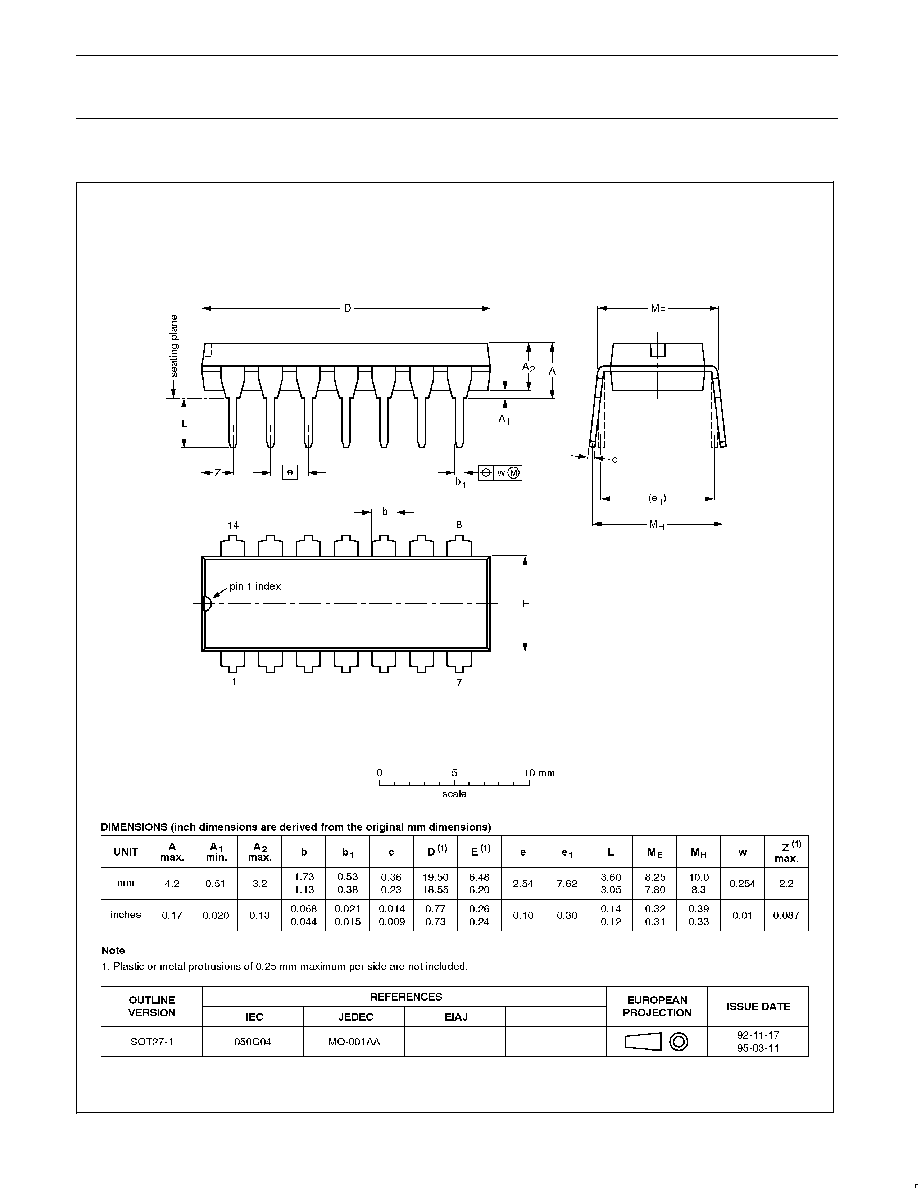

DIP14:
plastic dual in-line package; 14 leads (300 mil)
SOT27-1
Philips Semiconductors
Product specification
74F64
4-2-3-2 Input AND-OR Invert Gate
1996 Mar 14
7

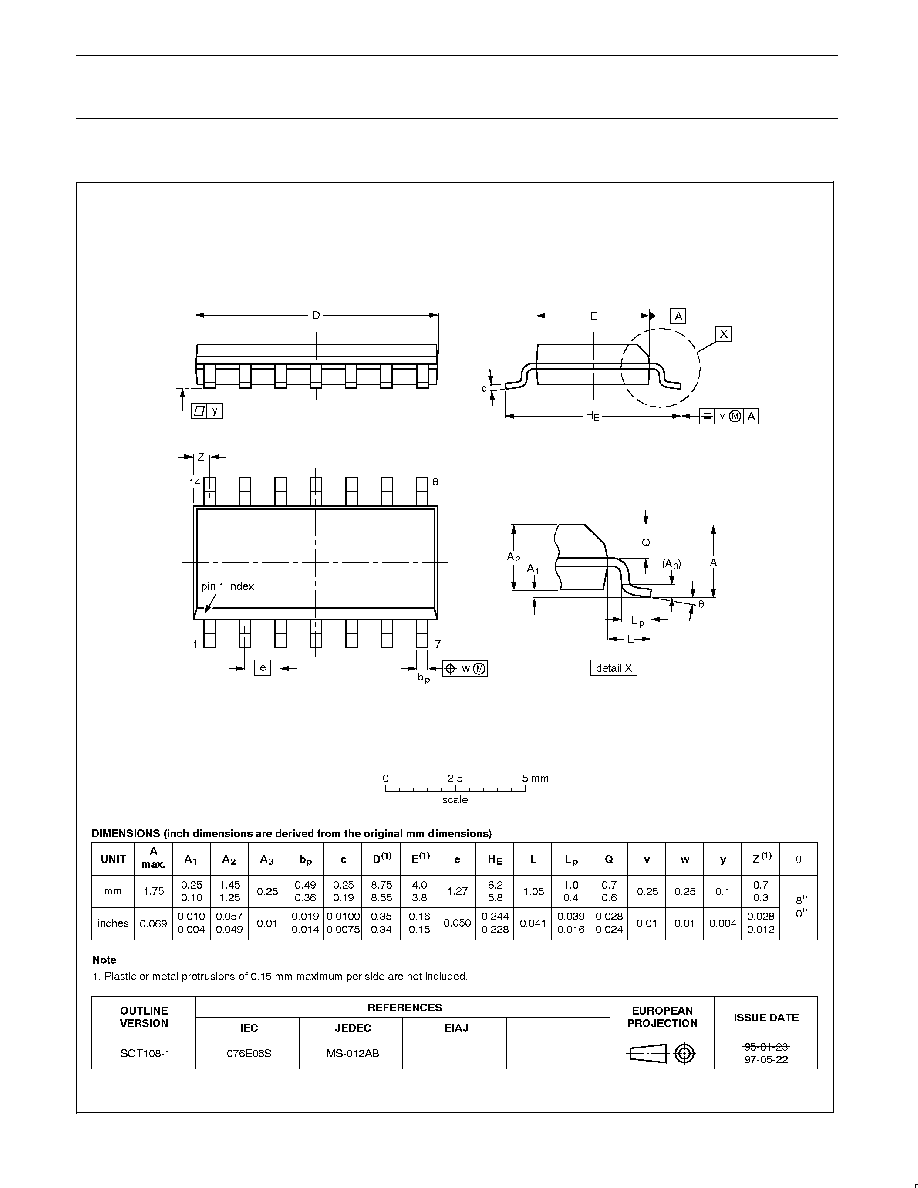

SO14:
plastic small outline package; 14 leads; body width 3.9 mm
SOT108-1
Philips Semiconductors
Product specification
74F64
4-2-3-2-input AND-OR-invert gate
Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products,
including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright,
or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes
only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing
or modification.
LIFE SUPPORT APPLICATIONS
Philips Semiconductors and Philips Electronics North America Corporation Products are not designed for use in life support appliances, devices,
or systems where malfunction of a Philips Semiconductors and Philips Electronics North America Corporation Product can reasonably be expected
to result in a personal injury. Philips Semiconductors and Philips Electronics North America Corporation customers using or selling Philips
Semiconductors and Philips Electronics North America Corporation Products for use in such applications do so at their own risk and agree to fully
indemnify Philips Semiconductors and Philips Electronics North America Corporation for any damages resulting from such improper use or sale.
This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips
Semiconductors reserves the right to make changes at any time without notice in order to improve design
and supply the best possible product.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 940883409
Telephone 800-234-7381
DEFINITIONS
Data Sheet Identification
Product Status
Definition
Objective Specification
Preliminary Specification
Product Specification
Formative or in Design
Preproduction Product
Full Production
This data sheet contains the design target or goal specifications for product development. Specifications
may change in any manner without notice.
This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes
at any time without notice, in order to improve design and supply the best possible product.
Philips Semiconductors and Philips Electronics North America Corporation
register eligible circuits under the Semiconductor Chip Protection Act.
Copyright Philips Electronics North America Corporation 1996
All rights reserved. Printed in U.S.A.
