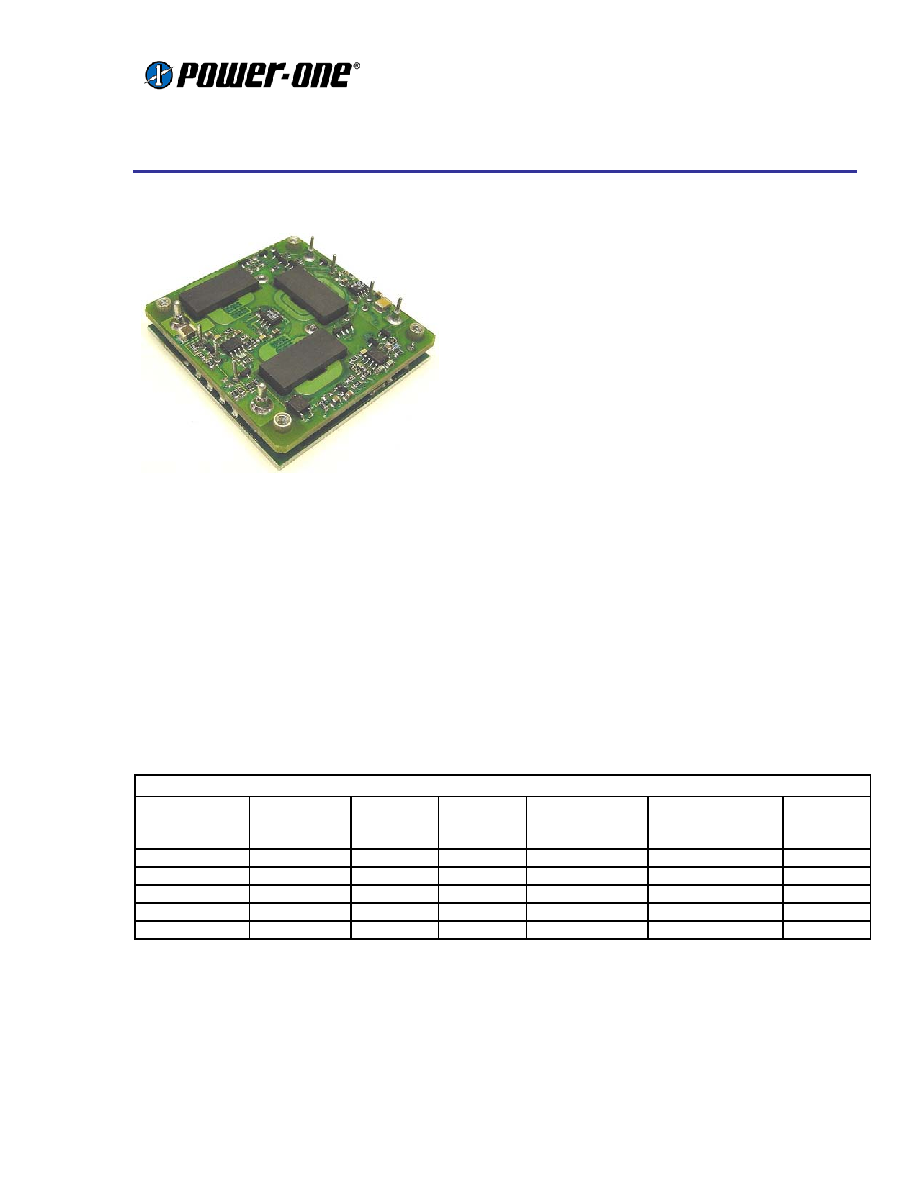

Product Brief
HHS60 Series 60A Half-Brick DC/DC Converter
48V Input
3.3V, 2.5V, 1,8V, 1.5V, 1.2V Outputs
Page 1 of 2
www.power-one.com
Applications
Distributed power architectures
Telecommunications
equipment
LAN/WAN
applications
Data processing applications
Features
Open-frame design with Insulated Metal
Substrate
Low profile 12.7 mm height
Input/output
isolation: 1500VDC, meets basic
insulation requirements
Start-up into high capacitive load
Output
back-drive capability
Low conducted and radiated EMI
Output overcurrent protection
Output overvoltage protection
Overtemperature
protection
Remote
sense
Set
point
accuracy
1.0%
Remote on/off, positive or negative logic
Output trim, positive or negative
UL 1950 Recognition, CSA 22.2 No. 950-95
certification, TUV IEC950
Description
HHS60 single-output DC/DC converters provide up to 60A output current in an industry-standard, half-brick
package. This high-density product converts standard telecom and datacom input voltages to regulated, low
output voltages. The HHS60's leading-edge technology provides high efficiency. Its thermal design enables
delivery of full-rated power at 55C ambient temperature by using only 200 LFM of forced-air cooling without
the need of a heatsink.
Selection Chart
Model
Input
voltage
VDC
Input
current
max, ADC
Output
voltage
VDC
Output
current
ADC
Output
ripple/noise (mV
p-p)
Typical
efficiency
HHS60ZE
36-75
5.0
3.3
60
200
89.0
HHS60ZD
36-75
4.9
2.5
60
200
88.0
HHS60ZB
36-75
3.6
1.8
60
200
86.0
HHS60ZA
36-75
3.1
1.5
60
200
84.0
HHS60ZY
36-75
3.1
1.2
60
200
82.0
Product Brief
HHS60 Series 60A Half-Brick DC/DC Converter
48V Input
3.3V, 2.5V, 1,8V, 1.5V, 1.2V Outputs
Page 2 of 2
www.power-one.com

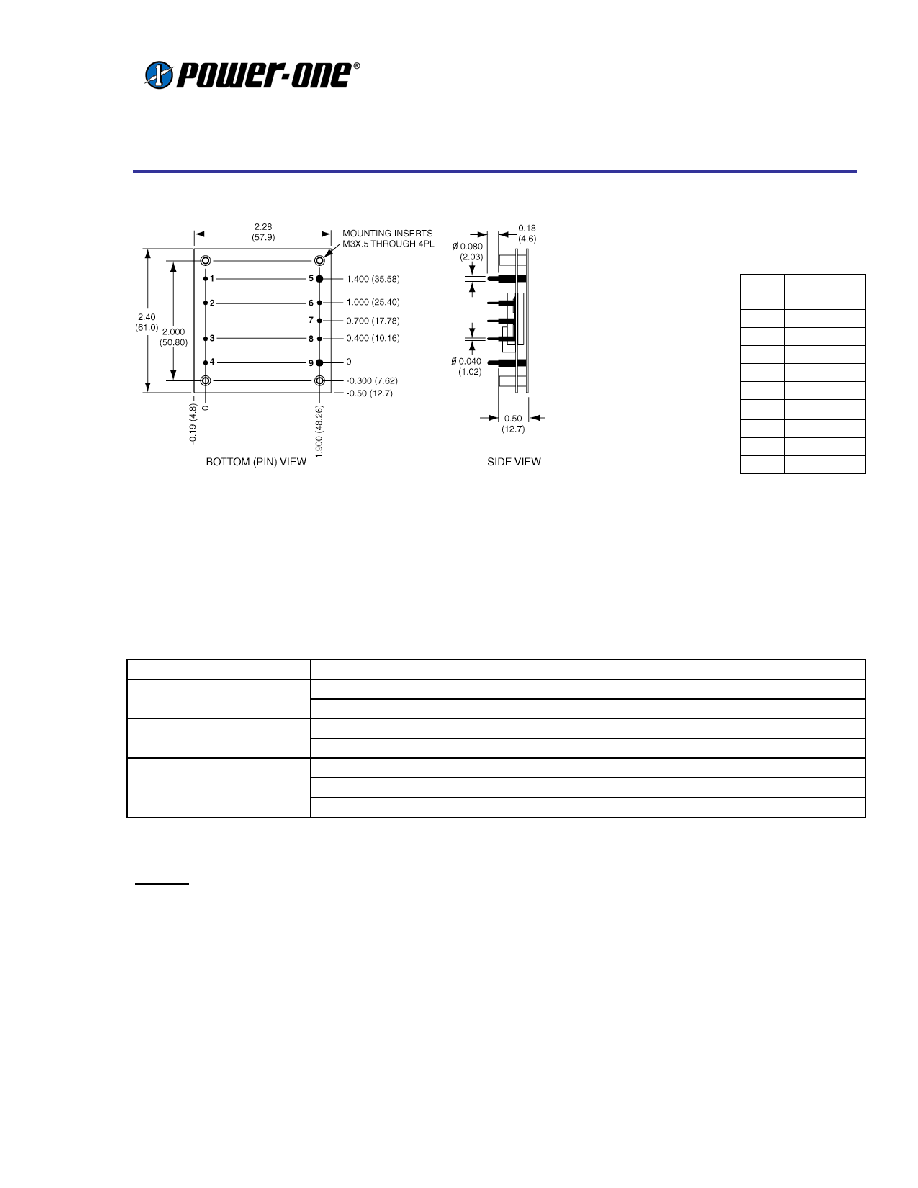

Mechanical Drawing
Tolerances:
.xx
.020 (.5)
.xxx
.010 (.25)
Pin diameter
.0.002 (.05)
Ordering Information
Options
Suffixes to add to part number
Positive- Standard, no suffix required
Remote On/Off
Negative- Add "N" suffix
Negative- Standard, no suffix required
Trim
Lucent compatible- Add "T" suffix
0.18"- Standard, no suffix required
0.11"- Add "8" suffix
Pin Length
0.15"- Add "9" suffix
Notes
1.
Consult factory for the complete list of available options.
2.
Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous
environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
3.
Specifications are subject to change without notice.
Pin
#
Function
1
-Vin
2
Case
3
ON/OFF
4
+Vin
5
-Vout
6
-Sense
7
Trim
8
+Sense
9
+Vout
