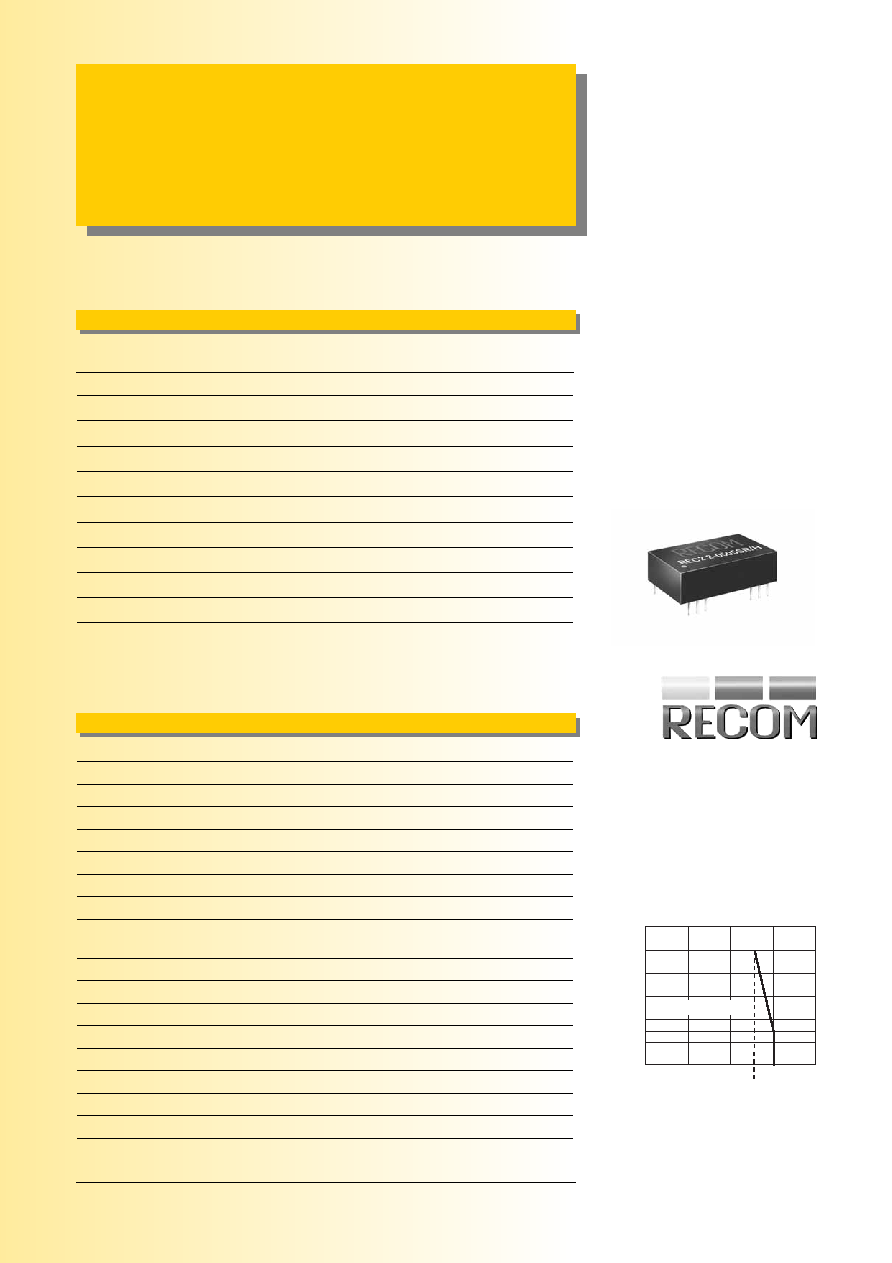

www.recom-international.com
83
April-2005
Output Power (%)
100
60
20
40
100
50
0
-40
80
150
Operating Temperature C
0
80
Safe Operating Area
30
Derating-Graph
(Ambient Temperature)
Selection Guide
2.2 Watt
DIP24
Single
&
&
Dual Output
ECONOLINE
DC/DC-Converter
REC2.2-
S_DR/H1
Series
2.2W DIP Package
1kVDC Isolation
Regulated Output
UL94V-0 Package Material
Continuous Short Circuit Protection
Internal SMD design
100% Burned In
Efficiency to 75%
Features
Regulated
Converters
Specifications (Core Operating Area)
Part
Input
Output
Output
Number
Voltage
Voltage
Current
DIP24
(VDC)
(VDC)
(mA)
REC2.2-xx3.3SR/H1
5, 12, 24, 48
3.3
600
REC2.2-xx05SR/H1
5, 12, 24, 48
5
440
REC2.2-xx09SR/H1
5, 12, 24, 48 9
244
REC2.2-xx12SR/H1
5, 12, 24, 48
12
183
REC2.2-xx15SR/H1
5, 12, 24, 48
15
146
REC2.2-xx05DR/H1
5, 12, 24, 48
5
220
REC2.2-xx09DR/H1
5, 12, 24, 48 9
122
REC2.2-xx12DR/H1
5, 12, 24, 48
12
92
REC2.2-xx15DR/H1
5, 12, 24, 48
15
73
xx = Input Voltage
Input Voltage Range
15%
Output Voltage Accuracy
3% typ.
Line Voltage Regulation
0.5% max
Load Voltage Regulation (10% to 100% full load )
1% max.
Output Ripple and Noise (at 20MHz BW)
100mVp-p max.
Operating Frequency
75kHz min.
Efficiency at Full Load
65% min.
No Load Power Consumption
200mW max.
Isolation Voltage
(tested for 1 second)
1.000VDC min.
Rated Working Voltage
(long term isolation)
see Application Notes
Isolation Capacitance
30pF typ.
Isolation Resistance
1 G
min.
Short Circuit Protection
Continuous
Operating Temperature Range (free air convection)
-40C to +80C (see Graph)
Storage Temperature Range
-50C to +125C
Relative Humidity MSL Level 1
95% RH
Thermal Impedance Natural convection
20C/W for metal case
Package Weight
12 g
MTBF (+25C) using MIL-HDBK 217F
1000 x 10
3
hours
(+80C)
using MIL-HDBK 217F
150 x 10
3
hours
}
Detailed Information see
Application Notes chapter "MTBF"
84
www.recom-international.com
April-2005
Pin Connections
Pin #
Single
Dual
1
+Vin
+Vin
2
No Pin
Vout
3
No Pin
Com
10
Vout
Com
11
+ Vout
+ Vout
12
Vin
Vin
13
Vin
Vin
14
+ Vout
+ Vout
15
Vout
Com
22
No Pin
Com
23
No Pin
Vout
24
+Vin
+Vin
Package Style and Pinning (mm)
REC2.2-S_DR/H1
Series
ECONOLINE
DC/DC-Converter
32.00
10.20
3.81
2.06
1
Bottom View
Top View
12
11
10
3
2
13
14
15
22
23
24
15.24
20.30
2.54
1.00 +0.15/0
0.51
2.54
3rd angle
projection
Recommended Footprint Details
24 PIN DIP Package
XX.X 0.5 mm
XX.XX 0.25 mm
