50 Watt
Single
Output
INNOLINE
DC/DC-Converter
RP50-S
Series
Single Outputs up to 15A
Input/Output 1.6kVDC Isolation
Adjustable Output Voltage
No Minimum Load
Under -Voltage Lockout
Industry Standard Footprint
Fixed Operating Frequency
Halt Tested
Compact 61.0 x 57.91 x 12.7mm Package
High Efficiency to 91%
Features
Selection Guide
Notes:
Part Input Output Output Line
Load Input Efficiency
Number Voltage Voltage Current Regulation Regulation Current
S
Siinnggllee O
Ouuttppuutt
(VDC) (VDC) (A) (mV) (mV) (A) %
RP50-241.8S 18 36 1.8 15 4 6 1.36 86
RP50-242.5S 18 36 2.5 15 5 8 1.86 87
RP50-243.3S 18 36 3.3 15 7 10 2.40 89
RP50-2405S 18 36 5 10 10 15 2.40 90
RP50-2415S 18 36 15 3.3 30 45 2.40 89
RP50-481.8S 36 75 1.8 15 4 6 1.36 87
RP50-482.5S 36 75 2.5 15 5 8 1.86 89
RP50-483.3S 36 75 3.3 15 7 10 2.40 90
RP50-4805S 36 75 5 10 10 15 2.40 91
RP50-4815S 36 75 15 3.3 30 45 2.40 90
1. Maximum output deviation is 10% inclusive of remote sense. If remote sense is not being used,
the +Vsense should be connected to its corresponding +Vout
2. Measured with a 1uF M/C and a 10uF T/C.
3. An external filter capacitor is required for normal operation. The capacitor should be capable of handing 1A
ripple current for 48V/24V models. RECOM suggests: Nippon chemi-con KMF series, 220F/100V, ESR 90m
.
4. The negative/ positive logic and pin length are optional ( see table ). The pin voltage is referenced to
negative input.
5. Heat sink is optional and P/N: 7G-0021, 7G-0022, 7G-0023, 7G-0024.
6. The RP50 meets level A and level B conducted emissions only with external components connected before
the input pin to the converter.
7. Maximum value at nominal input voltage and full load.
8. Typical value at nominal input voltage and full load.
9. BASEPLATE GROUNDING : Base-plate should be grounded at one of the four screw bolts prior to operation.
10. The converter is provided by basic insulation.
11. "N
N" for Negative remote ON/OFF.
12. "P
P" for
Positive
remote ON/OFF.
www.recom-international.com
141
April-2005
Input Voltage Range
18 - 36, 36-75VDC
(24, 48V nom.)
Unde-Voltage Lockout Start-up Voltage
24V input
17V typ.
48V input
34V typ.
Unde-Voltage Lockout Shuntdown Voltage
24V input
15V typ.
48V input
32V typ.
Input Filter (Note 3)
L-C type
Input voltage variation
dv/dt
5V/ms max
(Complies with ETS300 132 part4.4)
Input Surge Voltage 100mS max
24V input
50VDC
48V input
100VDC
Start up time
Nominal Vin and constant resistive load
25mS typ.
Input Reflected-Ripple Current
24V input
50mAp-p
(5Hz to 20Hz, 12uH Source inpedance)
48V input
20mAp-p
Remote ON/OFF (Note 4)
(Positive logic)
ON=Open or 3.5V < Vr < 15V,
I
IN
=50A max.
OFF=Short or 0V < Vr < 1.2V,
I
IN
=1mA max.
(Negative logic)
ON=Short or 0V < Vr < 1.2V,
I
IN
=1mA max.
OFF=Open or 3.5V < Vr < 15V,
I
IN
=50A max.
Continuous Output Power
50W max.
Output Voltage Accuracy (Full load and nominal Vin)
1.5%
Output Voltage Adjustment (Note 1)
+10%, -20%
Minimum Load
0%
Line Regulation
LL to HL at FL
See table
Load Regulation
0% to 100% FL
See table
Remote Sense (Note 1)
10% of Vout
Ripple and Noise 20MHz bandwidth (Note 2)
100mVp-p
Temperature Coefficient
0.02%/C
Transient Response Recovery Time (25% load step change)
200us
Over Voltage Protection threshold (Hiccup)
115% ~ 130% of Vout
Over Current Protection threshold
110% ~ 140% of Iout Rated
Short Circuit Protection
Hiccup, Automatic recovery
Efficiency (at nominal input voltage, full load)
up to 91%.
Isolation Voltage
Input to Output
1.600VDC min.
Input to Case
1.000VDC min.
Output to Case
1.000VDC min.
Isolation Resistance
10
7
ohms min.
Isolation Capacitance
2.500pF max.
Operating Frequency
300KHz typ.
Operating Temperature Range
-40C to +100C (base plate)
Over Temperature Protection
110C
Storage Temperature Range
-55C to +125C
Humidity max., Non-condensing
95%
Thermal Shock
MIL-STD-810D
Continued next page
RP50-S
Series
Specifications (refer to the standard application circuit, Ta: 25C)
INNOLINE
DC/DC-Converter
142
www.recom-international.com
April-2005
Vibration
10 ~ 55Hz 2G, 3minutes period, 30minutes analog
X, Y and Z
Conducted Emissions
EN55022 (Note 7)
Level A
EN55022 (Note 7)
Level B
Radiated Emisssions
EN55022
Level A
ESD
EN61000-4-2
Perf. Criteria2
Radiated Immunity
EN61000-4-3
Perf. Criteria2
Fast Transient
EN61000-4-4
Perf. Criteria2
Surge
EN61000-4-5
Perf. Criteria2
Conducted Immunity
EN61000-4-6
Perf. Criteria2
Case Material
Open with Aluminium base plate
Weight
50g
MTBF Bellcore TR-NWT-000332, Tc=40C, Io=80% max.
3 x10
6
hrs
RP50-S
Series
Specifications (refer to the standard application circuit, Ta: 25C)
INNOLINE
DC/DC-Converter
Characteristics
Ambient Temperature (C)
Output Power (%)
50
30
70
110
10
60
-40
100
90
-20
0
20
40
80
1 2 34
1.) LFM590
2.) LFM400
3.) LFM200
4.) LFM20
48V Input Without Heatsink
Output Power (%) Ta=25C
Efficiency (%)
70
60
80
100
50
30
60
80
10
100
90
20
40 50
70
90
Efficiency VS Output Load
Ambient Temperature (C)
Output Power (%)
50
30
70
110
10
60
-40
100
90
-20
0
20
40
80
1 2 34
1.) LFM590
2.) LFM400
3.) LFM200
4.) LFM20
48V Input With Heatsink (7G-0022)
www.recom-international.com
143
April-2005
Trim Up
R
U
Trim Down
R
D
8
7
7
6
Product Options Table
External Output Trimming
Output can be externally trimmed by using the method
shown below.
See application notes for values.

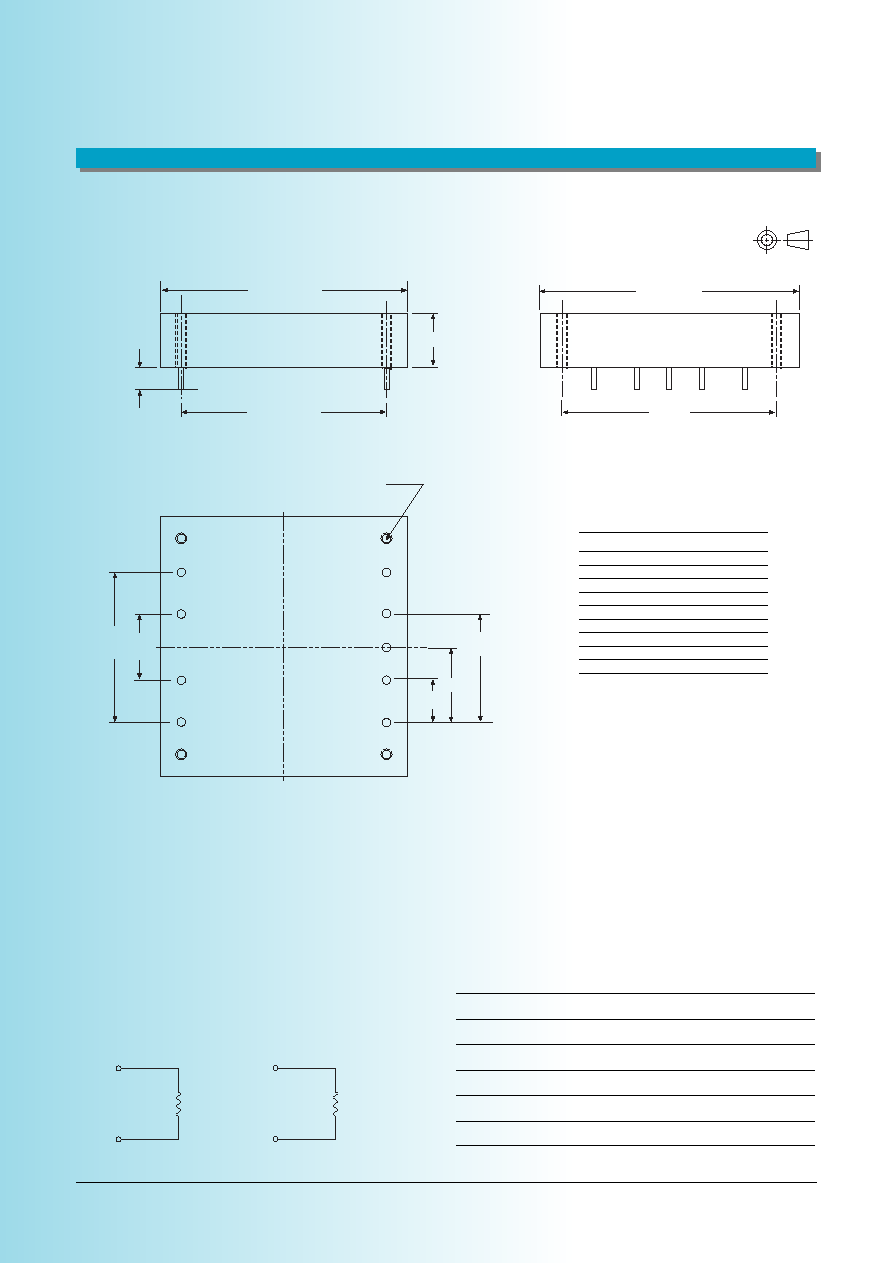

Package Style and Pinning (mm)
RP50-S
Series
INNOLINE
DC/DC-Converter
3rd angle
projection
60.96
57.91
Bottom View
50.80
35.56
15.24
10.16
4
3
2
8
7
6
9
12.70
5.08
48.26
Side View
17.78
25.40
4xM3 x 0.5 ( Note 10)
5
1
XX.X 0.5 mm
XX.XX 0.25 mm
Pin pitch tolerance 0.35mm
Pin Connections
Pin #
Function
Pin
1
Vin
1.016 mm
2
Case
1.016 mm
3 Remote ON/OFF
1.016 mm
4
+Vin
1.016 mm
5
Vout
2.032 mm
6 Vsense
1.016 mm
7
Trim
1.016 mm
8
+Vsense
1.016 mm
9
+Vout
2.032 mm
O
Oppttiioonn
S
Suuffffiixx
Negative remote ON/OFF logic, 0.20" pin length (standard)
Negative remote ON/OFF logic, 0.145" pin length
L
Negative remote ON/OFF logic, 0.11" pin length
K
Positive remote ON/OFF logic, 0.20" pin length
P
Positive remote ON/OFF logic, 0.145" pin length
S
Positive remote ON/OFF logic, 0.11" pin length
M
E
Exxaam
mppllee:: R
RP
P5
50
0--4
48
83
3..3
3S
S//P
P
