HD74LV1GT14A
Inverter with Schmitt-trigger Input
ADE-205-329D (Z)
5th. Edition
Feb. 2003
Description
The HD74LV1GT14A is high speed CMOS schmitt-trigger inverter using silicon gate CMOS process.
With CMOS low power dissipation, it provides high speed equivalent to LSTTL series. The internal
circuit of three stages construction with buffer provides wide noise margin and stable output. Low voltage
and high speed operation is suitable for the battery powered products (e.g., notebook computers), and the
low power consumption extends the battery life.
Features
The basic gate function is lined up as hitachi uni logic series.
Supplied on emboss taping for high speed automatic mounting.
TTL compatible input level.
Supply voltage range : 4.5 to 5.5 V
Operating temperature range : 40 to +85C
All inputs V
IH
(Max.) = 5.5 V (@V
CC
= 0 V to 5.5 V)
All outputs V
O
(Max.) = 5.5 V (@V
CC
= 0 V)
Output current 12 mA (@V
CC
= 4.5 V to 5.5 V)
All the logical input has hysteresis voltage for the slow transition.
Ordering Information
Part Name
Package Type
Package Code
Package
Abbreviation
Taping Abbreviation
(Quantity)
HD74LV1GT14ACME CMPAK-5 pin
CMPAK-5V
CM
E (3,000 pcs/reel)
HD74LV1GT14AVSE VSON-5 pin
TNP-5DV
VS
E (3,000 pcs/reel)
Note: Please consult the sales office for the above package availability.
HD74LV1GT14A
Rev.4, Feb. 2003, page 2 of 9

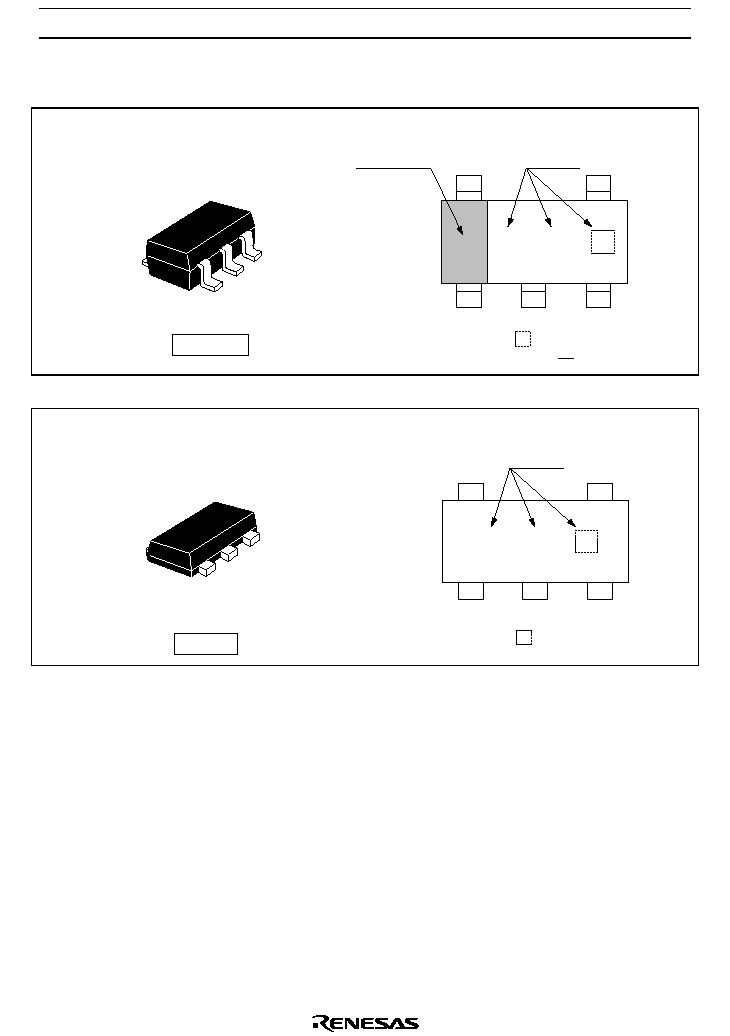

Outline and Article Indication
HD74LV1GT14A
Marking
= Control code
( or blank)
T A
Index band
CMPAK5
HD74LV1GT14A
Marking
= Control code
T A
VSON5
HD74LV1GT14A
Rev.4, Feb. 2003, page 3 of 9
Function Table
Input A
Output
Y
Y
Y
Y
H L
L H
H : High level
L : Low level
Pin Arrangement
(Top view)
5
4
V
CC
1
2
3
NC
IN A
GND
OUT
Y
HD74LV1GT14A
Rev.4, Feb. 2003, page 4 of 9
Absolute Maximum Ratings
Item Symbol
Ratings
Unit
Test
Conditions
Supply voltage range
V
CC
0.5 to 7.0
V
Input voltage range
*1
V
I
0.5 to 7.0
V
Output voltage range
*1, 2
V
O
0.5 to V
CC
+ 0.5
V
Output : H or L
0.5 to 7.0
V
CC
: OFF
Input clamp current
I
IK
20 mA
V
I
< 0
Output clamp current
I
OK
50
mA
V
O
< 0 or V
O
> V
CC
Continuous output current
I
O
25
mA
V
O
= 0 to V
CC
Continuous current through
V
CC
or GND
I
CC
or I
GND
50
mA
Maximum power dissipation
at Ta = 25C (in still air)
*3
P
T
200
mW
Storage temperature
Tstg
65 to 150
C
Notes:
The absolute maximum ratings are values which must not individually be exceeded, and
furthermore no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current
ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150C.
Recommended Operating Conditions
Item Symbol
Min
Max
Unit
Conditions
Supply voltage range
V
CC
4.5
5.5
V
Input voltage range
V
I
0
5.5
V
Output voltage range
V
O
0
V
CC
V
Output current
I
OL
-- 12
mA
V
CC
= 4.5 to 5.5 V
I
OH
--
12
V
CC
= 4.5 to 5.5 V
Operating free-air temperature T
a
40 85 C
Note: Unused or floating inputs must be held high or low.
HD74LV1GT14A
Rev.4, Feb. 2003, page 5 of 9
Electrical Characteristic
Ta = 40 to 85C
Item Symbol
V
CC
(V) *
Min
Typ
Max
Unit Test condition
Input voltage
V
T
+
4.5
--
-- 1.9
V
5.5
--
-- 2.1
V
T
4.5
0.5 --
--
5.5
0.6
--
--
V
T
4.5
0.4 -- 1.4
5.5
0.4
-- 1.5
Output voltage
V
OH
Min to Max V
CC
0.1
--
-- V
I
OH
= 50
A
4.5
3.8
--
--
I
OH
= 12 mA
V
OL
Min to Max --
-- 0.1
I
OL
= 50
A
4.5
--
-- 0.55
I
OL
= 12 mA
Input current
I
IN
0 to 5.5
--
-- 1
A V
IN
= 5.5 V or GND
Quiescent
supply current
I
CC
5.5
--
-- 10
A V
IN
= V
CC
or GND,
I
O
= 0
I
CC
5.5
--
--
1.5
mA One input V
IN
= 3.4 V,
other input V
CC
or GND
Output leakage current I
OFF
0
--
-- 5
A V
IN
or V
O
= 0 to 5.5 V
Input capacitance
C
IN
5.0
-- 3.0
-- pF
V
IN
= V
CC
or GND
Note: For conditions shown as Min or Max, use the appropriate values under recommended operating
conditions.
Switching Characteristics
V
CC
= 5.0 0.5 V
Item
Symbol Ta = 25C
Ta = 40 to 85C
Unit Test
FROM TO
Min
Typ
Max
Min
Max
Conditions
(Input)
(Output)
Propagation t
PLH
-- 5.0 7.6 1.0 9.0 ns
C
L
= 15 pF A
Y
delay time
t
PHL
-- 6.5 9.6 1.0 11.0 C
L
= 50 pF
Operating Characteristics
C
L
= 50 pF
Item Symbol
V
CC
(V) Ta = 25C
Unit
Test Conditions
Min
Typ
Max
Power dissipation
capacitance
C
PD
5.0
-- 10.0
--
pF
f = 10 MHz
HD74LV1GT14A
Rev.4, Feb. 2003, page 6 of 9

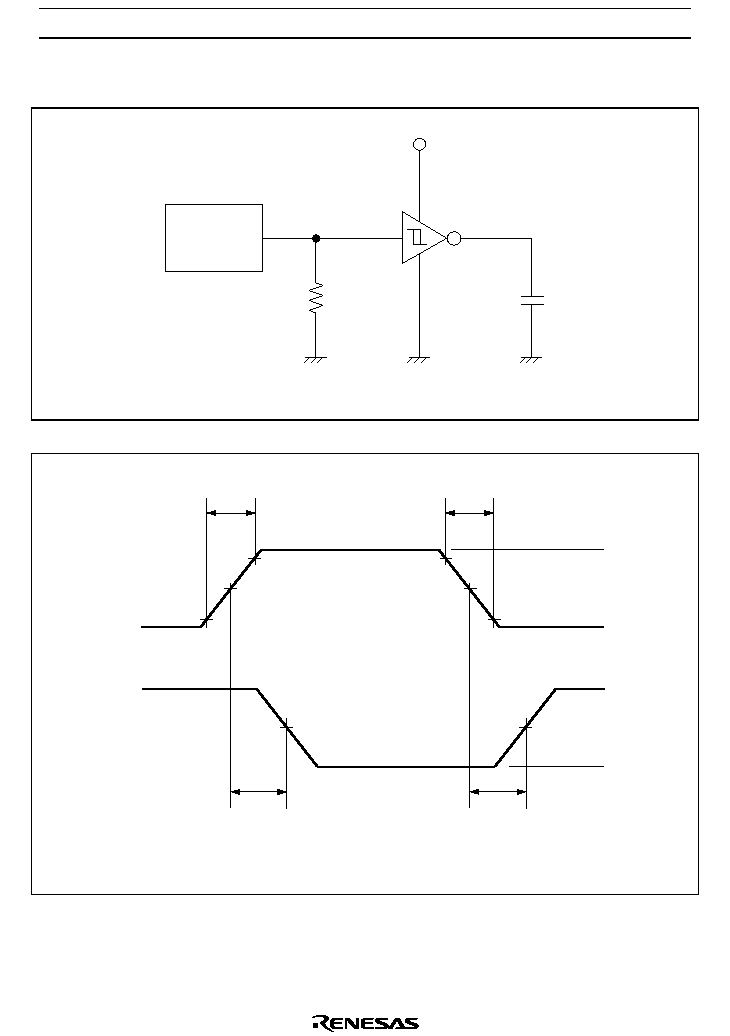

Test Circuit
Pulse
generator
50
C
L
Input
Output
V
CC
L
Note: C includes probe and jig capacitance.
Input
Output
90%
1.5 V
10%
50%
t
PHL
t
PLH
3 V
GND
V
OH
V
OL
t
r
t
f
90%
1.5 V
10%
50%
Waveforms
Notes: 1. Input waveform : PRR
1 MHz, Zo = 50 , t
r
3 ns, t
f
3 ns.
2. The output are measured one at a time with one transition per measurement.
HD74LV1GT14A
Rev.4, Feb. 2003, page 7 of 9

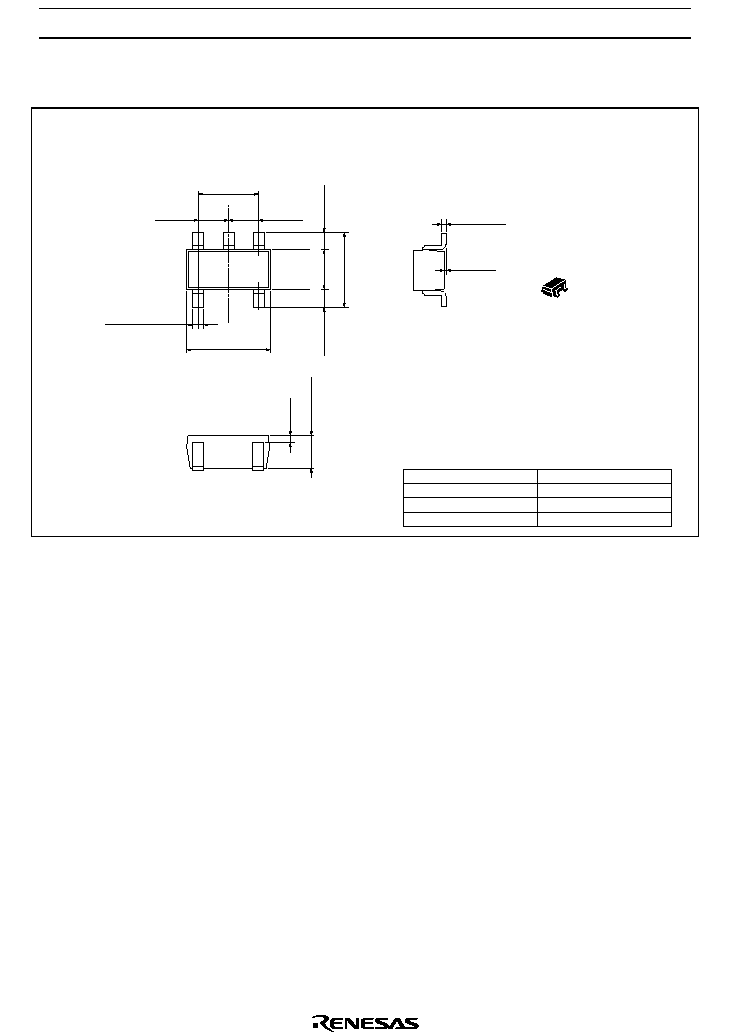

Package Dimensions
Hitachi Code
JEDEC
JEITA
Mass (reference value)
CMPAK-5V
--
Conforms
0.006 g
2.0 0.2
1.3 0.2
(0.65)
5 0.2 0.05
*Sn-Bi plating
(0.65)
(0.425)
(0.425)
1.25 0.1
2.1 0.3
(0.2)
0.9 0.1
0.15
0 0.1
+ 0.1
0.05
Unit: mm
HD74LV1GT14A
Rev.4, Feb. 2003, page 8 of 9
0.12
5 0.2
1.6
0.05
1.2
0.1
0.2
0.2
1.6
0.05
0.6 MAX
0.5
0.5
1.0
0.1
Hitachi Code
JEDEC
JEITA
Mass (reference value)
TNP-5DV
0.002 g
Unit: mm
+0.1
0.05
(0.1)
(0.1)
+0.1
0.05
*Sn-Bi plating
HD74LV1GT14A
Rev.4, Feb. 2003, page 9 of 9
Disclaimer
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi's or any third party's patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party's rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi's sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi's sales office for any questions regarding this document or Hitachi semiconductor
products.
Sales Offices
Hitachi, Ltd.
Semiconductor & Integrated Circuits
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: (03) 3270-2111 Fax: (03) 3270-5109
Copyright Hitachi, Ltd., 2003. All rights reserved. Printed in Japan.
Hitachi Asia Ltd.
Hitachi Tower
16 Collyer Quay #20-00
Singapore 049318
Tel : <65>-6538-6533/6538-8577
Fax : <65>-6538-6933/6538-3877
URL : http://semiconductor.hitachi.com.sg
URL
http://www.hitachisemiconductor.com/
Hitachi Asia Ltd.
(Taipei Branch Office)
4/F, No. 167, Tun Hwa North Road
Hung-Kuo Building
Taipei (105), Taiwan
Tel : <886>-(2)-2718-3666
Fax : <886>-(2)-2718-8180
Telex : 23222 HAS-TP
URL : http://semiconductor.hitachi.com.tw
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower
World Finance Centre,
Harbour City, Canton Road
Tsim Sha Tsui, Kowloon Hong Kong
Tel : <852>-2735-9218
Fax : <852>-2730-0281
URL : http://semiconductor.hitachi.com.hk
Hitachi Europe GmbH
Electronic Components Group
Dornacher Str 3
D-85622 Feldkirchen
Postfach 201, D-85619 Feldkirchen
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Hitachi Europe Ltd.
Electronic Components Group
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
For further information write to:
Colophon 7.0
PDF
ZIP
