Digital transistors (built in resistor)
DTA144TE / DTA144TUA / DTA144TKA /
DTA144TCA / DTA144TSA
F
Features
1) Built-in bias resistors enable the
configuration of an inverter circuit
without connecting external input
resistors (see equivalent circuit).
2) The bias resistors consist of thin-
film resistors with complete isola-
tion to allow positive biasing of the
input. They also have the advan-
tage of almost completely eliminat-
ing parasitic effects.
3) Only the on / off conditions need to
be set for operation, making device
design easy.
F
Structure
PNP digital transistor
(Built-in resistor type)
F
Equivalent circuit
370
Transistors
DTA144TE/DTA144TUA/DTA144TKA/DTA144TCA/DTA144TSA
F

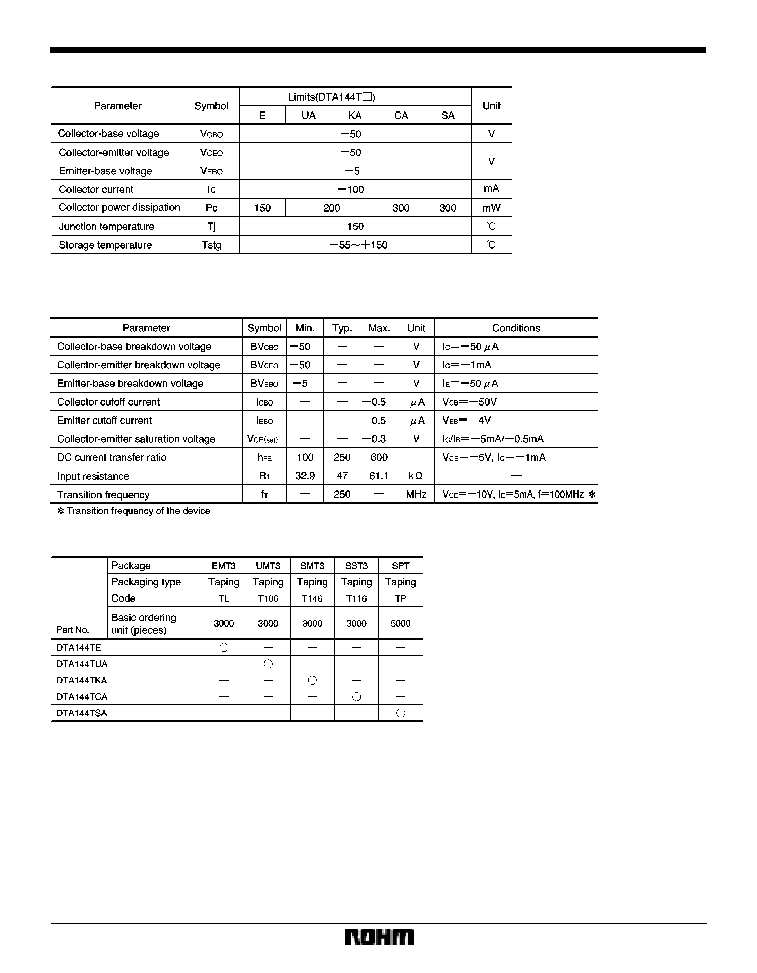

Absolute maximum ratings (Ta = 25
_
C)
F
Electrical characteristics (Ta = 25
_
C)
F
Packaging specifications
