NE3002-WA30A
Printheads
1/3
Near edge thermal printhead
(with thermal historical control)
NE3002-WA30A
NE-WA30 series are the thermal printheads developed for high-speed / high-resolution printing for the market of bar-code
printer & scale-printer, based on "step-free" structure.
These printheads realize ultra-highspeed printing with long life & high reliability.
Applications
Bar code printer
Label printer
Packaging printer
ATM
Ticket printer
Features
1) High dot reproducibility with step-free structure.
2) About 8
head inclination by near-edge structure, applicable to the large-size platen. Resin type thermal-transfer
ink-ribbon can be used.
3) High-hardness protect cote type "W-coat" is employed with 150km abrasion life-time.
4) Even without history-control, high-speed printing more than 300mm / s can be achieved at 300dpi with clear print
image. With history-control, 500mm / s printing is also possible at 300dpi.

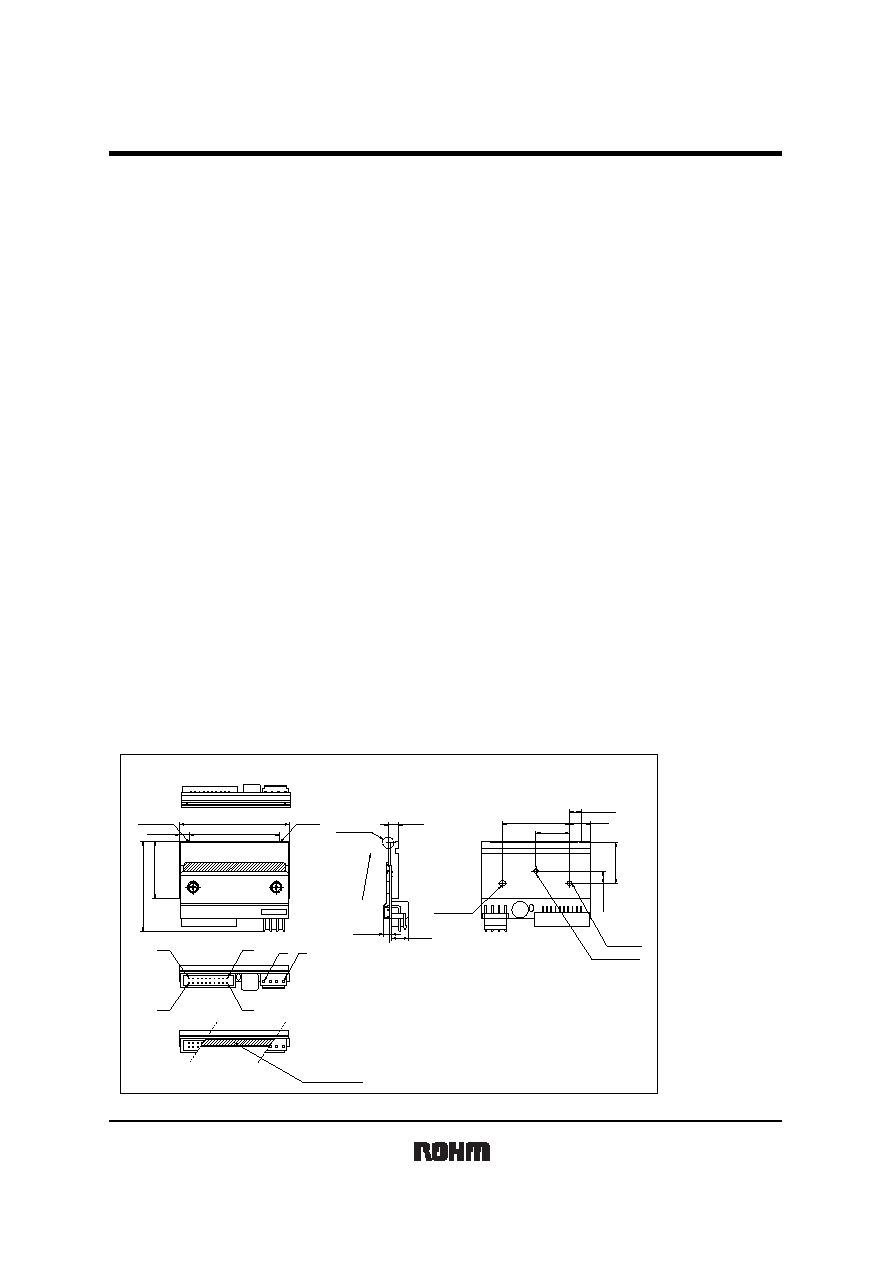

External dimensions (Unit : mm)
#20
#4
#1
CONNECTOR A
#1
#2
CONNECTOR B
#19
DOT No.1
DOT No.640
54.208
(5.896)
3 H10 Length 4
M3 Effective Depth 3
3 H10
Effective Depth 3
TYPE OF PRINTHEAD
MAX.11
6
0.5
Print Direction
MAX.4.5
SECTION A
66
0.5
34.0
0.5
MAX.51
7.3
0.3
24.455
0.3
20
0.3
40
0.3
(13)
7.104
0.3
BU9630
