DAC1353X
0.13

m 1.2V 8-BIT 2MSPS DAC
1
GENERAL DESCRIPTION
The dac1353x is a CMOS 8-bit D/A converter for general applications. This digital to analog converter has a R-
string structure.
The maximum conversion rate of dac1353x is 2MSPS and supply voltage is 1.2V single.
FEATURES
-- Resolution:
8-bit
-- Differential
linearity
error:
1.0LSB
-- Integral
linearity
error:
1.0LSB
-- Maximum conversion rate:
2MSPS
-- Low
power
consumption:
3.6mW
-- Power
down
mode
-- Operation
temperature
range:
0
C
~
70
C
-- Power
supply:
1.2V
single
TYPICAL APPLICATIONS
-- Hard Disk Drive (HDD)
-- Battery operated instruments
-- Motor control systems
-- General applications
0.13

m 1.2V 8-BIT 2MSPS DAC
DAC1353X
2

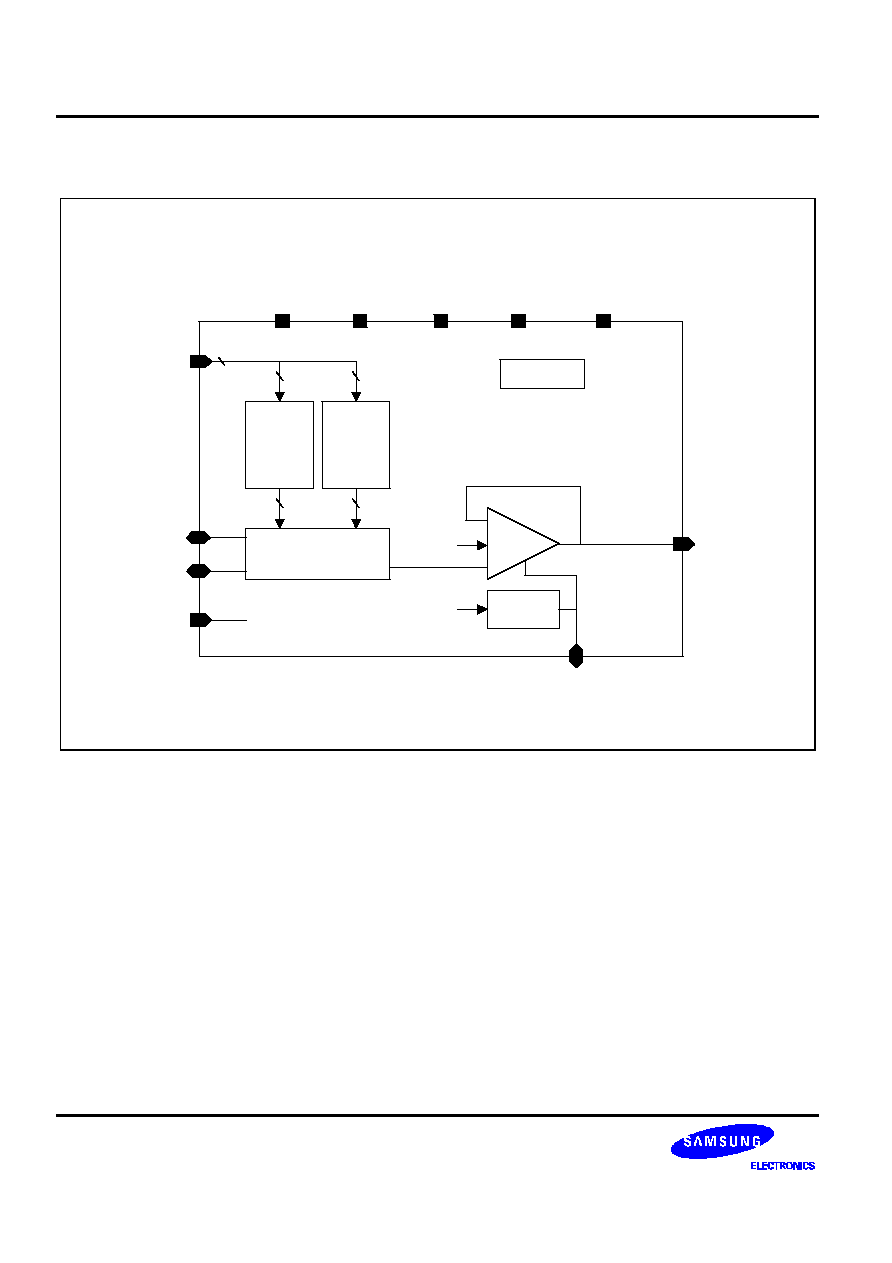

FUNCTIONAL BLOCK DIAGRAM
D[7:0]
AVDD12A
AVSS12A
AVDD12D
AVSS12D
AVBB
VOUT
VRT
PWDNB
1-of-2
N
Decoder
1-of-2
M
Decoder
N
M
8
Dout
Dout
2
N
2
M
VRB
R-String
OP
AMP
-
+
PWDNB
Bias GEN
PWDNB
Slot Cell
NBIAS
Ver1.0 (Mar. 2002)
This data sheet is a preliminary version. No responsibility is assumed by SEC for its use nor for any infringements of patents
or other rights of third parties that may result from its use. The content of this data sheet is subject to change without any
notice.
DAC1353X
0.13

m 1.2V 8-BIT 2MSPS DAC
3
CORE PIN DESCRIPTION
Name
I/O Type
I/O Pad
Pin Description
D[7:0]
DI
picc_abb
Digital input data (8-bit)
D[7]: MSB, D[0]: LSB
PWDNB
DI
picc_abb
Power down (active low)
VRT
AB
pia_abb
Voltage reference top
VRB
AB
pia_abb
Voltage reference bottom
NBIAS
AB
pia_abb
Bias generator output voltage
VOUT
AO
poa_abb
Analog voltage output
AVDD12A
AP
vdd12t_abb
Analog power (+1.2V)
AVSS12A
AG
vsst_abb
Analog ground (0.0V)
AVDD12D
DP
vdd12t_abb
Digital power (+1.2V)
AVSS12D
DG
vsst_abb
Digital ground (0.0V)
AVBB
AG
vbb_abb
Analog sub bias (0.0V)
I/O Type Abbr.
-- AI: Analog Input
-- DI: Digital Input
-- AO: Analog Output
-- DO: Digital Output
-- AP: Analog Power
-- AG: Analog Ground
-- DP: Digital Power
-- DG: Digital Ground
-- AB: Analog Bi-Direction
-- DB: Digital Bi-Direction
0.13

m 1.2V 8-BIT 2MSPS DAC
DAC1353X
4

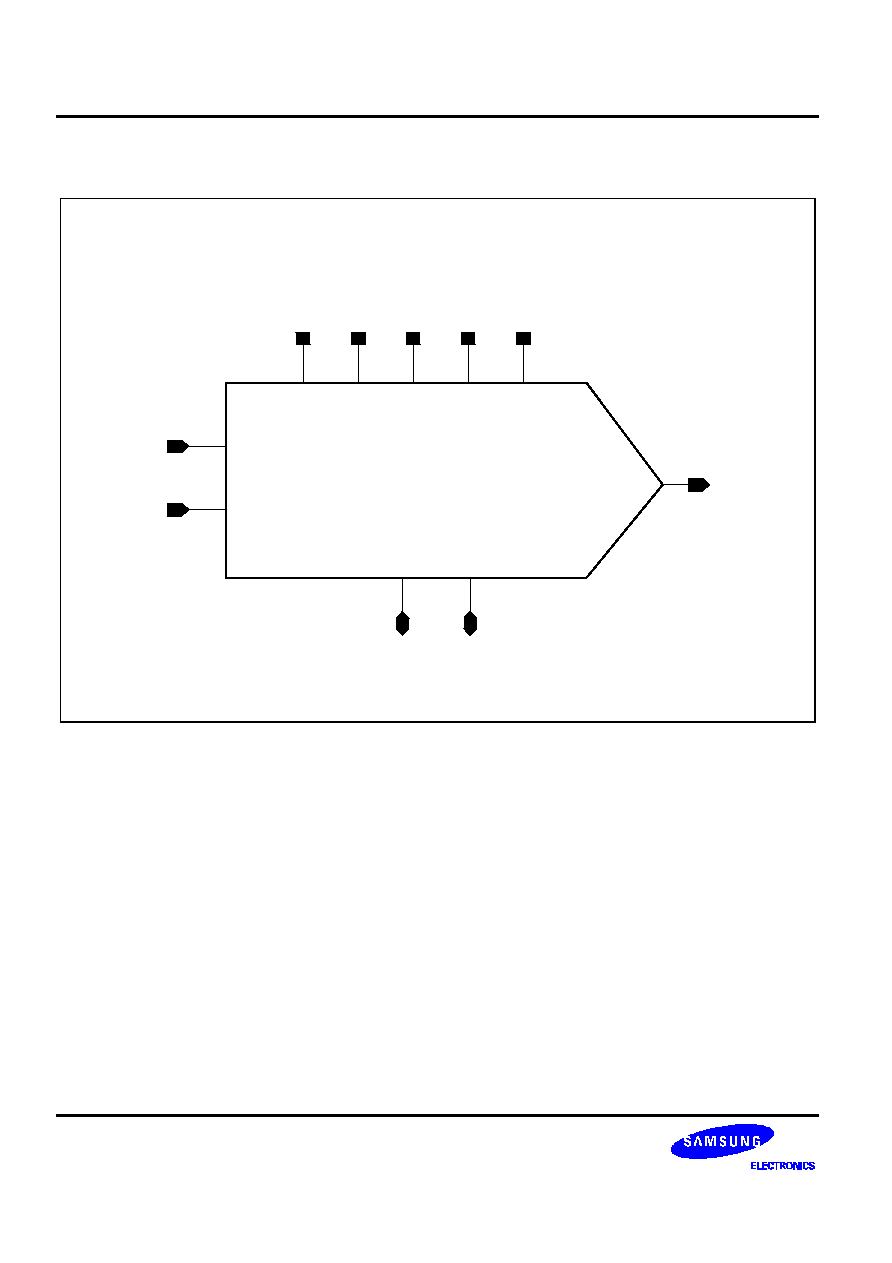

CORE CONFIGURATION
VOUT
AVDD12A
AVSS12A
AVDD12D
AVSS12D
AVBB
dac1353x
D[7:0]
PWDNB
VRT
VRB
DAC1353X
0.13

m 1.2V 8-BIT 2MSPS DAC
5
ABSOLUTE MAXIMUM RATINGS
Characteristics
Symbol
Value
Unit
Supply voltage
VDD (AVDD12A, AVDD12D)
1.2
V
Analog output voltage
VOUT
0.05 to 1.15
V
Digital input voltage
D[7:0]
VSS to VDD
V
Reference voltage
VRT
VRB
1.15
0.05
V
Operating temperature range
Topr
0 to 70
C
NOTES:
1. Absolute maximum rating specifies the values beyond which the device may be damaged permanently. Exposure
to absolute maximum rating conditions for extended periods may affect reliability. Each condition value is applied
with the other values kept within the following operating conditions and function operation under any of these conditions
is not implied.
2.
All voltages are measured with respect to VSS(AVSS12A or AVSS12D or AVBB) unless otherwise specified.
3.
100pF capacitor is discharged through a 1.5k
resistor (Human body model)
RECOMMENDED OPERATING CONDITIONS
Characteristics
Symbol
Min
Typ
Max
Unit
Supply voltage
AVDD12A AVSS12A
AVDD12D AVSS12D
1.08
1.2
1.32
V
Supply voltage difference
AVDD12A AVDD12D
0.1
0.0
0.1
V
Reference voltage
VRT
VRB
0.05

1.15
V
Digital input 'Low' voltage
Digital input 'High' voltage
VIL
VIH
0.7
VDD

0.3
VDD
V
Operating temperature
Topr
0
70
C
NOTE: It is strongly recommended that to avoid power latch-up all the supply pins(AVDD12A, AVDD12D) be driven from
the
same source.
