AUDIO EFFECT PROCESSOR
S5A1901H02
1
PRODUCT OVERVIEW
OVERVIEW
The S5A1901H02, Audio Effect Processor, reproduces vivid sound of
certain places and dynamic sound of movies. The S5A1901H02 has
over 15 sound effect modes including two kinds of Karaoke mode. In
addition to the sound modes, the S5A1901H02 provides mic-echo,
vocal canceller, loudness function, graphic equalizer, spectrum ana-
lyzer interface, tone control and volume/balance control so that it can
satisfy various sound requirements of audio systems including TV,
stereo audio systems, etc. Furthermore, the S5A1901H02 has built-in
16 bit stereo
-
ADC and DAC for easy application. The
S5A1901H02 also includes two digital source interface blocks and a
host interface block supporting normal microcontroller and I
2
C bus
interfaces.

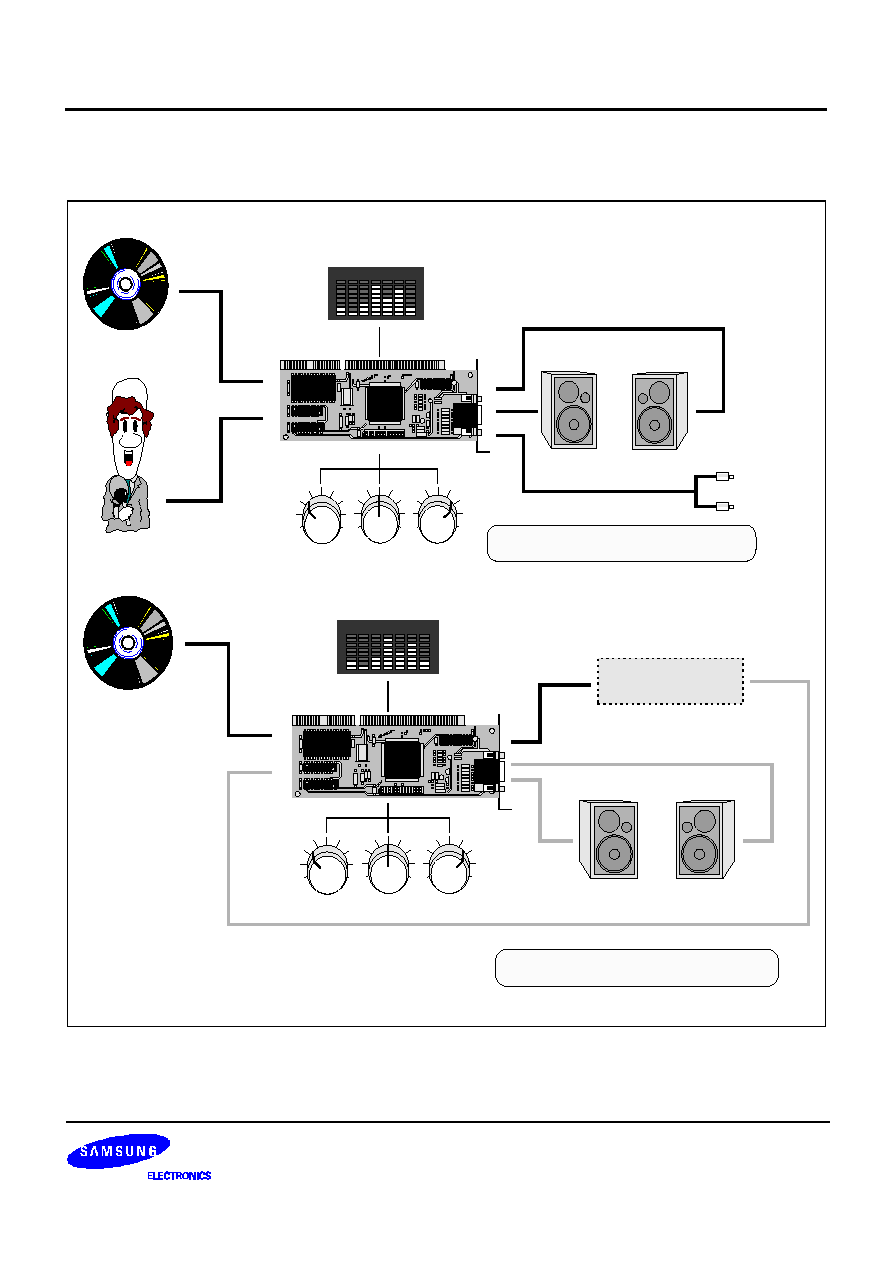

KEY FEATURES
Over 15 Sound Effect Modes including two kinds of Karaoke mode
3/5/7-band Graphic Equalizer and 5/7-band Spectrum Analyzer Interface
Mic-Echo, Loudness Function and Vocal Canceller
Digital Volume/Balance/Tone Control
Fader Function for Car Stereo System
Programmable Sound Mode
33 MIPS 16 bit fixed point DSP Core (SSP1610)
Built-in Stereo 16 bit
-
ADC and DAC
External Clock: 16.9344MHz
Sampling Frequency: 44.1kHz
Support Various Digital Audio Interface Formats
Normal Microcontroller Interface and I
2
C Bus Interface
0.5 Kword Internal Data RAM and 6 Kword Delay Memory for Sound Effect
6 Kword Internal Program ROM and 0.5 Kword Parameter ROM for Movie Mode
5 V Single Power Supply
0.5
m Triple Metal CMOS Process

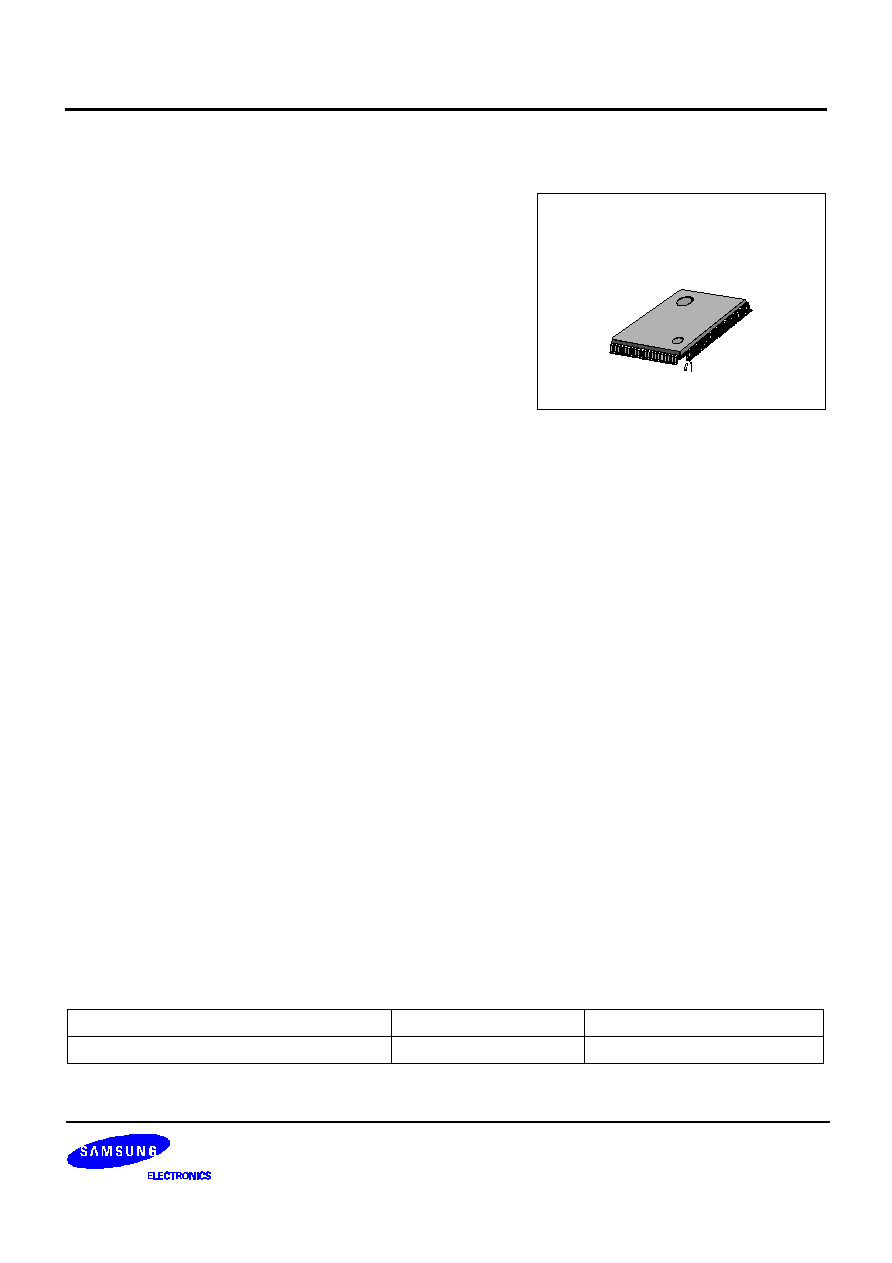

Package: 100 QFP
ORDERING INFORMATION
Device
Package
Temperature Range
S5A1901H02-Q0R0 (Audio Effect Processor)
100
-
QFP
-
1420C
0
C
-
70
C
100
-
QFP
-
1420C
S5A1901H02
AUDIO EFFECT PROCESSOR
4

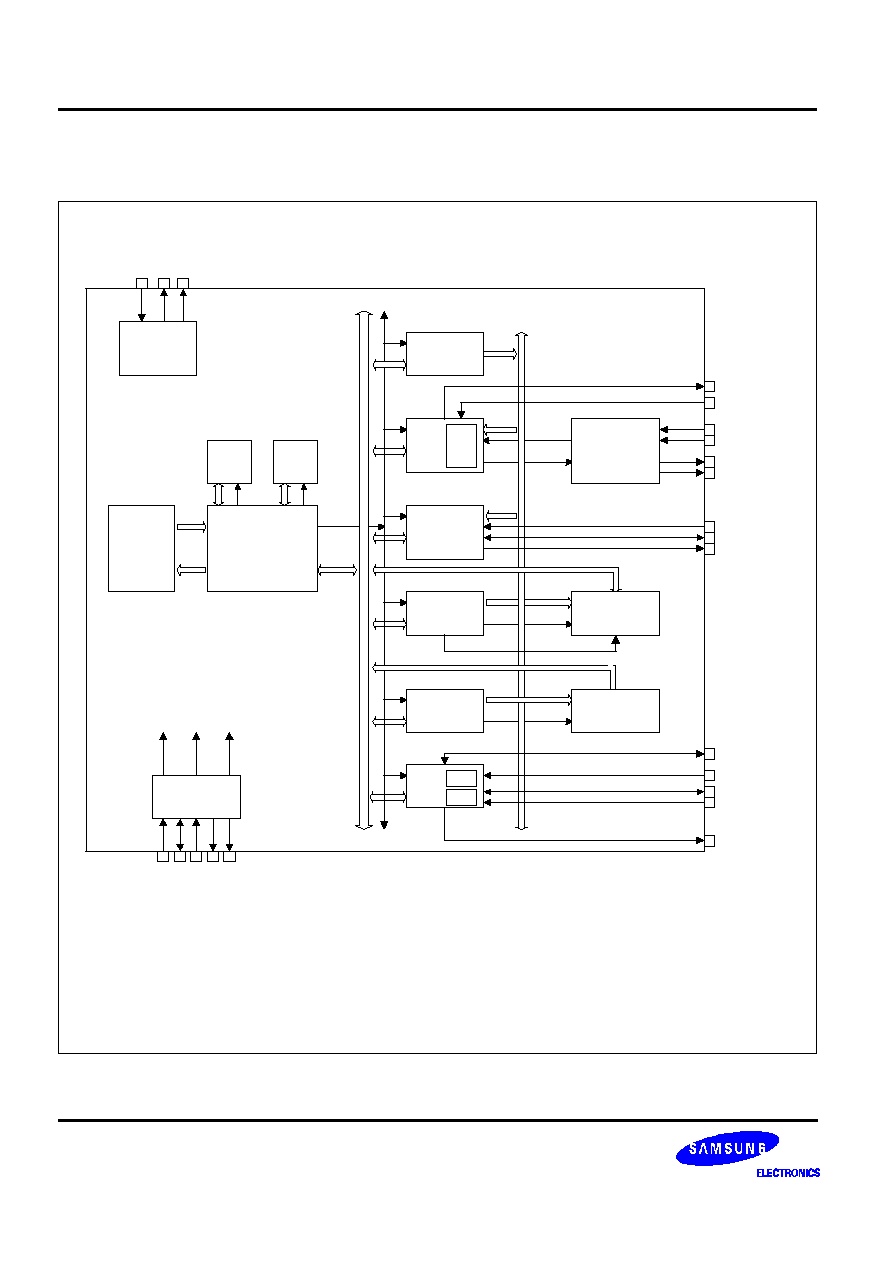

BLOCK DIAGRAM
Figure 2. S5A1901H02 Block Diagram
CRU
CIU
DSIU1
MIU
SEIU
Program
ROM
Delay RAM
DSP
3-D
Parameter ROM
HIU
Data
RAM
Data
RAM
CGU
16 Bit Stereo
-
CODEC
ALO,ARO
CMCLKS
RESB
HDATA
HWEB,HCLK
HMS,SAS
DLRCKO2,DBCKO2,
DSDO2
DLRCKI2,DBCKI2,
DSDI2
SDA
CLKS
SCL
XI
XO
MCLK
SPWDN
HACK
CLKO
ALI,ARI
VREF,VREFI
DSDO1
CONTROL & TEST
LOGIC
CLK1
(33.8688MHz)
CLK2
(16.9344MHz)
CLK3
(11.2896MHz)
TINT1
DSIU2
SAIU
* CRU : Configuration Register Unit
* CIU : Built-in CODEC Interface Unit
* DSIU1 : Digital Source Interface Unit 1
* DSIU2 : Digital Source Interface Unit 2
* MIU : Memory Interface Unit
* SEIU : Stereo Enhancement Interface Unit
* HIU : Host Interface Unit
* SAIU : Spetrum Analyzer Interface Unit
* I
2
C : I
2
C Interface Unit
* CGU : Clock Generation Unit
DLRCKO1,DBCKO1
DLRCKI1,DBCKI1,
DSDI1
I
2
C
