2SC5298
Ordering number : EN5292
Ultrahigh-Definition CRT Display
Horizontal Deflection Output Applications
NPN Triple Diffused Planar Silicon Transistor
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
11697YK (KOTO) TA-0587 No.5292-1/3
Package Dimensions
unit: mm
2039C-TO3PML
[2SC5298]
SANYO: TO3PML
1 : Base
2 : Collector
3 : Emitter
Specifications
Absolute Maximum Ratings
at Ta=25C
Parameter
Symbol
Conditions
Ratings
Unit
Collector-to-Base Voltage
VCBO
1500
V
Collector-to-Emitter Voltage
VCEO
800
V
Emitter-to-Base Voltage
VEBO
6
V
Collector Current
IC
10
A
Collector Current (Pulse)
ICP
25
A
Collector Dissipation
PC
3.0
W
Tc=25C
70
W
Junction Temperature
Tj
150
C
Storage Temperature
Tstg
55 to +150
C
Electrical Characteristics
at Ta=25C
Parameter
Symbol
Conditions
Ratings
min
typ
max
Unit
Collector Cutoff Current
ICBO
VCB=800V, IE=0
10
A
Collector Cutoff Current
ICES
VCE=1500V, RBE=0 1.0
mA
Collector Sustain Voltage
VCEO(SUS)
IC=100mA, IB=0
800
V
Emitter Cutoff Current
IEBO
VEB=4V, IC=0
40
130
mA
C-E Saturation Voltage
VCE(sat)
IC=8A, IB=2A
5
V
B-E Saturation Voltage
VBE(sat)
IC=8A, IB=2A
1.5
V
DC Current Gain
hFE(1)
VCE=5V, IC=1A
15
25
hFE(2)
VCE=5V, IC=8A
4
7
Storage Time
tstg
IC=6A, IB1=1.2A, IB2=2.4A
3.0
s
Fall Time
tf
IC=6A, IB1=1.2A, IB2=2.4A
0.1
0.2
s
Features
High Speed : tf=100ns typ.
High Breakdown voltage : VCBO=1500V.
High reliability (Adoption of HVP process).
Adoption of MBIT process.
On-chip damper diode.

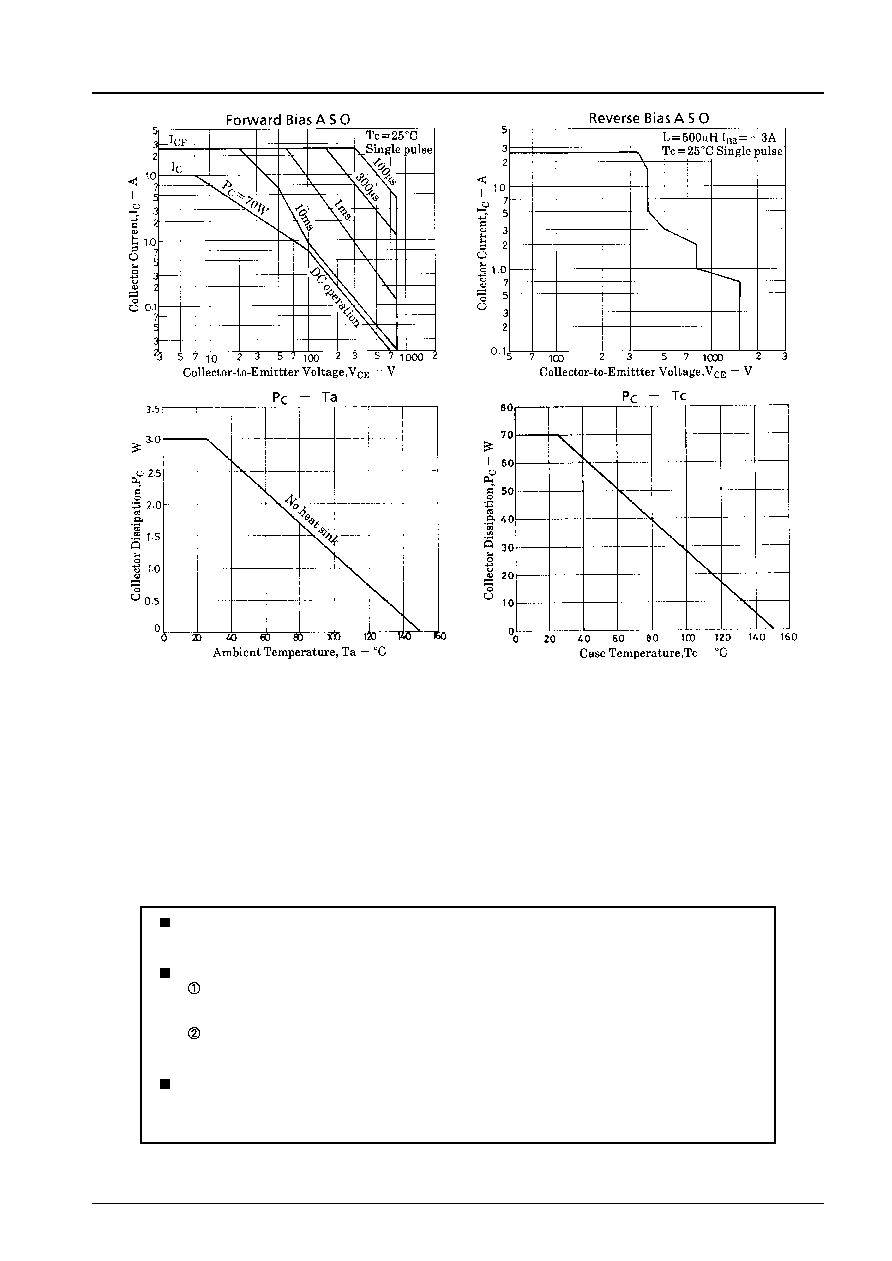

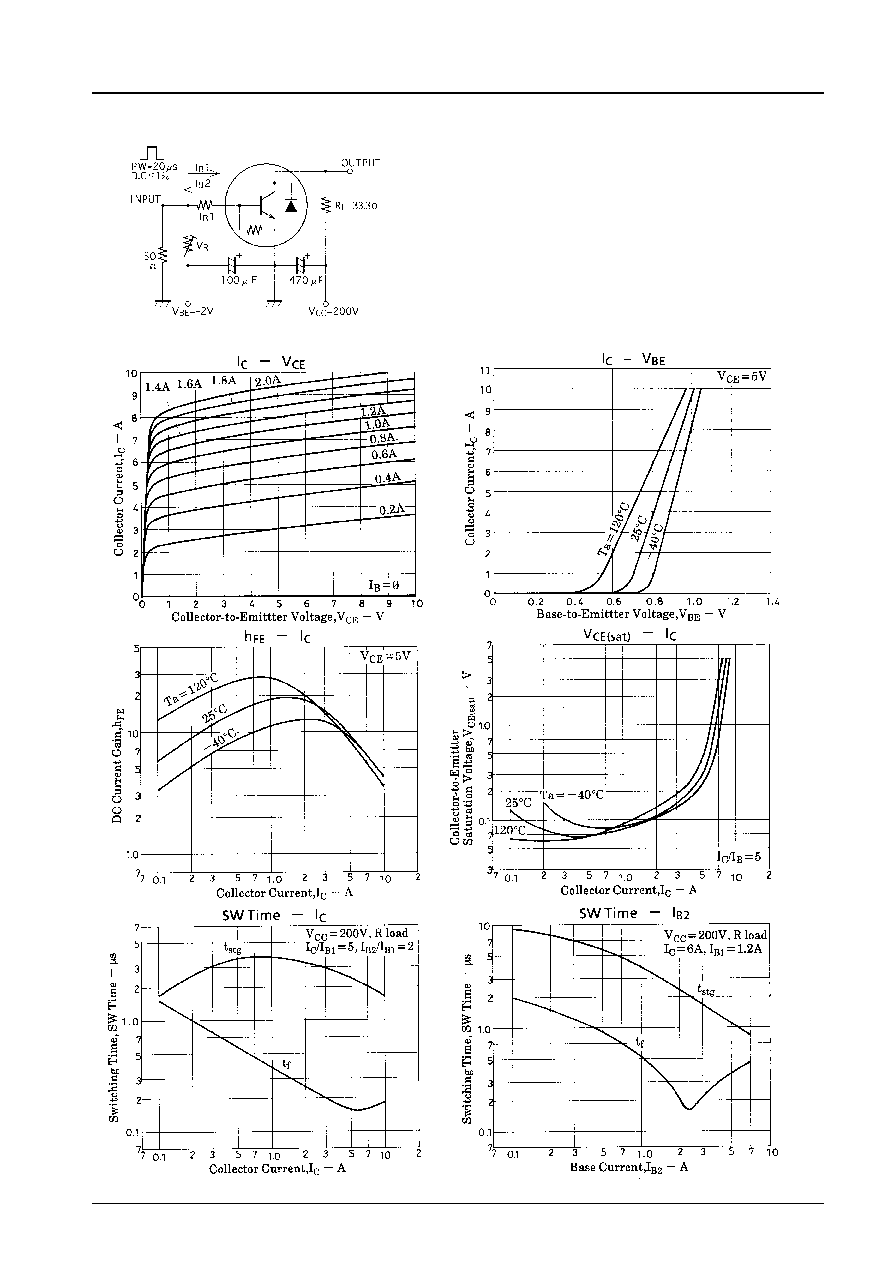

2SC5298
No.5292-3/3
