ELECTRONIC COMPONENTS
SHARP IrDA Control Infrared Transceiver
SHARP Electronic Components
1
Rev. 1.1.1 November 26, `98
GP2W2001YK
IrDA Control Infrared Transceiver
for Peripheral Type 1
Revision 1.1.1
November 26, 1998
SHARP CORPORATION
ELECTRONIC COMPONENTS
SHARP IrDA Control Infrared Transceiver
SHARP Electronic Components
2
Rev. 1.1.1 November 26, `98
Record of Modification and Revision
Version
Issue Date
Comments
0.9
October 17th, 1997
First Edition
0.92
February 23rd, 1998
Outline Dimensions Modified
0.95
March 31st, 1998
Name of compliant standard changed to "IrDA Control"
Compliant Specification is limited to "IrDA Control Peripheral Type 1".
0.96
April 1st, 1998
Outline Dimension Modified (Eliminate Shield of Front).
1.0
August 25th, 1998
Outline Dimension and Absolute Maximum Rating Modified
1.1
November 6th, 1998
Outline Dimension and Recommended Circuit Modified
1.1.1
November 26th, 1998
Recommended Operating Conditions Modified
(Preliminary Information Disclaimer)
This document includes a "Preliminary Information" of Sharp IrDA Control Infrared Transceiver (for IrDA Control
Peripheral Type 1). Any of information under this document, such as Specifications and outline dimensions, are
applicable only for reference purpose, and Sharp hold all rights to change or alter prices at any time without notice.
In absence of confirmation by device Specification Sheets, SHARP takes no responsibility for any defects that occur in
equipment using any of SHARP's device, shown in catalogues, data books, Preliminary Information, etc. Contact
SHARP, or SHARP local representatives in order to obtain the latest version of the device Specification Sheets before
using any SHARP's devices.
ELECTRONIC COMPONENTS
SHARP IrDA Control Infrared Transceiver
SHARP Electronic Components
3
Rev. 1.1.1 November 26, `98
Table Of Contents
1. D
ESCRIPTION
..................................................................................................................................................... 4
2. I
R
DA
C
ONTROL
I
NFRARED
T
RANSCEIVER
I
NTERNAL
B
LOCK
D
IAGRAM
........................................................ 4
3. P
ACKAGE
O
UTLINE
D
IMENSIONS
(TENTATIVE) ........................................................................................... 5
4. A
BSOLUTE
M
AXIMUM
R
ATINGS
....................................................................................................................... 5
5. R
ECOMMENDED
O
PERATING
C
ONDITIONS
...................................................................................................... 6
6. E
LECTRICAL AND
O
PTICAL
S
PECIFICATIONS
................................................................................................... 7
7. P
INOUT
.............................................................................................................................................................. 8
8. A
PPLICATION
C
IRCUIT AND
R
ECOMMENDED
C
OMPONENTS
........................................................................... 9
9. W
AVEFORM
E
XAMPLES
.................................................................................................................................... 9
10. RESET F
UNCTION
........................................................................................................................................ 10
11. T
HE
D
ERATING
C
URVE OF
P
EAK
F
ORWARD
LED C
URRENT
....................................................................... 10
ELECTRONIC COMPONENTS
SHARP IrDA Control Infrared Transceiver
SHARP Electronic Components
4
Rev. 1.1.1 November 26, `98
IrDA Control Infrared Transceiver (for Peripheral Type 1)
GP2W2001YK
Technical Data
MEMBER IrDA
1. Description
The Sharp IrDA Control Infrared Transceiver provides
the wireless interface between logic and IR signals for
through-air, serial, half-duplex IrDA Control data links
and is designed to satisfy the IrDA Control Physical
Layer Specifications for Peripheral Type 1.
The GP2W2001YK is a low power operatable
integrated infrared transceiver that contains an IRLED,
a LED driver circuit, a PIN photodiode, an excellent
sensitivity receiver, and an envelope detector. The
transceiver also contains some additional functions,
such as shut down and sensitivity recovery for low
current consumption and longer communication
distance.
<Features>
Meets IrDA Control (for Peripheral Type 1)
Long Range (approx. 8m [Min. 5m]) Wireless
Communication at 75kbps data rate (Radiant Intensity
= 100mW/sr)
Low Power Operation - at 3.3V
Built-in Envelope Detector
By using assistance LED(GL710) , able to use for
Host Type.
RESET Function to Recover the Receiver
Sensitivity
Optimized Interface to Sharp Peripheral Engine, an
embedded communication controller for IrDA
Control.
2. IrDA Control Infrared Transceiver Internal Block Diagram
LEDA
TXD
AVcc
DVcc
AGND
DGND
f
O
CX
RESET
V
O
10
1
6
5
7
9
4
3
8
PIN
PD
AMP.
B.P.F.
Detect
11
SD
2
Figure 2.1 GP2W2001YK Internal Block Diagram
ELECTRONIC COMPONENTS
SHARP IrDA Control Infrared Transceiver
SHARP Electronic Components
5
Rev. 1.1.1 November 26, `98

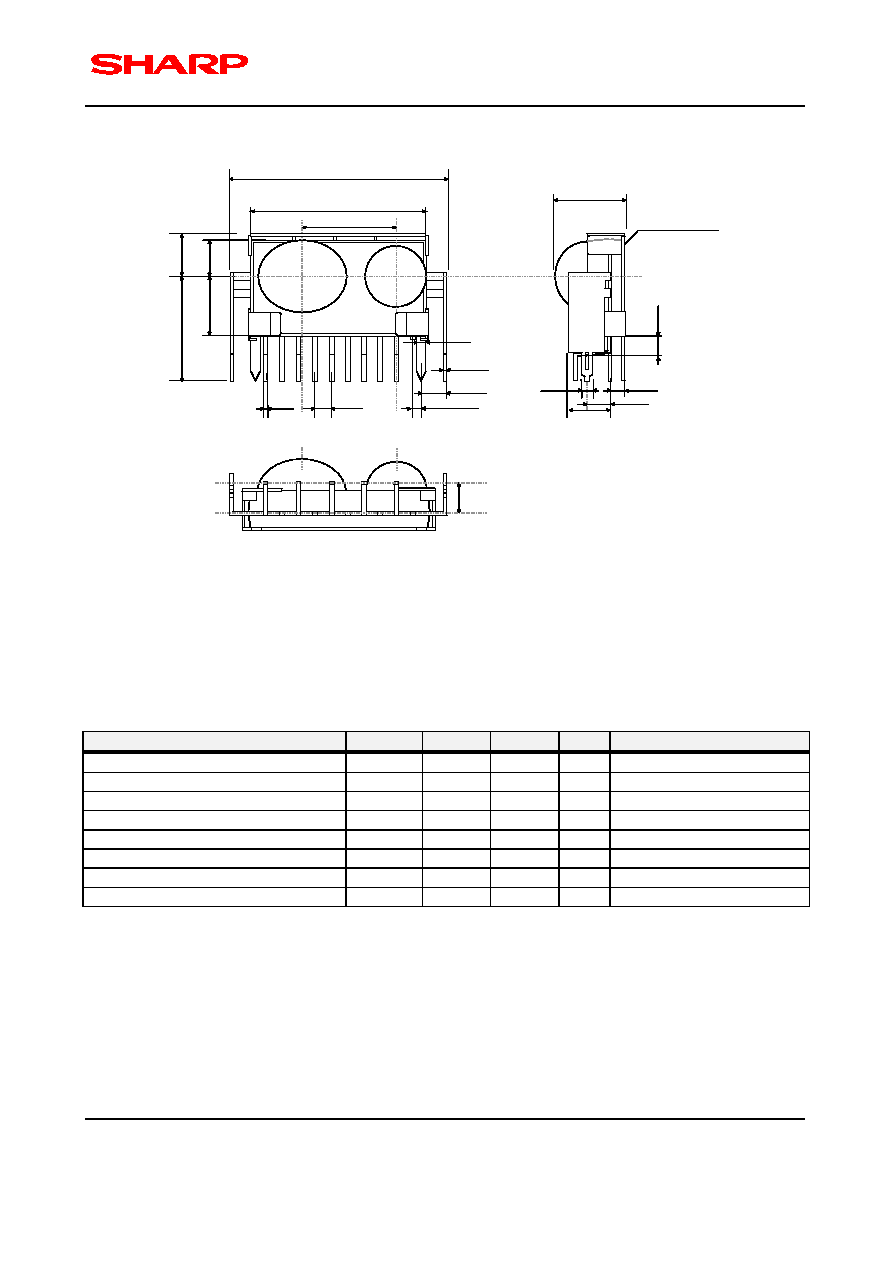

3. Package Outline Dimensions (TENTATIVE)
UNIT: mm
17.5
14.0
1.27
0.25
(0.89)
(8
.2
)
(3
.
7
)
4.
5
3.
1
0.45
(0.84)
(2.1)
2.5
SHIELD CASE
(6.3)
0.9
3.35
(1.25)
2.0
1.3
(7.6)
1.
Unspecified tolerance shall be 0.3(mm).
2.
Resin burr shall not be included in outline dimensions.
3.
Package Material : Visible Light Cut-off Resin (Color: Black)
4.
Pin Assignment : See "Pinout" for details.
5.
Lead pitch distance represents that of the lead root.
6.
The appearance of the shieled case is TENTATIVE, and is subject to change without notice.
4. Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Units
Conditions
Supply Voltage
V
CC
0
6.0
V
Operating Temperature
T
OP
-10
70
o
C
Storage Temperature
T
ST
-20
85
o
C
Average Forward LED Current
I
LED
(DC)
-
60
mA
Peak Forward LED Current
I
LED
(PF)
-
600
mA
*1
Transmitter Data Input Current
I
TXD
-
5.0
mA
Receiver Data Output Voltage
V
O
-
V
CC
V
Soldering Temperature
T
SOL
-
260
o
C
*2
, For 5s
(NOTES)
1.
The derating curve of peak forward current vs. ambient temperature is shown in section 11, figure 11.1.
2.
The soldering should be done at the distance from 1.3mm from the resin edge of the transceiver module.
