RATINGS
SHINDENGEN

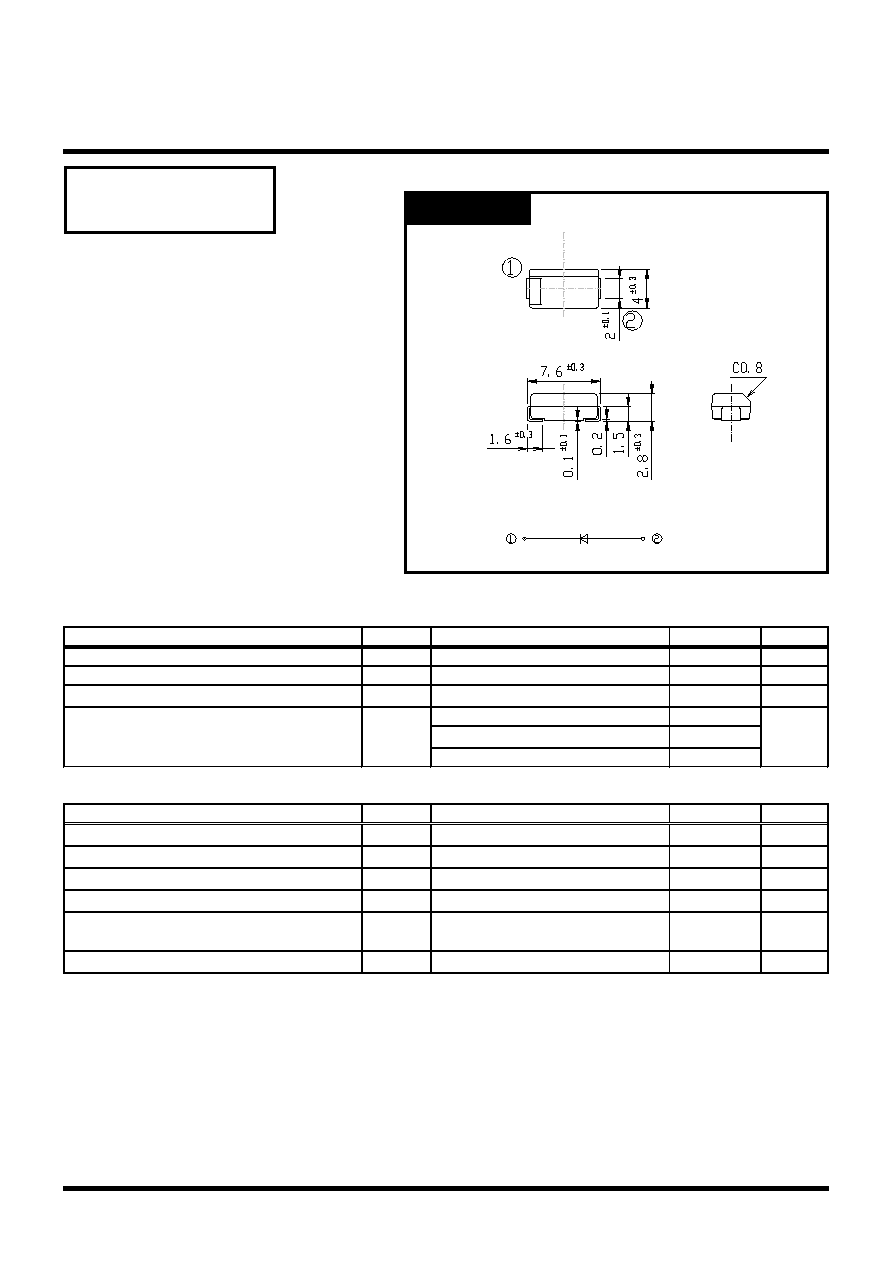

OUTLINE DIMENSIONS
(Unit : mm)
SMD
TSS KP Series
KP10L06
Case : 2F
Absolute Maximum Ratings
Item
Symbol
Conditions
Ratings
Unit
Storage Temperature
Tstg
-40125
Junction Temperature
Tj
125
Maximum Off-State Voltage
V
DRM
48
V
10/1000s, Non-repetitive
100
Surge On-State Current
I
TSM
10/200s, Non-repetitive
150
A
8/20s, Non-repetitive
250
Electrical Characteristics (Tl=25)
Item
Symbol
Conditions
Ratings
Unit
Breakover Voltage
V
BO
Pulse measurement (Peak hold)
Min 55
V
Off-State Current
I
DRM
V
D
= V
DRM
Max 10
A
Holding Current
I
H
Pulse measurement
Min 100
mA
On-State Voltage
V
T
I
T
= 2A
TYP 1.15
V
Junction Capacitance
Cj
f = 1kHz
Max 180
pF
OSC = 1V, V
D
= 50V
Clamping Voltage
V
CL
dv/dt = 100V/s
Max 70
V
