800V 50A
Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd
Bridge Diode

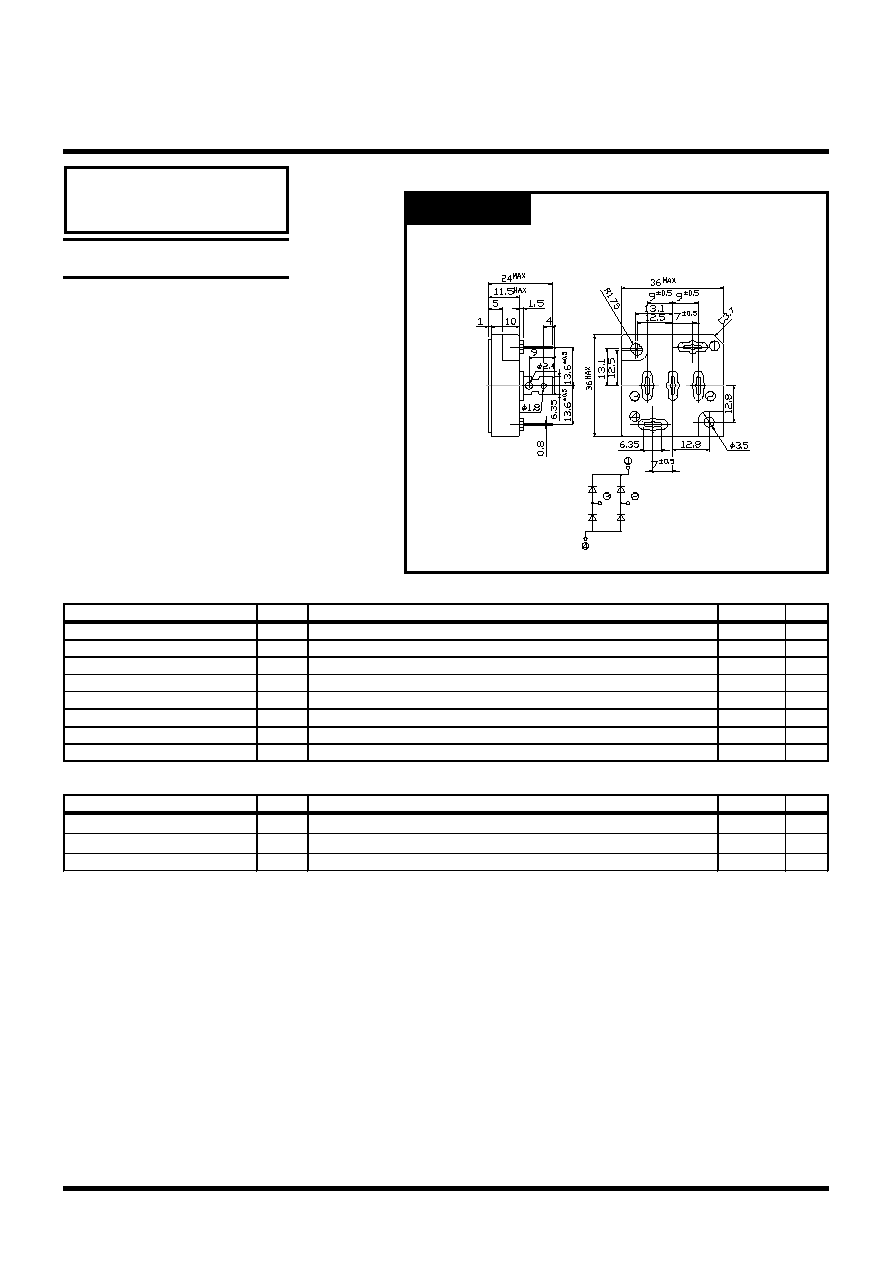

OUTLINE DIMENSIONS
RATINGS
Square In-line Package
SHINDENGEN
Unit : mm
Case : S50VB
S50VB80
Absolute Maximum Ratings
Item
Symbol
Conditions
Ratings
Unit
Storage Temperature
Tstg
-40150
Operating Junction Temperature
Tj
150
Maximum Reverse Voltage
V
RM
800
V
Average Rectified Forward Current
I
O
50Hz sine wave, R-load, With heatsink, Tc=95
50
A
Peak Surge Forward Current
I
FSM
50Hz sine wave, Non-repetitive 1cycle peak value, Tj=25
500
A
Current Squared Time
I
2
t
1mst10msc=25
800
A
2
Dielectric Strength
Vdis
Terminals to case, AC 1 minute
2
kV
Mounting Torque
TOR
Recommended torque : 0.6Nm
0.8
Nm
Electrical Characteristics (Tc=25)
Item
Symbol
Conditions
Ratings
Unit
Forward Voltage
V
F
I
F
=25A, Pulse measurement, Rating of per diode
Max.1.05
V
Reverse Current
I
R
V
R
=V
RM
,
Pulse measurement, Rating of per diode
Max.10
A
Thermal Resistance
jc
junction to case
Max.0.5 /W
0
20
40
60
80
100
120
140
160
0
10
20
30
40
50
60
70
80
S50VBx
Forward Power Dissipation
Tj = Tjmax
SIN
Average Rectified Forward Current I
O
[A]
Forward Power Dissipation P
F
[W]

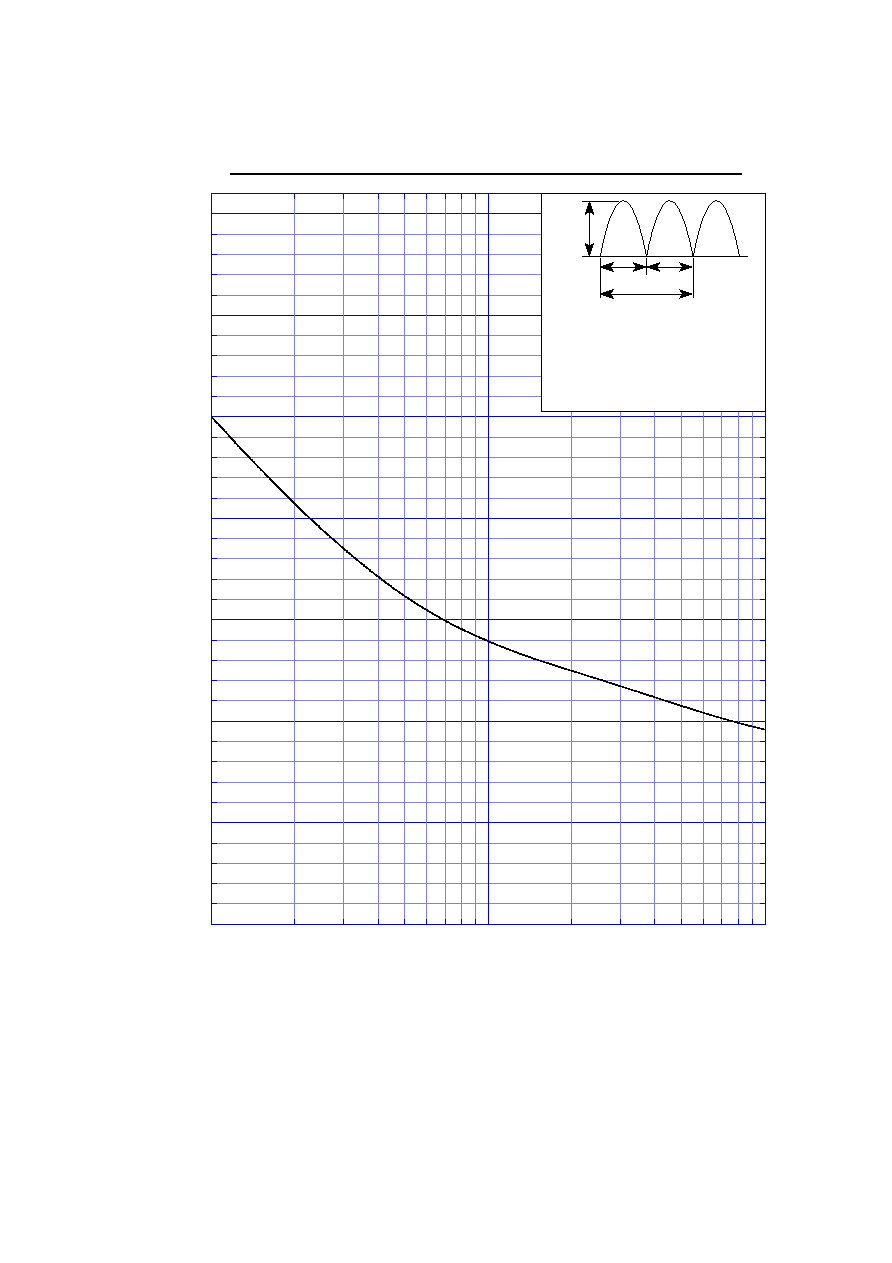

Peak Surge Forward Capability
0
100
200
300
400
500
600
700
1
10
100
S50VBx
2
5
20
50
I
FSM
10ms 10ms
1 cycle
Number of Cycles [cycles]
Peak Surge Forward Current I
FSM
[A]
non-repetitive,
sine wave,
Tj=25
C before
surge current is applied
