1/14
December 2001
s
HIGH SPEED GTL/GTL+ UNIVERSAL
TRANSCEIVER :
t
PD
= 4.6 ns (MAX.) A to B at V
CC
= 3V
s
COMBINES D-TYPE LATCHES AND D-TYPE
FLIP-FLOPS FOR OPERATION IN
TRANSPARENT, LATCHED, OR CLOCKED
MODE
s
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 3.0V to 3.6V
s
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
=24mA (MIN) at V
CC
= 3V (A PORT)
s
OUTPUT IMPEDANCE:
I
OL
= 100mA (MIN) at V
CC
= 3V (B PORT)
s
HIGH-IMPEDANCE STATE DURING POWER
UP AND POWER DOWN up to Vcc=1.5V
PERMITT LIVE INSERTION
s
B-PORT PRECHARGED BY BIASVcc
REDUCE NOISE ON THE LINE DURING
LIVE INSERTION
s
EDGE RATE-CONTROL INPUT
CONFIGURES THE B-PORT OUTPUT RISE
AND FALL TIMES
s
BUS HOLD ON DATA INPUTS ELIMINATES
THE NEED FOR EXTERNAL PULL-UP/
PULL-DOWN RESISTORS (A PORT)
s
DISTRIBUTED VCC AND GND PIN
CONFIGURATION MINIMIZES HIGH-SPEED
SWITCHING NOISE IN PARALLEL
COMUNICATIONS .
s
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 1655
DESCRIPTION
The 74GTL1655 devices are 16-bit high-drive
(100mA), low-output-impedance universal bus
transceivers designed for backplane applications.
The 74GTL1655 devices provide live-insertion
capability for backplane applications by tolerating
active signals on the data ports when the devices
are powered off. In addition, a biasing pin
preconditions the GTL/GTL+ port to minimize
disruption to an active backplane.
The edge rate-control (V
ERC
) input is provided so
the rise and fall time of the B outputs can be
configured to optimize for various backplane
loading conditions. Data flow in each direction is
controlled by output-enable (OEAB and OEBA),
74GTL1655
16 BIT LVTTL TO GTL/GTL + UNIVERSAL BUS
TRANSCEIVERS WITH LIVE INSERTION
ORDER CODES
PACKAGE
TUBE
T & R
TSSOP
74GTL1655TTR
TSSOP
PIN CONNECTION
74GTL1655
2/14
latch-enable (LEAB and LEBA), and clock (CLK)
inputs. For A-to-B data flow, the devices operate
in the transparent mode when LEAB is high. When
LEAB is low, the A data is latched if CLK is held at
a high or low logic level. If LEAB is low, the A data
is stored in the latch/flip-flop on the low-to-high
transition of CLK. When OEAB is low, the outputs
are active. When OEAB is high, the outputs are in
the high-impedance state. Data flow for B to A is
similar to that of A to B, but uses OEBA, LEBA,
and CLK. The output enable (OE) is used to
disable both ports simultaneously.
Active bus-hold circuitry is provided on the A port
to hold unused or floating data inputs at a valid
logic level. When V
CC
is between 0 and 1.5 V, the
device is in the high-impedance state during
power up or power down. However, to ensure the
high-impedance state above 1.5V , OE should be
tied to V
CC
through a pullup resistor; the minimum
value of the resistor is determined by the
current-sinking capability of the driver.
All input and output are equipped with protection
circuits against static discharge, giving them 2KV
ESD immunity and transient excess voltage.
INPUT AND OUTPUT EQUIVALENT CIRCUIT
PIN DESCRIPTION
PIN N
SYMBOL
NAME AND FUNCTION
1, 2
1OEAB, 1OEBA
Output Enable Input
4, 6, 7, 9, 11, 13, 14, 16
1A1 to 1A8
Data Inputs/Outputs LVTTL
17, 19, 20, 22, 23, 25, 27, 29
2A1 to 2A8
Data Inputs/Outputs LVTTL
31, 32
2OEAB, 2OEBA
Output Enable Input
33
OE
Output Enable Input
34, 35
2LEBA, 2LEAB
Latch Enable
36
BIAS V
CC
Pre-Charge Supply Voltage
37, 38, 40, 42, 43, 45, 46, 48
2B8 to 2B1
Data Inputs/Outputs GTL/GTL+
41
V
REF
GTL Voltage Reference Input
49, 51, 52, 54, 55, 56, 58, 59
2A1 to 2A8
Data Inputs/Outputs GTL/GTL+
61
V
ERC
Edge Rate Control
62, 63
1LEBA, 1LEAB
Latch Enable
64
CLK
Clock Input (LOW to HIGH edge triggered)
5, 8, 10, 12, 18, 21, 24, 26, 30,
39, 44, 47, 53, 57, 60
GND
Ground (0V)
3, 15, 28, 50
V
CC
Positive Supply Voltage

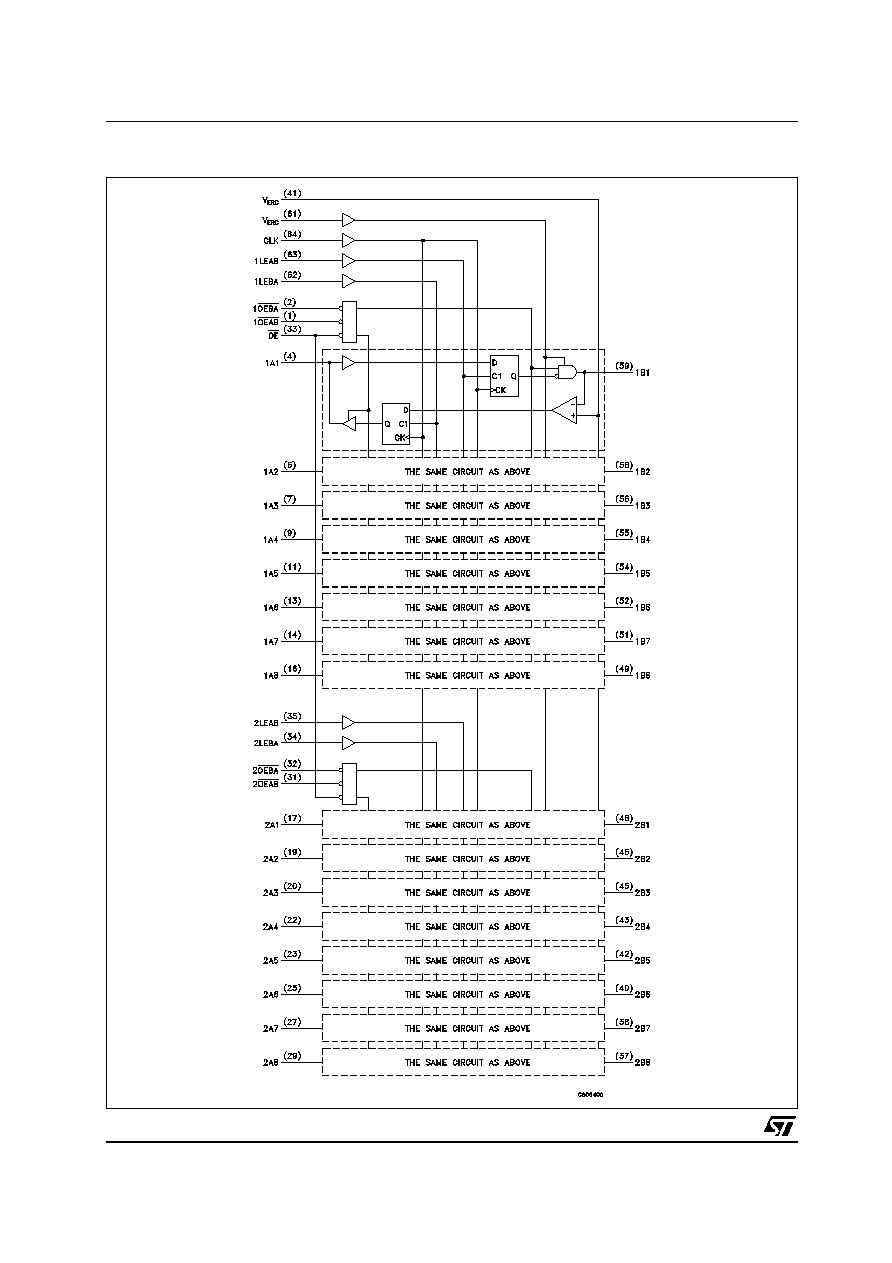

74GTL1655
5/14
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Rating are those value beyond which damage to the device may occur. Functional operation under these condition is not
implied
RECOMMENDED OPERATING CONDITIONS
1) V
TT
and R
TT
can be adjusted to adapt backplane impedance if DC raccomanded I
OL
ratings are not exceeded
2) V
REF
can be adjusted to optimaze noise margin (typ two-thirds V
TT
)
Symbol
Parameter
Value
Unit
V
CC
Supply Voltage, Bias V
CC
-0.5 to +4.6
V
V
IA
DC Input Voltage A Side, Control Input
-0.5 to +4.6
V
V
IB
DC Input Voltage B Side, V
ERC
, V
REF
-0.5 to +4.6
V
V
OA
DC Output Voltage A Side
-0.5 to +4.6
V
V
OB
DC Output Voltage B Side
-0.5 to +4.6
V
I
IK
DC Input Diode Current
- 50
mA
I
OK
DC Output Diode Current
- 50
mA
I
OA
DC Output Current A Side
48
mA
I
OB
DC Output Current B Side in the Low State
200
mA
T
stg
Storage Temperature
-65 to +150
C
T
L
Lead Temperature (10 sec)
300
C
Symbol
Parameter
Value
Unit
Min.
Typ.
Max.
V
CC
Supply Voltage
3.0
3.3
3.6
V
V
TT
Termination Voltage
GTL
1.14
1.2
1.26
V
GTL+
1.35
1.5
1.65
V
REF
Supply Voltage
GTL
0.74
0.8
0.87
V
GTL+
0.87
1
1.1
V
I
Input Voltage
B port
0
V
TT
V
other
0
V
CC
V
IH
High Level Input Voltage
B port
V
REF
+0.05
V
other
2
V
IL
Low Level Input Voltage
B port
V
REF
-0.05
V
other
0.8
I
IK
Input Clamp Current
-18
mA
I
OH
High Level Output Current
A port
-24
mA
I
OL
Low Level Output Current
A port
24
mA
B port
100
dt/dV
CC
Power -up ramp rate
200
s/V
T
op
Operating Temperature
-40
85
C
