RF & MICROWAVE TRANSISTORS
September 1992
L-BAND AVIONICS APPLICATIONS
.400 x . 400 2NLFL (S042)
hermetically sealed
.
REFRACTORY/GOLD METALLIZATION
.
EMITTER SITE BALLASTED
.
LOW THERMAL RESISTANCE
.
INPUT/OUTPUT MATCHING
.
OVERLAY GEOMETRY
.
METAL/CERAMIC HERMETIC PACKAGE
.
P
OUT
=
70 W MIN. WITH 6.7 dB GAIN
DESCRIPTION
The AM1011-070 device is a high power Class
C transistor specifically designed for L-Band
Avionics transponder/interrogator pulsed output
and driver applications.
This device is capable of operation over a wide
range of pulse widths, duty cycles and tempera-
tures and is capable of withstanding severe output
VSWR at rated RF conditions. Low RF thermal
resistance and computerized automatic wire bond-
ing techniques ensure high reliability and product
consistency.
The AM1011-070 is supplied in the AMPAC
TM
Her-
metic M etal/Ceramic package with i nternal
Input/Output matching structures.
PIN CONNECTION
BRANDING
1011-70
ORDER CODE
AM1011-70
ABSOLUTE MAXIMUM RATINGS (T
case
=
25
C)
Symbol
Parameter
Value
Uni t
P
DISS
Power Dissipation*
(T
C
100
C)
200
W
I
C
Device Current*
8.0
A
V
CC
Collector-Supply Voltage*
32
V
T
J
Junction Temperature (Pulsed RF Operation)
250
C
T
STG
Storage Temperature
-
65 to +200
C
R
TH(j-c)
Junction-Case Thermal Resistance*
0.68
C/W
*Applies only to rated RF amplifier operation
AM1011-070
1. Collector
3. Emitter
2. Base
4. Base
THERMAL DATA
1/4
ELECTRICAL SPECIFICATIONS (T
case
=
25
C)
Symbol
Test Conditi ons
Value
Uni t
Min.
Typ.
Max.
P
OUT
f
=
1090 MHz
P
IN
=
15W
V
CC
=
28V
70
--
--
W
c
f
=
1090 MHz
P
IN
=
15W
V
CC
=
28V
45
--
--
%
G
P
f
=
1090 MHz
P
IN
=
15W
V
CC
=
28V
6.7
--
--
dB
N ote:
Pulse W idth
=
100
Sec
Duty Cycle
=
2%
STATIC
Symbol
Test Condi tions
Valu e
Unit
Min.
Typ.
Max.
BV
CBO
I
C
=
25mA
I
E
=
0mA
55
--
--
V
BV
EBO
I
E
=
10mA
I
C
=
0mA
3.5
--
--
V
BV
CER
IC
=
25mA
R
BE
=
10
55
--
--
V
I
CES
V
CE
=
35V
--
--
20
mA
h
FE
V
CE
=
5V
I
C
=
2mA
20
--
200
--
DYNAMIC
AM1011-070
2/4
TEST CIRCUIT
All dimensions are in inches.
Substrate material: .025 thick AI
2
O
3
C1
: 0.3--3.5 pF Johanson Gigatrim Capacitor
C2
: 0.3--3.5 pF Johanson Gigatrim Capacitor
C3
: 100 pF Chip Capacitor
C4
: 1500 pF Erie Feedthru, or Equiv.
C5
: 100 MF Electrolytic Capacitor, 50V
C6
: 1500 pF Erie Feedthrough, or Equiv.
L1
: #32 Wire, 4 Turn .062 I.D.
L2
: #32 Wire, 4 Turn .062 I.D.
RBE
: 0 -- 1.0 Ohm
Ref. Dwg. No. J313119
TYPICAL INPUT
IMPEDANCE
TYPICAL COLLECTOR
LOAD IMPEDANCE
P
IN
=
15 W
V
CC
=
28 V
Normalized to 50 ohms
IMPEDANCE DATA
Z
IN
Z
CL
FREQ.
Z
IN
(
)
Z
CL
(
)
L
=
1025 MHz
4.7 + j 4.7
3.6 + j 4.3
H
=
1090 MHz
4.7 + j 3.9
3.3 + j 4.4
AM1011-070
3/4

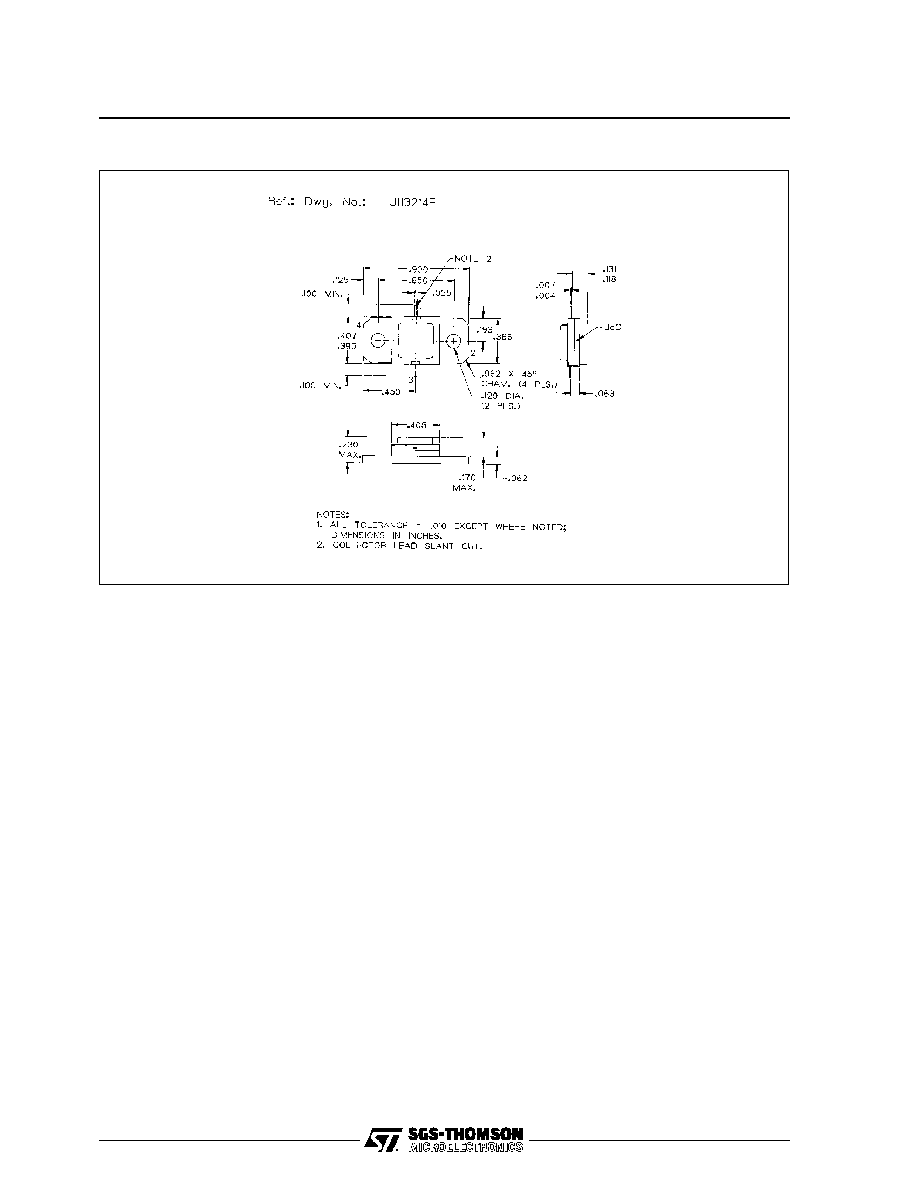

PACKAGE MECHANICAL DATA
