BC141
GENERAL PURPOSE TRANSISTORS
DESCRIPTION
The BC141 is a silicon planar epitaxial NPN
transistors in Jedec TO-39 metal case. They are
particularly designed for audio amplifiers and
switching application up to 1A.
The complementary PNP type is the BC161.
INTERNAL SCHEMATIC DIAGRAM
November 1997
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
V
CBO
Collect or-Base Voltage (I
E
= 0)
100
V
V
CEO
Collect or-Emitt er Voltage (I
B
= 0)
60
V
V
EBO
Emitt er-Base Voltage (I
C
= 0)
7
V
I
C
Collect or Current
1
A
I
B
Base Current
0.1
A
P
t ot
Total Dissipation at T
amb
45
o
C
at T
case
45
o
C
0.65
3.7
W
W
T
stg
St orage Temperature
-55 t o 175
o
C
T
j
Max. Operating Junction Temperature
175
o
C
TO-39
1/5
THERMAL DATA
R
t hj-ca se
R
t hj- amb
Thermal Resistance Junction-Case
Max
Thermal Resistance Junction-Ambient
Max
35
200
o
C/W
o
C/W
ELECTRICAL CHARACTERISTICS (T
case
= 25
o
C unless otherwise specified)
Symb ol
Parameter
Test Cond ition s
Mi n.
Typ .
Max.
Un it
I
CES
Collect or Cut-off
Current (V
BE
= 0)
V
CE
= 60 V
V
CE
= 60 V
T
amb
= 150
o
C
100
100
nA
A
V
( BR)CBO
Collect or-Base
Breakdown Volt age
(I
E
= 0)
I
C
= 100
A
100
V
V
( BR)CEO
Collect or-Emitter
Breakdown Volt age
(I
B
= 0)
I
C
= 30 mA
60
V
V
(BR)EBO
Emitt er-Base
Breakdown Volt age
(I
C
= 0)
I
E
= 100
A
7
V
V
CE(sat )
Collect or-Emitter
Saturat ion Voltage
I
C
= 100 mA
I
B
= 10 mA
I
C
= 500 mA
I
B
= 50 mA
I
C
= 1 A
I
B
= 100 mA
0.1
0. 35
0.6
1
V
V
V
V
BE(on)
Base-Emitt er O n
Voltage
I
C
= 1 A
V
CE
= 1 V
1. 25
1.8
V
h
FE
DC Current G ain
I
C
= 100
A
V
CE
= 1 V
for BC141
for BC141 Gr. 6
for BC141 Gr. 10
for BC141 Gr. 16
I
C
= 100 mA
V
CE
= 1 V
for BC141
for BC141 Gr. 6
for BC141 Gr. 10
for BC141 Gr. 16
I
C
= 1 A
V
CE
= 1 V
for BC141
for BC141 Gr. 6
for BC141 Gr. 10
for BC141 Gr. 16
40
40
63
100
75
28
40
90
140
63
100
160
26
15
20
30
250
100
160
250
f
T
Transit ion F requency
I
C
= 50 mA
V
CE
= 10 V
50
MHz
C
CBO
Collect or Base
Capacitance
I
E
= 0
V
CB
= 5 V
f = 1MHz
12
25
pF
t
on
Turn-on T ime
I
C
= 100 mA
I
B1
= 5 mA
250
ns
t
of f
Turn-off T ime
I
C
= 100 mA
I
B1
= I
B2
= 5 mA
850
ns
Pulsed: Pulse duration = 300
s, duty cycle
1 %
BC141
2/5

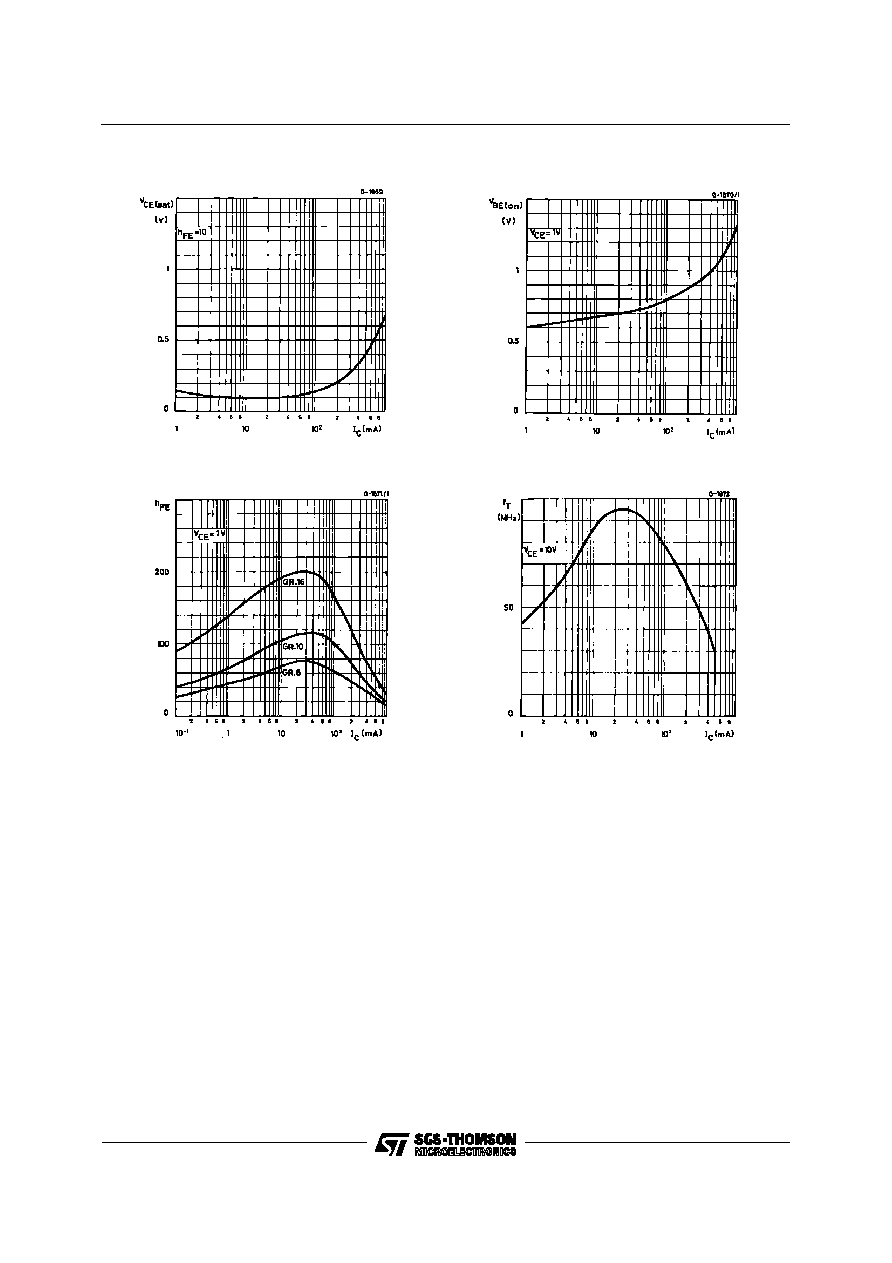

DC Curent Gain.
Transiition Frequency.
Collector-emitter Saturation Voltage.
Base-emitter Voltage.
BC141
3/5
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
12.7
0.500
B
0.49
0.019
D
6.6
0.260
E
8.5
0.334
F
9.4
0.370
G
5.08
0.200
H
1.2
0.047
I
0.9
0.035
L
45
o
(typ.)
L
G
I
D
A
F
E
B
H
P008B
TO-39 MECHANICAL DATA
BC141
4/5
