ESM765-800
August 1999 - Ed: 2B
RECOVERY RECTIFIER DIODES
I
F(AV)
10 A
V
RRM
800 V
Tj (max)
150C
V
F
(max)
1.35 V
trr (max)
300 ns
MAIN PRODUCTS CHARACTERISTICS
Fast recovery rectifiers suited for applications in
combination with superswitch transistors.
DESCRIPTION
Symbol
Parameter
Value
Unit
V
RRM
Repetitive peak reverse voltage
tp
20
s
800
V
I
F(RMS)
RMS forward current
16
A
I
F(AV)
Average forward current
Tc = 100C
= 0.5
10
A
I
FSM
Surge non repetitive forward current
Tp = 10 ms
Sinusoidal
120
A
P
tot
Power dissipation
Tc = 100C
20
W
T
stg
Storage temperature range
- 40 to + 150
C
Tj
Maximum operating junction temperature
+ 150
HIGH VOLTAGE CAPABILITY
FAST AND SOFT RECOVERY
THE SPECIFICATIONS AND CURVES
ENABLE THE DETERMINATION OF THE trr
AND I
RM
AT 100C UNDER USERS
CONDITIONS
MOTOR CONTROLS AND CONVERTERS
SWITCH MODE POWER SUPPLIES
INSULATED PACKAGE: TO-220AC
Insulating voltage = 2500 V
RMS
FEATURES
K
A
TO-220AC
1/5
Symbol
Parameters
Test conditions
Min.
Typ.
Max.
Unit
I
R
*
Reverse leakage current
Tj = 25
C
V
R
= V
RRM
20
mA
Tj = 100
C
1
mA
V
F
**
Forward voltage drop
Tj = 25
C
I
F
= 10 A
1.4
V
Tj = 100
C
1.35
Pulse test : * tp = 5 ms,
< 2 %
** tp = 380
s,
< 2 %
To evaluate the conduction losses use the following equation :
P = 1.2 x I
F(AV)
+ 0.015 x I
F
2
(RMS)
V
F
= 1.2 + 0.015 I
F
STATIC ELECTRICAL CHARACTERISTICS
Symbol
Test conditions
Min.
Typ.
Max.
Unit
trr
T
j
= 25
C
I
F
= 1A dI
F
/dt = - 15A/
s V
R
= 30V
300
ns
Qrr
T
j
= 25
C
I
F
= 10A dI
F
/dt = - 50A/
s V
R
= 200V
2.3
C
RECOVERY CHARACTERISTICS
Symbol
Parameter
Value
Unit
R
th(j-c)
Junction to case
2
C/W
THERMAL RESISTANCES
Fig. 1: Low frequency power losses versus
average current.
Fig. 2: Peak current versus form factor.
ESM765-800
2/5

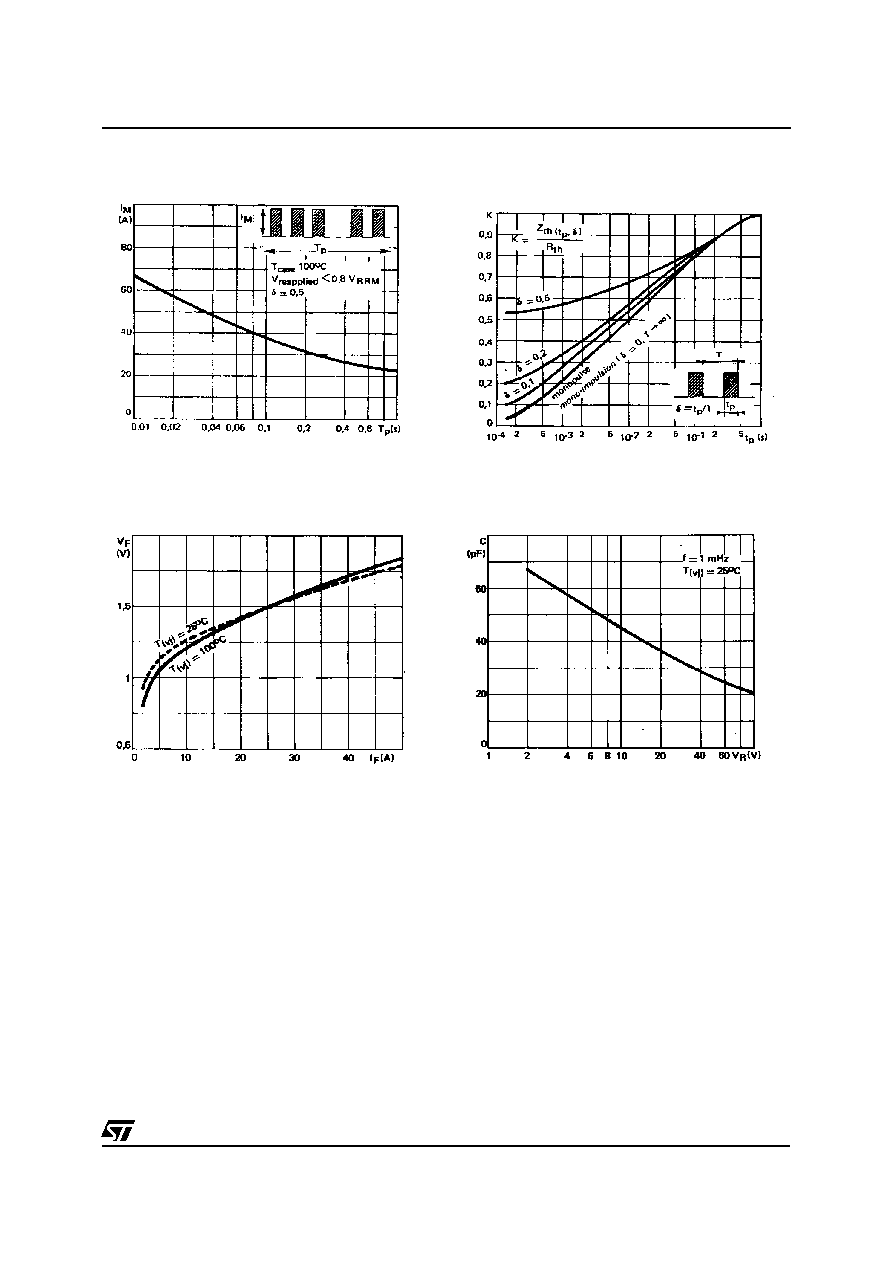

Fig. 3: Non repetitive peak surge current versus
overload duration.
Fig. 4: Thermal impedance versus pulse width.
Fig. 5: Voltage drop versus forward current.
Fig. 6: Capacitance versus applied reverse
voltage
ESM765-800
3/5

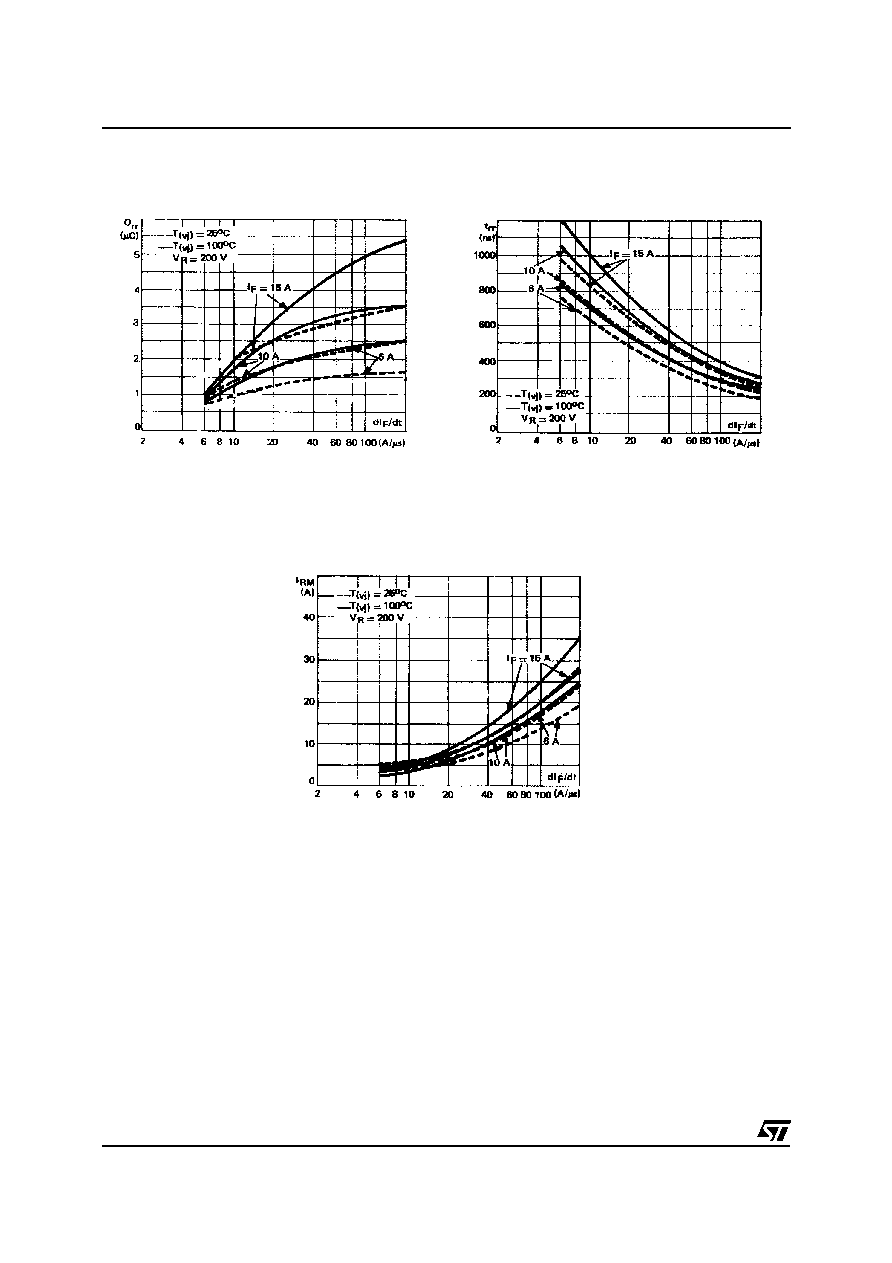

Fig. 7: Recovery charge versus dI
F
/dt.
Fig. 8: Recovery time versus dI
F
/dt.
Fig. 9: Peak reverse current versus dI
F
/dt.
ESM765-800
4/5
PACKAGE MECHANICAL DATA
TO-220AC
A
C
D
E
M
L7
H2
I
L5
L6
L9
L4
G
F1
F
L2
REF.
DIMENSIONS
Millimeters
Inches
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
C
1.23
1.32
0.048
0.051
D
2.40
2.72
0.094
0.107
E
0.49
0.70
0.019
0.027
F
0.61
0.88
0.024
0.034
F1
1.14
1.70
0.044
0.066
G
4.95
5.15
0.194
0.202
H2
10.00
10.40
0.393
0.409
L2
16.40 typ.
0.645 typ.
L4
13.00
14.00
0.511
0.551
L5
2.65
2.95
0.104
0.116
L6
15.25
15.75
0.600
0.620
L7
6.20
6.60
0.244
0.259
L9
3.50
3.93
0.137
0.154
M
2.6 typ.
0.102 typ.
Diam. I
3.75
3.85
0.147
0.151
