1/32

NOT FOR NEW DESIGN

February 2002

This is information on a product still in production but not recommended for new designs.

M25P05

512 Kbit, Low Voltage, Serial Flash Memory

With 20 MHz SPI Bus Interface

FEATURES SUMMARY

This device is now designated as "Not for New De-
sign". Please use the M25P05-A in all future de-
signs (as described in application note AN1511).

512 Kbit of Flash Memory

Page Program (up to 128 Bytes) in 3 ms
(typical)

Sector Erase (256 Kbit) in 1 s (typical)

Bulk Erase (512 Kbit) in 2 s (typical)

2.7 V to 3.6 V Single Supply Voltage

SPI Bus Compatible Serial Interface

20 MHz Clock Rate (maximum)

Deep Power-down Mode 1

A (typical)

Electronic Signature

More than 100,000 Erase/Program Cycles per
Sector

More than 20 Year Data Retention

Figure 1. Packages

SO8 (MN)

150 mil width

M25P05

2/32

SUMMARY DESCRIPTION
The M25P05 is a 512 Kbit (64K x 8) Serial Flash
Memory, with advanced write protection mecha-
nisms, accessed by a high speed SPI-compatible
bus.
The memory can be programmed 1 to 128 bytes at
a time, using the Page Program instruction.
The memory is organized as 2 sectors, each con-
taining 256 pages. Each page is 128 bytes wide.
Thus, the whole memory can be viewed as con-
sisting of 512 pages, or 65536 bytes.
The whole memory can be erased using the Bulk
Erase instruction, or a sector at a time, using the
Sector Erase instruction.

Figure 2. Logic Diagram

Figure 3. SO Connections

Table 1. Signal Names

AI04037

VCC

M25P05

HOLD

VSS

AI04038

VSS

HOLD

VCC

M25P05

C Serial

Clock

Serial Data Input

Serial Data Output

Chip Select

W Write

Protect

HOLD Hold

Supply Voltage

Ground

3/32

M25P05

SIGNAL DESCRIPTION
Serial Data Output (Q). This output signal is
used to transfer data serially out of the device.
Data is shifted out on the falling edge of Serial
Clock (C).
Serial Data Input (D). This input signal is used to
transfer data serially into the device. It receives in-
structions, addresses, and the data to be pro-
grammed. Values are latched on the rising edge of
Serial Clock (C).
Serial Clock (C). This input signal provides the
timing of the serial interface. Instructions, address-
es, or data present at Serial Data Input (D) are
latched on the rising edge of Serial Clock (C). Data
on Serial Data Output (Q) changes after the falling
edge of Serial Clock (C).
Chip Select (S). When this input signal is High,
the device is deselected and Serial Data Output
(Q) is at high impedance. Unless an internal Pro-
gram, Erase or Write Status Register cycle is in
progress, the device will be in the Standby mode

(this is not the Deep Power-down mode). Driving
Chip Select (S) Low enables the device, placing it
in the active power mode.
After Power-up, a falling edge on Chip Select (S)
is required prior to the start of any instruction.
Hold (HOLD). The Hold (HOLD) signal is used to
pause any serial communications with the device
without deselecting the device.
During the Hold condition, the Serial Data Output
(Q) is high impedance, and Serial Data Input (D)
and Serial Clock (C) are Don't Care.
To start the Hold condition, the device must be se-
lected, with Chip Select (S) driven Low.
Write Protect (W). The main purpose of this in-
put signal is to freeze the size of the area of mem-
ory that is protected against program or erase
instructions (as specified by the values in the BP1
and BP0 bits of the Status Register).

M25P05

4/32

SPI MODES
These devices can be driven by a microcontroller
with its SPI peripheral running in either of the two
following modes:
CPOL=0, CPHA=0

CPOL=1, CPHA=1
For these two modes, input data is latched in on
the rising edge of Serial Clock (C), and output data

is available from the falling edge of Serial Clock
(C).
The difference between the two modes, as shown
in Figure 5, is the clock polarity when the bus mas-
ter is in Stand-by mode and not transferring data:
C remains at 0 for (CPOL=0, CPHA=0)
C remains at 1 for (CPOL=1, CPHA=1)

Figure 4. Bus Master and Memory Devices on the SPI Bus

Note: 1. The Write Protect (W) and Hold (HOLD) signals should be driven, High or Low as appropriate.

Figure 5. SPI Modes Supported

AI03746C

Bus Master

(ST6, ST7, ST9,

ST10, Others)

SPI Memory

Device

SDO

SDI

SCK

SPI Memory

Device

SPI Memory

Device

CS3

CS2

CS1

SPI Interface with

(CPOL, CPHA) =

(0, 0) or (1, 1)

HOLD

AI01438

MSB

LSB

CPHA

D or Q

CPOL

5/32

M25P05

OPERATING FEATURES

Page Programming
To program one data byte, two instructions are re-
quired: Write Enable (WREN), which is one byte,
and a Page Program (PP) sequence, which con-
sists of four bytes plus data. This is followed by the
internal Program cycle (of duration t

To spread this overhead, the Page Program (PP)
instruction allows up to 128 bytes to be pro-
grammed at a time (changing bits from 1 to 0), pro-
vided that they lie in consecutive addresses on the
same page of memory.

Sector Erase and Bulk Erase
The Page Program (PP) instruction allows bits to
be reset from 1 to 0. Before this can be applied, the
bytes of memory need to have been erased to all
1s (FFh). This can be achieved either a sector at a
time, using the Sector Erase (SE) instruction, or
throughout the entire memory, using the Bulk
Erase (BE) instruction.

Polling During a Write, Program or Erase Cycle
A further improvement in the time to Write Status
Register (WRSR), Program (PP) or Erase (SE or
BE) can be achieved by not waiting for the worst
case delay (t

, t

, or t

). The Write In

Progress (WIP) bit is provided in the Status Regis-
ter so that the application program can monitor its
value, polling it to establish when the previous
Write cycle, Program cycle or Erase cycle is com-
plete.

Active Power, Stand-by Power and Deep
Power-Down Modes

When Chip Select (S) is Low, the device is en-
abled, and in the Active Power mode.
When Chip Select (S) is High, the device is dis-
abled, but could remain in the Active Power mode
until all internal cycles have completed (Program,

Erase, Write Status Register). The device then
goes in to the Stand-by Power mode. The device
consumption drops to I

CC1

The Deep Power-down mode is entered when the
specific instruction (the Enter Deep Power-down
Mode (DP) instruction) is executed. The device
consumption drops further to I

CC2

. The device re-

mains in this mode until another specific instruc-
tion (the Release from Deep Power-down Mode
and Read Electronic Signature (RES) instruction)
is executed.
All other instructions are ignored while the device
is in the Deep Power-down mode. This can be
used as an extra software protection mechanism,
when the device is not in active use, to protect the
device from inadvertant Write, Program or Erase
instructions.

Status Register
The Status Register contains a number of status
and control bits, as shown in Table 5, that can be
read or set (as appropriate) by specific instruc-
tions.
WIP bit. The Write In Progress (WIP) bit indicates
whether the memory is busy with a Write Status
Register, Program or Erase cycle.
WEL bit. The Write Enable Latch (WEL) bit indi-
cates the status of the internal Write Enable Latch.
BP1, BP0 bits. The Block Protect (BP1, BP0) bits
are non-volatile. They define the size of the area to
be software protected against Program and Erase
instructions.
SRWD bit. The Status Register Write Disable
(SRWD) bit is operated in conjunction with the
Write Protect (W) signal. The Status Register
Write Disable (SRWD) bit and Write Protect (W)
signal allow the device to be put in the Hardware
Protected mode. In this mode, the non-volatile bits
of the Status Register (SRWD, BP1, BP0) become
read-only bits.

M25P05

6/32

Table 2. Protected Area Sizes

Protection Modes
The environments where non-volatile memory de-
vices are used can be very noisy. No SPI device
can operate correctly in the presence of excessive
noise. To help combat this, the M25P05 boasts the
following data protection mechanisms:

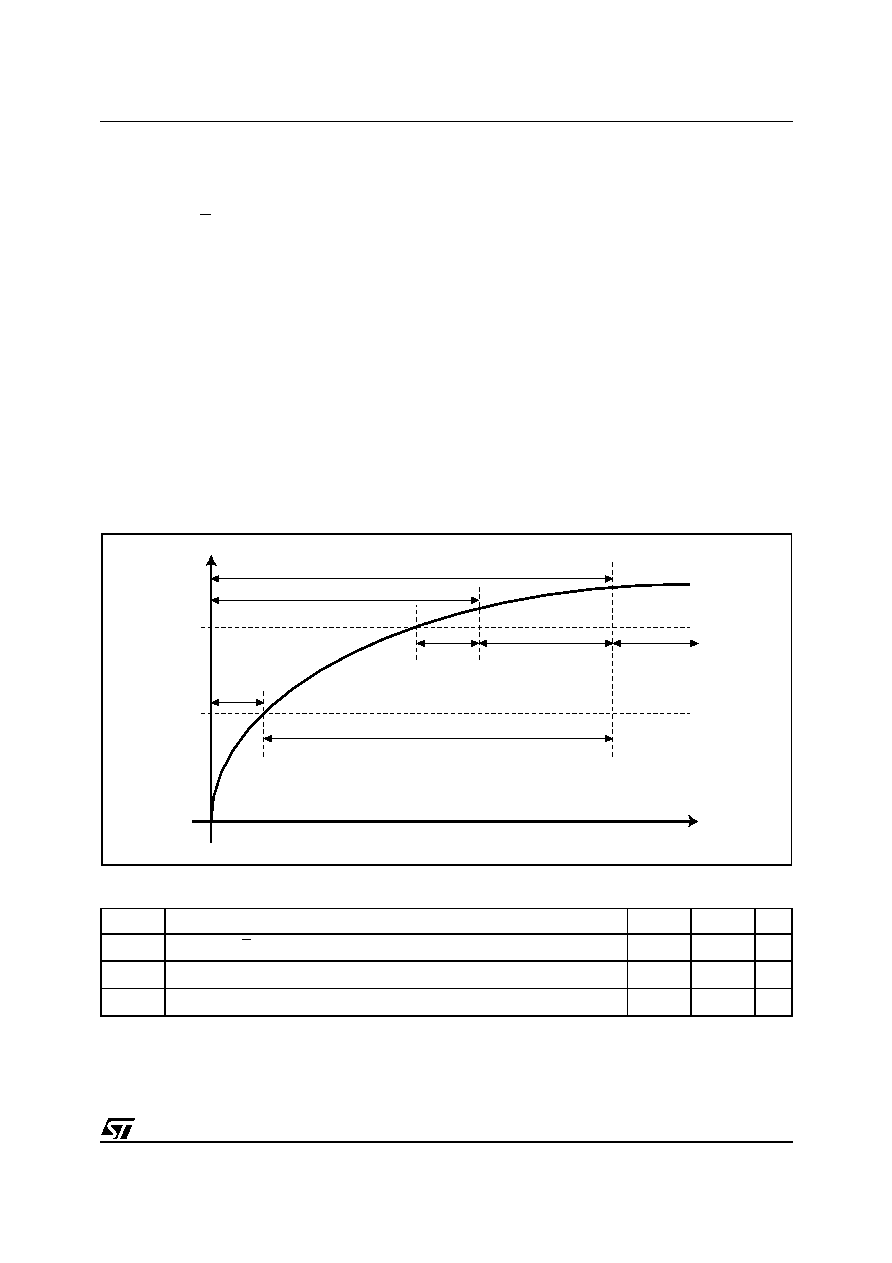

Power-On Reset and an internal timer (t

PUW

)

can provide protection against inadvertant
changes while the power supply is outside the
operating specification.

Program, Erase and Write Status Register
instructions are checked that they consist of a
number of clock pulses that is a multiple of
eight, before they are accepted for execution.

All instructions that modify data must be
preceded by a Write Enable (WREN) instruction
to set the Write Enable Latch (WEL) bit . This bit
is returned to its reset state by the following
events:

Power-up

Write Disable (WRDI) instruction completion

Write Status Register (WRSR) instruction

completion

Page Program (PP) instruction completion

Sector Erase (SE) instruction completion

Bulk Erase (BE) instruction completion

The Block Protect (BP1, BP0) bits allow part of
the memory to be configured as read-only. This
is the Software Protected Mode (SPM).

The Write Protect (W) signal, in co-operation
with the Status Register Write Disable (SRWD)
bit, allows the Block Protect (BP1, BP0) bits and
Status Register Write Disable (SRWD) bit to be
write-protected. This is the Hardware Protected
Mode (HPM).

In addition to the low power consumption
feature, the Deep Power-down mode offers
extra software protection from inadvertant
Write, Program and Erase instructions, as all
instructions are ignored except one particular
instruction (the Release from Deep Power-
down instruction).

Figure 6. Hold Condition Activation

Status Register

Content

Memory Content

BP1 Bit

BP0 Bit

Protected Area

Unprotected Area

none

All sectors (Sectors 0 and 1)

0 1

No protection against Page Program (PP) and Sector Erase (SE)

All sectors (Sectors 0 and 1) protected against Bulk Erase (BE)

1 0

All sectors (Sectors 0 and 1)

none

AI02029C

HOLD

Active

Hold

Active

Hold

Active

7/32

M25P05

Hold Condition
The Hold (HOLD) signal is used to pause any se-
rial communications with the device without reset-
ting the clocking sequence. However, taking this
signal Low does not terminate any Write Status
Register, Program or Erase cycle that is currently
in progress.
To enter the Hold condition, the device must be
selected, with Chip Select (S) Low.
The Hold condition starts on the falling edge of the
Hold (HOLD) signal, provided that this coincides
with Serial Clock (C) being Low (as shown in Fig-
ure 6).
The Hold condition ends on the rising edge of the
Hold (HOLD) signal, provided that this coincides
with Serial Clock (C) being Low.
If the falling edge does not coincide with Serial
Clock (C) being Low, the Hold condition starts
when Serial Clock (C) next goes Low. Similarly, if

the rising edge does not coincide with Serial Clock
(C) being Low, the Hold condition ends when Se-
rial Clock (C) next goes Low. (This is shown in Fig-
ure 6).
During the Hold condition, the Serial Data Output
(Q) is high impedance, and Serial Data Input (D)
and Serial Clock (C) are Don't Care.
Normally, the device is kept selected, with Chip
Select (S) driven Low, for the whole duration of the
Hold condition. This is to ensure that the state of
the internal logic remains unchanged from the mo-
ment of entering the Hold condition.
If Chip Select (S) goes High while the device is in
the Hold condition, this has the effect of resetting
the internal logic of the device. To restart commu-
nication with the device, it is necessary to drive
Hold (HOLD) High, and then to drive Chip Select
(S) Low. This prevents the device from going back
to the Hold condition.

M25P05

8/32

MEMORY ORGANIZATION
The memory is organized as:

65536 bytes (8 bits each)

2 sectors (256 Kbits, 32768 bytes each)

512 pages (128 bytes each).

Each page can be individually programmed (bits
are programmed from 1 to 0). The device is Sector

or Bulk Erasable (bits are erased from 0 to 1) but
not Page Erasable.

Table 3. Memory Organization

Figure 7. Block Diagram

Sector Address

Range

1 08000h

0FFFFh

0 00000h

07FFFh

AI04039

HOLD

Control Logic

High Voltage

Generator

I/O Shift Register

Address Register

and Counter

128 Byte

Data Buffer

128 Bytes (Page Size)

X Decoder

Y Decoder

Status

00000h

08000h

0FFFFh

0007Fh

9/32

M25P05

INSTRUCTIONS
All instructions, addresses and data are shifted in
and out of the device, most significant bit first.
Serial Data Input (D) is sampled on the first rising
edge of Serial Clock (C) after Chip Select (S) is
driven Low. Then, the one-byte instruction code
must be shifted in to the device, most significant bit
first, on Serial Data Input (D), each bit being
latched on the rising edges of Serial Clock (C).
The instruction set is listed in Table 4.
Depending on the instruction, the one-byte in-
struction code is followed by address bytes, or by
data bytes, or by both or none. Chip Select (S)
must be driven High after the last bit of the instruc-
tion sequence has been shifted in.

At the end of a Page Program (PP), Sector Erase
(SE), Bulk Erase (BE) or Write Status Register
(WRSR) instruction, Chip Select (S) must be driv-
en High exactly at a byte boundary, otherwise the
instruction is rejected, and is not executed. That is,
Chip Select (S) must driven High when the number
of clock pulses after Chip Select (S) being driven
Low is an exact multiple of eight.
All attempts to access the memory array during a
Write Status Register cycle, Program cycle or
Erase cycle are ignored, and the internal Write
Status Register cycle, Program cycle or Erase cy-
cle continues unaffected.

Table 4. Instruction Set

Instruction

Description

One-byte Instruction Code

WREN

Write Enable

0000 0110

WRDI

Write Disable

0000 0100

RDSR

Read Status Register

0000 0101

WRSR

Write Status Register

0000 0001

READ

Read Data Bytes

0000 0011

PP Page

Program

0000

0010

Sector Erase

1101 1000

Bulk Erase

1100 0111

Deep Power-down

1011 1001

RES

Release from Deep Power-down, and Read Electronic Signature

1010 1011

M25P05

10/32

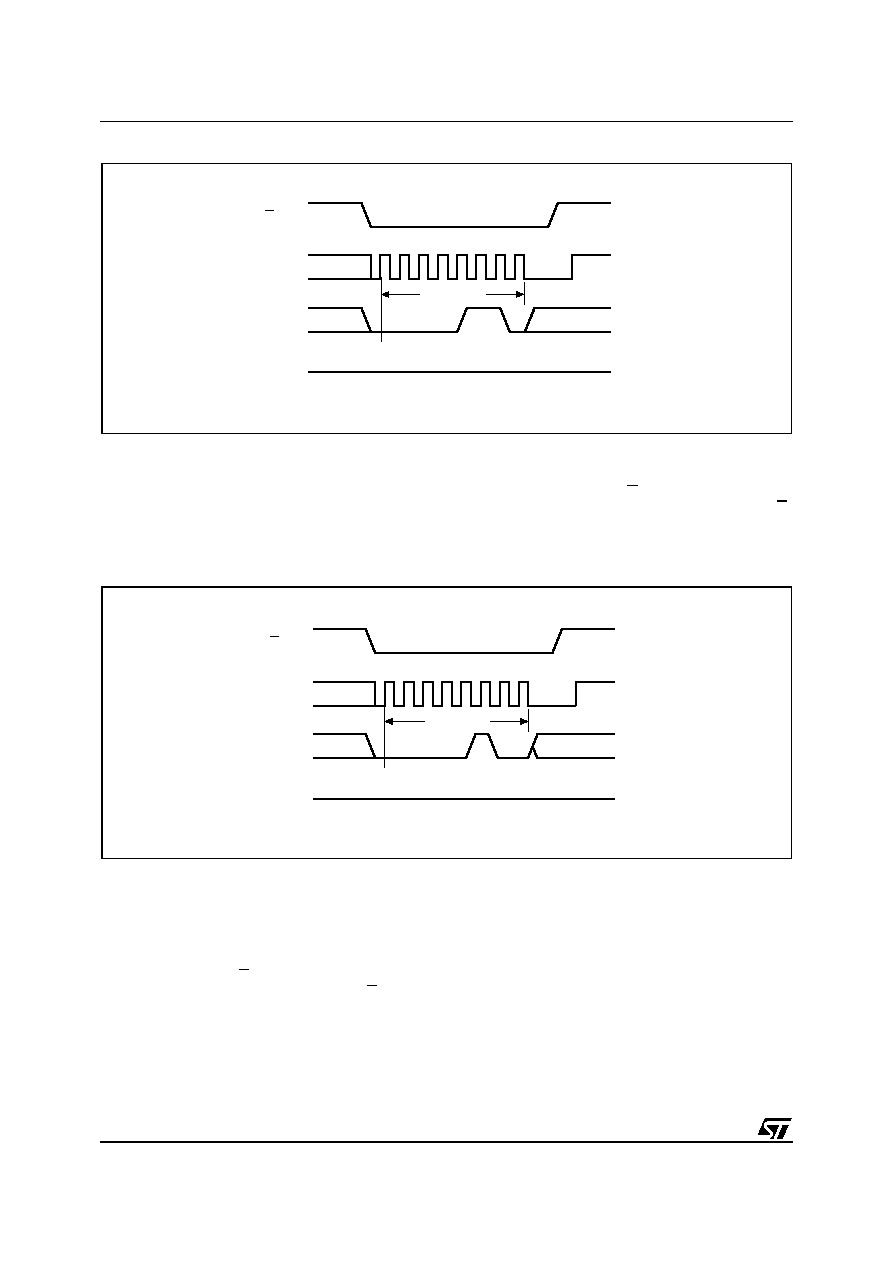

Figure 8. Write Enable (WREN) Sequence

Write Enable (WREN)
The Write Enable (WREN) instruction (Figure 8)
sets the Write Enable Latch (WEL) bit.
The Write Enable Latch (WEL) bit must be set pri-
or to every Page Program (PP), Sector Erase

(SE), Bulk Erase (BE) and Write Status Register
(WRSR) instruction.
The Write Enable (WREN) instruction is entered
by driving Chip Select (S) Low, sending the in-
struction code, and then driving Chip Select (S)
High.

Figure 9. Write Disable (WRDI) Sequence

Write Disable (WRDI)
The Write Disable (WRDI) instruction (Figure 9)
resets the Write Enable Latch (WEL) bit.
The Write Disable (WRDI) instruction is entered by
driving Chip Select (S) Low, sending the instruc-
tion code, and then driving Chip Select (S) High.
The Write Enable Latch (WEL) bit is reset under
the following conditions:

Power-up
Write Disable (WRDI) instruction completion
Write Status Register (WRSR) instruction com-

pletion

Page Program (PP) instruction completion
Sector Erase (SE) instruction completion
Bulk Erase (BE) instruction completion

AI02281D

High Impedance

Instruction

AI03750C

High Impedance

Instruction

11/32

M25P05

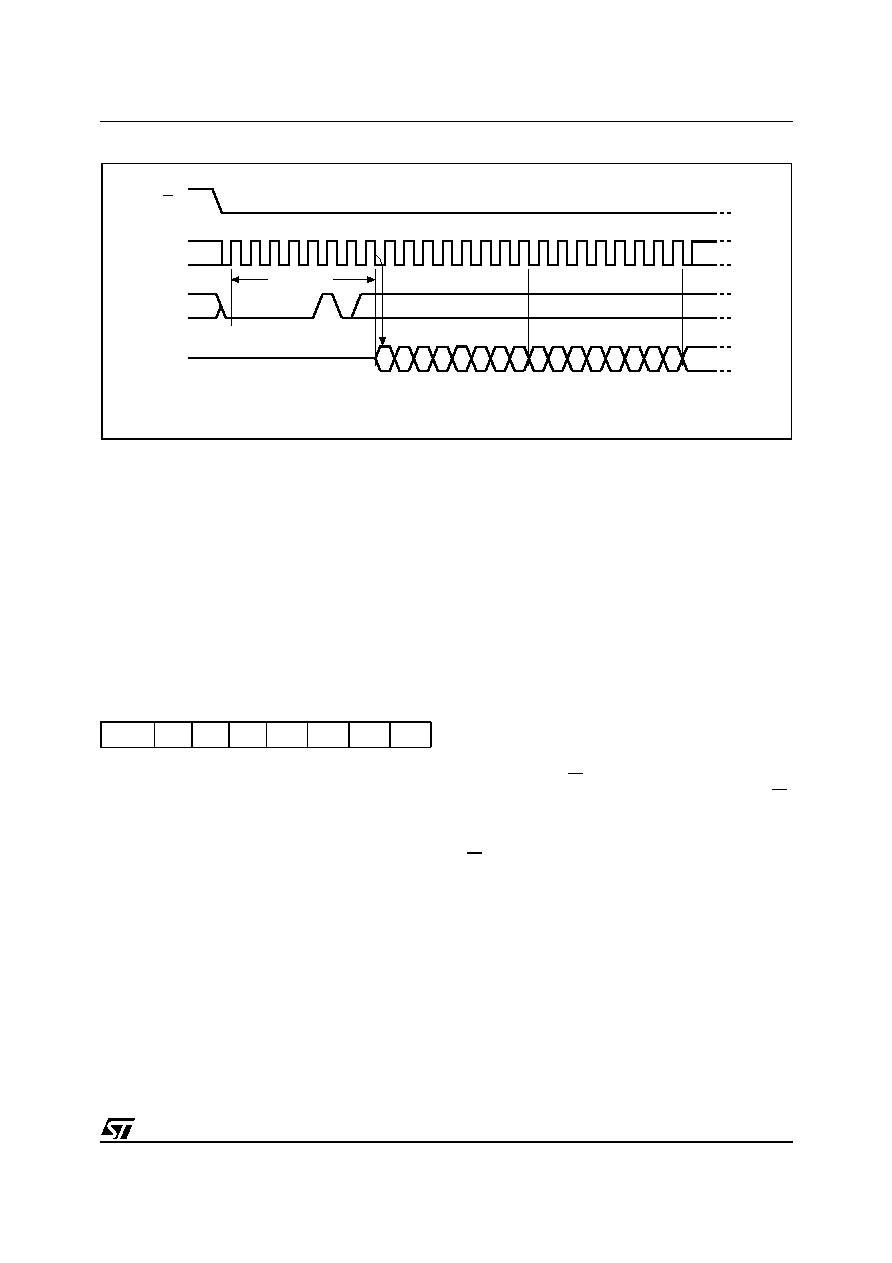

Figure 10. Read Status Register (RDSR) Sequence

Read Status Register (RDSR)
The Read Status Register (RDSR) instruction al-
lows the Status Register to be read. The Status
Register may be read at any time, even while a
Program, Erase or Write Status Register cycle is in
progress. When one of these cycles is in progress,
it is recommended to check the Write In Progress
(WIP) bit before sending a new instruction to the
device. It is also possible to read the Status Reg-
ister continuously, as shown in Figure 10.

Table 5. Status Register Format

Note: 1. SRWD, BP1 and BP0 are non-volatile read and write bits.

2. WEL and WIP are volatile read-only bits (WEL is set and

reset by specific instructions; WIP is automatically set
and reset by the internal logic of the device).

The status and control bits of the Status Register
are as follows:
WIP bit. The Write In Process (WIP) bit indicates
whether the memory is busy with a Write Status
Register, Program or Erase cycle. When set to 1,
such a cycle is in progress, when reset to 0 no
such cycle is in progress.
WEL bit. The Write Enable Latch (WEL) bit indi-
cates the status of the internal Write Enable Latch.

When set to 1 the internal Write Enable Latch is
set, when set to 0 the internal Write Enable Latch
is reset and no Write Status Register, Program or
Erase instruction is accepted.
BP1, BP0 bits. The Block Protect (BP1, BP0) bits
are non-volatile. They define the size of the area to
be software protected against Program and Erase
instructions. These bits are written with the Write
Status Register (WRSR) instruction. When both of
the Block Protect (BP1, BP0) bits are set to 1, the
whole memory is protected against Page Program
(PP) and Sector Erase (SE) instructions. The Bulk
Erase (BE) instruction is executed if, and only if,
both Block Protect (BP1, BP0) bits are 0. This is
summarized in Table 2. The Block Protect (BP1,
BP0) bits can be written provided that the Hard-
ware Protected mode has not been set.
SRWD bit. The Status Register Write Disable
(SRWD) bit is operated in conjunction with the
Write Protect (W) signal. The Status Register
Write Disable (SRWD) bit and Write Protect (W)
signal allow the device to be put in the Hardware
Protected mode (when the Status Register Write
Disable (SRWD) bit is set to 1, and Write Protect
(W) is driven Low). In this mode, the non-volatile
bits of the Status Register (SRWD, BP1, BP0) be-
come read-only bits and the Write Status Register
(WRSR) instruction is no longer accepted for exe-
cution.

9 10 11 12 13 14 15

Instruction

AI02031C

Status Register Out

High Impedance

MSB

Status Register Out

MSB

b7 b0

SRWD 0 0 0 BP1 BP0

WEL

WIP

M25P05

12/32

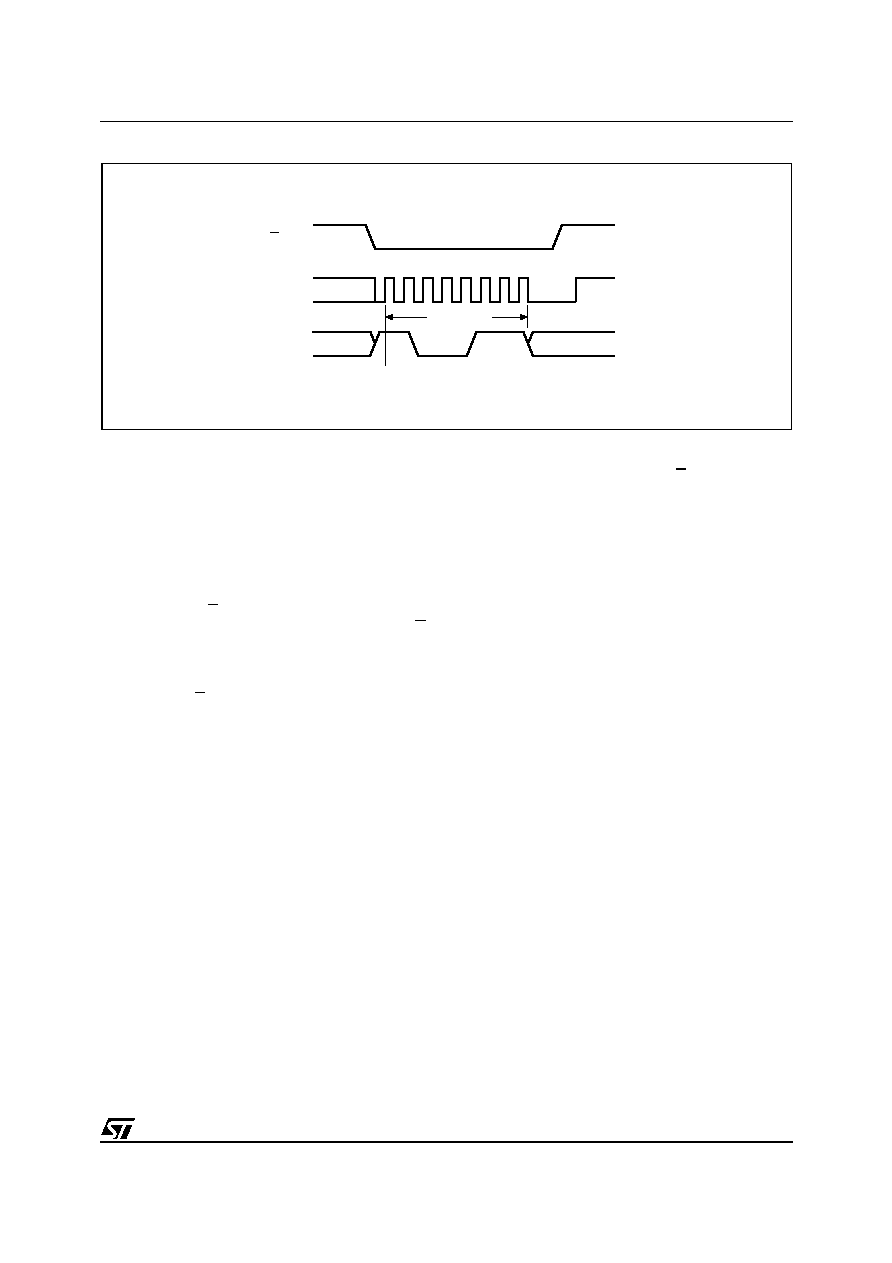

Figure 11. Write Status Register (WRSR) Sequence

Write Status Register (WRSR)
The Write Status Register (WRSR) instruction al-
lows new values to be written to the Status Regis-
ter. Before it can be accepted, a Write Enable
(WREN) instruction must previously have been ex-
ecuted. After the Write Enable (WREN) instruction
has been decoded and executed, the device sets
the Write Enable Latch (WEL).
The Write Status Register (WRSR) instruction is
entered by driving Chip Select (S) Low, followed
by the instruction code and the data byte on Serial
Data Input (D).
The instruction sequence is shown in Figure 11.
The Write Status Register (WRSR) instruction has
no effect on b6, b5, b4, b1 and b0 of the Status
Register. b6, b5 and b4 are always read as 0.
Chip Select (S) must be driven High after the
eighth bit of the data byte has been latched in. If
not, the Write Status Register (WRSR) instruction
is not executed. As soon as Chip Select (S) is driv-
en High, the self-timed Write Status Register cycle

(whose duration is t

) is initiated. While the Write

Status Register cycle is in progress, the Status
Register may still be read to check the value of the
Write In Progress (WIP) bit. The Write In Progress
(WIP) bit is 1 during the self-timed Write Status
Register cycle, and is 0 when it is completed. At
some unspecified time before the cycle is complet-
ed, the Write Enable Latch (WEL) is reset.
The Write Status Register (WRSR) instruction al-
lows the user to change the values of the Block
Protect (BP1, BP0) bits, to define the size of the
area that is to be treated as read-only, as defined
in Table 2. The Write Status Register (WRSR) in-
struction also allows the user to set or reset the
Status Register Write Disable (SRWD) bit in ac-
cordance with the Write Protect (W) signal. The
Status Register Write Disable (SRWD) bit and
Write Protect (W) signal allow the device to be put
in the Hardware Protected Mode (HPM). The Write
Status Register (WRSR) instruction is not execut-
ed once the Hardware Protected Mode (HPM) is
entered.

AI02282C

9 10 11 12 13 14 15

High Impedance

Instruction

Status

MSB

13/32

M25P05

Table 6. Protection Modes

Note: 1. As defined by the values in the Block Protect (BP1, BP0) bits of the Status Register, as shown in Table 2.

The protection features of the device are summa-
rized in Table 6.
When the Status Register Write Disable (SRWD)
bit of the Status Register is 0 (its initial delivery
state), it is possible to write to the Status Register
provided that the Write Enable Latch (WEL) bit has
previously been set by a Write Enable (WREN) in-
struction, regardless of the whether Write Protect
(W) is driven High or Low.
When the Status Register Write Disable (SRWD)
bit of the Status Register is set to 1, two cases
need to be considered, depending on the state of
Write Protect (W):
If Write Protect (W) is driven High, it is possible

to write to the Status Register provided that the
Write Enable Latch (WEL) bit has previously
been set by a Write Enable (WREN) instruction.

If Write Protect (W) is driven Low, it is

not

pos-

sible to write to the Status Register

even

if the

Write Enable Latch (WEL) bit has previously
been set by a Write Enable (WREN) instruction.

(Attempts to write to the Status Register are re-
jected, and are not accepted for execution). As
a consequence, all the data bytes in the memo-
ry area that are software protected (SPM) by the
Block Protect (BP1, BP0) bits of the Status Reg-
ister, are also hardware protected against data
modification.

Regardless of the order of the two events, the
Hardware Protected Mode (HPM) can be entered:
by setting the Status Register Write Disable

(SRWD) bit after driving Write Protect (W) Low

or by driving Write Protect (W) Low after setting

the Status Register Write Disable (SRWD) bit.

The only way to exit the Hardware Protected Mode
(HPM) once entered is to pull Write Protect (W)
High.
If Write Protect (W) is permanently tied High, the
Hardware Protected Mode (HPM) can never be
activated, and only the Software Protected Mode
(SPM), using the Block Protect (BP1, BP0) bits of
the Status Register, can be used.

Signal

SRWD

Bit

Mode

Write Protection of the

Status Register

Memory Content

Protected Area

Unprotected Area

Software

Protected

(SPM)

Status Register is
Writable (if the WREN
instruction has set the
WEL bit)
The values in the BP1
and BP0 bits can be
changed

Protected against Page
Program and Sector
Erase

Ready to accept Page
Program and Sector
Erase instructions

Hardware
Protected

(HPM)

Status Register is
Hardware write protected
The values in the BP1
and BP0 bits cannot be
changed

Protected against Page
Program and Sector
Erase

Ready to accept Page
Program and Sector
Erase instructions

M25P05

14/32

Figure 12. Read Data Bytes (READ)

Sequence

Note: 1. Address bits A23 to A16 must be set to 00h.

Read Data Bytes (READ)
The device is first selected by driving Chip Select
(S) Low. The instruction code for the Read Data
Bytes (READ) instruction is followed by a 3-byte
address (A23-A0), each bit being latched-in during
the rising edge of Serial Clock (C). Then the mem-
ory contents, at that address, is shifted out on Se-
rial Data Output (Q), each bit being shifted out, at
a maximum frequency f

, during the falling edge of

Serial Clock (C).
The instruction sequence is shown in Figure 12.
The first byte addressed can be at any location.
The address is automatically incremented to the

next higher address after each byte of data is shift-
ed out. The whole memory can, therefore, be read
with a single Read Data Bytes (READ) instruction.
There is no address roll-over; when the highest
address (0FFFFh) is reached, the instruction
should be terminated.

The Read Data Bytes (READ) instruction is termi-
nated by driving Chip Select (S) High. Chip Select
(S) can be driven High at any time during data out-
put. Any Read Data Bytes (READ) instruction,
while an Erase, Program or Write cycle is in
progress, is rejected without having any effects on
the cycle that is in progress.

AI03748C

9 10

28 29 30 31 32 33 34 35

22 21

36 37 38

High Impedance

Data Out 1

Instruction

24-Bit Address

MSB

Data Out 2

15/32

M25P05

Figure 13. Page Program (PP) Sequence

Note: 1. Address bits A23 to A16 must be set to 00h.

Page Program (PP)

The Page Program (PP) instruction allows bytes to
be programmed in the memory (changing bits from
1 to 0). Before it can be accepted, a Write Enable
(WREN) instruction must previously have been ex-
ecuted. After the Write Enable (WREN) instruction
has been decoded, the device sets the Write En-
able Latch (WEL).
The Page Program (PP) instruction is entered by
driving Chip Select (S) Low, followed by the in-
struction code, three address bytes (of which the
most significant byte, A23-A16, must be 00h) and
at least one data byte on Serial Data Input (D). If
the 7 least significant address bits (A6-A0) are not
all zero, all transmitted data exceeding the ad-
dressed page boundary roll over, and are pro-
grammed from the start address of the same page
(the one whose 7 least significant address bits
(A6-A0) are all zero). Chip Select (S) must be driv-
en Low for the entire duration of the sequence.
The instruction sequence is shown in Figure 13.
If more than 128 bytes are sent to the device, pre-
viously latched data are discarded and the last 128

data bytes are guaranteed to be programmed cor-
rectly within the same page. If less than 128 Data
bytes are sent to device, they are correctly pro-
grammed at the requested addresses without hav-
ing any effects on the other bytes of the same
page.
Chip Select (S) must be driven High after the
eighth bit of the last data byte has been latched in,
otherwise the Page Program (PP) instruction is not
executed.
As soon as Chip Select (S) is driven High, the self-
timed Page Program cycle (whose duration is t

)

is initiated. While the Page Program cycle is in
progress, the Status Register may be read to
check the value of the Write In Progress (WIP) bit.
The Write In Progress (WIP) bit is 1 during the self-
timed Page Program cycle, and is 0 when it is
completed. When the cycle is completed, the Write
Enable Latch (WEL) bit is reset.
A Page Program (PP) instruction applied to a page
which is protected by the Block Protect (BP0, BP1)
bits (see Table 2) is not executed.

AI03749C

43 44 45 46 47 48 49 50

52 53 54 55

9 10

28 29 30 31 32 33 34 35

22 21

36 37 38

Instruction

24-Bit Address

Data Byte 1

Data Byte 2

Data Byte 3

Data Byte 128

1055

1054

1053

1052

1051

1050

1049

1048

MSB

M25P05

16/32

Figure 14. Sector Erase (SE)

Sequence

Note: 1. Address bits A23 to A16 must be set to 00h.

Sector Erase (SE)
The Sector Erase (SE) instruction sets to 1 (FFh)
all bits inside the chosen sector. Before it can be
accepted, a Write Enable (WREN) instruction
must previously have been executed. After the
Write Enable (WREN) instruction has been decod-
ed, the device sets the Write Enable Latch (WEL).
The Sector Erase (SE) instruction is entered by
driving Chip Select (S) Low, followed by the in-
struction code, and three address bytes on Serial
Data Input (D). Any address inside the Sector (see
Table 3) is a valid address for the Sector Erase
(SE) instruction. Chip Select (S) must be driven
Low for the entire duration of the sequence.
The instruction sequence is shown in Figure 14.

Chip Select (S) must be driven High after the
eighth bit of the last address byte has been latched
in, otherwise the Sector Erase (SE) instruction is
not executed. As soon as Chip Select (S) is driven
High, the self-timed Sector Erase cycle (whose du-
ration is t

) is initiated. While the Sector Erase cy-

cle is in progress, the Status Register may be read
to check the value of the Write In Progress (WIP)
bit. The Write In Progress (WIP) bit is 1 during the
self-timed Sector Erase cycle, and is 0 when it is
completed. At some unspecified time before the
cycle is completed, the Write Enable Latch (WEL)
bit is reset.
A Sector Erase (SE) instruction applied to a page
which is protected by the Block Protect (BP1, BP0)
bits (see Table 2) is not executed.

24 Bit Address

AI03751C

29 30 31

Instruction

23 22

MSB

17/32

M25P05

Figure 15. Bulk Erase (BE) Sequence

Bulk Erase (BE)
The Bulk Erase (BE) instruction sets all bits to 1
(FFh). Before it can be accepted, a Write Enable
(WREN) instruction must previously have been ex-
ecuted. After the Write Enable (WREN) instruction
has been decoded, the device sets the Write En-
able Latch (WEL).
The Bulk Erase (BE) instruction is entered by driv-
ing Chip Select (S) Low, followed by the instruction
code on Serial Data Input (D). Chip Select (S)
must be driven Low for the entire duration of the
sequence.
The instruction sequence is shown in Figure 15.
Chip Select (S) must be driven High after the
eighth bit of the instruction code has been latched

in, otherwise the Bulk Erase instruction is not exe-
cuted. As soon as Chip Select (S) is driven High,
the self-timed Bulk Erase cycle (whose duration is
t

) is initiated. While the Bulk Erase cycle is in

progress, the Status Register may be read to
check the value of the Write In Progress (WIP) bit.
The Write In Progress (WIP) bit is 1 during the self-
timed Bulk Erase cycle, and is 0 when it is com-
pleted. At some unspecified time before the cycle
is completed, the Write Enable Latch (WEL) bit is
reset.
The Bulk Erase (BE) instruction is executed only if
both Block Protect (BP1, BP0) bits are 0. The Bulk
Erase (BE) instruction is ignored if one, or more,
sectors are protected.

AI03752C

Instruction

M25P05

18/32

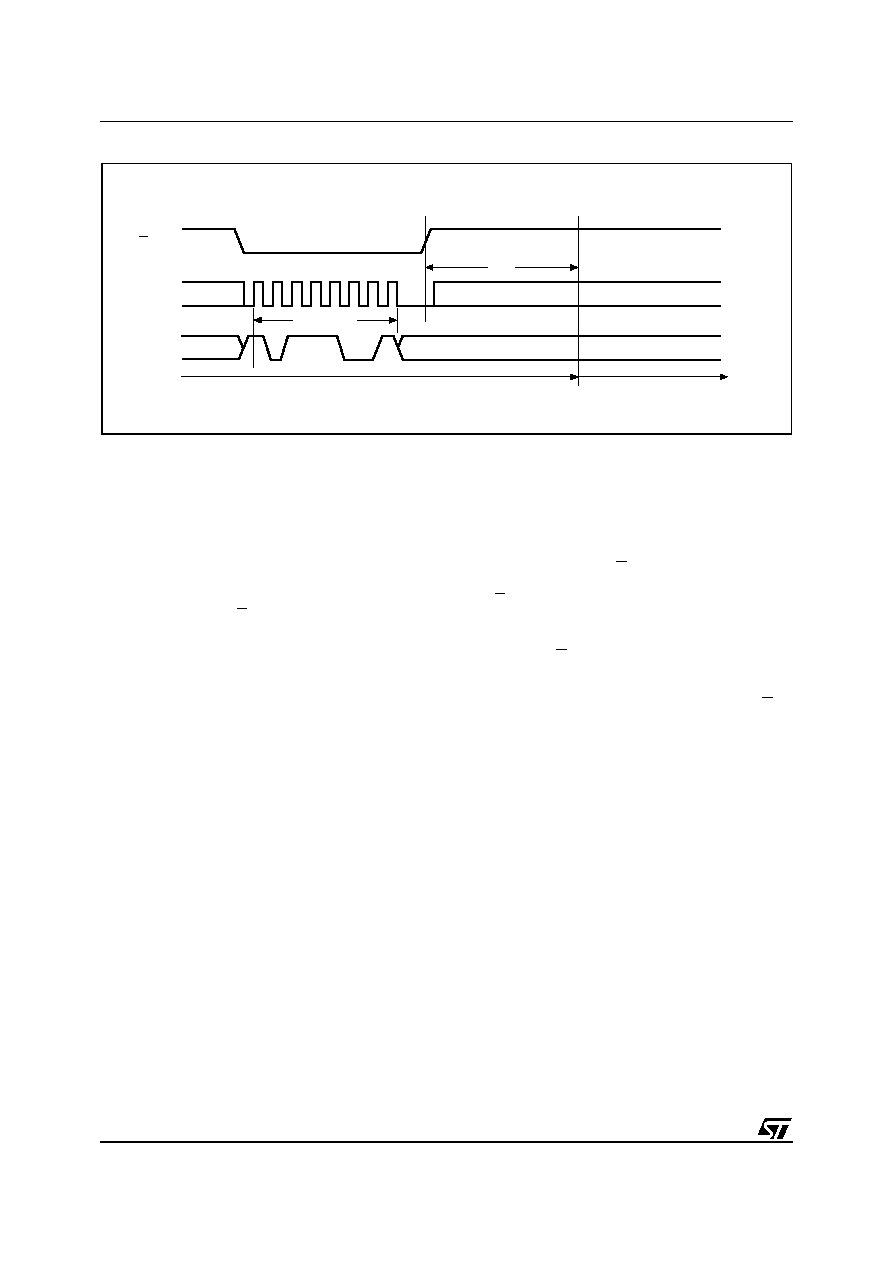

Figure 16. Deep Power-down (DP) Sequence

Deep Power-down (DP)
Executing the Deep Power-down (DP) instruction
is the only way to put the device in the lowest con-
sumption mode (the Deep Power-down mode). It
can also be used as an extra software protection
mechanism, while the device is not in active use,
since in this mode, the device ignores all Write,
Program and Erase instructions.
Driving Chip Select (S) High deselects the device,
and puts the device in the Standby mode (if there
is no internal cycle currently in progress). But this
mode is not the Deep Power-down mode. The
Deep Power-down mode can only be entered by
executing the Deep Power-down (DP) instruction,
to reduce the standby current (from I

CC1

to I

CC2

as specified in Table 13).
Once the device has entered the Deep Power-
down mode, all instructions are ignored except the
Release from Deep Power-down and Read Elec-
tronic Signature (RES) instruction. This releases
the device from this mode. The Release from
Deep Power-down and Read Electronic Signature
(RES) instruction also allows the Electronic Signa-

ture of the device to be output on Serial Data Out-
put (Q).
The Deep Power-down mode automatically stops
at Power-down, and the device always Powers-up
in the Standby mode.
The Deep Power-down (DP) instruction is entered
by driving Chip Select (S) Low, followed by the in-
struction code on Serial Data Input (D). Chip Se-
lect (S) must be driven Low for the entire duration
of the sequence.
The instruction sequence is shown in Figure 16.
Chip Select (S) must be driven High after the
eighth bit of the instruction code has been latched
in, otherwise the Deep Power-down (DP) instruc-
tion is not executed. As soon as Chip Select (S) is
driven High, it requires a delay of t

before the

supply current is reduced to I

CC2

and the Deep

Power-down mode is entered.
Any Deep Power-down (DP) instruction, while an
Erase, Program or Write cycle is in progress, is re-
jected without having any effects on the cycle that
is in progress.

AI03753C

Deep Power-down Mode

Stand-by Mode

Instruction

19/32

M25P05

Figure 17. Release from Deep Power-down and Read Electronic Signature (RES) Sequence

Release from Deep Power-down and Read
Electronic Signature (RES)
Once the device has entered the Deep Power-
down mode, all instructions are ignored except the
Release from Deep Power-down and Read Elec-
tronic Signature (RES) instruction. Executing this
instruction takes the device out of the Deep Pow-
er-down mode. The instruction can also be used to
read, on Serial Data Output (Q), the 8-bit Electron-
ic Signature of the device.
Except while an Erase, Program or Write Status
Register cycle is in progress, the Release from
Deep Power-down and Read Electronic Signature
(RES) instruction always provides access to the
Electronic Signature of the device, and can be ap-
plied even if the Deep Power-down mode has not
been entered.
Any Release from Deep Power-down and Read
Electronic Signature (RES) instruction while an
Erase, Program or Write Status Register cycle is in
progress, is not decoded, and has no effect on the
cycle that is in progress.
This instruction serves a second purpose. The de-
vice features an 8-bit Electronic Signature, whose

value for the M25P05 is 10h. This can be read us-
ing the Release from Deep Power-down and Read
Electronic Signature (RES) instruction.
The device is first selected by driving Chip Select
(S) Low. The instruction code is followed by a
dummy 3-byte address (A23-A0), each bit being
latched-in on Serial Data Input (D) during the rising
edge of Serial Clock (C). Then, the 8-bit Electronic
Signature, stored in the memory, is shifted out on
Serial Data Output (Q), each bit being shifted out
during the falling edge of Serial Clock (C).
The instruction sequence is shown in Figure 17.
The Release from Deep Power-down and Read
Electronic Signature (RES) instruction is terminat-
ed by driving Chip Select (S) High after the Elec-
tronic Signature has been read at least once.
Sending additional clock cycles on Serial Clock
(C), while Chip Select (S) is driven Low, cause the
Electronic Signature to be output repeatedly.
Once Chip Select (S) is driven High, the device is
put in the Standby mode. The device waits to be
selected, so that it can receive, decode and exe-
cute instructions.

AI03755C

9 10

28 29 30 31 32 33 34 35

22 21

36 37 38

High Impedance

Electronic Signature Out

Instruction

24-Bit Address

MSB

Stand-by Mode

Deep Power-down Mode

MSB

21/32

M25P05

POWER-UP, POWER-DOWN AND DELIVERY STATE

Power-up
At Power-up, the device must not be selected (that
is Chip Select (S) must follow the voltage supplied
on V

) until the supply voltage reaches

(min), and a further t

VSL

delay has elapsed.

To avoid data corruption and inadvertent write
operations during power up, a Power On Reset
(POR) circuit is included. The logic inside the
device is held reset while V

is less than the POR

threshold value, V

all operations are disabled,

and the device will not respond to any instruction.
Similarly, when V

drops from the operating

voltage, to below the POR threshold value, V

, all

operations are disabled and the device will not
respond to any instruction.
No instructions (including Read, Write Status
Register, Program or Erase instructions) should
be sent to the device until a time delay of t

VSL

after

has risen above the V

(min) level.

Moreover, the device ignores all Page Program
(PP), Sector Erase (SE), Bulk Erase (BE) and
Write Status Register (WRSR) instructions until a
time delay of t

PUW

has elapsed after the moment

that V

rises above the V

threshold. However,

the correct operation of the device is not
guaranteed if, by this time, V

is still below

(min). No Write Status Register, Program or

Erase instructions should be sent until the later of:
t

PUW

after V

passed the V

threshold

VSL

afterV

passed the V

(min) level

These values are specified in Table 7.

At Power-up, the device is in the following state:
The device is in the Standby mode (not the

Deep Power-down mode).

The Write Enable Latch (WEL) bit is reset.

Figure 19. Power-up Timing

Table 7. Power-Up Timing and V

Threshold

Note: 1. These parameters are characterized only.

Symbol

Parameter

Min.

Max.

Unit

VSL

(min) to S low

µs

PUW

Time delay to Write instruction

Write Inhibit Voltage

1.5

2.5

VCC

AI04009B

VCC(min)

VWI

Reset State

of the

Device

Chip Selection Not Allowed

Program, Erase and Write Commands are Rejected by the Device

tVSL

tPUW

time

Read Access allowed

Device fully
accessible

23/32

M25P05

MAXIMUM RATING
Stressing the device above the rating listed in the
Absolute Maximum Ratings" table may cause per-
manent damage to the device. These are stress
ratings only and operation of the device at these or
any other conditions above those indicated in the
Operating sections of this specification is not im-

plied. Exposure to Absolute Maximum Rating con-
ditions for extended periods may affect device
reliability. Refer also to the STMicroelectronics
SURE Program and other relevant quality docu-
ments.

Table 9. Absolute Maximum Ratings

Note: 1. IPC/JEDEC J-STD-020A

2. JEDEC Std JESD22-A114A (C1=100 pF, R1=1500

, R2=500

)

Symbol

Parameter

Min.

Max.

Unit

STG

Storage Temperature

150

°C

LEAD

Lead Temperature during Soldering (20 seconds max.)

235

°C

Input and Output Voltage (with respect to Ground)

0.6

4.0

Supply Voltage

0.6

4.0

ESD

Electrostatic Discharge Voltage (Human Body model)

2000

M25P05

24/32

DC AND AC PARAMETERS
This section summarizes the operating and mea-
surement conditions, and the DC and AC charac-
teristics of the device. The parameters in the DC
and AC Characteristic tables that follow are de-
rived from tests performed under the Measure-

ment Conditions summarized in the relevant
tables. Designers should check that the operating
conditions in their circuit match the measurement
conditions when relying on the quoted parame-
ters.

Table 10. Operating Conditions

Table 11. AC Measurement Conditions

Note: 1. Output Hi-Z is defined as the point where data out is no longer driven.

Figure 20. AC Measurement I/O Waveform

Table 12. Capacitance

Note: Sampled only, not 100% tested, at T

=25°C and a frequency of 20 MHz.

Symbol

Parameter

Min.

Max.

Unit

Supply Voltage

2.7

3.6

Ambient Operating Temperature

°C

Symbol

Parameter

Min.

Max.

Unit

Load Capacitance

Input Rise and Fall Times

Input Pulse Voltages

0.2V

to 0.8V

Input and Output Timing Reference Voltages

0.3V

to 0.7V

AI00825

0.8VCC

0.2VCC

0.7VCC

0.3VCC

Symbol

Parameter

Test Condition

Min

Max

Unit

OUT

Output Capacitance (Q)

OUT

= 0V

Input Capacitance (other pins)

= 0V

25/32

M25P05

Table 13. DC Characteristics

Symbol

Parameter

Test Condition

(in addition to those in Table 10)

Min.

Max.

Unit

Input Leakage Current

± 2

µA

Output Leakage Current

± 2

µA

CC1

Standby Current

S = V

, V

= V

µA

CC2

Deep Power-down Current

S = V

, V

= V

µA

CC3

Operating Current (READ)

C = 0.1V

/ 0.9.V

at 20 MHz,

Q = open

CC4

Operating Current (PP)

S = V

CC5

Operating Current (WRSR)

S = V

CC6

Operating Current (SE)

S = V

CC7

Operating Current (BE)

S = V

Input Low Voltage

0.5

0.3V

Input High Voltage

0.7V

Output Low Voltage

= 1.6 mA

0.4

Output High Voltage

= 100

0.2

M25P05

26/32

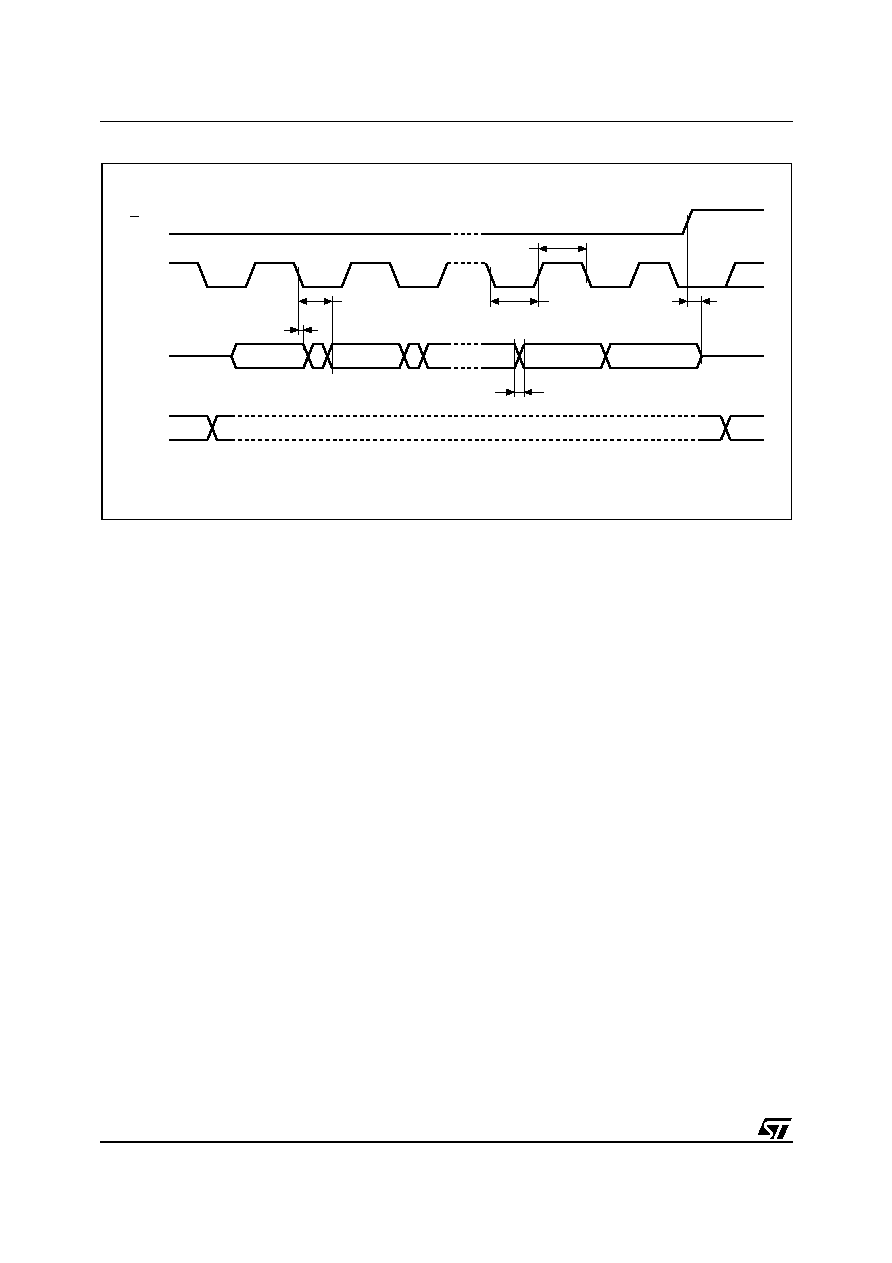

Table 14. AC Characteristics

Note: 1. t

+ t

must be greater than or equal to 1/ f

2. Value guaranteed by characterization, not 100% tested in production.

Test conditions specified in Table 10 and Table 11

Symbol

Alt.

Parameter

Min.

Max.

Unit

Clock Frequency

D.C.

MHz

SLCH

CSS

S Active Setup Time (relative to C)

CHSL

S Not Active Hold Time (relative to C)

CLH

Clock High Time

CLL

Clock Low Time

DVCH

DSU

Data In Setup Time

CHDX

Data In Hold Time

CHSH

S Active Hold Time (relative to C)

SHCH

S Not Active Setup Time (relative to C)

SHSL

CSH

S Deselect Time

SHQZ

DIS

Output Disable Time

CLQV

Clock Low to Output Valid

CLQX

Output Hold Time

HLCH

HOLD Setup Time (relative to C)

CHHH

HOLD Hold Time (relative to C)

HHCH

HOLD Setup Time (relative to C)

CHHL

HOLD Hold Time (relative to C)

HHQX

HOLD to Output Low-Z

HLQZ

HOLD to Output High-Z

S High to Deep Power-down Mode

1.6

RES

S High to Standby Mode

1.6

Write Status Register Cycle Time

Page Program Cycle Time

Sector Erase Cycle Time

Bulk Erase Cycle Time

29/32

M25P05

PACKAGE MECHANICAL

SO8 narrow 8 lead Plastic Small Outline, 150 mils body width

Note: Drawing is not to scale.

SO8 narrow 8 lead Plastic Small Outline, 150 mils body width

SO-a

h x 45°

Symb.

inches

Typ.

Min.

Max.

Typ.

Min.

Max.

1.35

1.75

0.053

0.069

0.10

0.25

0.004

0.010

0.33

0.51

0.013

0.020

0.19

0.25

0.007

0.010

4.80

5.00

0.189

0.197

3.80

4.00

0.150

0.157

1.27

0.050

5.80

6.20

0.228

0.244

0.25

0.50

0.010

0.020

0.40

0.90

0.016

0.035

0°

8°

0°

8°

0.10

0.004

31/32

M25P05

REVISION HISTORY

Table 16. Document Revision History

Date

Description of Revision

09-Feb-2001

1.0

Document written

26-Mar-2001

1.1

Correction to descriptions on Hold condition and Power up: no parameters changed

12-Apr-2001

1.2

Descriptions of Page Programming made more precise

25-May-2001

1.3

Serial Paged Flash Memory renamed as Serial Flash Memory

11-Sep-2001

1.4

Changes to text: Signal Description/Chip Select; Hold Condition/1st para; Protection modes;
Release from Power-down and Read Electronic Signature (RES); Power-up
Repositioning of several tables and illustrations without changing their contents
Power-up timing illustration; SO8W package removed
Changes to tables: Abs Max Ratings/V

; DC Characteristics/V

25-Feb-2002

1.5

Product is "Not for New Design"

M25P05

32/32

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted
by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject
to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

The ST logo is registered trademark of STMicroelectronics

All other names are the property of their respective owners

STMicroelectronics group of companies Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong -

India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.

www.st.com

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: M25P05-V

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: M25P05-V
