65 - 160 MHz
WIDE BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO616-5
FEATURES:
Exceptional Phase Noise Performance
Small Size, Surface Mount
Lead Free REL-PRO
Technology
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
100
1000
10000
100000
1000000 10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
65MHz/1.62V
83.7MHz/5V
112.5MHz/9.42V
146.3MHz/15V
160.1MHz/17.75V
SPECIFICATIONS
Frequency
65 - 160 MHz
Package #
278LF
Tuning Voltage (Full Band)
0.5 - 24 VDC
Bias Voltage
+5 VDC @ 35 mA (Max)
Output Power
+3 dBm (Min)
Tuning Sensitivity
3.5 - 7 MHz/V (Typ)
Output Impedance
50 Ohms (Nom)
Harmonic Suppression
10 dBc (Typ)
Frequency Pulling
3 MHz (Max @ 1.75:1 VSWR)
Frequency Pushing
1 MHz/V (Max)
Phase Noise @ 10 kHz
-108 dBc/Hz (Typ)
Operating Temperature Range
-40 to +85 C
Guaranteed Tuning Specifications
Tuning Voltage ( V )
Frequency ( MHz )
0.5
65 (Max)
5
75 (Min)
8
90 (Min)
12
115 (Min)
15
130 (Min)
18
145 (Min)
24
160 (Min)
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2006 Synergy Microwave Corporation
65 - 160 MHz
WIDE BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO616-5
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

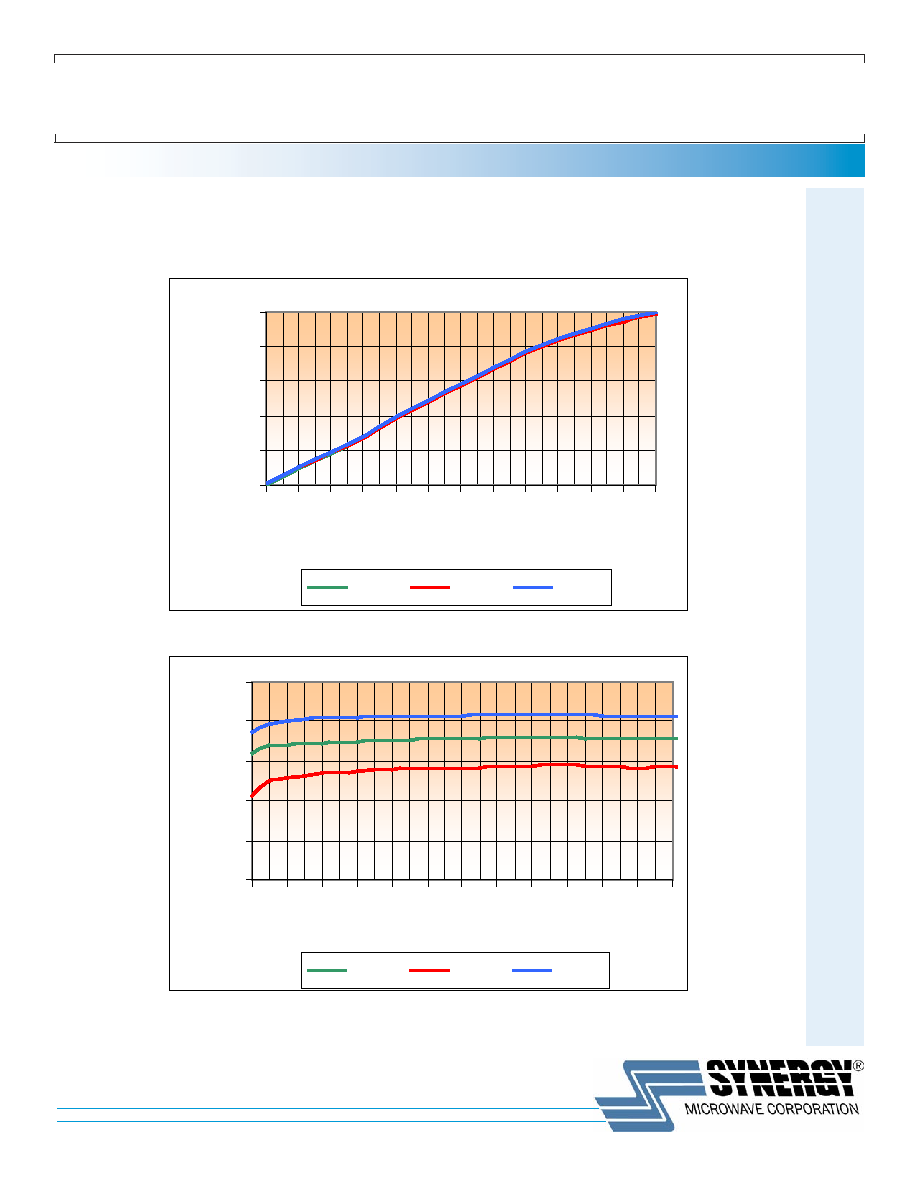

55
80
105
130
155
180
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Frequency (MHz)
+25C
+85C
-40C
0
2
4
6
8
10
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Output Power (dBm)
+25C
+85C
-40C
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2006 Synergy Microwave Corporation
65 - 160 MHz
WIDE BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO616-5
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S
0.00
2.00
4.00
6.00
8.00
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Tuning Sensitivity
(MHz/V)
+25C
+85C
-40C
-25
-20
-15
-10
-5
0
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
2nd Harmonic
Suppression (dBc)
+25C
+85C
-40C
