WIDE BANDWIDTH
30- 450 MHz
90 HYBRID
MODEL DQS-30-450

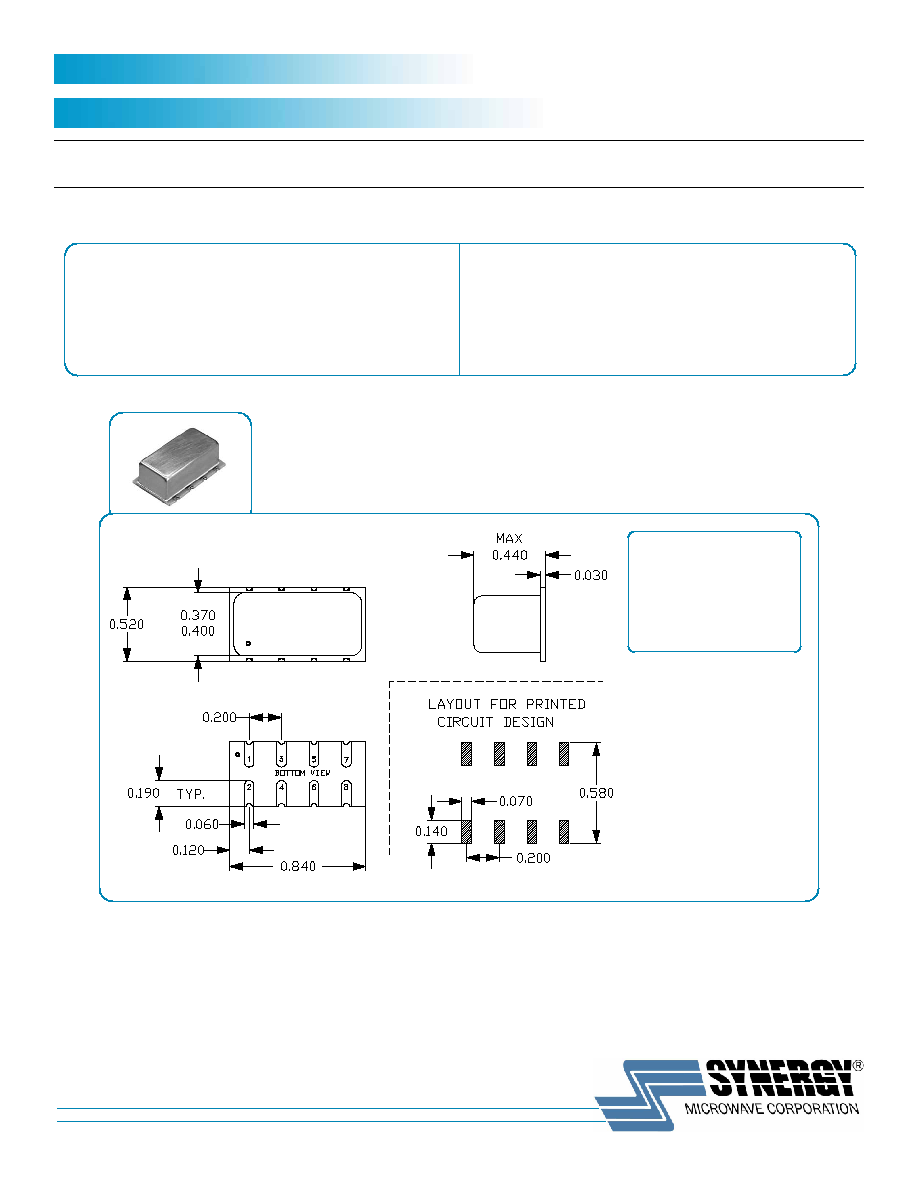

MECHANICAL OUTLINE: 102S
Operating Frequency:
30 - 450 MHz
Insertion Loss (dB):
1.2 (Typ) / 1.7 (Max)
Isolation (dB):
23 (Typ) / 18 (Min)
Amplitude Unbalance (dB):
1.0 (Typ) / 1.5 (Max)
Phase Unbalance:
0.2 (Typ) / 3.0 (Max)
Input Power Rating:
5 Watt (Max)
VSWR:
1.4:1 (Typ)
Impedance:
50 Ohms
Operating Temp. Range:
-55
o
to +85
o
C
SPECIFICATIONS (Rev. "A" 8/24/04)
PIN-OUT
Input
1
+90 Output
8
0 Output
7
Isolated
*
2
Case Grnd. All Other
* Terminate Isolated port in
50 Ohms Externally
WIDE BANDWIDTH
30- 450 MHz
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2004 Synergy Microwave Corporation
90 HYBRID
MODEL DQS-30-450

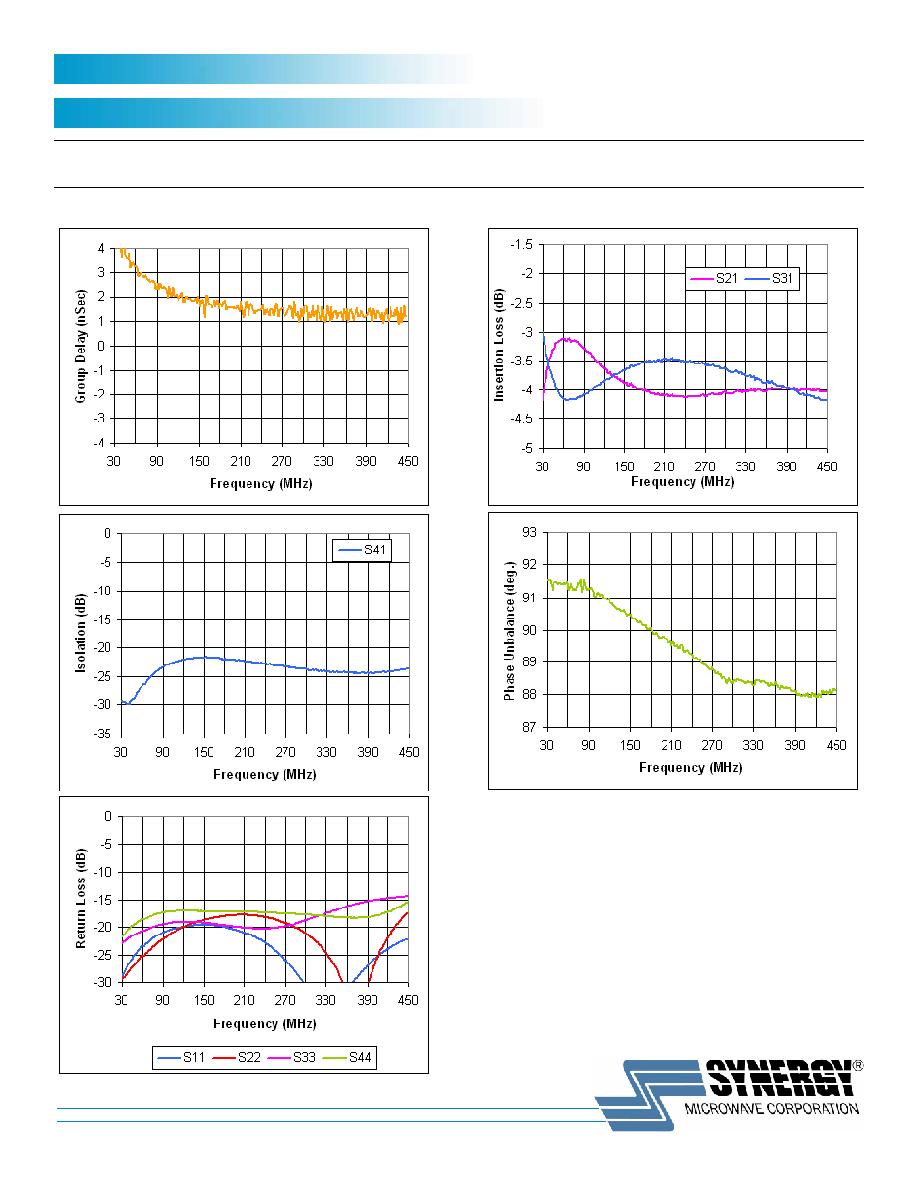

PERFORMANCE PLOTS
