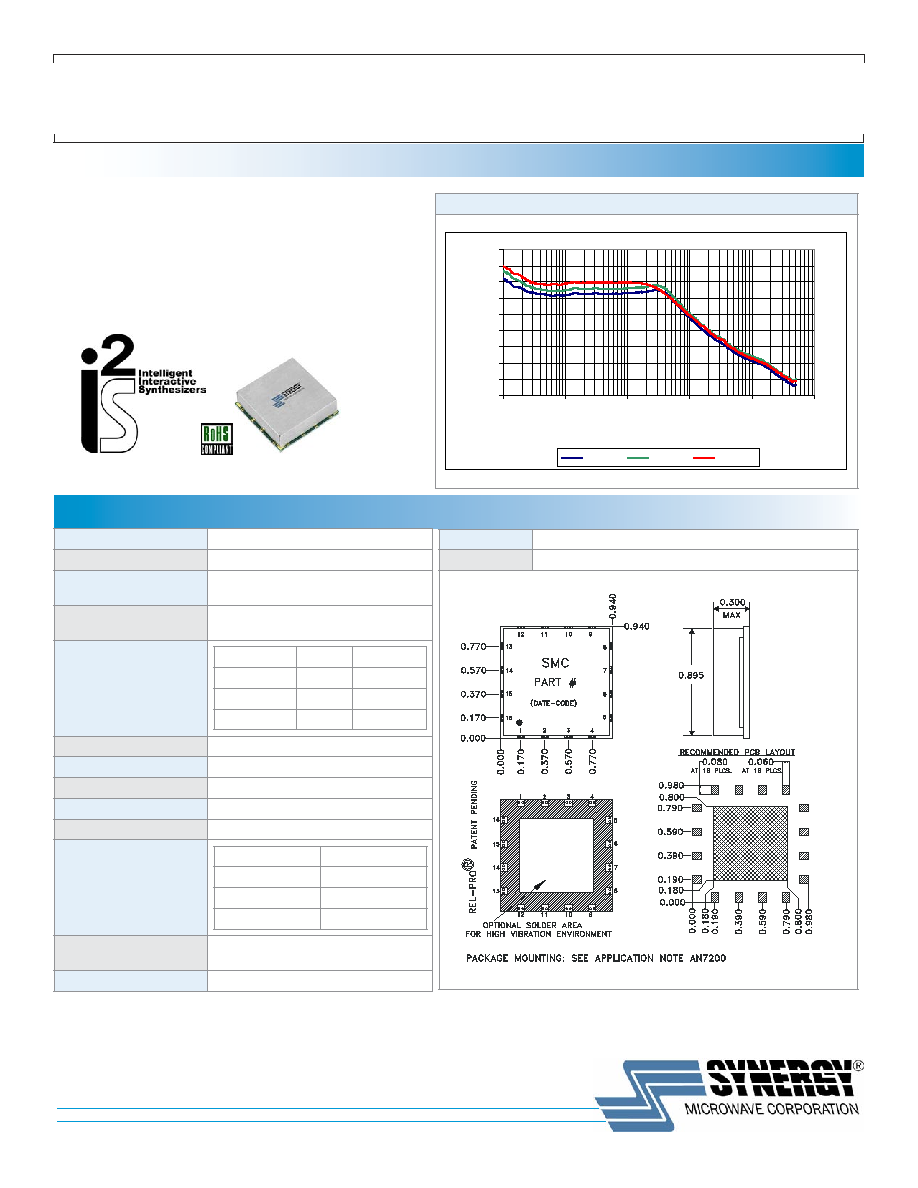

INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
FSW1545-50
FEATURES:
Exceptionally Low Phase Noise
Interactive Communication
Standard Programming Interface
Ultra Wide Tuning Range
Lead Free - RoHS Compliant
Patent Pending REL-PRO
Technology
Small Size, Surface Mount
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
100
1000
10000
100000
1000000
10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
150 MHz
300 MHz
450 MHz
SPECIFICATIONS (Rev. J 11/04/05)
Frequency
150-450 MHz
Package #
273LF
Package Style Surface Mount
Step Size
500 kHz
Reference
Input Frequency
10 MHz
Reference
Input Voltage
1 V p-p to 3.3 V p-p
Bias Voltage
Vcc
V (Vdc)
I (mA Max)
Digital
+5
10
VCO
+5
35
Tune
+25
5
Output Power
0 dBm (Min)
Spurious Suppression
-70 dBc (Max)
Harmonic Suppression
-20 dBc (Typ)
Settling Time
< 10 mSec
Output Impedance
50 Ohms
Typical Phase Noise
Offset
Phase Noise
@ 1 kHz
-98 dbc/Hz
@ 10 kHz
-98 dbc/Hz
@ 100 kHz
-120 dbc/Hz
Operating
Temperature Range
-40 to +85 C
Programming
See Application Note: AN7100
PIN-OUT
Pin 1 - Reset
Pin 2 - No Connection
Pin 3 - No Connection
Pin 4 - Error Flag
Pin 5 - Latch Enable In
Pin 6 - Ref In
Pin 7 - Vcc (Digital)
Pin 8 - Vcc (Tune)
Pin 9 - Vcc (VCO)
Pin 13 - RF Out
Pin 14 - Lock Detect Out
Pin 15 - Data In
Pin 16 - Clock In
All Others - Ground
INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
FSW1545-50
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

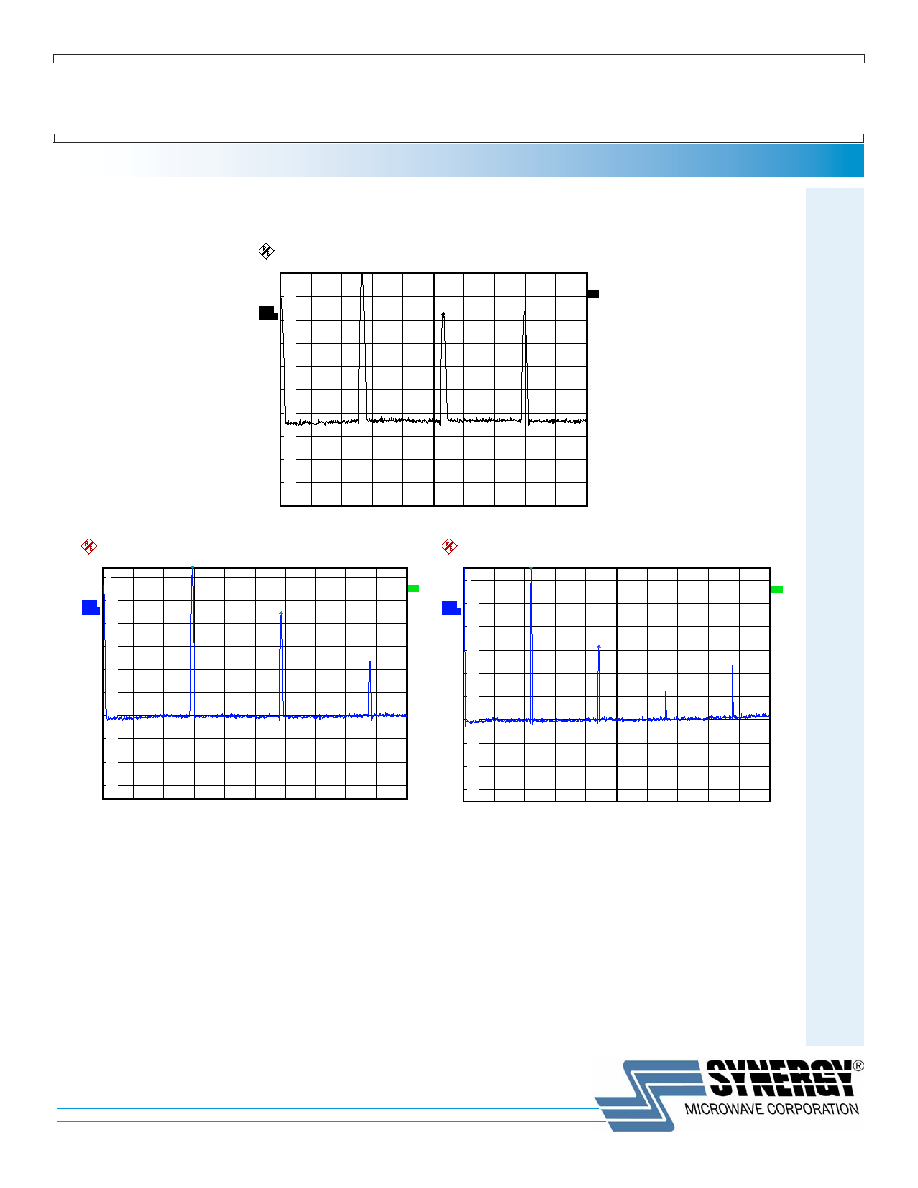

TYPICAL HARMONIC REJECTION
A
CLRWR
FSW1545-50
Ref 5 dBm
Att 30 dB
07.Jun 05 10:16
Center 1.024 GHz
Span 2.048 GHz
204.8 MHz/
*
RBW 3 MHz
*
VBW 30 kHz
SWT 25 ms
1 AP
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
4.16 dBm
449.641025641 MHz
1
Delta 1 [T1 ]
-32.29 dB
452.923076923 MHz
Date: 7.JUN.2005 10:16:55
A
CLRWR
Att 30 dB
Ref 4 dBm
FSW1545-50
07.Jun 05 10:09
Center 512 MHz
Span 1.024 GHz
102.4 MHz/
*
RBW 3 MHz
*
VBW 30 kHz
SWT 25 ms
1 AP
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
3.23 dBm
300.307692308 MHz
1
Delta 1 [T1 ]
-18.25 dB
300.307692308 MHz
Date: 7.JUN.2005 10:09:54
A
CLRWR
1 AP
*
RBW 3 MHz
VBW 30 kHz
SWT 20 ms
Ref 3 dBm
Att 30 dB
Start 0 Hz
Stop 564 MHz
56.4 MHz/
06.Jun 05 16:57
FSW1545-50
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
1.58 dBm
149.333333333 MHz
1
Delta 1 [T1 ]
-15.65 dB
150.974358974 MHz
Date: 6.JUN.2005 16:57:57
INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
FSW1545-50
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

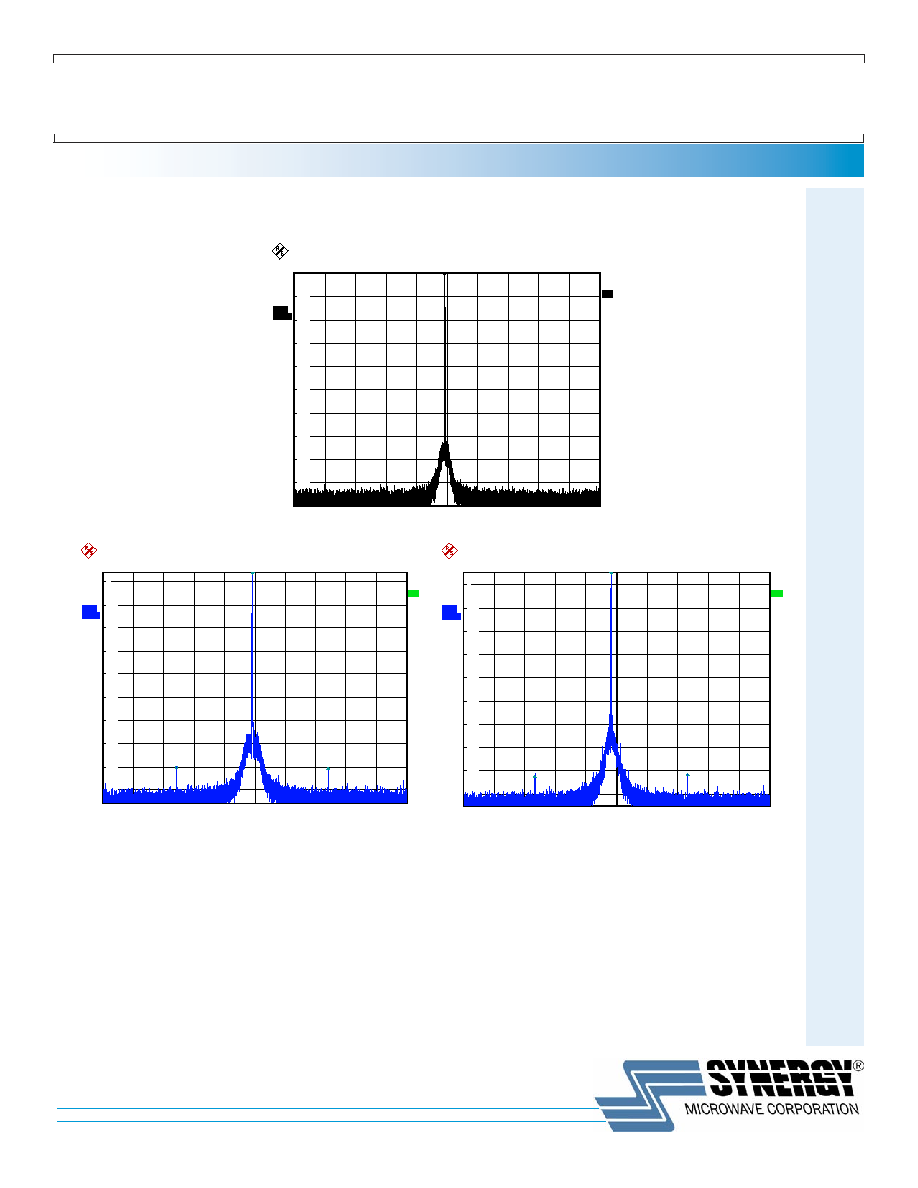

REFERENCE SIDEBAND SUPPRESSION
A
CLRWR
FSW1545-50
Ref 5 dBm
Att 30 dB
1 AP
Center 450.04 MHz
Span 2 MHz
200 kHz/
*
*
RBW 1 kHz
VBW 100 Hz
SWT 20 s
07.Jun 05 10:13
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
3.91 dBm
450.004743590 MHz
2
Delta 2 [T1 ]
-85.18 dB
500.000000000 kHz
1
Delta 1 [T1 ]
-86.02 dB
-503.205128205 kHz
Date: 7.JUN.2005 10:13:36
A
1 AP
CLRWR
Att 30 dB
Ref 4 dBm
Center 300.02 MHz
Span 2 MHz
200 kHz/
*
*
RBW 1 kHz
VBW 100 Hz
SWT 20 s
FSW1545-50
07.Jun 05 10:08
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
2.81 dBm
300.003974359 MHz
2
Delta 2 [T1 ]
-83.21 dB
500.000000000 kHz
1
Delta 1 [T1 ]
-82.82 dB
-503.205128205 kHz
Date: 7.JUN.2005 10:08:54
A
CLRWR
1 AP
Ref 3 dBm
Att 30 dB
FSW1545-50
200 kHz/
Center 150.02 MHz
Span 2 MHz
*
*
*
RBW 1 kHz
VBW 100 Hz
SWT 20 s
06.Jun 05 16:59
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1
Marker 1 [T1 ]
1.40 dBm
150.000769231 MHz
Date: 6.JUN.2005 16:59:19
