INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
LFSW1545-50
FEATURES:
Exceptionally Low Phase Noise
Interactive Communication
Standard Programming Interface
Ultra Wide Tuning Range
Lead Free - RoHS Compliant
Patent Pending REL-PRO
Technology
Small Size, Surface Mount
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
100
1000
10000
100000
1000000
10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
150 MHz
300 MHz
450 MHz
SPECIFICATIONS (Rev. I 11/04/05)
Frequency
150-450 MHz
Package #
197LF
Package Style Surface Mount
Step Size
500 kHz
Reference
Input Frequency
10 MHz
Reference
Input Voltage
1 V p-p to 3.3 V p-p
Bias Voltage
Vcc
V (Vdc)
I (mA Max)
Digital
+5
65
VCO
+5
30
Converter
+5
55
Output Power
+7 dBm (Min)
Spurious Suppression
-73 dBc (Typ)
Harmonic Suppression
-10 dBc (Typ)
Settling Time
10 mSec (Typ)
Output Impedance
50 Ohms
Typical Phase Noise
Offset
Phase Noise
@ 1 kHz
-98 dbc/Hz
@ 10 kHz
-98 dbc/Hz
@ 100 kHz
-120 dbc/Hz
Operating
Temperature Range
-40 to +85 C
Programming
See Application Note: AN7100
PIN-OUT
Pin 5 - RF Out
Pin 7 - Lock Detect Out
Pin 9 - Data In
Pin 10 - Error Flag
Pin 11 - Clock In
Pin 16 - Reset
Pin 19 - Latch Enable In
Pin 21 - Ref In
Pin 23 - Vcc(Digital)
Pin 24 - Vtune
Pin 25 - Vcc(VCO)
Pin 26* - Vout(Converter)
Pin 27* - Vcc(Tune)
Pin 28 - Vcc(Converter)
Pin 8,12,13 - No Connection
Pin 14,15,17 - No Connection
All Others - Ground
*Connect externally. Bypassed
with a 10uF 35V Tantalum
Capacitor.
INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
LFSW1545-50
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S
TYPICAL HARMONIC REJECTION
INTELLIGENT INTERACTIVE SYNTHESIZER
150 - 450 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
SURFACE MOUNT MODEL:
LFSW1545-50
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

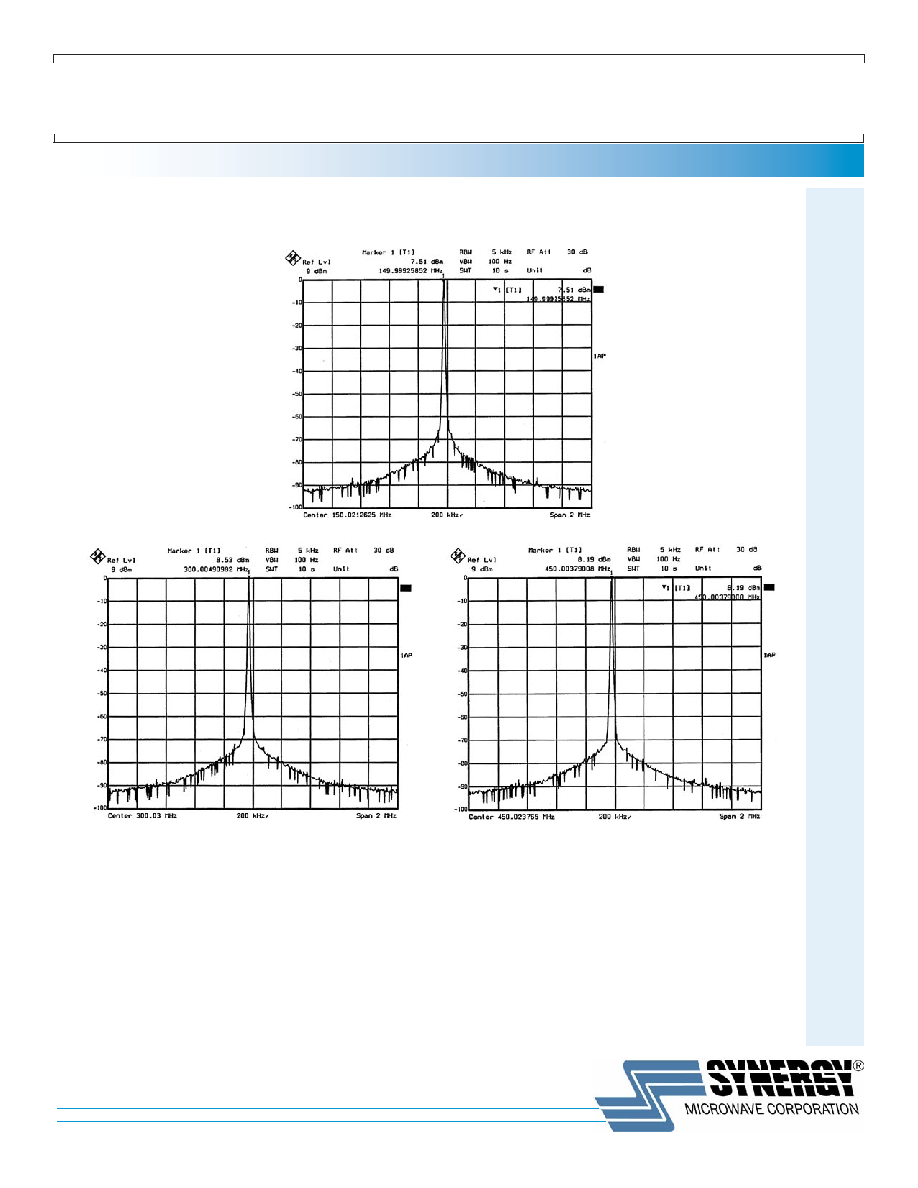

REFERENCE SIDEBAND SUPPRESSION
