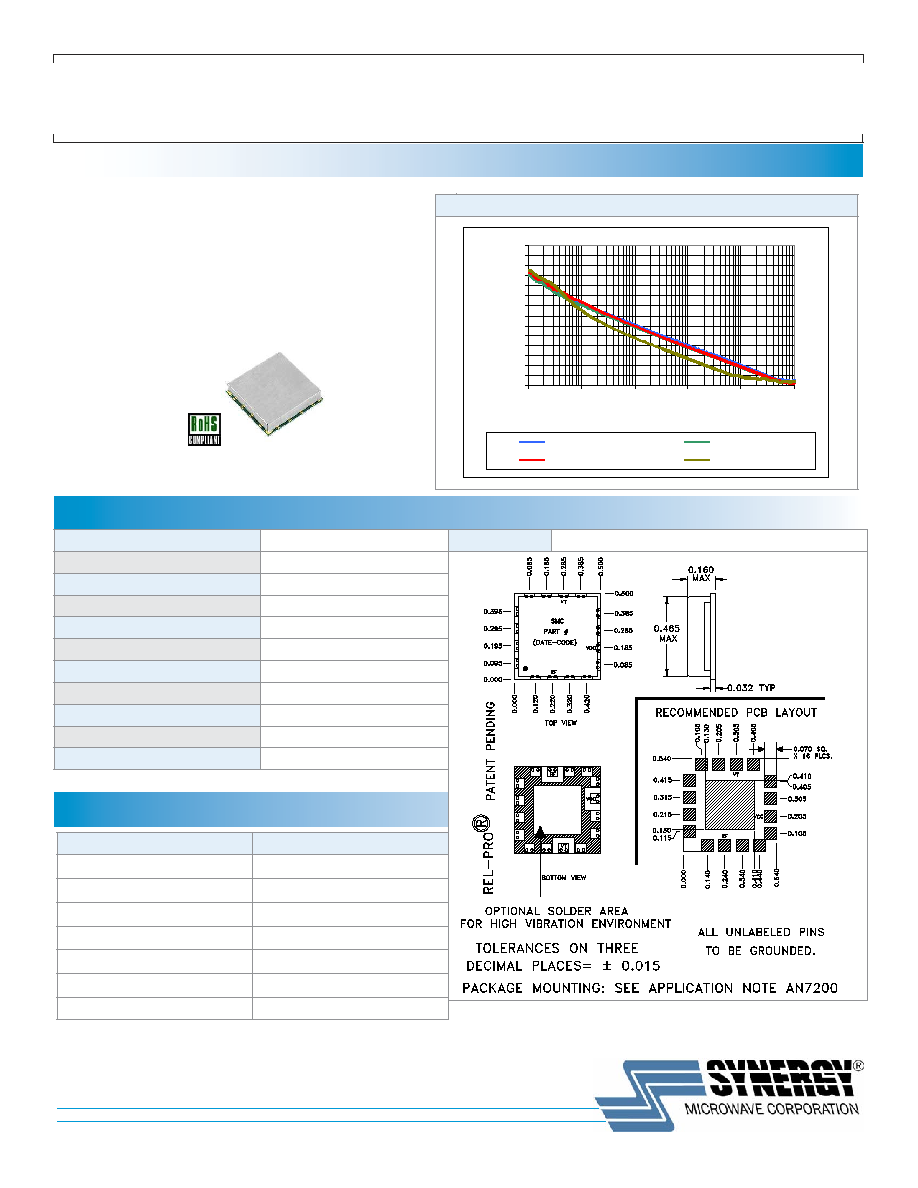

290 - 410 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
MFC2941-12
FEATURES:
Low Phase Noise Performance
Fast Tuning
Ideal for PLL Applications
Small Size, Surface Mount
Lead Free REL-PRO
Technology
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60

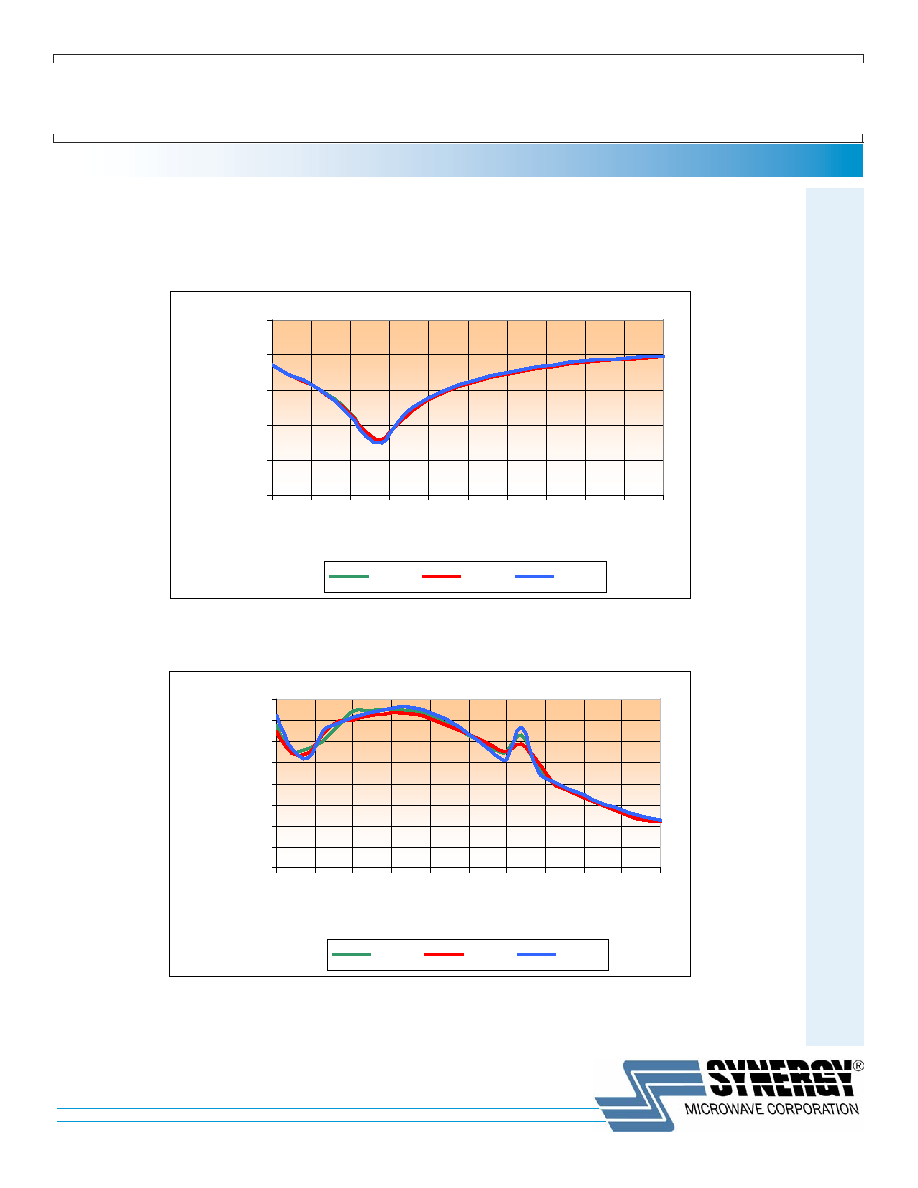

-50
-40
-30
100
1000
10000
100000
1000000 10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
289.1MHz/0.5V
337.2MHz/8V
365.3MHz/12V
418MHz/24V
SPECIFICATIONS (Rev. A 03/13/06)
Frequency
290 - 410 MHz
Package #
278LF
Tuning Voltage (Full Band)
0.5 - 24 VDC
Bias Voltage
+12 VDC @ <35 mA
Output Power
+1 dBm (Min)
Tuning Sensitivity
3 - 7 MHz/V (Typ)
Output Impedance
50 Ohms (Nom)
Harmonic Suppression
10 dBc (Min)
Frequency Pulling
2 MHz (Typ @ 1.75:1 VSWR)
Frequency Pushing
2 MHz/V (Typ)
Phase Noise @ 10 kHz
-110 dBc/Hz (Typ)
Operating Temperature Range -40 to 85 C
Guaranteed Tuning Specifications
Tuning Voltage ( V )
Frequency ( MHz )
0.5
290 (Max)
5
308 (Min)
8
328 (Min)
12
355 (Min)
15
370 (Min)
18
385 (Min)
24
410 (Min)
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
290 - 410 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
MFC2941-12
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

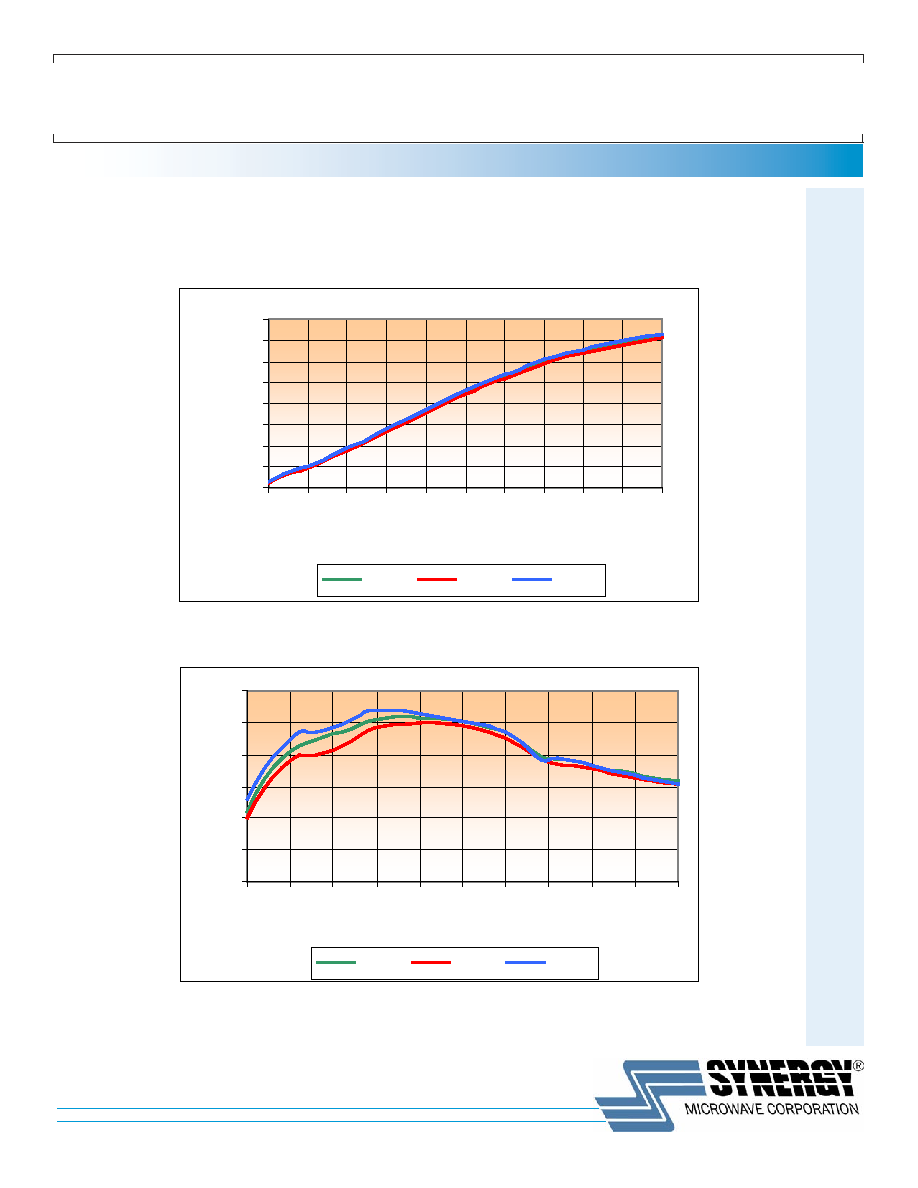

0
1
2
3
4
5
6
0
2.5
5
7.5 10 12.5 15 17.5 20 22.5 25
Control Voltage (Vdc)
Output Power (dBm)
+25C
+85C
-40C
280
300
320
340
360
380
400
420
440
0
2.5 5
7.5 10 12.5 15 17.5 20 22.5 25
Control Voltage (Vdc)
Frequency (MHz)
+25C
+85C
-40C
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
290 - 410 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
MFC2941-12
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S
-50
-40
-30
-20
-10
0
0
2.5
5
7.5 10 12.5 15 17.5 20 22.5 25
Control Voltage (Vdc)
2nd Harmonic Suppression
(dBc)
+25C
+85C
-40C
0.00
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
0
2.5 5
7.5 10 12.5 15 17.5 20 22.5 25
Control Voltage (Vdc)
Tuning Sensitivity (MHz/V)
+25C
+85C
-40C
