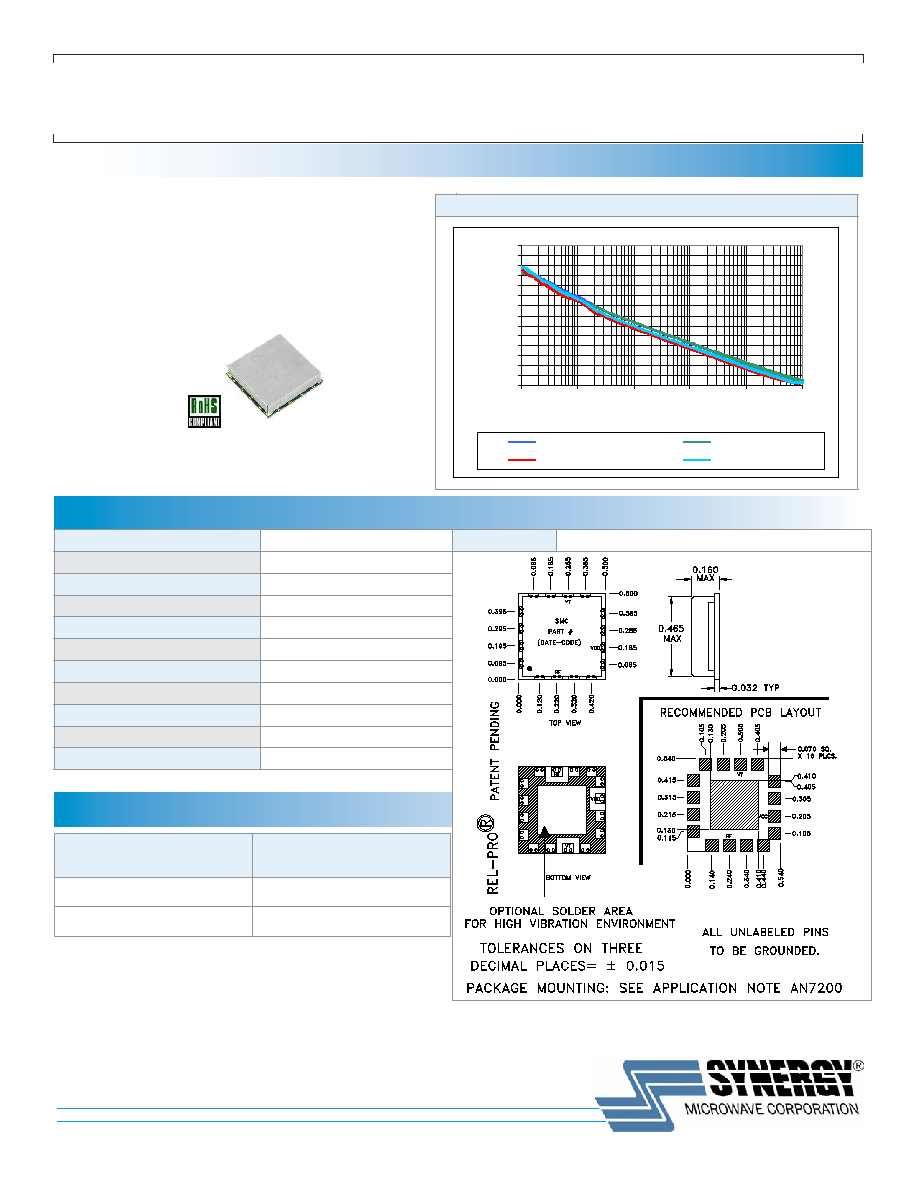

610 - 700 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
MFC6170-5
FEATURES:
Low Phase Noise Performance
Fast Tuning
Ideal for PLL Applications
Small Size, Surface Mount
Lead Free REL-PRO
Technology
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
100
1000
10000
100000
1000000 10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
598.9MHz/0.5V
605MHz/0.75V
657.6MHz/2.72V
710.1MHz/4.84V
SPECIFICATIONS (Rev. B 03/13/06)
Frequency
610 - 700 MHz
Package #
278LF
Tuning Voltage (Full Band)
0.5 - 5 VDC
Bias Voltage
+5 VDC @ <35 mA
Output Power
+3 dBm (Min)
Tuning Sensitivity
15 - 30 MHz/V (Typ)
Output Impedance
50 Ohms (Nom)
Harmonic Suppression
10 dBc (Min)
Frequency Pulling
1 MHz (Typ @ 1.75:1 VSWR)
Frequency Pushing
0.5 MHz/V (Typ)
Phase Noise @ 10 kHz
-113 dBc/Hz
Operating Temperature Range -40 to 85 C
Guaranteed Tuning Specifications
Tuning Voltage ( V )
Frequency ( MHz )
0.5
610 (Max)
5
700 (Min)
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2005 Synergy Microwave Corporation
610 - 700 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
MFC6170-5
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S

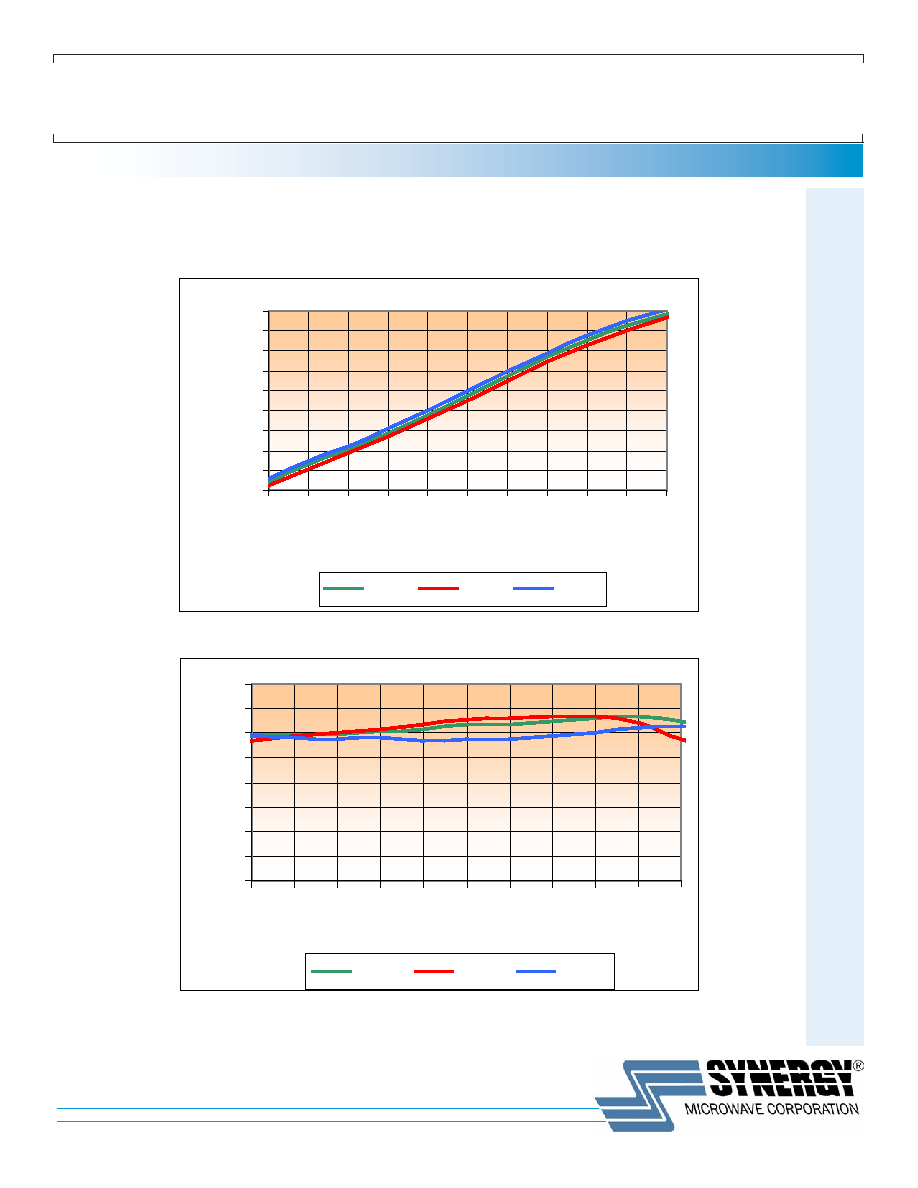

0
1
2
3
4
5
6
7
8
0 0.5 1 1.5 2
2.5 3 3.5 4 4.5 5
Control Voltage (Vdc)
Output Power (dBm)
+25C
+85C
-40C
580
595
610
625
640
655
670
685
700
715
0
0.5 1
1.5 2
2.5 3
3.5 4
4.5 5
Control Voltage (Vdc)
Frequency (MHz)
+25C
+85C
-40C
