54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
Copyright
1993, Texas Instruments Incorporated
21
Designed Specifically for High-Speed
Memory Decoders and Data Transmission
Systems
Noninverting Version of
AC11138
Incorporates 3 Enable Inputs to Simplify
Cascading and/or Data Reception
Flow-Through Architecture Optimizes
PCB Layout
Center-Pin V
CC
and GND Configurations
Minimize High-Speed Switching Noise
EPIC
t
(Enhanced-Performance Implanted
CMOS) 1-
m
m Process
500-mA Typical Latch-Up Immunity
at 125
C
Package Options Include Plastic
Small-Outline Packages, Ceramic Chip
Carriers, and Standard Plastic and Ceramic
300-mil DIPs
description
The
AC11238 circuit is designed to be
used in high-performance memory-decoding or
data-routing applications requiring very short
propagation delay times. In high-performance
memory systems, this decoder can be used to
minimize the effects of system decoding. When
employed with high-speed memories utilizing a
fast enable circuit, the delay times of this decoder
and the enable time of the memory are usually less than the typical access time of the memory. This means that
the effective system delay introduced by the decoder is negligible.
The conditions at the binary select inputs and the three enable inputs select one of eight input lines. Two
active-low and one active-high enable inputs reduce the need for external gates or inverters when expanding.
A 24-line decoder can be implemented without external inverters and a 32-line decoder requires only one
inverter. An enable input can be used as a data input for demultiplexing applications.
The 54AC11238 is characterized for operation over the full military temperature range of 55
C to 125
C. The
74AC11238 is characterized for operation from 40
C to 85
C.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily
include testing of all parameters.

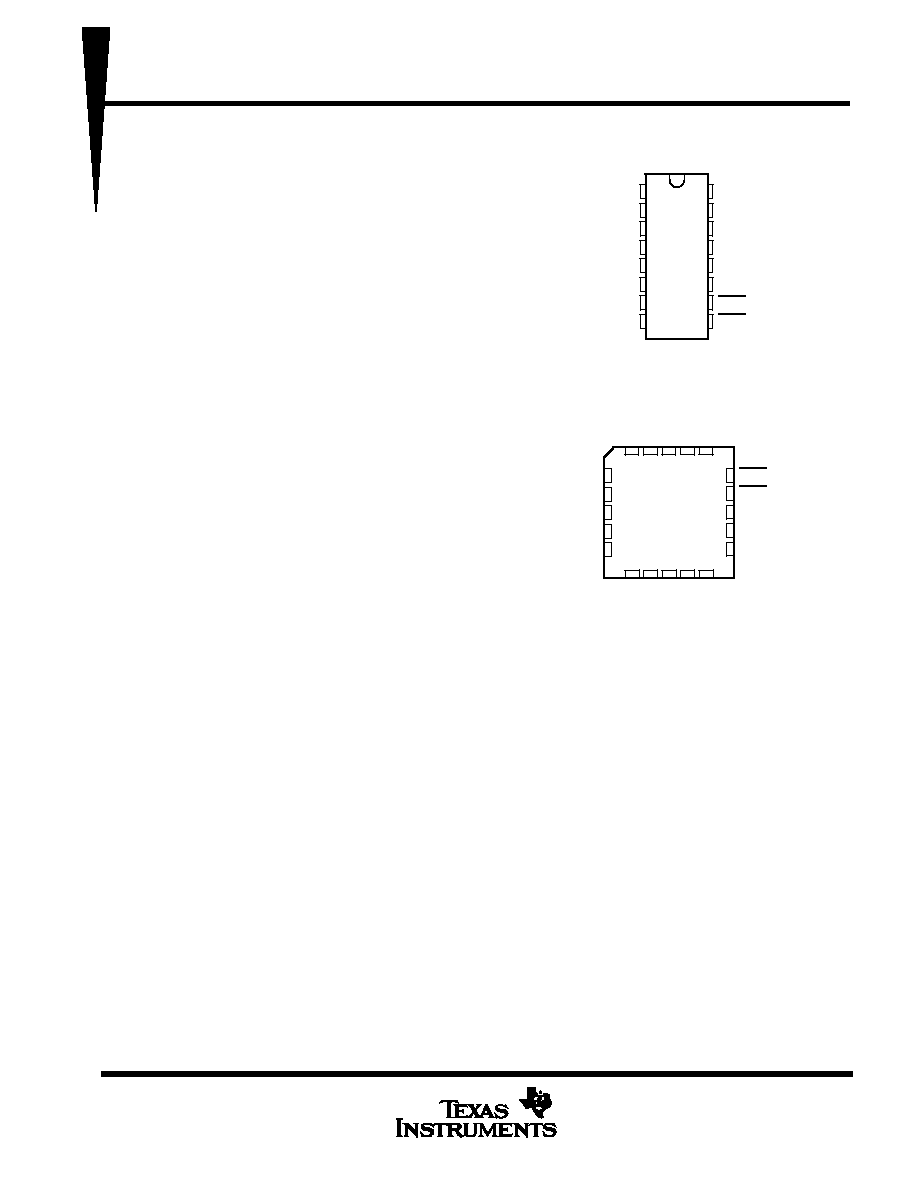

54AC11238 . . . J PACKAGE
74AC11238 . . . D OR N PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Y1
Y2
Y3
GND
Y4
Y5
Y6
Y7
Y0
A
B
C
V
CC
G1
G2A
G2B
3
2
1 20 19
9 10 11 12 13
4
5
6
7
8
18
17
16
15
14
A
Y0
NC
Y1
Y2
54AC11238 . . . FK PACKAGE
(TOP VIEW)
B
Y4
G1
GND
NC
CC
V
NC
Y5
Y3
NC No internal connection
C
G2A
G2B
NC
Y7
Y6
EPIC is a trademark of Texas Instruments Incorporated.
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
22
FUNCTION TABLE
ENABLE
INPUTS
SELECT
INPUTS
OUTPUTS
G1
G2A
G2B
C
B
A
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
X
H
X
X
X
X
L
L
L
L
L
L
L
L
X
X
H
X
X
X
L
L
L
L
L
L
L
L
L
X
X
X
X
X
L
L
L
L
L
L
L
L
H
L
L
L
L
L
H
L
L
L
L
L
L
L
H
L
L
L
L
H
L
H
L
L
L
L
L
L
H
L
L
L
H
L
L
L
H
L
L
L
L
L
H
L
L
L
H
H
L
L
L
H
L
L
L
L
H
L
L
H
L
L
L
L
L
L
H
L
L
L
H
L
L
H
L
H
L
L
L
L
L
H
L
L
H
L
L
H
H
L
L
L
L
L
L
L
H
L
H
L
L
H
H
H
L
L
L
L
L
L
L
H
logic symbols
(alternatives)
DMUX
0
2
G
0
7
A
B
C
G1
G2A
Y0
Y1
Y2
Y3
Y5
Y6
Y7
G2B
15
14
13
11
10
9
16
1
2
3
6
7
8
BIN/OCT
1
2
A
B
C
G1
G2A
Y0
Y1
Y2
Y3
Y5
Y6
Y7
G3A
15
14
13
11
10
9
16
1
2
3
6
7
8
4
0
1
2
3
0
1
2
3
Y4
5
4
Y4
5
4
5
6
7
&
EN
&
5
6
7
EN
These symbols are in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
23

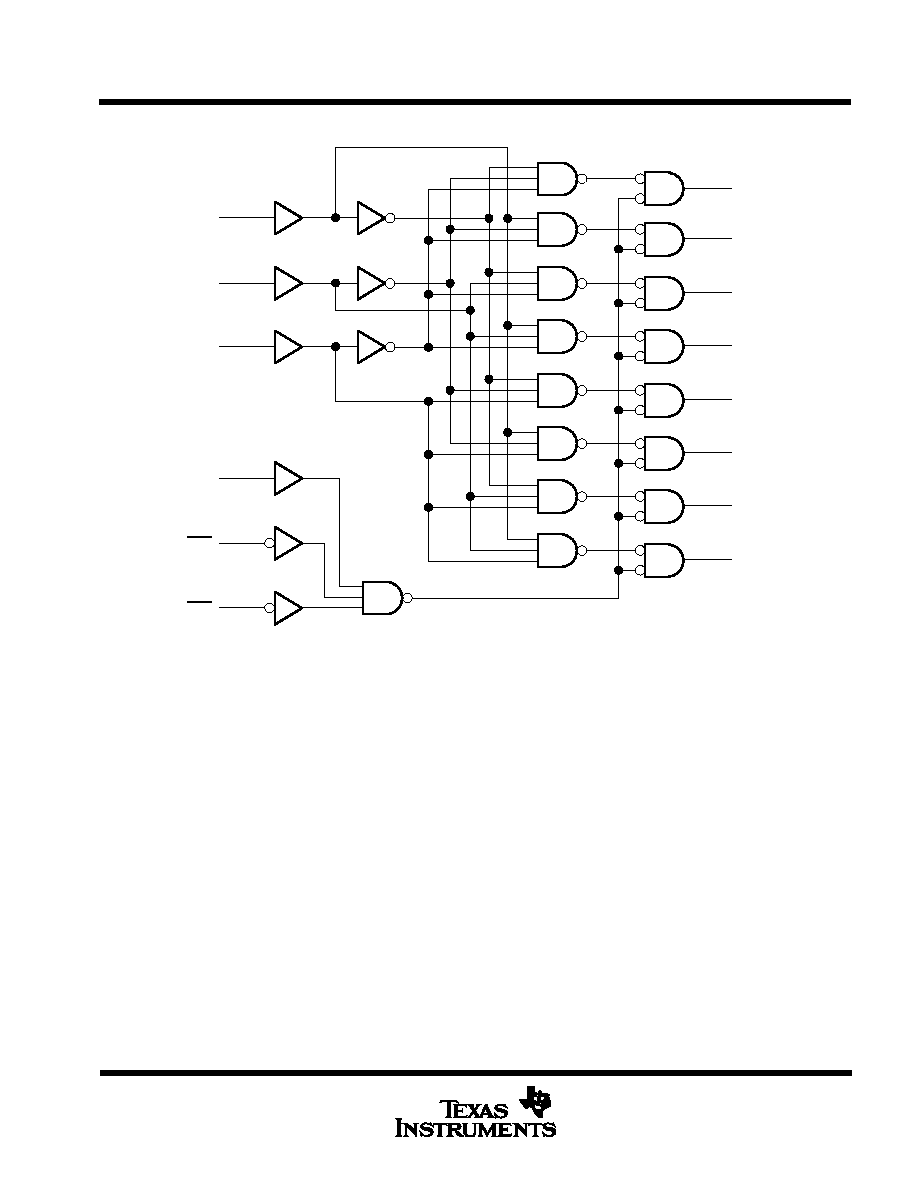

logic diagram (positive logic)
Y0
A
15
16
Y1
1
Y2
2
Y3
3
Y4
5
Y5
6
Y6
7
Y7
8
B
14
C
13
G1
11
G2A
10
G3A
9
Pin numbers shown are for the D, J, and N packages.
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
Supply voltage range, V
CC
0.5 V to 7 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
(see Note 1)
0.5 V to V
CC
+ 0.5 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage range, V
O
(see Note 1)
0.5 V to V
CC
+ 0.5 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, I
IK
(V
I
< 0 or V
I
> V
CC
)
20 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, I
OK
(V
O
< 0 or V
O
> V
CC
)
50 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, I
O
(V
O
= 0 to V
CC
)
50 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through V
CC
or GND
200 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range
65
C to 150
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
24
recommended operating conditions
54AC11238
74AC11238
UNIT
MIN
NOM
MAX
MIN
NOM
MAX
UNIT
VCC
Supply voltage
3
5
5.5
3
5
5.5
V
VCC = 3 V
2.1
2.1
VIH
High-level input voltage
VCC = 4.5 V
3.15
3.15
V
VCC = 5.5 V
3.85
3.85
VCC = 3 V
0.9
0.9
VIL
Low-level input voltage
VCC = 4.5 V
1.35
1.35
V
VCC = 5.5 V
1.65
1.65
VI
Input voltage
0
VCC
0
VCC
V
VO
Output voltage
0
VCC
0
VCC
V
VCC = 3 V
4
4
IOH
High-level output current
VCC = 4.5 V
24
24
mA
VCC = 5.5 V
24
24
VCC = 3 V
12
12
IOL
Low-level output current
VCC = 4.5 V
24
24
mA
VCC = 5.5 V
24
24
D
t /
D
v
Input transition rise or fall rate
0
10
0
10
ns/ V
TA
Operating free-air temperature
55
125
40
85
C
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
VCC
TA = 25
C
54AC11238
74AC11238
UNIT
PARAMETER
TEST CONDITIONS
VCC
MIN
TYP
MAX
MIN
MAX
MIN
MAX
UNIT
3 V
2.9
2.9
2.9
IOH = 50
m
A
4.5 V
4.4
4.4
4.4
5.5 V
5.4
5.4
5.4
VOH
IOH = 4 mA
3 V
2.58
2.4
2.48
V
VOH
IOH = 24 mA
4.5 V
3.94
3.7
3.8
V
IOH = 24 mA
5.5 V
4.94
4.7
4.8
IOH = 50 mA
}
5.5 V
3.85
IOH = 75 mA
}
5.5 V
3.85
3 V
0.1
0.1
0.1
IOL = 50
m
A
4.5 V
0.1
0.1
0.1
5.5 V
0.1
0.1
0.1
VOL
IOL = 12 mA
3 V
0.36
0.5
0.44
V
VOL
IOL = 24 mA
4.5 V
0.36
0.5
0.44
V
IOL = 24 mA
5.5 V
0.36
0.5
0.44
IOL = 50 mA
}
5.5 V
1.65
IOL = 75 mA
}
5.5 V
1.65
II
VI = VCC or GND
5.5 V
0.1
1
1
m
A
ICC
VI = VCC or GND, IO = 0
5.5 V
4
80
40
m
A
Ci
VI = VCC or GND
5 V
3.5
pF
All typical values are at VCC = 5 V, TA = 25
C.
Not more than one output should be tested at a time, and the duration of the test should not exceed 10 ms.
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
25
switching characteristics over recommended operating free-air temperature range,
V
CC
= 3.3 V
0.3 V (unless otherwise noted) (see Figure 1)
PARAMETER
FROM
TO
TA = 25
C
54AC11238
74AC11238
UNIT
PARAMETER
(INPUT)
(OUTPUT)
MIN
TYP
MAX
MIN
MAX
MIN
MAX
UNIT
tPLH
A B C
Any Y
1.5
8.5
10.6
1.5
12.7
1.5
11.7
ns
tPHL
A, B, C
Any Y
1.5
9.6
11.9
1.5
14.3
1.5
13.3
ns
tPLH
G1
Any Y
1.5
8.2
10.3
1.5
12.3
1.5
11.4
ns
tPHL
G1
Any Y
1.5
9.6
11.7
1.5
14
1.5
13
ns
tPLH
G2A G2B
Any Y
1.5
9.1
11.2
1.5
13.4
1.5
12.5
ns
tPHL
G2A, G2B
Any Y
1.5
10.7
12.9
1.5
15.6
1.5
14.5
ns
switching characteristics over recommended operating free-air temperature range,
V
CC
= 5 V
0.5 V (unless otherwise noted) (see Figure 1)
PARAMETER
FROM
TO
TA = 25
C
54AC11238
74AC11238
UNIT
PARAMETER
(INPUT)
(OUTPUT)
MIN
TYP
MAX
MIN
MAX
MIN
MAX
UNIT
tPLH
A B C
Any Y
1.5
5.4
7.3
1.5
9
1.5
8.5
ns
tPHL
A, B, C
Any Y
1.5
6.3
8.6
1.5
10.9
1.5
10.2
ns
tPLH
G1
Any Y
1.5
5.2
6.9
1.5
8.7
1.5
8.1
ns
tPHL
G1
Any Y
1.5
6.5
8.5
1.5
10.6
1.5
9.9
ns
tPLH
G2A G2B
Any Y
1.5
5.6
7.5
1.5
9.6
1.5
8.9
ns
tPHL
G2A, G2B
Any Y
1.5
7.2
9.3
2.5
11.8
1.5
11
ns
operating characteristics, V
CC
= 5 V, T
A
= 25
C
PARAMETER
TEST CONDITIONS
TYP
UNIT
Cpd Power dissipation capacitance
CL = 50 pF, f = 1 MHz
44
pF
PARAMETER MEASUREMENT INFORMATION
VOLTAGE WAVEFORMS
LOAD CIRCUIT
Input
(see Note B)
50%
50%
50% VCC
50% VCC
tPHL
tPLH
VCC
Output
VOL
VOH
0 V
From Output
Under Test
CL = 50 pF
(see Note A)
500
NOTES: A. CL includes probe and jig capacitance.
B. Input pulses are supplied by generators having the following characteristics: PRR
10 MHz, ZO = 50
, tr = 3 ns, tf = 3 ns.
C. The outputs are measured one at a time with one input transition per measurement.
Figure 1. Load Circuit and Voltage Waveforms
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
26

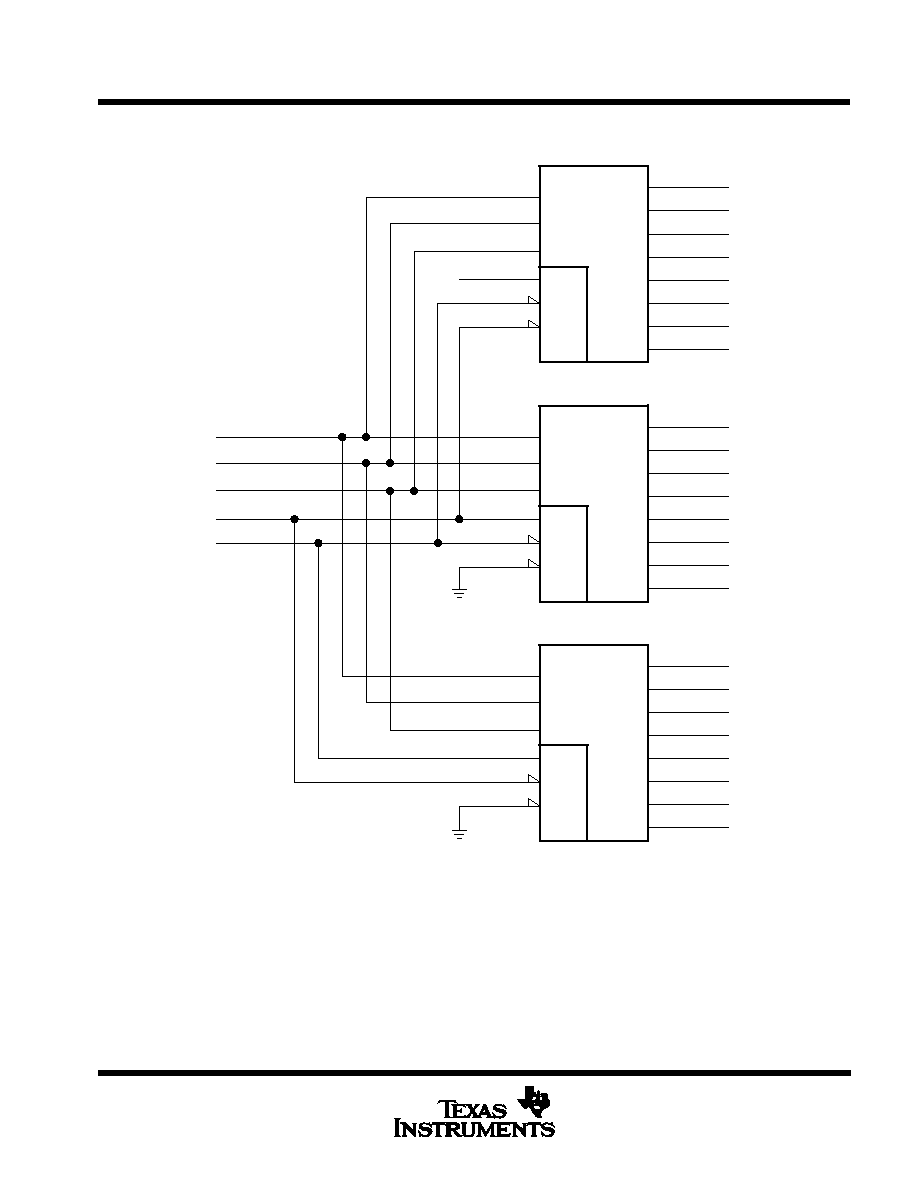

TYPICAL APPLICATION DATA
BIN/OCT
1
15
A0
2
14
A1
4
13
A3
10
9
11
0
16
0
&
EN
1
1
1
2
2
2
3
3
3
4
5
4
5
6
5
6
7
6
7
8
7
74AC11238
VCC
BIN/OCT
1
15
2
14
4
13
10
9
11
8
16
0
&
EN
9
1
1
10
2
2
11
3
3
12
5
4
13
6
5
14
7
6
15
8
7
74AC11238
BIN/OCT
1
15
2
14
4
13
10
9
11
16
16
0
&
EN
17
1
1
18
2
2
19
3
3
20
5
4
21
6
5
22
7
6
23
8
7
74AC11238
A2
A4
Pin numbers shown are for the D, J, and N packages.
Figure 2. 24-Bit Decoding Scheme
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
27
TYPICAL APPLICATION DATA
VCC
BIN/OCT
1
15
A0
2
14
A1
4
13
A3
10
9
11
0
16
0
&
EN
1
1
1
2
2
2
3
3
3
4
5
4
5
6
5
6
7
6
7
8
7
74AC11238
A2
A4
BIN/OCT
1
15
2
14
4
13
10
9
11
8
16
0
&
EN
9
1
1
10
2
2
11
3
3
12
5
4
13
6
5
14
7
6
15
8
7
74AC11238
BIN/OCT
1
15
2
14
4
13
10
9
11
16
16
0
&
EN
17
1
1
18
2
2
19
3
3
20
5
4
21
6
5
22
7
6
23
8
7
74AC11238
BIN/OCT
1
15
2
14
4
13
10
9
11
24
16
0
&
EN
25
1
1
26
2
2
27
3
3
28
5
4
29
6
5
30
7
6
31
8
7
74AC11238
Pin numbers shown are for the D, J, and N packages.
Figure 3. 32-Bit Decoding Scheme
54AC11238, 74AC11238
3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
SCAS039A APRIL 1988 REVISED APRIL 1993
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
28
IMPORTANT NOTICE
Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI's standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE ("CRITICAL
APPLICATIONS"). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO
BE FULLY AT THE CUSTOMER'S RISK.
In order to minimize risks associated with the customer's applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI's publication of information regarding any third
party's products or services does not constitute TI's approval, warranty or endorsement thereof.
Copyright
1998, Texas Instruments Incorporated
PDF
ZIP
