LM339x2
OCTAL DIFFERENTIAL COMPARATOR
SLCS122A APRIL 1996 REVISED SEPTEMBER 1996
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D
Single Supply or Dual Supplies
D
Wide Range of Supply Voltage
2 V to 36 V
D
Low Supply-Current Drain Independent of
Supply Voltage . . . 1.6 mA Typ
D
Low Input Bias Current . . . 25 nA Typ
D
Low Input Offset Current . . . 5 nA Typ
D
Low Input Offset Voltage . . . 2 mV Typ
D
Common-Mode Input Voltage Range
Includes Ground
D
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . .
36 V
D
Low Output Saturation Voltage
D
Output Compatible With TTL, MOS, and
CMOS
description
The LM339x2 consists of eight independent
voltage comparators that are designed to operate
from a single power supply over a wide range of
voltages. Operation from dual supplies is also
possible when the difference between the two
supplies is 2 V to 36 V and V
CC
is at least 1.5 V
more positive than the input common-mode
voltage. Current drain is independent of the
supply voltage. The outputs can be connected to
other open-collector outputs to achieve wire-AND
relationships.
AVAILABLE OPTION
PACKAGE
TA
VIOmax AT 25
C
SMALL OUTLINE
(DB)
0
C to 70
C
5 mV
LM339x2DBLE
The DB package is only available left-end taped and reeled.
Copyright
1996, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
OUT
IN
IN +
symbol (each comparator)
1
30
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
29
28
27
26
25
24
23
22
21
20
19
18
17
1OUT
2OUT
NC
2IN
2IN +
1IN
1IN +
V
CC
+
3OUT
4OUT
NC
4IN
4IN +
3IN
3IN +
7OUT
8OUT
NC
8IN +
8IN
7IN +
7IN
V
CC
/ GND
5OUT
6OUT
NC
6IN +
6IN
5IN +
5IN

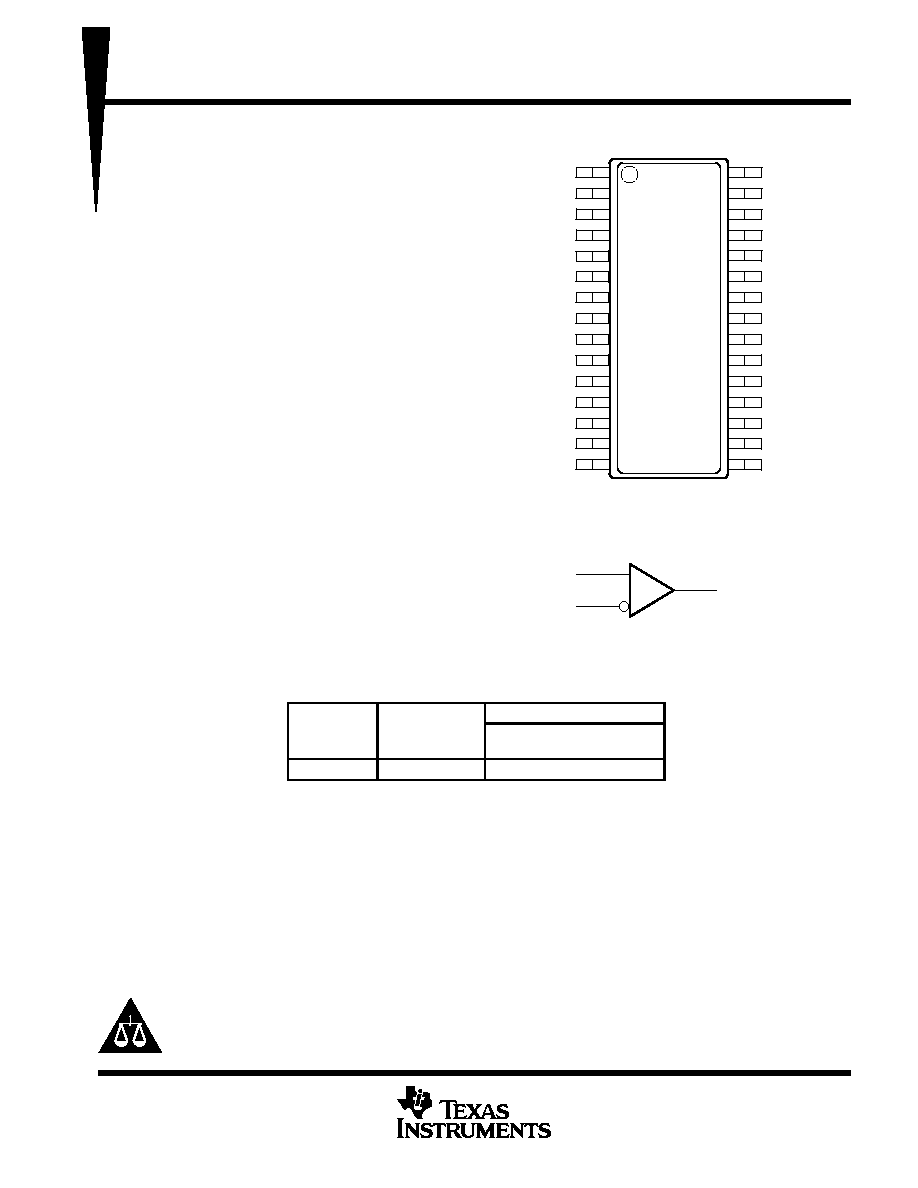

DB PACKAGE
(TOP VIEW)
NC No internal connection
LM339x2
OCTAL DIFFERENTIAL COMPARATOR
SLCS122A APRIL 1996 REVISED SEPTEMBER 1996
2
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

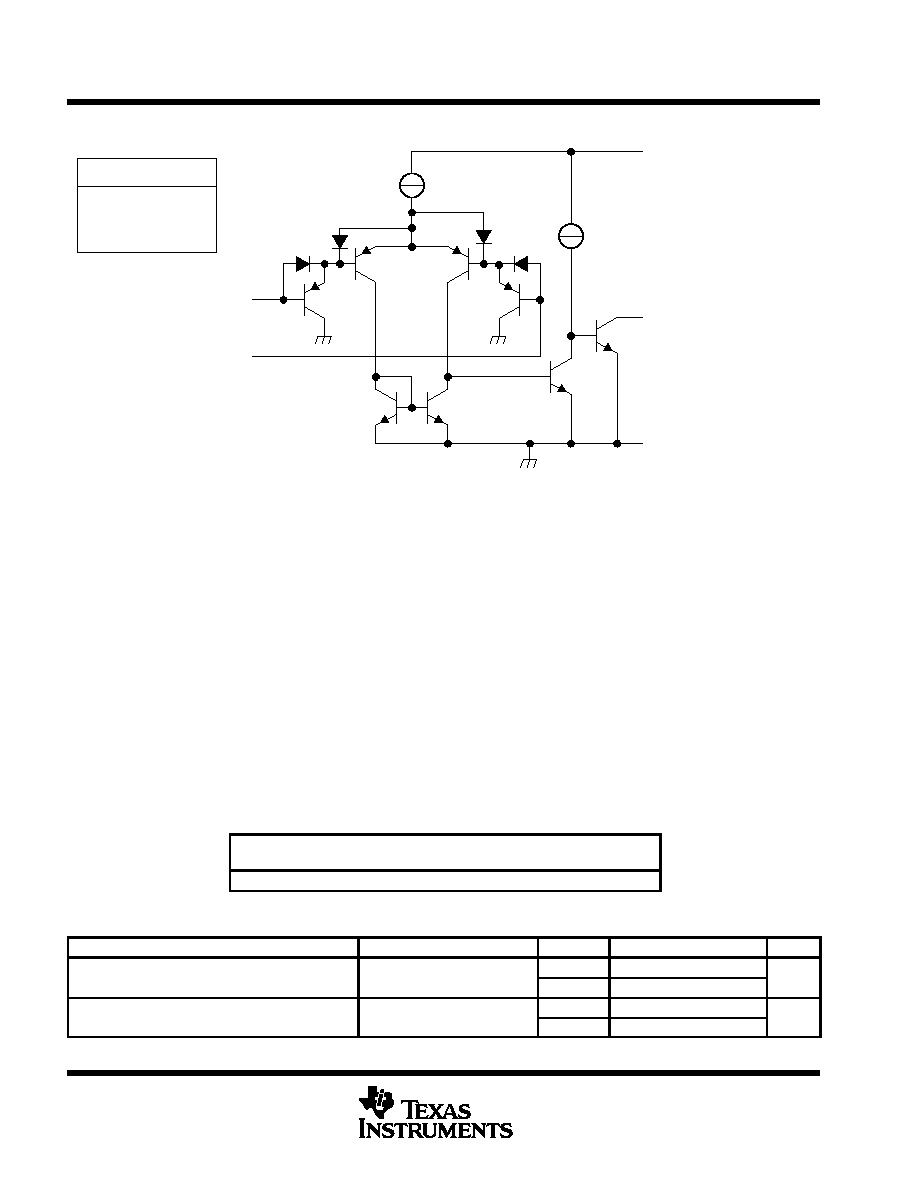

schematic (each comparator)
Regulator
Current
80-
A
80
A
VCC / GND
OUT
VCC +
10
A
60
A
10
A
IN +
IN
ACTUAL DEVICE
COMPONENT COUNT
Transistors
Diodes
Resistors
JFET
120
7
4
2
All component values shown are nominal.
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
Supply voltage, V
CC
(see Note 1)
36 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential input voltage, V
ID
(see Note 2)
36 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
(any input)
0.3 V to 36 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage, V
O
36 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output current, I
O
20 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duration of output short circuit to ground (see Note 3)
unlimited
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous total dissipation
See Dissipation Rating Table
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature range, T
A
0
C to 70
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range
60
C to 150
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these conditions beyond those indicated is not implied. Exposure to absolute-maximum-rated conditions for
extended periods may affect device reliability.
NOTES:
1. All voltage values, except differential voltages, are with respect to network GND.
2. Differential voltages are at IN + with respect to IN .
3. Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
DISSIPATION RATING TABLE
PACKAGE
TA
25
C
POWER RATING
DERATING FACTOR
ABOVE TA = 25
C
TA = 70
C
POWER RATING
DB
1024 mW
8.2 mW/
C
655 mW
electrical characteristics at specified free-air temperature, V
CC
= 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
VIO
Input offset voltage
VCC = 5 V to 30 V,
25
C
2
5
mV
VIO
Input offset voltage
VIC = VICRmin,
VO = 1.4 V
Full range
9
mV
IIO
Input offset current
VO = 1 4 V
25
C
5
50
nA
IIO
Input offset current
VO = 1.4 V
Full range
150
nA
LM339x2
OCTAL DIFFERENTIAL COMPARATOR
SLCS122A APRIL 1996 REVISED SEPTEMBER 1996
3
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
IIB
Input bias current
VO = 1 4 V
25
C
25
250
nA
IIB
Input bias current
VO = 1.4 V
Full range
400
nA
VICR Common mode input voltage range
25
C
0 to
VCC 1.5
V
VICR Common-mode input voltage range
Full range
0 to
VCC 2
V
AVD
Large-signal differential voltage amplification
VCC = 15 V,
VO = 1.4 V to 11.4 V,
RL =
15 k
to VCC
25
C
50
200
V/mV
VOL
Low level output voltage
VID = 1 V
IOL = 4 mA
25
C
150
400
mV
VOL
Low-level output voltage
VID = 1 V,
IOL = 4 mA
Full range
700
mV
IOH
High level output current
VID = 1 V
VOH = 5 V
25
C
0.1
50
nA
IOH
High-level output current
VID = 1 V
VOH = 30 V
Full range
1
A
IOL
Low-level output current
VID = 1 V,
VOL = 1.5 V
25
C
6
16
mA
ICC
Supply current (eight comparators)
VO = 2.5 V,
No load
25
C
1.6
4
mA
ICC
Supply current (eight comparators)
VCC = 30 V,
No load
25
C
2
5
mA
Full range for LM339 is 0
C to 70
C. All characteristics are measured with zero common-mode input voltage unless otherwise specified.
All typical values are measured at TA = 25
C.
switching characteristics, V
CC
= 5 V, T
A
= 25
C
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Response time
RL connected to 5 V through 5.1 k
,
100-mV input step with 5-mV overdrive
1.3
ns
Response time
L
g
CL = 15 pF, See Note 4
TTL 1-level input step
0.3
ns
CL includes probe and jig capacitance.
NOTE 4: The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
