T-1 3/4 (
5mm) High
Performance AllnGaP LED Lamps
MVL-534UYL
Description

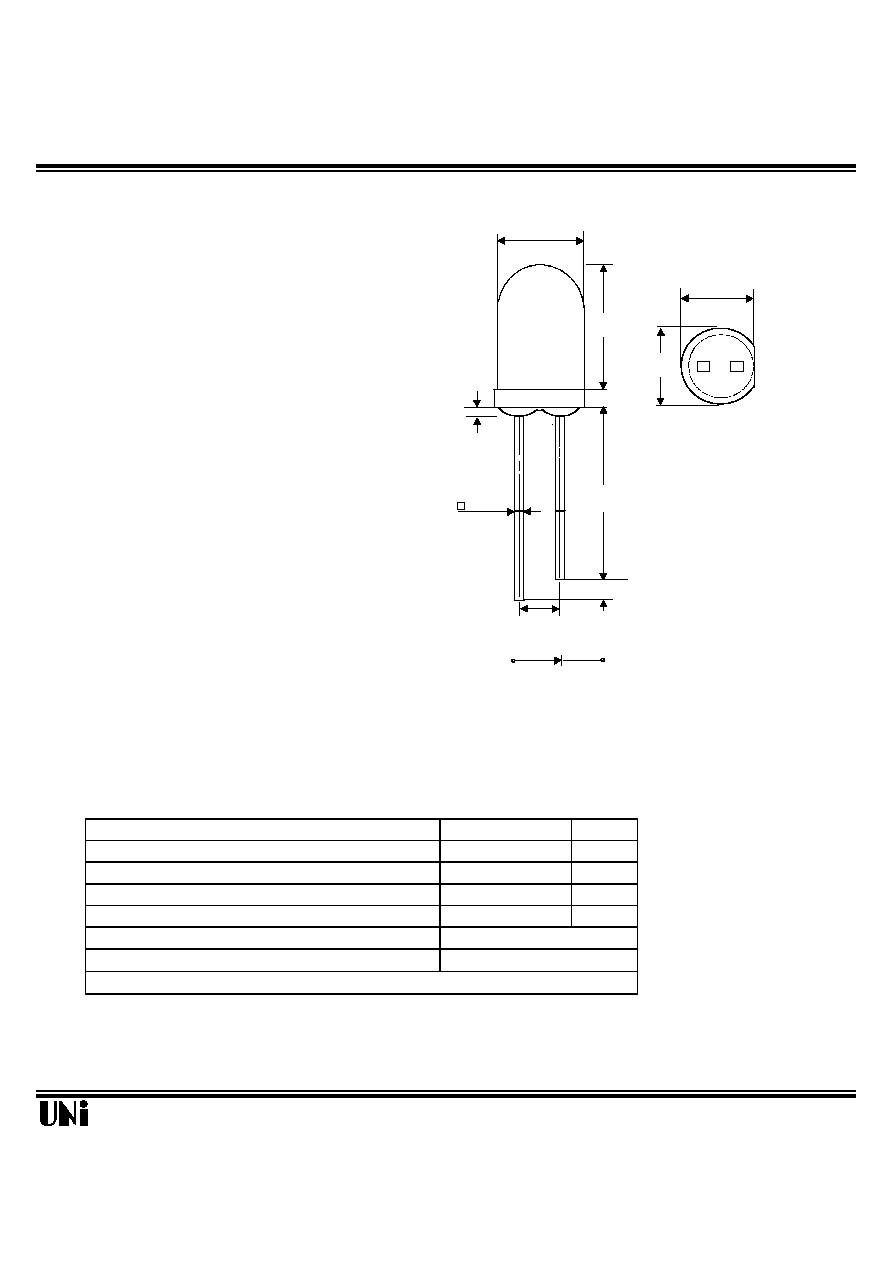

Package Dimensions
The MVL-534UYL , utilizes the latest absorbing
substrate Aluminum Indium Gallium Phosphide
(AllnGaP) LED technology. This LED material
has outstanding light output efficiency over
a wide range of drive current.
The package is T-1 3/4 (
5mm) water clear standard type.
Features
l
Ultra - brightness
l
Low power consumption
l
TTL compatible
l
Reliable
Absolute Maximum Ratings
@ T
A
=25
o
C
Parameter
Unit
Power Dissipation
mW
Peak Forward Current(1/10 Duty Cycle100
s pulse width)
mA
Continuous Forward Current
mA
Reverse Voltage
V
Operating Temperature Range
-40
o
C to +100
o
C
Storage Temperature Range
-40
o
C to +100
o
C
Lead Soldering Temperature 1.6 mm from body for 5 seconds at 260
o
C
5
09/06/2000
Maximum Rating
125
100
50
Unity Opto Technology Co., Ltd.
Notes :
1. Tolerance is 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059") max.
3. Lead spacing is measured where the leads emerge from the package.
SEE NOTE 2
7.62
(.300)
5.05
(.200)
1.00
(.040)
5.90
(.230)
2.54TYP.
(.100)
0.5 TYP.
(.020)
25.4 MIN.
(1.000)
1.00MIN.
(.040)
5.47
(.215)
SEE NOTE 3
A
C
Unit: mm ( inches )
MVL-534UYL
Optical-Electrical Characteristics
@ T
A
=25
o
C
Parameter
Test Conditions
Symbol
Min .
Typ .
Max .
Unit .
Luminous Intensity
I
F
=20mA
I
V
700
1700
-
mcd
Forward Voltage
I
F
=20mA
V
F
-
2.0
2.5
V
Reverse Current
I
R
-
-
100
A
Peak / Dominant Wavelength
I
F
=20mA
p
/
d
-
592/590
-
nm
Spectral Line Half Width
I
F
=20mA
-
20
-
nm
Viewing Angle
I
F
=20mA
2
1/2
-
33
-
deg.

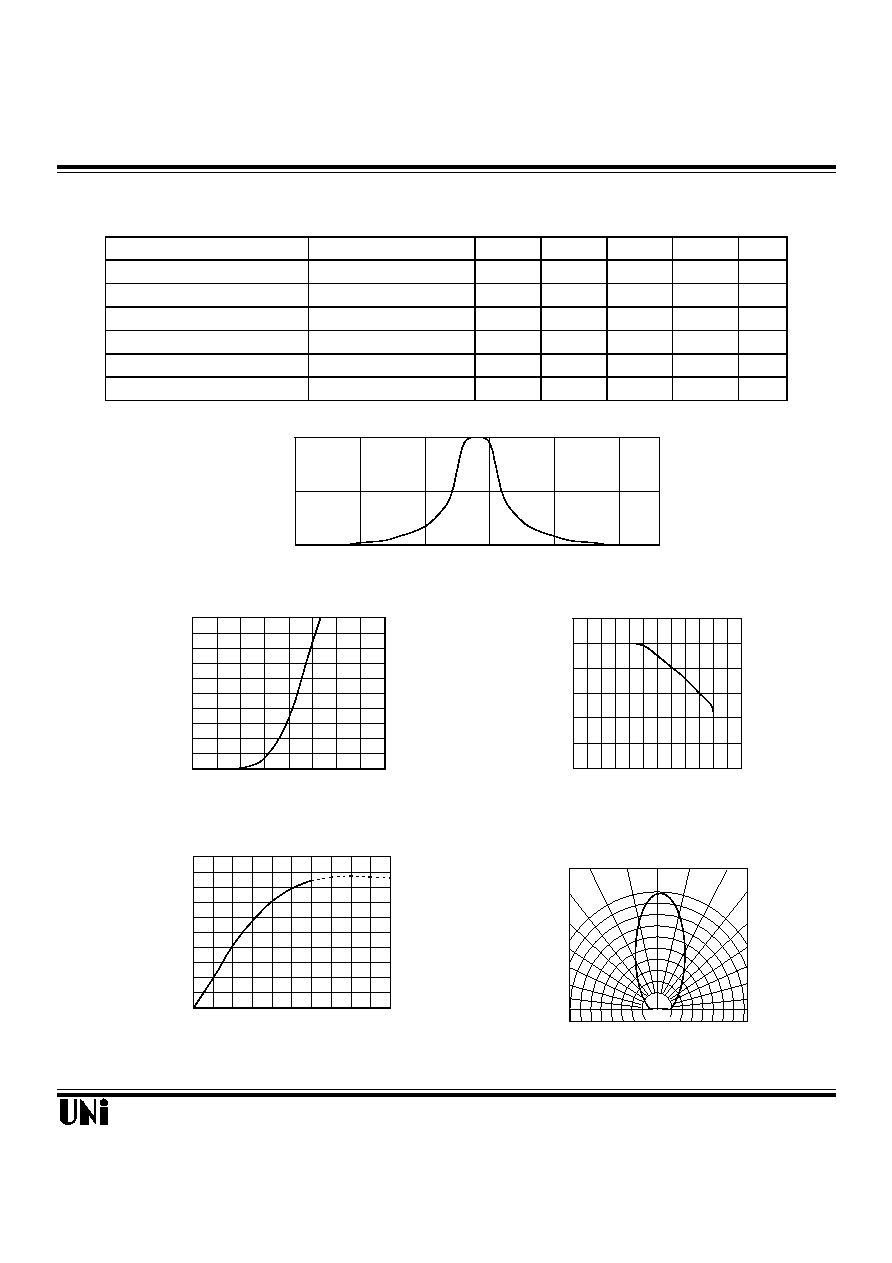

Typical Optical-Electrical Characteristic Curves
09/06/2000
V
R
=5V
Unity Opto Technology Co., Ltd.
0
1
2
3
4
5
0
20
40
60
80
100
Forward Current (mA)
FIG.4 RELATIVE LUMINOUS INTENSITY
VS. FORWARD CURRENT
0
10
20
30
40
50
60
0
30
60
90
120
Ambient Temperature T
A
(
o
C
)
FIG.3 FORWARD CURRENT
VS. AMBIENT TEMPERATURE
Forward Current I
F
(mA)
0
10
20
30
40
50
1.2
1.6
2.0
2.4
2.8
Forward Voltage V
F
(V)
FIG.2 FORWARD CURRENT VS
FORWARD VOLTAGE
Forward Current I
F
(mA)
0
0.5
1
525
550
575
600
625
650
Wavelength (nm)
FIG.1 SPECTRAL DISTRIBUTION
FIG.5 RADIATION DIAGRAM
0.5 0.3 0.1 0.2 0.4 0.6
1.0
0.9
0.8
30
40
50
60
70
80
90
0
10
20
Relative Luminous Intensity
Relative Luminous Intensity
Relative Luminous Intensity
