WM9703
AC'97 Revision 2.1 Audio Codec
Production Data, January 2001, Rev 3.4
WOLFSON MICROELECTRONICS LTD
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176Email: sales@wolfson.co.uk
http://www.wolfson.co.uk
Production Data datasheets contain final
specifications current on publication date.
Supply of products conforms to Wolfson
Microelectronics' Terms and Conditions.
2001 Wolfson Microelectronics Ltd
.
DESCRIPTION
WM9703 is a high-quality stereo audio codec compliant
with the AC'97 Revision 2.1 specification. It performs full
duplex 18-bit codec functions and supports variable
sample rates from 8 to 48k samples/s and offers excellent
quality with high SNR. Additional features include 3D
sound and line-level outputs. In addition, support is
provided for variable sample rates and accommodation is
made for master/slave mode operation.
WM9703 is interchangeable with AC'97 codecs from
Wolfson and other suppliers. The WM9703 is fully
operable on 3.3V or 5V or mixed 3.3/5V supplies, and is
packaged in the industry standard 48-pin TQFP package
with 7mm-body size.
AC'97 FEATURES
3.3V or 5V operation
18-bit stereo codec
S/N ratio > 95dB
Multiple stereo input mixer
Mono and stereo volume control
48-pin TQFP package
Power management features
Low power implementation
Very low standby power
AC'97 REVISION 2.1 FEATURES
Variable rate audio (VRA) support
Analogue 3D stereo enhancement
Line level outputs
Supports Revision. 2.1 specified modem sample rates
and filtering
Master/slave ID selection
PC-beep connection when device held reset
BLOCK DIAGRAM
VOL/
MUTE
VOL/
MUTE
VOL/
MUTE
VOL/
MUTE
VOL/
MUTE
VOL/
MUTE
(37) MONOOUT
(39,41) LNLVLOUT
(35,36) LINEOUT
CD (18,20)
LINEIN (23,24)
VIDEO (16,17)
AUX (14,15)
PHONE (13)
PCBEEP (12)
MIC[1] (21)
MIC[2] (22)
0dB/
20dB
MASTER/
SLAVE
SELECT
(45) CID[0]
(46) CID[1]
(6) BITCLK
(10) SYNC
(8) SDATAIN
(5) SDATAOUT
(11) RESETB
(47) EAPD
VOL/
MUTE
OSC
(2) XTLIN
(3) XTLOUT
VOL
STEREO
DAC
SRC
3D
VOL
STEREO
ADC
SRC
VOL/
MUTE
MUX
VOL/
MUTE
VOL/
MUTE
MUX
KEY:
MONO
STEREO
RECORD
MUX
AND
MUTE
SERIAL
I/F
WM9703
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
2
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
WM9703CFT/V
0 to 70
o
C
48-pin TQFP
24
23
16
17
18
19
20
21
22
13
14
15
37
47
46
45
44
43
42
41
40
39
38
48
1
9
8
7
6
5
4
3
2
12
11
10
25
31
30
29
28
27
26
36
35
34
33
32
LINEINR
CDL
MIC2
CDGND
CDR
MIC1
LINEINL
AUXR
PHONE
AUXL
VIDEOL
VIDEOR
DVDD1
DVSS2
BI
TCL
K
SDATAO
UT
DVSS1
XTL
O
UT
XTL
I
N
SDATI
N
DVDD2
SYNC
RESETB
PCBEEP
NC
NC
NC
CID0
CID1
EAPD
MONOOUT
AVDD2
LNLVLOUTL
NC
LNLVLOUTR
AVSS2
LI
N
E
O
U
TR
NC
CAP1
CAP2
CX3
D
1
CX3
D
2
LI
N
E
O
U
TL
AVDD1
AVSS1
VREF
VREFO
U
T
AFI
L
T1
WM9703
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating
at or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified.
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
As per specifications IPC/JEDEC J-STD-020A and JEDEC A113-B, this product requires specific storage conditions prior to
surface mount assembly. It has been classified as having a Moisture Sensitivity Level of 2 and as such will be supplied in
vacuum-sealed moisture barrier bags.
CONDITION
MIN
MAX
Digital supply voltage
-0.3V
+7V
Analogue supply voltage
-0.3V
+7V
Voltage range digital inputs
DVSS
-0.3V
DVDD +0.3V
Voltage range analogue inputs
AVDD
-0.3V
AVDD +0.3V
Operating temperature range, T
A
0
o
C
+70
o
C
Storage temperature
-65
o
C
+150
o
C
Package body temperature (soldering 10 seconds)
+240
o
C
Package body temperature (soldering 2 minutes)
+183
o
C
Note:
1.
The digital supply voltage (DVDD) must always be less than or equal to the analogue supply voltage (AVDD).
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
3
RECOMMENDED OPERATING CONDITIONS
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Digital supply range
DVDD1, DVDD2
-10%
3.3 to 5.0
+10%
V
Analogue supply range
AVDD1, AVDD2
-10%
3.3 to 5.0
+10%
V
Digital ground
DVSS1, DVSS2
0
V
Analogue ground
AVSS1, AVSS2
0
V
Difference DVSS to AVSS
-0.3
0
+0.3
V
Analogue supply current
DVDD, AVDD = 5V
35
mA
Digital supply current
DVDD, AVDD = 5V
25
mA
Standby supply current (all PRs set)
DVDD, AVDD = 5V
10
A
Analogue supply current
DVDD, AVDD = 3.3V
22
mA
Digital supply current
DVDD, AVDD = 3.3V
15
mA
Standby supply current (all PRs set)
DVDD, AVDD = 3.3V
6
A
ELECTRICAL CHARACTERISTICS
Test Characteristics:
AVDD = 5V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
DVDD = 3.3V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Digital Logic Levels (DVDD = 3.3 or 5.0V)
Input LOW level
V
IL
AVSS -0.3
0.8
V
Input HIGH level
V
IH
2.2
AVDD +0.3
V
Output LOW
V
OL
0.1 x DVDD
V
Output HIGH
V
OH
0.9 x DVDD
V
Analogue I/O Levels (Input Signals on any inputs, Outputs on LINEOUT L, R and MONOOUT)
Input level
Minimum input
impedance = 10k
AVSS
-100mV
AVDD
+100mV
V
Output level
Into 10kohm load
AVSS
+100mV
Near rail to
rail
AVDD
-100mV
V
Reference Levels
Reference input/output
CAP2
2/5 AVDD
AVDD/2
3/5 AVDD
V
CAP2 impedance
75
kohms
Mixer reference
VREF
Buffered
CAP2
V
MIC reference
VREFOUT
Buffered
CAP2
V
ADC reference
CAP1
Buffered
CAP2
V
DAC reference
AFILT1
Buffered
CAP2
V
MIDBUFF current sink
(pins CAP1, AFILT2, VREF
and VREFOUT)
AVDD = 5V
-5
-15
mA
MIDBUFF current source
(pins CAP1, AFILT1, VREF
and VREFOUT)
AVDD = 5V
5
15
mA
MIDBUFF current source
(pins CAP1, AFILT1, VREF
and VREFOUT)
AVDD = 3.3V
5
mA
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
4
Test Characteristics:
AVDD = 5V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
DVDD = 3.3V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
DAC Circuit Specifications (AVDD = 5V) 48kHz sampling
SNR A-weighted (Note 1)
85
96
dB
Full scale output voltage
VREF
= 2.5V
1.0
Vrms
THD
-3dBFs input
74
90
dB
Frequency response
20
19,200
Hz
Transition band
19,200
28,800
Hz
Stop band
28,800
Hz
Out of band rejection
-40
dB
Spurious tone reduction
-100
dB
PSRR
20 to 20kHz
40
dB
ADC Circuit Specifications (AVDD = 5V) 48kHz sampling
SNR A-weighted (Note 1)
75
85
dB
ADC input for full scale output
VREF
= 2.5V
1.0
Vrms
THD
-6dBV input
74
90
dB
Frequency response
20
19,200
Hz
Transition band
19,200
28,800
Hz
Stop band
28,800
Hz
Stop band rejection
-74
dB
PSRR
20 to 20kHz
40
dB
Mixer Circuit Specifications (AVDD = 5V) 48kHz sampling
SNR CD path A-weighted
(Note 1)
90
100
dB
SNR Other paths A-weighted
(Note 1)
85
95
dB
Maximum input voltage
AVSS
1.0
AVDD
Vrms
Maximum output voltage on
LINEOUT
1.0
1.8
Vrms
THD
0dBV input
74
90
dB
Frequency response (+/-1dB)
20
20,000
Hz
Input impedance (CD inputs)
At any gain
10
15
kohm
At max gain
10
20
kohm
Input impedance (other mixer
inputs)
At 0db gain
100
kohm
At max gain
80
kohm
Input impedance Mic inputs
At 0db gain
10
15
kohm
PSRR
20 to 20kHz
40
dB
DAC Circuit Specifications (AVDD = 3.3V) 48kHz sampling
SNR A-weighted (Note 1)
96
dB
Full scale output voltage
VREF
= 1.65V
0.7
Vrms
THD
3dBFs input
90
dB
Frequency response
20
19,200
Hz
Transition band
19,200
28,800
Hz
Stop band
28,800
Hz
Out of band rejection
-40
dB
Spurious tone reduction
-100
dB
PSRR
20 to 20kHz
40
dB
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
5
Test Characteristics:
AVDD = 5V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
DVDD = 3.3V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
ADC Circuit Specifications (AVDD = 3.3V) 48kHz sampling
SNR A-weighted (Note 1)
82
dB
ADC input for full scale output
VREF
= 1.65V
0.7
Vrms
THD
-9dBV input
80
dB
Frequency response
20
19,200
Hz
Transition band
19,200
28,800
Hz
Stop band
28,800
Hz
Stop band rejection
-74
dB
PSRR
20 to 20kHz
40
dB
Mixer Circuit Specifications (AVDD = 3.3V) 48kHz sampling
SNR CD path A-weighted
(Note 1)
97
dB
SNR Other paths A-weighted
(Note 1)
92
dB
Maximum input voltage
0.7
Vrms
Maximum output voltage on
LINEOUT
0.7
Vrms
THD
-3dBV input
90
dB
Frequency response (+/-1dB)
20
20,000
Hz
Input impedance (CD inputs)
At any gain
15
kohm
At max gain
20
kohm
Input impedance (other Mixer
inputs)
At 0db gain
100
kohm
At max gain
80
kohm
Input impedance MIC inputs
At 0db gain
15
kohm
PSRR
20 to 20kHz
40
dB
Clock Frequency Range
Crystal clock
24.576
MHz
BIT_CLK frequency
12.288
MHz
SYNC frequency
48.0
kHz
Note:
1.
SNR is the ratio of 0dB signal output level to the output level with no signal, measured A-weighted over a 20Hz to 20kHz
bandwidth.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
6
PIN DESCRIPTION
PIN
NAME
TYPE
DESCRIPTION
1
DVDD1
Supply
Digital positive supply
2
XTLIN
Digital input
Clock crystal connection or clock input (XTAL not used)
3
XTLOUT
Digital output
Clock crystal connection
4
DVSS1
Supply
Digital ground supply
5
SDATAOUT
Digital input
Serial data input
6
BITCLK
Digital output (master)
Digital input (slave)
Serial interface clock output to AC'97 controller
or input from AC'97 master codec
7
DVSS2
Supply
Digital ground supply
8
SDATAIN
Digital output
Serial data output to AC'97 controller
9
DVDD2
Supply
Digital positive supply
10
SYNC
Digital input
Serial interface sync pulse from AC'97 controller
11
RESETB
Digital input
NOT reset input (active low, resets registers)
12
PCBEEP
Analogue input
Mixer input, typically for PCBEEP signal
13
PHONE
Analogue input
Mixer input, typically for PHONE signal
14
AUXL
Analogue input
Mixer input, typically for AUX signal
15
AUXR
Analogue input
Mixer input, typically for AUX signal
16
VIDEOL
Analogue input
Mixer input, typically for VIDEO signal
17
VIDEOR
Analogue input
Mixer input, typically for VIDEO signal
18
CDL
Analogue input
Mixer input, typically for CD signal
19
CDGND
Analogue input
CD input common mode reference (ground)
20
CDR
Analogue input
Mixer input, typically for CD signal
21
MIC1
Analogue input
Mixer input with extra gain if required
22
MIC2
Analogue input
Mixer input with extra gain if required
23
LINEINL
Analogue input
Mixer input, typically for LINE signal
24
LINEINR
Analogue input
Mixer input, typically for LINE signal
25
AVDD1
Supply
Analogue positive supply
26
AVSS1
Supply
Analogue ground supply, chip substrate
27
VREF( note1)
Analogue output
Buffered CAP2
28
VREFOUT
Analogue output
Reference for microphones; buffered CAP2
29
AFILT1( note1)
Analogue output
Buffered CAP2
30
NC
No internal connection
31
CAP1(note 1)
Analogue output
Buffered CAP2
32
CAP2
Analogue input
Reference input/output; pulls to midrail if not driven
33
CX3D1
Analogue output
Output pin for 3D difference signal
34
CX3D2
Analogue input
Input pin for 3D difference signal
35
LINEOUTL
Analogue output
Main analogue output for left channel
36
LINEOUTR
Analogue output
Main analogue output for right channel
37
MONOOUT
Analogue output
Main mono output
38
AVDD2
Supply
Analogue positive supply
39
LNLVLOUTL
Analogue output
Left channel line level output
40
NC
No internal connection
41
LNLVLOUTR
Analogue output
Right channel line level output
42
AVSS2
Supply
Analogue ground supply, chip substrate
43
NC
No internal connection
44
NC
No internal connection
45
CID0
Digital input
Master/slave ID select (internal pull-up)
46
CID1
Digital input
Master/slave ID select (internal pull-up)
47
EAPD
Digital output
External amplifier powerdown/GPO
48
NC
No internal connection
Note:
1 Pins 27, 29 and 31 have an internal connection.
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
7
DETAILED TIMING DIAGRAMS
Test Characteristics:
AVDD = 5V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated.
DVDD = 3.3V, GND = 0V ..............T
A
= 0
o
C to +70
o
C, unless otherwise stated.
All measurements are taken at 10% to 90% VDD, unless otherwise stated.
AC-LINK LOW POWER MODE
SYNC
BIT_CLK
SDATA_OUT
WRITE
TO 0X20
DATA PR4
DON'T
CARE
SDATA_IN
SLOT 1
SLOT 2
t
S2_PDOWN
Figure 1 AC-Link Powerdown Timing
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
End of slot 2 to BITCLK SDATIN
low
t
S2_PDOWN
1.0
s

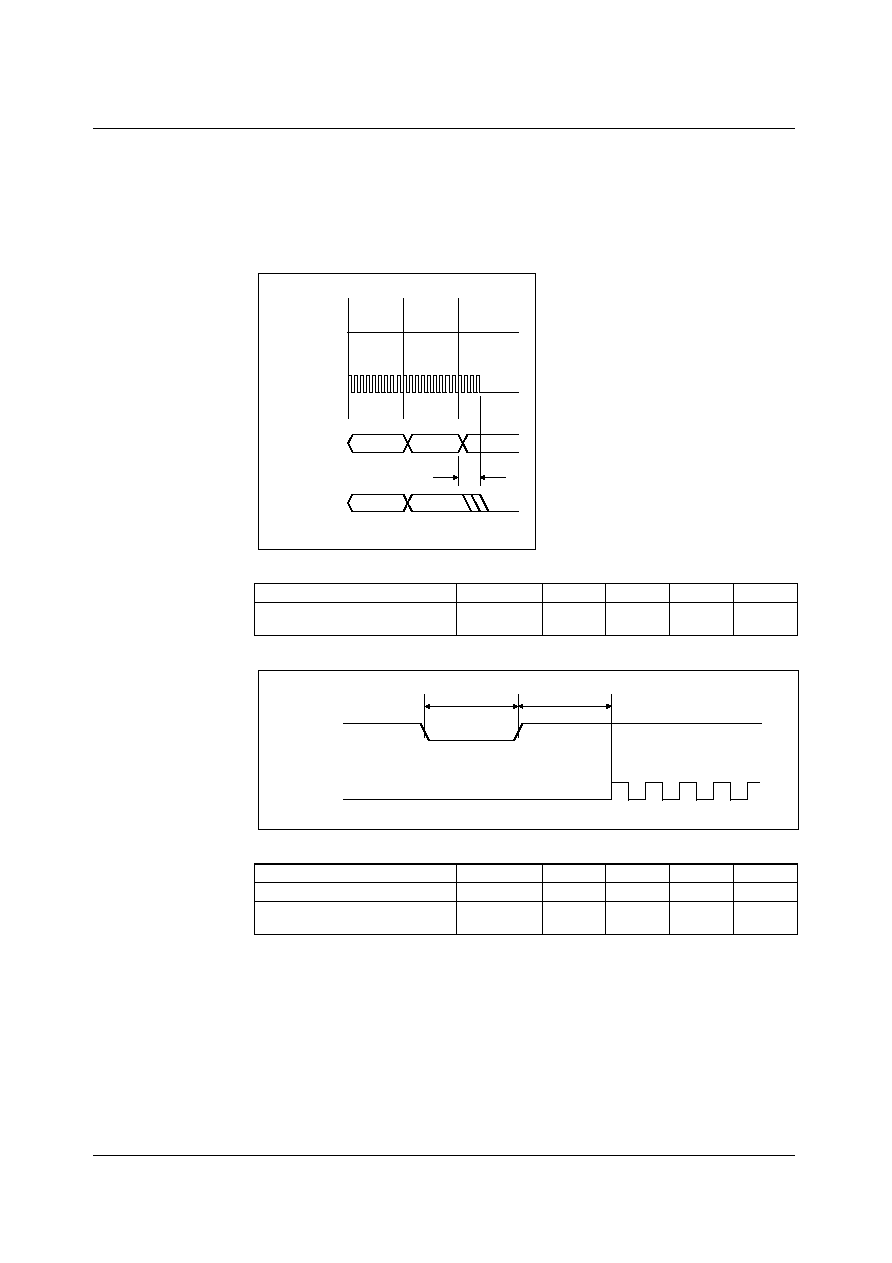

COLD RESET
RESETB
BIT_CLK
t
RST_LOW
t
RST2CLK
Figure 2 Cold Reset Timing
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
RESETB active low pulse width
t
RST_LOW
1.0
s
RESETB inactive to BIT_CLK
start-up delay
t
RST2_CLK
162.8
ns
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
8

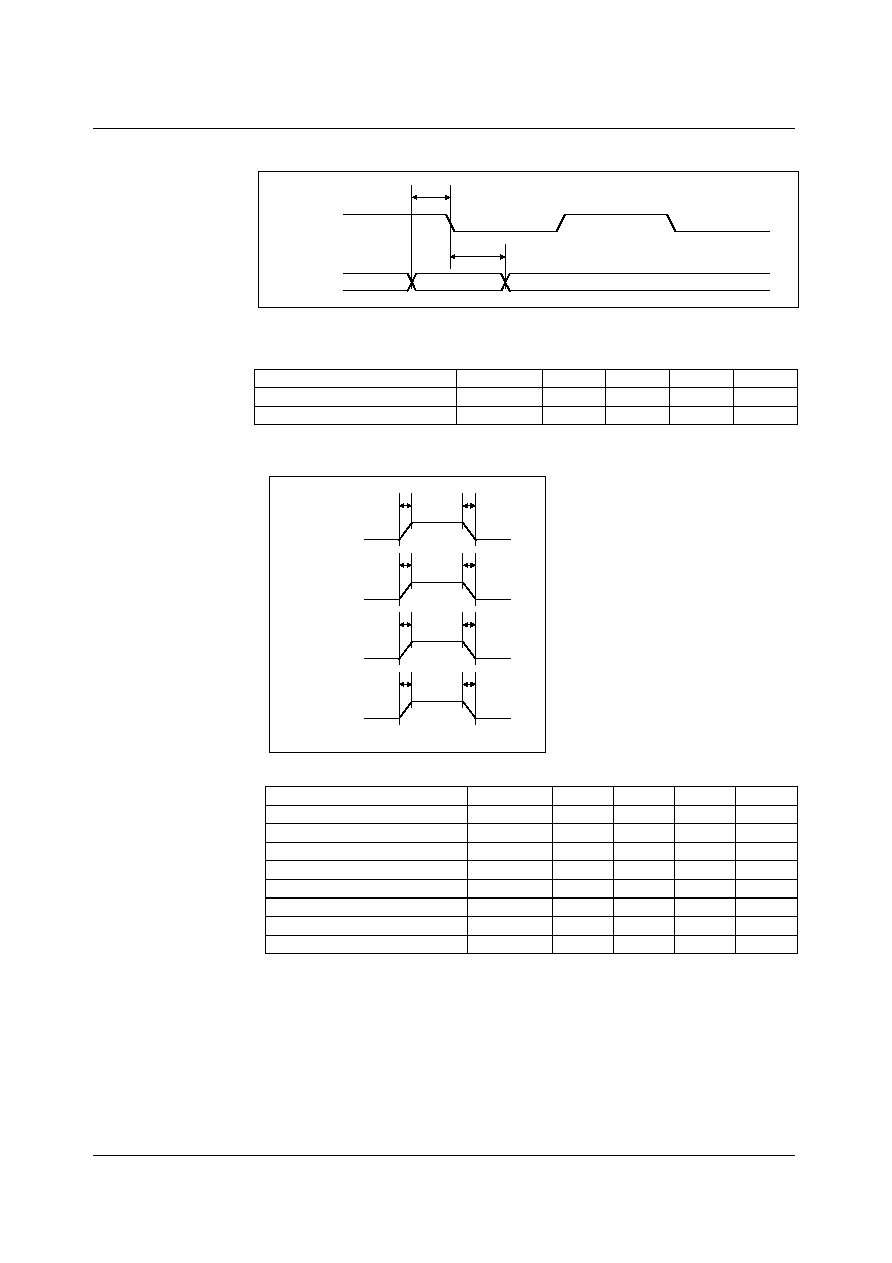

WARM RESET
SYNC
BIT_CLK
t
SYNC_HIGH
t
SYNC2CLK
Figure 3 Warm Reset Timing
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
SYNC active high pulse width
t
SYNC_HIGH
1.3
s
SYNC inactive to BIT_CLK start-
up delay
t
SYNC2_CLK
162.4
ns
CLOCK SPECIFICATIONS
BIT_CLK
SYNC
t
CLK_HIGH
t
CLK_LOW
t
CLK_PERIOD
t
SYNC_HIGH
t
SYNC_LOW
t
SYNC_PERIOD
Figure 4 Clock Specifications (50pF External Load)
Note: Worst case duty cycle restricted to 40/60.
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
BIT_CLK frequency
12.288
MHz
BIT_CLK period
t
CLK_PERIOD
81.4
ns
BIT_CLK output jitter
750
ps
BIT_CLK high pulse width (Note 1)
t
CLK_HIGH
32.56
40.7
48.84
ns
BIT_CLK low pulse width (Note 1)
t
CLK_LOW
32.56
40.7
48.84
ns
SYNC frequency
48.0
kHz
SYNC period
t
SYNC_PERIOD
20.8
s
SYNC high pulse width
t
SYNC_HIGH
1.3
s
SYNC low pulse width
t
SYNC_LOW
19.5
s
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
9
DATA SETUP AND HOLD (50PF EXTERNAL LOAD)
BIT_CLK
SDATA_OUT
SYNC
t
SETUP
t
HOLD
Figure 5 Data Setup and Hold (50pF External Load)
Note: Setup and hold time parameters for SDATA_IN are with respect to AC'97 Controller.
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
Setup to falling edge of BIT_CLK
t
SETUP
15.0
ns
Hold from falling edge of BIT_CLK
t
HOLD
5.0
ns
SIGNAL RISE AND FALL TIMES
BIT_CLK
SYNC
SDATA_IN
SDATA_OUT
trise
CLK
tfall
CLK
trise
SYNC
tfall
SYNC
trise
DIN
tfall
DIN
trise
DOUT
tfall
DOUT
Figure 6 Signal Rise and Fall Times (50pF External Load)
PARAMETER
SYMBOL
MIN
TYP
MAX
UNIT
BIT_CLK rise time
trise
CLK
2
6
ns
BIT_CLK fall time
tfall
CLK
2
6
ns
SYNC rise time
trise
SYNC
2
6
ns
SYNC fall time
tfall
SYNC
2
6
ns
SDATA_IN rise time
trise
DIN
2
6
ns
SDATA_IN fall time
trise
DIN
2
6
ns
SDATA_OUT rise time
trise
DOUT
2
6
ns
SDATA_OUT fall time
tfall
DOUT
2
6
ns
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
10
SYSTEM INFORMATION
WM9703
AC'97
DIGITAL
CONTROLLER
RESET
BITCL
K
SYNC
SDATAI
N
SDATAOU
T
CID0
CID1
{
CHIP
SELECT
PCBEEP
PHONE
CD, VIDEO,
AUX, LINEINL/
R
MONOOUT
{
LNLVLOUTL/R
LINEOUTL/R
MIC2
MIC1
37
41
39
36
13
12
21
22
11
6
10
8
5
45
46
35
Figure 8 Revision 2.1 Compliant 2-Channel Codec
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
WM9703
Front R data
Front L data
LINEOUTL
LINEOUTR
ID=00
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
WM9703
Surround R data
Surround L data
LINEOUTL
LINEOUTR
ID=10
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
XTLOUT
XTLIN
PC I/O
CHIPSET
OR AC'97
CONTROLLER
Figure 9 WM9703 in a 4 Channel System
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
11
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
WM9703
Front R data
Front L data
LINEOUTL
LINEOUTR
ID=00
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
WM9703
Surround R data
Surround L data
LINEOUTL
LINEOUTR
ID=10
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
WM9703
Centre data
LFE data
LINEOUTL
LINEOUTR
ID=11
SDATAOUT
BITCLK
SDATAIN
SYNC
RESET
XTLOUT
XTLIN
XTLIN
PC I/O
CHIPSET
OR AC'97
CONTROLLER
Figure 10 WM9703 in a 6 Channel System
SDATAOUT
BITCLK
SDATAIN
SYNC
RESETB
DOCKING STATION
NOTEBOOK/
LAPTOP
WM9703
SDATAOUT
BITCLK
SDATAIN
SYNC
RESETB
LINEOUTL
LINEOUTR
WM9703
SDATAOUT
BITCLK
SDATAIN
SYNC
RESETB
ID=00
ID=00
Option of using RESETB
or SDATAIN to disable
NB CODEC
when docked.
CID1
CID0
If pins CID0/1 not
driven then CODEC ID
defaults to 00.
When docked CID1 is
pulled low making
CODEC a 'slave' (01)
stopping BITCLK
PC I/O
CHIPSET
OR AC'97
CONTROLLER
Figure 11 WM9703 in a Docking Station System
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
12
DEVICE DESCRIPTION
INTRODUCTION
The WM9703 is fully compliant with Revision 2.1 of the AC'97 specification.
The WM9703 comprises a stereo 18-bit Codec, (that is, 2 ADCs and 2 DACs) plus a comprehensive
analogue mixer with 4 sets of stereo inputs, plus phone, 2 microphone, and PC-beep inputs.
Additionally, on-chip reference generation circuits generate the necessary bias voltages for the
device, and a bidirectional serial interface allows transfer of control data and DAC and ADC words to
and from the AC'97 controller. The WM9703 supports 18-bit resolution within the DAC and ADC
functions, but the AC'97 serial interface specification allows any word length up to 20-bits to be
written to, or read from, the AC'97 Codec. These words are MSB justified, and any LSBs not used
will simply default to 0. Normally it is anticipated that 16-bit words will be used in most PC type
systems. Therefore, for the DAC, 16-bit words will be downloaded into the Codec from the controller,
along with padding of 0s to make the 16-bit word up to 20-bit length. In this case, the WM9703 will
process the 16-bit word along with 0 padding bits in the 2 LSB locations (to make 18-bit). At the ADC
output, WM9703 will provide an 18-bit word, again with 0s in the two LSB locations (20-bit). The
AC'97 controller will then ignore the 4 LSBs of the 20-bit word. When the WM9703 is interrogated, it
responds indicating it is an 18-bit device.
The WM9703 has the ADC and DAC functions implemented using oversampled, or sigma-delta
converters, and uses on-chip digital filters to convert these 1-bit signals to and from the 48ks/s
16/18-bit PCM words that the AC'97 controller requires. The digital parts of the device are powered
separately from the analogue to optimise performance and 3.3V digital and 5V analogue supplies
may be used on the same device to further optimise performance. Digital IOs are 5V tolerant when
the analogue supplies are 5V, so the WM9703 may be connected to a controller running on 5V
supplies, but use 3.3V for the digital section of WM9703. WM9703 is also capable of operating with a
3.3V supply only (digital and analogue).
An internally generated midrail reference is provided at pin CAP2 which is used as the chip
reference. This pin should be heavily decoupled.
The WM9703 is not limited to PC-only applications. The ability to powerdown sections of the device
selectively, and the option to choose alternative master clock, and hence sample rates, means that
many alternative applications in areas such as telecomms, may be anticipated.
Additional features added to the Intel AC'97 specification, such as the EAPD (External Amplifier
Power Down) bit, internal connection of PC-beep to the outputs in the case where the device is reset,
are supported, along with optional features such as variable sample rate support.
3D STEREO ENHANCEMENT
This device contains a stereo enhancement circuit, designed to optimise the listening experience
when the device is used in a typical PC operating environment. That is, with a pair of speakers
placed either side of the monitor with little spatial separation. This circuit creates a difference signal
by differencing left and right channel playback data, then filters this difference signal using lowpass
and highpass filters whose time constants are set using external capacitors connected to the CX3D
pins 33 and 34. Typically the values of 100nF and 47nF set highpass and lowpass poles at about
100Hz and 1kHz respectively. This frequency band corresponds to the range over which the ear is
most sensitive to directional effects.
The filtered difference signal is gain adjusted by an amount set using the 4-bit value written to
register 22h bits 3 to 0. Value 0h is disable, value Fh is maximum effect. Typically a value of 8h is
optimum. The user interface would most typically use a slider type of control to allow the user to
adjust the level of enhancement to suit the program material. Bit D13 3D in register 20h is the overall
3D enable bit. The capability register 00h reads back the value 11000 in bits D14 to D10. This
corresponds to decimal 24, which is registered with Intel as Wolfson Stereo Enhancement.
Note that the external capacitors setting the filtering poles applied to the difference signal may be
adjusted in value, or even replaced with a direct connection between the pins. If such adjustments
are made, then the amount of difference signal fed back into the main signal paths may be
significant, and can cause large signals which may limit, distort, or overdrive signal paths or
speakers. Adjust these values with care, to select the preferred acoustic effect.
There is no provision for pseudo-stereo effects. Mono signals will have no enhancement applied
(if the signals are in phase and of the same amplitude).
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
13
Signals from the PCM DAC channels do not have stereo enhancement applied. It is assumed that
these signals will already have been processed digitally with any required 3D enhancement effect.
Applying the analogue 3D enhancement will corrupt this digital effect. This is equivalent to setting the
POP bit in register 20h. As a result, the readback value of this bit is fixed as 1, and attempts to
change it will be ignored. POP bit is set to one and cannot be re-set.
VARIABLE SAMPLE RATE SUPPORT
The DACs and ADCs on this device support all the recommended sample rates specified in the Intel
Revision 2.1 specification for both audio and modem rates. Default rates are 48ks/s. If alternative
rates are selected, the AC'97 interface continues to run at 48k words per second, but data is
transferred across the link in bursts such that the net sample rate selected is achieved. It is up to the
AC'97 Revision 2.1 compliant controller to ensure that data is supplied to the AC link, and received
from the AC link, at the appropriate rate.
The device supports on demand sampling. That is, when the DAC signal processing circuits need
another sample, a sample request is sent to the controller which must respond with a data sample in
the next frame it sends. For example, if a rate of 24ks/s is selected, on average the device will
request a sample from the controller every other frame, for each of the stereo DACs. Note that if an
unsupported rate is written to one of the rate registers, the rate will default to the nearest rate
supported. The register will then respond when interrogated with the supported rate the device has
defaulted to.
ADCs are controlled similarly but with one difference: Normally the left and right channel ADCs
sample at the same rate.
AUDIO
SAMPLE RATE
CONTROL VALUE
D15-D0
MODEM
SAMPLE RATE
CONTROL VALUE
D15-D0
8000
1F40
7200
1C20
11025
2B11
8228.57 (57600/7)
2024
16000
3E80
8400
20D0
22050
5622
9000
2328
44100
AC44
9600
2580
48000
BB80
10285.71 (72000/7)
282D
12000
2EE0
13714.28 (96000/7)
3592
19200
4B00
24000
5DC0
Table 3 Variable Sample Rates Supported
The following table shows which registers control which DAC rates, versus Mode and ID selected
CODEC ID
FRONT DAC RATE REGISTER
ADC RATE REG
00 and 01
2Ch
10
2Eh
11
2Ch (centre) and 30h (LFE)
32h
Table 4 Variable Rate Register Location Versus ID
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
14
GAIN CONTROL REGISTER LOCATION VERSUS ID
PGA
CODEC ID
CONTROL REG
MUTE DEFAULT
DAC
0x
10
11
18h
Muted (bit-15)
AND with 38h, 7, 15
AND with 36h, 7, 15
Mixer
0x
10
11
72h
Not-muted (bit-15)
Volume
0x
10
11
02h
38h
36h
Muted (15)
Muted (7 and 15)
Muted (7 and15)
Table 5 Gain Control Register Location Versus ID
MASTER/SLAVE ID0/1 SUPPORT
WM9703 supports operation as either a master or a slave codec. Configuration of the device as
either a master or as a slave, is selected by tying the CID pins CID0 and CID1, pins 45 and 46 on the
package.
Fundamentally, a device identified as a master (ID = 00) produces BITCLK as an output, whereas a
slave (any other ID) must be provided with BITCLK as an input. This has the obvious implication that
if the master device on an AC link is disabled, the slave devices cannot function.
The AC'97 Revision 2.1 specification defines that the CID pins have inverting sense, and are
provided with internal weak pull ups. Therefore, if no connections are made to the CID0/1 pins, then
the pins pull hi and an ID = 00 is selected, i.e. master. External connects to ground will select other
IDs.
PIN46 CID1
PIN45 CID0
ID
SELECTED
MASTER OR
SLAVE
BITCLK
NC
NC
00
Master
Output
NC
Ground
01
Slave
Input
Ground
NC
10
Slave
Input
Ground
Ground
11
Slave
Input
Table 6 ID Selection
WM9703 supports the AMAP function whereby selection of an ID will automatically map the data
from the interface onto the PCM DACs. This allows a 6-channel audio system to be built using 3
WM9703 devices, with one device configured as a master (ID 00) and the other two as slaves (ID 10
and 11). (See figure 10). In this case, the main channel DACs will have mapped onto them the data
from the normal, surround, and LFE and centre slots respectively, without any user selection.
CODEC ID
ACLINK FRAME DATA
USED FOR DACS
COMMENTS
PCM left DAC uses
data from slot No.
PCM right DAC uses
data from slot No.
00
3
4
Original definition (master)
01
3
4
Original definition (docking)
10
7
8
Left/right surround channels
11
6
9
Centre/LFE channels
The codec ID is available to the controller via register 28h, bits D15 and D14
Table 7 Default Slot to DAC Mappings Based on Codec ID
CODEC ID
SLOTS MAPPED
TO DACS
00 or 01
3 and 4
10
7 and 8
11
6 and 9
Table 8 Slot to DAC and Mapping Based on Codec ID
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
15
CONTROL INTERFACE
A digital interface has been provided to control the WM9703 and transfer data to and from it. This
serial interface is compatible with the Intel AC'97.
The main control interface functions are:
Control of analogue gain and signal paths through the mixer
Bi-directional transfer of ADC and DAC words to and from AC'97 controller
Selection of powerdown modes
AC-LINK DIGITAL SERIAL INTERFACE PROTOCOL
The WM9703 incorporates a 5-pin digital serial interface that links it to the AC'97 controller. AC-link
is a bi-directional, fixed rate, serial PCM digital stream. It handles multiple input and output audio
streams, as well as control register accesses employing a time division multiplexed (TDM) scheme.
The AC-link architecture divides each audio frame into 12 outgoing and 12 incoming data streams,
each with 20-bit sample resolution. With a minimum required DAC and ADC resolution of 16-bits,
AC'97 may also be implemented with 18 or 20-bit DAC/ADC resolution, given the headroom that the
AC-link architecture provides. The WM9703 provides support for 18-bit operation.
SLOT
NUMBER
SYNC
SDATA_OUT
SDATA_IN
TAG PHASE
TAG
CMD
ADR
CMD
DATA
PCM
LEFT
PCM
RIGHT
RSRVD
PCM
LFE
RSRVD
RSRVD
TAG
STATUS
ADDR
STATUS
DATA
PCM
LEFT
PCM
RIGHT
RSRVD
RSRVD
RSRVD
RSRVD
RSRVD
RSRVD
RSRVD
RSRVD
DATA PHASE
0
1
2
3
4
5
6
7
8
9
10
11
12
PCM
CENTRE
PCM
L SURR
PCM
R SURR
RSRVD
PCM C
(n+1)
PCM R
(n+1)
PCM L
(n+1)
CODEC ID
SLOTREQ 3-12
Figure 12 AC'97 Standard Bi-directional Audio Frame
SYNC
BIT_CLK
SDATA_OUT
VALID
FRAME
SLOT(1)
SLOT(2)
SLOT(12)
'0'
(ID1)
(ID0)
19
0
19
0
19
0
19
0
TAG PHASE
DATA PHASE
20.8
S (48kHz)
12.288MHz
81.4nS
END OF PREVIOUS
AUDIO FRAME
TIME SLOT 'VALID' BITS
('1' = TIME SLOT CONTAINS
VALID PCM DATA)
SLOT (1)
SLOT (2)
SLOT (3)
SLOT (12)
Figure 13 AC-link Audio Output Frame
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
16
The datastreams currently defined by the AC'97 specification include:
PCM playback - 2 output slots
2-channel composite PCM output stream
PCM record data - 2 input slots
2-channel composite PCM input stream
Control - 2 output slots
Control register write port
Status - 2 input slots
Control register read port
Optional modem line codec output -
1 output slot
Modem line codec DAC input stream
Optional modem line codec input
1 input slot
Modem line codec ADC output stream
Optional dedicated microphone input -
1 input slot
Dedicated microphone input stream in support
of stereo AEC and/or other voice applications.
Synchronisation of all AC-link data transactions is signalled by the WM9703 controller. The WM9703
drives the serial bit clock onto AC-link, which the AC'97 controller then qualifies with a
synchronisation signal to construct audio frames.
SYNC, fixed at 48kHz, is derived by dividing down the serial clock (BIT_CLK). BIT_CLK, fixed at
12.288MHz, provides the necessary clocking granularity to support 12, 20-bit outgoing and incoming
time slots. AC-link serial data is transitioned on each rising edge of BIT_CLK. The receiver of AC-link
data, (WM9703 for outgoing data and AC'97 controller for incoming data), samples each serial bit on
the falling edges of BIT_CLK.
The AC-link protocol provides for a special 16-bit time slot (slot 0) wherein each bit conveys a valid
tag for its corresponding time slot within the current audio frame. A 1 in a given bit position of slot 0
indicates that the corresponding time slot within the current audio frame has been assigned to a data
stream, and contains valid data. If a slot is tagged invalid, it is the responsibility of the source of the
data, (the WM9703 for the input stream, AC'97 controller for the output stream); to stuff all bit
positions with 0s during that slot's active time.
SYNC remains high for a total duration of 16 BIT_CLKs at the beginning of each audio frame.
The portion of the audio frame where SYNC is high is defined as the Tag Phase. The remainder of
the audio frame where SYNC is low is defined as the Data Phase. Additionally, for power savings, all
clock, sync, and data signals can be halted. This requires that the WM9703 be implemented as a
static design to allow its register contents to remain intact when entering a power savings mode.
AC-LINK AUDIO OUTPUT FRAME (SDATA_OUT)
The audio output frame data streams correspond to the multiplexed bundles of all digital output data
targeting the WM9703's DAC inputs, and control registers. As briefly mentioned earlier, each audio
output frame supports up to 12 20-bit outgoing data time slots. Slot 0 is a special reserved time slot
containing 16-bits, which are used for AC-link protocol infrastructure.
OUTPUT TAG SLOT (16-BITS)
Bit (15)
Frame Valid
Bit (14)
Slot 1 Valid Command Address bit
(Primary Codec only)
Bit (13)
Slot 2 Valid Command Data bit
(Primary Codec only)
Bit (12:3)
Slot 3-12 Valid bits as defined by AC'97
Bit 2
Reserved
(Set to 0)
Bit (1:0)
2-bit Codec ID field
(00 reserved for Primary; 01, 10, 11
indicate Secondary)
New definitions for Secondary Codec Register Access
Within slot 0 the first bit is a global bit (SDATA_OUT slot 0, bit 15) which flags the validity for the
entire audio frame. If the Valid Frame bit is a 1, this indicates that the current audio frame contains at
least one time slot of valid data. The next 12-bit positions sampled by the WM9703 indicate which of
the corresponding 12 time slots contain valid data.
In this way data streams of differing sample rates can be transmitted across AC-link at its fixed
48kHz audio frame rate. Figure 13 illustrates the time slot based AC-link protocol.
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
17
SYNC
BIT_CLK
SDATA_OUT
VALID
FRAME
SLOT (1)
SLOT (2)
WM9703 SAMPLES
SYNC ASSERTION HERE
WM9703 SAMPLES
FIRST SDATA_OUT
BIT OF FRAME HERE
END OF PREVIOUS AUDIO FRAME

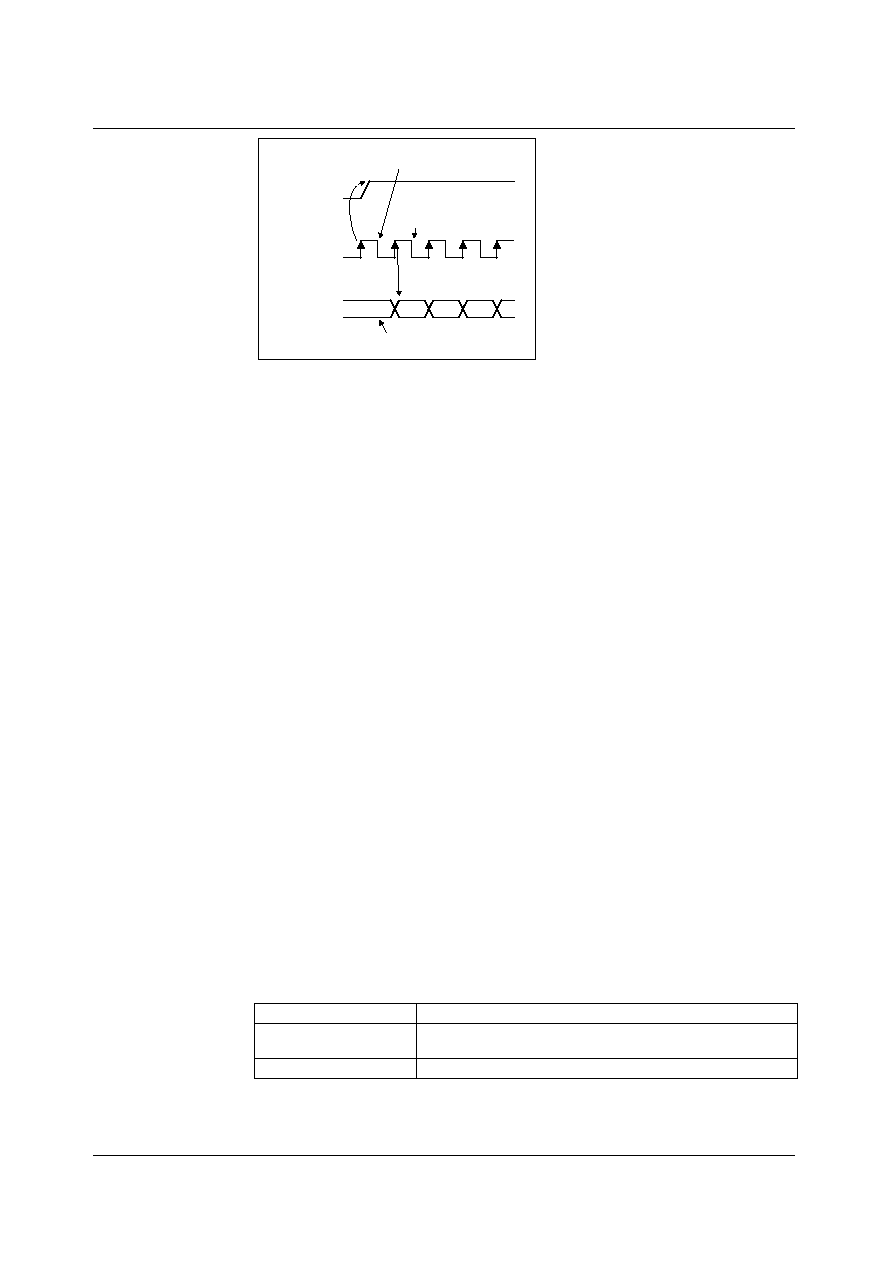

Figure 14 Start of an Audio Output Frame
A new audio output frame begins with a low to high transition of SYNC as shown in Figure 14. SYNC
is synchronous to the rising edge of BIT_CLK. On the immediately following falling edge of BIT_CLK,
the WM9703 samples the assertion of SYNC. This falling edge marks the time when both sides of
AC-link are aware of the start of a new audio frame. On the next rising edge of BIT_CLK, AC'97
transitions SDATA_OUT into the first bit position of slot 0 (Valid Frame bit). Each new bit position is
presented to AC-link on a rising edge of BIT_CLK, and subsequently sampled by the WM9703 on the
following falling edge of BIT_CLK. This sequence ensures that data transitions and subsequent
sample points for both incoming and outgoing data streams are time aligned.
Baseline AC'97 specified audio functionality MUST ALWAYS sample rate convert to and from a fixed
48ks/s on the AC'97 controller.
This requirement is necessary to ensure that interoperability between the AC'97 controller and the
WM9703, among other things, can be guaranteed by definition for baseline specified AC'97 features.
SDATA_OUT's composite stream is MSB justified (MSB first) with all non-valid slot bit positions
stuffed with 0s by the AC'97 controller.
In the event that there are less than 20 valid bits within an assigned and valid time slot, the AC'97
controller always stuffs all trailing non-valid bit positions of the 20-bit slot with 0s.
As an example, consider an 8-bit sample stream that is being played out to one of the WM9703's
DACs. The first 8 bit positions are presented to the DAC (MSB justified) followed by the next 12 bit
positions, which are stuffed with 0s by the AC'97 controller. This ensures that regardless of the
resolution of the implemented DAC (16, 18 or 20-bit), no DC biasing will be introduced by the least
significant bits.
When mono audio sample streams are output from the AC'97 controller, it is necessary that BOTH
left and right sample stream time slots be filled with the same data.
SLOT 1: COMMAND ADDRESS PORT
The command port is used to control features, and monitor status for the WM9703 functions
including, but not limited to, mixer settings, and power management (refer to the register section).
The control interface architecture supports up to 64, 16-bit read/write registers, addressable on even
byte boundaries. Only the even registers (00h, 02h, etc.) are valid, odd register (01h, 03h, etc.)
accesses are discouraged (if supported they should default to the preceding even byte boundary -
i.e. a read to 01h will return the 16-bit contents of 00h). The WM9703's control register file is
nonetheless readable as well as writeable to provide more robust testability.
Audio output frame slot 1 communicates control register address, and read/write command
information to the WM9703.
COMMAND ADDRESS PORT BIT ASSIGNMENTS
Bit (19)
Read/write command (1 = read, 0 = write)
Bit (18:12)
Control register index (64 16-bit locations, addressed on even
byte boundaries)
Bit (11:0)
Reserved (stuffed with 0s)
The first bit (MSB) sampled by the WM9703 indicates whether the current control transaction is a
read or write operation. The following 7 bit positions communicate the targeted control register
address. The trailing 12 bit positions within the slot are reserved and must be stuffed with 0s by the
AC'97 controller.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
18
SLOT 2: COMMAND DATA PORT
The command data port is used to deliver 16-bit control register write data in the event that the
current command port operation is a write cycle. (As indicated by slot 1, bit 19).
Bit (19:4)
Control register write data (stuffed with 0s if current operation is
a read)
Bit (3:0)
Reserved (stuffed with 0s)
If the current command port operation is a read then the entire time slot must be stuffed with 0s by
the AC'97 controller.
SLOT 3: PCM PLAYBACK LEFT CHANNEL
Audio output frame slot 3 is the composite digital audio left playback stream. In a typical Games
Compatible PC this slot is composed of standard PCM (.wav) output samples digitally mixed (on the
AC'97 controller or host processor) with music synthesis output samples. If a sample stream of
resolution less than 20-bits is transferred, the AC'97 controller must stuff all trailing non-valid bit
positions within this time slot with 0s.
SLOT 4: PCM PLAYBACK RIGHT CHANNEL
Audio output frame slot 4 is the composite digital audio right playback stream. In a typical Games
Compatible PC this slot is composed of standard PCM (.wav) output samples digitally mixed (on the
AC'97 controller or host processor) with music synthesis output samples.
If a sample stream of resolution less than 20-bits is transferred, the AC'97 controller must stuff all
trailing non-valid bit positions within this time slot with 0s.
SLOT 5: OPTIONAL MODEM LINE CODEC
Audio output frame slot 5 contains the MSB justified modem DAC input data. This optional AC'97
feature is not supported in the WM9703, and if data is written to this location it is ignored. This may
be determined by the AC'97 controller interrogating the WM9703 Vendor ID registers.
SLOTS 6 TO 9: SURROUND SOUND DATA
Audio output frame slots 6 to 9 are used to send surround sound data. This data is mapped onto the
internal DACs depending on Codec ID, see Table 8.
SLOTS 10 AND 11: LINE2 AND HANDSET DAC
These data slots are not supported.
SLOT 12: GPIO CONTROL
These data slots are not supported.
AC-LINK AUDIO INPUT FRAME (SDATA_IN)
SYNC
BIT_CLK
SDATA_IN
CODEC
READY
SLOT(1)
SLOT(2)
SLOT(12)
'0'
'0'
'0'
19
0
19
0
19
0
19
0
TAG PHASE
DATA PHASE
20.8
S (48kHz)
12.288MHz
81.4nS
END OF PREVIOUS
AUDIO FRAME
TIME SLOT 'VALID' BITS
('1' = TIME SLOT CONTAINS
VALID PCM DATA)
SLOT (1)
SLOT (2)
SLOT (3)
SLOT (12)

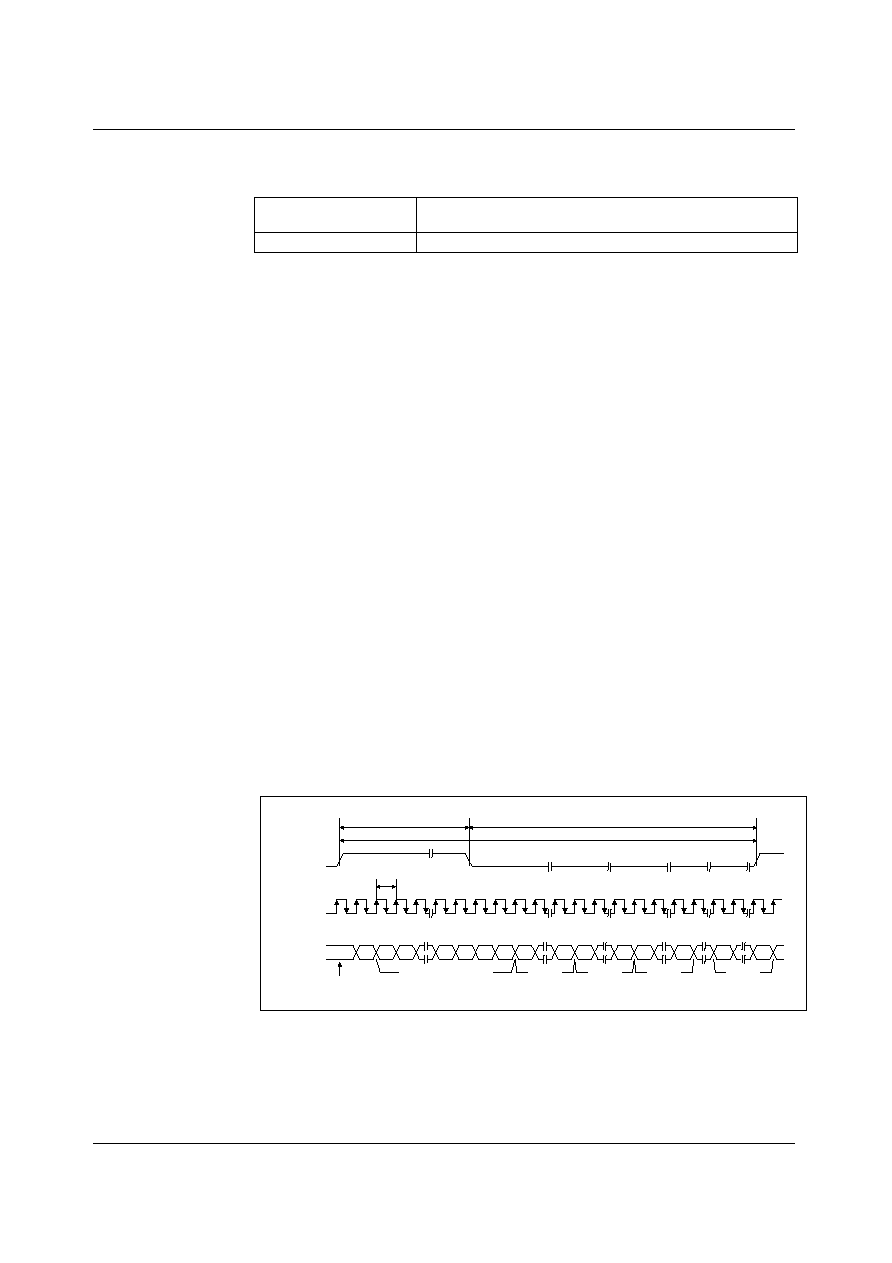

Figure 15 AC-link Audio Input Frame
The audio input frame data streams correspond to the multiplexed bundles of all digital input data
targeting the AC'97 controller. As is the case for audio output frame, each AC-link audio input frame
consists of 12, 20-bit time slots.
Slot 0 is a special reserved time slot containing 16-bits, which are used for AC-link protocol
infrastructure.
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
19
Within slot 0 the first bit is a global bit (SDATA_IN slot 0, bit 15) which flags whether the WM9703 is
in the Codec Ready state or not. If the Codec Ready bit is a 0, this indicates that the WM9703 is not
ready for normal operation. This condition is normal following the desertion of power on reset for
example, while the WM9703's voltage references settle. When the AC-link Codec Ready indicator bit
is a 1, it indicates that the AC-link and the WM9703 control and status registers are in a fully
operational state. The AC'97 controller must further probe the Powerdown Control/Status Register to
determine exactly which subsections, if any, are ready.
Prior to any attempts at putting the WM9703 into operation the AC'97 controller should poll the first
bit in the audio input frame (SDATA_IN slot 0, bit 15) for an indication that the WM9703 has gone
Codec Ready.
Once the WM9703 is sampled Codec Ready then the next 12 bit positions sampled by the AC'97
controller indicate which of the corresponding 12 time slots are assigned to input data streams, and
that they contain valid data. Figure 15 illustrates the time slot based AC-link protocol.
There are several subsections within the WM9703 that can independently go busy/ready. It is the
responsibility of the WM9703 controller to probe more deeply into the WM9703 register file to
determine which the WM9703 subsections are actually ready.
SYNC
BIT_CLK
SDATA_IN
CODEC
READY
SLOT (1)
SLOT (2)
WM9703 SAMPLES
SYNC ASSERTION HERE
AC'97 CONTROLLER
SAMPLES FIRST SDATA_IN
BIT OF FRAME HERE
END OF PREVIOUS AUDIO FRAME
Figure 16 Start of an Audio Input Frame
A new audio input frame begins with a low to high transition of SYNC as shown in Figure 16. SYNC
is synchronous to the rising edge of BIT_CLK. On the immediately following falling edge of BIT_CLK,
AC'97 samples the assertion of SYNC. This falling edge marks the time when both sides of AC-link
are aware of the start of a new audio frame. On the next rising of BIT_CLK, AC'97 transitions
SDATA_IN into the first bit position of slot 0 ("Codec Ready" bit). Each new bit position is presented
to AC-link on a rising edge of BIT_CLK, and subsequently sampled by the AC'97 Controller on the
following falling edge of BIT_CLK. This sequence ensures that data transitions and subsequent
sample points for both incoming and outgoing data streams are time aligned.
SDATA_IN's composite stream is MSB justified (MSB first) with all non-valid bit positions (for
assigned and/or unassigned time slots) stuffed with 0s by the WM9703. SDATA_IN should be
sampled on the falling edges of BIT_CLK.
SLOT 1: STATUS ADDRESS PORT
The status port is used to monitor status for the WM9703 functions including, but not limited to, mixer
settings, and power management.
Audio input frame slot 1 echoes the control register index, for historical reference, for the data to
be returned in slot 2. (Assuming that slots 1 and 2 had been tagged valid by the WM9703 during slot
0).
STATUS ADDRESS PORT BIT ASSIGNMENTS:
Bit (19)
RESERVED (stuffed with 0s)
Bit (18:12)
Control register index (echo of register index for which data is
being returned)
Bit (11:2)
Variable sample rate SLOTREQ bits.
Bit (1:0)
RESERVED (stuffed with 0s)
The first bit (MSB) generated by the WM9703 is always stuffed with an 0. The following 7 bit
positions communicate the associated control register address. The next 10 bits support the AC'97
Rev 2.1 variable sample rate signalling protocol, and the trailing 2 bit positions are stuffed with 0s by
AC'97.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
20
SLOT 2: STATUS DATA PORT
The status data port delivers 16-bit control register read data.
Bit (19:4)
Control register read data (stuffed with 0s if tagged invalid by
WM9701)
Bit (3:0)
RESERVED (stuffed with 0s)
If slot 2 is tagged invalid by the WM9703, then the entire slot will be stuffed with 0s by the WM9703.
SLOT 3: PCM RECORD LEFT CHANNEL
Audio input frame slot 3 is the left channel output of the WM9703's input Mux, post-ADC.
The WM9703 sends out its ADC output data (MSB first), and stuffs any trailing non-valid bit positions
with 0s to fill out its 20-bit time slot.
SLOT 4: PCM RECORD RIGHT CHANNEL
Audio input frame slot 4 is the right channel output of the WM9703's input Mux, post-ADC.
The WM9703's ADCs can be implemented to support 16, 18, or 20-bit resolution.
The WM9703 ships out its ADC output data (MSB first), and stuffs any trailing non-valid bit positions
with 0s to fill out its 20-bit time slot.
SLOT 5: OPTIONAL MODEM LINE CODEC
Audio input frame slot 5 contains MSB justified modem ADC output data. This optional feature is not
supported by WM9703. This may be determined by the AC'97 controller interrogating the WM9703
Vendor ID register.
SLOT 6: OPTIONAL DEDICATED MICROPHONE RECORD DATA
Audio input frame slot 6 is an optional (post-ADC) third PCM system, input channel available for
dedicated use by a desktop microphone. This optional AC'97 feature is not supported by the
WM9703. This may be determined by the AC'97 controller interrogating the WM9703 Vendor ID
register.
SLOTS 7 TO 12: RESERVED
Audio input frame slots 7 to 12 are reserved for future use and are always stuffed with 0s by the
WM9703.
AC-LINK LOW POWER MODE
The AC-link signals can be placed in a low power mode. When the WM9703's Powerdown Register
26h, is programmed to the appropriate value, both BIT_CLK and SDATA_IN will be brought to, and
held at a logic low voltage level.
BIT_CLK and SDATA_IN are transitioned low immediately following the decode of the write to the
Powerdown Register 26h with PR4. When the AC'97 controller driver is at the point where it is ready
to program the AC-link into its low power mode, slots 1 and 2 are assumed to be the only valid
stream in the audio output frame. At this point in time it is assumed that all sources of audio input
have also been neutralised.
The AC'97 controller should also drive SYNC and SDATA_OUT low after programming the WM9703
to this low power, halted mode.
Once the WM9703 has been instructed to halt BIT_CLK, a special wake up protocol must be used to
bring the AC-link to the active mode since normal audio output and input frames can not be
communicated in the absence of BIT_CLK.
WAKING UP THE AC-LINK
There are 2 methods for bringing the AC-link out of a low power, halted mode. Regardless of the
method, it is the AC'97 controller that performs the wake up task.
AC-link protocol provides for a Cold WM9703 Reset, and a Warm WM9703 Reset.
The current powerdown state would ultimately dictate which form of WM9703 reset is appropriate.
Unless a cold or register reset (a write to the reset register) is performed, wherein the WM9703
registers are initialised to their default values, registers are required to keep state during all
powerdown modes.
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
21
Once powered down, re-activation of the AC-link via re-assertion of the SYNC signal must not occur
for a minimum of 4 audio frame times following the frame in which the powerdown was triggered.
When AC-link powers up it indicates readiness via the Codec Ready bit (input slot 0, bit 15).
COLD WM9703 RESET
A cold reset is achieved by asserting RESETB for the minimum specified time. By driving RESETB
low, BIT_CLK, and SDATA_OUT will be activated, or re-activated as the case may be, and all the
WM9703 control registers will be initialised to their default power on reset values.
RESETB is an asynchronous WM9703 input.
WARM WM9703 RESET
A warm WM9703 reset will re-activate the AC-link without altering the current WM9703 register
values. A warm reset is signalled by driving SYNC high for a minimum of 1
S in the absence of
BIT_CLK.
Within normal audio frames SYNC is a synchronous input. In the absence of BIT_CLK, SYNC is
treated as an asynchronous input used in the generation of a warm reset to the WM9703. The
WM9703 will not respond with the activation of BIT_CLK until SYNC has been sampled low again by
the WM9703. This will preclude the false detection of a new audio frame.
SERIAL INTERFACE REGISTER MAP DESCRIPTION
(See Table 21)
The serial interface bits perform control functions described as follows: The register map is fully
specified by the AC'97 specification, and this description is simply repeated below, with optional
unsupported features omitted.
RESET REGISTER (INDEX 00h)
Writing any value to this register performs a register reset, which causes all registers to revert to their
default values. Reading this register returns the ID code of the part, indication of modem support (not
supported by the WM9703) and a code for the type of 3D stereo enhancement.
The ID decodes the capabilities of the WM9703 based on the following:
BIT
FUNCTION
VALUE ON
WM9703
ID0
Dedicated Mic PCM in channel
0
ID1
Modem line codec support
0
ID2
Bass and treble control
0
ID3
Simulated stereo (mono to stereo)
0
ID4
Headphone out support
1
ID5
Loudness (bass boost) support
0
ID6
18-bit DAC resolution
1
ID7
20-bit DAC resolution
0
ID8
18-bit ADC resolution
1
ID9
20-bit ADC resolution
0
SE4...SE0
Wolfson Microelectronics 3D enhancement
11000
Table 9 Reset Register Function
Note that the WM9703 defaults to indicate 18-bit compatibility. However, a control bit may be set in
the vendor-specific registers that changes bits ID6 and ID8 to be 0, indicating a 16-bit device. It is
unlikely that this function will be required, however, as the MSB justification of the ADC and DAC
data means that a nominally 18-bit device should be fully compatible with controllers that only
provide 16-bit support. Most PC type applications will only require 16-bit operation.
PLAY MASTER VOLUME REGISTERS (INDEX 02h, 04h AND 06h)
These registers manage the output signal volumes. Register 02h controls the stereo master volume
(both right and left channels), Register 04h controls the optional stereo headphone out, and Register
06h controls the mono volume output. Each step corresponds to 1.5dB. The MSB of the register is
the mute bit. When this bit is set to 1 the level for that channel is set at -
dB.
ML5 to ML0 is for left channel level, MR5 to MR0 is for the right channel and MM5 to MM0 is for the
mono out channel.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
22
Support for the MSB of the volume level is not provided by the WM9703. If the MSB is written to,
then the WM9703 detects when that bit is set and sets all 4 LSBs to 1s. Example: If the driver writes
a 1xxxxx the WM9703 interprets that as x11111. It will also respond when read with x11111 rather
than 1xxxxx, the value written to it. The driver can use this feature to detect if support for the 6th bit is
there or not.
The default value of both the mono and the stereo registers is 8000h (1000 0000 0000 0000), which
corresponds to 0dB gain with mute on.
MUTE
MX4...MX0
FUNCTION
0
0 0000
0dB attenuation
0
0 0001
1.5dB attenuation
0
1 1111
46.5dB attenuation
1
x xxxx
dB attenuation
Table 10 Volume Register Function
MASTER TONE CONTROL REGISTERS (INDEX 08h)
Optional register for support of tone controls (bass and treble). The WM9703 does not support bass
and treble and writing to this register will have no effect. Reading will result in all don't care values.
PC BEEP REGISTER (INDEX 0Ah)
This controls the level for the PC-beep input. Each step corresponds to approximately 3dB of
attenuation. The MSB of the register is the mute bit. When this bit is set to 1 the level for that
channel is set at -
dB.
WM9703 defaults to the PC-beep path being muted, so an external speaker should be provided
within the PC to alert the user to power on self-test problems.
MUTE
PV3...PV0
FUNCTION
0
0000
0dB attenuation
0
1111
45dB attenuation
1
xxxx
dB attenuation
Table 11 PC-beep Register Function
ANALOGUE MIXER INPUT GAIN REGISTERS (INDEX 0Ch - 18h)
This controls the gain/attenuation for each of the analogue inputs. Each step corresponds to
approximately 1.5dB. The MSB of the register is the mute bit. When this bit is set to 1 the level for
that channel is set at -
dB.
REGISTER 0Eh (MIC VOLUME REGISTER)
This has an extra bit that is for a 20dB boost. When bit 6 is set to 1 the 20dB boost is on. The default
value is 8008, which corresponds to 0dB gain with mute on.
The default value for the mono registers is 8008h, which corresponds to 0dB gain with mute on. The
default value for stereo registers is 8808h, which corresponds to 0dB gain with mute on.
MUTE
GX4...GX0
FUNCTION
0
00000
+12dB gain
0
01000
0dB gain
0
11111
-34.5dB gain
1
XXXXX
-
dB gain
Table 12 Mixer Gain Control Register Function
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
23
RECORD SELECT CONTROL REGISTER (INDEX 1Ah)
Used to select the record source independently for right and left (see Table 13). The default value is
0000h, which corresponds to Mic in.
SR2 TO SR0
RIGHT RECORD SOURCE
SL2 TO SL0
LEFT RECORD SOURCE
0
Mic
0
Mic
1
CD in (R)
1
CD in (L)
2
Video in (R)
2
Video in (L)
3
Aux in (R)
3
Aux in (L)
4
Line in (R)
4
Line in (L)
5
Stereo mix (R)
5
Stereo mix (L)
6
Mono mix
6
Mono mix
7
Phone
7
Phone
Table 13 Record Select Register Function
RECORD GAIN REGISTERS (INDEX 1Ch AND 1Eh)
1Ch is for the stereo input and 1Eh is for the optional special purpose correlated audio Mic channel.
Each step corresponds to 1.5dB. 22.5dB corresponds to 0F0Fh and 000Fh respectively. The MSB of
the register is the mute bit. When this bit is set to 1, the level for that channel(s) is set at -
dB.
The default value is 8000h, which corresponds to 0dB gain with mute on.
MUTE
GX3...GX0
FUNCTION
0
1111
+22.5dB gain
0
0000
0dB gain
1
xxxxx
-
dB gain
Table 14 Record Gain Register Function
GENERAL PURPOSE REGISTER (INDEX 20h)
This register is used to control several miscellaneous functions of the WM9703.
Below is a summary of each bit and its function. Only the 3D, MIX, MS and LPBK bits are supported
by the WM9703. The MS bit controls the Mic selector. The LPBK bit enables loopback of the ADC
output to the DAC input without involving the AC-link, allowing for full system performance
measurements. The function default value is 8000h which is all off.
BIT
FUNCTION
WM9703
SUPPORT
POP
PCM out path and mute, 0 = pre-3D, 1 = post-3D
Yes, but fixed at 1
ST
Simulated stereo enhancement, on/off 1 = on
No
3D
3D stereo enhancement on/off, 1 = on
Yes
LD
Loudness (bass boost) on/off, 1 = on
No
LLBK
Local loop back - for modem, line codec
No
RLBK
Remote loop back - for modem, line codec
No
MIX
Mono output select 0 = Mix, 1 = Mic
Yes
MS
Mic select 0 = Mic1, 1 = Mic2
Yes
LPBK
ADC/DAC/ loopback mode
Yes
Table 15 General Purpose Register Function
3D CONTROL REGISTER (INDEX 22h)
This register is used to control the centre and/or depth of the 3D stereo enhancement function built
into of the AC'97 component. Only the depth bits, DP0 to 3 have effect in the WM9703.
DP3...DP0
DEPTH
0
0%
1
-
8
Typical value
-
15
100%
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
24
RESERVED REGISTER (INDEX 24h)
This register was originally specified to control what sample rate AC'97 is sending or receiving
samples for the optional modem in and out. Not supported by the WM9703.
POWERDOWN CONTROL/STATUS REGISTER (INDEX 26h)
This read/write register is used to program powerdown states and monitor subsystem readiness. The
lower half of this register is read only status, a 1 indicating that the subsection is ready. Ready is
defined as the subsection able to perform in its nominal state. When this register is written the bit
values that come in on AC-link will have no effect on read only bits 0 to7.
When the AC-link Codec Ready indicator bit (SDATA_IN slot 0, bit 15) is a 1 it indicates that the AC-
link and the WM9703 control and status registers are in a fully operational state. The AC'97 controller
must further probe this Powerdown Control/Status Register to determine exactly which subsections,
if any, are ready.
READ BIT
FUNCTION
REF
VREFs up to nominal level
ANL
Analogue mixers, etc ready
DAC
DAC section ready to accept data
ADC
ADC section ready to transmit data
Table 16 Powerdown Status Register Function
The powerdown modes are as follows. The first three bits are to be used individually rather than in
combination with each other. The last bit PR3 can be used in combination with PR2 or by itself. PR0
and PR1 control the PCM ADCs and DACs only. PR6 is not supported by the WM9703.
WRITE BIT
FUNCTION
PR0
PCM in ADCs and input Mux powerdown
PR1
PCM out DACs powerdown
PR2
Analogue mixer powerdown
(VREF still on)
PR3
Analogue mixer powerdown (VREF off)
PR4
Digital interface (AC-link) powerdown
(external clock off)
PR5
Internal clock disable
PR6
HP amp powerdown not supported
EAPD
External amplifier powerdown
Table 17 Powerdown Control Register Function
PR0 = 1
PR1 = 1
PR2 = 1
PR4 = 1
PR0 = 0 AND
ADC = 1
DEFAULT
READY = 1
COLD RESET
WARM
RESET
PR2 = 0 AND
ANL = 1
PR1 = 0 AND
DAC = 1
ADCs OFF
PR0
DACs OFF
PR1
ANALOGUE
OFF PR2 OR
PR3
DIGITAL I/F
OFF PR4
SHUT OFF
CODA LINK
NORMAL

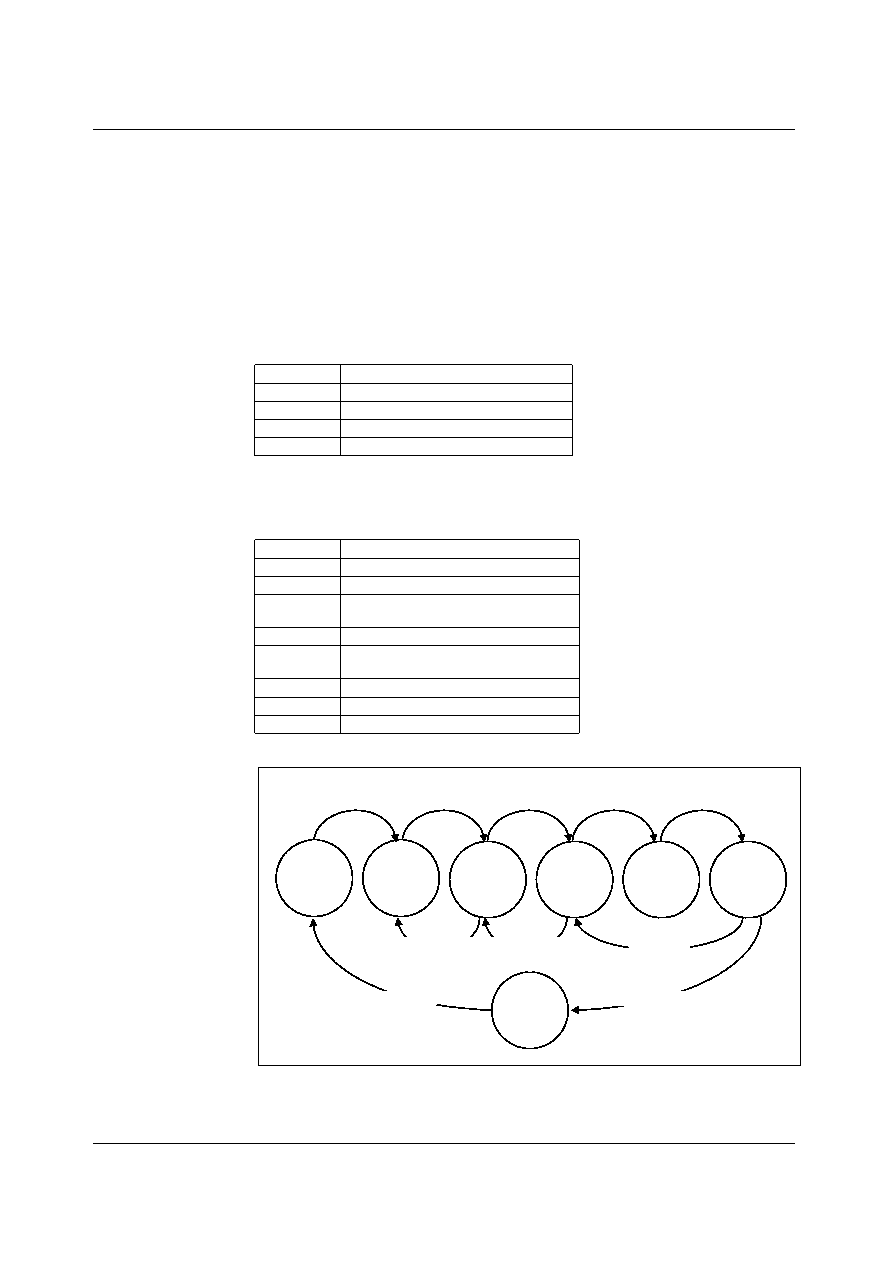

Figure 17 An Example of the WM9703 Powerdown/Powerup Flow
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
25
Figure 17 illustrates one example of a procedure to do a complete powerdown of the WM9703. From
normal operation sequential writes to the Powerdown Register are performed to powerdown the
WM9703 a piece at a time. After everything has been shut off (PR0 to PR3 set), a final write (of PR4)
can be executed to shut down the WM9703's digital interface (AC-link).
The part will remain in sleep mode with all its registers holding their static values. To wake up the
WM9703, the AC'97 controller will send a pulse on the sync line issuing a warm reset. This will
restart the WM9703's digital interface (resetting PR4 to 0). The WM9703 can also be woken up with
a cold reset. A cold reset will cause a loss of values of the registers, as a cold reset will set them to
their default states. When a section is powered back on, the Powerdown Control/Status Register
index 26h should be read to verify that the section is ready (i.e. stable) before attempting any
operation that requires it.
Alternatively if RESETB is held low, all PR bits are held set so the device is held powered off until
RESETB is taken high again.
PR1 = 1
PR2 = 1
PR4 = 1
ADCs OFF
PR0
DACs OFF
PR1
ANALOGUE
OFF PR2
OR PR3
DIGITAL I/F
OFF PR4
WARM RESET
PR1 = 0 AND
DAC = 1
PR2 = 0 AND
ANL = 1
SHUT OFF
CODA LINK
Figure 18 The WM9703 Powerdown/Flow with Analogue Still Alive
Figure 18 illustrates a state when all the mixers should work with the static volume settings that are
contained in their associated registers. This is used when the user is playing a CD (or external
LINEIN source) through WM9703 to the speakers but has most of the system in low power mode.
The procedure for this follows the previous except that the analogue mixer is never shut down.
POWERDOWN CONTROL/STATUS REGISTER (INDEX 26h)
Note that in order to go into ultimate low power mode, PR5 is required to be set which turns off the
oscillator circuit. Asserting SYNC resets the PR5 bit and re-starts the oscillator in the same was as
the AC link is restarted.
Also when RESETB pin is asserted low, all PR bits are over-ridden and the entire device is powered
off to ultra low power state for as long as RESETB = low. On releasing RESETB, the device is reset
(all active) and powered up.
REVISION 2.1 REGISTERS (INDEX 28h T0 58h)
These registers are specified as to use in Revision 2.1 of the AC'97 specification and have the
following functions on the WM9703:
REGISTER 28h EXTENDED AUDIO ID
The Extended Audio ID register is a read only register that identifies which extended audio features
are supported (in addition to the original AC'97 features identified by reading the reset register at
index 00h). A non zero value indicates the feature is supported.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
26
DATA BIT
FUNCTION
ANY MODE
VRA
Variable rate audio support
1
DRA
Double rate audio support
0
VRM
Variable rate Mic ADC support
0
CDAC
Centre DAC support
0
SDAC
Surround DAC support
0
LDAC
LFE DAC support
0
AMAP
Slot to front DAC mapping support
1
ID1
Codec configuration pin 45 value
Inverse of level at pin 45
ID0
Codec configuration pin 46 value
Inverse of level at pin 46
Table 18 Extended Audio Capability Register
REGISTER 2Ah EXTENDED AUDIO STATUS AND CONTROL REGISTER
The Extended Audio Status and Control Register is a read/write register that provides status and
control of the extended audio features.
DATA BIT
FUNCTION
READ/WRITE
WM9703 SUPPORT
VRA
Enables variable rate audio mode
Read/write
Yes
DRA
Enable double rate audio mode
Read/write
No
VRM
Enables variable rate Mic ADC
Read/write
No
CDAC
Indicates centre DAC ready
Read
Yes
SDAC
Indicates surround DAC ready
Read
Yes
LDAC
Indicates LFE DAC ready
Read
Yes
MADC
Indicates Mic ADC ready
Read
No
PRI
Set to turn off centre DAC
Read/write
Enable only
PRJ
Set to turn off surround DACs
Read/write
Enable only
PRK
Set to turn off LFE DACs
Read/write
Enable only
PRL
Set to turn off Mic ADC
Read/write
No
Table 19 Extended Audio Status and Control Register
REGISTER 2Ch TO 32h AUDIO SAMPLE RATE CONTROL REGISTERS
These registers are read/write registers that are written to, to select alternative sample rates for the
audio PCM converters. Default is the 48ks/s rate. Note that only Revision 2.1 recommended rates
are supported by the WM9703, selection of any other unsupported rates will cause the rate to default
to the nearest supported rate, and the supported rate value to be latched and so read back.
Register 2Ch is the front DAC rate register, but is also used for centre channel data rate.
REGISTERS 36h AND 38h 6 CHANNEL VOLUME CONTROL
These read/write registers control the output volume of the optional four PCM channels. (not
supported by the WM9703)
VENDOR RESERVED REGISTERS (INDEX 5Ah AND 7Ah)
These registers are vendor specific. Do not write to these registers unless the Vendor ID register has
been checked first to ensure that the driver knows the source of the AC `97 component.
VENDOR SPECIFIC GAIN CONTROL REGISTERS (INDEX 70h TO 74h)
Not used in the WM9703.
VENDOR ID REGISTERS (INDEX 7Ch TO 7Eh)
This register is for specific vendor identification if so desired. The ID method is Microsoft's Plug and
Play Vendor ID code. The first character of that ID is F7 to F0, the second character S7 to S0, and
the third T7 to T0. These three characters are ASCII encoded. The REVISION7 to REVISION0 field
is for the Vendor Revision number. In the WM9703 the vendor ID is set to WML3.
Wolfson is a registered Microsoft Plug and Play vendor.
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
27
SERIAL INTERFACE REGISTER MAP
The following table shows the function and address of the various control bits that are loaded through
the serial interface during write operations.
Reg Name
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
efault
00h
Reset
X
SE4
SE3
SE2
SE1
SE0
ID9
ID8
ID7
ID6
ID5
ID4
ID3
ID2
ID1
ID0
6150h
02h
Master volume
Mute
X
X
ML4
ML3
ML2
ML1
ML0
X
X
X
MR4
MR3
MR2
MR1
MR0
8000h
04h
LNLVL volume
Mute
X
X
ML4
ML3
ML2
ML1
ML0
X
X
X
MR4
MR3
MR2
MR1
MR0
8000h
06h
Master volume
mono
Mute
X
X
X
X
X
X
X
X
X
X
MM4
MM3
MM2
MM1
MM0
8000h
0Ah
PCBEEP volume
Mute
X
X
X
X
X
X
X
X
X
X
PV3
PV2
PV2
PV0
X
8000h
0Ch
Phone volume
Mute
X
X
X
X
X
X
X
X
X
X
GN4
GN3
GN2
GN1
GN0
8008h
0Eh
Mic volume
Mute
X
X
X
X
X
X
X
X
20dB
X
GN4
GN3
GN2
GN1
GN0
8008h
10h
Line in volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
8808h
12h
CD volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
8808h
14h
Video volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
8808h
16h
Aux volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
8808h
18h
PCM out volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
8808h
1Ah
Rec select
X
X
X
X
X
SL2
SL1
SL0
X
X
X
X
X
SR2
SR1
SR0
0000h
1Ch
Rec gain
Mute
X
X
X
GL3
GL2
GL1
GL0
X
X
X
X
GR3
GR2
GR1
GR0
8000h
20h
General purpose
POP
ST
3D
lD
X
X
MIX
MS
LPBK
X
X
X
X
X
X
X
0000h
22h
3D control
X
X
X
X
X
X
X
X
X
X
X
X
DP3
DP2
DP1
DP0
0000h
24h
Reserved
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
0000h
26h
Power/down control
status
APD
X
PR5
PR4
PR3
PR2
PR1
PR0
X
X
X
X
REF
ANL
DAC
ADC
000Fh
28h
Ext'd audio ID
ID1
ID0
X
X
X
X
Amap
Ldac
Sdac
Cdac
X
X
VRM
X
DRA
VRA
0201h
2Ah
Ext'd audio stat/ctrl
X
PRL
PRK
PRJ
PRI
X
Madc
Ldac
Sdac
Cdac
X
X
VRM
X
DRA
VRA
0000h
2Ch
Front DAC rate
SR15 SR14 SR13 SR12 SR11 SR10
SR9
SR8
SR7
SR6
SR5
SR4
SR3
SR2
SR1
SR0
BB80h
32h
Audio ADC rate
SR15 SR14 SR13 SR12 SR11 SR10
SR9
SR8
SR7
SR6
SR5
SR4
SR3
SR2
SR1
SR0
BB80h
72h
Front mixer volume
Mute
X
X
GL4
GL3
GL2
GL1
GL0
X
X
X
GR4
GR3
GR2
GR1
GR0
0808h
74h
Surround sound
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
0000h
7Ah
Vendor reserved
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
0000h
7Ch
Vendor ID1
F7
F6
F5
F4
F3
F2
F1
F0
S7
S6
S5
S4
S3
S2
S1
S0
574Dh
7Eh
Vendor ID2
T7
T6
T5
T4
T3
T2
T1
T0
Rev7
Rev6
Rev5
Rev4
Rev3
Rev2
Rev1
Rev0
4C03h
Table 21 Serial Interface Register Map Description
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
28
RECOMMENDED EXTERNAL COMPONENTS
1
9
4
7
DVDD1
DVDD2
DVSS1
DVSS2
25
38
26
42
27
28
29
31
33
34
VREF
VREFOUT
AFILT1
CAP1
CX3D1
CX3D2
AVSS2
AVSS1
AVDD2
AVDD1
WM9703
DVDD
AVDD
STEREO OUTPUT
DGND
AGND
32
CAP2
AGND
AGND
AGND
35
LINEOUTL
36
LINEOUTR
37
MONOOUT
39
LNLVLOUTL
41
LNLVLOUTR
LINE LEVEL STEREO
43
NC
44
NC
48
NC
47
EAPD
XTLOUT
3
XTLIN
2
PCBEEP
12
PHONE
13
AUXL
14
AUXR
15
VIDEOL
16
VIDEOR
17
CDL
18
CDGND
19
CDR
20
MIC1
21
MIC2
22
LINEINL
23
LINEINR
24
NC
30
NC
40
CID1
46
CID2
45
AVSS
MASTER/
SLAVE
CONTROL
MIXER
INPUTS
SDATAOUT
5
BITCLK
6
SDATAIN
8
SYNC
10
RESETB
11
AC-LINK
MONO OUTPUT
DGND
C3
C4
C18
C19
C20
C21 C22
C23
C25
C24
C26
C27
C28
C29
C30
C31
C32
C33
C35
XT
C34
C17
C16
C15
C14
C13
C12
C11
C10
C9
C8
C7
C6
C5
C2
C1
NOTES: 1. Pins 27, 29 and 31 are
internally connected.
It is recommended that
capacitors only be
connected to one of
these pins.
2. C1 to C28 should be as
close to WM9704Q as
possible.
3. AGND and DGND should
be connected as close to
WM9704Q as possible.
+
+
+
+
+
+
+
+
+
+
+

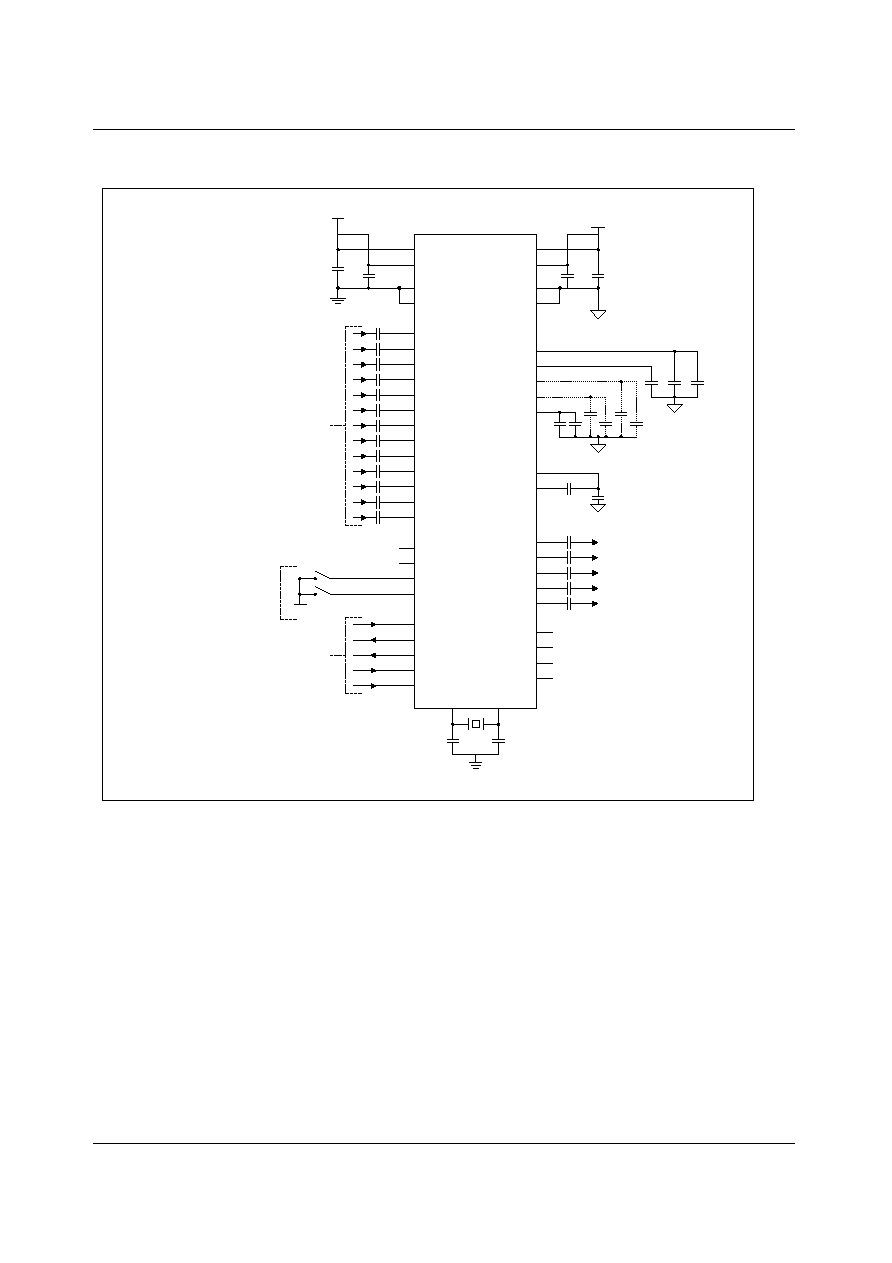

Figure 19 External Components Diagram
Production Data
WM9703
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
29
RECOMMENDED EXTERNAL COMPONENTS VALUES
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1 to C4
10nF
De-coupling for DVDD and AVDD
C5 to C17
470nF
AC coupling capacitors for setting DC level of analogue inputs to VCAP1.
Value chosen to give corner frequency below 20Hz for min 10K input impedance.
C18
1
F
C19
0.1
F
C20
10
F
C21
0.1
F
C22
10
F
C23
0.1
F
C24
10
F
C25
0.1
F
C26
10
F
Reference de-coupling capacitors for ADC, DAC, Mixer and CAP2 references.
Ceramic type or similar.
C27
100nF
3D low pass filter. This value sets nominal 100Hz.
C28
47nF
3D high pass filter. This value sets nominal 1kHz.
C29 to C33
10
F
Output AC coupling caps to remove VREF DC level from outputs.
C34 and C35
22pF
Optional capacitors for better crystal frequency stability.
XT
24.576 MHz
AC'97 master clock frequency. A bias resistor is not required, but if connected will not
affect operation if value is large (above 1M
).
Table 24 External Component Values
RECOMMENDATIONS FOR 3.3V OPERATION
The device's performance with AVDD = 3.3V is shown in Electrical Characteristics.
In 3.3V analogue operation, mid-rail reference scales to 1.5V. All ADC and DAC references are 3/5
ths
of their nominal 5V value. Input and output signals that are 1Vrms in 5V applications, scale to
660mVrms in 3.3V applications. If 1Vrms output is required, the mixer gain adjust PGAs need to be
increased by 3 times 1.5dB steps.
WM9703
Production Data
WOLFSON MICROELECTRONICS LTD
PD Rev 3.4 January 2001
30
PACKAGE DIMENSIONS
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM.
D. MEETS JEDEC.95 MS-026, VARIATION = BBC. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
DM003.B
FT: 48 PIN TQFP (7 x 7 x 1.4 mm)
Symbols
Dimensions
(mm)
MIN
NOM
MAX
A
-----
-----
1.60
A
1
0.05
-----
0.15
A
2
1.35
1.40
1.45
b
0.17
0.22
0.27
c
0.09
-----
0.20
D
9.00 BSC
D
1
7.00 BSC
E
9.00 BSC
E
1
7.00 BSC
e
0.50 BSC
L
0.45
0.60
0.75
0
o
3.5
o
7
o
Tolerances of Form and Position
ccc
0.08
REF:
JEDEC.95, MS-026
25
36
e
b
12
1
D1
D
E1
E
13
24
37
48
A A2
A1
SEATING PLANE
ccc C
-C-
c
L
PDF
ZIP
