Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

iii

Table of Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Standard Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Pin Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Standard Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Program Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Expanded Register File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Register File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Counter/Timer Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Counter/Timer Functional Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Expanded Register File Control Registers (0D) . . . . . . . . . . . . . . . . . . . . . . . . 64

Expanded Register File Control Registers (0F) . . . . . . . . . . . . . . . . . . . . . . . . . 69

Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

List of Figures

Figure 1. Counter/Timers Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Figure 2. Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 3. 28-Pin DIP/SOIC Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 4. Test Load Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 5. Additional Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 6. Port 0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 7. Port 2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 8. Port 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 9. Port 3 Counter/Timer Output Configuration . . . . . . . . . . . . . . . . . . . 20
Figure 10. Program Memory Map (64 KB ROM) . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 11. Expanded Register File Architecture . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 12. Register Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 13. Register Pointer--Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 14. Glitch Filter Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 15. Transmit Mode Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 16. 8-Bit Counter/Timer Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 17. T8_OUT in Single-Pass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 18. T8_OUT in Modulo-N Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 19. Demodulation Mode Count Capture Flowchart . . . . . . . . . . . . . . . . 42
Figure 20. Demodulation Mode Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 21. 16-Bit Counter/Timer Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 22. T16_OUT in Single-Pass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 23. T16_OUT in Modulo-N Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 24. Ping-Pong Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 25. Output Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 26. Interrupt Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Figure 27. Oscillator Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Figure 28. Port Configuration Register (PCON) (Write Only) . . . . . . . . . . . . . . 54
Figure 29. Stop-Mode Recovery Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Figure 30. SCLK Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Figure 31. Stop-Mode Recovery Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Figure 32. Stop-Mode Recovery Register 2 ((0F) DH:D2D4, D6

Write Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 33. Watch-Dog Timer Mode Register (Write Only) . . . . . . . . . . . . . . . . 60

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 34. Resets and WDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Figure 35. T8 Control Register ((0D) OH: Read/Write Except

Where Noted) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Figure 36. T8 and T16 Common Control Functions ((0D) 1h: Read/Write) . . . 65
Figure 37. T16 Control Register ((0D) 2h: Read/Write Except

Where Noted) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Figure 38. Low-Voltage Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Figure 39. Stop-Mode Recovery Register ((0F) 0Bh: D6D0=Write Only,

D7=Read Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Figure 40. Stop-Mode Recovery Register 2 ((0F) 0Dh:D2D4, D6

Write Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Figure 41. Watch-Dog Timer Register ((0F) 0Fh: Write Only) . . . . . . . . . . . . . 71
Figure 42. Port Configuration Register (PCON) ((0F) 0h: Write Only) . . . . . . . 72
Figure 43. Port 2 Mode Register (F6h: Write Only) . . . . . . . . . . . . . . . . . . . . . 72
Figure 44. Port 3 Mode Register (F7h: Write Only) . . . . . . . . . . . . . . . . . . . . . 73
Figure 45. Port 0 and 1 Mode Register (F8h: Write Only) . . . . . . . . . . . . . . . . 74
Figure 46. Interrupt Priority Register (F9h: Write Only) . . . . . . . . . . . . . . . . . . 75
Figure 47. Interrupt Request Register (FAh: Read/Write) . . . . . . . . . . . . . . . . . 76
Figure 48. Interrupt Mask Register (FBh: Read/Write) . . . . . . . . . . . . . . . . . . . 76
Figure 49. Flag Register (FCh: Read/Write) . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Figure 50. Register Pointer (FDh: Read/Write) . . . . . . . . . . . . . . . . . . . . . . . . . 77
Figure 51. Stack Pointer High (FEh: Read/Write) . . . . . . . . . . . . . . . . . . . . . . . 78
Figure 52. Stack Pointer Low (FFh: Read/Write) . . . . . . . . . . . . . . . . . . . . . . . 78
Figure 53. 28-Pin DIP Package Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Figure 54. 28-Pin SOIC Package Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Figure 55. 28-Pin SSOP Package Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

List of Tables

Table 1.

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2.

Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table 3.

28-Pin DIP and SOIC Pin Identification . . . . . . . . . . . . . . . . . . . . . . . 6

Table 4.

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 5.

Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 6.

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 7.

Additional Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 8.

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 9.

Expanded Register Group D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 10. CTR0 (D)00 Counter/Timer8 Control Register . . . . . . . . . . . . . . . . 30
Table 11. CTR(D)01h Register Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Table 12. CTR2 (D)02h: Counter/Timer16 Control Register . . . . . . . . . . . . . . 34
Table 13. SMR2(F)0Dh: Stop-Mode Recovery Register 2 . . . . . . . . . . . . . . . 36
Table 14. Interrupt Types, Sources, and Vectors . . . . . . . . . . . . . . . . . . . . . . 50
Table 15. IRQ Register* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Table 16. Stop-Mode Recovery Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Table 17. WDT Time Select* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Table 18. Mask Selectable Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Features

Table 1 shows the features of the Z86L81/86/98.

Low power consumption40 mW (typical)

Three standby modes
Stop--2

A (typical)

Halt--0.8 mA (typical)
Low voltage

Special architecture to automate both generation and reception of complex
pulses or signals:
One programmable 8-bit counter/timer with two capture registers and two

load registers

One programmable 16-bit counter/timer with one 16-bit capture register

pair and one 16-bit load register pair

Programmable input glitch filter for pulse reception

Six priority interrupts
Three external
Two assigned to counter/timers
One low-voltage detection interrupt

Low-voltage detection with flag

Programmable watch-dog/power-on reset circuits

Two independent comparators with programmable interrupt polarity

Mask selectable transistor pull-ups on ports 0, 2, 3

Table 1. Features

Device

ROM (KB) RAM* (Bytes) I/O Lines Voltage Range

Z86L81

237

2.0 V3.6 V

Z86L86

237

2.0 V3.6 V

Z86L98

237

2.0 V3.6 V

Note:

*General purpose

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

General Description

Based on the Z8 MCU single-chip family of IR microcontrollers, the Z86L81/86/98
features 237 bytes of general-purpose RAM and 24/32/64 KB of ROM. The ZiLOG
CMOS microcontrollers offer fast executing, efficient use of memory, sophisticated
interrupts, input/output bit manipulation capabilities, automated pulse generation/
reception, and internal key-scan pull-up transistors.

The Z86L81/86/98 architecture is based on the ZiLOG 8-bit microcontroller core
with an Expanded Register File to allow access to register-mapped peripherals,
input/output (I/O) circuits, and powerful counter/timer circuitry. The Z8 offers a
flexible I/O scheme, an efficient register and address space structure, and a num-
ber of ancillary features that are useful in many consumer, automotive, computer
peripheral, and battery-operated hand-held applications.

There are three basic address spaces available to support a wide range of config-
urations: Program Memory, Register File, and Expanded Register File. The regis-
ter file is composed of 256 bytes of RAM. It includes 3 I/O port registers, 16
control and status registers, and 236 general-purpose registers. Register

FEh

(SPH) can be used as a general-purpose register. The Expanded Register File
consists of two additional register groups (F and D).

To unburden the program from coping with such real-time problems as generating
complex waveforms or receiving and demodulating complex waveform/pulses, the
Z86L81/86/98 offers a new intelligent counter/timer architecture with 8-bit and
16-bit counter/timers (see Figure 1, Figure 2, Figure 3, and Table 3). Also included
are a large number of user-selectable modes, and two on-board comparators to
process analog signals with separate reference voltages (Figure 9 on page 20).

Power connections use the conventional descriptions listed in Table 2.

Table 2. Power Connections

Connection

Circuit

Device

Power

Ground

GND

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Pin Description

The pins are shown in Figure 3 and described in Table 3.

Figure 3. 28-Pin DIP/SOIC Pin Assignment

Table 3. 28-Pin DIP and SOIC Pin Identification

28-Pin DIP & SOIC Standard Mode Direction

Description

P00

Input/Output Port 0 is Nibble Programmable

P01

Input/Output Port 0-3 can be configured as a

P02

Input/Output mouse/trackball input

P03

Input/Output

P04

Input/Output

P05

Input/Output

P06

Input/Output

P07

Input/Output

P20

Input/Output Port 2 pins are individually

P21

Input/Output configurable as input or output.

P22

Input/Output

P23

Input/Output

P24

Input/Output

P25
P26
P27
P04
P05
P06
P07

XTAL2
XTAL1

P31
P32
P33
P34

P24
P23
P22
P21
P20
P03
V

P02
P01
P00
Pref1
P36
P37
P35

Z86L81/86/98

DIP/SOIC

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Absolute Maximum Ratings

Stresses greater than those listed in Table 4 might cause permanent damage to
the device. This rating is a stress rating only. Functional operation of the device at
any condition above those indicated in the operational sections of these specifica-
tions is not implied. Exposure to absolute maximum rating conditions for an
extended period might affect device reliability.

Table 4. Absolute Maximum Ratings

Symbol

Description

Min

Max

Units

Supply Voltage (*)

0.3

+7.0

STG

Storage Temperature

65°

+150°

Oper. Ambient Temperature.

Notes:

Voltage on all pins with respect to GND.

See Ordering Information on page 82.

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

DC Characteristics

Table 6 lists the DC characteristics.

Table 6. DC Characteristics

= 0°C to +70°C

Sym

Parameter

Min

Max

Units Conditions

Notes

Max Input Voltage

2.0 V

<250

3.6 V

<250

Clock Input High Voltage

2.0 V

0.8 V

+0.3

Driven by External
Clock Generator

3.6 V

0.8 V

+0.3

Driven by External
Clock Generator

Clock Input Low Voltage

2.0 V

0.3

0.2 V

Driven by External
Clock Generator

3.6 V

0.3

0.2 V

Driven by External
Clock Generator

Input High Voltage

2.0 V

0.7 V

+0.3

3.6 V

0.7 V

+0.3

Input Low Voltage

2.0 V

0.3

0.2 V

3.6 V

0.3

0.2 V

OH1

Output High Voltage

2.0 V

0.4

= 0.5 mA

3.6 V

0.4

= 0.5 mA

OH2

Output High Voltage
(P36, P37,P00, P01)

2.0 V

0.8

= 7 mA

3.6 V

0.8

= 7 mA

OL1

Output Low Voltage

2.0 V

0.4

= 1.0 mA

3.6 V

0.4

= 4.0 mA

OL2*

Output Low Voltage

2.0 V

0.8

= 5.0 mA

3.6 V

0.8

= 7.0 mA

OL2

Output Low Voltage (P00,
P01, P36,P37)

2.0 V

0.8

= 10 mA

3.6 V

0.8

= 10 mA

OFFSET

Comparator Input Offset
Voltage

2.0 V

3.6 V

Input Leakage

2.0 V

= 0 V, V

3.6 V

= 0 V, V

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Output Leakage

2.0 V

= 0 V, V

3.6 V

= 0 V, V

Supply Current

2.0 V

at 8.0 MHz

1, 2

3.6 V

at 8.0 MHz

1, 2

2.0 V

250

at 32 kHz

1, 2, 3

3.6 V

850

at 32 kHz

1, 2, 3

CC1

Standby Current (HALT
Mode)

2.0 V

= 0 V, V

8.0 MHz

1, 2

3.6 V

Same as above

1, 2

2.0 V

Clock Divide-by-16
at 8.0 MHz

1, 2

3.6 V

Same as above

1, 2

CC2

Standby Current (STOP
Mode)

2.0 V

= 0 V, V

WDT is not
Running

4, 5, 8

3.6 V

Same as above

4, 5, 8

2.0 V

500

= 0 V, V

WDT is Running

4, 5, 8

3.6 V

800

Same as above

4, 5, 8

POR

Power-On Reset

2.0 V

3.6 V

Low Voltage

Protection (Reset)

2.0

8 MHz max
Ext. CLK Freq.

LVD

Vcc Low Voltage
Detection

2.55

Notes:

1. All outputs unloaded, inputs at rail.
2. CL1 = CL2 = 100 pF.
3. 32-kHz clock driver input.
4. Same as note 1, except inputs at V

5. Oscillator stopped.
6. Not applicable
7. The V

is measured at room temperature and typically is 1.6 V. VBO increases as the temperature decreases.

8. WDT, Comparators, Low Voltage Detection, and ADC (if applicable) are disabled. The IC might draw more cur-

rent if any of the about peripherals is enabled.

Table 6. DC Characteristics (Continued)

= 0°C to +70°C

Sym

Parameter

Min

Max

Units Conditions

Notes

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Table 7. Additional Timing

= 0°C to +70°C

8.0 MHz

Stop-Mode

Recovery

(D1, D0)

No Sym

Parameter

Min

Max

Units Notes

TpC

Input Clock Period

2.0 V

121

3.6 V

121

TrC,TfC

Clock Input Rise and
Fall Times

2.0 V

3.6 V

TwC

Input Clock Width

2.0 V

3.6 V

TwTinL

Timer Input
Low Width

2.0 V

100

3.6 V

TwTinH

Timer Input High
Width

2.0 V

3TpC

3.6 V

3TpC

TpTin

Timer Input Period

2.0 V

8TpC

3.6 V

8TpC

TrTin,TfTin Timer Input Rise and

Fall Timers

2.0 V

100

3.6 V

100

8A TwIL

Interrupt Request
Low Time

2.0 V

100

1,2

3.6 V

1,2

8B TwIL

Interrupt Request
Low Time

2.0 V

5TpC

1,3

3.6 V

5TpC

1,3

TwIH

Interrupt Request
Input High Time

2.0 V

5TpC

1,2

3.6 V

5TpC

1,2

10 Twsm

Stop-Mode
Recovery Width
Spec

2.0 V

3.6 V

11 Tost

Oscillator
Start-Up Time

2.0 V

5TpC

3.6 V

5TpC

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

12 Twdt

Watch-Dog Timer Delay Time

2.0 V

0, 0

3.6 V

2.0 V

0, 1

3.6 V

2.0 V

1, 0

3.6 V

2.0 V

200

1, 1

3.6 V

Notes:

1. Timing Reference uses 0.9 V

for a logic 1 and 0.1 V

for a logic 0.

2. Interrupt request through Port 3 (P33P31).
3. Interrupt request through Port 3 (P30).
4. SMR D5 = 0.
5. For internal RC oscillator.

Table 7. Additional Timing (Continued)

= 0°C to +70°C

8.0 MHz

Stop-Mode

Recovery

(D1, D0)

No Sym

Parameter

Min

Max

Units Notes

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Pin Functions

Standard Mode

XTAL1 Crystal 1 (Time-Based Input)

This pin connects a parallel-resonant crystal, ceramic resonator, LC, or RC net-
work to the on-chip oscillator input. An external single-phase clock to the on-chip
oscillator input is also an option.

XTAL2 Crystal 2 (Time-Based Output)

This pin connects a parallel-resonant crystal, ceramic resonant, LC, or RC net-
work to the on-chip oscillator output.

Port 0 (P07P00)

Port 0 is an 8-bit, bidirectional, CMOS-compatible port (see Figure 6). These eight
I/O lines are configured under software control as a nibble I/O port. The output
drivers are push-pull or open drain controlled by bit D2 in the PCON register. If
one or both nibbles are required for I/O operation, they must be configured by writ-
ing to the Port 0 mode register. After a hardware reset, Port 0 is configured as an
input port.

A mask option is available to program 0.4 V

CMOS trip inputs on P00P03.

This option allows direct interface to mouse/trackball IR sensors.

An optional pull-up transistor is available as a mask option on all Port 0 bits with
nibble select.

Internal pull-ups are disabled on any given pin or group of port
pins when programmed into output mode.

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

globally programmed as either push-pull or open-drain. The POR resets with the
eight bits of Port 2 configured as inputs.

Port 2 also has an 8-bit input OR and AND gate, which can be used to wake up
the part. P20 can be programmed to access the edge-detection circuitry in
demodulation mode.

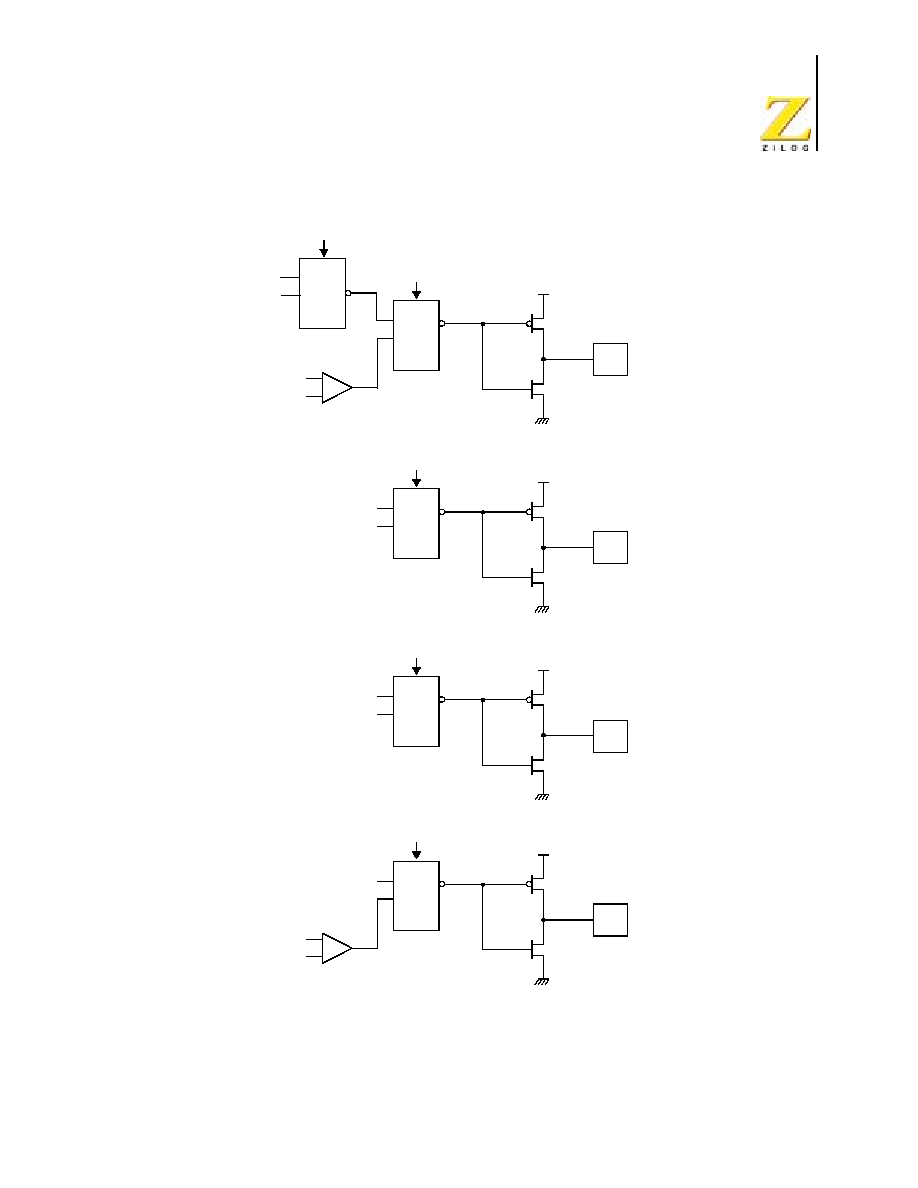

Figure 7. Port 2 Configuration

Port 3 (P37P31)

Port 3 is a 7-bit, CMOS-compatible fixed I/O port (see Figure 8). Port 3 consists of
three fixed input (P33P31) and four fixed output (P37P34), and each can be
configured under software control for interrupt and output from the counter/timers.
P31, P32, and P33 are standard CMOS inputs; P34, P35, P36 and P37 are push-
pull outputs.

Z89L98

MCU

Port 2 (I/O)

Pad

Out

I/O

Open-Drain

Resistive
transistor
pull-up

Mask
Option

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

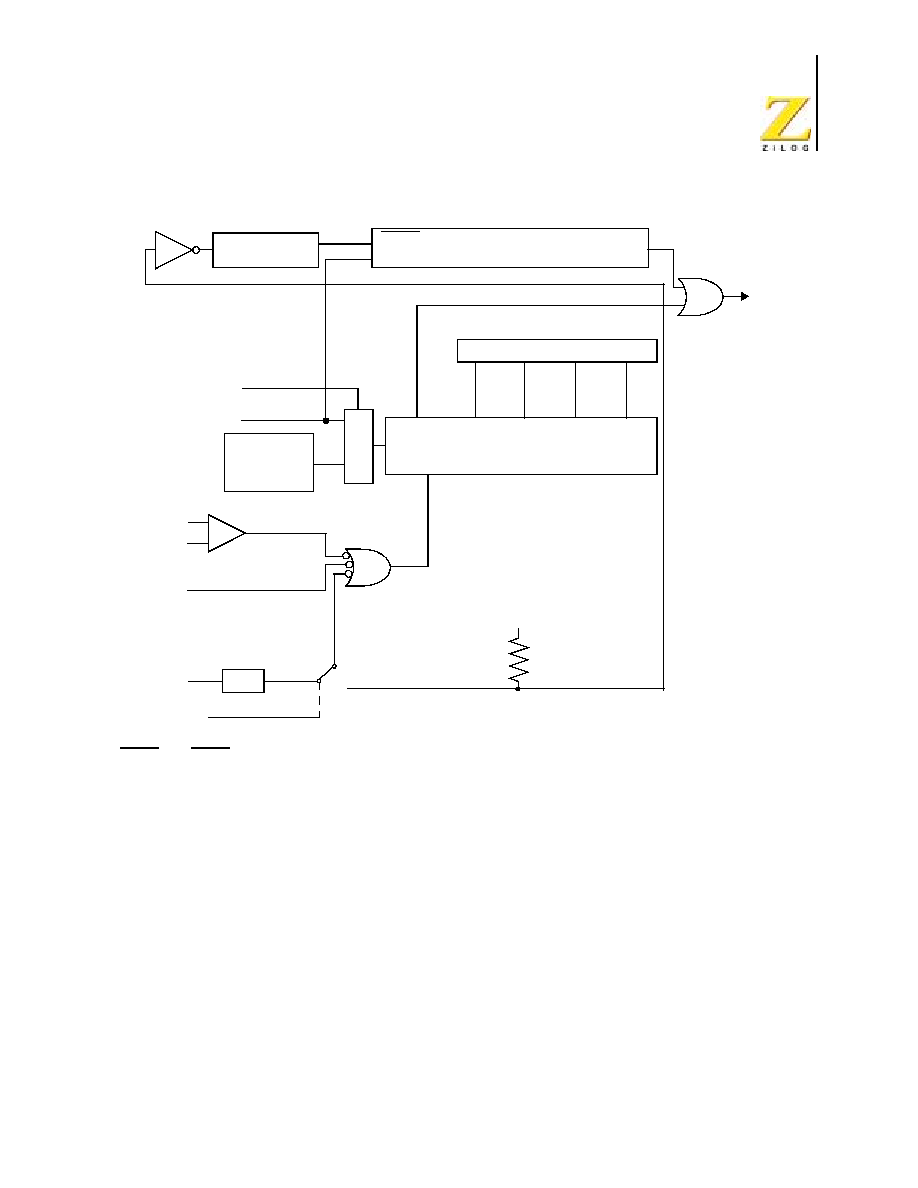

Figure 8. Port 3 Configuration

Two on-board comparators process analog signals on P31 and P32, with refer-
ence to the voltage on Pref1 and P33. The analog function is enabled by program-
ming the Port 3 Mode Register (bit 1). P31 and P32 are programmable as rising,
falling, or both edge triggered interrupts (IRQ register bits 6 and 7). Pref1 and P33
are the comparator reference voltage inputs. Access to the Counter Timer edge-
detection circuit is through P31 or P20 (see "CTR1 Register Description" on
page 32). Other edge detect and IRQ modes are described in Table 8.

Z89L98

MCU

Port 3 (I/O)

P32 (AN2)

P31 (AN1)

Pref

From Stop-Mode Recovery Source of SMR

P33 (REF2)

IRQ2, P31 Data Latch

Pref1
P31
P32
P33

P34
P35
P36
P37

1 = Analog
0 = Digital

R247 = P3M

IRQ0, P32 Data Latch

IRQ1, P33 Data Latch

Comp1

Comp2

Dig.

An.

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Comparator Inputs

In analog mode, P31 and P32 have a comparator front end. The comparator refer-
ence is supplied to P33 and Pref1. In this mode, the P33 internal data latch and its
corresponding IRQ1 is diverted to the SMR sources (excluding P31, P32, and
P33) as indicated in Figure 8 on page 18. In digital mode, P33 is used as D3 of
the Port 3 input register, which then generates IRQ1.

Comparators are powered down by entering Stop Mode. For
P31P33 to be used in a Stop-Mode Recovery source, these
inputs must be placed into digital mode.

Comparator Outputs

These outputs can be programmed to be output on P34 and P37 through the
PCON register.

Functional Description

The Z86L81/86/98 incorporates special functions to enhance the Z8's functionality
in consumer and battery-operated applications.

Program Memory

The Z86L81/86/98 family addresses 24/32/64 KB of internal program memory.
The first twelve bytes are reserved for interrupt vectors. These locations contain
the five 16-bit vectors, which correspond to the five available interrupts.

RAM

The Z86L81/86/98 device has 237 bytes of RAM, which make up the register file.
See Figure 10.

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 11. Expanded Register File Architecture

U U U U U U U U

U U U U U U 0

U U U U U U

U U U U U U U U

U U U U U U 0

FF SPL

U U U U U U U U

U U U U U U U

U U U U U U U U

FE SPH

FD RP

FC FLAGS

FB IMR

FA IRQ

F9 IPR

F8 P01M

F7 P3M

F6 P2M

F5 Reserved

F4 Reserved

F3 Reserved

F2 Reserved

F1 Reserved

F0 Reserved

D7 D6 D5 D4 D3 D2 D1 D0

U 0

(F) 0F WDTMR

(F) 0E Reserved

(F) 0D SMR2

(F) 0C Reserved

(F) 0B SMR

(F) 0A Reserved

(F) 09 Reserved

(F) 08 Reserved

(F) 07 Reserved

(F) 06 Reserved

(F) 05 Reserved

(F) 04 Reserved

(F) 03 Reserved

(F) 02 Reserved

(F) 01 Reserved

(F) 00 PCON

Expanded Register

Bank Pointer

Working Register

Group Pointer

U U U U U U U U

Reset Condition

*
*

Expanded Reg. Bank/Group (F)
Register* * Reset Condition

Expanded Reg. Bank/Group (D)
Register* * Reset Condition

U U U U U U U U

(0) 03 P3

(0) 02 P2

(0) 01 P1

(0) 00 P0

Expanded Reg. Bank/Group (0)
Register* * Reset

U = Unknown
* Is not reset with a Stop-Mode Recovery
** All addresses are in hexadecimal

Is not reset with a Stop-Mode Recovery,

except Bit 0

U U U U U U U U

U U U U

Z8 Register File (Bank 0) * *

U U 0

U 0

U U

Standard Control Registers

Reserved

(D) 0C LVD

(D) 0B HI8

(D) 0A LO8

(D) 09 HI16

(D) 08 LO16

(D) 07 TC16H

(D) 06 TC16L

(D) 05 TC8H

(D) 04 TC8L

(D) 03 Reserved

(D) 02 CTR2

(D) 01 CTR1

(D) 00 CTR0

Reserved

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

The upper nibble of the register pointer (see Figure 12) selects which working reg-
ister group, of 16 bytes in the register file, is accessed out of the possible 256. The
lower nibble selects the expanded register file bank and, in the case of the
Z86L81/86/98 family, banks 0, F, and D are implemented. A

in the lower nibble

allows the normal register file (bank 0) to be addressed, but any other value from

exchanges the lower 16 registers to an expanded register bank.

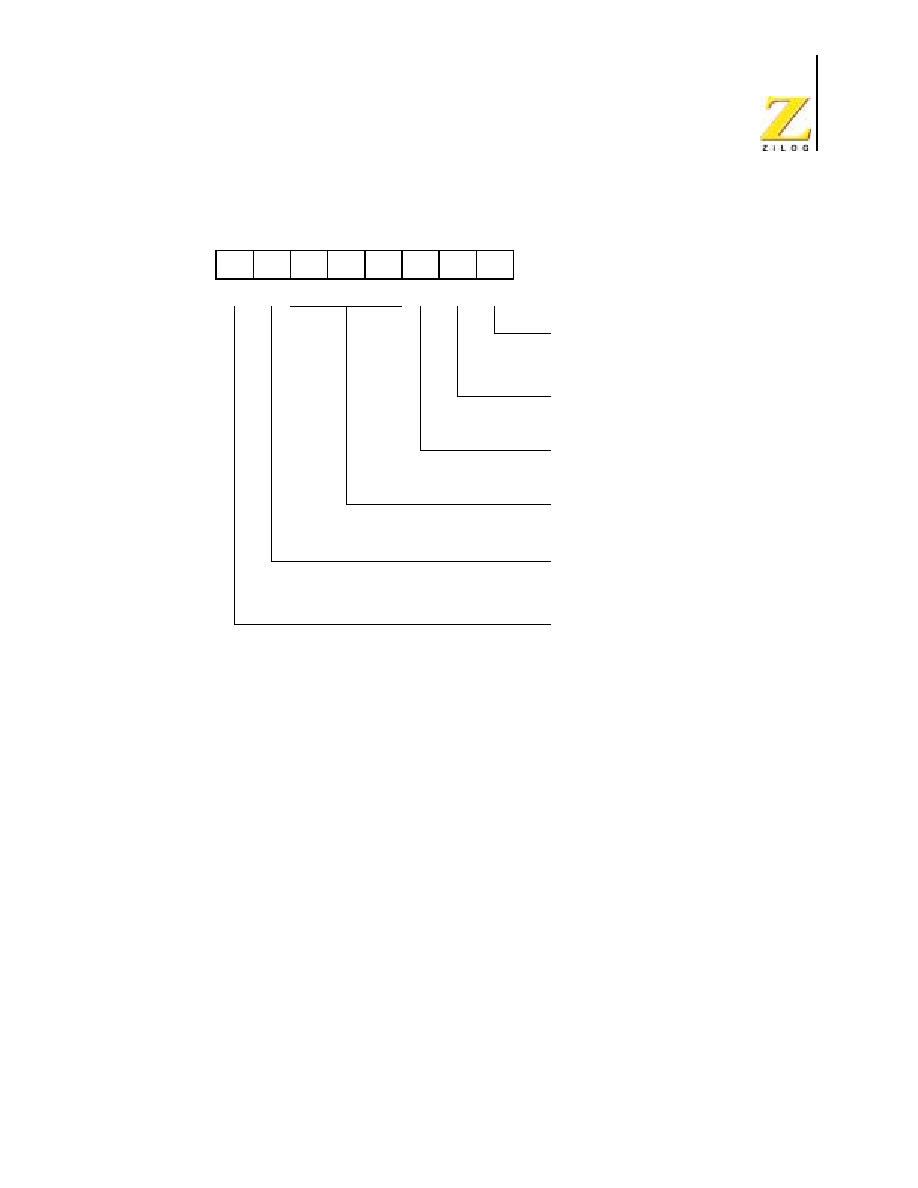

Figure 12. Register Pointer

Example: Z86L81/86/98: (See Figure 11 on page 24)

R253 RP = 00h

R0 = Port 0
R1 = Port 1
R2 = Port 2
R3 = Port 3

But if:

R253 RP = 0Dh

R0 = CTRL0
R1 = CTRL1
R2 = CTRL2
R3 = Reserved

The counter/timers are mapped into ERF group D. Access is easily performed
using the following:

RP, #0Dh

; Select ERF D for access to bank D

(working register group 0)

R0,#xx

; load CTRL0

1, #xx

; load CTRL1

R1, 2

; CTRL2

CTRL1

R253 RP

Expanded Register
File Pointer

Working Register
Pointer

Default Setting After Reset = 0000 0000

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

RP, #0Dh

; Select ERF D for access to bank D

(working register group 0)

RP, #7Dh

; Select expanded register bank D and working

71h, 2

; CTRL2

R1, 2

; CTRL2

Register File

The register file (bank 0) consists of 4 I/O port registers, 237 general-purpose reg-
isters, and 16 control and status registers (R0R3, R4R239, and R240R255,
respectively). Additionally, there are two expanded registers groups in Banks D
(see Table 9) and F. Instructions can access registers directly or indirectly through
an 8-bit address field, thereby allowing a short, 4-bit register address to use the
Register Pointer (Figure 13). In the 4-bit mode, the register file is divided into 16
working register groups, each occupying 16 continuous locations. The Register
Pointer addresses the starting location of the active working register group.

Counter/Timer Register Description

Table 9. Expanded Register Group D

(D)

0Ch

LVD

(D)

0Bh

HI8

(D)

0Ah

LO8

(D)

09h

HI16

(D)

08h

LO16

(D)

07h

TC16H

(D)

06h

TC16L

(D)

05h

TC8H

(D)

04h

TC8L

(D)

03h

Reserved

(D)

02h

CTR2

(D)

01h

CTR1

(D)

00h

CTR0

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

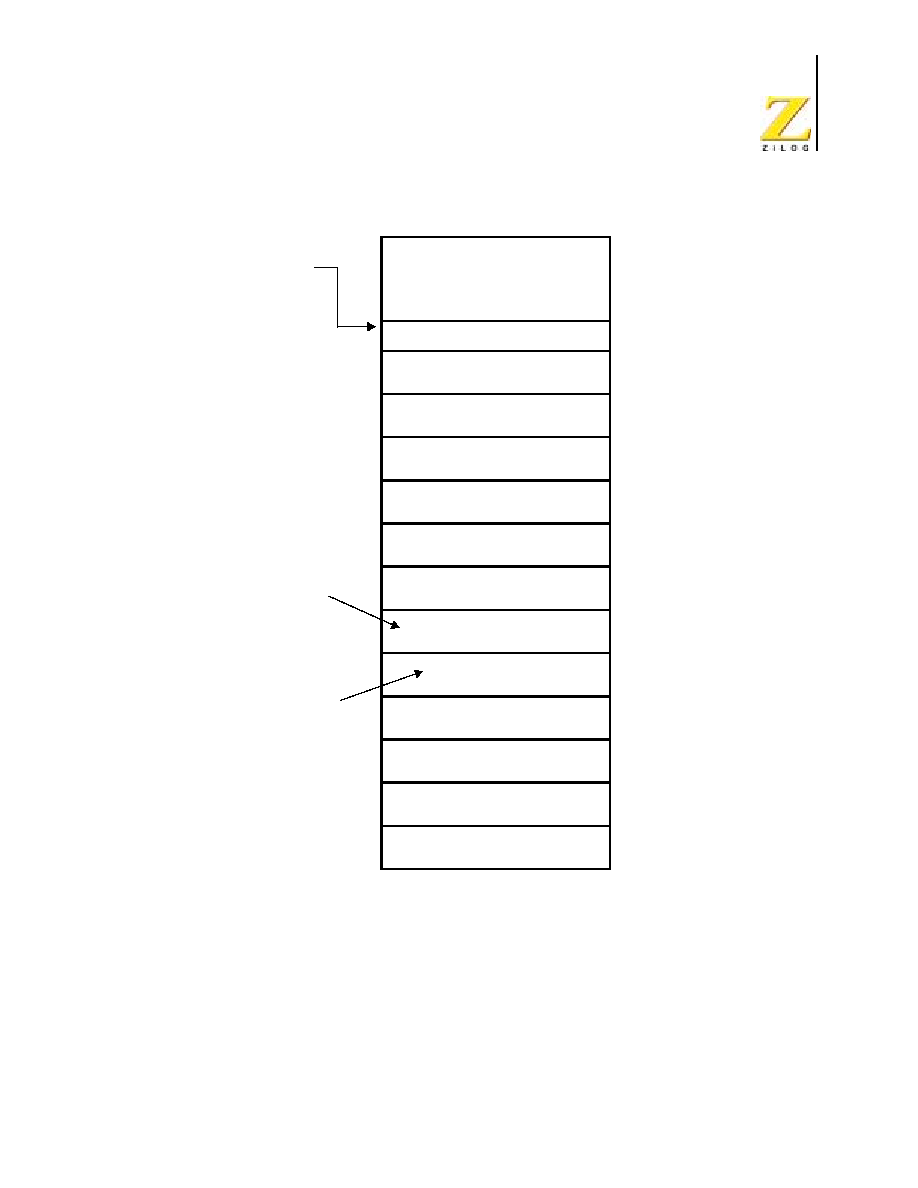

Figure 13. Register Pointer--Detail

Working register group E0EF can only be accessed through
working registers and indirect addressing modes.

Stack

The Z86L81/86/98 internal register file is used for the stack. An 8-bit Stack Pointer
(R255) is used for the internal stack that resides in the general-purpose registers
(R4R239). SPH is used as a general-purpose register only when using internal
stacks.

When SPH is used as a general-purpose register, and Port 0 is
in address mode, the contents of SPH are loaded into Port 0
whenever the internal stack is accessed.

The upper nibble of the register file address
provided by the register pointer specifies the
active working-register group.

Specified Working

I/O Ports

{

R253

The lower nibble of the
register file address provided
by the instruction points to
the specified register.

* RP = 00: Selects Register Group 0, Working Register 0

R15 to R0
R15 to R4 *
R3 to R0 *

70
6F

60
5F
50
4F

40
3F

30
2F

20
1F

10
0F

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Register Description

LVD (D) 0Ch. Low-Voltage Detection Register

Bit 0 enables/disables the Low-Voltage Detection Circuit. Bit 1 flags if low voltage
is detected. Interrupt 5 is triggered when the flag bit is set, given that IRQ5 is not
masked.

The LVD flag will be valid after enabling the detection for 20

S (design

estimation, not tested in production). LVD does not work at STOP mode. It
must be disabled during STOP mode in order to reduce current.

HI8(D)0Bh

This register holds the captured data from the output of the 8-bit Counter/Timer0.
Typically, this register is used to hold the number of counts when the input signal
is 1.

L08(D)0Ah

This register holds the captured data from the output of the 8-bit Counter/Timer0.
Typically, this register is used to hold the number of counts when the input signal
is 0.

Field

Bit Position

Description

LVD

765432--

Reserved
No Effect

------1-

1
0*

LV flag set
LV flag reset

-------0

R/W 1

Enable LVD
Disable LVD

Note:

Default after POR

Field

Bit Position

Description

T8_Capture_HI

76543210

Captured Data
No Effect

Field

Bit Position

Description

T8_Capture_L0

76543210

Captured Data
No Effect

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

HI16(D)09h

This register holds the captured data from the output of the 16-bit Counter/
Timer16, while also holding the MS-Byte of the data.

L016(D)08h

This register holds the captured data from the output of the 16-bit Counter/
Timer16, while also holding the LS-Byte of the data.

TC16H(D)07h

Counter/Timer2 MS-Byte Hold Register.

TC16L(D)06h

Counter/Timer2 LS-Byte Hold Register.

TC8H(D)05h

Counter/Timer8 High Hold Register.

Field

Bit Position

Description

T16_Capture_HI

76543210

Captured Data
No Effect

Field

Bit Position

Description

T16_Capture_LO

76543210

Captured Data
No Effect

Field

Bit Position

Description

T16_Data_HI

76543210

R/W Data

Field

Bit Position

Description

T16_Data_LO

76543210

R/W Data

Field

Bit Position

Description

T8_Level_HI

76543210

R/W Data

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

TC8L(D)04h

Counter/Timer8 Low Hold Register.

CTR0 Counter/Timer8 Control Register

Table 10 lists and briefly describes the fields for this register.

T8 Enable

This field enables T8 when set (written) to 1.

Field

Bit Position

Description

T8_Level_LO

76543210

R/W Data

Table 10. CTR0 (D)00 Counter/Timer8 Control Register

Field

Bit Position

Value

Description

T8_Enable

7-------

1
0
1

Counter Disabled
Counter Enabled
Stop Counter
Enable Counter

Single/Modulo-N

-6-------

R/W

0
1

Modulo-N
Single Pass

Time_Out

--5------

0
1
0
1

No Counter Time-Out
Counter Time-Out Occurred
No Effect
Reset Flag to 0

T8 _Clock

---43---

R/W 0

0 1
1 0
1 1

SCLK
SCLK/2
SCLK/4
SCLK/8

Capture_INT_MASK

-----2--

R/W

0
1

Disable Data Capture Int.
Enable Data Capture Int.

Counter_INT_Mask

------1-

R/W

0
1

Disable Time-Out Int.
Enable Time-Out Int.

P34_Out

-------0

R/W

P34 as Port Output
T8 Output on P34

Note:

Indicates the value upon Power-On Reset.

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Single/Modulo-N

When set to 0 (modulo-N), the counter reloads the initial value when the terminal
count is reached. When set to 1 (single pass), the counter stops when the terminal
count is reached.

Timeout

This bit is set when T8 times out (terminal count reached). To reset this bit, a 1
should be written to its location.

Writing a 1 is the only way to reset the Terminal Count
status condition. Therefore, reset this bit before using/
enabling the counter/timers.

The first clock of T8 might not feature complete clock width
and can occur any time when enabled.

Care must be taken when using the OR or AND commands to
manipulate CTR0, bit 5 and CTR1, bits 0 and 1 (Demodulation
Mode). These instructions use a Read-Modify-Write sequence
in which the current status from the CTR0 and CTR1 registers
is ORed or ANDed with the designated value and then written
back into the registers.

Example

When the status of bit 5 is 1, a timer reset condition occurs.

T8 Clock

This bit defines the frequency of the input signal to T8.

Capture_INT_Mask

Set this bit to allow an interrupt when data is captured into either LO8 or HI8 upon
a positive or negative edge detection in demodulation mode.

Counter_INT_Mask

Set this bit to allow an interrupt when T8 has a timeout.

P34_Out

This bit defines whether P34 is used as a normal output pin or the T8 output.

Caution:

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

CTR1(D)01h

This register controls the functions in common with the T8 and T16.

CTR1 Register Description

Table 11 lists and briefly describes the fields for this register.

Table 11. CTR(D)01h Register Descriptions

Field

Bit Position

Value

Description

Mode

7-------

R/W

Transmit Mode
Demodulation Mode

P36_Out/
Demodulator_Input

-6------

R/W

0*
1

0
1

Transmit Mode
Port Output
T8/T16 Output
Demodulation Mode
P31
P20

T8/T16_Logic/
Edge _Detect

--54----

R/W

00
01
10
11

Transmit Mode
AND
OR
NOR
NAND
Demodulation Mode
Falling Edge
Rising Edge
Both Edges
Reserved

Transmit_Submode/
Glitch_Filter

----32--

R/W

00
01
10
11

Transmit Mode
Normal Operation
Ping-Pong Mode
T16_Out = 0
T16_Out = 1
Demodulation Mode
No Filter
4 SCLK Cycle
8 SCLK Cycle
Reserved

Initial_T8_Out/
Rising Edge

------1-

R/W

0
1

0
1
0
1

Transmit Mode
T8_OUT is 0 Initially
T8_OUT is 1 Initially
Demodulation Mode
No Rising Edge
Rising Edge Detected
No Effect
Reset Flag to 0

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Mode

If it is 0, the counter/timers are in the transmit mode; otherwise, they are in the
demodulation mode.

P36_Out/Demodulator_Input

In Transmit Mode, this bit defines whether P36 is used as a normal output pin or
the combined output of T8 and T16.

In Demodulation Mode, this bit defines whether the input signal to the Counter/
Timers is from P20 or P31.

T8/T16_Logic/Edge _Detect

In Transmit Mode, this field defines how the outputs of T8 and T16 are combined
(AND, OR, NOR, NAND).

In Demodulation Mode, this field defines which edge should be detected by the
edge detector.

Transmit_Submode/Glitch Filter

In Transmit Mode, this field defines whether T8 and T16 are in the Ping-Pong
mode or in independent normal operation mode. Setting this field to "Normal
Operation Mode" terminates the "Ping-Pong Mode" operation. When set to 10,
T16 is immediately forced to a 0; a setting of 11 forces T16 to output a 1.

In Demodulation Mode, this field defines the width of the glitch that must be fil-
tered out.

Initial_T8_Out/Rising_Edge

In Transmit Mode, if 0, the output of T8 is set to 0 when it starts to count. If 1, the
output of T8 is set to 1 when it starts to count. When the counter is not enabled
and this bit is set to 1 or 0, T8_OUT is set to the opposite state of this bit. This

Initial_T16_Out/
Falling_Edge

-------0

R/W

0
1

0
1
0
1

Transmit Mode
T16_OUT is 0 Initially
T16_OUT is 1 Initially
Demodulation Mode
No Falling Edge
Falling Edge Detected
No Effect
Reset Flag to 0

Note:

*Default upon Power-On Reset

Table 11. CTR(D)01h Register Descriptions (Continued)

Field

Bit Position

Value

Description

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

measure ensures that when the clock is enabled, a transition occurs to the initial
state set by CTR1, D1.

In Demodulation Mode, this bit is set to 1 when a rising edge is detected in the
input signal. In order to reset it, a 1 should be written to this location.

Initial_T16 Out/Falling _Edge

In Transmit Mode, if it is 0, the output of T16 is set to 0 when it starts to count. If it
is 1, the output of T16 is set to 1 when it starts to count. This bit is effective only in
Normal or Ping-Pong Mode (CTR1, D3, D2). When the counter is not enabled and
this bit is set, T16_OUT is set to the opposite state of this bit. This measure
ensures that when the clock is enabled, a transition occurs to the initial state set
by CTR1, D0.

In Demodulation Mode, this bit is set to 1 when a falling edge is detected in the
input signal. In order to reset it, a 1 should be written to this location.

Modifying CTR1, (D1 or D0) while the counters are enabled
causes unpredictable output from T8/16_OUT.

CTR2 Counter/Timer 16 Control Register

Table 12 lists and briefly describes the fields for this register.

Table 12. CTR2 (D)02h: Counter/Timer16 Control Register

Field

Bit Position

Value

Description

T16_Enable

7-------

0*
1
0
1

Counter Disabled
Counter Enabled
Stop Counter
Enable Counter

Single/Modulo-N

-6------

R/W

0
1

Transmit Mode
Modulo-N
Single Pass
Demodulation Mode
T16 Recognizes Edge
T16 Does Not
Recognize Edge

Time_Out

--5-----

0
1
0
1

No Counter Timeout
Counter Timeout
Occurred
No Effect
Reset Flag to 0

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

T16_Enable

This field enables T16 when set to 1.

Single/Modulo-N

In Transmit Mode, when set to 0, the counter reloads the initial value when termi-
nal count is reached. When set to 1, the counter stops when the terminal count is
reached.

In Demodulation Mode, when set to 0, T16 captures and reloads on detection of
all the edges. When set to 1, T16 captures and detects on the first edge, but
ignores the subsequent edges. For details, see the description of T16 Demodula-
tion Mode on page 45.

Time_Out

This bit is set when T16 times out (terminal count reached). To reset the bit, write
a 1 to this location.

T16_Clock

This bit defines the frequency of the input signal to Counter/Timer16.

Capture_INT_Mask

This bit is set to allow an interrupt when data is captured into LO16 and HI16.

T16 _Clock

---43---

R/W

00
01
10
11

SCLK
SCLK/2
SCLK/4
SCLK/8

Capture_INT_Mask

-----2--

R/W

0
1

Disable Data Capture
Int.
Enable Data Capture
Int.

Counter_INT_Mask

------1-

R/W

Disable Timeout Int.
Enable Timeout Int.

P35_Out

-------0

R/W

0*
1

P35 as Port Output
T16 Output on P35

Note:

*Indicates the value upon Power-On Reset.

Table 12. CTR2 (D)02h: Counter/Timer16 Control Register (Continued)

Field

Bit Position

Value

Description

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Counter_INT_Mask

This bit is set to allow an interrupt when T16 times out.

P35_Out

This bit defines whether P35 is used as a normal output pin or T16 output.

SMR2 Stop-Mode Recovery Register 2

Table 13 lists and briefly describes the fields for this register.

Counter/Timer Functional Blocks

Input Circuit

The edge detector monitors the input signal on P31 or P20. Based on CTR1 D5
D4, a pulse is generated at the Pos Edge or Neg Edge line when an edge is
detected. Glitches in the input signal that have a width less than specified (CTR1
D3, D2) are filtered out (see Figure 14).

Table 13. SMR2(F)0Dh: Stop-Mode Recovery Register 2

Field

Bit Position

Value

Description

Reserved

7-------

Reserved (Must be 0)

Recovery Level

-6------

0*
1

Low
High

Reserved

--5-----

Reserved (Must be 0)

Source

---432--

000*
001
010
011
100
101
110
111

A. POR Only
B. NAND of P23P20
C. NAND of P27P20
D. NOR of P33P31
E. NAND of P33P31
F. NOR of P33-P31, P00, P07
G. NAND of P33-P31, P00, P07
H. NAND of P33-P31, P22P20

Reserved

------10

Reserved (Must be 0)

Notes:

* Indicates the value upon Power-On Reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

When T8 is enabled, the output T8_OUT switches to the initial value (CTR1, D1).
If the initial value (CTR1, D1) is 0, TC8L is loaded; otherwise, TC8H is loaded into
the counter. In Single-Pass Mode (CTR0, D6), T8 counts down to 0 and stops,
T8_OUT toggles, the timeout status bit (CTR0, D5) is set, and a timeout interrupt
can be generated if it is enabled (CTR0, D1). In Modulo-N Mode, upon reaching
terminal count, T8_OUT is toggled, but no interrupt is generated. From that point,
T8 loads a new count (if the T8_OUT level now is 0), TC8L is loaded; if it is 1,
TC8H is loaded. T8 counts down to 0, toggles T8_OUT, sets the timeout status bit
(CTR0, D5) and generates an interrupt if enabled (CTR0, D1). One cycle is thus
completed. T8 then loads from TC8H or TC8L according to the T8_OUT level, and
repeats the cycle. See Figure 16.

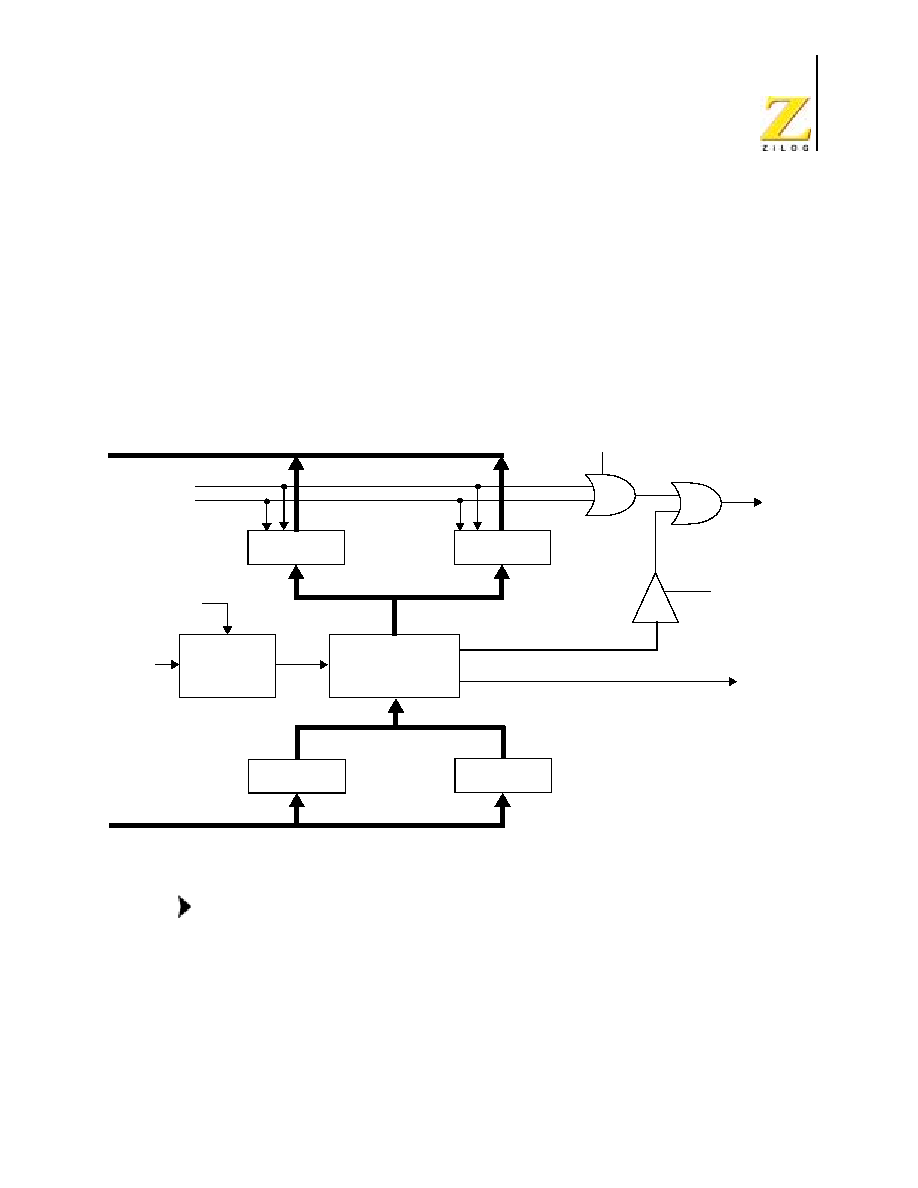

Figure 16. 8-Bit Counter/Timer Circuits

You can modify the values in TC8H or TC8L at any time. The new values take
effect when they are loaded.

Do not write these registers at the time the values are to be
loaded into the counter/timer to ensure known operation.

CTR0 D1

Negative Edge

Positive Edge

Z8 Data Bus

IRQ4

CTR0 D2

SCLK

Z8 Data Bus

CTR0 D4, D3

Clock

T8_OUT

LO8

TC8H

TC8L

Clock

Select

8-Bit

Counter T8

HI8

Caution:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

initial count of "1" is not allowed (a non-function occurs).

initial count of "0" causes TC8 to count from 0 to

FFh

FEh

The letter

is used for hexadecimal values.

Transition from 0 to

FFh

is not a timeout condition.

Using the same instructions for stopping the counter/timers
and setting the status bits is not recommended.

Two successive commands are necessary. First, the counter/timers must be
stopped. Second, the status bits must be reset. These commands are required
because it takes one counter/timer clock interval for the initiated event to actually
occur. See Figure 17 and Figure 18.

Figure 17. T8_OUT in Single-Pass Mode

Figure 18. T8_OUT in Modulo-N Mode

Note:

Caution:

TC8H

Count

Counter Enable
Command; T8_OUT
Switches to Its Initial
Value (CTR1 D1)

T8_OUT Toggles;
Timeout Interrupt

Counter Enable
Command; T8_OUT
Switches to Its
Initial Value (CTR1 D1)

Timeout
Interrupt

T8_OUT

TC8L

TC8H

TC8L

. . .

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

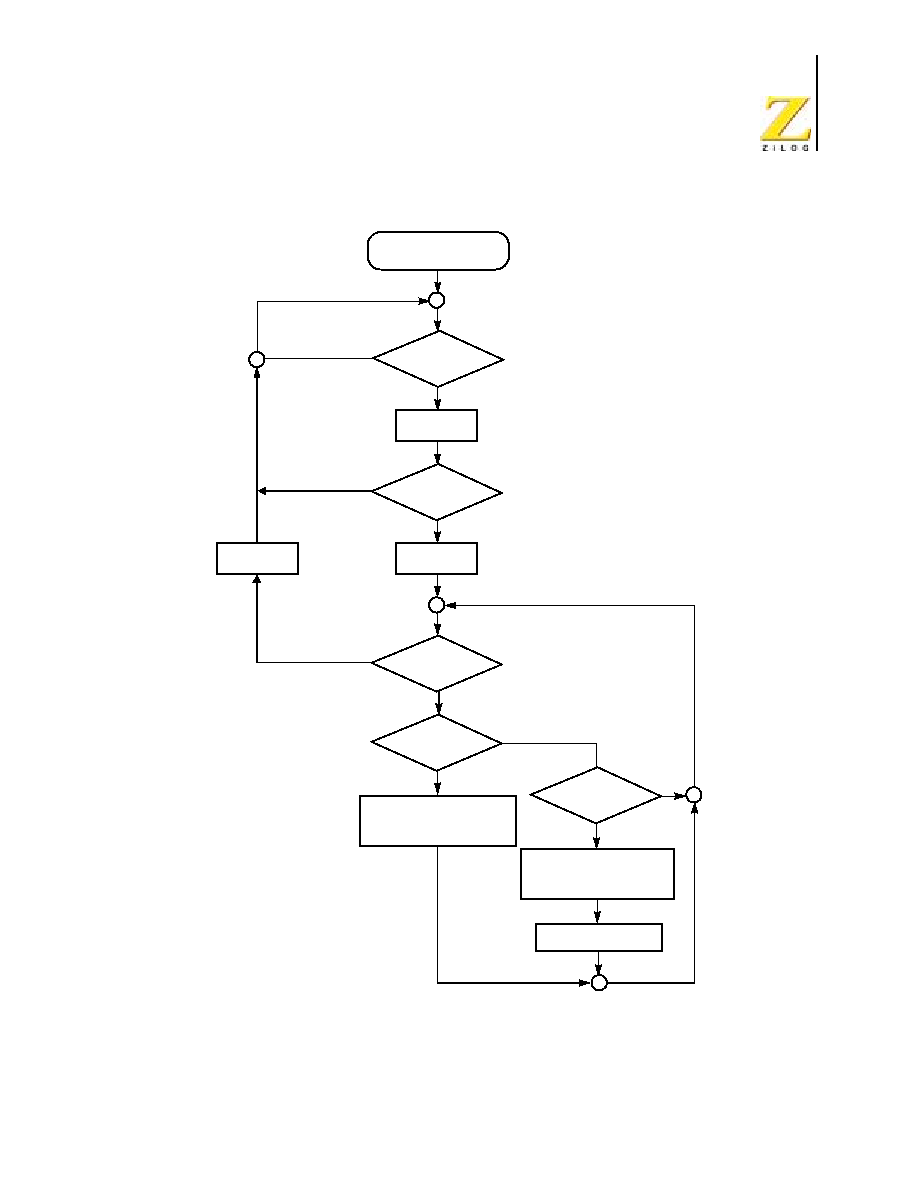

T8 Demodulation Mode

Program TC8L and TC8H to

FFh

. After T8 is enabled, when the first edge (rising,

falling, or both depending on CTR1, D5; D4) is detected, it starts to count down.
When a subsequent edge (rising, falling, or both depending on CTR1, D5; D4) is
detected during counting, the current value of T8 is complemented and put into
one of the capture registers. If it is a positive edge, data is put into LO8, if negative
edge, HI8. One of the edge detect status bits (CTR1, D1; D0) is set, and an inter-
rupt can be generated if enabled (CTR0, D2). Meanwhile, T8 is loaded with

FFh

and starts counting again. If T8 reaches 0, the timeout status bit (CTR0, D5) is set,
an interrupt can be generated if enabled (CTR0, D1), and T8 continues counting
from

FFh

(see Figure 19 and Figure 20).

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

T16 Transmit Mode

In Normal or Ping-Pong Mode, the output of T16 when not enabled, is dependent
on CTR1, D0. If the result is a 0, T16_OUT is a 1; if it is a 1, T16_OUT is 0. You
can force the output of T16 to either a 0 or 1 whether it is enabled or not by pro-
gramming CTR1 D3, D2 to a 10 or 11.

When T16 is enabled, TC16H * 256 + TC16L is loaded, and T16_OUT is switched
to its initial value (CTR1, D0). When T16 counts down to 0, T16_OUT is toggled
(in Normal or Ping-Pong Mode), an interrupt (CTR2, D1) is generated (if enabled),
and a status bit (CTR2, D5) is set. See Figure 21.

Figure 21. 16-Bit Counter/Timer Circuits

Global interrupts override this function as described in
"Interrupts" on page 48.

If T16 is in Single-Pass Mode, it is stopped at this point (see Figure 22). If it is in
Modulo-N Mode, it is loaded with TC16H * 256 + TC16L, and the counting contin-
ues (see Figure 23).

You can modify the values in TC16H and TC16L at any time. The new values take
effect when they are loaded.

CTR2 D1

Negative Edge

Positive Edge

Z8 Data Bus

IRQ3

CTR2 D2

SCLK

Z8 Data Bus

CTR2 D4, D3

Clock

T16_OUT

LO16

TC16H

TC16L

Clock

Select

16-Bit

Counter T16

HI16

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Do not load these registers at the time the values are to be
loaded into the counter/timer to ensure known operation.
An initial count of 1 is not allowed. An initial count of 0
causes T16 to count from 0 to

FFFFh

FFFEh

. Transition

from 0 to

FFFFh

is not a timeout condition.

Figure 22. T16_OUT in Single-Pass Mode

Figure 23. T16_OUT in Modulo-N Mode

T16 Demodulation Mode

Program TC16L and TC16H to

FFh

. After T16 is enabled, and the first edge (ris-

ing, falling, or both depending on CTR1 D5, D4) is detected, T16 captures HI16
and LO16, reloads, and begins counting.

If D6 of CTR2 Is 0

When a subsequent edge (rising, falling, or both depending on CTR1, D5; D4) is
detected during counting, the current count in T16 is complemented and put into
HI16 and LO16. When data is captured, one of the edge detect status bits (CTR1,
D1; D0) is set and an interrupt is generated if enabled (CTR2, D2). From that
point, T16 is loaded with

FFFFh

and starts again.

Caution:

TC16H*256+TC16L Counts

"Counter Enable" Command
T16_OUT Switches to Its
Initial Value (CTR1 D0)

T16_OUT Toggles,
Timeout Interrupt

TC16H*256+TC16L

TC16H*256+TC16

TC16H*256+TC16L

T16_OUT Toggles,
Timeout Interrupt

"Counter Enable" Command,
T16_OUT Switches to Its
Initial Value (CTR1 D0)

TC16_OUT

. . .

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

This T16 mode is generally used to measure mark time, defined as the length of
time between carrier signal bursts (marks).

If D6 of CTR2 Is 1

T16 ignores the subsequent edges in the input signal and continues counting
down. A timeout of T8 causes T16 to capture its current value and generate an
interrupt if enabled (CTR2, D2). In this case, T16 does not reload and continues
counting. If the D6 bit of CTR2 is toggled (by writing a 0 then a 1 to it), T16 cap-
tures and reloads on the next edge (rising, falling, or both depending on CTR1,
D5; D4), thereby continuing to ignore subsequent edges.

This T16 mode is generally used to measure mark time, defined as the length of
time between carrier signal bursts (marks).

If T16 reach 0, T16 continues counting from

FFFFh

. Meanwhile, a status bit (CTR2

D5) is set, and an interrupt timeout can be generated if enabled (CTR2 D1).

Ping-Pong Mode

This operation mode is only valid in Transmit Mode. T8 and T16 must be pro-
grammed in Single-Pass Mode (CTR0, D6, CTR2, D6) and Ping-Pong Mode must
be programmed in CTR1, D3; D2. The user can begin the operation by enabling
either T8 or T16 (CTR0, D7 or CTR2, D7). For example, if T8 is enabled, T8_OUT
is set to this initial value (CTR1, D1). According to T8_OUT's level, TC8H or TC8L
is loaded into T8. After the terminal count is reached, T8 is disabled and T16 is
enabled. T16_OUT switches to its initial value (CTR1, D0), data from TC16H and
TC16L is loaded, and T16 starts to count. After T16 reaches the terminal count, it
stops, T8 is enabled again, and the whole cycle repeats. Interrupts can be allowed
when T8 or T16 reaches terminal control (CTR0, D1; CTR2, D1). To stop the Ping-
Pong operation, write 00 to bits D3 and D2 of CTR1. See Figure 24.

Enabling Ping-Pong operation while the counter/timers are
running might cause intermittent counter/timer function. Disable
the counter/timers and then reset the status flags before
instituting this operation.

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 24. Ping-Pong Mode

Initiating Ping-Pong Mode

First, make sure both counter/timers are not running. Then, set T8 into Single-
Pass Mode (CTR0 D6), set T16 into Single-Pass Mode (CTR2 D6), and set the
Ping-Pong Mode (CTR1 D2, D3). These instructions do not have to be in any par-
ticular order. Finally, start Ping-Pong Mode by enabling either T8 (CTR0 D7) or
T16 (CTR2 D7). See Figure 25.

Figure 25. Output Circuit

The initial value of T8 or T16 must not be

. If you stop the timer and start the

timer again, reload the initial value to avoid an unknown previous value.

Enable

TC8

Enable

Timeout

TC16

Ping-Pong
CTR1 D3,D2

Timeout

T16_OUT

MUX

CTR1 D3

T8_OUT

P34

AND/OR/NOR/NAND

Logic

MUX

P35

P36

P34_INTERNAL

CTR1 D5, D4

P36_INTERNAL

P35_INTERNAL

CTR1, D2

CTR0 D0

CTR1 D6

CTR2 D0

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

When more than one interrupt is pending, priorities are resolved by a programma-
ble priority encoder controlled by the Interrupt Priority Register. An interrupt
machine cycle is activated when an interrupt request is granted. As a result, all
subsequent interrupts are disabled, and the Program Counter and Status Flags
are saved. The cycle then branches to the program memory vector location
reserved for that interrupt. All Z86L81/86/98 interrupts are vectored through loca-
tions in the program memory. This memory location, and the next byte, contain the
16-bit address of the interrupt service routine for that particular interrupt request.
To accommodate polled interrupt systems, interrupt inputs are masked, and the
Interrupt Request register is polled to determine which of the interrupt requests
require service.

An interrupt resulting from AN1 is mapped into IRQ2, and an interrupt from AN2 is
mapped into IRQ0. Interrupts IRQ2 and IRQ0 may be rising, falling, or both edge
triggered; all are programmable by the user. The software can poll to identify the
state of the pin.

Programming bits for the Interrupt Edge Select are located in the IRQ Register
(R250), bits D7 and D6. The configuration is indicated in Table 15.

Table 14. Interrupt Types, Sources, and Vectors

Name

Source

Vector Location

Comments

IRQ0

P32

0,1

External (P32), Rising Falling Edge
Triggered

IRQ1

P33

2,3

External (P33), Falling Edge Triggered

IRQ2

P31, T

4,5

External (P31), Rising Falling Edge
Triggered

IRQ3

T16

6,7

Internal

IRQ4

8,9

Internal

IRQ5

LVD

10,11

Internal

Table 15. IRQ Register*

IRQ

Interrupt Edge

IRQ2(P31)

IRQ0 (P32)

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Clock

The Z86L81/86/98 on-chip oscillator has a high-gain, parallel-resonant amplifier,
for connection to a crystal, LC, ceramic resonator, or any suitable external clock
source (XTAL1 = Input, XTAL2 = Output). The crystal must be AT cut, 1 MHz to 8
MHz maximum, with a series resistance (RS) less than or equal to 100 Ohms. The
Z86LXX on-chip oscillator can be driven with a low-cost RC network or other suit-
able external clock source.

For 32-kHz crystal operation, both an external feedback (Rf) and serial resistor
(Rd) are required. See Figure 27.

The crystal must be connected across XTAL1 and XTAL2 using the recommended
capacitors (capacitance greater than or equal to 22 pF) from each pin to ground.
The RC oscillator configuration is an external resistor connected from XTAL1 to
XTAL2, with a frequency-setting capacitor from XTAL1 to ground (Figure 27).

R/F

Notes:
F = Falling Edge
R = Rising Edge

In stop mode, the comparators are turned off.

Table 15. IRQ Register* (Continued)

IRQ

Interrupt Edge

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 27. Oscillator Configuration

Power-On Reset (POR)

A timer circuit clocked by a dedicated on-board RC oscillator is used for the
Power-On Reset (POR) timer function. The POR time allows V

and the oscilla-

tor circuit to stabilize before instruction execution begins.

The POR timer circuit is a one-shot timer triggered by one of three conditions:

Power Fail to Power OK status, including Waking up from V

Standby

Stop-Mode Recovery (if D5 of SMR = 1)

WDT Timeout

The POR timer is a nominal 5 ms. Bit 5 of the Stop-Mode Register determines
whether the POR timer is bypassed after Stop-Mode Recovery (typical for external
clock, RC, LC oscillators).

XTAL1

XTAL2

XTAL1

XTAL2

XTAL1

XTAL2

XTAL1

XTAL2

XTAL1

XTAL2

Ceramic Resonator or Crystal
C1, C2 = 47 pF TYP *
f = 8 MHz

* Preliminary value including pin parasitics

External Clock

32 kHz XTAL
C1 = 20 pF, C = 33 pF
Rd = 56 - 470K
Rf = 10 M

RC
@ 3V VCC (TYP)
C1 = 33 pF *
R = 1K *

LC
C1, C2 = 22 pF
L = 130

H *

f = 3 MHz *

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

HALT

HALT turns off the internal CPU clock, but not the XTAL oscillation. The counter/
timers and external interrupts IRQ0, IRQ1, IRQ2, IRQ3, and IRQ4 remain active.
The devices are recovered by interrupts, either externally or internally generated.
An interrupt request must be executed (enabled) to exit HALT Mode. After the
interrupt service routine, the program continues from the instruction after the
HALT.

STOP

This instruction turns off the internal clock and external crystal oscillation, thereby
reducing the standby current to 10

A or less. STOP Mode is terminated only by a

reset (such as WDT timeout), POR, SMR, or external reset. This termination
causes the processor to restart the application program at address

000Ch

. In

order to enter STOP (or HALT) mode, first flush the instruction pipeline to avoid
suspending execution in mid-instruction. Execute a NOP (Op Code =

FFh

) imme-

diately before the appropriate sleep instruction, as follows:

NOP

; clear the pipeline

STOP

; enter STOP Mode

NOP

; clear the pipeline

HALT

; enter HALT Mode

Port Configuration Register (PCON)

The PCON register (Figure 28) configures the comparator output on Port 3. It is
located in the expanded register 2 at Bank F, location 00.

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

PCON (FH) 00H

Figure 28. Port Configuration Register (PCON) (Write Only)

Comparator Output Port 3 (D0)

Bit 0 controls the comparator used in Port 3. A 1 in this location brings the compar-
ator outputs to P34 and P37, and a 0 releases the Port to its standard I/O configu-
ration.

Port0 Output Mode (D2)

Bit 2 controls the output mode of port 0. A 1 in this location sets the output to
push-pull, and a 0 sets the output to open-drain.

Stop-Mode Recovery Register (SMR)

This register selects the clock divide value and determines the mode of Stop-
Mode Recovery (Figure 29). All bits are write only except bit 7, which is read only.
Bit 7 is a flag bit that is hardware set on the condition of STOP recovery and reset
by a power-on cycle. Bit 6 controls whether a low level or a high level at the XOR-
gate input is required from the recovery source. Bit 5 controls the reset delay after
recovery. Bits D2, D3, and D4, or the SMR register, specify the source of the Stop-
Mode Recovery signal. Bits D0 determines if SCLK/TCLK are divided by 16 or not.
The SMR is located in Bank F of the Expanded Register Group at address

0Bh

Comparator Output Port 3
0 P34, P37 Standard Output*
1 P34, P37 Comparator Output

Port 0
0: Open-Drain
1: Push-Pull

Reserved (Must be 1)

* Default setting after reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

SMR (0F) 0B

Figure 29. Stop-Mode Recovery Register

SCLK/TCLK Divide-by-16 Select (D0)

D0 of the SMR controls a divide-by-16 prescaler of SCLK/TCLK (Figure 30). The
purpose of this control is to selectively reduce device power consumption during
normal processor execution (SCLK control) and/or HALT Mode (where TCLK
sources interrupt logic). After Stop-Mode Recovery, this bit is set to a 0.

SCLK/TCLK Divide-by-16
0 OFF * *
1 ON

Reserved (Must be 0)

Stop-Mode Recovery Source
000 POR Only *
001 Reserved
010 P31
011 P32
100 P33
101 P27
110 P2 NOR 0-3
111 P2 NOR 0-7

Stop Delay
0 OFF
1 ON *

Stop Recovery Level * * *
0 Low *
1 High

Stop Flag
0 POR *
1 Stop Recovery * *

* Default setting after reset
* * Default setting after reset and stop-mode recovery
* * * At the XOR gate input

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 31. Stop-Mode Recovery Source

SMR2 D4 D3 D2

0 0

SMR2 D4 D3 D2

1 1 1

SMR D4 D3 D2

1 0

SMR D4 D3 D2

1 1 1

SMR D4 D3 D2

0 1

SMR D4 D3 D2

0 0

SMR D4 D3 D2

1 1

SMR D4 D3 D2

0 0

SMR D4 D3 D2

1 1 0

VCC

P31

P32

P33

P27

P20

P23

P20

P27

SMR2 D4 D3 D2

0 1

SMR2 D4 D3 D2

0 0

SMR2 D4 D3 D2

1 0

SMR2 D4 D3 D2

1 1

SMR2 D4 D3 D2

0 1

SMR2 D4 D3 D2

1 1 0

VCC

P20

P23

P20

P27

P31
P32
P33

P31
P32
P33
P00
P07

P31
P32
P33
P20
P21
P22

SMR D6

SMR2 D6

To RESET and WDT
Circuitry (Active Low)

To IRQ1

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Any Port 2 bit defined as an output drives the corresponding
input to the default state to allow the remaining inputs to control
the AND/OR function. Refer to SMR2 register on page 58 for
other recover sources.

Stop-Mode Recovery Delay Select (D5)

This bit, if low, disables the 5 ms RESET delay after Stop-Mode Recovery. The
default configuration of this bit is 1. If the "fast" wake up is selected, the Stop-
Mode Recovery source must be kept active for at least 5 TpC.

Stop-Mode Recovery Edge Select (D6)

A 1 in this bit position indicates that a High level on any one of the recovery
sources wakes the Z86L81/86/98 from STOP Mode. A 0 indicates Low level
recovery. The default is 0 on POR.

Cold or Warm Start (D7)

This bit is read only, and it is set to 1 when the device is recovered from stop
mode. The bit is set to 0 when the device reset is other than Stop Mode Recovery
(SMR).

Stop-Mode Recovery Register 2 (SMR2)

This register determines the mode of Stop-Mode Recovery for SMR2 (Figure 32).

Table 16. Stop-Mode Recovery Source

SMR:432

Operation

Description of Action

POR and/or external reset
recovery

Reserved

P31 transition

P32 transition

P33 transition

P27 transition

Logical NOR of P20 through P23

Logical NOR of P20 through P27

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

SMR2 (0F) DH

Figure 32. Stop-Mode Recovery Register 2 ((0F) DH:D2D4, D6 Write Only)

If SMR2 is used in conjunction with SMR, either of the specified events causes a
Stop-Mode Recovery.

Port pins configured as outputs are ignored as an SMR or
SMR2 recovery source. For example, if the NAND or P23P20
is selected as the recovery source and P20 is configured as an
output, the remaining SMR pins (P23P21) form the NAND
equation.

Reserved (Must be 0)

Stop-Mode Recovery Source 2
000 POR Only *
001 NAND P20, P21, P22, P23
010 NAND P20, P21, P22, P23, P24, P25, P26
011 NOR P31, P32, P33
100 NAND P31, P32, P33
101 NOR P31, P32, P33, P00, P07
110 NAND P31, P32, P33, P00, P07
111 NAND P31, P32, P33, P20, P21, P22

Reserved (Must be 0)

Recovery Level * *
0 Low
1 High

Reserved (Must be 0)

Note: If used in conjunction with SMR, either of the two specified events causes a Stop-Mode Recovery.
* Default setting after reset
* * At the XOR gate input

Note:

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Watch-Dog Timer Mode Register (WDTMR)

The WDT is a retriggerable one-shot timer that resets the Z8 if it reaches its termi-
nal count. The WDT must initially be enabled by executing the WDT instruction.
On subsequent executions of the WDT instruction, the WDT is refreshed. The
WDT circuit is driven by an on-board RC oscillator or external oscillator from the
XTAL1 pin. The WDT instruction affects the Zero (Z), Sign (S), and Overflow (V)
flags.

The POR clock source is selected with bit 4 of the WDT register. Bit 0 and 1 con-
trol a tap circuit that determines the minimum time-out period. Bit 2 determines
whether the WDT is active during HALT, and Bit 3 determines WDT activity during
STOP. Bits 5 through 7 are reserved (Figure 8). This register is accessible only
during the first 61 processor cycles (122 XTAL clocks) from the execution of the
first instruction after Power-On-Reset, Watch-Dog Reset, or a Stop-Mode
Recovery (Figure 33). After this point, the register cannot be modified by any
means (intentional or otherwise). The WDTMR cannot be read. The register is
located in Bank F of the Expanded Register Group at address location

0Fh

. It is

organized as shown in Figure 33.

WDTMR (0F) 0F

Figure 33. Watch-Dog Timer Mode Register (Write Only)

WDT TAP INT RC OSC
00

5 ms min

01*

10 ms min

20 ms min

80 ms min

WDT During HALT
0 OFF
1 ON *

WDT During STOP
0 OFF
1 ON *

Reserved (Must be 0)

* Default setting after reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Figure 34. Resets and WDT

WDTMR During STOP (D3)

This bit determines whether or not the WDT is active during STOP Mode.
Because the XTAL clock is stopped during STOP Mode, the on-board RC has to
be selected as the clock source to the WDT/POR counter. A 1 indicates active
during STOP. The default is 1.

Clock Source for WDT (D4)

This bit determines which oscillator source is used to clock the internal POR and
WDT counter chain. If the bit is a 1, the internal RC oscillator is bypassed and the
POR and WDT clock source is driven from the external pin, XTAL1. The default
configuration of this bit is 0, which selects the RC oscillator.

* CLR1 and CLR2 enable the WDT/POR and 18 Clock Reset timers upon a Low-to-High input translation.

From Stop

Mode

Recovery

Source

Stop Delay

Select (SMR)

5 Clock Filter

*CLR2 18 Clock RESET
CLK Generator

RESET

WDT TAP SELECT

POR 5 ms 10 ms 20 ms 80 ms
CLK

*CLR1

WDT/POR Counter Chain

M
U
X

INTERNAL

OSC.

CK Source

Select

(WDTMR)

XTAL

WDT

Low Operating
Voltage Det.

VBO/VLV

2V REF.

Internal
RESET
Active
High

12-ns Glitch Filter

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Mask Selectable Options

There are seven Mask Selectable Options to choose from based on ROM code
requirements. These are listed in Table 18.

Brown-Out Voltage/Standby

An on-chip Voltage Comparator checks that the V

is at the required level for

correct operation of the device. Reset is globally driven when V

falls below V

A small further drop in V

causes the XTAL1 and XTAL2 circuitry to stop the

crystal or resonator clock. Typical Low-Voltage power consumpion in this Low
Voltage Standby mode (I

) is about 20

A. If the V

is allowed to stay above

Vram, the RAM content is preserved. When the power level is returned to above
V

, the device performs a POR and functions normally.

Low-Voltage Detection and Flag

A Low-Voltage Detection circuit can be used optionally when the voltage
decreases to V

LVD

. Expanded Register Bank

0Dh

0Ch

bit 0 and 1 are used

for this option.

Bit D0 is used to enable/disable this function.

Bit D1 is the status flag bit of the LVD.

Table 18. Mask Selectable Options

RC/Other

RC/XTAL

32 kHz XTAL

On/Off

Port 04-07 Pull-Ups

On/Off

Port 00-03 Pull-Ups

On/Off

Port 20-27 Pull-Ups

On/Off

Port 3 Pull-Ups

On/Off

Port0: 0-3 Mouse Mode 0.4 V

Trip

On/Off

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Expanded Register File Control Registers (0D)

The expanded register file control registers (0D) are shown in Figure 35 through
Figure 38.

CTR0 (0D) 0H

Figure 35. T8 Control Register ((0D) OH: Read/Write Except Where Noted)

0 P34 as Port Output *
1 Timer8 Output

0 Disable T8 Timeout Interrupt
1 Enable T8 Timeout Interrupt

0 Disable T8 Data Capture Interrupt
1 Enable T8 Data Capture Interrupt

00 SCLK on T8
01 SCLK/2 on T8
10 SCLK/4 on T8
11 SCLK/8 on T8

R 0

No T8 Counter Timeout

R 1 T8 Counter Timeout Occurred
W 0

No Effect

W 1

Reset Flag to 0

0 Modulo-N
1 Single Pass

R 0

T8 Disabled *

R 1 T8 Enabled
W 0

Stop T8

W 1

Enable T8

* Default setting after reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

CTR1 (0D) 1H

Figure 36. T8 and T16 Common Control Functions ((0D) 1h: Read/Write)

Transmit Mode
R/W 0 T16_OUT is 0 initially

1 T16_OUT is 1 initially

Demodulation Mode
R 0 No Falling Edge Detection
R 1 Falling Edge Detection
W 0 No Effect
W 1 Reset Flag to 0

Transmit Mode
R/W 0 T8_OUT is 0 initially

1 T8_OUT is 1 initially

Demodulation Mode
R 0 No Rising Edge Detection
R 1 Rising Edge Detection
W 0 No Effect
W 1 Reset Flag to 0
Transmit Mode

0 0 Normal Operation

0 1 Ping-Pong Mode

1 0 T16_OUT = 0

1 1 T16_OUT = 1

Demodulation Mode

0 0 No Filter

0 1 4 SCLK Cycle Filter

1 0 8 SCLK Cycle Filter

1 1 Reserved

Transmit Mode/T8/T16 Logic

0 0 AND

0 1 OR

1 0 NOR

1 1 NAND

Demodulation Mode

0 0 Falling Edge Detection

0 1 Rising Edge Detection

1 0 Both Edge Detection

1 1 Reserved

Transmit Mode

0 P36 as Port Output *

1 P36 as T8/T16_OUT

Demodulation Mode

0 P31 as Demodulator Input

1 P20 as Demodulator Input

Transmit/Demodulation Mode

0 Transmit Mode *

1 Demodulation Mode

* Default setting after reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

CTR2 (0D) 02H

Figure 37. T16 Control Register ((0D) 2h: Read/Write Except Where Noted)

0 P35 is Port Output *
1 P35 is TC16 Output

0 Disable T16 Timeout Interrupt
1 Enable T16 Timeout Interrupt

0 Disable T16 Data Capture Interrupt
1 Enable T16 Data Capture Interrupt

0 0 SCLK on T16
0 1 SCLK/2 on T16
1 0 SCLK/4 on T16
1 1 SCLK/8 on T16

R 0 No T16 Timeout
R 1 T16 Timeout Occurs
W 0 No Effect
W 1 Reset Flag to 0

Transmit Mode
0 Modulo-N for T16
0 Single Pass for T16

Demodulator Mode
0 T16 Recognizes Edge
1 T16 Does Not Recognize Edge

R 0 T16 Disabled *
R 1 T16 Enabled
W 0 Stop T16
W 1 Enable T16

* Default setting after reset

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

Expanded Register File Control Registers (0F)

The expanded register file control registers (0F) are shown in Figure 39 through
Figure 52.

SMR (0F) 0B

Figure 39. Stop-Mode Recovery Register ((0F) 0Bh: D6D0=Write Only, D7=Read

Only)

SCLK/TCLK Divide-by-16
0 OFF *
1 ON

Reserved (Must be 0)

Stop-Mode Recovery Source
000 POR Only *
001 Reserved
010 P31
011 P32
100 P33
101 P27
110 P2 NOR 0-3
111 P2 NOR 0-7

Stop Delay
0 OFF
1 ON *

Stop Recovery Level * * *
0 Low

1 High

Stop Flag
0 POR *
1 Stop Recovery * *

* Default setting after reset
* * Default setting after reset and stop-mode recovery
* * * At the XOR gate input

Z86L81/86/98

28-Pin Low-Voltage Infrared Microcontrollers

PS006404-0702

SMR2 (0F) DH

Figure 40. Stop-Mode Recovery Register 2 ((0F) 0Dh:D2D4, D6 Write Only)

Reserved (Must be 0)

Recovery Level * *
0 Low
1 High

Reserved (Must be 0)

Note: If used in conjunction with SMR, either of the two specified events causes a Stop-Mode Recovery.
* Default setting after reset
* * At the XOR gate input
