Z89340

IGITAL

AVETABLE

NGINE

FEATURES

64 High-Speed Audio Processing Units (APUs) or 128
Half-Speed APUs

3-D Sound Capability

Downloadable Sample Capability

8-Channel, 20-Bit Linear PCM Audio Generator

Output Sampling Rates up to 50 kHz

Supports 16-, 18-, and 20-Bit Serial DACS Greater
than 96 Db Dynamic Range

Supports 16- and 8-Bit Linear PCM Sampling, ADPCM,
and Wavetable Synthesis, Variable Playback Rates for
ADPCM

Internal 24-Bit Audio Accumulators

Addresses 16M x 16 Sample ROM Directly (No Paging
Necessary)

Jumperless Configurable ISA Bus Interface

Sound Blaster and OPL3 Register Compatibility,
MPU401 UART Mode Compatible

Built-In 64-Channel Bus-Mastering DMA Controller

FM Emulation

GENERAL DESCRIPTION

The Z89340 is a high-performance, programmable wave-
table engine designed for musical instruments, general
MIDI (Musical Instrument Digital Interface) sound modules,
digital mixing consoles with high-quality PC sound cards,
and computer-controlled multimedia applications.

This device features a 24-bit address bus for
addressing16-bit sample-storage ROM and DRAM (DRAM
refresh controller on-board), a 12x16 two's-complement
scaler, eight 24-bit accumulators with clipping circuitry, a
2x8x16 interpolator to allow a high resolution of phase an-
gles between input samples, CD-quality sampling rates,
and 64 high-speed audio processing units (APUs) that can
be split into two low-speed APUs that operate at half the
sampling rate, allowing up to 128 notes to play simulta-
neously. All APUs are independent and can address any
part of data storage at any time.

The Z89340 can operate at output sampling rates up to 50
kHz, and offers eight channels of 16- to 20-bit serial output
data. The microprocessor interface allows full control of
frequency, amplitude, and sample data input to each oscil-
lator. The Z89340 features eight output registers, and their
contents can be sent to DAC or CODEC. Four of these can
be used for quadraphonic output, and have a panning
mechanism called Polar Pan that supports motion in all
four quadrants.

The other four output registers are used internally as ef-
fects channels, but can still send their data streams to a
DAC, a second Z89340, or other digital signal processor.
The Z89340 also has eight serial input data registers. In
addition, there are 24 stereo submix register pairs for use
in sending output data from one APU to be used as the in-
put to another.

In particular, the Z89340 is well-suited for 8- and 16-bit lin-
ear PCM recording/playback, wave synthesis, Sound
Blaster command set, and ADPCM (IMA/DVI) real-time de-
compression.

Part Number

Speed

Package

Z89340

50 MHz

160-Pin QFP

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-3

PIN IDENTIFICATION

Figure 2. 160-Pin QFP Pin Configuration

120

Z89340

160-Pin QFP

ISA_BCLK

ISA_LA17
ISA_MEMR

ISA_BHE

ISA_RESDRV

ISA_LA18

ISA_LA19

ISA_LA20

ISA_LA21

ISA_MEMW

ISA_DRQ_05

ISA_DRQ_07

ISA_DRQ_01

ISA_DRQ_03

ISA_IRQ_07

ISA_IRQ_09

ISA_IRQ_10
ISA_IRQ_11

GND

ISA_LA22

ISA_LA23

ISA_DACK_07

ISA_DRQ_06

ISA_DACK_06

ISA_DACK_05

ISA_DRQ_00

ISA_I0CS16

ISA_IRQ_05

ISA_DACK_01

ISA_DACK_03

ISA_IOR

ISA_IOW

ISA_SA00

ISA_SA01

ISA_SA02

ISA_SA03

ISA_SA04

VCC

Reserved

ISA_DACK_00

GAMEPOR

T_0_BUTT

ON_0

ISA_SA06

ISA_SA07

ISA_SA08

ISA_SA09

ISA_SA10

ISA_SA1

ISA_SA05

ISA_SA12

ISA_SA13

ISA_SA14

ISA_SA15

ISA_SA16

ISA_SA17

ISA_SA18

ISA_SA19

ISA_AEN

ISA_IOCHRDY

ISA_DA

T
A00

ISA_DA

T
A01

ISA_DA

T
A02

ISA_DA

T
A03

ISA_DA

T
A04

ISA_DA

T
A05

ISA_DA

T
A06

ISA_DA

T
A07

VDD

TVREF+I

AGND

MIDI_RX

VCC

GND

TVREF-

GAMEPOR

T_2_BUTT

ON_2

GAMEPOR

T_1_BUTT

ON_1

GAMEPOR

T_3_BUTT

ON_3

GAMEPOR

T_4_BUTT

ON_4

GAMEPOR

T_5_BUTT

ON_5

GAMEPOR

T_6_BUTT

ON_6

GAMEPOR

T_7_BUTT

ON_7

MIDI_TX

MODE_0

MODE_1

MODE_2

MODE_3

AUX_CS0

AUX_CS1

AUX_CS2
AUX_CS3

CODEC_SCLK_0

CODEC_SD_IN_0

CODEC_SD_OUT_0

CODEC_STROBE_0

CODEC_STROBE_1

CODEC_STROBE_2
CODEC_STROBE_3

GND

VCC

CLOCK

GND

VCC

GND

RAS

DRAM_WE

CAS

DRAM_OE

ROMADD08

ROMADD09

ROMADD10

ROMADD06

ROMADD17

ROMADD18
ROMADD19

ROMADD20

ROMADD21
ROMADD22

ROMADD23

ROMADD07

ROMADD05

VCC

ISA_MASTER16

ISA_DA

T
A15

ISA_DA

T
A14

ISA_DA

T
A13

ISA_DA

T
A12

ISA_DA

T
A

1
1

ISA_DA

T
A10

ISA_DA

T
A09

ISA_DA

T
A08

VCC

GND

ROMADD01

ROMADD00

ROMADD16

ROMADD14

ROMADD13

ROMADD02

ROMADD03

ROMADD1

ROMADD04

ROMADD12

ROMADD15

VE_DA

T
A_1

VE_DA

T
A_04

VE_DA

T
A_03

VE_DA

T
A_12

VE_DA

T
A_10

VE_DA

T
A_05

VE_DA

T
A_02

VE_DA

T
A_13

VE_DA

T
A_09

VE_DA

T
A_06

VE_DA

T
A_01

VE_DA

T
A_14

VE_DA

T
A_08

VE_DA

T
A_07

VE_DA

T
A_00

VE_DA

T
A_15

VE_DA

T
A_OE

VE_DA

T
A_WRITE

Z89340

Digital Wavetable Engine

1-4

P R E L I M I N A R Y

DS96DSP0201

PIN IDENTIFICATION

(Continued)

Table 1. 160-Pin QFP Pin Identification

Pin #

Symbol

Function

Direction

1
2
3
4
5
6
7

GND
ROMADD11
ROMADD04
ROMADD12
ROMADD03
ROMADD13
ROMADD02

Ground
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus

Output
Output
Output
Output
Output
Output

8
9
10
11
12

ROMADD14
ROMADD01
ROMADD15
ROMADD00
ROMADD16

Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus
Wavetable ROM Address Bus

Output
Output
Output
Output
Output

13
14
15
16
17

WAVE_DATA_OE
WAVE_DATA_WRITE
WAVE_DATA_15
WAVE_DATA_00
WAVE_DATA_07

External Memory Output Enable
External Memory Write
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus

Output
Output
Input/Output
Input/Output
Input/Output

18
19
20
21
22
23

WAVE_DATA_08
WAVE_DATA_14
WAVE_DATA_01
WAVE_DATA_06
WAVE_DATA_09
WAVE_DATA_13

External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus

Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output

24
25
26
27
28
29

WAVE_DATA_02
WAVE_DATA_05
WAVE_DATA_10
WAVE_DATA_12
WAVE_DATA_03
WAVE_DATA_04

External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus
External Waveform Mem. Data Bus

Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output

30
31
3239
40
41

WAVE_DATA_11
ISA_MASTER16
ISA_SD_158
V

GND

External Waveform Mem. Data Bus
ISA Master 16-Bit Transfer
ISA Data Bus
Power Supply
GND

Input/Output
Tri-State Input
Input/Output

42
43
4450
51
52
53
54
55

ISA_MEMW
ISA_MEMR
ISA_LA 1723
ISA_BHE
ISA_DRQ_07
ISA_DACK_07
ISA_DRQ_06
ISA_DACK_06

ISA Memory Write
ISA Memory Read
ISA Address Bus
ISA Bus High Byte Enable
ISA DMA Request 07
ISA DMA Acknowledge 07
ISA DMA Request 06
ISA DMA Acknowledge 06

Input/Output
Input/Output
Tri-State Output
Input/Output
Tri-State Output
Input
Tri-State Output
Input

56
57
58
59

ISA_DRQ_05
ISA_DACK_05
ISA_DRQ_00
ISA_DACK_00

ISA DMA Request 05
ISA DMA Acknowledge 05
ISA DMA Request 00
ISA DMA Acknowledge 00

Tri-State Output
Input
Tri-State Outputt
Input

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-5

60
61
62
63
64
65
66

ISA_IRQ_11
ISA_IRQ_10
ISA_IOCS16
Reserved
ISA_IRQ_05
ISA_IRQ_07
CLKOUT

ISA Interrupt Request 11
ISA Interrupt Request 10
ISA I/O Select 16-Bit Transfer
Reserved
ISA Interrupt Request 05
ISA Interrupt Request 07
Clock Output

Tri-State Output
Tri-State Output
Tri-State Output
N/A
Tri-State Output
Output
Output

67
68
69
70
71
72

ISA_DRQ_01
ISA_DACK_01
ISA_DRQ_03
ISA_DACK_03
ISA_IOR
ISA_IOW

ISA DMA Request 01
ISA DMA Acknowledge 01
ISA DMA Request 03
ISA DMA Acknowledge 03
ISA I/O Read
ISA I/O Write

Tri-State Output
Input
Tri-State Output
Input
Input/Output
Input/Output

73
74
7579
80
81

ISA_IRQ_09
ISA_RESDRV
ISA_SA00SA04
V

GND

ISA Interrupt Request 09
Chip Reset
ISA Address Bus
Power Supply
Ground

Tri-State Output
Input
Input/Output

8296
97
98
99106
107
108
109112

ISA_SA05SA19
ISA_AEN
ISA_I0CHRDY
ISA_SD_0007
AV

ADC_VREF_HI
ADC_03

Address Bus
ISA Bus Address Enable
ISA Channel Ready
ISA Data Bus
Analog Supply
ADC Voltage Reference High
Joystick Button 0003

8292: I/O; 93-96: Tri O
Input
Open-Drain Output
Input/Output

Input
Input/Output

113116
117
118
119
120

ADC_47
ADC_VREF_LO
AGND
MIDI_RX
V

Gameport ADC 0407
ADC Voltage Reference Low
Analog Ground
MIDI Input
Power Supply

Input
Input

Input

121
122
123
124
125

GND
MIDI_TX
CODEC_SCLK
CODEC_SD_IN
CODEC_SD_OUT

Ground
MIDI Output
Serial Clock Signal
Serial Data In
Serial Data Out

Output
Output
Input
Output

126129
130
131
132

CODEC_STROBE_03
V

CLK
GND

Serial CODEC Chip Select Strobe
Power Supply
System Clock
Ground

Output

Input

133136
137140
141
142
143

MODE_03
AUX_CS03
V

GND
RAS

Operation Mode Select 00S3
Auxiliary Chip Select 0003
Power Supply
Ground
Ext. DRAM Row Address Strobe

Input
Output
Input

Output

Table 1. 160-Pin QFP Pin Identification

Pin #

Symbol

Function

Direction

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-7

ABSOLUTE MAXIMUM RATINGS

Stresses greater than those listed under Absolute Maxi-
mum Ratings may cause permanent damage to the de-
vice. This is a stress rating only; operation of the device at
any condition above those indicated in the operational sec-

tions of these specifications is not implied. Exposure to ab-
solute maximum rating conditions for an extended period
may affect device reliability.

RECOMMENDED OPERATING CONDITIONS

DC CHARACTERISTICS

= 4.5 V to 5.5V @ 0

C to +70

Sym

Description

Min

Max

Units

Supply Voltage

0.5

+6.5

STG

Storage Temp

+150

Voltage on any Pin

0.5

Maximum Output Leakage

per I/O Pin

Oper Ambient Temp.

Sym

Description

Min

Max

Units

Supply Voltage

4.75

+5.25

Oper Ambient Temp

Sym

Parameter

Min

Typ.

Max

Unit

Low-Level Input Voltage

0.5

0.8

High-Level Input Voltage

2.0

Low-Level Output Voltage

0.4

High-Level Output Voltage

2.4

Power

Supply Current (crystal freq. = 50 MHz)

TBD

Z89340
Digital Wavetable Engine

1-12

P R E L I M I N A R Y

DS96DSP0201

CODEC INTERFACE TIMING DIAGRAM

PIN FUNCTIONS

ADC_VREF_HI, ADC_VREF_LO. Analog-to-Digital Con-
verter Voltage Reference.

ADC_03 (I/O). Joystick button 0-3.

ADC_47 (Input). Game port 4-7.

AGND. Analog Ground.

AUX_CS03 (Ouput). Auxiliary chip-select. These pins
are used to select the CD-ROM interfaces.

AVDD. Analog Supply.

CAS (Output). Column Address Strobe Output. This mem-
ory address strobe is used in conjunction with the address
lines ROMADD01R0MADD23.

CLKOUT (Output). Clock Output.

CODEC_SCLK (Output). Serial clock signal 0-1.

CODEC_SD_IN (Input). Serial data in 0-1.

CODEC_SD_OUT (Output). Serial data out 0-1.

CODEC_STROBE_03 (Output) Serial CODEC chip se-
lect strobe 0-3.

GND. Ground.

ISA_AEN (Input). ISA Bus Address Enable. This is the ad-
dress enable line and should be connected to the ISA bus
signal of the same name.

ISA_BHE (I/O). ISA Bus High Byte Enable.

ISA_DACK_01,03,05,06,07 (Input). ISA DMA Acknowl-
edge 01,03,05,06,07. These are DMA acknowledge pins
and should be connected to the appropriate ISA bus lines.

ISA_DRQ_01,03,05,06,07 (Tristate/Output). ISA DMA
Request 01,03,05,06,07. These are DMA request pins and
should be connected to the appropriate ISA bus lines.

ISA_IOCHRDY (Output). Connected to the ISA bus signal
of the same name.

ISA_IOCS16 (Tristate/Output). ISA I/0 Select 16-bit Trans-
fer. This pin is used during 16-bit DMA transfers and
should be connected to the ISA bus signal of the same
name.

ISA_IOR (I/O). ISA I/0 Read. This is the I/0 Read. The I/0
read pulse should be connected to the ISA bus signal of
the same name.

ISA_IOW (I/O). ISA I/0 Write. This is the I/0 write pulse line
that should be connected to the ISA bus signal of the same
name.

ISA_IRQ_05,07,09,10,11 (Output). ISA Interrupt Request
05,07,09,10,11. These are Interrupt request pins and
should be connected to the appropriate ISA bus lines.

ISA_LA_1723 (Tri-State Output). ISA Address Bus.
These lines map directly to the PC address bus; the pins
should be connected to the ISA bus address lines of the
same name.

ISA_MASTER16 (Tr-State Output). ISA Master Mode 16-
bit Transfer.

ISA_MEMR (I/O). ISA Memory Read.

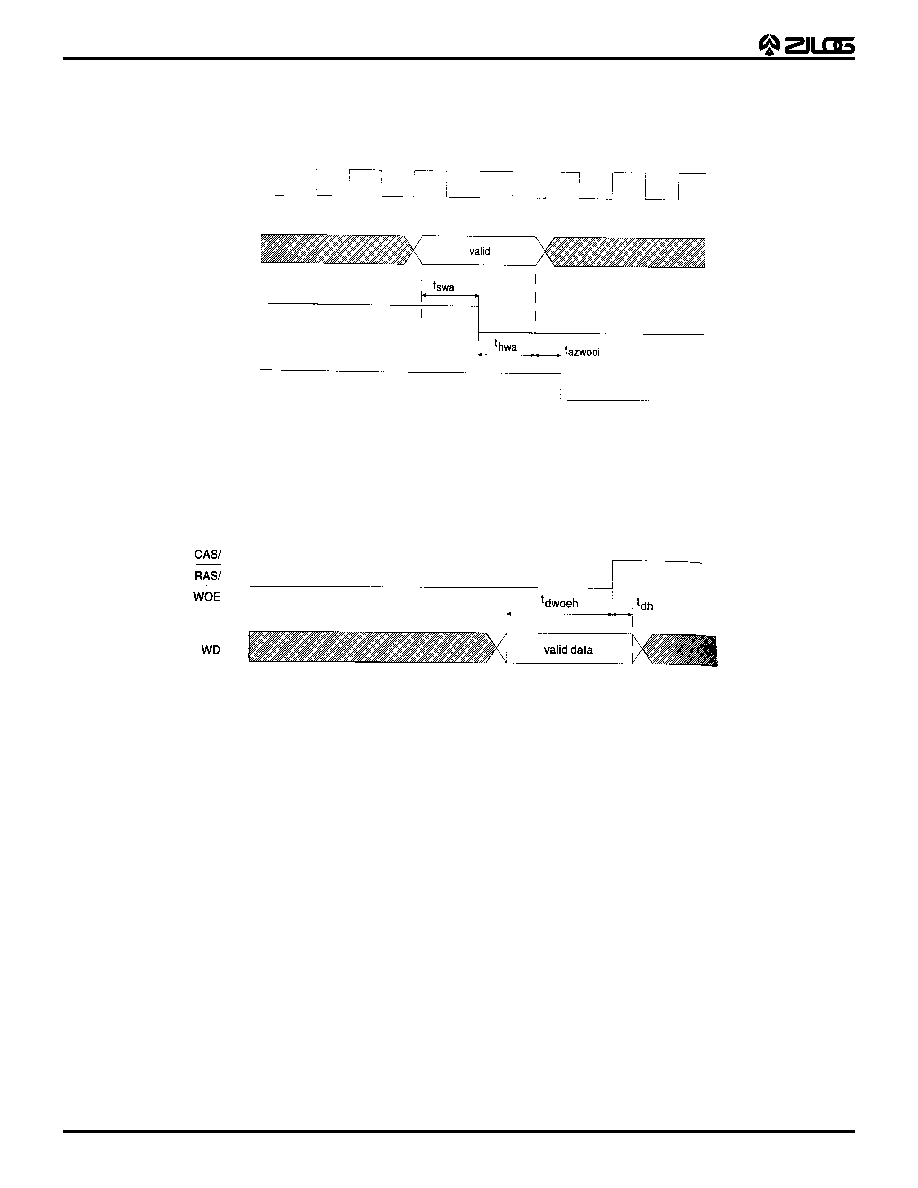

Figure 9. CODEC Interface Timing Diagram

CODEC_STROBE_n

CODEC_SCLK_n

CODEC_SDIN_n

CODEC_SDOUT_n

Z89340
Digital Wavetable Engine

1-13

P R E L I M I N A R Y

DS96DSP0201

PIN FUNCTIONS (Continued)

ISA_MEMW (I/O). ISA Memory Write.

ISA_SA_04 (I/O). ISA Address Bus.

ISA_SD_0815 (I/O). Data Bus. This data bus is used to
transfer data between PC and the Z89340. The lines map
directly to the PC data bus; the pins should be connected
to the ISA bus address lines of the same name.

MIDI_RX (Input). Receives data from MIDI interface.

MIDI_TX (Output). Sends data to MIDI interface.

MODE_S03 (Input). Mode Selection pins that are general
purpose input pins.

DRAM_OE (Output). External DRAM Output Enable. This
signal is an output enable strobe for external DRAM.

DRAM_WE (Output). External DRAM Write Enable. This
signal is a write enable strobe for external DRAM.

RAS (Output). Row Address Strobe Output. This memory
address strobe is used in conjunction with the address
lines ROMADD01R0MADD23.

RESET. (Input). Device Reset.

ROMADD01ROMADD23 (Output). Wavetable ROM Ad-
dress Bus. These lines are used to address external sam-
ple memory.

. Power supply that connects to 5V

5%.

Wave_Data_0E (Output). External Memory Output En-
able. This signal is an output enable strobe for external
sample memory.

Wave_Data_00-15 (I/O). Waveform Memory
DRAM/SRAM/ROM Data Bus. These lines are used to
pass sample data between the Z89340 and external sam-
ple memory.

Z89340
Digital Wavetable Engine

1-14

P R E L I M I N A R Y

DS96DSP0201

FUNCTIONAL DESCRIPTION

Digital Audio Input and Output

The Z89340 has eight output registers with signals that
can be sent to a DAC or CODEC. Four of these can be
used for quadraphonic output and have a panning mecha-
nism called Polar Pan that supports motion in all four quad-
rants. The other four output registers are used internally as
effects channels, but can still send their serial streams to a
DAC, a second Z89340, or other digital signal processor.
The Z89340 also has eight serial input registers whose sig-
nals can be accessed and processed.

Submix Registers

The Z89340 has 16 stereo submix registers. The submix
registers are needed to chain together the various compo-
nents of the reverb, chorus, echo, and flange algorithms.
When the data in a submix register is no longer needed, it
is cleared with bit 7 of the Data Source register in the pa-
rameter block of the pertinent oscillator types. The host
CPU can read and write all oscillator parameter RAM, in-
cluding the submix registers.

Oscillators

The Z89340 is a special-purpose audio processor with an
instruction set designed for music synthesis. Fundamental
to the Z89340 are the 64 full-speed oscillators, the first 48
of which have a half-speed counterpart. Control of an os-
cillator is handled by setting the parameters in the oscilla-
tor's 24-byte parameter block. An oscillator can be used to
generate sound, or it can be used to perform other opera-
tions-input device, tape-loop reverberator, dual tap-reader,
input mixer, and so on. Typical implementations would in-
clude an Z89340, waveform ROM and RAM, and a CPU to
control the Z89340. The CPU is normally connected via
the ISA bus interface. (Refer to Figure 10 for General Pur-
pose Oscillator Address Map.)

The following subsections briefly introduce each of the os-
cillator types. (A detailed description of the Oscillator Pa-
rameter Blocks for each oscillator type follows.)

Half-Speed Oscillators

Half-Speed Oscillators are best suited for playing lower
notes where the upper bandwidth is not critical, since they
operate at half the sampling rate.

Oscillators 0 through 47 (0x2f) can each be split into two
oscillators operating at half the clock rate. This yields 112
oscillators total (2

48 + 16). Oscillators 48 through 63

(0x30 through 0x3f) can only operate at the full clock rate
since the parameter RAM that would be needed for their
half-speed counterparts is unavailable

They can also be used for higher notes with simple wave-
forms that have few significant upper harmonics. For ex-

ample, at a sampling rate of 48 kHz, the Half-Speed Oscil-
lators will have a sampling rate of 24 kHz, so the maximum
frequency that can be produced by these oscillators with-
out aliasing is under 12 kHz. This bandwidth is adequate
for many sounds, but not suitable for high strings, cymbals,
or other crisp or bright sounds. An empirical listening test
will help determine if a Half-Speed Oscillator can be used
for a particular situation. The obvious advantage to using
Half-Speed Oscillators wherever possible is that more
notes can be played at the same time.

Sample Loop Oscillators/Wavetable Mode
Oscillators

For music synthesis, the Z89340 Sample Loop and Wavet-
able Mode Oscillators are the main workhorses. They are
interpolating wavetable look-up oscillators and perform the
tasks of fetching two adjacent samples from waveform
memory. They interpolate between them based on the cur-
rent phase angle (frequency and time), filtering, scaling,
and routing the resulting signal to multiple effects sends
and output channels. These oscillators can use 8- or 16-bit
linear PCM samples. The ADPCM oscillators described
later are similar in function and use ADPCM (IMA and DVI
4- or 8-bit samples).

Sample Loop Oscillators

Sampling
One of the more popular methods of re-creating or re-syn-
thesizing the sound of a traditional acoustic musical instru-
ment is through a process referred to as sampling or PCM
(pulse-code modulation) synthesis. A sample, in the strict-
est sense, is a value taken at a specified point in time that
represents the instantaneous amplitude of the subject
waveform. A digital recording consists of a sequence of
amplitude values sampled at evenly spaced intervals of
time. The term "sample" sometimes refers to the sequence
of samples found in a digital recording. (This usage is es-
pecially popular throughout the music industry.) This digi-
tal recording is much like the recording that would be cap-
tured with a tape recorder, except that it can be stored in
digital memory, and as such, can be randomly accessed.

Looping
To reduce the length of the recording to make it fit in a lim-
ited memory space, the most common form of processing
used with sampling is looping. The process of looping can
be briefly described as follows: The synthesizer plays the
original recording of a note up to a designated time point,
whereupon it plays a short sequence of samples that de-
scribe one or more periods of the temporally varying wave-
form-the "loop." The loop is then repeated until the note
stops. A decaying amplitude envelope is often imposed
upon the loop so that the sound will decay naturally. The
Sample Loop Oscillator is designed to facilitate looping al-
gorithms with single or multiple loops.

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-15

Wavetable Synthesis

Another method of synthesizing sound is sometimes
called wavetable synthesis. The Wavetable Mode Oscilla-
tor has some wavetable-synthesis extensions that set it
apart from the Sample Loop Oscillator. With wavetable
synthesis, one or more complete periods of a waveform
are recorded and stored in a wavetable. The wavetable is
then played at the desired frequency. This is similar to the
loop described earlier except that the wavetable is often
not a recording, but a single period of a sound created
through additive synthesis. The Z89340 can move to other
wavetables or stay on the same wavetable during the life
of a note.

To play a note or sample sequence from waveform ROM,
you would set the following: desired frequency, wave be-
gin and end addresses, wave loop length, the initial ampli-
tude envelope begin and end values, envelope rate, Am-
plitude/Tremolo/Filter/Pan (ATFP) envelope type to
amplitude, output channel(s), effects send(s), pan loca-
tion, and filter tuning values. All of these settings can be
changed during the life a note as desired. All oscillators are
completely independent of each other, even for features
such as vibrato rate and filter cutoff points.

The Z89340 assumes that the amplitude envelope will oc-
cur in multiple segments-attack segment, several initial de-
cay segments, possibly a sustained segment, and several
final decay segments. On-chip support is given for one en-
velope segment at a time. An interrupt is generated when
the segment end is reached, at which time the host CPU
will set up the next amplitude segment, supplying a new
amplitude end value and envelope rate (the slope that de-
fines how long it will take to reach the end amplitude). It is
not critical that the interrupt be serviced immediately; a de-
lay of 1020 milliseconds (ms) normally is not noticed; the
amplitude merely remains stationary until the new seg-
ment is initiated. The Z89340 has amplitude steps well be-
low the threshold of perceptibility, so there is no zipper
noise. If there is a sustained segment (one where the am-
plitude does not change), the Envelope-type ATFP con-
trols can be used to define the envelope rate parameter as
tremolo rate; tremolo depth can then be set. If tremolo is
not needed, the ATFP envelope system can also be used
for variable pan or swept filter. (Refer to the Oscillator Pa-
rameter Block section for a detailed description of each
control bit.)

Vibrato is independent of the ATFP system. There are 16
settings of vibrato rate ranging from 0.110 Hz, and 16 dif-
ferent settings of vibrato depth ranging from plus or minus
a few cents to two semitones.

Note: A semitone is equivalent to 2

/12 frequency

multiples; a cent is equivalent to 2

/1200 frequency

multiples.

The vibrato value, which is derived from a sinewave in-
dexed by the vibrato phase accumulator, is added to or
subtracted from the frequency. The initial vibrato phase
can be set by writing a value to the 8-bit vibrato phase ac-
cumulator-value of 64 is

/2 radians, which would start the

vibrato at maximum positive swing.

Each oscillator has its own second-order (two-pole, two-
zero) digital filter. At the initialization of an oscillator, the
two delays should be given values of 0 unless a click is de-
sired. The filter Q (in the Control Byte) and the filter tuning
value are used together to set the desired characteristics
of the filter. Low-pass filters with varying amounts of Q are
available. A few useful high-pass and band-pass filter set-
tings are also provided. The ATFP envelope system can
be used to create a variable or swept low-pass filter. (Refer
to the tables in the Oscillator Parameter Block section for
details.)

The Polar Pan Control provides selection of output chan-
nels and pan between or among up to four output chan-
nels. When four channel quadraphonic output is selected,
the spatial location is specified with a modified polar coor-
dinate-a value of 16 is

/2 radians. The radius select is a

two-bit number with 2 at the edge of the circle and 0 near
the center of the circle. A radius of 3 is reserved for stereo
panning when only two output channels are needed. (Oth-
er items such as effects channels and submix channels
are covered in sections that follow.) All parameters in the
Oscillator Parameter Block can be modified by the CPU
during the life of a note.

Z89340
Digital Wavetable Engine

1-18

P R E L I M I N A R Y

DS96DSP0201

FUNCTIONAL DESCRIPTION (Continued)

Tape Loop Oscillator

The Tape Loop Oscillator takes its input from an input reg-
ister, an effects channel, or a submix register. It then reads
a sample from wave RAM, and writes the scaled input val-
ue plus the scaled and filtered sample from wave RAM
back to the same location in wave RAM. It behaves very
much like a tape recorder with a loop of tape, hence the
name "Tape Loop." Echo and single-delay reverberation
can be accomplished with the Tape Loop Oscillator. The
amount of delay is set with the Wave Loop Length regis-
ters, and can be more than a second if you are willing to

dedicate the necessary RAM. This oscillator can also be
used to transfer input from a ADC that is connected to one
of the input registers. In this way the input can be buffered
in RAM for later use by the CPU host, or processing can
be done by the Z89340 before sending the signal to a ste-
reo submix register pair or one or more output channels.
The Tape Loop Oscillator can also perform the function of
the comb filter component of reverb algorithms (Figure
12).

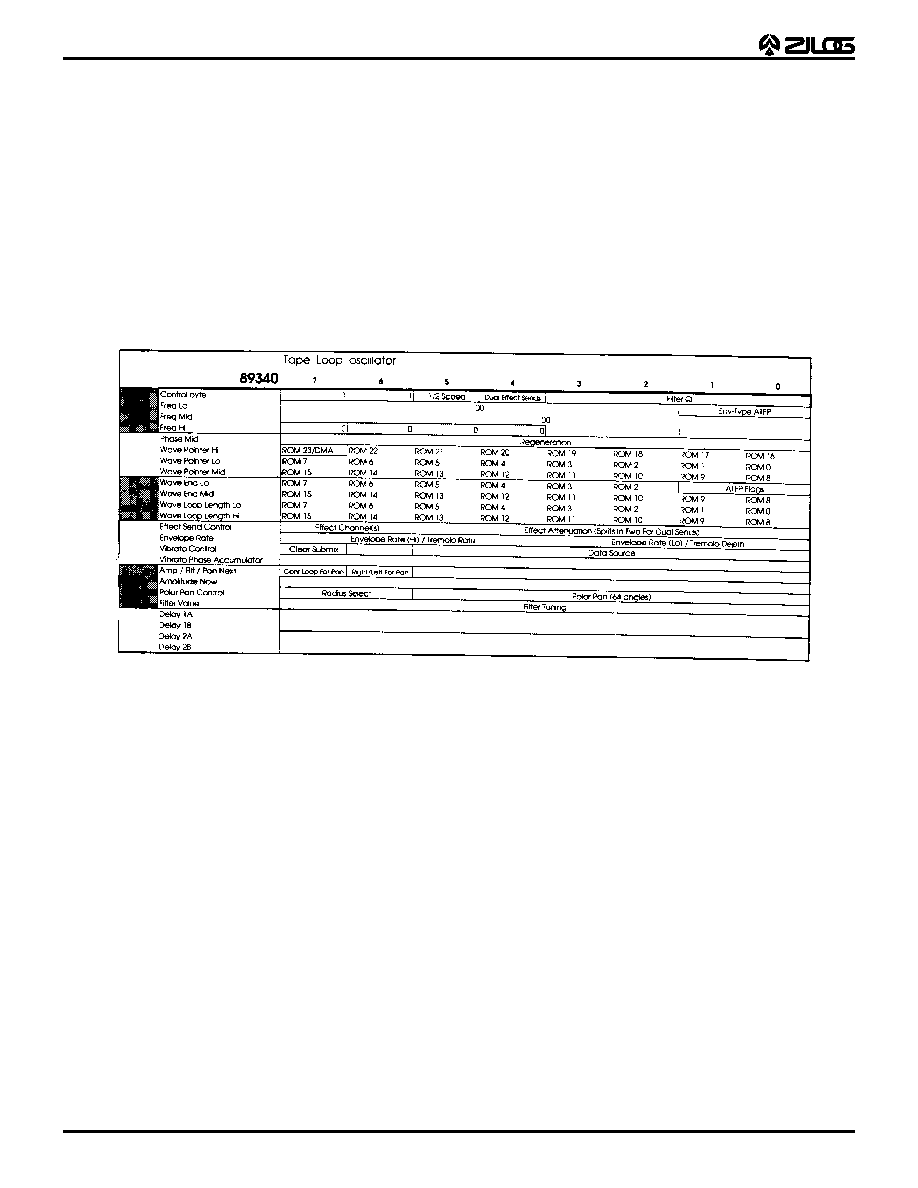

Figure 12. The Tape Loop Oscillator Address Map

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-21

Input Data Streamer

Samples can be moved via DMA from the CPU host RAM
to the Z89340 wavetable RAM space. Up to 48 channels

of bus-mastered DMA are available (Figure 15).

OSCILLATOR PARAMETER BLOCKS

An oscillator is controlled by the host CPU by writing com-
mands in the on-chip RAM that is associated with the os-
cillator. This RAM is called the Oscillator Parameter Block.
The following pages present, for each of the oscillator
types, a description of the bit fields in the 24 bytes of the
Oscillator Parameter Block. Address 0 in the block is the
Control Byte.

The two bits of Oscillator Type deserve special mention.
Extended Opcodes are enabled when both of these bits
are set, and the high four bits of Frequency Hi specify
which extended opcode to use. Because the Sample Loop
and Wavetable Mode oscillators are so similar, they are
presented together. The Wavetable Mode oscillator, how-
ever, is an extended opcode.

Sample Loop/Wavetable Mode Oscillators

Control Byte

address 0

Filter Q

bits 0-3

Each oscillator has a variable filter. These bits allow ad-
justment of the filter Q. (Refer to Filter Tuning Value for
more information.)

Dual Effect Sends

bit 4

When this bit is set, the oscillator talks to two effect chan-
nels-the effect channel chosen with Effect Channel in the
Effect Send Control Byte, and the subsequent channel
(wraps to effects channel 0 if the last channel is chosen).

This system allows choosing two of the four effects chan-
nels at a time in all but two of the possible combinations.

Half-Speed

bit 5

Half-speed: Oscillators 0 through 47 (0x2f) can each be
split into two oscillators operating at half the clock rate.
This yields 112 oscillators total (2

48 + 16).

Oscillators 48 through 63 (0x30 through 0x3f) can only op-
erate at the full clock rate since the parameter RAM is un-
available that would be used as their half-speed counter-
parts.

Oscillator-type

bits 6-7

These bits define the operating mode of the oscillator:

00-If all 8 bits of the Control Byte are 0, the oscillator shuts
off completely regardless of the settings of the other pa-
rameters. To prevent an oscillator from sending output to
any channel without shutting it down, use the special si-
lence command in the Polar Pan control.

01-8-bit linear PCM wavetable data.
10-16-bit linear PCM wavetable data.
11-extended opcode. For Wavetable Mode, set the upper
four bits of Frequency Hi to 0100.

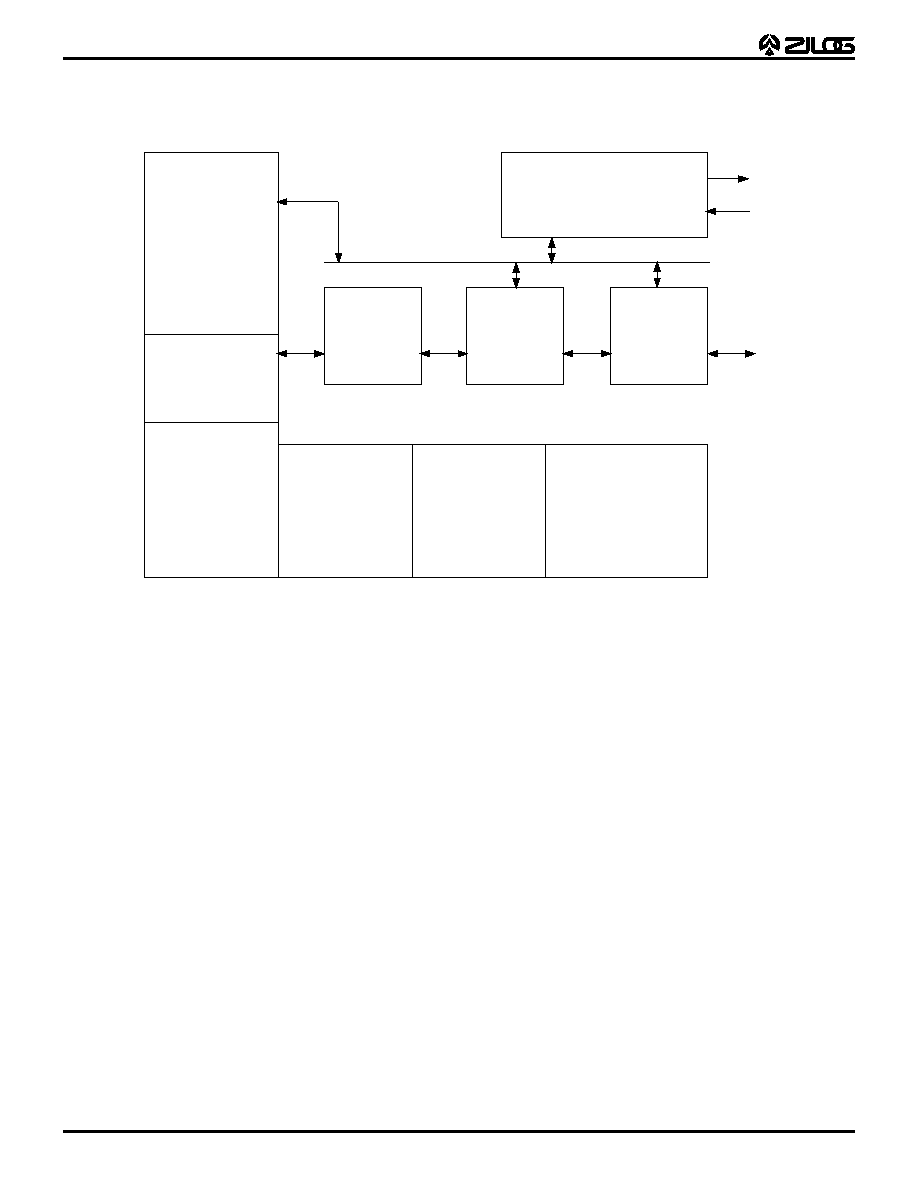

Figure 15. The Input Data Streamer Address Map

Z89340
Digital Wavetable Engine

1-22

P R E L I M I N A R Y

DS96DSP0201

OSCILLATOR PARAMETER BLOCKS (Continued)

Frequency Low

address 1

Envelope-type ATFP

bits 0 and 1

Four types of envelope segments are supported, but only
one at a time. Amplitude/Tremolo/Filter/Pan Envelope-
type control bits.

00-Amplitude
01-Tremolo
10-Filter
11-Pan.

Frequency Low

bits 2-7

These are the lowest six bits of the 22-bit linear frequency

Frequency Mid

address 2

bits 0-7

These are the middle eight bits of the 22-bit linear frequen-
cy.

Frequency Hi

address 3

Frequency Hi

bits 0-7

(Sample Loop Oscillator only)
These are the highest eight bits of the 22-bit linear fre-
quency. Frequency is represented as a linear two's-com-
plement value. A negative frequency plays the sound
backwards.

Frequency Hi

bits 0-3

(Wavetable Mode Oscillator only)
These are the highest four bits of the 18-bit linear frequen-
cy. Frequency is represented as an unsigned linear value.
With the Wavetable Mode Oscillator, the upper four bits
are an extended opcode and must be 0100; negative fre-
quencies are not possible with the remaining 18 bits of lin-
ear frequency.

Extended Opcode

bits 4-7

(Wavetable Mode Oscillator only)
With the Wavetable Mode Oscillator, the upper four bits of
Frequency Hi are one of the extended opcodes and must
be 0100.

Phase

address 4

Phase

bits 0-7

The eight bits of Phase, along with the 16 bits of Wave
Pointer Mid and Lo, are that part of the wave address that
is modified by the oscillator through the life of the note as
it steps from sample to sample based on frequency. The
upper bits of the wave ROM address are set at initialization
and remain fixed (Wave Pointer Hi). Wave Pointer Lo
points to a sample in ROM or RAM. Phase gives the dis-
tance between the sample and the subsequent sample.

The oscillator does a piecewise linear interpolation be-
tween the two samples. To further reduce conversion er-
ror, eight bits of smoothing are added below Phase in the
internal processing. Phase is generally given a value of 0
at the start of a note.

Wave Pointer Hi

address 5

ROM16-ROM23

bits 0-7

The eight bits of Wave Pointer Hi control wave ROM or
RAM address lines 16-23, which are the highest address
bits. This value remains fixed throughout the life of a note.
The lower bits of Wave Pointer are changed by the Z89340
during the life of a sound until they equal Wave Endpoint.

ROM23/DMA

bit 7

If DMA bus-mastering mode is enabled, this bit enables
DMA for the oscillator. The address then becomes an ISA
Bus host CPU RAM address. DMA has system conse-
quences and should be used with caution. In particular,
fewer oscillators can be active at the same time. Tape
Loops should not be used because of limitations of data
transmission across the ISA bus.

Wave Pointer Lo

address 6

ROM0-ROM7

bits 0-7

The eight bits of Wave Pointer Lo are part of the wave ad-
dress that is modified by the oscillator through the life of
the note as it steps from sample to sample based on fre-
quency corresponding to ROM or RAM address bits 0-7.
The upper bits of the wave ROM address are set at initial-
ization and remain fixed (Wave Pointer Hi). Wave Pointer
Lo points to a sample in ROM or RAM. (Refer to Phase
and Wave Pointer Mid.) Wave Pointer Lo contains the low-
est bits of the start address when a note is begun.

Wave Pointer Lo and Wave Pointer Mid are changed by
the Z89340 during the life of a sound until they are equal
Wave Endpoint.

Wave Pointer Mid

address 7

ROM8-ROM15

bits 0-7

The eight bits of Wave Pointer Mid point to a block of 256
samples. This 256 sample block can be considered a
wavetable for use in wavetable synthesis. For sample-se-
quence playback, Wave Pointer Mid forms the upper eight
bits of the 16-bit sample pointer; Wave Pointer Lo holds
the lower eight bits. This allows sample sequences of up
to 64K samples. Wave Pointer Mid contains eight bits of
the start address when a note is begun. Wave Pointer Lo
and Wave Pointer Mid are changed by the Z89340 during
the life of a sound until they equal Wave Endpoint.

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-23

Wave Endpoint Lo/
AWS/Interleave Size

address 8

ATFP Flags

bits 0 and 1

These bits are active for the selected envelope types in
Frequency Lo. The bits have a separate meaning for
Tremolo from the other types.

Amplitude/Filter/Pan envelope flag bits:

00-Off
01-Wait
10-In process
11-Done

Tremolo envelope flag bits:

bit 0-Enable
bit 1-Polarity

Interleave Size

bits 2-3

(Wavetable Mode Oscillator only)
With wavetable synthesis, one or more complete periods
of a waveform are stored in a wavetable. Interleave is the
distance between wavetables. Normally Interleave Size
will equal Table Size so that the wavetable will be contigu-
ous. For compatibility with existing sound libraries, other
interleaves are available.

00-64 Samples
01-128 Samples
10-256 Samples
11-512 Samples

AWS

bit 4

(Wavetable Mode Oscillator only)
With wavetable synthesis, one or more complete periods
of a waveform are stored in a wavetable. We Change the
Wave Endpoint when we want to move to the next wavet-
able. How the sound moves from the current wavetable to
the next is controlled by AWS (Automatic Wave Select).
When AWS is 0, the sound loops on the current wavetable
as long as Wave Endpoint equals Wave Pointer. When
Wave Endpoint is changed, the Z89340 jumps to the
wavetable pointed to by Wave Endpoint as soon as it plays
the last sample of the current wavetable pointed to by
Wave Pointer. Wave Pointer is then set equal to Wave
Endpoint. When AWS is 1, all samples in the wavetables
between Wave Pointer and Wave Endpoint are also
played. The Z89340 the loops on the wavetable pointed to
by Wave Endpoint.

ROM5-ROM7

bits 5-7

(Wavetable Mode Oscillator only)
With wavetable synthesis, one or more complete periods
of a waveform are stored in a wavetable. The wavetable
can be played at any desired frequency.

ROM2-ROM7

bits 2-7

(Sample Loop Oscillator only)
For sample loop systems, Wave Endpoint is the last sam-
ple in the sample sequence. When this last sample is
played, the Z89340 subtracts Wave Loop Length from the
Wave Pointer. Note that since only six bits are available for
Wave Endpoint Lo, the sample sequence can only end on
every fourth address. Wave Loop Length does not have
this restriction.

Wave Endpoint Hi

address 9

ROM8-ROM15

bits 0-7

(Refer to Wave Endpoint Lo.)

Wave Loop Length Lo

address A

Table Size

bits 0 and 1

(Wavetable Mode Oscillator only)
With wavetable synthesis, one or more complete periods
of a waveform are stored in a wavetable. Table Size is the
size of the wavetable. Interleave is the distance between
wavetables. Normally Interleave Size will equal Table Size
so that the wavetable will be contiguous. For compatibility
with existing sound libraries, other interleaves are avail-
able.

00-64 Samples
01-128 Samples
10-256 Samples
11-512 Samples

ROM2-ROM7

bits 2-7

(Wavetable Mode Oscillator only)
For Wavetable Mode Oscillators, this should be 0.

ROM0-ROM7

bits 0-7

(Sample Loop Oscillator only)
A sample sequence is played by setting Wave Pointer to
the first sample in the sequence and Wave Endpoint to the
last sample in the sequence. For many sounds, we then
repeat or loop the last portion of the sequence. Wave Loop
Length is the length of the loop.

Wave Loop Length Hi

address B

ROM8-ROM15

bits 0-7

(Refer to Wave Loop Length Lo.)
For Wavetable Mode Oscillators, this should be 0.

Z89340
Digital Wavetable Engine

1-24

P R E L I M I N A R Y

DS96DSP0201

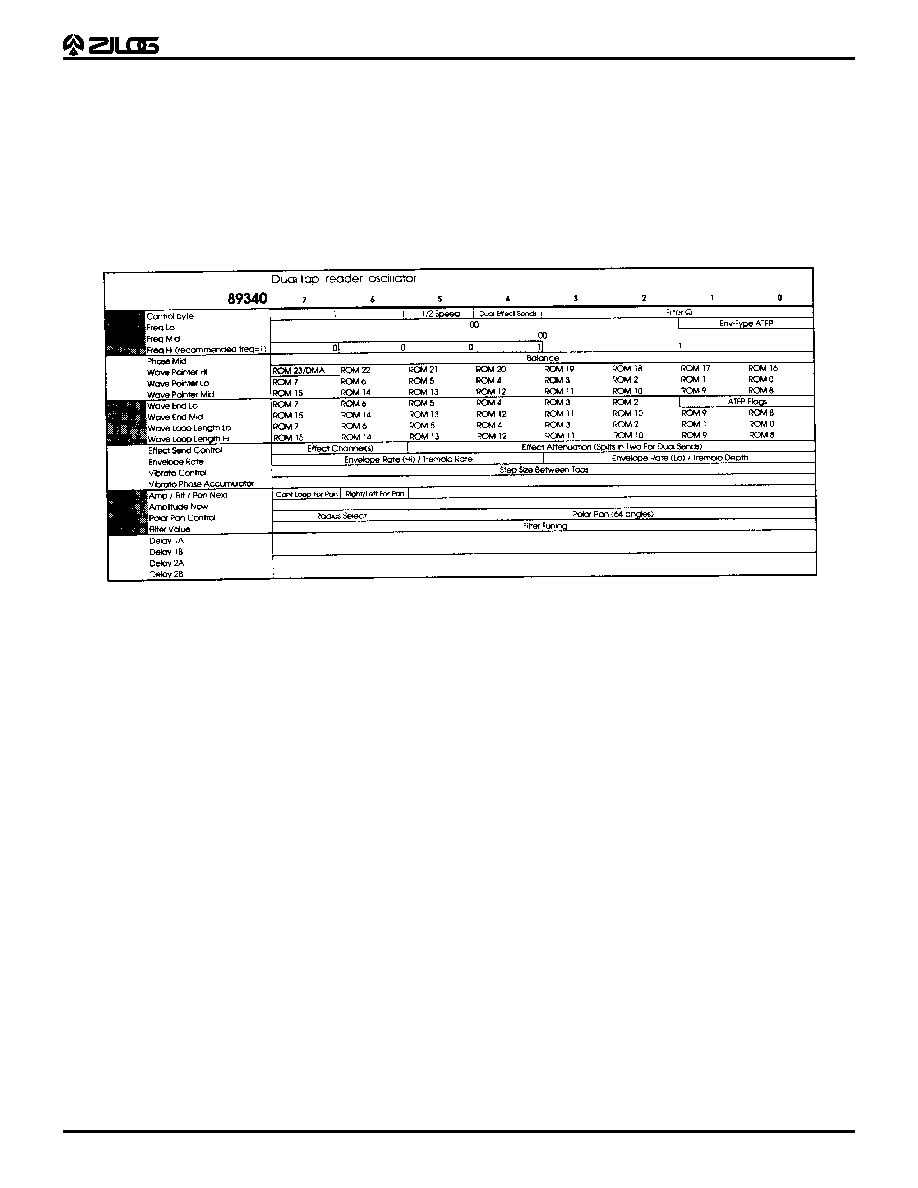

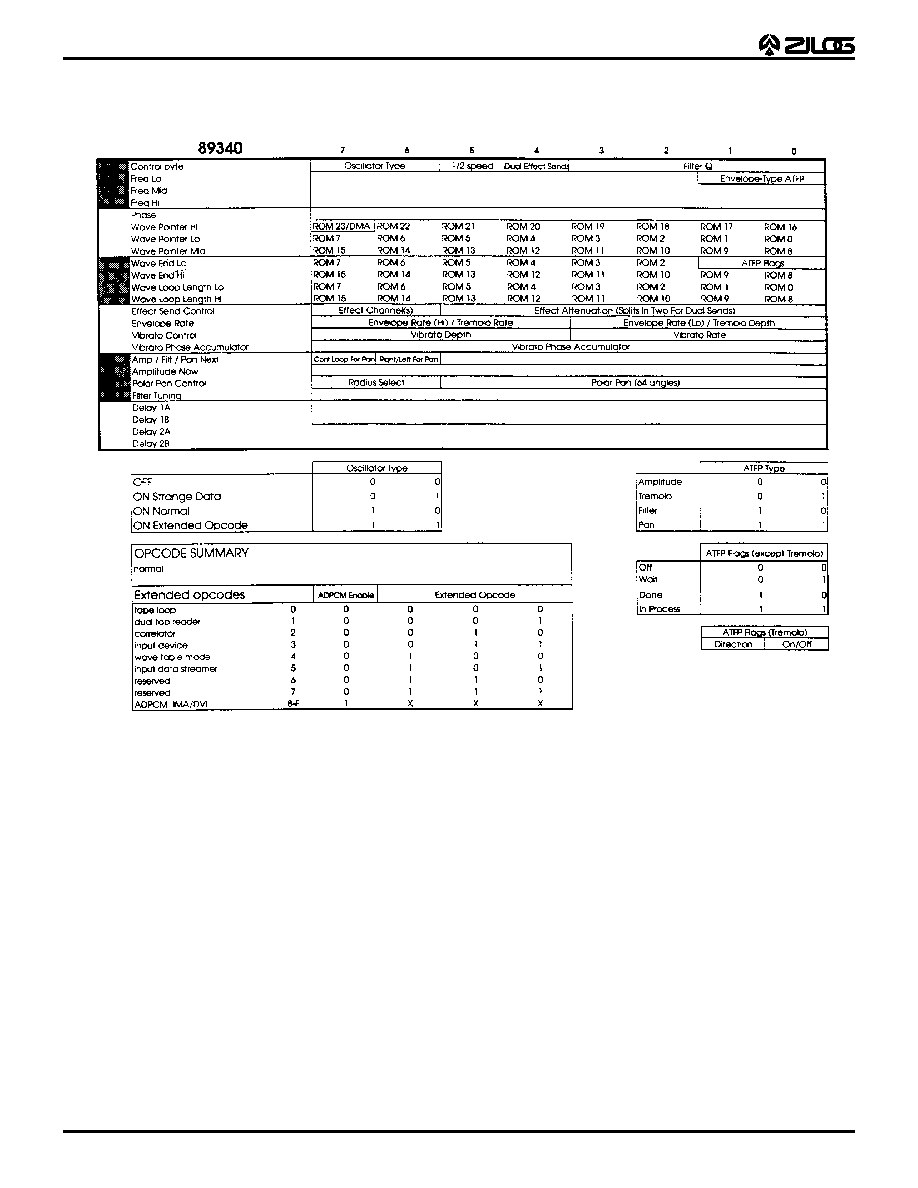

OSCILLATOR PARAMETER BLOCKS (Continued)

Effects Send Control

address C

Effects Attenuation(s)

bits 0-5

These six bits control the amount of signal that will be sent
to the selected Effects Channel (bits 6-7). Since the signal
will be sent to two effects output channels if the Dual Effect
Sends bit in the Control Byte is set, the Effects attenuation
splits into two 3-bit attenuation values, with bits 0-2 as the
attenuation for the channel selected by the Effects Chan-
nel, and bits 3-5 as the attenuation for the subsequent
channel.

Effects Channel

bits 6-7

These two bits are used to select one of four effects output
channels. These output channels can be used internally by
the Z89340, and they can also be sent to a DAC or CO-
DEC. If the Dual Effect Sends bit in the Control Byte is set,
the signal will be sent to two effects channels, the one se-
lected here and the subsequent channel.

Envelope rate

address D

When ATFP selects Amplitude, Filter, or Pan:

Envelope Rate

bits 0-7

With Amplitude, the eight bits of Envelope Rate are an un-
signed exponential representation of the slope between
the amplitudes at the two envelope segment ends. This is
the rate that defines how long it will take to reach the end
amplitude, Amplitude Next. An interrupt is generated when
the segment end is reached, at which time the host CPU
will set up the next amplitude segment, supplying a new
Amplitude Next value and Envelope rate. A similar proce-
dure is followed when ATFP selects Filter or Pan.

When ATFP selects Tremolo:

Tremolo Rate

bits 0-3

The four bits of Rate are an unsigned exponential number
that give rates ranging from 0.1 to 10 Hz.

Tremolo Depth

bits 4-7

These four bits specify depths of 1.5 to 24 decibels.

Amp/Filt/Pan Next

address E

When ATFP selects Amplitude:

Amplitude Next

bits 0-7

Amplitude is expressed in an unsigned logarithmic unit
called a hexadecibel or "hexabel" for short. The upper four
bits of the hexabel are a base-two exponent and the lower
four bits form the mantissa. There are 256 hexabel steps
in 96 decibels, so 2.667 hexabels = 1 decibel. At the initial-
ization of a note, set Amplitude Now and Amplitude Next
with the endpoints of an amplitude envelope segment.
Also set the Envelope Rate. For subsequent amplitude en-

velope segments, only set Amplitude Next and Envelope
Rate, because Amplitude Now always equals Amplitude
Next at the end of an envelope segment.

When ATFP selects Filter:

Filter Tuning Next

bits 0-7

Filter Tuning Next works in a way similar to Amplitude
Next.At the initialization of a filter envelop segment, set Fil-
ter Tuning value and Filter Tuning Next with the endpoints
of the filter envelope segment. Also set the Envelope Rate.

When ATFP selects Pan:

Pan Angle Next

bits 0-5

Pan Next works in a way similar to Amplitude Next or Filter
Tuning Next, except that there are only six bits of pan po-
sition. At the initialization of a pan segment, set Polar Pan
Angle and Pan Angle Next with the endpoints of the pan
envelope segment. Also set the Envelope Rate.

Pan Direction

bit 6

A 1 indicates counterclockwise rotation, and a 0 indicates
clockwise rotation.

Pan Continuous Loop

bit 7

If this bit is a 0, an interrupt is generated to let the host CPU
know that the panning has completed. If this bit is set, pan
continues around this circle indefinitely. No interrupt is
generated when Pan Angle Next is reached.

Amplitude Now

address F bits 0-7

(Refer to the previous discussion on Amplitude Next.) If
ATFP amplitude envelopes are not being used, this will be
the amplitude of the oscillator--a steady or sustained am-
plitude segment. Amplitude Now can be changed whenev-
er desired; however, changing Amplitude Now more than
1 hexabel will usually cause a noticeable click. Even a 1
hexabel change will sometimes cause a click. To eliminate
clicks or zipper noise, use the amplitude envelope system.

Polar Pan Control

address 10

Polar Pan Angle

bits 0-5

There are four main output channels. The spatial location
among them is specified with a modified polar coordi-
nate--a value of 16 is

/2 radians, 32 is

radians, 48 is

/2 radians, and so on.

Polar Pan Radius

bits 6-7

The radius select is a two-bit number with 2 at the edge of
the circle and 0 near the center of the circle. A radius of 3
is reserved for stereo panning when only two output chan-
nels are needed. When the radius is 3, the following spe-
cial values of Pan Polar Angle are defined:

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-25

Filter Tuning Value

address 11

bits 0-7

This byte specifies what the coefficients of the second-or-
der (two-pole, two-zero) digital filter should be in order to
characterize the response. The filter Q can also be adjust-
ed.

Vibrato Control

address 12

Vibrato Rate

bits 0-3

The four bits of Rate are an unsigned exponential number
that give rates ranging from 0.1 to 10 Hz.

Vibrato Depth

bits 4-7

These four bits specify depths ranging from plus and mi-
nus a few cents to about two semitones.

Vibrato Phase
Accumulator

address 13

The vibrato value is derived from a sinewave represented
by the 8-bit vibrato phase accumulator and is added to or
subtracted from the frequency. The initial vibrato phase
can be set by writing a value to the 8-bit vibrato phase ac-
cumulator--a value of 64 is

/2 radians, which would start

the vibrato at maximum positive swing. If you want the vi-
brato to swing flat first, initialize the Vibrato Phase Accu-
mulator to 128, corresponding to

radians, a zero crossing

in the sinewave just before it swings negative.

Delay 1A

address 14

Delay 1B

address 15

Delay 2A

address 16

Delay 2B

address 17

Each oscillator has its own second-order (two-pole, two-
zero) digital filter. At the initialization of an oscillator, these
two delays should be given values of 0 unless a click is
wanted. If desired, the oscillator audio stream can be ex-
amined or modified by accessing the delay registers.

Oscillator Parameter Block for the Tape Loop
Oscillator

Control Byte

address 0

Filter Q

bits 0-3

Each oscillator has a variable filter. These bits allow ad-
justment of the filter Q. (Refer to Filter Tuning value for
more information.)

Dual Effect Sends

bit 4

When this bit is set, the oscillator talks to two effect chan-
nel, so the effect channel chosen with Effect Channel in
the Effect Send Control Byte, and the subsequent channel
(wraps to effects channel 0 if the last channel is chosen).
This system allows choosing two of the four effects chan-
nels at a time in all but two of the possible combinations.

Half-Speed

bit 5

Half-Speed: Oscillators 0 through 47 (0x2f) can each be
split into two oscillators operating at half the clock rate.
This yields 112 oscillators total (2

48 + 16).

Oscillators 48 through 63 (0x30 through 0x3f) can only op-
erate at the full clock rate since the parameter RAM that
would be used as their half-speed counterparts is unavail-
able.

Oscillator-type

bits 6-7

11-extended

opcode

These bits define the operating mode of the oscillator.
Since Tape Loop is an extended opcode, both bits will be
set to 1. For Tape Loop, set the upper four bits of Frequen-
cy Hi to 0000.

Frequency Low

address 1

Envelope-type ATFP

bits 0 and 1

Four types of envelope segments are supported, but only
one at a time. Amplitude/Tremolo/Filter/Pan Envelope-
type control bits.

00-Amplitude
01-Tremolo
10-Filter
11-Pan

Frequency Low

bits 2-7

Always 0 for Tape Loop.

Frequency Mid

address 2

bits 0-7

Always 0 for Tape Loop.

0-f

stereo pan FRONT channels left to right.

20-2f

stereo pan REAR channels left to right.

sent to one of 32 submix registers. The submix
register is chosen with low five bits of the Effects
Send Control. Submix registers can be selected
as inputs by Tape Loop oscillators (an extended
opcode).

mute the oscillator. The oscillator continues to do
everything else except connect to an output
channel.

sends output to all four output channels equally,
effectively at the center of the circle.

Z89340
Digital Wavetable Engine

1-26

P R E L I M I N A R Y

DS96DSP0201

OSCILLATOR PARAMETER BLOCKS (Continued)

Frequency Hi

address 3

Frequency Hi

bits 0-3

These are:
Extended Opcode

bits 4-7

With the Tape Loop Oscillator, the upper four bits of Fre-
quency Hi are one of the extended opcodes and must be
0000.

Phase

address 4

Regeneration

bits 0-7

This value controls the amount of delayed signal that gets
mixed back into the input of the delay line.

Wave Pointer Hi

address 5

ROM16-ROM23

bits 0-7

ROM23/DMA

bit 7

Wave Pointer Lo

address 6

ROM0-ROM7

bits 0-7

The eight bits of Wave Pointer Lo are part of the wave ad-
dress that is modified by the oscillator through the life of
the note as it steps from sample to sample, based on fre-
quency, corresponding to ROM or RAM address bits 0-7.
The upper bits of the wave ROM address are set at initial-
ization and remain fixed (Wave Pointer Hi). Wave Pointer
Lo points to a sample in ROM or RAM. (Refer to Phase
and Wave Pointer Mid.) Wave Pointer Lo contains the low-
est bits of the start address when a note is begun. Wave
Pointer Lo and Wave Pointer Mid are changed by the
Z89340 during the life of a sound until they equal Wave
Endpoint.

Wave Pointer Mid

address 7

ROM8-ROM15

bits 0-7

bits of the 16-bit sample pointer; Wave Pointer Lo holds
the lower eight bits. This allows sample sequences of up
to 64K samples. Wave Pointer Mid contains eight bits of
the start address when a note is begun. Wave Pointer Lo
and Wave Pointer Mid are changed by the Z89340 during
the life of a sound until they equal Wave Endpoint.

Wave Endpoint Lo

address 8

ATFP Flags

bits 0 and 1

These bits are active for the selected envelope types in
Frequency Lo. The bits have a separate meaning for
Tremolo from the other types.

Amplitude/Filter/Pan envelope flag bits:

00-Off
01-Wait
10-In process
11-Done

Tremolo envelope flag bits:

bit 0-Enable
bit 1-Polarity

ROM2-ROM7

bits 2-7

Wave Endpoint is the last sample in the delay line. When
this last sample location is used, the Z89340 subtracts
Wave Loop Length from the Wave Pointer. Note that since
only six bits are available for Wave Endpoint Lo, the sam-
ple sequence can only end on every fourth address. Wave
Loop Length does not have this restriction.

Wave Endpoint Hi

address 9

ROM8-ROM15

bits 0-7

(Refer to Wave Endpoint Lo.)

Wave Loop Length Lo

address A

Table Size

bits 0 and 1

00-64 Samples
01-128 Samples
10-256 Samples
11-512 Samples

Z89340

Digital Wavetable Engine

DS96DSP0201

P R E L I M I N A R Y

1-27

ROM2-ROM7

bits 2-7

(Wavetable Mode Oscillator only)
For Wavetable Mode Oscillators this should be 0.

ROM0-ROM7

bits 0-7

Wave Loop Length Hi

address B

ROM8-ROM15

bits 0-7

(Refer to Wave Loop Length Lo.)
For Wavetable Mode Oscillators this should be 0.

Effects Send Control

address C

Effects Attenuation(s)

bits 0-5

These six bits control the amount of signal that will be sent
to the selected Effects Channel (bits 6-7). Since the signal
will be sent to two effects output channels if the Dual Effect
Sends bit in the Control Byte is set, the Effects attenuation
splits into two three-bit attenuation values, with bits 0-2 as
the attenuation for the channel selected by the Effects
Channel, and bits 3-5 as the attenuation for the subse-
quent channel.

Effects Channel

bits 6-7

Envelope rate

address D

When ATFP selects Amplitude, Filter, or Pan:

Envelope Rate

bits 0-7

When ATFP selects Tremolo:

Tremolo Rate

bits 0-3

The four bits of Rate are an unsigned exponential number
that give rates ranging from 0.1 to 10 Hz.

Tremolo Depth

bits 4-7

These four bits specify depths of 1.5 to 24 decibels.

Amp/Filt/Pan Next

address E

When ATFP selects Amplitude:
Amplitude Next

bits 0-7

When ATFP selects Filter:

Filter Tuning Next

bits 0-7

When ATFP selects Pan:

Pan Angle Next

bits 0-5

Pan Direction

bit 6

A 1 indicates counterclockwise rotation, and a 0 indicates
clockwise rotation.

Pan Continuous Loop

bit 7

Amplitude Now

address F

bits 0-7

(Refer to the previous discussion on Amplitude Next.)
If ATFP amplitude envelopes are not being used, this will
be the amplitude of the oscillator--a steady or sustained
amplitude segment. Amplitude Now can be changed
whenever desired; however, changing Amplitude Now
more than 1 hexabel will usually cause a noticeable click.
Even a 1 hexabel change will sometimes cause a click. To
eliminate clicks or zipper noise, use the amplitude enve-
lope system.

Z89340
Digital Wavetable Engine

1-28

P R E L I M I N A R Y

DS96DSP0201

OSCILLATOR PARAMETER BLOCKS (Continued)

Polar Pan Control

address 10

Polar Pan Angle

bits 0-5

There are four main output channels. The spatial location
among them is specified with a modified polar coordi-
nate--a value of 16 is

/2 radians, 32 is

radians, 48 is

/2 radians, and so on.

Polar Pan Radius

bits 6-7

Filter Tuning Value

address 11

bits 0-7

This byte specifies what the coefficients of the second-or-
der (two-pole, two-zero) digital filter should be in order to
characterize the response. The filter Q can also be adjust-
ed.

Vibrato Control

address 12

Vibrato Rate

bits 0-3

The four bits of Rate are an unsigned exponential number
that give rates ranging from 0.1 to 10 Hz.

Vibrato Depth

bits 4-6

These three bits specify depths ranging from plus and mi-
nus a few cents to about 1 semitone.

Clear Submix

bit 7

Set this bit when this oscillator should clear the submix
register before placing an output value in it.

Vibrato Phase
Accumulator

address 13

The vibrato value is derived from a sinewave represented
by the 8-bit Vibrato Phase Accumulator, and is added to or
subtracted from the frequency. The initial vibrato phase
can be set by writing a value to the 8-bit Vibrato Phase Ac-
cumulator--a value of 64 is

/2 radians, which would start

the vibrato at maximum positive swing. If you want the vi-
brato to swing flat first, initialize the vibrato phase accumu-
lator to 128 corresponding to

radians, a zero crossing in

the sinewave just before it swings negative.

Delay 1A

address 14

Delay 1B

address 15

Delay 2A

address 16

Delay 2B

address 17

0-f

stereo pan FRONT channels left to right.

20-2f

stereo pan REAR channels left to right.

instead of sending to the output channels, output
is sent to one of 32 submix registers. The submix
register is chosen with low five bits of the Effects
Send Control. Submix registers can be selected
as inputs by Tape Loop oscillators (an extended
opcode).

mute the oscillator. The oscillator continues to do
everything else except connect to an output
channel.

sends output to all four output channels equally,
effectively at the center of the circle.

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: Z89340

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: Z89340

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: Z89340
