PS019906-1003

P r e l i m i n a r y

This publication is subject to replacement by a later edition. To determine whether
a later edition exists, or to request copies of publications, contact:

ZiLOG Worldwide Headquarters

532 Race Street
San Jose, CA 95126
Telephone: 408.558.8500
Fax: 408.558.8300

www.ZiLOG.com

Document Disclaimer

ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other
products and/or service names mentioned herein may be trademarks of the companies with which
they are associated.
©2003 by ZiLOG, Inc. All rights reserved. Information in this publication concerning the devices,
applications, or technology described is intended to suggest possible uses and may be superseded.
ZiLOG, INC. DOES NOT ASSUME LIABILITY FOR OR PROVIDE A REPRESENTATION OF
ACCURACY OF THE INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED IN THIS
DOCUMENT. ZiLOG ALSO DOES NOT ASSUME LIABILITY FOR INTELLECTUAL PROPERTY
INFRINGEMENT RELATED IN ANY MANNER TO USE OF INFORMATION, DEVICES, OR
TECHNOLOGY DESCRIBED HEREIN OR OTHERWISE. Devices sold by ZiLOG, Inc. are covered
by warranty and limitation of liability provisions appearing in the ZiLOG, Inc. Terms and Conditions of
Sale. ZiLOG, Inc. makes no warranty of merchantability or fitness for any purpose Except with the
express written approval of ZiLOG, use of information, devices, or technology as critical components
of life support systems is not authorized. No licenses are conveyed, implicitly or otherwise, by this
document under any intellectual property rights.

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

iii

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Part Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CPU and Peripheral Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

eZ8 CPU Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Purpose I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flash Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
10-Bit Analog-to-Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
UARTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Serial Peripheral Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interrupt Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Reset Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
On-Chip Debugger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DMA Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Signal and Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Available Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pin Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pin Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Register File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Program Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Data Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Information Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Register File Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Register Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Reset and STOP Mode Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reset Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reset Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Power-On Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Voltage Brown-Out Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Watch-Dog Timer Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
External Pin Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

STOP Mode Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

STOP Mode Recovery Using Watch-Dog Timer Time-Out . . . . . . . . . . . . . . . . . . 48
STOP Mode Recovery Using a GPIO Port Pin Transition HALT . . . . . . . . . . . . . . 49

Low-Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
STOP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
HALT Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

General-Purpose I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
GPIO Port Availability By Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
GPIO Alternate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
GPIO Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
GPIO Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Port A-H Address Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Port A-H Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Port A-H Input Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Port A-H Output Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Interrupt Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Interrupt Vector Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Master Interrupt Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Interrupt Vectors and Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Interrupt Assertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Software Interrupt Assertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Interrupt Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Interrupt Request 0 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Interrupt Request 1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Interrupt Request 2 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
IRQ0 Enable High and Low Bit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
IRQ1 Enable High and Low Bit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
IRQ2 Enable High and Low Bit Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Interrupt Edge Select Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Interrupt Port Select Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Interrupt Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Timer Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Reading the Timer Count Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Timer Output Signal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Timer Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Timer 0-3 High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Timer Reload High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Timer 0-3 PWM High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Timer 0-3 Control 0 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Timer 0-3 Control 1 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Watch-Dog Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Watch-Dog Timer Refresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Watch-Dog Timer Time-Out Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Watch-Dog Timer Reload Unlock Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Watch-Dog Timer Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Watch-Dog Timer Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Watch-Dog Timer Reload Upper, High and Low Byte Registers . . . . . . . . . . . . . . 97

UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Transmitting Data using the Polled Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Transmitting Data using the Interrupt-Driven Method . . . . . . . . . . . . . . . . . . . . . . 103
Receiving Data using the Polled Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Receiving Data using the Interrupt-Driven Method . . . . . . . . . . . . . . . . . . . . . . . . 104
Clear To Send (CTS) Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Multiprocessor (9-bit) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
External Driver Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
UART Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
UART Baud Rate Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

UART Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

UART Transmit Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
UART Receive Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
UART Status 0 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
UART Status 1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART Control 0 and Control 1 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
UART Address Compare Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
UART Baud Rate High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Infrared Encoder/Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Transmitting IrDA Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Receiving IrDA Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Infrared Encoder/Decoder Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . 125

Serial Peripheral Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

SPI Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
SPI Clock Phase and Polarity Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Multi-Master Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Slave Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Error Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
SPI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
SPI Baud Rate Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

SPI Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

SPI Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
SPI Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
SPI Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
SPI Mode Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
SPI Diagnostic State Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
SPI Baud Rate High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

I2C Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

SDA and SCL Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
I

C Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Start and Stop Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Write Transaction with a 7-Bit Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Write Transaction with a 10-Bit Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Read Transaction with a 7-Bit Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Read Transaction with a 10-Bit Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

I2C Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

I2C Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
I2C Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

vii

I2C Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
I2C Baud Rate High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
I2C Diagnostic State Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
I2C Diagnostic Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Direct Memory Access Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

DMA0 and DMA1 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Configuring DMA0 and DMA1 for Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . 153
DMA_ADC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Configuring DMA_ADC for Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

DMA Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

DMAx Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
DMAx I/O Address Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
DMAx Address High Nibble Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
DMAx Start/Current Address Low Byte Register . . . . . . . . . . . . . . . . . . . . . . . . . 157
DMAx End Address Low Byte Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
DMA_ADC Address Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
DMA_ADC Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
DMA Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Analog-to-Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Automatic Power-Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Single-Shot Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Continuous Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
DMA Control of the ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

ADC Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

ADC Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
ADC Data High Byte Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
ADC Data Low Bits Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Information Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Timing Using the Flash Frequency Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Flash Read Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Flash Write/Erase Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Byte Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Page Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

viii

Mass Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Flash Controller Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Flash Controller Behavior in Debug Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Flash Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Flash Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Flash Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Flash Page Select Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Flash Sector Protect Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Flash Frequency High and Low Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Option Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Option Bit Configuration By Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Option Bit Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Program Memory Address 0000H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Program Memory Address 0001H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

On-Chip Debugger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

OCD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Debug Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
OCD Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
OCD Auto-Baud Detector/Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
OCD Serial Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Breakpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
OCDCNTR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

On-Chip Debugger Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
On-Chip Debugger Control Register Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

OCD Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
OCD Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

On-Chip Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Crystal Oscillator Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Oscillator Operation with an External RC Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
On-Chip Peripheral AC and DC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . 206
AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

PS019906-1003

P r e l i m i n a r y

Table of Contents

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

General Purpose I/O Port Input Data Sample Timing . . . . . . . . . . . . . . . . . . . . . . 210
General Purpose I/O Port Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
On-Chip Debugger Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
SPI Master Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
SPI Slave Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
I2C Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
UART Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

eZ8 CPU Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Assembly Language Programming Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Assembly Language Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
eZ8 CPU Instruction Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Condition Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
eZ8 CPU Instruction Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
eZ8 CPU Instruction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Flags Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Opcode Maps 238
Packaging 242
Ordering Information 247

Part Number Description 250
Precharacterization Product 250

Document Information 251

Document Number Description 251

Customer Feedback Form 252

The Z8 Encore

! Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Customer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Return Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Problem Description or Suggestion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

PS019906-1003

P r e l i m i n a r y

List of Figures

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

List of Figures

Figure 1.

Z8 Encore!

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Figure 2.

Z8Fxx01 in 40-Pin Dual Inline Package (PDIP) . . . . . . . . . . . . . . . . . . . . . . 7

Figure 3.

Z8Fxx21 in 44-Pin Plastic Leaded Chip Carrier (PLCC) . . . . . . . . . . . . . . . 8

Figure 4.

Z8Fxx21 in 44-Pin Low-Profile Quad Flat Package (LQFP) . . . . . . . . . . . . 9

Figure 5.

Z8Fxx22 in 64-Pin Low-Profile Quad Flat Package (LQFP) . . . . . . . . . . . 10

Figure 6.

Z8Fxx22 in 68-Pin Plastic Leaded Chip Carrier (PLCC) . . . . . . . . . . . . . . 11

Figure 7.

Z8Fxx23 in 80-Pin Quad Flat Package (QFP) . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 8.

Power-On Reset Operation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 9.

Voltage Brown-Out Reset Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 10. GPIO Port Pin Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Figure 11. Interrupt Controller Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 12. Timer Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Figure 13. UART Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Figure 14. UART Asynchronous Data Format without Parity . . . . . . . . . . . . . . . . . . 102
Figure 15. UART Asynchronous Data Format with Parity . . . . . . . . . . . . . . . . . . . . . 102
Figure 16. UART Asynchronous Multiprocessor Mode Data Format . . . . . . . . . . . . 106
Figure 17. UART Driver Enable Signal Timing (shown with 1 Stop Bit and Parity) 108
Figure 18. UART Receiver Interrupt Service Routine Flow . . . . . . . . . . . . . . . . . . . 110
Figure 19. Infrared Data Communication System Block Diagram . . . . . . . . . . . . . . 121
Figure 20. Infrared Data Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Figure 21. Infrared Data Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Figure 22. SPI Configured as a Master in a Single Master, Single Slave System . . . 126
Figure 23. SPI Configured as a Master in a Single Master, Multiple Slave System . . 127
Figure 24. SPI Configured as a Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Figure 25. SPI Timing When PHASE is 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Figure 26. SPI Timing When PHASE is 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Figure 27. 7-Bit Addressed Slave Data Transfer Format . . . . . . . . . . . . . . . . . . . . . . 142
Figure 28. 10-Bit Addressed Slave Data Transfer Format . . . . . . . . . . . . . . . . . . . . . 143
Figure 29. Receive Data Transfer Format for a 7-Bit Addressed Slave . . . . . . . . . . . 144
Figure 30. Receive Data Format for a 10-Bit Addressed Slave . . . . . . . . . . . . . . . . . 145
Figure 31. Analog-to-Digital Converter Block Diagram . . . . . . . . . . . . . . . . . . . . . . 163
Figure 32. Flash Memory Arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Figure 33. On-Chip Debugger Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

PS019906-1003

P r e l i m i n a r y

List of Figures

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Figure 34. Interfacing the On-Chip Debugger's DBG Pin with an

RS-232 Interface (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Figure 35. Interfacing the On-Chip Debugger's DBG Pin with an

RS-232 Interface (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Figure 36. OCD Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Figure 37. Recommended 20MHz Crystal Oscillator Configuration . . . . . . . . . . . . . 198
Figure 38. Connecting the On-Chip Oscillator to an External RC Network . . . . . . . . 199
Figure 39. Typical RC Oscillator Frequency as a Function of the External

Capacitance with a 15kW Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Figure 40. Nominal ICC Versus System Clock Frequency . . . . . . . . . . . . . . . . . . . . 205
Figure 41. Nominal HALT Mode ICC Versus System Clock Frequency . . . . . . . . . 206
Figure 42. Port Input Sample Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Figure 43. GPIO Port Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Figure 44. On-Chip Debugger Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Figure 45. SPI Master Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Figure 46. SPI Slave Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Figure 47. I2C Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Figure 48. UART Timing with CTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Figure 49. UART Timing without CTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Figure 50. Flags Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Figure 51. Opcode Map Cell Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Figure 52. First Opcode Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Figure 53. Second Opcode Map after 1FH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

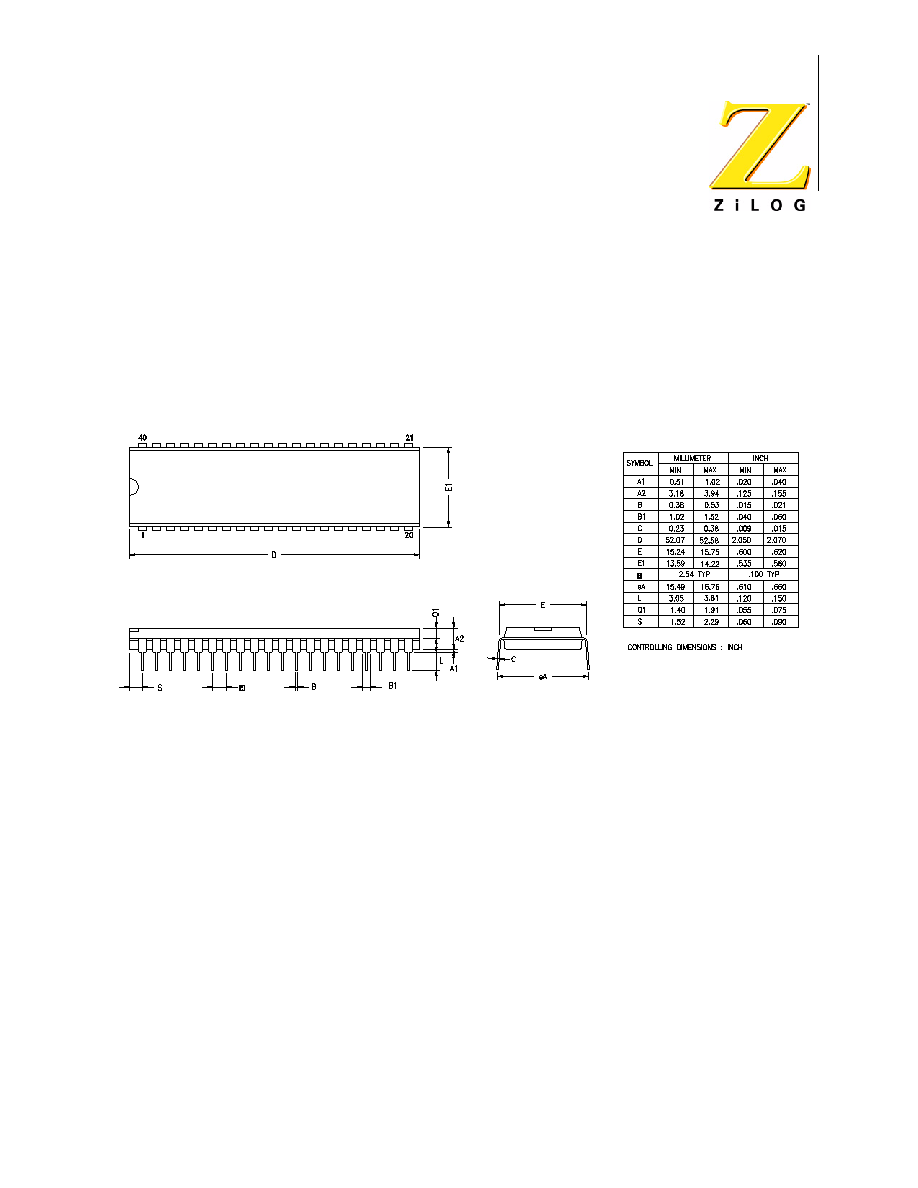

Figure 54. 40-Lead Plastic Dual-Inline Package (PDIP) . . . . . . . . . . . . . . . . . . . . . . 242
Figure 55. 44-Lead Low-Profile Quad Flat Package (LQFP) . . . . . . . . . . . . . . . . . . . 243
Figure 56. 44-Lead Plastic Lead Chip Carrier Package (PLCC) . . . . . . . . . . . . . . . . 244
Figure 57. 64-Lead Low-Profile Quad Flat Package (LQFP) . . . . . . . . . . . . . . . . . . . 244
Figure 58. 68-Lead Plastic Lead Chip Carrier Package (PLCC) . . . . . . . . . . . . . . . . 245
Figure 59. 80-Lead Quad-Flat Package (QFP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

PS019906-1003

P r e l i m i n a r y

List of Tables

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

xii

List of Tables

Table 1.

Z8 Encore!® Part Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table 2.

Z8 Encore!® Package Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Table 3.

Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 4.

Pin Characteristics of the Z8 Encore!

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 5.

Z8F642x Family Program Memory Maps . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 6.

Z8F642x Family Information Area Map . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 7.

Table 8.

Reset and STOP Mode Recovery Characteristics and Latency . . . . . . . . . . 44

Table 9.

Reset Sources and Resulting Reset Type . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 10.

STOP Mode Recovery Sources and Resulting Action . . . . . . . . . . . . . . . . 48

Table 11.

Port Availability by Device and Package Type . . . . . . . . . . . . . . . . . . . . . . 52

Table 12.

Port Alternate Function Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 13.

Port A-H GPIO Address Registers (PxADDR) . . . . . . . . . . . . . . . . . . . . . . 56

Table 14.

GPIO Port Registers and Sub-Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 15.

Port A-H Control Registers (PxCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 16.

Port A-H Data Direction Sub-Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 17.

Port A-H Alternate Function Sub-Registers . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 18.

Port A-H Output Control Sub-Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 19.

Port A-H High Drive Enable Sub-Registers . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 20.

Port A-H Input Data Registers (PxIN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Table 21.

Port A-H STOP Mode Recovery Source Enable Sub-Registers . . . . . . . . . 61

Table 22.

Port A-H Output Data Register (PxOUT) . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Table 23.

Interrupt Vectors in Order of Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Table 24.

Interrupt Request 0 Register (IRQ0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Table 25.

Interrupt Request 1 Register (IRQ1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Table 26.

Interrupt Request 2 Register (IRQ2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Table 27.

IRQ0 Enable and Priority Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Table 28.

IRQ0 Enable High Bit Register (IRQ0ENH) . . . . . . . . . . . . . . . . . . . . . . . 71

Table 29.

IRQ0 Enable Low Bit Register (IRQ0ENL) . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 30.

IRQ1 Enable and Priority Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 31.

IRQ1 Enable Low Bit Register (IRQ1ENL) . . . . . . . . . . . . . . . . . . . . . . . . 73

Table 32.

IRQ2 Enable and Priority Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Table 33.

IRQ1 Enable High Bit Register (IRQ1ENH) . . . . . . . . . . . . . . . . . . . . . . . 73

PS019906-1003

P r e l i m i n a r y

List of Tables

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

xiii

Table 34.

IRQ2 Enable Low Bit Register (IRQ2ENL) . . . . . . . . . . . . . . . . . . . . . . . . 74

Table 35.

IRQ2 Enable High Bit Register (IRQ2ENH) . . . . . . . . . . . . . . . . . . . . . . . 74

Table 36.

Interrupt Edge Select Register (IRQES) . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Table 37.

Interrupt Port Select Register (IRQPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Table 38.

Interrupt Control Register (IRQCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Table 39.

Timer 0-3 High Byte Register (TxH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Table 40.

Timer 0-3 Low Byte Register (TxL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Table 41.

Timer 0-3 Reload High Byte Register (TxRH) . . . . . . . . . . . . . . . . . . . . . . 88

Table 42.

Timer 0-3 Reload Low Byte Register (TxRL) . . . . . . . . . . . . . . . . . . . . . . . 88

Table 43.

Timer 0-3 PWM High Byte Register (TxPWMH) . . . . . . . . . . . . . . . . . . . 89

Table 44.

Timer 0-3 PWM Low Byte Register (TxPWML) . . . . . . . . . . . . . . . . . . . . 89

Table 45.

Timer 0-3 Control 0 Register (TxCTL0) . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Table 46.

Timer 0-3 Control 1 Register (TxCTL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Table 47.

Watch-Dog Timer Approximate Time-Out Delays . . . . . . . . . . . . . . . . . . . 94

Table 48.

Watch-Dog Timer Control Register (WDTCTL) . . . . . . . . . . . . . . . . . . . . 96

Table 49.

Watch-Dog Timer Reload Upper Byte Register (WDTU) . . . . . . . . . . . . . 98

Table 50.

Watch-Dog Timer Reload High Byte Register (WDTH) . . . . . . . . . . . . . . 98

Table 51.

Watch-Dog Timer Reload Low Byte Register (WDTL) . . . . . . . . . . . . . . . 99

Table 52.

UART Transmit Data Register (UxTXD) . . . . . . . . . . . . . . . . . . . . . . . . . 111

Table 53.

UART Receive Data Register (UxRXD) . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Table 54.

UART Status 0 Register (UxSTAT0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Table 55.

UART Status 1 Register (UxSTAT1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Table 56.

UART Control 0 Register (UxCTL0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Table 57.

UART Control 1 Register (UxCTL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Table 58.

UART Address Compare Register (UxADDR) . . . . . . . . . . . . . . . . . . . . . 117

Table 59.

UART Baud Rate High Byte Register (UxBRH) . . . . . . . . . . . . . . . . . . . 118

Table 60.

UART Baud Rate Low Byte Register (UxBRL) . . . . . . . . . . . . . . . . . . . . 118

Table 61.

UART Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Table 62.

SPI Clock Phase (PHASE) and Clock Polarity (CLKPOL) Operation . . . 129

Table 63.

SPI Data Register (SPIDATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Table 64.

SPI Control Register (SPICTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Table 65.

SPI Status Register (SPISTAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Table 66.

SPI Mode Register (SPIMODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Table 67.

SPI Diagnostic State Register (SPIDST) . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Table 68.

SPI Baud Rate High Byte Register (SPIBRH) . . . . . . . . . . . . . . . . . . . . . 139

Table 69.

SPI Baud Rate Low Byte Register (SPIBRL) . . . . . . . . . . . . . . . . . . . . . . 139

PS019906-1003

P r e l i m i n a r y

List of Tables

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

xiv

Table 70.

I2C Data Register (I2CDATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Table 71.

I2C Status Register (I2CSTAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Table 72.

I2C Control Register (I2CCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Table 73.

I2C Baud Rate High Byte Register (I2CBRH) . . . . . . . . . . . . . . . . . . . . . 150

Table 74.

I2C Baud Rate Low Byte Register (I2CBRL) . . . . . . . . . . . . . . . . . . . . . . 150

Table 75.

I2C Diagnostic State Register (I2CDST) . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Table 76.

I2C Diagnostic Control Register (I2CDIAG) . . . . . . . . . . . . . . . . . . . . . . 151

Table 77.

DMAx Control Register (DMAxCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Table 78.

DMAx I/O Address Register (DMAxIO) . . . . . . . . . . . . . . . . . . . . . . . . . 156

Table 79.

DMAx Address High Nibble Register (DMAxH) . . . . . . . . . . . . . . . . . . . 156

Table 80.

DMAx Start/Current Address Low Byte Register (DMAxSTART) . . . . . 157

Table 81.

DMAx End Address Low Byte Register (DMAxEND) . . . . . . . . . . . . . . 158

Table 82.

DMA_ADC Register File Address Example . . . . . . . . . . . . . . . . . . . . . . . 158

Table 83.

DMA_ADC Address Register (DMAA_ADDR) . . . . . . . . . . . . . . . . . . . 159

Table 84.

DMA_ADC Control Register (DMAACTL) . . . . . . . . . . . . . . . . . . . . . . . 160

Table 85.

DMA_ADC Status Register (DMAA_STAT) . . . . . . . . . . . . . . . . . . . . . . 161

Table 86.

ADC Control Register (ADCCTL) 165

Table 87.

ADC Data High Byte Register (ADCD_H) . . . . . . . . . . . . . . . . . . . . . . . . 167

Table 88.

ADC Data Low Bits Register (ADCD_L) . . . . . . . . . . . . . . . . . . . . . . . . . 167

Table 89.

Flash Memory Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Table 90.

Flash Memory Sector Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Table 91.

Z8F642x family Information Area Map . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Table 92.

Flash Control Register (FCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Table 93.

Flash Status Register (FSTAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Table 94.

Flash Page Select Register (FPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Table 95.

Flash Sector Protect Register (FPROT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Table 96.

Flash Frequency High Byte Register (FFREQH) . . . . . . . . . . . . . . . . . . . 179

Table 97.

Flash Frequency Low Byte Register (FFREQL) . . . . . . . . . . . . . . . . . . . . 179

Table 98.

Option Bits At Program Memory Address 0000H . . . . . . . . . . . . . . . . . . 181

Table 99.

Options Bits at Program Memory Address 0001H . . . . . . . . . . . . . . . . . . 182

Table 100. OCD Baud-Rate Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Table 101. On-Chip Debugger Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Table 102. OCD Control Register (OCDCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Table 103. OCD Status Register (OCDSTAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Table 104. Recommended Crystal Oscillator Specifications (20MHz Operation) . . . 198
Table 105. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

PS019906-1003

P r e l i m i n a r y

List of Tables

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Table 106. DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Table 107. Power-On Reset and Voltage Brown-Out Electrical Characteristic

and Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Table 108. Reset and STOP Mode Recovery Pin Timing . . . . . . . . . . . . . . . . . . . . . . 207
Table 109. Flash Memory Electrical Characteristics and Timing . . . . . . . . . . . . . . . . 207
Table 110. Watch-Dog Timer Electrical Characteristics and Timing . . . . . . . . . . . . . 207
Table 111. Analog-to-Digital Converter Electrical Characteristics and Timing . . . . . 208
Table 112. AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Table 113. GPIO Port Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Table 114. GPIO Port Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Table 115. On-Chip Debugger Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Table 116. SPI Master Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Table 117. SPI Slave Mode Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Table 118. I2C Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Table 119. UART Timing with CTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Table 120. UART Timing without CTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Table 121. Notational Shorthand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Table 122. Additional Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Table 123. Condition Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Table 124. Arithmetic Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Table 125. Bit Manipulation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Table 126. Block Transfer Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Table 127. CPU Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Table 128. Load Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Table 129. Logical Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Table 130. Program Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Table 131. Rotate and Shift Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Table 132. eZ8 CPU Instruction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Table 133. Opcode Map Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Table 134. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Manual Objectives

xvi

Manual Objectives

This Product Specification provides detailed operating information for the Z8F642x,
Z8F482x, Z8F322x, Z8F242x, and Z8F162x devices within the Z8 Encore!

Microcon-

troller (MCU) family of products. Within this document, the Z8F642x, Z8F482x,
Z8F322x, Z8F242x, and Z8F162x are referred to collectively as the Z8 Encore!

or the

Z8F642x family unless specifically stated otherwise.

About This Manual

ZiLOG recommends that the user read and understand everything in this manual before
setting up and using the product. However, we recognize that there are different styles of
learning. Therefore, we have designed this Product Specification to be used either as a
how to procedural manual or a reference guide to important data.

Intended Audience

This document is written for ZiLOG customers who are experienced at working with
microcontrollers, integrated circuits, or printed circuit assemblies.

Manual Conventions

The following assumptions and conventions are adopted to provide clarity and ease of use:

Courier Typeface

Commands, code lines and fragments, bits, equations, hexadecimal addresses, and various
executable items are distinguished from general text by the use of the

Courier

typeface.

Where the use of the font is not indicated, as in the Index, the name of the entity is pre-
sented in upper case.

Example: FLAGS[1] is

smrf

Hexadecimal Values

Hexadecimal values are designated by uppercase H suffix and appear in the

Courier

typeface.

Example: R1 is set to

F8H.

Brackets

The square brackets, [ ], indicate a register or bus.

PS019906-1003

P r e l i m i n a r y

Manual Objectives

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

xvii

Example: for the register R1[7:0], R1 is an 8-bit register, R1[7] is the most significant
bit, and R1[0] is the least significant bit.

Braces

The curly braces, { }, indicate a single register or bus created by concatenating some com-
bination of smaller registers, buses, or individual bits.

Example: the 12-bit register address {

, RP[7:4], R1[3:0]} is composed of a 4-bit

hexadecimal value (

) and two 4-bit register values taken from the Register Pointer

(RP) and Working Register R1.

is the most significant nibble (4-bit value) of the

12-bit register, and R1[3:0] is the least significant nibble of the 12-bit register.

Parentheses

The parentheses, ( ), indicate an indirect register address lookup.

Example: (R1) is the memory location referenced by the address contained in the
Working Register R1.

Parentheses/Bracket Combinations

The parentheses, ( ), indicate an indirect register address lookup and the square brackets,
[ ], indicate a register or bus.

Example: assume PC[15:0] contains the value

1234h

. (PC[15:0]) then refers to the

contents of the memory location at address

1234h

Use of the Words Set, Reset and Clear

The word set implies that a register bit or a condition contains a logical 1. The words reset
or clear imply that a register bit or a condition contains a logical 0. When either of these
terms is followed by a number, the word logical may not be included; however, it is
implied.

Notation for Bits and Similar Registers

A field of bits within a register is designated as: Register[n:n].

Example: ADDR[15:0] refers to bits 15 through bit 0 of the Address.

Use of the Terms LSB, MSB, lsb, and msb

In this document, the terms LSB and MSB, when appearing in upper case, mean least sig-
nificant byte and most significant byte, respectively. The lowercase forms, lsb and msb,
mean least significant bit and most significant bit, respectively.

Use of Initial Uppercase Letters

Initial uppercase letters designate settings and conditions in general text.

Example 1: The receiver forces the SCL line to Low.

PS019906-1003

P r e l i m i n a r y

Manual Objectives

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

xviii

Example 2: The Master can generate a Stop condition to abort the transfer.

Use of All Uppercase Letters

The use of all uppercase letters designates the names of states, modes, and commands.

Example 1: The bus is considered BUSY after the Start condition.

Example 2: A START command triggers the processing of the initialization sequence.

Example 3: STOP mode

Bit Numbering

Bits are numbered from 0 to n1 where n indicates the total number of bits. For example,
the 8 bits of a register are numbered from 0 to 7.

Safeguards

It is important that all users understand the following safety terms, which are defined here.

Indicates a procedure or file may become corrupted if the user does not fol-
low directions.

Trademarks

ZiLOG, eZ8, Z8 Encore!

, and Z8

are trademarks of

ZiLOG, Inc.

in the U.S.A. and other

countries. All other trademarks are the property of their respective corporations.

Caution:

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Introduction

Introduction

The Z8 Encore!

MCU family of products are a line of ZiLOG microcontroller products

based upon the 8-bit eZ8 CPU. The Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x
products, hereafter referred to collectively as Z8 Encore!

or the Z8F642x family. The

Z8F642x family adds Flash memory to ZiLOG's extensive line of 8-bit microcontrollers.
The Flash in-circuit programming capability allows for faster development time and pro-
gram changes in the field. The new eZ8 CPU is upward compatible with existing Z8

instructions. The rich peripheral set of the Z8 Encore!

makes it suitable for a variety of

applications including motor control, security systems, home appliances, personal elec-
tronic devices, and sensors.

Features

20MHz eZ8 CPU

Up to 64KB Flash memory with in-circuit programming capability

Up to 4KB register RAM

12-channel, 10-bit analog-to-digital converter (ADC)

Two full-duplex 9-bit UARTs with bus transceiver Driver Enable control

Serial Peripheral Interface

Two Infrared Data Association (IrDA)-compliant infrared encoder/decoder

Up to four 16-bit timers with capture, compare, and PWM capability

Watch-Dog Timer (WDT) with internal RC oscillator

3-channel DMA

Up to 60 I/O pins

24 interrupts with configurable priority

On-Chip Debugger

Voltage Brown-out Protection (VBO)

Power-On Reset (POR)

PS019906-1003

P r e l i m i n a r y

Introduction

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

3.0-3.6V operating voltage with 5V-tolerant inputs

0° to +70°C and -40° to +105°C operating temperature ranges

Part Selection Guide

Table 1 identifies the basic features and package styles available for each device within the
Z8 Encore!

product line.

Table 1. Z8 Encore!

Part Selection Guide

Part

Number

Flash

(KB)

RAM

(KB) I/O

16-bit Timers

with PWM

ADC

Inputs

UARTs

with IrDA I

C SPI

40/44-pin

packages

64/68-pin

packages

80-pin

package

Z8F1621

Z8F1622

Z8F2421

Z8F2422

Z8F3221

Z8F3222

Z8F4821

Z8F4822

Z8F4823

Z8F6421

Z8F6422

Z8F6423

PS019906-1003

P r e l i m i n a r y

Introduction

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Software stack allows much greater depth in subroutine calls and interrupts than
hardware stacks

Compatible with existing Z8 code

Expanded internal Register File allows access of up to 4KB

New instructions improve execution efficiency for code developed using higher-level
programming languages, including C

Pipelined instruction fetch and execution

New instructions for improved performance including BIT, BSWAP, BTJ, CPC, LDC,
LDCI, LEA, MULT, and SRL

New instructions support 12-bit linear addressing of the Register File

Up to 10 MIPS operation

C-Compiler friendly

2-9 clock cycles per instruction

For more information regarding the eZ8 CPU, refer to the eZ8 CPU User Manual avail-
able for download at

www.zilog.com

General Purpose I/O

The Z8F642x family features seven 8-bit ports (Ports A-G) and one 4-bit port (Port H) for
general purpose I/O (GPIO). Each pin is individually programmable.

Flash Controller

The Flash Controller programs and erases the Flash memory.

10-Bit Analog-to-Digital Converter

The Analog-to-Digital Converter (ADC) converts an analog input signal to a 10-bit binary
number. The ADC accepts inputs from up to 12 different analog input sources.

UARTs

Each UART is full-duplex and capable of handling asynchronous data transfers. The
UARTs support 8- and 9-bit data modes, selectable parity, and an efficient bus transceiver
Driver Enable signal for controlling a multi-transceiver bus, such as RS-485.

The inter-integrated circuit (I

) controller makes the Z8 Encore!

compatible with the

C protocol. The I

C controller consists of two bidirectional bus lines, a serial data (SDA)

line and a serial clock (SCL) line.

PS019906-1003

P r e l i m i n a r y

Introduction

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Serial Peripheral Interface

The serial peripheral interface (SPI) allows the Z8 Encore!

to exchange data between

other peripheral devices such as EEPROMs, A/D converters and ISDN devices. The SPI is
a full-duplex, synchronous, character-oriented channel that supports a four-wire interface.

Timers

Up to four 16-bit reloadable timers can be used for timing/counting events or for motor
control operations. These timers provide a 16-bit programmable reload counter and oper-
ate in One-Shot, Continuous, Gated, Capture, Compare, Capture and Compare, and PWM
modes. Only 3 timers (Timers 0-2) are available in the 44-pin packages.

Interrupt Controller

The Z8F642x family products support up to 24 interrupts. These interrupts consist of 12
internal and 12 general-purpose I/O pins. The interrupts have 3 levels of programmable
interrupt priority.

Reset Controller

The Z8 Encore!

can be reset using the RESET pin, power-on reset, Watch-Dog Timer

(WDT), STOP mode exit, or Voltage Brown-Out (VBO) warning signal.

On-Chip Debugger

The Z8 Encore!

features an integrated On-Chip Debugger (OCD). The OCD provides a

rich set of debugging capabilities, such as reading and writing registers, programming the
Flash, setting breakpoints and executing code. A single-pin interface provides communi-
cation to the OCD.

DMA Controller

The Z8F642x family features three channels of DMA. Two of the channels are for register
RAM to and from I/O operations. The third channel automatically controls the transfer of
data from the ADC to the memory.

PS019906-1003

P r e l i m i n a r y

Signal and Pin Descriptions

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Signal Descriptions

Table 3 describes the Z8 Encore!

signals. Refer to the section Pin Configurations on

page 7 to determine the signals available for the specific package styles.

Table 3. Signal Descriptions

Signal Mnemonic

I/O

Description

General-Purpose I/O Ports A-H

PA[7:0]

I/O

Port A[7:0]. These pins are used for general-purpose I/O.

PB[7:0]

I/O

Port B[7:0]. These pins are used for general-purpose I/O.

PC[7:0]

I/O

Port C[7:0]. These pins are used for general-purpose I/O.

PD[7:0]

I/O

Port D[7:0]. These pins are used for general-purpose I/O.

PE[7:0]

I/O

Port E[7:0]. These pins are used for general-purpose I/O.

PF[7:0]

I/O

Port F[7:0]. These pins are used for general-purpose I/O.

PG[7:0]

I/O

Port G[7:0]. These pins are used for general-purpose I/O.

PH[3:0]

I/O

Port H[3:0]. These pins are used for general-purpose I/O.

C Controller

SCL

Serial Clock. This is the output clock for the I

C. This pin is multiplexed with a

general-purpose I/O pin. When the general-purpose I/O pin is configured for
alternate function to enable the SCL function, this pin is open-drain.

SDA

I/O

Serial Data. This open-drain pin transfers data between the I

C and a slave. This

pin is multiplexed with a general-purpose I/O pin. When the general-purpose I/O
pin is configured for alternate function to enable the SDA function, this pin is
open-drain.

SPI Controller

I/O

Slave Select. This signal can be an output or an input. If the

Z8 Encore!

is the

SPI master, this pin may be configured as the Slave Select output. If the

Encore!

is the SPI slave, this pin is the input slave select. It is multiplexed with

a general-purpose I/O pin.

SCK

I/O

SPI Serial Clock. The SPI master supplies this pin. If the

Z8 Encore!

is the SPI

master, this pin is an output. If the

Z8 Encore!

is the SPI slave, this pin is an

input. It is multiplexed with a general-purpose I/O pin.

MOSI

I/O

Master Out Slave In. This signal is the data output from the SPI master device and
the data input to the SPI slave device. It is multiplexed with a general-purpose I/O
pin.

MISO

I/O

Master In Slave Out. This pin is the data input to the SPI master device and the
data output from the SPI slave device. It is multiplexed with a general-purpose I/O
pin.

PS019906-1003

P r e l i m i n a r y

Signal and Pin Descriptions

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART Controllers

TXD0 / TXD1

Transmit Data. These signals are the transmit outputs from the UARTs. The TXD
signals are multiplexed with general-purpose I/O pins.

RXD0 / RXD1

Receive Data. These signals are the receiver inputs for the UARTs and IrDAs. The
RXD signals are multiplexed with general-purpose I/O pins.

CTS0 / CTS1

Clear To Send. These signals are control inputs for the UARTs. The CTS signals
are multiplexed with general-purpose I/O pins.

DE0 / DE1

Driver Enable. This signal allows automatic control of external RS-485 drivers.
This signal is approximately the inverse of the TXE (Transmit Empty) bit in the
UART Status 0 register. The DE signal may be used to ensure an external RS-485
driver is enabled when data is transmitted by the UART.

Timers

T0OUT / T1OUT/
T2OUT / T3OUT

Timer Output 0-3. These signals are output pins from the timers. The Timer
Output signals are multiplexed with general-purpose I/O pins. T3OUT is not
available in 44-pin package devices.

T0IN / T1IN/
T2IN / T3IN

Timer Input 0-3. These signals are used as the capture, gating and counter inputs.
The Timer Input signals are multiplexed with general-purpose I/O pins. T3IN is
not available in 44-pin package devices.

Analog

ANA[11:0]

Analog Input. These signals are inputs to the analog-to-digital converter (ADC).
The ADC analog inputs are multiplexed with general-purpose I/O pins.

VREF

Analog-to-digital converter reference voltage input. The VREF pin should be left
unconnected (or capacitively coupled to analog ground) if the internal voltage
reference is selected as the ADC reference voltage.

Oscillators

XIN

External Crystal Input. This is the input pin to the crystal oscillator. A crystal can
be connected between it and the

XOUT

pin to form the oscillator.

XOUT

External Crystal Output. This pin is the output of the crystal oscillator. A crystal
can be connected between it and the

XIN

pin to form the oscillator.

RCOUT

RC Oscillator Output. This signal is the output of the RC oscillator. It is
multiplexed with a general-purpose I/O pin.

Table 3. Signal Descriptions (Continued)

Signal Mnemonic

I/O

Description

PS019906-1003

P r e l i m i n a r y

Signal and Pin Descriptions

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Pin Characteristics

Table 4 provides detailed information on the characteristics for each pin available on the
Z8 Encore!

products. Data in Table 4 is sorted alphabetically by the pin symbol mne-

monic.

On-Chip Debugger

DBG

I/O

Debug. This pin is the control and data input and output to and from the On-Chip
Debugger. For operation of the On-chip debugger, all power pins (V

and

) must be supplied with power, and all ground pins (V

and AV

) must be

grounded. This pin is open-drain and must have an external pull-up resistor to
ensure proper operation

Reset

RESET

RESET. Generates a Reset when asserted (driven Low).

Power Supply

VDD

Power Supply.

AVDD

Analog Power Supply.

VSS

Ground.

AVSS

Analog Ground.

Table 4. Pin Characteristics of the Z8 Encore!

Symbol

Mnemonic

Direction

Reset

Direction

Active Low

Active High

Tri-State

Output

Internal

Pull-up or
Pull-down

Schmitt

Trigger

Input

Open Drain

Output

AVSS

N/A

AVDD

N/A

DBG

I/O

N/A

Yes

VSS

N/A

PA[7:0]

I/O

N/A

Yes

Yes,

Programmable

PB[7:0]

I/O

N/A

Yes

Yes,

Programmable

x represents integer 0, 1,... to indicate multiple pins with symbol mnemonics that differ only by the integer

Table 3. Signal Descriptions (Continued)

Signal Mnemonic

I/O

Description

PS019906-1003

P r e l i m i n a r y

Signal and Pin Descriptions

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PC[7:0]

I/O

N/A

Yes

Yes,

Programmable

PD[7:0]

I/O

N/A

Yes

Yes,

Programmable

PE7:0]

I/O

N/A

Yes

Yes,

Programmable

PF[7:0]

I/O

N/A

Yes

Yes,

Programmable

PG[7:0]

I/O

N/A

Yes

Yes,

Programmable

PH[3:0]

I/O

N/A

Yes

Yes,

Programmable

RESET

Low

N/A

Pull-up

Yes

N/A

VDD

N/A

XIN

N/A

XOUT

N/A

Yes, in

STOP

mode

Table 4. Pin Characteristics of the Z8 Encore!

Symbol

Mnemonic

Direction

Reset

Direction

Active Low

Active High

Tri-State

Output

Internal

Pull-up or
Pull-down

Schmitt

Trigger

Input

Open Drain

Output

x represents integer 0, 1,... to indicate multiple pins with symbol mnemonics that differ only by the integer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Address Space

Address Space

Overview

The eZ8 CPU can access three distinct address spaces:

The Register File contains addresses for the general-purpose registers and the eZ8
CPU, peripheral, and general-purpose I/O port control registers.

The Program Memory contains addresses for all memory locations having executable
code and/or data.

The Data Memory contains addresses for all memory locations that hold data only.

These three address spaces are covered briefly in the following subsections. For more
detailed information regarding the eZ8 CPU and its address space, refer to the eZ8 CPU
User Manual available for download at

www.zilog.com

Register File

The Register File address space in the Z8 Encore!

is 4KB (4096 bytes). The Register File

is composed of two sections--control registers and general-purpose registers. When
instructions are executed, registers are read from when defined as sources and written to
when defined as destinations. The architecture of the eZ8 CPU allows all general-purpose
registers to function as accumulators, address pointers, index registers, stack areas, or
scratch pad memory.

The upper 256 bytes of the 4KB Register File address space are reserved for control of the
eZ8 CPU, the on-chip peripherals, and the I/O ports. These registers are located at
addresses from

F00H

FFFH

. Some of the addresses within the 256-byte control register

section are reserved (unavailable). Reading from an reserved Register File addresses
returns an undefined value. Writing to reserved Register File addresses is not recom-
mended and can produce unpredictable results.

The on-chip RAM always begins at address 000H in the Register File address space. The
Z8F642x, Z8F482x, Z8F322x, Z8F242x, and Z8F162x provide 2KB to 4KB of on-chip
RAM depending upon the device. Reading from Register File addresses outside the avail-
able RAM addresses (and not within the control register address space) returns an unde-
fined value. Writing to these Register File addresses produces no effect. Refer to the Part
Selection Guide on page 2 to determine the amount of RAM available for the specific Z8
Encore!

device.

PS019906-1003

P r e l i m i n a r y

Address Space

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Program Memory

The eZ8 CPU supports 64KB of Program Memory address space. The Z8F642x,
Z8F482x, Z8F322x, Z8F242x, and Z8F162x contain 16KB to 64KB of on-chip Flash
memory in the Program Memory address space, depending upon the device. Reading from
Program Memory addresses outside the available Flash memory addresses returns

FFH

Writing to these unimplemented Program Memory addresses produces no effect. Table 5
describes the Program Memory Maps for the Z8F642x family products.

Table 5.

Z8F642x Family

Program Memory Maps

Program Memory Address (Hex) Function

Z8F162x Products

0000-0001

Option Bits

0002-0003

Reset Vector

0004-0005

WDT Interrupt Vector

0006-0007

Illegal Instruction Trap

0008-0037

Interrupt Vectors*

0038-3FFF

Program Memory

Z8F242x Products

0000-0001

Option Bits

0002-0003

Reset Vector

0004-0005

WDT Interrupt Vector

0006-0007

Illegal Instruction Trap

0008-0037

Interrupt Vectors*

0038-5FFF

Program Memory

Z8F322x Products

0000-0001

Option Bits

0002-0003

Reset Vector

0004-0005

WDT Interrupt Vector

0006-0007

Illegal Instruction Trap

0008-0037

Interrupt Vectors*

0038-7FFF

Program Memory

* See Table 23 on page 64 for a list of the interrupt vectors.

PS019906-1003

P r e l i m i n a r y

Address Space

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Data Memory

The Z8F642x family does not use the eZ8 CPU's 64KB Data Memory address space.

Information Area

Table 6 describes the Z8F642x family Information Area. This 512 byte Information Area
is accessed by setting bit 7 of the Flash Page Select Register to 1. When access is enabled,
the Information Area is mapped into the Program Memory and overlays the 512 bytes at
addresses

FE00H

FFFFH

. When the Information Area access is enabled, execution of

LDC and LDCI instruction from these Program Memory addresses return the Information
Area data rather than the Program Memory data. Reads of these addresses through the On-
Chip Debugger also returns the Information Area data. Execution of code from these
addresses continues to correctly use the Program Memory. Access to the Information Area
is read-only.

Z8F482x Products

0000-0001

Option Bits

0002-0003

Reset Vector

0004-0005

WDT Interrupt Vector

0006-0007

Illegal Instruction Trap

0008-0037

Interrupt Vectors*

0038-BFFF

Program Memory

Z8F642x Products

0000-0001

Option Bits

0002-0003

Reset Vector

0004-0005

WDT Interrupt Vector

0006-0007

Illegal Instruction Trap

0008-0037

Interrupt Vectors*

0038-FFFF

Program Memory

Table 5.

Z8F642x Family

Program Memory Maps (Continued)

Program Memory Address (Hex) Function

* See Table 23 on page 64 for a list of the interrupt vectors.

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Register File Address Map

Table 7 provides the address map for the Register File of the Z8F642x family of products.
Not all devices and package styles in the Z8F642x family support Timer 3 and all of the
GPIO Ports. Consider registers for unimplemented peripherals as Reserved.

Table 7. Register File Address Map

Address (Hex)

Register Description

Mnemonic

Reset (Hex)

Page #

General Purpose RAM
000-EFF

General-Purpose Register File RAM

Timer 0
F00

Timer 0 High Byte

T0H

F01

Timer 0 Low Byte

T0L

F02

Timer 0 Reload High Byte

T0RH

F03

Timer 0 Reload Low Byte

T0RL

F04

Timer 0 PWM High Byte

T0PWMH

F05

Timer 0 PWM Low Byte

T0PWML

F06

Timer 0 Control 0

T0CTL0

F07

Timer 0 Control 1

T0CTL1

Timer 1
F08

Timer 1 High Byte

T1H

F09

Timer 1 Low Byte

T1L

F0A

Timer 1 Reload High Byte

T1RH

F0B

Timer 1 Reload Low Byte

T1RL

F0C

Timer 1 PWM High Byte

T1PWMH

F0D

Timer 1 PWM Low Byte

T1PWML

F0E

Timer 1 Control 0

T1CTL0

F0F

Timer 1 Control 1

T1CTL1

Timer 2
F10

Timer 2 High Byte

T2H

F11

Timer 2 Low Byte

T2L

F12

Timer 2 Reload High Byte

T2RH

F13

Timer 2 Reload Low Byte

T2RL

F14

Timer 2 PWM High Byte

T2PWMH

F15

Timer 2 PWM Low Byte

T2PWML

F16

Timer 2 Control 0

T2CTL0

F17

Timer 2 Control 1

T2CTL1

XX=Undefined

PS019906-1003

P r e l i m i n a r y

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer 3 (unavailable in the 44-pin packages)
F18

Timer 3 High Byte

T3H

F19

Timer 3 Low Byte

T3L

F1A

Timer 3 Reload High Byte

T3RH

F1B

Timer 3 Reload Low Byte

T3RL

F1C

Timer 3 PWM High Byte

T3PWMH

F1D

Timer 3 PWM Low Byte

T3PWML

F1E

Timer 3 Control 0

T3CTL0

F1F

Timer 3 Control 1

T3CTL1

20-3F

Reserved

UART 0
F40

UART0 Transmit Data

U0TXD

111

UART0 Receive Data

U0RXD

112

F41

UART0 Status 0

U0STAT0

0000011Xb

112

F42

UART0 Control 0

U0CTL0

114

F43

UART0 Control 1

U0CTL1

114

F44

UART0 Status 1

U0STAT1

112

F45

UART0 Address Compare Register

U0ADDR

117

F46

UART0 Baud Rate High Byte

U0BRH

118

F47

UART0 Baud Rate Low Byte

U0BRL

118

UART 1
F48

UART1 Transmit Data

U1TXD

111

UART1 Receive Data

U1RXD

112

F49

UART1 Status 0

U1STAT0

0000011Xb

112

F4A

UART1 Control 0

U1CTL0

114

F4B

UART1 Control 1

U1CTL1

114

F4C

UART1 Status 1

U1STAT1

112

F4D

UART1 Address Compare Register

U1ADDR

117

F4E

UART1 Baud Rate High Byte

U1BRH

118

F4F

UART1 Baud Rate Low Byte

U1BRL

118

F50

C Data

I2CDATA

146

F51

C Status

I2CSTAT

147

F52

C Control

I2CCTL

148

F53

C Baud Rate High Byte

I2CBRH

149

F54

C Baud Rate Low Byte

I2CBRL

149

F55

C Diagnostic State

I2CDST

151

F56

C Diagnostic Control

I2CDIAG

151

F57-F5F

Reserved

Table 7. Register File Address Map (Continued)

Address (Hex)

Register Description

Mnemonic

Reset (Hex)

Page #

XX=Undefined

PS019906-1003

P r e l i m i n a r y

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Serial Peripheral Interface (SPI)
F60

SPI Data

SPIDATA

133

F61

SPI Control

SPICTL

134

F62

SPI Status

SPISTAT

136

F63

SPI Mode

SPIMODE

137

F64

SPI Diagnostic State

SPIDST

138

F65

Reserved

F66

SPI Baud Rate High Byte

SPIBRH

139

F67

SPI Baud Rate Low Byte

SPIBRL

139

F68-F6F

Reserved

Analog-to-Digital Converter (ADC)
F70

ADC Control

ADCCTL

165

F71

Reserved

F72

ADC Data High Byte

ADCD_H

166

F73

ADC Data Low Bits

ADCD_L

167

F74-FAF

Reserved

DMA 0
FB0

DMA0 Control

DMA0CTL

155

FB1

DMA0 I/O Address

DMA0IO

156

FB2

DMA0 End/Start Address High Nibble

DMA0H

156

FB3

DMA0 Start Address Low Byte

DMA0START XX

157

FB4

DMA0 End Address Low Byte

DMA0END

158

DMA 1
FB8

DMA1 Control

DMA1CTL

155

FB9

DMA1 I/O Address

DMA1IO

156

FBA

DMA1 End/Start Address High Nibble

DMA1H

156

FBB

DMA1 Start Address Low Byte

DMA1START XX

157

FBC

DMA1 End Address Low Byte

DMA1END

158

DMA ADC
FBD

DMA_ADC Address

DMAA_ADDR XX

159

FBE

DMA_ADC Control

DMAACTL

160

FBF

DMA_ADC Status

DMAASTAT

161

Interrupt Controller
FC0

Interrupt Request 0

IRQ0

FC1

IRQ0 Enable High Bit

IRQ0ENH

FC2

IRQ0 Enable Low Bit

IRQ0ENL

FC3

Interrupt Request 1

IRQ1

FC4

IRQ1 Enable High Bit

IRQ1ENH

FC5

IRQ1 Enable Low Bit

IRQ1ENL

FC6

Interrupt Request 2

IRQ2

Table 7. Register File Address Map (Continued)

Address (Hex)

Register Description

Mnemonic

Reset (Hex)

Page #

XX=Undefined

PS019906-1003

P r e l i m i n a r y

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

FC7

IRQ2 Enable High Bit

IRQ2ENH

FC8

IRQ2 Enable Low Bit

IRQ2ENL

FC9-FCC

Reserved

FCD

Interrupt Edge Select

IRQES

FCE

Interrupt Port Select

IRQPS

FCF

Interrupt Control

IRQCTL

GPIO Port A
FD0

Port A Address

PAADDR

FD1

Port A Control

PACTL

FD2

Port A Input Data

PAIN

FD3

Port A Output Data

PAOUT

GPIO Port B
FD4

Port B Address

PBADDR

FD5

Port B Control

PBCTL

FD6

Port B Input Data

PBIN

FD7

Port B Output Data

PBOUT

GPIO Port C
FD8

Port C Address

PCADDR

FD9

Port C Control

PCCTL

FDA

Port C Input Data

PCIN

FDB

Port C Output Data

PCOUT

GPIO Port D
FDC

Port D Address

PDADDR

FDD

Port D Control

PDCTL

FDE

Port D Input Data

PDIN

FDF

Port D Output Data

PDOUT

GPIO Port E
FE0

Port E Address

PEADDR

FE1

Port E Control

PECTL

FE2

Port E Input Data

PEIN

FE3

Port E Output Data

PEOUT

GPIO Port F
FE4

Port F Address

PFADDR

FE5

Port F Control

PFCTL

FE6

Port F Input Data

PFIN

FE7

Port F Output Data

PFOUT

GPIO Port G
FE8

Port G Address

PGADDR

FE9

Port G Control

PGCTL

FEA

Port G Input Data

PGIN

FEB

Port G Output Data

PGOUT

Table 7. Register File Address Map (Continued)

Address (Hex)

Register Description

Mnemonic

Reset (Hex)

Page #

XX=Undefined

PS019906-1003

P r e l i m i n a r y

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

GPIO Port H
FEC

Port H Address

PHADDR

FED

Port H Control

PHCTL

FEE

Port H Input Data

PHIN

FEF

Port H Output Data

PHOUT

Watch-Dog Timer (WDT)
FF0

Watch-Dog Timer Control

WDTCTL

XXX00000b

FF1

Watch-Dog Timer Reload Upper Byte

WDTU

FF2

Watch-Dog Timer Reload High Byte

WDTH

FF3

Watch-Dog Timer Reload Low Byte

WDTL

FF4--FF7

Reserved

Flash Memory Controller
FF8

Flash Control

FCTL

175

FF8

Flash Status

FSTAT

176

FF9

Flash Page Select

FPS

177

FF9 (if enabled) Flash Sector Protect

FPROT

178

FFA

Flash Programming Frequency High Byte

FFREQH

179

FFB

Flash Programming Frequency Low Byte

FFREQL

179

eZ8 CPU
FFC

Flags

Refer to the eZ8

CPU User

Manual

FFD

FFE

Stack Pointer High Byte

SPH

FFF

Stack Pointer Low Byte

SPL

Table 7. Register File Address Map (Continued)

Address (Hex)

Register Description

Mnemonic

Reset (Hex)

Page #

XX=Undefined

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Control Register Summary

Timer 0 High Byte

T0H (%F00 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 0 current count value [15:8]

Timer 0 Low Byte

T0L (%F01 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 0 current count value [7:0]

Timer 0 Reload High Byte

T0RH (%F02 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 0 reload value [15:8]

Timer 0 Reload Low Byte

T0RL (%F03 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 0 reload value [7:0]

Timer 0 PWM High Byte

T0PWMH (%F04 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 0 PWM value [15:8]

Timer 0 Control 0

T0CTL0 (%F06 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved
Cascade Timer

0 = Timer 0 Input signal is GPIO pin

1 = Timer 0 Input signal is Timer 3 out
Reserved

Timer 0 Control 1

T0CTL1 (%F07 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer Mode

000 = One-Shot mode

001 = Continuous mode

010 = Counter mode

011 = PWM mode

100 = Capture mode

101 = Compare mode

110 = Gated mode

111 = Capture/Compare mode

Prescale Value

000 = Divide by 1

001 = Divide by 2

010 = Divide by 4

011 = Divide by 8

100 = Divide by 16

101 = Divide by 32

110 = Divide by 64

111 = Divide by 128

Timer Input/Output Polarity

Operation of this bit is a function of

the current operating mode of the timer

Timer Enable

0 = Timer is disabled

1 = Timer is enabled

Timer 1 High Byte

T1H (%F08 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 current count value [15:8]

Timer 1 Low Byte

T1L (%F09 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 current count value [7:0]

Timer 1 Reload High Byte

T1RH (%F0A - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 reload value [15:8]

Timer 1 Reload Low Byte

T1RL (%F0B - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 reload value [7:0]

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer 1 PWM High Byte

T1PWMH (%F0C - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 PWM value [15:8]

Timer 1 PWM Low Byte

T1PWML (%F0D - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 1 PWM value [7:0]

Timer 1 Control 0

T1CTL0 (%F0E - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved
Cascade Timer

0 = Timer 1 Input signal is GPIO pin

1 = Timer 1 Input signal is Timer 0 out
Reserved

Timer 1 Control 1

T1CTL1 (%F0F - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer Mode

000 = One-Shot mode

001 = Continuous mode

010 = Counter mode

011 = PWM mode

100 = Capture mode

101 = Compare mode

110 = Gated mode

111 = Capture/Compare mode

Prescale Value

000 = Divide by 1

001 = Divide by 2

010 = Divide by 4

011 = Divide by 8

100 = Divide by 16

101 = Divide by 32

110 = Divide by 64

111 = Divide by 128

Timer Input/Output Polarity

Operation of this bit is a function of

the current operating mode of the timer

Timer Enable

0 = Timer is disabled

1 = Timer is enabled

Timer 2 High Byte

T2H (%F10 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 current count value [15:8]

Timer 2 Low Byte

T2L (%F11 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 current count value [7:0]

Timer 2 Reload High Byte

T2RH (%F12 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 reload value [15:8]

Timer 2 Reload Low Byte

T2RL (%F13 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 reload value [7:0]

Timer 2 PWM High Byte

T2PWMH (%F14 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 PWM value [15:8]

Timer 2 PWM Low Byte

T2PWML (%F15 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 2 PWM value [7:0]

Timer 2 Control 0

T2CTL0 (%F16 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved
Cascade Timer

0 = Timer 2 Input signal is GPIO pin

1 = Timer 2 Input signal is Timer 1 out
Reserved

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer 2 Control 1

T2CTL1 (%F17 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer Mode

000 = One-Shot mode

001 = Continuous mode

010 = Counter mode

011 = PWM mode

100 = Capture mode

101 = Compare mode

110 = Gated mode

111 = Capture/Compare mode

Prescale Value

000 = Divide by 1

001 = Divide by 2

010 = Divide by 4

011 = Divide by 8

100 = Divide by 16

101 = Divide by 32

110 = Divide by 64

111 = Divide by 128

Timer Input/Output Polarity

Operation of this bit is a function of

the current operating mode of the timer

Timer Enable

0 = Timer is disabled

1 = Timer is enabled

Timer 3 High Byte

T3H (%F18 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 current count value [15:8]

Timer 3 Low Byte

T3L (%F19 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 current count value [7:0]

Timer 3 Reload High Byte

T3RH (%F1A - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 reload value [15:8]

Timer 3 Reload Low Byte

T3RL (%F1B - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 reload value [7:0]

Timer 3 PWM High Byte

T3PWMH (%F1C - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 PWM value [15:8]

Timer 3 PWM Low Byte

T3PWML (%F1D - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer 3 PWM value [7:0]

Timer 3 Control 0

T3CTL0 (%F1E - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved
Cascade Timer

0 = Timer 3 Input signal is GPIO pin

1 = Timer 3 Input signal is Timer 2 out
Reserved

Timer 3 Control 1

T3CTL1 (%F1F - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Timer Mode

000 = One-Shot mode

001 = Continuous mode

010 = Counter mode

011 = PWM mode

100 = Capture mode

101 = Compare mode

110 = Gated mode

111 = Capture/Compare mode

Prescale Value

000 = Divide by 1

001 = Divide by 2

010 = Divide by 4

011 = Divide by 8

100 = Divide by 16

101 = Divide by 32

110 = Divide by 64

111 = Divide by 128

Timer Input/Output Polarity

Operation of this bit is a function of

the current operating mode of the timer

Timer Enable

0 = Timer is disabled

1 = Timer is enabled

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART0 Transmit Data

U0TXD (%F40 - Write Only)

D7 D6 D5 D4 D3 D2 D1 D0

UART0 transmitter data byte [7:0]

UART0 Receive Data

U0RXD (%F40 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

UART0 receiver data byte [7:0]

UART0 Status 0

U0STAT0 (%F41 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

CTS signal

Returns the level of the CTS signal

Transmitter Empty

0 = Data is currently transmitting

1 = Transmission is complete

Transmitter Data Register Empty

0 = Transmit Data Register is full

1 = Transmit Data register is empty

Break Detect

0 = No break occurred

1 = A break occurred

Framing Error

0 = No framing error occurred

1 = A framing occurred

Overrun Error

0 = No overrrun error occurred

1 = An overrun error occurred

Parity Error

0 = No parity error occurred

1 = A parity error occurred

Receive Data Available

0 = Receive Data Register is empty

1 = A byte is available in the Receive

Data Register

UART0 Control 0

U0CTL0 (%F42 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Loop Back Enable

0 = Normal operation

1 = Transmit data is looped back to

the receiver

Stop Bit Select

0 = Transmitter sends 1 Stop bit

1 = Transmitter sends 2 Stop bits

Send Break

0 = No break is sent

1 = Output of the transmitter is zero

Parity Select

0 = Even parity

1 = Odd parity

Parity Enable

0 = Parity is disabled

1 = Parity is enabled

CTS Enable

0 = CTS signal has no effect on the

transmitter

1 = UART recognizes CTS signal as a

transmit enable control signal

Receive Enable

0 = Receiver disabled

1 = Receiver enabled

Transmit Enable

0 = Transmitter disabled

1 = Transmitter enabled

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART0 Control 1

U0CTL1 (%F43 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Infrared Encoder/Decoder Enable

0 = Infrared endec is disabled

1 = Infrared endec is enabled

Received Data Interrupt Enable

0 = Received data and errors generate

interrupt requests

1 = Only errors generate interrupt

requests. Received data does not.

Baud Rate Registers Control

Refer to UART chapter for operation

Driver Enable Polarity

0 = DE signal is active High

1 = DE signal is active Low

Multiprocessor Bit Transmit

0 = Send a 0 as the multiprocessor bit

1 = Send a 1 as the multiprocessor bit

Multiprocessor Mode [0]

See Multiprocessor Mode [1] below

Multiprocessor (9-bit) Enable

0 = Multiprocessor mode is disabled

1 = Multiprocessor mode is enabled

Multiprocessor Mode [1]

with Multiprocess Mode bit 0:

00 = Interrupt on all received bytes

01 = Interrupt only on address bytes

10 = Interrupt on address match and

following data

11 = Interrupt on data following an

address match

UART0 Status 1

U0STAT1 (%F44- Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Mulitprocessor Receive

Returns value of last multiprocessor bit

New Frame

0 = Current byte is not start of frame

1 = Current byte is start of new frame

Reserved

UART0 Address Compare

U0ADDR (%F45 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART0 Address Compare [7:0]

UART0 Baud Rate Generator High Byte

U0BRH (%F46 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART0 Baud Rate divisor [15:8]

UART0 Baud Rate Generator Low Byte

U0BRL (%F47 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART0 Baud Rate divisor [7:0]

UART1 Transmit Data

U1TXD (%F48 - Write Only)

D7 D6 D5 D4 D3 D2 D1 D0

UART1 transmitter data byte[7:0]

UART1 Receive Data

U1RXD (%F48 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

UART receiver data byte [7:0]

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART1 Status 0

U1STAT0 (%F49 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

CTS signal

Returns the level of the CTS signal

Transmitter Empty

0 = Data is currently transmitting

1 = Transmission is complete

Transmitter Data Register Empty

0 = Transmit Data Register is full

1 = Transmit Data register is empty

Break Detect

0 = No break occurred

1 = A break occurred

Framing Error

0 = No framing error occurred

1 = A framing occurred

Overrun Error

0 = No overrrun error occurred

1 = An overrun error occurred

Parity Error

0 = No parity error occurred

1 = A parity error occurred

Receive Data Available

0 = Receive Data Register is empty

1 = A byte is available in the Receive

Data Register

UART1 Control 0

U1CTL0 (%F4A - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Loop Back Enable

0 = Normal operation

1 = Transmit data is looped back to

the receiver

Stop Bit Select

0 = Transmitter sends 1 Stop bit

1 = Transmitter sends 2 Stop bits

Send Break

0 = No break is sent

1 = Output of the transmitter is zero

Parity Select

0 = Even parity

1 = Odd parity

Parity Enable

0 = Parity is disabled

1 = Parity is enabled

CTS Enable

0 = CTS signal has no effect on the

transmitter

1 = UART recognizes CTS signal as a

transmit enable control signal

Receive Enable

0 = Receiver disabled

1 = Receiver enabled

Transmit Enable

0 = Transmitter disabled

1 = Transmitter enabled

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

UART1 Control 1

U0CTL1 (%F4B - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Infrared Encoder/Decoder Enable

0 = Infrared endec is disabled

1 = Infrared endec is enabled

Received Data Interrupt Enable

0 = Received data and errors generate

interrupt requests

1 = Only errors generate interrupt

requests. Received data does not.

Baud Rate Registers Control

Refer to UART chapter for operation

Driver Enable Polarity

0 = DE signal is active High

1 = DE signal is active Low

Multiprocessor Bit Transmit

0 = Send a 0 as the multiprocessor bit

1 = Send a 1 as the multiprocessor bit

Multiprocessor Mode [0]

See Multiprocessor Mode [1] below

Multiprocessor (9-bit) Enable

0 = Multiprocessor mode is disabled

1 = Multiprocessor mode is enabled

Multiprocessor Mode [1]

with Multiprocess Mode bit 0:

00 = Interrupt on all received bytes

01 = Interrupt only on address bytes

10 = Interrupt on address match and

following data

11 = Interrupt on data following an

address match

UART1 Status 1

U0STAT1 (%F4C- Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Mulitprocessor Receive

Returns value of last multiprocessor bit

New Frame

0 = Current byte is not start of frame

1 = Current byte is start of new frame

Reserved

UART1 Address Compare

U0ADDR (%F4D - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART1 Address Compare [7:0]

UART1 Baud Rate Generator High Byte

U0BRH (%F4E - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART1 Baud Rate divisor [15:8]

UART1 Baud Rate Generator Low Byte

U1BRL (%F4F - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

UART1 Baud Rate divisor [7:0]

I2C Data

I2CDATA (%F50 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

I2C data [7:0]

I2C Status

I2CSTAT (%F51 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

NACK Interrupt

0 = No action required to service NAK

1 = START/STOP not set after NAK

Data Shift State

0 = Data is not being transferred

1 = Data is being transferred

Transmit Address State

0 = Address is not being transferred

1 = Address is being transferred

Read

0 = Write operation

1 = Read operation

10-Bit Address

0 = 7-bit address being transmitted

1 = 10-bit address being transmitted

Acknowledge

0 = Acknowledge not

transmitted/received

1 = For last byte, Acknowledge was

transmitted/received

Receive Data Register Full

0 = I2C has not received data

1 = Data register contains received data

Transmit Data Register Empty

0 = Data register is full

1 = Data register is empty

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

I2C Control

I2CCTL (%F52 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

I2C Signal Filter Enable

0 = Digital filtering disabled

1 = Low-pass digital filters enabled

on SDA and SCL input signals

Flush Data

0 = No effect

1 = Clears I2C Data register

Send NAK

0 = Do not send NAK

1 = Send NAK after next byte received

from slave

Enable TDRE Interrupts

0 = Do not generate an interrupt when

the I2C Data register is empty

1 = Generate an interrupt when the I2C

Transmit Data register is empty

Baud Rate Generator Interrupt Request

0 = Interrupts behave as set by I2C

control

1 = BRG generates an interrupt when

it counts down to zero

Send Stop Condition

0 = Do not issue Stop condition after

data transmission is complete

1 = Issue Stop condition after data

transmission is complete

Send Start Condition

0 = Do not send Start Condition

1 = Send Start Condition

I2C Enable

0 = I2C is disabled

1 = I2C is enabled

I2C Baud Rate Generator High Byte

I2CBRH (%F53 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

I2C Baud Rate divisor [15:8]

I2C Baud Rate Generator Low Byte

I2CBRL (%F54 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

I2C Baud Rate divisor [7:0]

SPI Data

SPIDATA (%F60 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

SPI Data [7:0]

SPI Control

SPICTL (%F61 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

SPI Enable

0 = SPI disabled

1 = SPI enabled

Master Mode Enabled

0 = SPI configured in Slave mode

1 = SPI configured in Master mode

Wire-OR (open-drain) Mode Enabled

0 = SPI signals not configured for

open-drain

1 = SPI signals (SCK, SS, MISO, and

MOSI) configured for open-drain

Clock Polarity

0 = SCK idles Low

1 = SPI idles High

Phase Select

Sets the phase relationship of the data

to the clock.

BRG Timer Interrupt Request

0 = BRG timer function is disabled

1 = BRG time-out interrupt is enabled

Start an SPI Interrupt Request

0 = No effect

1 = Generate an SPI interrupt request

Interrupt Request Enable

0 = SPI interrupt requests are disabled

1 = SPI interrupt requests are enabled

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

SPI Status

SPISTAT (%F62 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Slave Select

0 = If Slave, SS pin is asserted

1 = If Slave, SS pin is not asserted

Transmit Status

0 = No data transmission in progress

1 = Data transmission now in progress

Reserved

Slave Mode Transaction Abort

0 = No slave mode transaction abort

detected

1 = Slave mode transaction abort was

detected

Collision

0 = No multi-master collision detected

1 = Multi-master collision was detected

Overrun

0 = No overrun error detected

1 = Overrun error was detected

Interrupt Request

0 = No SPI interrupt request pending

1 = SPI interrupt request is pending

SPI Mode

SPIMODE (%F63 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Slave Select Value

If Master and SPIMODE[1] = 1:

0 = SS pin driven Low

1 = SS pin driven High

Slave Select I/O

0 = SS pin configured as an input

1 = SS pin configured as an output

(Master mode only)

Number of Data Bits Per Character

000 = 8 bits

001 = 1 bit

010 = 2 bits

011 = 3 bits

100 = 4 bits

101 = 5 bit

110 = 6 bits

111 = 7 bits

Diagnostic Mode Control

0 = Reading from SPIBRH, SPIBRL

returns reload values

1 = Reading from SPIBRH, SPIBRL

returns current BRG count value

Reserved

SPI Diagnostic State

SPIDST (%F64 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

SPI State

Transmit Clock Enable

0 = Internal transmit clock enable

signal is deasserted

1 = Internal transmit clock enable

signal is asserted

Shift Clock Enable

0 = Internal shift clock enable signal

is deasserted

1 = Internal shift clock enable signal

is asserted

SPI Baud Rate Generator High Byte

SPIBRH (%F66 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

SPI Baud Rate divisor [15:8]

SPI Baud Rate Generator Low Byte

SPIBRL (%F67 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

SPI Baud Rate divisor [7:0]

ADC Control

ADCCTL (%F70 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Analog Input Select

0000 = ANA0 0001 = ANA1

0010 = ANA2 0011 = ANA3

0100 = ANA4 0101 = ANA5

0110 = ANA6 0111 = ANA7

1000 = ANA8 1001 = ANA9

1010 = ANA10 1011 = ANA11

11xx = Reserved

Continuous Mode Select

0 = Single-shot conversion

1 = Continuous conversion

External VREF select

0 = Internal voltage reference selected

1 = External voltage reference selected

Reserved

Conversion Enable

0 = Conversion is complete

1 = Begin conversion

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

ADC Data High Byte

ADCD_H (%F72 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

ADC Data [9:2]

ADC Data Low Bits

ADCD_L (%F73 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved

ADC Data [1:0]

DMA0 Control

DMA0CTL (%FB0 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Request Trigger Source Select

000 = Timer 0

001 = Timer 1

010 = Timer 2

011 = Timer 3

100 = UART0 Received Data register

contains valid data

101 = UART1 Received Data register

contains valid data

110 = I2C receiver contains valid data

111 = Reserved

Word Select

0 = DMA transfers 1 byte per request

1 = DMA transfers 2 bytes per request

DMA0 Interrupt Enable

0 = DMA0 does not generate interrupts

1 = DMA0 generates an interrupt when

End Address data is transferred

DMA0 Data Transfer Direction

0 = Register File to peripheral registers

1 = Peripheral registers to Register File

DMA0 Loop Enable

0 = DMA disables after End Address

1 = DMA reloads Start Address after

End Address and continues to run

DMA0 Enable

0 = DMA0 is disabled

1 = DMA0 is enabled

DMA0 I/O Address

DMA0IO (%FB1 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA0 Peripheral Register Address

Low byte of on-chip peripheral control

registers on Register File page FH

DMA0 Address High Nibble

DMA0H (%FB2 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA0 Start Address [11:8]

DMA0 End Address [11:8]

DMA0 Start/Current Address Low Byte

DMA0START (%FB3 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA0 Start Address [7:0]

DMA0 End Address Low Byte

DMA0END (%FB4 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA0 End Address [7:0]

DMA1 Control

DMA1CTL (%FB8 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Request Trigger Source Select

000 = Timer 0

001 = Timer 1

010 = Timer 2

011 = Timer 3

100 = UART0 Transmit Data register

is empty

101 = UART1 Transmit Data register

is empty

110 = I2C Transmit Data register

is empty

111 = Reserved

Word Select

0 = DMA transfers 1 byte per request

1 = DMA transfers 2 bytes per request

DMA1 Interrupt Enable

0 = DMA1 does not generate interrupts

1 = DMA1 generates an interrupt when

End Address data is transferred

DMA1 Data Transfer Direction

0 = Register File to peripheral registers

1 = Peripheral registers to Register File

DMA1 Loop Enable

0 = DMA disables after End Address

1 = DMA reloads Start Address after

End Address and continues to run

DMA1 Enable

0 = DMA1 is disabled

1 = DMA1 is enabled

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

DMA1 I/O Address

DMA1IO (%FB9 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA1 Peripheral Register Address

Low byte of on-chip peripheral control

registers on Register File page FH

DMA1 Address High Nibble

DMA1H (%FBA - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA1 Start Address [11:8]

DMA1 End Address [11:8]

DMA1 Start/Current Address Low Byte

DMA1START (%FBB - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA1 Start Address [7:0]

DMA1 End Address Low Byte

DMA1END (%FBC - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

DMA1 End Address [7:0]

DMA_ADC Address

DMAA_ADDR (%FBD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved

DMA_ADC Address

DMA_ADC Control

DMAACTL (%FBE - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

ADC Analog Input Number

0000 = Analog input 0 updated

0001 = Analog input 0-1 updated

0010 = Analog input 0-2 updated

0011 = Analog input 0-3 updated

0100 = Analog input 0-4 updated

0101 = Analog input 0-5 updated

0100 = Analog input 0-6 updated

0101 = Analog input 0-7 updated

1000 = Analog input 0-8 updated

1001 = Analog input 0-9 updated

1010 = Analog input 0-10 updated

1011 = Analog inputs 0-11 updated

11xx = Reserved

Reserved

Interrupt request enable

0 = DMA_ADC does not generate

interrupt requests

1 = DMA_ADC generates interrupt

requests after last analog input

DMA_ADC Enable

0 = DMA_ADC is disabled

1 = DMA_ADC is enabled

DMA Status

DMAA_STAT (%FBF - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

DMA0 Interrupt Request Indicator

0 = DMA0 is not the source of the IRQ

1 = DMA0 is the source of the IRQ

DMA1 Interrupt Request Indicator

0 = DMA1 is not the source of the IRQ

1 = DMA1 is the source of the IRQ

DMA_ADC Interrupt Request Indicator

0 = DMA_ADC is not the source of the

IRQ

1 = DMA_ADC is the source of the

IRQ

Reserved

Current ADC analog input

Identifies the analog input the ADC is

currently converting

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Interrupt Request 0

IRQ0 (%FC0 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

ADC Interrupt Request

SPI Interrupt Request

I2C Interrupt Request

UART 0 Transmitter Interrupt Request

UART 0 Receiver Interrupt Request

Timer 0 Interrupt Request

Timer 1 Interrupt Request

Timer 2 Interrupt Request

For all of the above peripherals:

0 = Peripheral IRQ is not pending

1 = Peripheral IRQ is awaiting service

IRQ0 Enable High Bit

IRQ0ENH (%FC1 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

ADC IRQ Enable Hit Bit

SPI IRQ Enable High Bit

I2C IRQ Enable High Bit

UART 0 Transmitter IRQ Enable High

UART 0 Receiver IRQ Enable High Bit

Timer 0 IRQ Enable High Bit

Timer 1 IRQ Enable High Bit

Timer 2 IRQ Enable High Bit

IRQ0 Enable Low Bit

IRQ0ENL (%FC2 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

ADC IRQ Enable Hit Bit

SPI IRQ Enable Low Bit

I2C IRQ Enable Low Bit

UART 0 Transmitter IRQ Enable Low

UART 0 Receiver IRQ Enable Low Bit

Timer 0 IRQ Enable Low Bit

Timer 1 IRQ Enable Low Bit

Timer 2 IRQ Enable Low Bit

Interrupt Request 1

IRQ1 (%FC3 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A or D Pin Interrupt Request

0 = IRQ from corresponding pin [7:0]

is not pending

1 = IRQ from corresponding pin [7:0]

is awaiting service

IRQ1 Enable High Bit

IRQ1ENH (%FC4 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A or D Pin IRQ Enable High Bit

IRQ1 Enable Low Bit

IRQ1ENL (%FC5 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A or D Pin IRQ Enable Low Bit

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Interrupt Request 2

IRQ2 (%FC6 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Pin Interrupt Request

0 = IRQ from corresponding pin [3:0]

is not pending

1 = IRQ from corresponding pin [3:0]

is awaiting service

DMA Interrupt Request

UART 1 Transmitter Interrupt Request

UART 1 Receiver Interrupt Request

Timer 3 Interrupt Request

For all of the above peripherals:

0 = Peripheral IRQ is not pending

1 = Peripheral IRQ is awaiting service

IRQ2 Enable High Bit

IRQ2ENH (%FC7 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Pin IRQ Enable High Bit

DMA IRQ Enable High Bit

UART 1 Transmitter IRQ Enable High

UART 1 Receiver IRQ Enable High Bit

Timer 3 IRQ Enable High Bit

IRQ2 Enable Low Bit

IRQ2ENH (%FC8 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Pin IRQ Enable Low Bit

DMA IRQ Enable Low Bit

UART 1 Transmitter IRQ Enable Low

UART 1 Receiver IRQ Enable Low Bit

Timer 3 IRQ Enable Low Bit

Interrupt Edge Select

IRQES (%FCD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A or D Interrupt Edge Select [7:0]

0 = Falling edge

1 = Rising edge

Interrupt Port Select

IRQES (%FCD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A or D Port Pin Select [7:0]

0 = Port A pin is the interrupt source

1 = Port D pin is the interrupt source

Interrupt Control

IRQES (%FCD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved

Interrupt Request Enable

0 = Interrupts are disabled

1 = Interrupts are enabled

Port A Address

PAADDR (%FD0 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port A Control

PACTL (%FD1 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A Control[7:0]

Provides Access to Port Sub-Registers

Port A Input Data

PAIN (%FD2 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port A Input Data [7:0]

Port A Output Data

PAOUT (%FD3 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port A Output Data [7:0]

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port B Address

PBADDR (%FD4 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port B Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port B Control

PBCTL (%FD5 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port B Control[7:0]

Provides Access to Port Sub-Registers

Port B Input Data

PBIN (%FD6 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port B Input Data [7:0]

Port B Output Data

PBOUT (%FD7 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port B Output Data [7:0]

Port C Address

PCADDR (%FD8 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port C Control

PCCTL (%FD9 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Control[7:0]

Provides Access to Port Sub-Registers

Port C Input Data

PCIN (%FDA - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Input Data [7:0]

Port C Output Data

PCOUT (%FDB - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port C Output Data [7:0]

Port D Address

PDADDR (%FDC - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port D Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port D Control

PDCTL (%FDD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port D Control[7:0]

Provides Access to Port Sub-Registers

Port D Input Data

PDIN (%FDE - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port D Input Data [7:0]

Port D Output Data

PDOUT (%FDF - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port D Output Data [7:0]

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port E Address

PEADDR (%FE0 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port E Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port E Control

PECTL (%FE1 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port E Control[7:0]

Provides Access to Port Sub-Registers

Port E Input Data

PEIN (%FE2 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port E Input Data [7:0]

Port E Output Data

PEOUT (%FE3 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port E Output Data [7:0]

Port F Address

PFADDR (%FE4 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port F Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port F Control

PFCTL (%FE5 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port F Control[7:0]

Provides Access to Port Sub-Registers

Port F Input Data

PFIN (%FE6 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port F Input Data [7:0]

Port F Output Data

PFOUT (%FE7 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port F Output Data [7:0]

Port G Address

PGADDR (%FE8 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port G Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port G Control

PGCTL (%FE9 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port G Control[7:0]

Provides Access to Port Sub-Registers

Port G Input Data

PGIN (%FEA - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port G Input Data [7:0]

Port G Output Data

PGOUT (%FEB - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port G Output Data [7:0]

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port H Address

PHADDR (%FEC - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port H Address[7:0]

Selects Port Sub-Registers:

00H = No function

01H = Data direction

02H = Alternate function

03H = Output control (open-drain)

04H = High drive enable

05H = STOP mode recovery enable

06H-FFH = No function

Port H Control

PHCTL (%FED - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port H Control [3:0]

Provides Access to Port Sub-Registers

Reserved

Port H Input Data

PHIN (%FEE - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Port H Input Data [3:0]

Reserved

Port H Output Data

PHOUT (%FEF - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Port H Output Data [3:0]

Reserved

Watch-Dog Timer Control

WDTCTL (%FF0 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved

EXT

0 = Reset not generated by RESET pin

1 = Reset generated by RESET pin

WDT

0 = WDT timeout has not occurred

1 = WDT timeout occurred

STOP

0 = SMR has not occurred

1 = SMR has occurred

POR

0 = POR has not occurred

1 = POR has occurred

Watch-Dog Timer Reload Upper Byte

WDTU (%FF1 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

WDT reload value [23:16]

Watch-Dog Timer Reload Middle Byte

WDTH (%FF2 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

WDT reload value [15:8]

Watch-Dog Timer Reload Low Byte

WDTL (%FF3 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

WDT reload value [7:0]

Flash Control

FCTL (%FF8 - Write Only)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Command

73H = First unlock command

8CH = Second unlock command

95H = Page erase command

63H = Mass erase command

5EH = Flash Sector Protect reg select

PS019906-1003

P r e l i m i n a r y

Control Register Summary

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Flash Status

FSTAT (%FF8 - Read Only)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Controller Status

00_0000 = Flash controller locked

00_0001 = First unlock received

00_0010 = Second unlock received

00_0011 = Flash controller unlocked

00_0100 = Flash Sector Protect register

selected

00_1xxx = Programming in progress

01_0xxx = Page erase in progress

10_0xxx = Mass erase in progress

Reserved

Flash Page Select

FPS (%FF9 - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Page Select [6:0]

Identifies the Flash memory page for

Page Erase operation.

Information Area Enable

0 = Information Area access is disabled

1 = Information Area access is enabled

Flash Sector Protect

FPROT (%FF9 - Read/Write to 1's)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Sector Protect [7:0]

0 = Sector can be programmed or

erased from user code

1 = Sector is protected and cannot be

programmed or erased from user

code

Flash Frequency High Byte

FFREQH (%FFA - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Frequency value [15:8]

Flash Frequency Low Byte

FFREQL (%FFB - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Flash Frequency value [7:0]

Flags

FLAGS (%FFC - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

F1 - User Flag 1

F2 - User Flag 2

H - Half Carry

D - Decimal Adjust

V - Overflow Flag

S - Sign Flag

Z - Zero Flag

C - Carry Flag

Register Pointer

RP (%FFD - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Working Register Page Address [11:8]

Working Register Group Address [7:4]

Stack Pointer High Byte

SPH (%FFE - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Stack Pointer [15:8]

Stack Pointer Low Byte

SPL (%FFF - Read/Write)

D7 D6 D5 D4 D3 D2 D1 D0

Stack Pointer [7:0]

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Reset and STOP Mode Recovery

Overview

The Reset Controller within the Z8F642x family controls Reset and STOP Mode Recov-
ery operation. In typical operation, the following events cause a Reset to occur:

Power-On Reset (POR)

Voltage Brown-Out (VBO)

Watch-Dog Timer time-out (when configured via the WDT_RES Option Bit to initiate
a Reset)

External RESET pin assertion

On-Chip Debugger initiated Reset (OCDCTL[0] set to 1)

When the Z8F642x family device is in STOP mode, a STOP Mode Recovery is initiated
by either of the following:

Watch-Dog Timer time-out

GPIO Port input pin transition on an enabled STOP Mode Recovery source

DBG pin driven Low

Reset Types

The Z8F642x family provides two different types of reset operation (System Reset and
STOP Mode Recovery). The type of Reset is a function of both the current operating mode
of the Z8F642x family device and the source of the Reset. Table 8 lists the types of Reset
and their operating characteristics.

Table 8. Reset and STOP Mode Recovery Characteristics and Latency

Reset Type

Reset Characteristics and Latency

Control Registers

eZ8 CPU Reset Latency (Delay)

System Reset

Reset (as applicable)

Reset

66 WDT Oscillator cycles + 16 System Clock cycles

STOP Mode
Recovery

Unaffected, except
WDT_CTL register

Reset

66 WDT Oscillator cycles + 16 System Clock cycles

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

System Reset

During a System Reset, the Z8F642x family device is held in Reset for 66 cycles of the
Watch-Dog Timer oscillator followed by 16 cycles of the system clock. At the beginning
of Reset, all GPIO pins are configured as inputs. All GPIO programmable pull-ups are dis-
abled.

During Reset, the eZ8 CPU and on-chip peripherals are idle; however, the on-chip crystal
oscillator and Watch-Dog Timer oscillator continue to run. The system clock begins oper-
ating following the Watch-Dog Timer oscillator cycle count. The eZ8 CPU and on-chip
peripherals remain idle through the 16 cycles of the system clock.

Upon Reset, control registers within the Register File that have a defined Reset value are
loaded with their reset values. Other control registers (including the Stack Pointer, Regis-
ter Pointer, and Flags) and general-purpose RAM are undefined following Reset. The eZ8
CPU fetches the Reset vector at Program Memory addresses

0002H

and

0003H

and loads

that value into the Program Counter. Program execution begins at the Reset vector
address.

Reset Sources

Table 9 lists the reset sources as a function of the operating mode. The text following pro-
vides more detailed information on the individual Reset sources. Please note that a Power-
On Reset / Voltage Brown-Out event always has priority over all other possible reset
sources to insure a full system reset occurs.

Power-On Reset

Each device in the Z8F642x family contains an internal Power-On Reset (POR) circuit.
The POR circuit monitors the supply voltage and holds the device in the Reset state until

Table 9. Reset Sources and Resulting Reset Type

Operating Mode

Reset Source

Reset Type

Normal or HALT
modes

Power-On Reset / Voltage Brown-Out System Reset

Watch-Dog Timer time-out
when configured for Reset

System Reset

RESET pin assertion

System Reset

On-Chip Debugger initiated Reset
(OCDCTL[0] set to 1)

System Reset except the On-Chip Debugger is
unaffected by the reset

STOP mode

Power-On Reset / Voltage Brown-Out System Reset

RESET pin assertion

System Reset

DBG pin driven Low

System Reset

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

the supply voltage reaches a safe operating level. After the supply voltage exceeds the
POR voltage threshold (V

POR

), the POR Counter is enabled and counts 66 cycles of the

Watch-Dog Timer oscillator. After the POR counter times out, the XTAL Counter is
enabled to count a total of 16 system clock pulses. The device is held in the Reset state
until both the POR Counter and XTAL counter have timed out. After the Z8F642x family
device exits the Power-On Reset state, the eZ8 CPU fetches the Reset vector. Following
Power-On Reset, the POR status bit in the Watch-Dog Timer Control (WDTCTL) register
is set to 1.

Figure 8 illustrates Power-On Reset operation. Refer to the Electrical Characteristics
chapter for the POR threshold voltage (V

POR

Figure 8. Power-On Reset Operation)

Voltage Brown-Out Reset

The devices in the Z8F642x family provide low Voltage Brown-Out (VBO) protection.
The VBO circuit senses when the supply voltage drops to an unsafe level (below the VBO
threshold voltage) and forces the device into the Reset state. While the supply voltage
remains below the Power-On Reset voltage threshold (V

POR

), the VBO block holds the

device in the Reset state.

0.0V

3.3V

POR

VBO

Primary

Oscillator

Internal RESET

signal

Program

Execution

Oscillator

Start-up

XTAL

WDT Clock

WDT osc

counter delay

Not to Scale

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

After the supply voltage again exceeds the Power-On Reset voltage threshold, the device
progresses through a full System Reset sequence, as described in the Power-On Reset sec-
tion. Following Power-On Reset, the POR status bit in the Watch-Dog Timer Control
(WDTCTL) register is set to 1. Figure 9 illustrates Voltage Brown-Out operation. Refer to
the Electrical Characteristics chapter for the VBO and POR threshold voltages (V

VBO

and V

POR

The Voltage Brown-Out circuit can be either enabled or disabled during STOP mode.
Operation during STOP mode is set by the VBO_AO Option Bit. Refer to the Option Bits
chapter for information on configuring VBO_AO.

Figure 9. Voltage Brown-Out Reset Operation

Watch-Dog Timer Reset

If the device is in normal or HALT mode, the Watch-Dog Timer can initiate a System
Reset at time-out if the WDT_RES Option Bit is set to 1. This is the default (unpro-
grammed) setting of the WDT_RES Option Bit. The

WDT

status bit in the WDT Control

= 3.3V

POR

VBO

Internal RESET

signal

Program

Execution

Program

Execution

Voltage

Brownout

= 3.3V

Primary

Oscillator

WDT Clock

XTAL

WDT

counter delay

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

External Pin Reset

The RESET pin has a Schmitt-triggered input, an internal pull-up, and a digital filter to
reject noise. Once the RESET pin is asserted for at least 4 system clock cycles, the device
progresses through the System Reset sequence. While the RESET input pin is asserted
Low, the Z8F642x family device continues to be held in the Reset state. If the RESET pin
is held Low beyond the System Reset time-out, the device exits the Reset state immedi-
ately following RESET pin deassertion. Following a System Reset initiated by the exter-
nal RESET pin, the EXT status bit in the Watch-Dog Timer Control (WDTCTL) register is
set to 1.

STOP Mode Recovery

STOP mode is entered by execution of a

STOP

instruction by the eZ8 CPU. Refer to the

Low-Power Modes chapter for detailed STOP mode information. During STOP Mode
Recovery, the device is held in reset for 66 cycles of the Watch-Dog Timer oscillator fol-
lowed by 16 cycles of the system clock. STOP Mode Recovery only affects the contents of
the Watch-Dog Timer Control register. STOP Mode Recovery does not affect any other
values in the Register File, including the Stack Pointer, Register Pointer, Flags, peripheral
control registers, and general-purpose RAM.

The eZ8 CPU fetches the Reset vector at Program Memory addresses

0002H

and

0003H

and loads that value into the Program Counter. Program execution begins at the Reset vec-
tor address. Following STOP Mode Recovery, the STOP bit in the Watch-Dog Timer Con-
trol Register is set to 1. Table 10 lists the STOP Mode Recovery sources and resulting
actions. The text following provides more detailed information on each of the STOP Mode
Recovery sources.

STOP Mode Recovery Using Watch-Dog Timer Time-Out

If the Watch-Dog Timer times out during STOP mode, the device undergoes a STOP
Mode Recovery sequence. In the Watch-Dog Timer Control register, the WDT and STOP
bits are set to 1. If the Watch-Dog Timer is configured to generate an interrupt upon time-

Table 10. STOP Mode Recovery Sources and Resulting Action

Operating Mode

STOP Mode Recovery Source

Action

STOP mode

Watch-Dog Timer time-out
when configured for Reset

STOP Mode Recovery

Watch-Dog Timer time-out
when configured for interrupt

STOP Mode Recovery followed by interrupt (if
interrupts are enabled)

Data transition on any GPIO Port pin
enabled as a STOP Mode Recovery
source

STOP Mode Recovery

PS019906-1003

P r e l i m i n a r y

Reset and STOP Mode Recovery

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

out and the Z8F642x family device is configured to respond to interrupts, the eZ8 CPU
services the Watch-Dog Timer interrupt request following the normal STOP Mode Recov-
ery sequence.

STOP Mode Recovery Using a GPIO Port Pin Transition HALT

Each of the GPIO Port pins may be configured as a STOP Mode Recovery input source.
On any GPIO pin enabled as a STOP Mode Recovery source, a change in the input pin
value (from High to Low or from Low to High) initiates STOP Mode Recovery. The GPIO
STOP Mode Recovery signals are filtered to reject pulses less than 10ns (typical) in dura-
tion. In the Watch-Dog Timer Control register, the STOP bit is set to 1.

In STOP mode, the GPIO Port Input Data registers (PxIN) are disabled.
The Port Input Data registers record the Port transition only if the signal
stays on the Port pin through the end of the STOP Mode Recovery delay.
Thus, short pulses on the Port pin can initiate STOP Mode Recovery with-
out being written to the Port Input Data register or without initiating an in-
terrupt (if enabled for that pin).

Caution:

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Low-Power Modes

Low-Power Modes

Overview

The Z8F642x family products contain power-saving features. The highest level of power
reduction is provided by STOP mode. The next level of power reduction is provided by
the HALT mode.

STOP Mode

Execution of the eZ8 CPU's STOP instruction places the device into STOP mode. In
STOP mode, the operating characteristics are:

Primary crystal oscillator is stopped; XIN and XOUT pins are driven to V

System clock is stopped

eZ8 CPU is stopped

Program counter (PC) stops incrementing

If enabled for operation during STOP mode, the Watch-Dog Timer and its internal RC
oscillator continue to operate.

If enabled for operation in STOP mode via the associated Option Bit, the Voltage
Brown-Out protection circuit continues to operate.

All other on-chip peripherals are idle.

To minimize current in STOP mode, all GPIO pins that are configured as digital inputs
must be driven to one of the supply rails (V

or GND), the Voltage Brown-Out protection

should be disabled, and the Watch-Dog Timer should be disabled. The device can be
brought out of STOP mode using STOP Mode Recovery. For more information on STOP
Mode Recovery refer to the Reset and STOP Mode Recovery chapter beginning on
page 44.

To prevent excess current consumption, STOP Mode must not be used if
the device is driven with an external clock source.

Caution:

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

General-Purpose I/O

Overview

The Z8F642x family products support a maximum of seven 8-bit ports (Ports A-G) and
one 4-bit port (Port H) for general-purpose input/output (I/O) operations. Each port con-
tains control and data registers. The GPIO control registers are used to determine data
direction, open-drain, output drive current and alternate pin functions. Each port pin is
individually programmable.

GPIO Port Availability By Device

Table 11 lists the port pins available with each device and package type.

Architecture

Figure 10 illustrates a simplified block diagram of a GPIO port pin. In this figure, the abil-
ity to accommodate alternate functions and variable port current drive strength are not
illustrated.

Table 11. Port Availability by Device and Package Type

Device

Packages

Port A

Port B

Port C

Port D

Port E

Port F

Port G

Port H

Z8Fxx21

40-pin

[7:0]

[6:0]

[6:3,2:0]

Z8Fxx21

44-pin

[7:0]

[6:0]

Z8Fxx22

64- and 68-pin

[7:0]

[7]

[3]

[3:0]

Z8Fxx23

80-pin

[7:0]

[3:0]

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Table 12. Port Alternate Function Mapping

Port

Pin

Mnemonic

Alternate Function Description

Port A

PA0

T0IN

Timer 0 Input

PA1

T0OUT

Timer 0 Output

PA2

DE0

UART 0 Driver Enable

PA3

CTS0

UART 0 Clear to Send

PA4

RXD0 / IRRX0 UART 0 / IrDA 0 Receive Data

PA5

TXD0 / IRTX0

UART 0 / IrDA 0 Transmit Data

PA6

SCL

C Clock (automatically open-drain)

PA7

SDA

C Data (automatically open-drain)

Port B

PB0

ANA0

ADC Analog Input 0

PB1

ANA1

ADC Analog Input 1

PB2

ANA2

ADC Analog Input 2

PB3

ANA3

ADC Analog Input 3

PB4

ANA4

ADC Analog Input 4

PB5

ANA5

ADC Analog Input 5

PB6

ANA6

ADC Analog Input 6

PB7

ANA7

ADC Analog Input 7

Port C

PC0

T1IN

Timer 1 Input

PC1

T1OUT

Timer 1 Output

PC2

SPI Slave Select

PC3

SCK

SPI Serial Clock

PC4

MOSI

SPI Master Out Slave In

PC5

MISO

SPI Master In Slave Out

PC6

T2IN

Timer 2 In

PC7

T2OUT

Timer 2 Out

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

GPIO Interrupts

Many of the GPIO port pins can be used as interrupt sources. Some port pins may be con-
figured to generate an interrupt request on either the rising edge or falling edge of the pin
input signal. Other port pin interrupts generate an interrupt when any edge occurs (both
rising and falling). Refer to the Interrupt Controller chapter for more information on
interrupts using the GPIO pins.

GPIO Control Register Definitions

Four registers for each Port provide access to GPIO control, input data, and output data.
Table 13 lists these Port registers. Use the Port A-H Address and Control registers together
to provide access to sub-registers for Port configuration and control.

Port D

PD0

T3IN

Timer 3 In (unavailable in 44-pin packages)

PD1

T3OUT

Timer 3 Out (unavailable in 44-pin packages)

PD2

N/A

No alternate function

PD3

DE1

UART 1 Driver Enable

PD4

RXD1 / IRRX1 UART 1 / IrDA 1 Receive Data

PD5

TXD1 / IRTX1

UART 1 / IrDA 1 Transmit Data

PD6

CTS1

UART 1 Clear to Send

PD7

RCOUT

Watch-Dog Timer RC Oscillator Output

Port E

PE[7:0] N/A

No alternate functions

Port F

PF[7:0] N/A

No alternate functions

Port G

PG[7:0] N/A

No alternate functions

Port H

PH0

ANA8

ADC Analog Input 8

PH1

ANA9

ADC Analog Input 9

PH2

ANA10

ADC Analog Input 10

PH3

ANA11

ADC Analog Input 11

Table 12. Port Alternate Function Mapping (Continued)

Port

Pin

Mnemonic

Alternate Function Description

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port A-H Address Registers

The Port A-H Address registers select the GPIO Port functionality accessible through the
Port A-H Control registers. The Port A-H Address and Control registers combine to pro-
vide access to all GPIO Port control (Table 14).

Table 13. GPIO Port Registers and Sub-Registers

Port Register Mnemonic

Port Register Name

PxADDR

Port A-H Address Register
(Selects sub-registers)

PxCTL

Port A-H Control Register
(Provides access to sub-registers)

PxIN

Port A-H Input Data Register

PxOUT

Port A-H Output Data Register

Port Sub-Register Mnemonic

Port Register Name

PxDD

Data Direction

PxAF

Alternate Function

PxOC

Output Control (Open-Drain)

PxDD

High Drive Enable

PxSMRE

STOP Mode Recovery Source
Enable

Table 14. Port A-H GPIO Address Registers (PxADDR)

BITS

FIELD

PADDR[7:0]

RESET

00H

R/W

R/W

ADDR

FD0H, FD4H, FD8H, FDCH, FE0H, FE4H, FE8H, FECH

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PADDR[7:0]--Port Address
The Port Address selects one of the sub-registers accessible through the Port Control reg-
ister.

Port A-H Control Registers

The Port A-H Control registers set the GPIO port operation. The value in the correspond-
ing Port A-H Address register determines the control sub-registers accessible using the
Port A-H Control register (Table 15).

PCTL[7:0]--Port Control
The Port Control register provides access to all sub-registers that configure the GPIO Port
operation.

PADDR[7:0] Port Control sub-register accessible using the Port A-H Control Registers

00H

No function. Provides some protection against accidental Port reconfiguration.

01H

Data Direction

02H

Alternate Function

03H

Output Control (Open-Drain)

04H

High Drive Enable

05H

STOP Mode Recovery Source Enable.

06H-FFH

No function.

Table 15. Port A-H Control Registers (PxCTL)

BITS

FIELD

PCTL

RESET

00H

R/W

R/W

ADDR

FD1H, FD5H, FD9H, FDDH, FE1H, FE5H, FE9H, FEDH

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port A-H Data Direction Sub-Registers

The Port A-H Data Direction sub-register is accessed through the Port A-H Control regis-
ter by writing 01H to the Port A-H Address register (Table 16).

DD[7:0]--Data Direction
These bits control the direction of the associated port pin. Port Alternate Function opera-
tion overrides the Data Direction register setting.
0 = Output. Data in the Port A-H Output Data register is driven onto the port pin.
1 = Input. The port pin is sampled and the value written into the Port A-H Input Data Reg-
ister. The output driver is tri-stated.

Port A-H Alternate Function Sub-Registers

The Port A-H Alternate Function sub-register (Table 17) is accessed through the Port A-H
Control register by writing

02H

to the Port A-H Address register. The Port A-H Alternate

Function sub-registers select the alternate functions for the selected pins. Refer to the
GPIO Alternate Functions section to determine the alternate function associated with
each port pin.

Do not enable alternate function for GPIO port pins which do not have an
associated alternate function. Failure to follow this guideline may result in
unpredictable operation.

Table 16. Port A-H Data Direction Sub-Registers

BITS

FIELD

DD7

DD6

DD5

DD4

DD3

DD2

DD1

DD0

RESET

R/W

R/W

ADDR

If 01H in Port A-H Address Register, accessible via Port A-H Control Register

Table 17. Port A-H Alternate Function Sub-Registers

BITS

FIELD

AF7

AF6

AF5

AF4

AF3

AF2

AF1

AF0

RESET

R/W

R/W

ADDR

If 02H in Port A-H Address Register, accessible via Port A-H Control Register

Caution:

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

AF[7:0]--Port Alternate Function enabled
0 = The port pin is in normal mode and the DDx bit in the Port A-H Data Direction sub-
register determines the direction of the pin.
1 = The alternate function is selected. Port pin operation is controlled by the alternate
function.

Port A-H Output Control Sub-Registers

The Port A-H Output Control sub-register (Table 18) is accessed through the Port A-H
Control register by writing

03H

to the Port A-H Address register. Setting the bits in the

Port A-H Output Control sub-registers to 1 configures the specified port pins for open-
drain operation. These sub-registers affect the pins directly and, as a result, alternate func-
tions are also affected.

POC[7:0]--Port Output Control
These bits function independently of the alternate function bit and disables the drains if set
to 1.
0 = The drains are enabled for any output mode.
1 = The drain of the associated pin is disabled (open-drain mode).

Table 18. Port A-H Output Control Sub-Registers

BITS

FIELD

POC7

POC6

POC5

POC4

POC3

POC2

POC1

POC0

RESET

R/W

R/W

ADDR

If 03H in Port A-H Address Register, accessible via Port A-H Control Register

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Port A-H High Drive Enable Sub-Registers

The Port A-H High Drive Enable sub-register (Table 19) is accessed through the Port A-H
Control register by writing

04H

to the Port A-H Address register. Setting the bits in the

Port A-H High Drive Enable sub-registers to 1 configures the specified port pins for high
current output drive operation. The Port A-H High Drive Enable sub-register affects the
pins directly and, as a result, alternate functions are also affected.

PHDE[7:0]--Port High Drive Enabled
0 = The Port pin is configured for standard output current drive.
1 = The Port pin is configured for high output current drive.

Port A-H STOP Mode Recovery Source Enable Sub-Registers

The Port A-H STOP Mode Recovery Source Enable sub-register (Table 20) is accessed
through the Port A-H Control register by writing

05H

to the Port A-H Address register.

Setting the bits in the Port A-H STOP Mode Recovery Source Enable sub-registers to 1
configures the specified Port pins as a STOP Mode Recovery source. During STOP Mode,
any logic transition on a Port pin enabled as a STOP Mode Recovery source initiates
STOP Mode Recovery.

Table 19. Port A-H High Drive Enable Sub-Registers

BITS

FIELD

PHDE7

PHDE6

PHDE5

PHDE4

PHDE3

PHDE2

PHDE1

PHDE0

RESET

R/W

R/W

ADDR

If 04H in Port A-H Address Register, accessible via Port A-H Control Register

PS019906-1003

P r e l i m i n a r y

General-Purpose I/O

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PSMRE[7:0]--Port STOP Mode Recovery Source Enabled
0 = The Port pin is not configured as a STOP Mode Recovery source. Transitions on this
pin during STOP mode do not initiate STOP Mode Recovery.

1 = The Port pin is configured as a STOP Mode Recovery source. Any logic transition on
this pin during STOP mode initiates STOP Mode Recovery.

Port A-H Input Data Registers

Reading from the Port A-H Input Data registers (Table 21) returns the sampled values
from the corresponding port pins. The Port A-H Input Data registers are Read-only.

PIN[7:0]--Port Input Data
Sampled data from the corresponding port pin input.
0 = Input data is logical 0 (Low).
1 = Input data is logical 1 (High).

Table 20. Port A-H STOP Mode Recovery Source Enable Sub-Registers

BITS

FIELD

PSMRE7

PSMRE6

PSMRE5

PSMRE4

PSMRE3

PSMRE2

PSMRE1

PSMRE0

RESET

R/W

R/W

ADDR

If 05H in Port A-H Address Register, accessible via Port A-H Control Register

Table 21. Port A-H Input Data Registers (PxIN)

BITS

FIELD

PIN7

PIN6

PIN5

PIN4

PIN3

PIN2

PIN1

PIN0

RESET

R/W

ADDR

FD2H, FD6H, FDAH, FDEH, FE2H, FE6H, FEAH, FEEH

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Interrupt Controller

Overview

The interrupt controller on the Z8F642x family products prioritizes the interrupt requests
from the on-chip peripherals and the GPIO port pins. The features of the interrupt control-
ler include the following:

24 unique interrupt vectors:

12 GPIO port pin interrupt sources

12 on-chip peripheral interrupt sources

Flexible GPIO interrupts

8 selectable rising and falling edge GPIO interrupts

4 dual-edge interrupts

3 levels of individually programmable interrupt priority

Watch-Dog Timer can be configured to generate an interrupt

Interrupt requests (IRQs) allow peripheral devices to suspend CPU operation in an orderly
manner and force the CPU to start an interrupt service routine (ISR). Usually this interrupt
service routine is involved with the exchange of data, status information, or control infor-
mation between the CPU and the interrupting peripheral. When the service routine is com-
pleted, the CPU returns to the operation from which it was interrupted.

The eZ8 CPU supports both vectored and polled interrupt handling. For polled interrupts,
the interrupt control has no effect on operation. Refer to the eZ8 CPU User Manual for
more information regarding interrupt servicing by the eZ8 CPU. The eZ8 CPU User Man-
ual is available for download at

www.zilog.com

Interrupt Vector Listing

Table 23 lists all of the interrupts available in order of priority. The interrupt vector is
stored with the most significant byte (MSB) at the even Program Memory address and the
least significant byte (LSB) at the following odd Program Memory address.

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Table 23. Interrupt Vectors in Order of Priority

Priority

Program Memory
Vector Address

Interrupt Source

Highest

0002h

Reset (not an interrupt)

0004h

Watch-Dog Timer (see Watch-Dog Timer chapter)

0006h

Illegal Instruction Trap (not an interrupt)

0008h

Timer 2

000Ah

Timer 1

000Ch

Timer 0

000Eh

UART 0 receiver

0010h

UART 0 transmitter

0012h

0014h

SPI

0016h

ADC

0018h

Port A7 or Port D7, rising or falling input edge

001Ah

Port A6 or Port D6, rising or falling input edge

001Ch

Port A5 or Port D5, rising or falling input edge

001Eh

Port A4 or Port D4, rising or falling input edge

0020h

Port A3 or Port D3, rising or falling input edge

0022h

Port A2 or Port D2, rising or falling input edge

0024h

Port A1 or Port D1, rising or falling input edge

0026h

Port A0 or Port D0, rising or falling input edge

0028h

Timer 3 (not available in 44-pin packages)

002Ah

UART 1 receiver

002Ch

UART 1 transmitter

002Eh

DMA

0030h

Port C3, both input edges

0032h

Port C2, both input edges

0034h

Port C1, both input edges

Lowest

0036h

Port C0, both input edges

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Architecture

Figure 11 illustrates a block diagram of the interrupt controller.

Figure 11. Interrupt Controller Block Diagram

Operation

Master Interrupt Enable

The master interrupt enable bit (IRQE) in the Interrupt Control register globally enables
and disables interrupts.

Interrupts are globally enabled by any of the following actions:

Execution of an EI (Enable Interrupt) instruction

Execution of an IRET (Return from Interrupt) instruction

Writing a 1 to the IRQE bit in the Interrupt Control register

Interrupts are globally disabled by any of the following actions:

Execution of a DI (Disable Interrupt) instruction

eZ8 CPU acknowledgement of an interrupt service request from the interrupt
controller

Writing a 0 to the IRQE bit in the Interrupt Control register

Reset

Vector

IRQ Request

High

Priority

Medium

Priority

Low

Priority

Mux

Interrupt

Req

uest L

a
tch

e
s a

Con

t
ro

Port Interrupts

Internal Interrupts

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Execution of a Trap instruction

Illegal Instruction trap

Interrupt Vectors and Priority

The interrupt controller supports three levels of interrupt priority. Level 3 is the highest
priority, Level 2 is the second highest priority, and Level 1 is the lowest priority. If all of
the interrupts were enabled with identical interrupt priority (all as Level 2 interrupts, for
example), then interrupt priority would be assigned from highest to lowest as specified in
Table 23. Level 3 interrupts always have higher priority than Level 2 interrupts which, in
turn, always have higher priority than Level 1 interrupts. Within each interrupt priority
level (Level 1, Level 2, or Level 3), priority is assigned as specified in Table 23. Reset,
Watch-Dog Timer interrupt (if enabled), and Illegal Instruction Trap always have highest
priority.

Interrupt Assertion

Interrupt sources assert their interrupt requests for only a single system clock period (sin-
gle pulse). When the interrupt request is acknowledged by the eZ8 CPU, the correspond-
ing bit in the Interrupt Request register is cleared until the next interrupt occurs. Writing a
0 to the corresponding bit in the Interrupt Request register likewise clears the interrupt
request.

The following style of coding to clear bits in the Interrupt Request registers
is NOT recommended. All incoming interrupts that are received between
execution of the first LDX command and the last LDX command are lost.

Poor coding style that can result in lost interrupt requests:

LDX r0, IRQ0
AND r0, MASK
LDX IRQ0, r0

To avoid missing interrupts, the following style of coding to clear bits in
the Interrupt Request 0 register is recommended:

Good coding style that avoids lost interrupt requests:

ANDX IRQ0, MASK

Software Interrupt Assertion

Program code can generate interrupts directly. Writing a 1 to the desired bit in the Interrupt
Request register triggers an interrupt (assuming that interrupt is enabled). When the inter-
rupt request is acknowledged by the eZ8 CPU, the bit in the Interrupt Request register is
automatically cleared to 0.

Caution:

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

The following style of coding to generate software interrupts by setting
bits in the Interrupt Request registers is NOT recommended. All incoming
interrupts that are received between execution of the first LDX command
and the last LDX command are lost.

Poor coding style that can result in lost interrupt requests:

LDX r0, IRQ0
OR r0, MASK
LDX IRQ0, r0

To avoid missing interrupts, the following style of coding to set bits in the
Interrupt Request registers is recommended:

Good coding style that avoids lost interrupt requests:

ORX IRQ0, MASK

Interrupt Control Register Definitions

For all interrupts other than the Watch-Dog Timer interrupt, the interrupt control registers
enable individual interrupts, set interrupt priorities, and indicate interrupt requests.

Interrupt Request 0 Register

The Interrupt Request 0 (IRQ0) register (Table 24) stores the interrupt requests for both
vectored and polled interrupts. When a request is presented to the interrupt controller, the
corresponding bit in the IRQ0 register becomes 1. If interrupts are globally enabled (vec-
tored interrupts), the interrupt controller passes an interrupt request to the eZ8 CPU. If
interrupts are globally disabled (polled interrupts), the eZ8 CPU can read the Interrupt
Request 0 register to determine if any interrupt requests are pending

Table 24. Interrupt Request 0 Register (IRQ0)

BITS

FIELD

T2I

T1I

T0I

U0RXI

U0TXI

I2CI

SPII

ADCI

RESET

R/W

R/W

ADDR

FC0H

Caution:

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

T2I--Timer 2 Interrupt Request
0 = No interrupt request is pending for Timer 2.
1 = An interrupt request from Timer 2 is awaiting service.

T1I--Timer 1 Interrupt Request
0 = No interrupt request is pending for Timer 1.
1 = An interrupt request from Timer 1 is awaiting service.

T0I--Timer 0 Interrupt Request
0 = No interrupt request is pending for Timer 0.
1 = An interrupt request from Timer 0 is awaiting service.

U0RXI--UART 0 Receiver Interrupt Request
0 = No interrupt request is pending for the UART 0 receiver.
1 = An interrupt request from the UART 0 receiver is awaiting service.

U0TXI--UART 0 Transmitter Interrupt Request
0 = No interrupt request is pending for the UART 0 transmitter.
1 = An interrupt request from the UART 0 transmitter is awaiting service.

CI-- I

C Interrupt Request

0 = No interrupt request is pending for the I

1 = An interrupt request from the I

C is awaiting service.

SPII--SPI Interrupt Request
0 = No interrupt request is pending for the SPI.
1 = An interrupt request from the SPI is awaiting service.

ADCI--ADC Interrupt Request
0 = No interrupt request is pending for the Analog-to-Digital Converter.
1 = An interrupt request from the Analog-to-Digital Converter is awaiting service.

Interrupt Request 1 Register

The Interrupt Request 1 (IRQ1) register (Table 25) stores interrupt requests for both vec-
tored and polled interrupts. When a request is presented to the interrupt controller, the cor-
responding bit in the IRQ1 register becomes 1. If interrupts are globally enabled (vectored
interrupts), the interrupt controller passes an interrupt request to the eZ8 CPU. If interrupts

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Interrupt Request 2 Register

The Interrupt Request 2 (IRQ2) register (Table 26) stores interrupt requests for both vec-
tored and polled interrupts. When a request is presented to the interrupt controller, the cor-
responding bit in the IRQ2 register becomes 1. If interrupts are globally enabled (vectored
interrupts), the interrupt controller passes an interrupt request to the eZ8 CPU. If interrupts
are globally disabled (polled interrupts), the eZ8 CPU can read the Interrupt Request 1
register to determine if any interrupt requests are pending.

T3I--Timer 3 Interrupt Request
0 = No interrupt request is pending for Timer 3.
1 = An interrupt request from Timer 3 is awaiting service.

U1RXI--UART 1 Receive Interrupt Request
0 = No interrupt request is pending for the UART1 receiver.
1 = An interrupt request from UART1 receiver is awaiting service.

U1TXI--UART 1 Transmit Interrupt Request
0 = No interrupt request is pending for the UART 1 transmitter.
1 = An interrupt request from the UART 1 transmitter is awaiting service.

DMAI--DMA Interrupt Request
0 = No interrupt request is pending for the DMA.
1 = An interrupt request from the DMA is awaiting service.

PCxI--Port C Pin x Interrupt Request
0 = No interrupt request is pending for GPIO Port C pin x.
1 = An interrupt request from GPIO Port C pin x is awaiting service.

where x indicates the specific GPIO Port C pin number (0 through 3).

Table 26. Interrupt Request 2 Register (IRQ2)

BITS

FIELD

T3I

U1RXI

U1TXI

DMAI

PC3I

PC2I

PC1I

PC0I

RESET

R/W

R/W

ADDR

FC6H

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

IRQ0 Enable High and Low Bit Registers

The IRQ0 Enable High and Low Bit registers (Tables 28 and 29) form a priority encoded
enabling for interrupts in the Interrupt Request 0 register. Priority is generated by setting
bits in each register. Table 27 describes the priority control for IRQ0.

T2ENH--Timer 2 Interrupt Request Enable High Bit
T1ENH--Timer 1 Interrupt Request Enable High Bit
T0ENH--Timer 0 Interrupt Request Enable High Bit
U0RENH--UART 0 Receive Interrupt Request Enable High Bit
U0TENH--UART 0 Transmit Interrupt Request Enable High Bit
I2CENH--I

C Interrupt Request Enable High Bit

SPIENH--SPI Interrupt Request Enable High Bit
ADCENH--ADC Interrupt Request Enable High Bit

Table 27. IRQ0 Enable and Priority Encoding

IRQ0ENH[x] IRQ0ENL[x] Priority

Description

Disabled

Level 1

Low

Level 2

Nominal

Level 3

High

where x indicates the register bits from 0 through 7.

Table 28. IRQ0 Enable High Bit Register (IRQ0ENH)

BITS

FIELD

T2ENH

T1ENH

T0ENH

U0RENH

U0TENH

I2CENH

SPIENH

ADCENH

RESET

R/W

R/W

ADDR

FC1H

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

T2ENL--Timer 2 Interrupt Request Enable Low Bit
T1ENL--Timer 1 Interrupt Request Enable Low Bit
T0ENL--Timer 0 Interrupt Request Enable Low Bit
U0RENL--UART 0 Receive Interrupt Request Enable Low Bit
U0TENL--UART 0 Transmit Interrupt Request Enable Low Bit
I2CENL--I

C Interrupt Request Enable Low Bit

SPIENL--SPI Interrupt Request Enable Low Bit
ADCENL--ADC Interrupt Request Enable Low Bit

IRQ1 Enable High and Low Bit Registers

The IRQ1 Enable High and Low Bit registers (Tables 31 and 32) form a priority encoded
enabling for interrupts in the Interrupt Request 1 register. Priority is generated by setting
bits in each register. Table 30 describes the priority control for IRQ1.

Table 29. IRQ0 Enable Low Bit Register (IRQ0ENL)

BITS

FIELD

T2ENL

T1ENL

T0ENL

U0RENL

U0TENL

I2CENL

SPIENL

ADCENL

RESET

R/W

R/W

ADDR

FC2H

Table 30. IRQ1 Enable and Priority Encoding

IRQ1ENH[x] IRQ1ENL[x] Priority

Description

Disabled

Level 1

Low

Level 2

Nominal

Level 3

High

where x indicates the register bits from 0 through 7.

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PADxENH--Port A or Port D Bit[x] Interrupt Request Enable High Bit
Refer to the Interrupt Port Select register for selection of either Port A or Port D as the
interrupt source.

PADxENL--Port A or Port D Bit[x] Interrupt Request Enable Low Bit
Refer to the Interrupt Port Select register for selection of either Port A or Port D as the
interrupt source.

IRQ2 Enable High and Low Bit Registers

The IRQ2 Enable High and Low Bit registers (Tables 34 and 35) form a priority encoded
enabling for interrupts in the Interrupt Request 2 register. Priority is generated by setting
bits in each register. Table 33 describes the priority control for IRQ2.

Table 31. IRQ1 Enable High Bit Register (IRQ1ENH)

BITS

FIELD

PAD7ENH PAD6ENH PAD5ENH PAD4ENH PAD3ENH PAD2ENH PAD1ENH PAD0ENH

RESET

R/W

R/W

ADDR

FC4H

Table 32. IRQ1 Enable Low Bit Register (IRQ1ENL)

BITS

FIELD

PAD7ENL PAD6ENL PAD5ENL PAD4ENL PAD3ENL PAD2ENL PAD1ENL PAD0ENL

RESET

R/W

R/W

ADDR

FC5H

Table 33. IRQ2 Enable and Priority Encoding

IRQ2ENH[x] IRQ2ENL[x] Priority

Description

Disabled

Level 1

Low

Level 2

Nominal

Level 3

High

where x indicates the register bits from 0 through 7.

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

T3ENH--Timer 3 Interrupt Request Enable High Bit
U1RENH--UART 1 Receive Interrupt Request Enable High Bit
U1TENH--UART 1 Transmit Interrupt Request Enable High Bit
DMAENH--DMA Interrupt Request Enable High Bit
C3ENH--Port C3 Interrupt Request Enable High Bit
C2ENH--Port C2 Interrupt Request Enable High Bit
C1ENH--Port C1 Interrupt Request Enable High Bit
C0ENH--Port C0 Interrupt Request Enable High Bit

T3ENL--Timer 3 Interrupt Request Enable Low Bit
U1RENL--UART 1 Receive Interrupt Request Enable Low Bit
U1TENL--UART 1 Transmit Interrupt Request Enable Low Bit
DMAENL--DMA Interrupt Request Enable Low Bit
C3ENL--Port C3 Interrupt Request Enable Low Bit
C2ENL--Port C2 Interrupt Request Enable Low Bit
C1ENL--Port C1 Interrupt Request Enable Low Bit
C0ENL--Port C0 Interrupt Request Enable Low Bit

Interrupt Edge Select Register

The Interrupt Edge Select (IRQES) register (Table 36) determines whether an interrupt is
generated for the rising edge or falling edge on the selected GPIO Port input pin. The

Table 34. IRQ2 Enable High Bit Register (IRQ2ENH)

BITS

FIELD

T3ENH

U1RENH

U1TENH

DMAENH

C3ENH

C2ENH

C1ENH

C0ENH

RESET

R/W

R/W

ADDR

FC7H

Table 35. IRQ2 Enable Low Bit Register (IRQ2ENL)

BITS

FIELD

T3ENL

U1RENL

U1TENL

DMAENL

C3ENL

C2ENL

C1ENL

C0ENL

RESET

R/W

R/W

ADDR

FC8H

PS019906-1003

P r e l i m i n a r y

Interrupt Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Interrupt Port Select register selects between Port A and Port D for the individual inter-
rupts.

IESx--Interrupt Edge Select x
The minimum pulse width should be greater than 1 system clock to guarantee capture of
the edge triggered interrupt. Shorter pulses may be captured but not guaranteed.
0 = An interrupt request is generated on the falling edge of the PAx/PDx input.
1 = An interrupt request is generated on the rising edge of the PAx/PDx input.
where x indicates the specific GPIO Port pin number (0 through 7),

Interrupt Port Select Register

The Port Select (IRQPS) register (Table 37) determines the port pin that generates the
PAx/PDx interrupts. This register allows either Port A or Port D pins to be used as inter-
rupts. The Interrupt Edge Select register controls the active interrupt edge.

PADxS--PAx/PDx Selection
0 = PAx is used for the interrupt for PAx/PDx interrupt request.
1 = PDx is used for the interrupt for PAx/PDx interrupt request.
where x indicates the specific GPIO Port pin number (0 through 7).

Table 36. Interrupt Edge Select Register (IRQES)

BITS

FIELD

IES7

IES6

IES5

IES4

IES3

IES2

IES1

IES0

RESET

R/W

R/W

ADDR

FCDH

Table 37. Interrupt Port Select Register (IRQPS)

BITS

FIELD

PAD7S

PAD6S

PAD5S

PAD4S

PAD3S

PAD2S

PAD1S

PAD0S

RESET

R/W

R/W

ADDR

FCEH

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Timers

Timers

Overview

The Z8F642x family products contain up to four 16-bit reloadable timers that can be used
for timing, event counting, or generation of pulse-width modulated (PWM) signals. The
timers' features include:

16-bit reload counter

Programmable prescaler with prescale values from 1 to 128

PWM output generation

Capture and compare capability

External input pin for timer input, clock gating, or capture signal. External input pin
signal frequency is limited to a maximum of one-fourth the system clock frequency.

Timer output pin

Timer interrupt

In addition to the timers described in this chapter, the Baud Rate Generators for any
unused UART, SPI, or I

C peripherals may also be used to provide basic timing function-

ality. Refer to the respective serial communication peripheral chapters for information on
using the Baud Rate Generators as timers. Timer 3 is unavailable in the 44-pin package
devices.

Architecture

Figure 12 illustrates the architecture of the timers.

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Figure 12. Timer Block Diagram

Operation

The timers are 16-bit up-counters. Minimum time-out delay is set by loading the value

0001H

into the Timer Reload High and Low Byte registers and setting the prescale value

to 1. Maximum time-out delay is set by loading the value

0000H

into the Timer Reload

High and Low Byte registers and setting the prescale value to 128. If the Timer reaches

FFFFH

, the timer rolls over to

0000H

and continues counting.

Timer Operating Modes

The timers can be configured to operate in the following modes:

One-Shot Mode

In One-Shot mode, the timer counts up to the 16-bit Reload value stored in the Timer
Reload High and Low Byte registers. The timer input is the system clock. Upon reaching
the Reload value, the timer generates an interrupt and the count value in the Timer High
and Low Byte registers is reset to

0001H

. Then, the timer is automatically disabled and

stops counting.

Also, if the Timer Output alternate function is enabled, the Timer Output pin changes state
for one system clock cycle (from Low to High or from High to Low) upon timer Reload. If
it is desired to have the Timer Output make a permanent state change upon One-Shot time-

16-Bit

PWM / Compare

16-Bit Counter

with Prescaler

16-Bit

Reload Register

Timer

Control

o
mpare

Interrupt,

PWM,

and

Timer Output

Control

Timer

Timer Block

System

Timer

Data

Block

Interrupt

Output

Control

Bus

Clock

Input

Gate
Input

Capture

Input

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

out, first set the TPOL bit in the Timer Control 1 Register to the start value before begin-
ning One-Shot mode. Then, after starting the timer, set TPOL to the opposite bit value.

The steps for configuring a timer for One-Shot mode and initiating the count are as fol-
lows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for One-Shot mode.

Set the prescale value.

If using the Timer Output alternate function, set the initial output level (High or
Low).

2. Write to the Timer High and Low Byte registers to set the starting count value.

3. Write to the Timer Reload High and Low Byte registers to set the Reload value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

5. If using the Timer Output function, configure the associated GPIO port pin for the

Timer Output alternate function.

6. Write to the Timer Control 1 register to enable the timer and initiate counting.

In One-Shot mode, the system clock always provides the timer input. The timer period is
given by the following equation:

Continuous Mode

In Continuous mode, the timer counts up to the 16-bit Reload value stored in the Timer
Reload High and Low Byte registers. The timer input is the system clock. Upon reaching
the Reload value, the timer generates an interrupt, the count value in the Timer High and
Low Byte registers is reset to

0001H

and counting resumes. Also, if the Timer Output

alternate function is enabled, the Timer Output pin changes state (from Low to High or
from High to Low) upon timer Reload.

The steps for configuring a timer for Continuous mode and initiating the count are as fol-
lows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for Continuous mode.

Set the prescale value.

One-Shot Mode Time-Out Period (s)

Reload Value Start Value

(

) Prescale

System Clock Frequency (Hz)

------------------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

If using the Timer Output alternate function, set the initial output level (High or
Low).

2. Write to the Timer High and Low Byte registers to set the starting count value (usually

0001H

). This only affects the first pass in Continuous mode. After the first timer

Reload in Continuous mode, counting always begins at the reset value of

0001H

3. Write to the Timer Reload High and Low Byte registers to set the Reload value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

5. If using the Timer Output function, configure the associated GPIO port pin for the

Timer Output alternate function.

6. Write to the Timer Control 1 register to enable the timer and initiate counting.

In Continuous mode, the system clock always provides the timer input. The timer period is
given by the following equation:

If an initial starting value other than

0001H

is loaded into the Timer High and Low Byte

registers, the One-Shot mode equation must be used to determine the first time-out period.

Counter Mode

In Counter mode, the timer counts input transitions from a GPIO port pin. The timer input
is taken from the GPIO Port pin Timer Input alternate function. The TPOL bit in the Timer
Control 1 Register selects whether the count occurs on the rising edge or the falling edge
of the Timer Input signal. In Counter mode, the prescaler is disabled.

The input frequency of the Timer Input signal must not exceed one-fourth
the system clock frequency.

Upon reaching the Reload value stored in the Timer Reload High and Low Byte registers,
the timer generates an interrupt, the count value in the Timer High and Low Byte registers
is reset to

0001H

and counting resumes. Also, if the Timer Output alternate function is

enabled, the Timer Output pin changes state (from Low to High or from High to Low) at
timer Reload.

The steps for configuring a timer for Counter mode and initiating the count are as follows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for Counter mode.

Continuous Mode Time-Out Period (s)

Reload Value Prescale

System Clock Frequency (Hz)

----------------------------------------------------------------------------

Caution:

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Select either the rising edge or falling edge of the Timer Input signal for the count.
This also sets the initial logic level (High or Low) for the Timer Output alternate
function. However, the Timer Output function does not have to be enabled.

2. Write to the Timer High and Low Byte registers to set the starting count value. This

only affects the first pass in Counter mode. After the first timer Reload in Counter
mode, counting always begins at the reset value of

0001H

. Generally, in Counter

mode the Timer High and Low Byte registers must be written with the value

0001H

3. Write to the Timer Reload High and Low Byte registers to set the Reload value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

5. Configure the associated GPIO port pin for the Timer Input alternate function.

6. If using the Timer Output function, configure the associated GPIO port pin for the

Timer Output alternate function.

7. Write to the Timer Control 1 register to enable the timer.

In Counter mode, the number of Timer Input transitions since the timer start is given by
the following equation:

PWM Mode

In PWM mode, the timer outputs a Pulse-Width Modulator (PWM) output signal through
a GPIO Port pin. The timer input is the system clock. The timer first counts up to the 16-
bit PWM match value stored in the Timer PWM High and Low Byte registers. When the
timer count value matches the PWM value, the Timer Output toggles. The timer continues
counting until it reaches the Reload value stored in the Timer Reload High and Low Byte
registers. Upon reaching the Reload value, the timer generates an interrupt, the count
value in the Timer High and Low Byte registers is reset to

0001H

and counting resumes.

If the TPOL bit in the Timer Control 1 register is set to 1, the Timer Output signal begins
as a High (1) and then transitions to a Low (0) when the timer value matches the PWM
value. The Timer Output signal returns to a High (1) after the timer reaches the Reload
value and is reset to

0001H

If the TPOL bit in the Timer Control 1 register is set to 0, the Timer Output signal begins
as a Low (0) and then transitions to a High (1) when the timer value matches the PWM
value. The Timer Output signal returns to a Low (0) after the timer reaches the Reload
value and is reset to

0001H

The steps for configuring a timer for PWM mode and initiating the PWM operation are as
follows:

1. Write to the Timer Control 1 register to:

Counter Mode Timer Input Transitions

Current Count Value Start Value

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Disable the timer

Configure the timer for PWM mode.

Set the prescale value.

Set the initial logic level (High or Low) and PWM High/Low transition for the
Timer Output alternate function.

2. Write to the Timer High and Low Byte registers to set the starting count value

(typically

0001H

). This only affects the first pass in PWM mode. After the first timer

reset in PWM mode, counting always begins at the reset value of

0001H

3. Write to the PWM High and Low Byte registers to set the PWM value.

4. Write to the Timer Reload High and Low Byte registers to set the Reload value (PWM

period). The Reload value must be greater than the PWM value.

5. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

6. Configure the associated GPIO port pin for the Timer Output alternate function.

7. Write to the Timer Control 1 register to enable the timer and initiate counting.

The PWM period is given by the following equation:

If an initial starting value other than

0001H

is loaded into the Timer High and Low Byte

registers, the One-Shot mode equation must be used to determine the first PWM time-out
period.

If TPOL is set to 0, the ratio of the PWM output High time to the total period is given by:

If TPOL is set to 1, the ratio of the PWM output High time to the total period is given by:

Capture Mode

In Capture mode, the current timer count value is recorded when the desired external
Timer Input transition occurs. The Capture count value is written to the Timer PWM High
and Low Byte Registers. The timer input is the system clock. The TPOL bit in the Timer
Control 1 register determines if the Capture occurs on a rising edge or a falling edge of the

PWM Period (s)

Reload Value Prescale

System Clock Frequency (Hz)

----------------------------------------------------------------------------

PWM Output High Time Ratio (%)

Reload Value PWM Value

Reload Value

------------------------------------------------------------------------ 100

PWM Output High Time Ratio (%)

PWM Value

Reload Value

---------------------------------- 100

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer Input signal. When the Capture event occurs, an interrupt is generated and the timer
continues counting.

The timer continues counting up to the 16-bit Reload value stored in the Timer Reload
High and Low Byte registers. Upon reaching the Reload value, the timer generates an
interrupt and continues counting.

The steps for configuring a timer for Capture mode and initiating the count are as follows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for Capture mode.

Set the prescale value.

Set the Capture edge (rising or falling) for the Timer Input.

2. Write to the Timer High and Low Byte registers to set the starting count value

(typically

0001H

3. Write to the Timer Reload High and Low Byte registers to set the Reload value.

4. Clear the Timer PWM High and Low Byte registers to 0000H. This allows user

software to determine if interrupts were generated by either a capture event or a
reload. If the PWM High and Low Byte registers still contain 0000H after the
interrupt, then the interrupt was generated by a Reload.

5. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

6. Configure the associated GPIO port pin for the Timer Input alternate function.

7. Write to the Timer Control 1 register to enable the timer and initiate counting.

In Capture mode, the elapsed time from timer start to Capture event can be calculated
using the following equation:

Compare Mode

In Compare mode, the timer counts up to the 16-bit maximum Compare value stored in the
Timer Reload High and Low Byte registers. The timer input is the system clock. Upon
reaching the Compare value, the timer generates an interrupt and counting continues (the
timer value is not reset to

0001H

). Also, if the Timer Output alternate function is enabled,

the Timer Output pin changes state (from Low to High or from High to Low) upon Com-
pare.

Capture Elapsed Time (s)

Capture Value Start Value

(

) Prescale

System Clock Frequency (Hz)

---------------------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

If the Timer reaches

FFFFH

, the timer rolls over to

0000H

and continue counting.

The steps for configuring a timer for Compare mode and initiating the count are as fol-
lows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for Compare mode.

Set the prescale value.

Set the initial logic level (High or Low) for the Timer Output alternate function, if
desired.

2. Write to the Timer High and Low Byte registers to set the starting count value.

3. Write to the Timer Reload High and Low Byte registers to set the Compare value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

5. If using the Timer Output function, configure the associated GPIO port pin for the

Timer Output alternate function.

6. Write to the Timer Control 1 register to enable the timer and initiate counting.

In Compare mode, the system clock always provides the timer input. The Compare time is
given by the following equation:

Gated Mode

In Gated mode, the timer counts only when the Timer Input signal is in its active state
(asserted), as determined by the TPOL bit in the Timer Control 1 register. When the Timer
Input signal is asserted, counting begins. A timer interrupt is generated when the Timer
Input signal is deasserted or a timer reload occurs. To determine if a Timer Input signal
deassertion generated the interrupt, read the associated GPIO input value and compare to
the value stored in the TPOL bit.

The timer counts up to the 16-bit Reload value stored in the Timer Reload High and Low
Byte registers. The timer input is the system clock. When reaching the Reload value, the
timer generates an interrupt, the count value in the Timer High and Low Byte registers is
reset to

0001H

and counting resumes (assuming the Timer Input signal is still asserted).

Also, if the Timer Output alternate function is enabled, the Timer Output pin changes state
(from Low to High or from High to Low) at timer reset.

The steps for configuring a timer for Gated mode and initiating the count are as follows:

1. Write to the Timer Control 1 register to:

Disable the timer

Compare Mode Time (s)

Compare Value Start Value

(

) Prescale

System Clock Frequency (Hz)

------------------------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Configure the timer for Gated mode.

Set the prescale value.

2. Write to the Timer High and Low Byte registers to set the starting count value. This

only affects the first pass in Gated mode. After the first timer reset in Gated mode,
counting always begins at the reset value of

0001H

3. Write to the Timer Reload High and Low Byte registers to set the Reload value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

5. Configure the associated GPIO port pin for the Timer Input alternate function.

6. Write to the Timer Control 1 register to enable the timer.

7. Assert the Timer Input signal to initiate the counting.

Capture/Compare Mode

In Capture/Compare mode, the timer begins counting on the first external Timer Input
transition. The desired transition (rising edge or falling edge) is set by the TPOL bit in the
Timer Control 1 Register. The timer input is the system clock.

Every subsequent desired transition (after the first) of the Timer Input signal captures the
current count value. The Capture value is written to the Timer PWM High and Low Byte
Registers. When the Capture event occurs, an interrupt is generated, the count value in the
Timer High and Low Byte registers is reset to

0001H

, and counting resumes.

If no Capture event occurs, the timer counts up to the 16-bit Compare value stored in the
Timer Reload High and Low Byte registers. Upon reaching the Compare value, the timer
generates an interrupt, the count value in the Timer High and Low Byte registers is reset to
0001H and counting resumes.

The steps for configuring a timer for Capture/Compare mode and initiating the count are
as follows:

1. Write to the Timer Control 1 register to:

Disable the timer

Configure the timer for Capture/Compare mode.

Set the prescale value.

Set the Capture edge (rising or falling) for the Timer Input.

2. Write to the Timer High and Low Byte registers to set the starting count value

(typically

0001H

3. Write to the Timer Reload High and Low Byte registers to set the Compare value.

4. If desired, enable the timer interrupt and set the timer interrupt priority by writing to

the relevant interrupt registers.

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

5. Configure the associated GPIO port pin for the Timer Input alternate function.

6. Write to the Timer Control 1 register to enable the timer.

7. Counting begins on the first appropriate transition of the Timer Input signal. No

interrupt is generated by this first edge.

In Capture/Compare mode, the elapsed time from timer start to Capture event can be cal-
culated using the following equation:

Reading the Timer Count Values

The current count value in the timers can be read while counting (enabled). This capability
has no effect on timer operation. When the timer is enabled and the Timer High Byte reg-
ister is read, the contents of the Timer Low Byte register are placed in a holding register. A
subsequent read from the Timer Low Byte register returns the value in the holding register.
This operation allows accurate reads of the full 16-bit timer count value while enabled.
When the timers are not enabled, a read from the Timer Low Byte register returns the
actual value in the counter.

Timer Output Signal Operation

Timer Output is a GPIO Port pin alternate function. Generally, the Timer Output is toggled
every time the counter is reloaded.

Timer Control Register Definitions

Timers 0-2 are available in all packages. Timer 3 is only available in the 64-, 68-, and 80-
pin packages.

Timer 0-3 High and Low Byte Registers

The Timer 0-3 High and Low Byte (TxH and TxL) registers (Tables 38 and 39) contain the
current 16-bit timer count value. When the timer is enabled, a read from TxH causes the
value in TxL to be stored in a temporary holding register. A read from TMRL always
returns this temporary register when the timers are enabled. When the timer is disabled,
reads from the TMRL reads the register directly.

Writing to the Timer High and Low Byte registers while the timer is enabled is not recom-
mended. There are no temporary holding registers available for write operations, so simul-
taneous 16-bit writes are not possible. If either the Timer High or Low Byte registers are
written during counting, the 8-bit written value is placed in the counter (High or Low
Byte) at the next clock edge. The counter continues counting from the new value.

Timer 3 is unavailable in the 40- and 44-pin packages.

Capture Elapsed Time (s)

Capture Value Start Value

(

) Prescale

System Clock Frequency (Hz)

---------------------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

TH and TL--Timer High and Low Bytes
These 2 bytes, {TMRH[7:0], TMRL[7:0]}, contain the current 16-bit timer count value.

Timer Reload High and Low Byte Registers

The Timer 0-3 Reload High and Low Byte (TxRH and TxRL) registers (Tables 40 and 41)
store a 16-bit reload value, {TRH[7:0], TRL[7:0]}. Values written to the Timer Reload
High Byte register are stored in a temporary holding register. When a write to the Timer
Reload Low Byte register occurs, the temporary holding register value is written to the
Timer High Byte register. This operation allows simultaneous updates of the 16-bit Timer
Reload value.

In Compare mode, the Timer Reload High and Low Byte registers store the 16-bit Com-
pare value.

Table 38. Timer 0-3 High Byte Register (TxH)

BITS

FIELD

RESET

R/W

R/W

ADDR

F00H, F08H, F10H, F18H

Table 39>. Timer 0-3 Low Byte Register (TxL)

BITS

FIELD

RESET

R/W

R/W

ADDR

F01H, F09H, F11H, F19H

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer 0-3 PWM High and Low Byte Registers

The Timer 0-3 PWM High and Low Byte (TxPWMH and TxPWML) registers (Tables 42
and 43) are used for Pulse-Width Modulator (PWM) operations. These registers also store
the Capture values for the Capture and Capture/Compare modes.

PWMH and PWML--Pulse-Width Modulator High and Low Bytes
These two bytes, {PWMH[7:0], PWML[7:0]}, form a 16-bit value that is compared to the
current 16-bit timer count. When a match occurs, the PWM output changes state. The
PWM output value is set by the TPOL bit in the Timer Control 1 Register (TxCTL1) regis-
ter.

The TxPWMH and TxPWML registers also store the 16-bit captured timer value when
operating in Capture or Capture/Compare modes.

Table 42. Timer 0-3 PWM High Byte Register (TxPWMH)

BITS

FIELD

PWMH

RESET

R/W

R/W

ADDR

F04H, F0CH, F14H, F1CH

Table 43. Timer 0-3 PWM Low Byte Register (TxPWML)

BITS

FIELD

PWML

RESET

R/W

R/W

ADDR

F05H, F0DH, F15H, F1DH

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Timer 0-3 Control 0 Registers

The Timer 0-3 Control 0 (TxCTL0) registers (Tables 44 and 45) allow cascading of the
Timers.

CSC--Cascade Timers
0 = Timer Input signal comes from the pin.
1 = For Timer 0, Input signal is connected to Timer 3 output.

For Timer 1, Input signal is connected to Timer 0 output.
For Timer 2, Input signal is connected to Timer 1 output.
For Timer 3, Input signal is connected to Timer 2 output.

Timer 0-3 Control 1 Registers

The Timer 0-3 Control 1 (TxCTL1) registers enable/disable the timers, set the prescaler
value, and determine the timer operating mode.

TEN--Timer Enable
0 = Timer is disabled.
1 = Timer enabled to count.

TPOL--Timer Input/Output Polarity
Operation of this bit is a function of the current operating mode of the timer.

Table 44. Timer 0-3 Control 0 Register (TxCTL0)

BITS

FIELD

Reserved

CSC

Reserved

RESET

R/W

R/W

ADDR

F06H, F0EH, F16H, F1EH

Table 45. Timer 0-3 Control 1 Register (TxCTL1)

BITS

FIELD

TEN

TPOL

PRES

TMODE

RESET

R/W

R/W

ADDR

F07H, F0FH, F17H, F1FH

PS019906-1003

P r e l i m i n a r y

Timers

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

One-Shot mode
When the timer is disabled, the Timer Output signal is set to the value of this bit.
When the timer is enabled, the Timer Output signal is complemented upon timer
Reload.

Continuous mode
When the timer is disabled, the Timer Output signal is set to the value of this bit.
When the timer is enabled, the Timer Output signal is complemented upon timer
Reload.

Counter mode
When the timer is disabled, the Timer Output signal is set to the value of this bit.
When the timer is enabled, the Timer Output signal is complemented upon timer
Reload.

PWM mode
0 = Timer Output is forced Low (0) when the timer is disabled. When enabled, the
Timer Output is forced High (1) upon PWM count match and forced Low (0) upon
Reload.
1 = Timer Output is forced High (1) when the timer is disabled. When enabled, the
Timer Output is forced Low (0) upon PWM count match and forced High (1) upon
Reload.

Capture mode
0 = Count is captured on the rising edge of the Timer Input signal.
1 = Count is captured on the falling edge of the Timer Input signal.

Compare mode
When the timer is disabled, the Timer Output signal is set to the value of this bit.
When the timer is enabled, the Timer Output signal is complemented upon timer
Reload.

Gated mode
0 = Timer counts when the Timer Input signal is High (1) and interrupts are generated
on the falling edge of the Timer Input.
1 = Timer counts when the Timer Input signal is Low (0) and interrupts are generated
on the rising edge of the Timer Input.

Capture/Compare mode
0 = Counting is started on the first rising edge of the Timer Input signal. The current
count is captured on subsequent rising edges of the Timer Input signal.
1 = Counting is started on the first falling edge of the Timer Input signal. The current
count is captured on subsequent falling edges of the Timer Input signal.

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Watch-Dog Timer

Overview

The Watch-Dog Timer (WDT) helps protect against corrupt or unreliable software, power
faults, and other system-level problems which may place the Z8 Encore!

into unsuitable

operating states. The Watch-Dog Timer includes the following features:

On-chip RC oscillator

A selectable time-out response: Short Reset or interrupt

24-bit programmable time-out value

Operation

The Watch-Dog Timer (WDT) is a retriggerable one-shot timer that resets or interrupts the
Z8F642x family device when the WDT reaches its terminal count. The Watch-Dog Timer
uses its own dedicated on-chip RC oscillator as its clock source. The Watch-Dog Timer
has only two modes of operation--on and off. Once enabled, it always counts and must be
refreshed to prevent a time-out. An enable can be performed by executing the WDT
instruction or by setting the WDT_AO Option Bit. The WDT_AO bit enables the Watch-Dog
Timer to operate all the time, even if a WDT instruction has not been executed.

The Watch-Dog Timer is a 24-bit reloadable downcounter that uses three 8-bit registers in
the eZ8 CPU register space to set the reload value. The nominal WDT time-out period is
given by the following equation:

where the WDT reload value is the decimal value of the 24-bit value given by
{WDTU[7:0], WDTH[7:0], WDTL[7:0]} and the typical Watch-Dog Timer RC oscillator
frequency is 10kHz. The Watch-Dog Timer cannot be refreshed once it reaches

000002H

The WDT Reload Value must not be set to values below

000004H

. Table 46 provides

information on approximate time-out delays for the minimum and maximum WDT reload
values.

WDT Time-out Period (ms)

WDT Reload Value

--------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

Watch-Dog Timer Refresh

When first enabled, the Watch-Dog Timer is loaded with the value in the Watch-Dog
Timer Reload registers. The Watch-Dog Timer then counts down to

000000H

unless a

WDT instruction is executed by the eZ8 CPU. Execution of the WDT instruction causes
the downcounter to be reloaded with the WDT Reload value stored in the Watch-Dog
Timer Reload registers. Counting resumes following the reload operation.

When the Z8F642x family device is operating in Debug Mode (via the On-Chip Debug-
ger), the Watch-Dog Timer is continuously refreshed to prevent spurious Watch-Dog
Timer time-outs.

Watch-Dog Timer Time-Out Response

The Watch-Dog Timer times out when the counter reaches

000000H

. A time-out of the

Watch-Dog Timer generates either an interrupt or a Short Reset. The WDT_RES Option Bit
determines the time-out response of the Watch-Dog Timer. Refer to the Option Bits chap-
ter for information regarding programming of the WDT_RES Option Bit.

WDT Interrupt in Normal Operation

If configured to generate an interrupt when a time-out occurs, the Watch-Dog Timer issues
an interrupt request to the interrupt controller and sets the WDT status bit in the Watch-Dog
Timer Control register. If interrupts are enabled, the eZ8 CPU responds to the interrupt
request by fetching the Watch-Dog Timer interrupt vector and executing code from the
vector address. After time-out and interrupt generation, the Watch-Dog Timer counter
rolls over to its maximum value of

FFFFFH

and continues counting. The Watch-Dog

Timer counter is not automatically returned to its Reload Value.

WDT Interrupt in STOP Mode

If configured to generate an interrupt when a time-out occurs and the Z8F642x family
device is in STOP mode, the Watch-Dog Timer automatically initiates a STOP Mode
Recovery and generates an interrupt request. Both the WDT status bit and the STOP bit in
the Watch-Dog Timer Control register are set to 1 following WDT time-out in STOP

Table 46. Watch-Dog Timer Approximate Time-Out Delays

WDT Reload Value

Approximate Time-Out Delay

(with 10kHz typical WDT oscillator frequency)

(Hex)

(Decimal)

Typical

Description

000004

400

µs

Minimum time-out delay

FFFFFF

16,777,215

1677.5s

Maximum time-out delay

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

mode. Refer to the Reset and STOP Mode Recovery chapter for more information on
STOP Mode Recovery.

If interrupts are enabled, following completion of the STOP Mode Recovery the eZ8 CPU
responds to the interrupt request by fetching the Watch-Dog Timer interrupt vector and
executing code from the vector address.

WDT Reset in Normal Operation

If configured to generate a Reset when a time-out occurs, the Watch-Dog Timer forces the
device into the Short Reset state. The WDT status bit in the Watch-Dog Timer Control reg-
ister is set to 1. Refer to the Reset and STOP Mode Recovery chapter for more informa-
tion on Short Reset.

WDT Reset in STOP Mode

If enabled in STOP mode and configured to generate a Reset when a time-out occurs and
the device is in STOP mode, the Watch-Dog Timer initiates a STOP Mode Recovery. Both
the WDT status bit and the STOP bit in the Watch-Dog Timer Control register are set to 1
following WDT time-out in STOP mode. Refer to the Reset and STOP Mode Recovery
chapter for more information. Default operation is for the WDT and its RC oscillator to be
enabled during STOP mode.

To minimize power consumption in STOP Mode, the WDT and its RC oscillator can be
disabled in STOP mode. The following sequence configures the WDT to be disabled when
the Z8F642x family device enters STOP Mode following execution of a STOP instruction:

1. Write 55H to the Watch-Dog Timer Control register (WDTCTL).

2. Write AAH to the Watch-Dog Timer Control register (WDTCTL).

3. Write 81H to the Watch-Dog Timer Control register (WDTCTL) to configure the

WDT and its oscillator to be disabled during STOP Mode. Alternatively, write 00H to
the Watch-Dog Timer Control register (WDTCTL) as the third step in this sequence to
reconfigure the WDT and its oscillator to be enabled during STOP Mode.

This sequence only affects WDT operation in STOP mode.

Watch-Dog Timer Reload Unlock Sequence

Writing the unlock sequence to the Watch-Dog Timer (WDTCTL) Control register address
unlocks the three Watch-Dog Timer Reload Byte registers (WDTU, WDTH, and WDTL)
to allow changes to the time-out period. These write operations to the WDTCTL register
address produce no effect on the bits in the WDTCTL register. The locking mechanism
prevents spurious writes to the Reload registers. The follow sequence is required to unlock
the Watch-Dog Timer Reload Byte registers (WDTU, WDTH, and WDTL) for write
access.

1. Write

55H

to the Watch-Dog Timer Control register (WDTCTL).

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

2. Write

AAH

to the Watch-Dog Timer Control register (WDTCTL).

3. Write the Watch-Dog Timer Reload Upper Byte register (WDTU).

4. Write the Watch-Dog Timer Reload High Byte register (WDTH).

5. Write the Watch-Dog Timer Reload Low Byte register (WDTL).

All steps of the Watch-Dog Timer Reload Unlock sequence must be written in the order
just listed. There must be no other register writes between each of these operations. If a
register write occurs, the lock state machine resets and no further writes can occur, unless
the sequence is restarted. The value in the Watch-Dog Timer Reload registers is loaded
into the counter when the Watch-Dog Timer is first enabled and every time a WDT
instruction is executed.

Watch-Dog Timer Control Register Definitions

Watch-Dog Timer Control Register

The Watch-Dog Timer Control (WDTCTL) register, detailed in Table 47, is a Read-Only
register that indicates the source of the most recent Reset event, indicates a STOP Mode
Recovery event, and indicates a Watch-Dog Timer time-out. Reading this register resets
the upper four bits to 0.

Writing the

55H

AAH

unlock sequence to the Watch-Dog Timer Control (WDTCTL) reg-

ister address unlocks the three Watch-Dog Timer Reload Byte registers (WDTU, WDTH,
and WDTL) to allow changes to the time-out period. These write operations to the
WDTCTL register address produce no effect on the bits in the WDTCTL register. The
locking mechanism prevents spurious writes to the Reload registers.

Table 47. Watch-Dog Timer Control Register (WDTCTL)

BITS

FIELD

POR

STOP

WDT

EXT

Reserved

RESET

See descriptions below

R/W

ADDR

FF0H

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

POR--Power-On Reset Indicator
If this bit is set to 1, a Power-On Reset event occurred. This bit is reset to 0 if a WDT time-
out or STOP Mode Recovery occurs. This bit is also reset to 0 when the register is read.

STOP--STOP Mode Recovery Indicator
If this bit is set to 1, a STOP Mode Recovery occurred. If the STOP and WDT bits are both
set to 1, the STOP Mode Recovery occurred due to a WDT time-out. If the STOP bit is 1
and the WDT bit is 0, the STOP Mode Recovery was not caused by a WDT time-out. This
bit is reset by a Power-On Reset or a WDT time-out that occurred while not in STOP
mode. Reading this register also resets this bit.

WDT--Watch-Dog Timer Time-Out Indicator
If this bit is set to 1, a WDT time-out occurred. A Power-On Reset resets this pin. A STOP
Mode Recovery from a change in an input pin also resets this bit. Reading this register
resets this bit.

EXT--External Reset Indicator
If this bit is set to 1, a Reset initiated by the external RESET pin occurred. A Power-On
Reset or a STOP Mode Recovery from a change in an input pin resets this bit. Reading this
register resets this bit.

Reserved
These bits are reserved and must be 0.

SM--STOP Mode Configuration Indicator
0 = Watch-Dog Timer and its internal RC oscillator will continue to operate in STOP
Mode.
1 = Watch-Dog Timer and its internal RC oscillator will be disabled in STOP Mode.

Watch-Dog Timer Reload Upper, High and Low Byte Registers

The Watch-Dog Timer Reload Upper, High and Low Byte (WDTU, WDTH, WDTL) reg-
isters (Tables 48 through 50) form the 24-bit reload value that is loaded into the Watch-
Dog Timer when a WDT instruction executes. The 24-bit reload value is {WDTU[7:0],
WDTH[7:0], WDTL[7:0]}. Writing to these registers sets the desired Reload Value. Read-
ing from these registers returns the current Watch-Dog Timer count value.

Reset or STOP Mode Recovery Event

POR

STOP

WDT

EXT

Power-On Reset

Reset using RESET pin assertion

Reset using Watch-Dog Timer time-out

Reset using the On-Chip Debugger (OCDCTL[1] set to 1)

Reset from STOP Mode using DBG Pin driven Low

STOP Mode Recovery using GPIO pin transition

STOP Mode Recovery using Watch-Dog Timer time-out

PS019906-1003

P r e l i m i n a r y

Watch-Dog Timer

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

The 24-bit WDT Reload Value must not be set to a value less than

000004H

WDTU--WDT Reload Upper Byte

Most significant byte (MSB), Bits[23:16], of the 24-bit WDT reload value.

WDTH--WDT Reload High Byte

Middle byte, Bits[15:8], of the 24-bit WDT reload value.

Table 48. Watch-Dog Timer Reload Upper Byte Register (WDTU)

BITS

FIELD

WDTU

RESET

R/W

R/W*

ADDR

FF1H

R/W* - Read returns the current WDT count value. Write sets the desired Reload Value.

Table 49. Watch-Dog Timer Reload High Byte Register (WDTH)

BITS

FIELD

WDTH

RESET

R/W

R/W*

ADDR

FF2H

R/W* - Read returns the current WDT count value. Write sets the desired Reload Value.

Caution:

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

100

UART

Overview

The Universal Asynchronous Receiver/Transmitter (UART) is a full-duplex communica-
tion channel capable of handling asynchronous data transfers. The UART uses a single
8-bit data mode with selectable parity. Features of the UART include:

8-bit asynchronous data transfer

Selectable even- and odd-parity generation and checking

Option of one or two Stop bits

Separate transmit and receive interrupts

Framing, parity, overrun and break detection

Separate transmit and receive enables

16-bit Baud Rate Generator (BRG)

Selectable Multiprocessor (9-bit) mode with three configurable interrupt schemes

Baud Rate Generator timer mode

Driver Enable output for external bus transceivers

Architecture

The UART consists of three primary functional blocks: transmitter, receiver, and baud rate
generator. The UART's transmitter and receiver function independently, but employ the
same baud rate and data format. Figure 13 illustrates the UART architecture.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

102

Transmitting Data using the Polled Method

Follow these steps to transmit data using the polled method of operation:

1. Write to the UART Baud Rate High and Low Byte registers to set the desired baud

rate.

2. Enable the UART pin functions by configuring the associated GPIO Port pins for

alternate function operation.

3. If multiprocessor mode is desired, write to the UART Control 1 register to enable

Multiprocessor (9-bit) mode functions.

Set the Multiprocessor Mode Select (MPEN) to Enable Multiprocessor mode.

4. Write to the UART Control 0 register to:

Set the transmit enable bit (TEN) to enable the UART for data transmission

If parity is desired and multiprocessor mode is not enabled, set the parity enable
bit (PEN) and select either even or odd parity (PSEL).

Figure 14. UART Asynchronous Data Format without Parity

Figure 15. UART Asynchronous Data Format with Parity

Start

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Data Field

lsb

msb

Idle State

of Line

Stop Bit(s)

Start

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Parity

Data Field

lsb

msb

Idle State

of Line

Stop Bit(s)

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

103

Set or clear the CTSE bit to enable or disable control from the remote receiver
using the CTS pin.

5. Check the TDRE bit in the UART Status 0 register to determine if the Transmit Data

register is empty (indicated by a 1). If empty, continue to Step 6. If the Transmit Data
register is full (indicated by a 0), continue to monitor the TDRE bit until the Transmit
Data register becomes available to receive new data.

6. Write the UART Control 1 register to select the outgoing address bit.

Set the Multiprocessor Bit Transmitter (MPBT) if sending an address byte, clear it
if sending a data byte.

7. Write the data byte to the UART Transmit Data register. The transmitter automatically

transfers the data to the Transmit Shift register and transmits the data.

8. If desired and multiprocessor mode is enabled, make any changes to the

Multiprocessor Bit Transmitter (MPBT) value.

9. To transmit additional bytes, return to Step 5.

Transmitting Data using the Interrupt-Driven Method

The UART Transmitter interrupt indicates the availability of the Transmit Data register to
accept new data for transmission. Follow these steps to configure the UART for interrupt-
driven data transmission:

1. Write to the UART Baud Rate High and Low Byte registers to set the desired baud

rate.

2. Enable the UART pin functions by configuring the associated GPIO Port pins for

alternate function operation.

3. Execute a DI instruction to disable interrupts.

4. Write to the Interrupt control registers to enable the UART Transmitter interrupt and

set the desired priority.

5. If multiprocessor mode is desired, write to the UART Control 1 register to enable

Multiprocessor (9-bit) mode functions.

Set the Multiprocessor Mode Select (MPEN) to Enable Multiprocessor mode.

6. Write to the UART Control 0 register to:

Set the transmit enable bit (TEN) to enable the UART for data transmission

Enable parity, if desired and if multiprocessor mode is not enabled, and select
either even or odd parity.

Set or clear the CTSE bit to enable or disable control from the remote receiver via
the CTS pin.

7. Execute an EI instruction to enable interrupts.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

104

The UART is now configured for interrupt-driven data transmission. Because the UART
Transmit Data register is empty, an interrupt is generated immediately. When the UART
Transmit interrupt is detected, the associated interrupt service routine (ISR) performs the
following:

1. Write the UART Control 1 register to select the outgoing address bit:

Set the Multiprocessor Bit Transmitter (MPBT) if sending an address byte, clear it
if sending a data byte.

2. Write the data byte to the UART Transmit Data register. The transmitter automatically

transfers the data to the Transmit Shift register and transmits the data.

3. Clear the UART Transmit interrupt bit in the applicable Interrupt Request register.

4. Execute the IRET instruction to return from the interrupt-service routine and wait for

the Transmit Data register to again become empty.

Receiving Data using the Polled Method

Follow these steps to configure the UART for polled data reception:

1. Write to the UART Baud Rate High and Low Byte registers to set the desired baud

rate.

2. Enable the UART pin functions by configuring the associated GPIO Port pins for

alternate function operation.

3. Write to the UART Control 1 register to enable Multiprocessor mode functions, if

desired.

4. Write to the UART Control 0 register to:

Set the receive enable bit (REN) to enable the UART for data reception

Enable parity, if desired and if multiprocessor mode is not enabled, and select
either even or odd parity.

5. Check the RDA bit in the UART Status 0 register to determine if the Receive Data

register contains a valid data byte (indicated by a 1). If RDA is set to 1 to indicate
available data, continue to Step 5. If the Receive Data register is empty (indicated by a
0), continue to monitor the RDA bit awaiting reception of the valid data.

6. Read data from the UART Receive Data register. If operating in Multiprocessor (9-bit)

mode, further actions may be required depending on the Multiprocessor Mode bits
MPMD[1:0].

7. Return to Step 4 to receive additional data.

Receiving Data using the Interrupt-Driven Method

The UART Receiver interrupt indicates the availability of new data (as well as error con-
ditions). Follow these steps to configure the UART receiver for interrupt-driven operation:

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

105

1. Write to the UART Baud Rate High and Low Byte registers to set the desired baud

rate.

2. Enable the UART pin functions by configuring the associated GPIO Port pins for

alternate function operation.

3. Execute a DI instruction to disable interrupts.

4. Write to the Interrupt control registers to enable the UART Receiver interrupt and set

the desired priority.

5. Clear the UART Receiver interrupt in the applicable Interrupt Request register.

6. Write to the UART Control 1 Register to enable Multiprocessor (9-bit) mode

functions, if desired.

Set the Multiprocessor Mode Select (MPEN) to Enable Multiprocessor mode.

Set the Multiprocessor Mode Bits, MPMD[1:0], to select the desired address
matching scheme.

Configure the UART to interrupt on received data and errors or errors only
(interrupt on errors only is unlikely to be useful for Z8 Encore! devices without a
DMA block)

7. Write the device address to the Address Compare Register (automatic multiprocessor

modes only).

8. Write to the UART Control 0 register to:

Set the receive enable bit (REN) to enable the UART for data reception

Enable parity, if desired and if multiprocessor mode is not enabled, and select
either even or odd parity.

9. Execute an EI instruction to enable interrupts.

The UART is now configured for interrupt-driven data reception. When the UART
Receiver interrupt is detected, the associated interrupt service routine (ISR) performs the
following:

1. Check the UART Status 0 register to determine the source of the interrupt - error,

break, or received data.

2. If the interrupt was due to data available, read the data from the UART Receive Data

register. If operating in Multiprocessor (9-bit) mode, further actions may be required
depending on the Multiprocessor Mode bits MPMD[1:0].

3. Clear the UART Receiver interrupt in the applicable Interrupt Request register.

4. Execute the IRET instruction to return from the interrupt-service routine and await

more data.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

106

Clear To Send (CTS) Operation

The CTS pin, if enabled by the CTSE bit of the UART Control 0 register, performs flow
control on the outgoing transmit datastream. The Clear To Send (CTS) input pin is sam-
pled one system clock before beginning any new character transmission. To delay trans-
mission of the next data character, an external receiver must deassert CTS at least one
system clock cycle before a new data transmission begins. For multiple character trans-
missions, this would typically be done during Stop Bit transmission. If CTS deasserts in
the middle of a character transmission, the current character is sent completely.

Multiprocessor (9-bit) Mode

The UART has a Multiprocessor (9-bit) mode that uses an extra (9th) bit for selective
communication when a number of processors share a common UART bus. In Multiproces-
sor mode (also referred to as 9-Bit mode), the multiprocessor bit (MP) is transmitted
immediately following the 8-bits of data and immediately preceding the Stop bit(s) as
illustrated in Figure 16. The character format is:

In Multiprocessor (9-bit) mode, the Parity bit location (9th bit) becomes the Multiproces-
sor control bit. The UART Control 1 and Status 1 registers provide Multiprocessor (9-bit)
mode control and status information. If an automatic address matching scheme is enabled,
the UART Address Compare register holds the network address of the device.

Multiprocessor (9-bit) Mode Receive Interrupts

When multiprocessor mode is enabled, the UART will only process frames addressed to it.
The determination of whether a frame of data is addressed to the UART can be made in
hardware, software or some combination of the two, depending on the multiprocessor con-
figuration bits. In general, the address compare feature reduces the load on the CPU, since
it does not need to access the UART when it receives data directed to other devices on the
multi-node network. The following three multi-processor modes are available in hard-
ware:

Figure 16. UART Asynchronous Multiprocessor Mode Data Format

Start

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Data Field

lsb

msb

Idle State

of Line

Stop Bit(s)

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

107

Interrupt on all address bytes

Interrupt on matched address bytes and correctly framed data bytes

Interrupt only on correctly framed data bytes

These modes are selected with MPMD[1:0] in the UART Control 1 Register. For all mul-
tiprocessor modes, bit MPEN of the UART Control 1 Register must be set to 1.

The first scheme is enabled by writing 01b to MPMD[1:0]. In this mode, all incoming
address bytes cause an interrupt, while data bytes never cause an interrupt. The interrupt
service routine must manually check the address byte that caused triggered the interrupt. If
it matches the UART address, the software should clear MPMD[0]. At this point, each
new incoming byte will interrupt the CPU. The software is then responsible for determin-
ing the end of the frame. It will check for this by reading the MPRX bit of the UART Status
1 Register for each incoming byte. If MPRX=1, then a new frame has begun. If the address
of this new frame is different from the UART's address, then MPMD[0] should be set to 1
causing the UART interrupts to go inactive until the next address byte. If the new frame's
address matches the UART's, then the data in the new frame should be processed as well.

Setting MPMD[1:0] to 10b and writing the UART's address into the UART Address
Compare Register. This mode introduces more hardware control, interrupting only on
frames that match the UART's address. When an incoming address byte does not match
the UART's address, it is ignored. All successive data bytes in this frame are also ignored.
When a matching address byte occurs, an interrupt is issued and further interrupts will
now occur on each succesive data byte. The first data byte in the frame will have the
NEWFRM

=1 in the UART Status 1 Register. When the next address byte occurs, the hard-

ware will compare it to the UART's address. If there is a match, the interrupts will con-
tinue and the NEWFRM bit will be set for the first byte of the new frame. If there is no
match, then the UART to ignore all incoming bytes until the next address match.

The third scheme is enabled by setting MPMD[1:0] to 11b and by writing the UART's
address into the UART Address Compare Register. This mode is identical to the second
scheme, except that there are no interrupts on address bytes. The first data byte of each
frame is still accompanied by a NEWFRM assertion.

External Driver Enable

The UART provides a Driver Enable (DE) signal for off-chip bus transceivers. This fea-
ture reduces the software overhead associated with using a GPIO pin to control the trans-
ceiver when communicating on a multi-transceiver bus, such as RS-485.

Driver Enable is an active High signal that envelopes the entire transmitted data frame
including parity and Stop bits as illustrated in Figure 17. The Driver Enable signal asserts
when a byte is written to the UART Transmit Data register. The Driver Enable signal
asserts at least one UART bit period and no greater than two UART bit periods before the
Start bit is transmitted. This allows a setup time to enable the transceiver. The Driver
Enable signal deasserts one system clock period after the last Stop bit is transmitted. This

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

108

one system clock delay allows both time for data to clear the transceiver before disabling
it, as well as the ability to determine if another character follows the current character. In
the event of back to back characters (new data must be written to the Transmit Data Regis-
ter before the previous character is completely transmitted) the DE signal is not deasserted
between characters. The DEPOL bit in the UART Control Register 1 sets the polarity of
the Driver Enable signal.

The Driver Enable to Start bit setup time is calculated as follows:

UART Interrupts

The UART features separate interrupts for the transmitter and the receiver. In addition,
when the UART primary functionality is disabled, the Baud Rate Generator can also func-
tion as a basic timer with interrupt capability.

Transmitter Interrupts

The transmitter generates a single interrupt when the Transmit Data Register Empty bit
(TDRE) is set to 1. This indicates that the transmitter is ready to accept new data for trans-
mission. The TDRE interrupt occurs after the Transmit shift register has shifted the first
bit of data out. At this point, the Transmit Data register may be written with the next char-
acter to send. This provides 7 bit periods of latency to load the Transmit Data register
before the Transmit shift register completes shifting the current character. Writing to the
UART Transmit Data register clears the TDRE bit to 0.

Figure 17. UART Driver Enable Signal Timing (shown with 1 Stop Bit and Parity)

Start

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Parity

Data Field

lsb

msb

Idle State

of Line

Stop Bit

Baud Rate (Hz)

-------------------------------------

DE to Start Bit Setup Time (s)

Baud Rate (Hz)

-------------------------------------

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

109

Receiver Interrupts

The receiver generates an interrupt when any of the following occurs:

A data byte has been received and is available in the UART Receive Data register.
This interrupt can be disabled independent of the other receiver interrupt sources. The
received data interrupt occurs once the receive character has been received and placed
in the Receive Data register. Software must respond to this received data available
condition before the next character is completely received to avoid an overrun error.
Note that in multiprocessor mode (MPEN = 1), the receive data interrupts are
dependent on the multiprocessor configuration and the most recent address byte.

A break is received

An overrun is detected

A data framing error is detected

UART Overrun Errors

When an overrun error condition occurs the UART prevents overwriting of the valid data
currently in the Receive Data register. The Break Detect and Overrun status bits are not
displayed until after the valid data has been read.

After the valid data has been read, the UART Status 0 register is updated to indicate the
overrun condition (and Break Detect, if applicable). The RDA bit is set to 1 to indicate that
the Receive Data register contains a data byte. However, because the overrun error
occurred, this byte may not contain valid data and should be ignored. The BRKD bit indi-
cates if the overrun was caused by a break condition on the line. After reading the status
byte indicating an overrun error, the Receive Data register must be read again to clear the
error bits is the UART Status 0 register. Updates to the Receive Data register occur only
when the next data word is received.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

111

High and Low Byte registers combine to create a 16-bit baud rate divisor value
(BRG[15:0]) that sets the data transmission rate (baud rate) of the UART. The UART data
rate is calculated using the following equation:

When the UART is disabled, the Baud Rate Generator can function as a basic 16-bit timer
with interrupt on time-out. To configure the Baud Rate Generator as a timer with interrupt
on time-out, complete the following procedure:

1. Disable the UART by clearing the REN and TEN bits in the UART Control 0 register

to 0.

2. Load the desired 16-bit count value into the UART Baud Rate High and Low Byte

registers.

3. Enable the Baud Rate Generator timer function and associated interrupt by setting the

BIRQ

bit in the UART Control 1 register to 1.

UART Control Register Definitions

The UART control registers support the UART and the associated Infrared Encoder/
Decoders. For more information on the infrared operation, refer to the Infrared Encoder/
Decoder chapter on page 121.

UART Transmit Data Register

Data bytes written to the UART Transmit Data register (Table 51) are shifted out on the
TXDx pin. The Write-only UART Transmit Data register shares a Register File address
with the Read-only UART Receive Data register.

TXD--Transmit Data
UART transmitter data byte to be shifted out through the TXDx pin.

Table 51. UART Transmit Data Register (UxTXD)

BITS

FIELD

TXD

RESET

R/W

ADDR

F40H and F48H

UART Data Rate (bits/s)

System Clock Frequency (Hz)

16 UART Baud Rate Divisor Value

----------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

112

UART Receive Data Register

Data bytes received through the RXDx pin are stored in the UART Receive Data register
(Table 52). The Read-only UART Receive Data register shares a Register File address
with the Write-only UART Transmit Data register.

RXD--Receive Data
UART receiver data byte from the RXDx pin

UART Status 0 Register

The UART Status 0 and Status 1 registers (Table 53 and 54) identify the current UART
operating configuration and status.

RDA--Receive Data Available
This bit indicates that the UART Receive Data register has received data. Reading the
UART Receive Data register clears this bit.
0 = The UART Receive Data register is empty.
1 = There is a byte in the UART Receive Data register.

PE--Parity Error
This bit indicates that a parity error has occurred. Reading the UART Receive Data regis-
ter clears this bit.

Table 52. UART Receive Data Register (UxRXD)

BITS

FIELD

RXD

RESET

R/W

ADDR

F40H and F48H

Table 53. UART Status 0 Register (UxSTAT0)

BITS

FIELD

RDA

BRKD

TDRE

TXE

CTS

RESET

R/W

ADDR

F41H and F49H

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

113

0 = No parity error has occurred.
1 = A parity error has occurred.

OE--Overrun Error
This bit indicates that an overrun error has occurred. An overrun occurs when new data is
received and the UART Receive Data register has not been read. If the RDA bit is reset to
0, then reading the UART Receive Data register clears this bit.
0 = No overrun error occurred.
1 = An overrun error occurred.

FE--Framing Error
This bit indicates that a framing error (no Stop bit following data reception) was detected.
Reading the UART Receive Data register clears this bit.
0 = No framing error occurred.
1 = A framing error occurred.

BRKD--Break Detect
This bit indicates that a break occurred. If the data bits, parity/multiprocessor bit, and Stop
bit(s) are all zeros then this bit is set to 1. Reading the UART Receive Data register clears
this bit.
0 = No break occurred.
1 = A break occurred.

TDRE--Transmitter Data Register Empty
This bit indicates that the UART Transmit Data register is empty and ready for additional
data. Writing to the UART Transmit Data register resets this bit.
0 = Do not write to the UART Transmit Data register.
1 = The UART Transmit Data register is ready to receive an additional byte to be transmit-
ted.

TXE--Transmitter Empty
This bit indicates that the transmit shift register is empty and character transmission is fin-
ished.
0 = Data is currently transmitting.
1 = Transmission is complete.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

114

CTS--CTS signal
When this bit is read it returns the level of the CTS signal.

Reserved--Must be 0.

NEWFRM--Status bit denoting the start of a new frame. Reading the UART Receive
Data register resets this bit to 0.
0 = The current byte is not the first data byte of a new frame.
1 = The current byte is the first data byte of a new frame.

MPRX--Multiprocessor Receive
Returns the value of the last multiprocessor bit received. Reading from the UART Receive
Data register resets this bit to 0.

UART Control 0 and Control 1 Registers

The UART Control 0 and Control 1 registers (Tables 55 and 56) configure the properties
of the UART's transmit and receive operations. The UART Control registers must not
been written while the UART is enabled.

UART Status 1 Register

This register contains multiprocessor control and status bits.

Table 54. UART Status 1 Register (UxSTAT1)

BITS

FIELD

Reserved

NEWFRM

MPRX

RESET

R/W

R/W

ADDR

F44H and F4CH

Table 55. UART Control 0 Register (UxCTL0)

BITS

FIELD

TEN

REN

CTSE

PEN

PSEL

SBRK

STOP

LBEN

RESET

R/W

R/W

ADDR

F42H and F4AH

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

115

TEN--Transmit Enable
This bit enables or disables the transmitter. The enable is also controlled by the CTS signal
and the CTSE bit. If the CTS signal is low and the CTSE bit is 1, the transmitter is
enabled.
0 = Transmitter disabled.
1 = Transmitter enabled.

REN--Receive Enable
This bit enables or disables the receiver.
0 = Receiver disabled.
1 = Receiver enabled.

CTSE--CTS Enable
0 = The CTS signal has no effect on the transmitter.
1 = The UART recognizes the CTS signal as an enable control from the transmitter.

PEN--Parity Enable
This bit enables or disables parity. Even or odd is determined by the PSEL bit.
0 = Parity is disabled.
1 = The transmitter sends data with an additional parity bit and the receiver receives an
additional parity bit.

PSEL--Parity Select
0 = Even parity is transmitted and expected on all received data.
1 = Odd parity is transmitted and expected on all received data.

SBRK--Send Break
This bit pauses or breaks data transmission. Sending a break interrupts any transmission in
progress, so ensure that the transmitter has finished sending data before setting this bit.
0 = No break is sent.
1 = The output of the transmitter is zero.

STOP--Stop Bit Select
0 = The transmitter sends one stop bit.
1 = The transmitter sends two stop bits.

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

116

LBEN--Loop Back Enable
0 = Normal operation.
1 = All transmitted data is looped back to the receiver.

MPMD[1:0]--Multiprocessor Mode
If Multiprocessor (9-bit) mode is enabled,
00 = The UART generates an interrupt request on all received bytes (data and address).
01 = The UART generates an interrupt request only on received address bytes.
10 = The UART generates an interrupt request when a received address byte matches the
value stored in the Address Compare Register and on all successive data bytes until an
address mismatch occurs.
11 = The UART generates an interrupt request on all received data bytes for which the
most recent address byte matched the value in the Address Compare Register.

MPEN--Multiprocessor (9-bit) Enable
This bit is used to enable Multiprocessor (9-bit) mode.
0 = Disable Multiprocessor (9-bit) mode.
1 = Enable Multiprocessor (9-bit) mode.

MPBT--Multiprocessor Bit Transmit
This bit is applicable only when Multiprocessor (9-bit) mode is enabled.
0 = Send a 0 in the multiprocessor bit location of the data stream (9th bit).
1 = Send a 1 in the multiprocessor bit location of the data stream (9th bit).

DEPOL--Driver Enable Polarity
0 = DE signal is Active High.
1 = DE signal is Active Low.

BRGCTL--Baud Rate Control
This bit causes different UART behavior depending on whether the UART receiver is
enabled (REN = 1 in the UART Control 0 Register).

When the UART receiver is not enabled, this bit determines whether the Baud Rate Gener-
ator will issue interrupts.
0 = Reads from the Baud Rate High and Low Byte registers return the BRG Reload Value
1 = The Baud Rate Generator generates a receive interrupt when it counts down to zero.

Table 56. UART Control 1 Register (UxCTL1)

BITS

FIELD

MPMD[1]

MPEN

MPMD[0]

MPBT

DEPOL

BRGCTL

RDAIRQ

IREN

RESET

R/W

R/W

ADDR

F43H and F4BH

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

117

Reads from the Baud Rate High and Low Byte registers return the current BRG count
value.

When the UART receiver is enabled, this bit allows reads from the Baud Rate Registers to
return the BRG count value instead of the Reload Value.
0 = Reads from the Baud Rate High and Low Byte registers return the BRG Reload Value.
1 = Reads from the Baud Rate High and Low Byte registers return the current BRG count
value. Unlike the Timers, there is no mechanism to latch the High Byte when the Low
Byte is read.

RDAIRQ--Receive Data Interrupt Enable
0 = Received data and receiver errors generates an interrupt request to the Interrupt Con-
troller.
1 = Received data does not generate an interrupt request to the Interrupt Controller. Only
receiver errors generate an interrupt request.

IREN--Infrared Encoder/Decoder Enable
0 = Infrared Encoder/Decoder is disabled. UART operates normally operation.
1 = Infrared Encoder/Decoder is enabled. The UART transmits and receives data through
the Infrared Encoder/Decoder.

UART Address Compare Register

The UART Address Compare register (Table 57) stores the multi-node network address of
the UART. When the MPMD[1] bit of UART Control Register 0 is set, all incoming
address bytes will be compared to the value stored in the Address Compare register.
Receive interrupts and RDA assertions will only occur in the event of a match.

COMP_ADDR--Compare Address
This 8-bit value is compared to the any incoming address bytes.

Table 57. UART Address Compare Register (UxADDR)

BITS

FIELD

COMP_ADDR

RESET

R/W

R/W

ADDR

F45H and F4DH

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

118

UART Baud Rate High and Low Byte Registers

The UART Baud Rate High and Low Byte registers (Tables 58 and 59) combine to create
a 16-bit baud rate divisor value (BRG[15:0]) that sets the data transmission rate (baud
rate) of the UART.

The UART data rate is calculated using the following equation:

For a given UART data rate, the integer baud rate divisor value is calculated using the fol-
lowing equation:

The baud rate error relative to the desired baud rate is calculated using the following equa-
tion:

Table 58. UART Baud Rate High Byte Register (UxBRH)

BITS

FIELD

BRH

RESET

R/W

R/W

ADDR

F46H and F4EH

Table 59. UART Baud Rate Low Byte Register (UxBRL)

BITS

FIELD

BRL

RESET

R/W

R/W

R/w

ADDR

F47H and F4FH

UART Baud Rate (bits/s)

System Clock Frequency (Hz)

16 UART Baud Rate Divisor Value

----------------------------------------------------------------------------------------------

UART Baud Rate Divisor Value (BRG)

Round

System Clock Frequency (Hz)

16 UART Data Rate (bits/s)

----------------------------------------------------------------------------

UART Baud Rate Error (%)

100

Actual Data Rate Desired Data Rate

Desired Data Rate

-------------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

UART

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

119

For reliable communication, the UART baud rate error must never exceed 5 percent.
Table 60 provides information on data rate errors for popular baud rates and commonly
used crystal oscillator frequencies.

Table 60. UART Baud Rates

10.0 MHz System Clock

5.5296 MHz System Clock

Desired Rate BRG Divisor Actual Rate Error

(kHz)

(Decimal)

(kHz)

(%)

(kHz)

(Decimal)

(kHz)

(%)

1250.0

N/A

1250.0

N/A

625.0

0.00

625.0

N/A

250.0

208.33

-16.67

250.0

345.6

38.24

115.2

125.0

8.51

115.2

0.00

57.6

56.8

-1.36

57.6

0.00

38.4

39.1

1.73

38.4

0.00

19.2

18.9

0.16

19.2

0.00

9.60

9.62

0.16

9.60

0.00

4.80

130

4.81

0.16

4.80

0.00

2.40

260

2.40

-0.03

2.40

144

2.40

0.00

1.20

521

1.20

-0.03

1.20

288

1.20

0.00

0.60

1042

0.60

-0.03

0.60

576

0.60

0.00

0.30

2083

0.30

0.2

0.30

1152

0.30

0.00

3.579545 MHz System Clock

1.8432 MHz System Clock

Desired Rate BRG Divisor Actual Rate Error

(kHz)

(Decimal)

(kHz)

(%)

(kHz)

(Decimal)

(kHz)

(%)

1250.0

N/A

1250.0

N/A

625.0

N/A

625.0

N/A

250.0

223.72

-10.51

250.0

N/A

115.2

111.9

-2.90

115.2

0.00

57.6

55.9

-2.90

57.6

0.00

38.4

37.3

-2.90

38.4

0.00

19.2

18.6

-2.90

19.2

0.00

PS019906-1003

P r e l i m i n a r y

Infrared Encoder/Decoder

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

122

Operation

When the Infrared Endec is enabled, the transmit data from the associated on-chip UART
is encoded as digital signals in accordance with the IrDA standard and output to the infra-
red transceiver via the TXD pin. Likewise, data received from the infrared transceiver is
passed to the Infrared Endec via the RXD pin, decoded by the Infrared Endec, and then
passed to the UART. Communication is half-duplex, which means simultaneous data
transmission and reception is not allowed.

The baud rate is set by the UART's Baud Rate Generator and supports IrDA standard baud
rates from 9600 baud to 115.2 Kbaud. Higher baud rates are possible, but do not meet
IrDA specifications. The UART must be enabled to use the Infrared Endec. The Infrared
Endec data rate is calculated using the following equation:

Transmitting IrDA Data

The data to be transmitted using the infrared transceiver is first sent to the UART. The
UART's transmit signal (TXD) and baud rate clock are used by the IrDA to generate the
modulation signal (IR_TXD) that drives the infrared transceiver. Each UART/Infrared
data bit is 16-clocks wide. If the data to be transmitted is 1, the IR_TXD signal remains
low for the full 16-clock period. If the data to be transmitted is 0, a 3-clock high pulse is
output following a 7-clock low period. After the 3-clock high pulse, a 6-clock low pulse is
output to complete the full 16-clock data period. Figure 20 illustrates IrDA data transmis-
sion. When the Infrared Endec is enabled, the UART's TXD signal is internal to the
Z8F642x family products while the IR_TXD signal is output through the TXD pin.

Infrared Data Rate (bits/s)

System Clock Frequency (Hz)

16 UART Baud Rate Divisor Value

----------------------------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Infrared Encoder/Decoder

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

124

Figure 21. Infrared Data Reception

The system clock frequency must be at least 1.0MHz to ensure proper re-
ception of the 1.6

µs minimum width pulses allowed by the IrDA standard.

Endec Receiver Synchronization

The IrDA receiver uses a local baud rate clock counter (0 to 15 clock periods) to generate
an input stream for the UART and to create a sampling window for detection of incoming
pulses. The generated UART input (UART RXD) is delayed by 8 baud rate clock periods
with respect to the incoming IrDA data stream. When a falling edge in the input data
stream is detected, the Endec counter is reset. When the count reaches a value of 8, the
UART RXD value is updated to reflect the value of the decoded data. When the count
reaches 12 baud clock periods, the sampling window for the next incoming pulse opens.
The window remains open until the count again reaches 8 (or in other words 24 baud clock
periods since the previous pulse was detected). This gives the Endec a sampling window
of minus four baudrate clocks to plus eight baudrate clocks around the expected time of an
incoming pulse. If an incoming pulse is detected inside this window this process is
repeated. If the incoming data is a logical 1 (no pulse), the Endec returns to the initial state
and waits for the next falling edge. As each falling edge is detected, the Endec clock
counter is reset, resynchronizing the Endec to the incoming signal. This allows the Endec
to tolerate jitter and baud rate errors in the incoming data stream. Resynchronizing the
Endec does not alter the operation of the UART, which ultimately receives the data. The
UART is only synchronized to the incoming data stream when a Start bit is received.

Baud Rate

UART's

IR_RXD

16-clock

period

Start Bit = 0

Data Bit 0 = 1

Data Bit 1 = 0

Data Bit 2 = 1

Data Bit 3 = 1

8-clock

delay

Clock

RXD

16-clock

period

16-clock

period

16-clock

period

16-clock

period

Start Bit = 0

Data Bit 0 = 1

Data Bit 1 = 0

Data Bit 2 = 1

Data Bit 3 = 1

min. 1.6

pulse

Caution:

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

126

Serial Peripheral Interface

Overview

The Serial Peripheral Interface

(SPI) is a synchronous interface allowing several SPI-

type devices to be interconnected. SPI-compatible devices include EEPROMs, Analog-to-
Digital Converters, and ISDN devices. Features of the SPI include:

Full-duplex, synchronous, character-oriented communication

Four-wire interface

Data transfers rates up to a maximum of one-half the system clock frequency

Error detection

Dedicated Baud Rate Generator

Architecture

The SPI may be configured as either a Master (in single or multi-master systems) or a
Slave as illustrated in Figures 22 through 24.

Figure 22. SPI Configured as a Master in a Single Master, Single Slave System

SPI Master

8-bit Shift Register

Bit 7

Bit 0

MISO

MOSI

SCK

To Slave's SS Pin

From Slave

To Slave

Baud Rate

Generator

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

128

During an SPI transfer, data is sent and received simultaneously by both the Master and
the Slave SPI devices. Separate signals are required for data and the serial clock. When an
SPI transfer occurs, a multi-bit (typically 8-bit) character is shifted out one data pin and an
multi-bit character is simultaneously shifted in on a second data pin. An 8-bit shift register
in the Master and another 8-bit shift register in the Slave are connected as a circular buffer.
The SPI shift register is single-buffered in the transmit and receive directions. New data to
be transmitted cannot be written into the shift register until the previous transmission is
complete and receive data (if valid) has been read.

SPI Signals

The four basic SPI signals are:

MISO (Master-In, Slave-Out)

MOSI (Master-Out, Slave-In)

SCK (SPI Serial Clock)

SS (Slave Select)

The following paragraphs discuss these SPI signals. Each signal is described in both Mas-
ter and Slave modes.

Master-In, Slave-Out

The Master-In, Slave-Out (MISO) pin is configured as an input in a Master device and as
an output in a Slave device. It is one of the two lines that transfer serial data, with the most
significant bit sent first. The MISO pin of a Slave device is placed in a high-impedance
state if the Slave is not selected. When the SPI is not enabled, this signal is in a high-
impedance state.

Master-Out, Slave-In

The Master-Out, Slave-In (MOSI) pin is configured as an output in a Master device and as
an input in a Slave device. It is one of the two lines that transfer serial data, with the most
significant bit sent first. When the SPI is not enabled, this signal is in a high-impedance
state.

Serial Clock

The Serial Clock (SCK) synchronizes data movement both in and out of the device
through its MOSI and MISO pins. In MASTER mode, the SPI's Baud Rate Generator cre-
ates the serial clock. The Master drives the serial clock out its own SCK pin to the Slave's
SCK pin. When the SPI is configured as a Slave, the SCK pin is an input and the clock sig-
nal from the Master synchronizes the data transfer between the Master and Slave devices.
Slave devices ignore the SCK signal, unless the SS pin is asserted. When configured as a
slave, the SPI block requires a minimum SCK period of greater than or equal to 8 times
the system (XIN) clock period.

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

129

The Master and Slave are each capable of exchanging a character of data during a
sequence of NUMBITS clock cycles (refer to NUMBITS field in the SPIMODE register).
In both Master and Slave SPI devices, data is shifted on one edge of the SCK and is sam-
pled on the opposite edge where data is stable. Edge polarity is determined by the SPI
phase and polarity control.

Slave Select

The active Low Slave Select (SS) input signal selects a Slave SPI device. SS must be Low
prior to all data communication to and from the Slave device. SS must stay Low for the
full duration of each character transferred. The SS signal may stay Low during the transfer
of multiple characters or may deassert between each character.

When the SPI is configured as the only Master in an SPI system, the SS pin can be set as
either an input or an output. For communication between the Z8F642x family device's SPI
Master and external Slave devices, the SS signal, as an output, can assert the SS input pin
on one of the Slave devices. Other GPIO output pins can also be employed to select exter-
nal SPI Slave devices.

When the SPI is configured as one Master in a multi-master SPI system, the SS pin must
be set as an input. The SS input signal on the Master must be High. If the SS signal goes
Low (indicating another Master is driving the SPI bus), a Collision error flag is set in the
SPI Status register.

SPI Clock Phase and Polarity Control

The SPI supports four combinations of serial clock phase and polarity using two bits in the
SPI Control register. The clock polarity bit, CLKPOL, selects an active high or active low
clock and has no effect on the transfer format. Table 61 lists the SPI Clock Phase and
Polarity Operation parameters. The clock phase bit, PHASE, selects one of two fundamen-
tally different transfer formats. For proper data transmission, the clock phase and polarity
must be identical for the SPI Master and the SPI Slave. The Master always places data on
the MOSI line a half-cycle before the receive clock edge (SCK signal), in order for the
Slave to latch the data.

Table 61. SPI Clock Phase (

PHASE

) and Clock Polarity (

CLKPOL

) Operation

PHASE

CLKPOL

SCK Transmit

Edge

SCK Receive

Edge

SCK Idle

State

Falling

Rising

Low

Rising

Falling

High

Rising

Falling

Low

Falling

Rising

High

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

130

Transfer Format

PHASE

Equals Zero

Figure 25 illustrates the timing diagram for an SPI transfer in which PHASE is cleared to
0. The two SCK waveforms show polarity with CLKPOL reset to 0 and with CLKPOL set
to one. The diagram may be interpreted as either a Master or Slave timing diagram
because the SCK Master-In/Slave-Out (MISO) and Master-Out/Slave-In (MOSI) pins are
directly connected between the Master and the Slave.

Figure 25. SPI Timing When

PHASE

is 0

Transfer Format

PHASE

Equals One

Figure 26 illustrates the timing diagram for an SPI transfer in which PHASE is one. Two
waveforms are depicted for SCK, one for CLKPOL reset to 0 and another for CLKPOL set
to 1.

SCK

(CLKPOL = 0)

SCK

(CLKPOL = 1)

Bit7

Bit6

Bit5

Bit4

Bit3

Bit2

Bit1

Bit0

MOSI

Bit7

Bit6

Bit5

Bit4

Bit3

Bit2

Bit1

Bit0

MISO

Input Sample Time

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

131

Figure 26. SPI Timing When

PHASE

is 1

Multi-Master Operation

In a multi-master SPI system, all SCK pins are tied together, all MOSI pins are tied
together and all MISO pins are tied together. All SPI pins must then be configured in
open-drain mode to prevent bus contention. At any one time, only one SPI device is con-
figured as the Master and all other SPI devices on the bus are configured as Slaves. The
Master enables a single Slave by asserting the SS pin on that Slave only. Then, the single
Master drives data out its SCK and MOSI pins to the SCK and MOSI pins on the Slaves
(including those which are not enabled). The enabled Slave drives data out its MISO pin to
the MISO Master pin.

For a Master device operating in a multi-master system, if the SS pin is configured as an
input and is driven Low by another Master, the COL bit is set to 1 in the SPI Status Regis-
ter. The COL bit indicates the occurrence of a multi-master collision (mode fault error con-
dition).

Slave Operation

The SPI block is configured for slave mode operation by setting the SPIEN bit to 1 and the
MMEN bit to 0 in the SPICTL register and setting the SSIO bit to 0 in the SPIMODE reg-

SCK

(CLKPOL = 0)

SCK

(CLKPOL = 1)

Bit7

Bit6

Bit5

Bit4

Bit3

Bit2

Bit1

Bit0

MOSI

Bit7

Bit6

Bit5

Bit4

Bit3

Bit2

Bit1

Bit0

MISO

Input Sample Time

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

132

ister. The IRQE, PHASE, CLKPOL, WOR bits in the SPICTL register and the NUMBITS
field in the SPIMODE register must be set to be consistent with the other SPI devices. The
STR bit in the SPICTL register may be used if desired to force a "startup" interrupt. The
BIRQ bit in the SPICTL register and the SSV bit in the SPIMODE register are not used in
slave mode. The SPI baud rate generator is not used in slave mode so the SPIBRH and
SPIBRL registers need not be initialized.

If the slave has data to send to the master, the data must be written to the SPIDAT register
before the transaction starts (first edge of SCK when SS is asserted). If the SPIDAT regis-
ter is not written prior to the slave transaction, the MISO pin outputs whatever value is
currently in the SPIDAT register.

Due to the delay resulting from synchronization of the SPI input signals to the internal sys-
tem clock, the maximum SPICLK baud rate that can be supported in slave mode is the sys-
tem clock frequency (XIN) divided by 8. This rate is controlled by the SPI master.

Error Detection

The SPI contains error detection logic to support SPI communication protocols and recog-
nize when communication errors have occurred. The SPI Status register indicates when a
data transmission error has been detected.

Overrun (Write Collision)

An overrun error (write collision) indicates a write to the SPI Data register was attempted
while a data transfer is in progress (in either master or slave modes). An overrun sets the
OVR

bit in the SPI Status register to 1. Writing a 1 to OVR clears this error flag. The data

Mode Fault (Multi-Master Collision)

A mode fault indicates when more than one Master is trying to communicate at the same
time (a multi-master collision). The mode fault is detected when the enabled Master's SS
pin is asserted. A mode fault sets the COL bit in the SPI Status register to 1. Writing a 1 to
COL

clears this error flag.

Slave Mode Abort

In slave mode of operation if the SS pin deasserts before all bits in a character have been
transferred, the transaction is aborted. When this condition occurs the ABT bit is set in the
SPISTAT register as well as the IRQ bit (indicating the transaction is complete). The next
time SS asserts, the MISO pin outputs SPIDAT[7], regardless of where the previous trans-
action left off. Writing a 1 to ABT clears this error flag.

SPI Interrupts

When SPI interrupts are enabled, the SPI generates an interrupt after character transmis-
sion/reception completes in both master and slave modes. A character can be defined to be

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

133

1 through 8 bits by the NUMBITS field in the SPI Mode register. In slave mode it is not
necessary for SS to deassert between characters to generate the interrupt. The SPI in Slave
mode can also generate an interrupt if the SS signal deasserts prior to transfer of all the bits
in a character (see description of slave abort error above). Writing a 1 to the IRQ bit in the
SPI Status Register clears the pending SPI interrupt request. The IRQ bit must be cleared
to 0 by the Interrupt Service Routine to generate future interrupts. To start the transfer pro-
cess, an SPI interrupt may be forced by software writing a 1 to the STR bit in the SPICTL
register.

If the SPI is disabled, an SPI interrupt can be generated by a Baud Rate Generator time-
out. This timer function must be enabled by setting the BIRQ bit in the SPICTL register.
This Baud Rate Generator time-out does not set the IRQ bit in the SPISTAT register, just
the SPI interrupt bit in the interrupt controller.

SPI Baud Rate Generator

In SPI Master mode, the Baud Rate Generator creates a lower frequency serial clock
(SCK) for data transmission synchronization between the Master and the external Slave.
The input to the Baud Rate Generator is the system clock. The SPI Baud Rate High and
Low Byte registers combine to form a 16-bit reload value, BRG[15:0], for the SPI Baud
Rate Generator. The SPI baud rate is calculated using the following equation:

Minimum baud rate is obtained by setting BRG[15:0] to 0000H for a clock divisor value
of (2 X 65536 = 131072).

When the SPI is disabled, the Baud Rate Generator can function as a basic 16-bit timer
with interrupt on time-out. To configure the Baud Rate Generator as a timer with interrupt
on time-out, complete the following procedure:

1. Disable the SPI by clearing the SPIEN bit in the SPI Control register to 0.

2. Load the desired 16-bit count value into the SPI Baud Rate High and Low Byte

registers.

3. Enable the Baud Rate Generator timer function and associated interrupt by setting the

BIRQ

bit in the SPI Control register to 1.

SPI Control Register Definitions

SPI Data Register

The SPI Data register (Table 62) stores both the outgoing (transmit) data and the incoming
(receive) data. Reads from the SPI Data register always return the current contents of the

SPI Baud Rate (bits/s)

System Clock Frequency (Hz)

2 BRG[15:0]

----------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

134

8-bit shift register. Data is shifted out starting with bit 7. The last bit received resides in bit
position 0.

With the SPI configured as a Master, writing a data byte to this register initiates the data
transmission. With the SPI configured as a Slave, writing a data byte to this register loads
the shift register in preparation for the next data transfer with the external Master. In either
the Master or Slave modes, if a transmission is already in progress, writes to this register
are ignored and the Overrun error flag, OVR, is set in the SPI Status register.

When the character length is less than 8 bits (as set by the NUMBITS field in the SPI Mode
register), the transmit character must be left justified in the SPI Data register. A received
character of less than 8 bits is right justified (last bit received is in bit position 0). For
example, if the SPI is configured for 4-bit characters, the transmit characters must be writ-
ten to SPIDATA[7:4] and the received characters are read from SPIDATA[3:0].

DATA--Data
Transmit and/or receive data.

SPI Control Register

The SPI Control register (Table 63) configures the SPI for transmit and receive operations.

Table 62. SPI Data Register (SPIDATA)

BITS

FIELD

DATA

RESET

R/W

R/W

ADDR

F60H

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

135

IRQE--Interrupt Request Enable
0 = SPI interrupts are disabled. No interrupt requests are sent to the Interrupt Controller.
1 = SPI interrupts are enabled. Interrupt requests are sent to the Interrupt Controller.

STR--Start an SPI Interrupt Request
0 = No effect.
1 = Setting this bit to 1 also sets the IRQ bit in the SPI Status register to 1. Setting this bit
forces the SPI to send an interrupt request to the Interrupt Control. This bit can be used by
software for a function similar to transmit buffer empty in a UART. Writing a 1 to the

IRQ

bit in the SPI Status register clears this bit to 0.

BIRQ--BRG Timer Interrupt Request
If the SPI is enabled, this bit has no effect. If the SPI is disabled:
0 = The Baud Rate Generator timer function is disabled.
1 = The Baud Rate Generator timer function and time-out interrupt are enabled.

PHASE--Phase Select
Sets the phase relationship of the data to the clock. Refer to the SPI Clock Phase and
Polarity Control section for more information on operation of the PHASE bit.

CLKPOL--Clock Polarity
0 = SCK idles Low (0).
1 = SCK idle High (1).

WOR--Wire-OR (Open-Drain) Mode Enabled
0 = SPI signal pins not configured for open-drain.
1 = All four SPI signal pins (SCK, SS, MISO, MOSI) configured for open-drain function.
This setting is typically used for multi-master and/or multi-slave configurations.

MMEN--SPI Master Mode Enable
0 = SPI configured in Slave mode.
1 = SPI configured in Master mode.

SPIEN--SPI Enable
0 = SPI disabled.
1 = SPI enabled.

Table 63. SPI Control Register (SPICTL)

BITS

FIELD

IRQE

STR

BIRQ

PHASE

CLKPOL

WOR

MMEN

SPIEN

RESET

R/W

R/W

ADDR

F61H

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

136

SPI Status Register

The SPI Status register (Table 64) indicates the current state of the SPI. All bits revert to
their reset state if the SPIEN bit in the SPICTL register = 0.

IRQ--Interrupt Request
If SPIEN = 1, this bit is set if the STR bit in the SPICTL register is set, or upon completion
of an SPI master or slave transaction. This bit does not set if SPIEN = 0 and the SPI Baud
Rate Generator is used as a timer to generate the SPI interrupt.
0 = No SPI interrupt request pending.
1 = SPI interrupt request is pending.

OVR--Overrun
0 = An overrun error has not occurred.
1 = An overrun error has been detected.

COL--Collision
0 = A multi-master collision (mode fault) has not occurred.
1 = A multi-master collision (mode fault) has been detected.

ABT--Slave mode transaction abort
This bit is set if the SPI is configured in slave mode, a transaction is occurring and SS
deasserts before all bits of a character have been transferred as defined by the NUMBITS
field of the SPIMODE register. The IRQ bit also sets, indicating the transaction has com-
pleted.
0 = A slave mode transaction abort has not occurred.
1 = A slave mode transaction abort has been detected.

Reserved--Must be 0.

TXST--Transmit Status
0 = No data transmission currently in progress.
1 = Data transmission currently in progress.

Table 64. SPI Status Register (SPISTAT)

BITS

FIELD

IRQ

OVR

COL

ABT

Reserved

TXST

SLAS

RESET

R/W

R/W*

ADDR

F62H

R/W* = Read access. Write a 1 to clear the bit to 0.

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

137

SLAS--Slave Select
If SPI enabled as a Slave,
0 = SS input pin is asserted (Low)
1 = SS input is not asserted (High).
If SPI enabled as a Master, this bit is not applicable.

SPI Mode Register

The SPI Mode register (Table 65) configures the character bit width and the direction and
value of the SS pin.

Reserved--Must be 0.

DIAG - Diagnostic Mode Control bit
This bit is for SPI diagnostics. Setting this bit allows the Baud Rate Generator value to be
read using the SPIBRH and SPIBRL register locations.
0 = Reading SPIBRH, SPIBRL returns the value in the SPIBRH and SPIBRL registers
1 = Reading SPIBRH returns bits [15:8] of the SPI Baud Rate Generator; and reading SPI-
BRL returns bits [7:0] of the SPI Baud Rate Counter. The Baud Rate Counter High and
Low byte values are not buffered.

Exercise caution if reading the values while the BRG is counting.

NUMBITS[2:0]--Number of Data Bits Per Character to Transfer
This field contains the number of bits to shift for each character transfer. Refer to the SPI
Data Register description for information on valid bit positions when the character length
is less than 8-bits.

000 = 8 bits
001 = 1 bit
010 = 2 bits
011 = 3 bits
100 = 4 bits
101 = 5 bits

Table 65. SPI Mode Register (SPIMODE)

BITS

FIELD

Reserved

DIAG

NUMBITS[2:0]

SSIO

SSV

RESET

R/W

R/W

ADDR

F63H

Caution:

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

138

110 = 6 bits
111 = 7 bits.

SSIO--Slave Select I/O
0 = SS pin configured as an input.
1 = SS pin configured as an output (Master mode only).

SSV--Slave Select Value
If SSIO = 1 and SPI configured as a Master:
0 = SS pin driven Low (0).
1 = SS pin driven High (1).
This bit has no effect if SSIO = 0 or SPI configured as a Slave.

SPI Diagnostic State Register

The SPI Diagnostic State register (Table 66) provides observability of internal state. This
is a read only register used for SPI diagnostics.

SCKEN - Shift Clock Enable
0 = The internal Shift Clock Enable signal is deasserted
1 = The internal Shift Clock Enable signal is asserted (shift register is updates on next sys-
tem clock)

TCKEN - Transmit Clock Enable
0 = The internal Transmit Clock Enable signal is deasserted.
1 = The internal Transmit Clock Enable signal is asserted. When this is asserted the serial
data out is updated on the next system clock (MOSI or MISO).

SPISTATE - SPI State Machine
Defines the current state of the internal SPI State Machine.

Table 66. SPI Diagnostic State Register (SPIDST)

BITS

FIELD

SCKEN

TCKEN

SPISTATE

RESET

R/W

ADDR

F64H

PS019906-1003

P r e l i m i n a r y

Serial Peripheral Interface

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

139

SPI Baud Rate High and Low Byte Registers

The SPI Baud Rate High and Low Byte registers (Tables 67 and 68) combine to form a 16-
bit reload value, BRG[15:0], for the SPI Baud Rate Generator. The SPI baud rate is calcu-
lated using the following equation:

Minimum baud rate is obtained by setting BRG[15:0] to

0000H

for a clock divisor value

of (2 X 65536 = 131072).

BRH = SPI Baud Rate High Byte
Most significant byte, BRG[15:8], of the SPI Baud Rate Generator's reload value.

BRL = SPI Baud Rate Low Byte
Least significant byte, BRG[7:0], of the SPI Baud Rate Generator's reload value.

Table 67. SPI Baud Rate High Byte Register (SPIBRH)

BITS

FIELD

BRH

RESET

R/W

R/W

ADDR

F66H

Table 68. SPI Baud Rate Low Byte Register (SPIBRL)

BITS

FIELD

BRL

RESET

R/W

R/W

R/w

ADDR

F67H

SPI Baud Rate (bits/s)

System Clock Frequency (Hz)

2 BRG[15:0]

----------------------------------------------------------------------------

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

I2C Controller

140

C Controller

Overview

The I

C Controller makes the Z8F642x family products bus-compatible with the I

protocol. The I

C Controller consists of two bidirectional bus lines--a serial data signal

(SDA) and a serial clock signal (SCL). Features of the I

C Controller include:

Transmit and Receive Operation in Master mode

Maximum data rate of 400kbit/sec

7- and 10-bit Addressing Modes for Slaves

Unrestricted Number of Data Bytes Transmitted per Transfer

The I

C Controller in the Z8F642x family products does not operate in Slave mode.

Operation

The I

C Controller operates in Master mode to transmit and receive data. Only a single

master is supported. Arbitration between two masters must be accomplished in software.
I

C supports the following operations:

Master transmits to a 7-bit slave

Master transmits to a 10-bit slave

Master receives from a 7-bit slave

Master receives from a 10-bit slave

SDA and SCL Signals

C sends all addresses, data and acknowledge signals over the SDA line, most-significant

bit first. SCL is the common clock for the I

C Controller. When the SDA and SCL pin

alternate functions are selected for their respective GPIO ports, the pins are automatically
configured for open-drain operation.

The master (I

C) is responsible for driving the SCL clock signal, although the clock signal

can become skewed by a slow slave device. During the low period of the clock, the slave
pulls the SCL signal Low to suspend the transaction. The master releases the clock at the
end of the low period and notices that the clock remains low instead of returning to a high

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

141

level. When the slave has released the clock, the I

C Controller continues the transaction.

All data is transferred in bytes and there is no limit to the amount of data transferred in one
operation. When transmitting data or acknowledging read data from the slave, the SDA
signal changes in the middle of the low period of SCL and is sampled in the middle of the
high period of SCL.

C Interrupts

The I

C Controller contains four sources of interrupts--Transmit, Receive, Not Acknowl-

edge (NAK) and baud rate generator. These four interrupt sources are combined into a sin-
gle interrupt request signal to the interrupt controller.

NAK interrupts occur when a Not Acknowledge is received from the slave or sent by the
I

C Controller and the Start or Stop bit is not set. The NAK event sets bit 0 of the

I2CSTAT register and can only be cleared by setting the Start or Stop bit. When this inter-
rupt occurs, the I

C Controller waits until it is cleared before performing any action. In an

interrupt service routine, the NAK interrupt must be the first thing polled.

Receive interrupts occur when a byte of data has been received by the I

C master. The

receive interrupt is cleared by reading from the I

C Data register. If no action is taken, the

C Controller waits until this interrupt is cleared before performing any other action.

For Transmit interrupts to occur, the TXI bit must be 1 in the I

C Control register. Trans-

mit interrupts occur under the following conditions when the transmit data register is
empty:

The I

C Controller is enabled

The first bit of the byte of an address is shifting out and the RD bit of the I

C Status

The first bit of a 10-bit address shifts out.

The first bit of write data shifted out.

Writing to the I

C Data register always clears the TRDE bit to 0.

The fourth interrupt source is the baud rate generator. If the I2C Controller is disabled (IEN
bit in the I2CCTL register = 0) and the BIRQ bit in the I2CCTL register = 1, an interrupt is
generated when the baud rate generator counts down to 1.

Start and Stop Conditions

The master (I

C) drives all Start and Stop signals and initiates all transactions. To start a

transaction, the I

C Controller generates a START condition by pulling the SDA signal

low while SCL is high. To complete a transaction, the I

C Controller generates a Stop con-

dition by creating a low-to-high transition of the SDA signal while the SCL signal is high.
The Start and Stop signals are found in the I

C Control register and must be written by

software when the Z8F642x family device must begin or end a transaction.

Note:

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

142

Write Transaction with a 7-Bit Address

Figure 27 illustrates the data transfer format for a 7-bit addressed slave. Shaded regions
indicate data transferred from the I

C Controller to slaves and unshaded regions indicate

data transferred from the slaves to the I

C Controller.

Figure 27. 7-Bit Addressed Slave Data Transfer Format

The procedure for a transmit operation on a 7-bit addressed slave is as follows:

1. Software asserts the IEN bit in the I

C Control register.

2. Software asserts the TXI bit of the I

C Control register to enable Transmit interrupts.

3. The I

C interrupt asserts, because the I

C Data register is empty

4. Software responds to the TDRE bit by writing a 7-bit slave address plus write bit (=0)

to the I

C Data register.

5. Software asserts the START bit of the I

C Control register.

6. The I

C Controller sends the START condition to the I

C slave.

7. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

8. After one bit of address has been shifted out by the SDA signal, the Transmit interrupt

is asserted.

9. Software responds by writing the transmit data into the I

C Data register.

10. The I

C Controller shifts the rest of the address and write bit out by the SDA signal.

11. The I

C slave sends an acknowledge (by pulling the SDA signal low) during the next

high period of SCL. The I

C Controller sets the ACK bit in the I

C Status register.

12. The I

C Controller loads the contents of the I

C Shift register with the contents of the

C Data register.

13. The I

C Controller shifts the data out of via the SDA signal. After the first bit is sent,

the Transmit interrupt is asserted.

14. If more bytes remain to be sent, return to step 9

15. Software responds by setting the STOP bit of the I

C Control register (or START bit

to initiate a new transaction).

16. If no new data is to be sent or address is to be sent, software responds by clearing the

TXI

bit of the I

C Control register.

Data

P/S

A/A

Slave Address

W=0

Data

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

143

17. The I

C Controller completes transmission of the data on the SDA signal.

18. The I

C Controller sends the STOP condition to the I

C bus.

Write Transaction with a 10-Bit Address

Figure 28 illustrates the data transfer format for a 10-bit addressed slave. Shaded regions
indicate data transferred from the I

C Controller to slaves and unshaded regions indicate

data transferred from the slaves to the I

C Controller.

Figure 28. 10-Bit Addressed Slave Data Transfer Format

The first seven bits transmitted in the first byte are

11110XX

. The two bits

are the two

most-significant bits of the 10-bit address. The lowest bit of the first byte transferred is the
read/write control bit (=0). The transmit operation is carried out in the same manner as 7-
bit addressing.

The procedure for a transmit operation on a 10-bit addressed slave is as follows:

1. Software asserts the IEN bit in the I

C Control register.

2. Software asserts the TXI bit of the I

C Control register to enable Transmit interrupts.

3. The I

C interrupt asserts because the I

C Data register is empty.

4. Software responds to the TDRE interrupt by writing the first slave address byte. The

least-significant bit must be 0 for the write operation.

5. Software asserts the START bit of the I

C Control register.

6. The I

C Controller sends the START condition to the I

C slave.

7. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

8. After one bit of address is shifted out by the SDA signal, the Transmit interrupt is

asserted.

9. Software responds by writing the second byte of address into the contents of the I

Data register.

10. The I

C Controller shifts the rest of the first byte of address and write bit out the SDA

signal.

11. The I

C slave sends an acknowledge by pulling the SDA signal low during the next

high period of SCL. The I

C Controller sets the ACK bit in the I

C Status register.

12. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

Data

P/S

Slave Address

2nd Byte

A/A

Slave Address

1st 7 bits

W=0

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

144

13. The I

C Controller shifts the second address byte out the SDA signal. After the first

bit has been sent, the Transmit interrupt is asserted.

14. Software responds by writing the data to be written out to the I

C Control register.

15. The I

C Controller shifts out the rest of the second byte of slave address by the SDA

signal.

16. The I

C slave sends an acknowledge by pulling the SDA signal low during the next

high period of SCL. The I

C Controller sets the ACK bit in the I

C Status register.

17. The I

C Controller shifts the data out by the SDA signal. After the first bit is sent, the

Transmit interrupt is asserted.

18. Software responds by asserting the STOP bit of the I

C Control register.

19. The I

C Controller completes transmission of the data on the SDA signal.

20. The I

C Controller sends the STOP condition to the I

C bus.

Read Transaction with a 7-Bit Address

Figure 29 illustrates the data transfer format for a read operation to a 7-bit addressed slave.
The shaded regions indicate data transferred from the I

C Controller to slaves and

unshaded regions indicate data transferred from the slaves to the I

C Controller.

Figure 29. Receive Data Transfer Format for a 7-Bit Addressed Slave

The procedure for a read operation to a 7-bit addressed slave is as follows:

1. Software writes the I

C Data register with a 7-bit slave address plus the read bit (=1).

2. Software asserts the START bit of the I

C Control register.

3. If this is a single byte transfer, Software asserts the NAK bit of the I

C Control register

so that after the first byte of data has been read by the I

C Controller, a Not

Acknowledge is sent to the I

C slave.

4. The I

C Controller sends the START condition.

5. The I

C Controller sends the address and read bit out the SDA signal.

6. The I

C slave acknowledges the address by pulling the SDA signal Low during the

next high period of SCL.

7. The I

C Controller shifts in the first byte of data from the I

C slave on the SDA signal.

8. The I

C Controller asserts the Receive interrupt.

Slave Address

R=1

Data

P/S

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

145

9. Software responds by reading the I

C Data register.

10. The I

C Controller sends a NAK to the I

C slave (if this is the last byte).

11. If there are more bytes to transfer, return to step 7.

12. A NAK interrupt is generated by the I

C Controller.

13. Software responds by setting the STOP bit of the I

C Control register.

14. A STOP condition is sent to the I

C slave.

Read Transaction with a 10-Bit Address

Figure 30 illustrates the read transaction format for a 10-bit addressed slave. The shaded
regions indicate data transferred from the I

C Controller to slaves and unshaded regions

indicate data transferred from the slaves to the I

C Controller.

Figure 30. Receive Data Format for a 10-Bit Addressed Slave

The first seven bits transmitted in the first byte are

11110XX

. The two bits

are the two

most-significant bits of the 10-bit address. The lowest bit of the first byte transferred is the
write control bit.

The data transfer procedure for a read operation to a 10-bit addressed slave is as follows:

1. Software writes

11110B

followed by the two address bits and a 0 (write) to the I2C

Data register.

2. Software asserts the START bit of the I

C Control register.

3. The I

C Controller sends the Start condition.

4. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

5. After the first bit has been shifted out, a Transmit interrupt is asserted.

6. Software responds by writing eight bits of address to the I

C Data register.

7. The I

C Controller completes shifting of the two address bits and a 0 (write).

8. The I

C slave sends an acknowledge by pulling the SDA signal Low during the next

high period of SCL.

9. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

Data

Slave Address

2nd Byte

Slave Address

1st 7 bits

W=0

Slave Address

1st 7 bits

R=1

Data

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

146

10. The I

C Controller shifts out the next eight bits of address. After the first bit is shifted,

the I

C Controller generates a Transmit interrupt.

11. Software responds by setting the START bit of the I

C Control register to generate a

repeated START.

12. Software responds by writing 11110B followed by the 2-bit slave address and a 1

(read) to the I2C Data register.

13. If you want to read only one byte, software responds by setting the NAK bit of the

C Control register.

14. After the I

C Controller shifts out the address bits mentioned in step 9 (2nd address

transfer), the I

C slave sends an acknowledge by pulling the SDA signal Low during

the next high period of SCL.

15. The I

C Controller sends the repeated START condition.

16. The I

C Controller loads the I

C Shift register with the contents of the I

C Data

17. The I

C Controller sends

11110B

followed by the two most significant bits of the

slave read address and a 1 (read).

18. The I

C slave sends an acknowledge by pulling the SDA signal Low during the next

high period of SCL.

19. The I

C Controller shifts in a byte of data from the slave.

20. A Receive interrupt is generated.

21. Software responds by reading the I

C Data register.

22. Software responds by setting the STOP bit of the I

C Control register.

23. A NAK condition is sent to the I

C slave.

24. A STOP condition is sent to the I

C slave.

C Control Register Definitions

C Data Register

The I

C Data register (Table 69) holds the data that is to be loaded into the I

C Shift regis-

ter during a write to a slave. This register also holds data that is loaded from the I

C Shift

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

147

C Shift Register is not accessible in the Register

File address space, but is used only to buffer incoming and outgoing data.

C Status Register

The Read-only I

C Status register (Table 70) indicates the status of the I

C Controller.

TDRE--Transmit Data Register Empty
When the I

C Controller is enabled, this bit is 1 when the I

C Data register is empty.

When active, this bit causes the I

C Controller to generate an interrupt, except when the

C Controller is shifting in data during the reception of a byte or when shifting an address

and the RD bit is set. This bit and the interrupt are cleared by writing to the I

CDATA reg-

ister.

RDRF--Receive Data Register Full
This bit is set = 1 when the I

C Controller is enabled and the I

C Controller has received a

byte of data. When asserted, this bit causes the I

C Controller to generate an interrupt.

This bit is cleared by reading the I

C Data register (unless the read is performed via execu-

tion of the On-Chip Debugger's Read Register command).

ACK--Acknowledge
This bit indicates the status of the Acknowledge for the last byte transmitted or received.

Table 69. I

C Data Register (I2CDATA)

BITS

FIELD

DATA

RESET

R/W

R/W

ADDR

F50H

Table 70. I

C Status Register (I2CSTAT)

BITS

FIELD

TDRE

RDRF

ACK

10B

TAS

DSS

NCKI

RESET

R/W

ADDR

F51H

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

148

When set, this bit indicates that an Acknowledge was received for the last byte transmitted
or received.

10B--10-Bit Address
This bit indicates whether a 10- or 7-bit address is being transmitted. After the START bit
is set, if the five most-significant bits of the address are 11110B, this bit is set. When set,
it is reset once the first byte of the address has been sent.

RD--Read
This bit indicates the direction of transfer of the data. It is active high during a read. The
status of this bit is determined by the least-significant bit of the I

C Shift register after the

START

bit is set.

TAS--Transmit Address State
This bit is active high while the address is being shifted out of the I

C Shift register.

DSS--Data Shift State
This bit is active high while data is being shifted to or from the I

C Shift register.

NCKI--NACK Interrupt
This bit is set high when a Not Acknowledge condition is received or sent and neither the
START nor the STOP bit is active. When set, this bit generates an interrupt that can only
be cleared by setting the START or STOP bit, allowing the user to specify whether he
wants to perform a STOP or a repeated START.

C Control Register

The I

C Control register (Table 71) enables the I

C operation.

IEN--I

C Enable

This bit enables the I

C transmitter and receiver.

START--Send Start Condition
This bit sends the Start condition. Once asserted, it is cleared by the I

C Controller after it

sends the START condition or by deasserting the IEN bit. If this bit is 1, it cannot be
cleared to 0 by writing to the register. After this bit is set, the Start condition is sent if there

Table 71. I

C Control Register (I2CCTL)

BITS

FIELD

IEN

START

STOP

BIRQ

TXI

NAK

FLUSH

FILTEN

RESET

R/W

R/W

ADDR

F52H

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

149

is data in the I

C Data or I

C Shift register. If there is no data in one of these registers, the

C Controller waits until data is loaded. If this bit is set while the I

C Controller is shift-

ing out data, it generates a START condition after the byte shifts and the acknowledge
phase completes. If the STOP bit is also set, it also waits until the STOP condition is sent
before the START condition.

STOP--Send Stop Condition
This bit causes the I

C Controller to issue a Stop condition after the byte in the I

C Shift

register has completed transmission or after a byte has been received in a receive opera-
tion. Once set, this bit is reset by the I

C Controller after a Stop condition has been sent or

by deasserting the IEN bit. If this bit is 1, it cannot be cleared to 0 by writing to the regis-
ter.

BIRQ--Baud Rate Generator Interrupt Request
This bit causes an interrupt to occur every time the baud rate generator counts down to
one. This bit allows the I

C Controller to be used as an additional timer when the I2C Con-

troller is disabled. This bit is ignored when the I

C Controller is enabled.

TXI--Enable TDRE interrupts
This bit enables interrupts when the I

C Data register is empty on the I

C Controller.

NAK--Send NAK
This bit sends a Not Acknowledge condition after the next byte of data has been read from
the I

C slave. Once asserted, it is deasserted after a Not Acknowledge is sent or the IEN

bit is deasserted.

FLUSH--Flush Data
Setting this bit to 1 clears the I

C Data register and sets the TDRE bit to 1. This bit allows

flushing of the I

C Data register when an NAK is received after the data has been sent to

the I

C Data register. Reading this bit always returns 0.

FILTEN--I

C Signal Filter Enable

Setting this bit to 1 enables low-pass digital filters on the SDA and SCL input signals.
These filters reject any input pulse with periods less than a full system clock cycle. The fil-
ters introduce a 3-system clock cycle latency on the inputs.

C Baud Rate High and Low Byte Registers

The I

C Baud Rate High and Low Byte registers (Tables 72 and 73) combine to form a 16-

bit reload value, BRG[15:0], for the I

C Baud Rate Generator. The I

C baud rate is calcu-

lated using the following equation (note if BRG = 0x0000, use 0x10000 in the equation):

I2C Baud Rate (bits/s)

System Clock Frequency (Hz)

4 BRG[15:0]

----------------------------------------------------------------------------

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

150

BRH = I

C Baud Rate High Byte

Most significant byte, BRG[15:8], of the I

C Baud Rate Generator's reload value.

If the DIAG bit in the I

C Diagnostic Control Register is set to 1, a read of the

I2CBRH register returns the current value of the I

C Baud Rate Counter[15:8].

BRL = I

C Baud Rate Low Byte

Least significant byte, BRG[7:0], of the I

C Baud Rate Generator's reload value.

If the DIAG bit in the I

C Diagnostic Control Register is set to 1, a read of the I2CBRL

C Baud Rate Counter[7:0].

Table 72. I

C Baud Rate High Byte Register (I2CBRH)

BITS

FIELD

BRH

RESET

R/W

R/W

ADDR

F53H

Table 73. I

C Baud Rate Low Byte Register (I2CBRL)

BITS

FIELD

BRL

RESET

R/W

R/W

ADDR

F54H

Note:

PS019906-1003

P r e l i m i n a r y

I2C Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

151

C Diagnostic State Register

The I

C Diagnostic State register (Table 74) provides observability of internal state. This

is a read only register used for I

C diagnostics.

SCLIN - Value of Serial Clock input signal

SDAIN - Value of the Serial Data input signal

STPCNT - Value of the internal Stop Count control signal

TXRXSTATE - Value of the I

C state machine

C Diagnostic Control Register

The I

C Diagnostic register (Table 75) provides control over diagnostic modes. This is a

read/write register used for I

C diagnostics.

DIAG = Diagnostic Control Bit - Selects read back value of the Baud Rate Reload regis-
ters. In diagnostic mode the Baud Rate Counter may be read back.
0 = Normal mode
1 = Diagnostic mode

Table 74. I

C Diagnostic State Register (I2CDST)

BITS

FIELD

SCLIN

SDAIN

STPCNT

TXRXSTATE

RESET

00000

R/W

ADDR

F55H

Table 75. I

C Diagnostic Control Register (I2CDIAG)

BITS

FIELD

Reserved

DIAG

RESET

R/W

R/W

ADDR

F56H

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

152

Direct Memory Access Controller

Overview

The Z8F642x family's Direct Memory Access (DMA) Controller provides three indepen-
dent Direct Memory Access channels. Two of the channels (DMA0 and DMA1) transfer
data between the on-chip peripherals and the Register File. The third channel
(DMA_ADC) controls the Analog-to-Digital Converter (ADC) operation and transfers
Single-Shot mode ADC output data to the Register File.

Operation

DMA0 and DMA1 Operation

DMA0 and DMA1, referred to collectively as DMAx, transfer data either from the on-chip
peripheral control registers to the Register File, or from the Register File to the on-chip
peripheral control registers. The sequence of operations in a DMAx data transfer is:

1. DMAx trigger source requests a DMA data transfer.

2. DMAx requests control of the system bus (address and data) from the eZ8 CPU.

3. After the eZ8 CPU acknowledges the bus request, DMAx transfers either a single byte

or a two-byte word (depending upon configuration) and then returns system bus
control back to the eZ8 CPU.

4. If Current Address equals End Address:

DMAx reloads the original Start Address

If configured to generate an interrupt, DMAx sends an interrupt request to the
Interrupt Controller

If configured for single-pass operation, DMAx resets the DEN bit in the DMAx
Control register to 0 and the DMA is disabled.

If Current Address does not equal End Address, the Current Address increments by 1
(single-byte transfer) or 2 (two-byte word transfer).

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

153

Configuring DMA0 and DMA1 for Data Transfer

Follow these steps to configure and enable DMA0 or DMA1:

1. Write to the DMAx I/O Address register to set the Register File address identifying the

on-chip peripheral control register. The upper nibble of the 12-bit address for on-chip
peripheral control registers is always

. The full address is {FH, DMAx_IO[7:0]}

2. Determine the 12-bit Start and End Register File addresses. The 12-bit Start Address

is given by {DMAx_H[3:0], DMA_START[7:0]}. The 12-bit End Address is given by
{DMAx_H[7:4], DMA_END[7:0]}.

3. Write the Start and End Register File address high nibbles to the DMAx End/Start

Address High Nibble register.

4. Write the lower byte of the Start Address to the DMAx Start/Current Address register.

5. Write the lower byte of the End Address to the DMAx End Address register.

6. Write to the DMAx Control register to complete the following:

Select loop or single-pass mode operation

Select the data transfer direction (either from the Register File RAM to the on-
chip peripheral control register; or from the on-chip peripheral control register to
the Register File RAM)

Enable the DMAx interrupt request, if desired

Select Word or Byte mode

Select the DMAx request trigger

Enable the DMAx channel

DMA_ADC Operation

DMA_ADC transfers data from the ADC to the Register File. The sequence of operations
in a DMA_ADC data transfer is:

1. ADC completes conversion on the current ADC input channel and signals the DMA

controller that two-bytes of ADC data are ready for transfer.

2. DMA_ADC requests control of the system bus (address and data) from the eZ8 CPU.

3. After the eZ8 CPU acknowledges the bus request, DMA_ADC transfers the two-byte

ADC output value to the Register File and then returns system bus control back to the
eZ8 CPU.

4. If the current ADC Analog Input is the highest numbered input to be converted:

DMA_ADC resets the ADC Analog Input number to 0 and initiates data
conversion on ADC Analog Input 0.

If configured to generate an interrupt, DMA_ADC sends an interrupt request to
the Interrupt Controller

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

154

If the current ADC Analog Input is not the highest numbered input to be converted,
DMA_ADC initiates data conversion in the next higher numbered ADC Analog Input.

Configuring DMA_ADC for Data Transfer

Follow these steps to configure and enable DMA_ADC:

1. Write the DMA_ADC Address register with the 7 most-significant bits of the Register

File address for data transfers.

2. Write to the DMA_ADC Control register to complete the following:

Enable the DMA_ADC interrupt request, if desired

Select the number of ADC Analog Inputs to convert

Enable the DMA_ADC channel

When using the DMA_ADC to perform conversions on multiple ADC in-
puts, the Analog-to-Digital Converter must be configured for Single-Shot
mode. If the ADC_IN field in the DMA_ADC Control Register is greater
than 000b, the ADC must be in Single-Shot mode.

Continuous mode operation of the ADC can only be used in conjunction
with DMA_ADC if the ADC_IN field in the DMA_ADC Control Register
is reset to 000b to enable conversion on ADC Analog Input 0 only.

DMA Control Register Definitions

DMAx Control Register

The DMAx Control register (Table 76) enables and selects the mode of operation for
DMAx.

Caution:

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

155

DEN--DMAx Enable
0 = DMAx is disabled and data transfer requests are disregarded.
1 = DMAx is enabled and initiates a data transfer upon receipt of a request from the trigger
source.

DLE--DMAx Loop Enable
0 = DMAx reloads the original Start Address and is then disabled after the End Address
data is transferred.
1 = DMAx, after the End Address data is transferred, reloads the original Start Address
and continues operating.

DDIR--DMAx Data Transfer Direction
0 = Register File

on-chip peripheral control register.

1 = on-chip peripheral control register

IRQEN--DMAx Interrupt Enable
0 = DMAx does not generate any interrupts.
1 = DMAx generates an interrupt when the End Address data is transferred.

WSEL--Word Select
0 = DMAx transfers a single byte per request.
1 = DMAx transfers a two-byte word per request. The address for the on-chip peripheral
control register must be an even address.

RSS--Request Trigger Source Select
The Request Trigger Source Select field determines the peripheral that can initiate a DMA
transfer. The corresponding interrupts do not need to be enabled within the Interrupt Con-
troller to initiate a DMA transfer. However, if the Request Trigger Source can enable or
disable the interrupt request sent to the Interrupt Controller, the interrupt request must be
enabled within the Request Trigger Source block.
000 = Timer 0.
001 = Timer 1.
010 = Timer 2.
011 = Timer 3.
100 = DMA0 Control register: UART0 Received Data register contains valid data. DMA1
Control register: UART0 Transmit Data register empty.

Table 76. DMAx Control Register (DMAxCTL)

BITS

FIELD

DEN

DLE

DDIR

IRQEN

WSEL

RSS

RESET

R/W

R/W

ADDR

FB0H, FB8H

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

156

101 = DMA0 Control register: UART1 Received Data register contains valid data. DMA1
Control register: UART1 Transmit Data register empty.
110 = DMA0 Control register: I

C Receiver Interrupt. DMA1 Control register: I

C Trans-

mitter Interrupt register empty.
111 = Reserved.

DMAx I/O Address Register

The DMAx I/O Address register (Table 77) contains the low byte of the on-chip peripheral
address for data transfer. The full 12-bit Register File address is given by {FH,
DMAx_IO[7:0]}. When the DMA is configured for two-byte word transfers, the DMAx I/
O Address register must contain an even numbered address.

DMA_IO--DMA on-chip peripheral control register address
This byte sets the low byte of the on-chip peripheral control register address on Register
File Page

(addresses

F00H

FFFH

DMAx Address High Nibble Register

The DMAx Address High register (Table 78) specifies the upper four bits of address for
the Start/Current and End Addresses of DMAx.

Table 77. DMAx I/O Address Register (DMAxIO)

BITS

FIELD

DMA_IO

RESET

R/W

R/W

ADDR

FB1H, FB9H

Table 78. DMAx Address High Nibble Register (DMAxH)

BITS

FIELD

DMA_END_H

DMA_START_H

RESET

R/W

R/W

ADDR

FB2H, FHAH

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

157

DMA_END_H--DMAx End Address High Nibble
These bits, used with the DMAx End Address Low register, form a 12-bit End Address.
The full 12-bit address is given by {DMA_END_H[3:0], DMA_END[7:0]}.

DMA_START_H--DMAx Start/Current Address High Nibble
These bits, used with the DMAx Start/Current Address Low register, form a 12-bit Start/
Current Address. The full 12-bit address is given by {DMA_START_H[3:0],
DMA_START[7:0]}.

DMAx Start/Current Address Low Byte Register

The DMAx Start/Current Address Low register, in conjunction with the DMAx Address
High Nibble register, forms a 12-bit Start/Current Address. Writes to this register set the
Start Address for DMA operations. Each time the DMA completes a data transfer, the 12-
bit Start/Current Address increments by either 1 (single-byte transfer) or 2 (two-byte word
transfer). Reads from this register return the low byte of the Current Address to be used for
the next DMA data transfer.

DMA_START--DMAx Start/Current Address Low
These bits, with the four lower bits of the DMAx_H register, form the 12-bit Start/Current
address. The full 12-bit address is given by {DMA_START_H[3:0], DMA_START[7:0]}.

DMAx End Address Low Byte Register

The DMAx End Address Low Byte register (Table 79), in conjunction with the DMAx_H
register (Table 80), forms a 12-bit End Address.

Table 79. DMAx Start/Current Address Low Byte Register (DMAxSTART)

BITS

FIELD

DMA_START

RESET

R/W

R/W

ADDR

FB3H, FHBH

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

158

DMA_END--DMAx End Address Low
These bits, with the four upper bits of the DMAx_H register, form a 12-bit address. This
address is the ending location of the DMAx transfer. The full 12-bit address is given by
{DMA_END_H[3:0], DMA_END[7:0]}.

DMA_ADC Address Register

The DMA_ADC Address register (Table 82) points to a block of the Register File to store
ADC conversion values as illustrated in Table 81. This register contains the seven most-
significant bits of the 12-bit Register File addresses. The five least-significant bits are cal-
culated from the ADC Analog Input number (5-bit base address is equal to twice the ADC
Analog Input number). The 10-bit ADC conversion data is stored as two bytes with the
most significant byte of the ADC data stored at the even numbered Register File address.

Table 81 provides an example of the Register File addresses if the DMA_ADC Address
register contains the value 72H.

Table 80. DMAx End Address Low Byte Register (DMAxEND)

BITS

FIELD

DMA_END

RESET

R/W

R/W

ADDR

FB4H, FBCH

Table 81. DMA_ADC Register File Address Example

ADC Analog Input Register File Address (Hex)

720H-721H

722H-723H

724H-725H

726H-727H

728H-729H

72AH-72BH

72CH-72DH

72EH-72FH

730H-731H

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

159

DMAA_ADDR--DMA_ADC Address
These bits specify the seven most-significant bits of the 12-bit Register File addresses
used for storing the ADC output data. The ADC Analog Input Number defines the five
least-significant bits of the Register File address. Full 12-bit address is
{DMAA_ADDR[7:1], 4-bit ADC Analog Input Number, 0}.

Reserved
This bit is reserved and must be 0.

DMA_ADC Control Register

The DMA_ADC Control register (Table 83) enables and sets options (DMA enable and
interrupt enable) for ADC operation.

732H-733H

734H-735H

736H-737H

DMAA_ADDR set to 72H.

Table 82. DMA_ADC Address Register (DMAA_ADDR)

BITS

FIELD

DMAA_ADDR

Reserved

RESET

R/W

R/W

ADDR

FBDH

Table 81. DMA_ADC Register File Address Example

ADC Analog Input Register File Address (Hex)

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

160

DAEN--DMA_ADC Enable
0 = DMA_ADC is disabled and the ADC Analog Input Number (ADC_IN) is reset to 0.
1 = DMA_ADC is enabled.

IRQEN--Interrupt Enable
0 = DMA_ADC does not generate any interrupts.
1 = DMA_ADC generates an interrupt after transferring data from the last ADC Analog
Input specified by the ADC_IN field.

Reserved
These bits are reserved and must be 0.

ADC_IN--ADC Analog Input Number
These bits set the number of ADC Analog Inputs to be used in the continuous update (data
conversion followed by DMA data transfer). The conversion always begins with ADC
Analog Input 0 and then progresses sequentially through the other selected ADC Analog
Inputs.
0000 = ADC Analog Input 0 updated.
0001 = ADC Analog Inputs 0-1 updated.
0010 = ADC Analog Inputs 0-2 updated.
0011 = ADC Analog Inputs 0-3 updated.
0100 = ADC Analog Inputs 0-4 updated.
0101 = ADC Analog Inputs 0-5 updated.
0110 = ADC Analog Inputs 0-6 updated.
0111 = ADC Analog Inputs 0-7 updated.
1000 = ADC Analog Inputs 0-8 updated.
1001 = ADC Analog Inputs 0-9 updated.
1010 = ADC Analog Inputs 0-10 updated.
1011 = ADC Analog Inputs 0-11 updated.
1100-1111 = Reserved.

DMA Status Register

The DMA Status register (Table 84) indicates the DMA channel that generated the inter-
rupt and the ADC Analog Input that is currently undergoing conversion. Reads from this
register reset the Interrupt Request Indicator bits (IRQA, IRQ1, and IRQ0) to 0. There-

Table 83. DMA_ADC Control Register (DMAACTL)

BITS

FIELD

DAEN

IRQEN

Reserved

ADC_IN

RESET

R/W

R/W

ADDR

FBEH

PS019906-1003

P r e l i m i n a r y

Direct Memory Access Controller

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

161

fore, software interrupt service routines that read this register must process all three inter-
rupt sources from the DMA.

CADC[3:0]--Current ADC Analog Input
This field identifies the Analog Input that the ADC is currently converting.

Reserved
This bit is reserved and must be 0.

IRQA--DMA_ADC Interrupt Request Indicator
This bit is automatically reset to 0 each time a read from this register occurs.
0 = DMA_ADC is not the source of the interrupt from the DMA Controller.
1 = DMA_ADC completed transfer of data from the last ADC Analog Input and generated
an interrupt.

IRQ1--DMA1 Interrupt Request Indicator
This bit is automatically reset to 0 each time a read from this register occurs.
0 = DMA1 is not the source of the interrupt from the DMA Controller.
1 = DMA1 completed transfer of data to/from the End Address and generated an interrupt.

IRQ0--DMA0 Interrupt Request Indicator
This bit is automatically reset to 0 each time a read from this register occurs.
0 = DMA0 is not the source of the interrupt from the DMA Controller.
1 = DMA0 completed transfer of data to/from the End Address and generated an interrupt.

Table 84. DMA_ADC Status Register (DMAA_STAT)

BITS

FIELD

CADC[3:0]

Reserved

IRQA

IRQ1

IRQ0

RESET

R/W

ADDR

FBFH

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

162

Analog-to-Digital Converter

Overview

The Analog-to-Digital Converter (ADC) converts an analog input signal to a 10-bit binary
number. The features of the sigma-delta ADC include:

12 analog input sources are multiplexed with general-purpose I/O ports

Interrupt upon conversion complete

Internal voltage reference generator

Direct Memory Access (DMA) controller can automatically initiate data conversion
and transfer of the data from 1 to 12 of the analog inputs

Architecture

Figure 31 illustrates the three major functional blocks (converter, analog multiplexer, and
voltage reference generator) of the ADC. The ADC converts an analog input signal to its
digital representation. The 12-input analog multiplexer selects one of the 12 analog input
sources. The ADC requires an input reference voltage for the conversion. The voltage ref-
erence for the conversion may be input through the external VREF pin or generated inter-
nally by the voltage reference generator.

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

163

Figure 31. Analog-to-Digital Converter Block Diagram

Operation

Automatic Power-Down

If the ADC is idle (no conversions in progress) for 160 consecutive system clock cycles,
portions of the ADC are automatically powered-down. From this power-down state, the
ADC requires 40 system clock cycles to power-up. The ADC powers up when a conver-
sion is requested using the ADC Control register.

Single-Shot Conversion

When configured for single-shot conversion, the ADC performs a single analog-to-digital
conversion on the selected analog input channel. After completion of the conversion, the
ADC shuts down. The steps for setting up the ADC and initiating a single-shot conversion
are as follows:

Analog-to-Digital

Converter

ANA0
ANA1
ANA2
ANA3
ANA4
ANA5
ANA6
ANA7
ANA8
ANA9
ANA10
ANA11

Analog Input

Multiplexer

ANAIN[3:0]

Internal Voltage

Reference Generator

VREF

Analog Input

Reference Input

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

164

1. Enable the desired analog inputs by configuring the general-purpose I/O pins for

alternate function. This configuration disables the digital input and output drivers.

2. Write to the ADC Control register to configure the ADC and begin the conversion.

The bit fields in the ADC Control register can be written simultaneously:

Write to the ANAIN[3:0] field to select one of the 12 analog input sources.

Clear CONT to 0 to select a single-shot conversion.

Write to the VREF bit to enable or disable the internal voltage reference generator.

Set CEN to 1 to start the conversion.

3. CEN remains 1 while the conversion is in progress. A single-shot conversion requires

5129 system clock cycles to complete. If a single-shot conversion is requested from an
ADC powered-down state, the ADC uses 40 additional clock cycles to power-up
before beginning the 5129 cycle conversion.

4. When the conversion is complete, the ADC control logic performs the following

operations:

10-bit data result written to {ADCD_H[7:0], ADCD_L[7:6]}.

CEN

resets to 0 to indicate the conversion is complete.

An interrupt request is sent to the Interrupt Controller.

5. If the ADC remains idle for 160 consecutive system clock cycles, it is automatically

powered-down.

Continuous Conversion

When configured for continuous conversion, the ADC continuously performs an analog-
to-digital conversion on the selected analog input. Each new data value over-writes the
previous value stored in the ADC Data registers. An interrupt is generated after each con-
version.

In Continuous mode, users must be aware that ADC updates are limited by
the input signal bandwidth of the ADC and the latency of the ADC and its
digital filter. Step changes at the input are not seen at the next output from
the ADC. The response of the ADC (in all modes) is limited by the input
signal bandwidth and the latency.

The steps for setting up the ADC and initiating continuous conversion are as follows:

1. Enable the desired analog input by configuring the general-purpose I/O pins for

alternate function. This disables the digital input and output driver.

2. Write to the ADC Control register to configure the ADC for continuous conversion.

The bit fields in the ADC Control register may be written simultaneously:

Write to the ANAIN[3:0] field to select one of the 12 analog input sources.

Caution:

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

165

Set CONT to 1 to select continuous conversion.

Write to the VREF bit to enable or disable the internal voltage reference generator.

Set CEN to 1 to start the conversions.

3. When the first conversion in continuous operation is complete (after 5129 system

clock cycles, plus the 40 cycles for power-up, if necessary), the ADC control logic
performs the following operations:

CEN

resets to 0 to indicate the first conversion is complete. CEN remains 0 for all

subsequent conversions in continuous operation.

An interrupt request is sent to the Interrupt Controller to indicate the conversion is
complete.

4. Thereafter, the ADC writes a new 10-bit data result to {ADCD_H[7:0],

ADCD_L[7:6]} every 256 system clock cycles. An interrupt request is sent to the
Interrupt Controller when each conversion is complete.

5. To disable continuous conversion, clear the CONT bit in the ADC Control register

to 0.

DMA Control of the ADC

The Direct Memory Access (DMA) Controller can control operation of the ADC includ-
ing analog input selection and conversion enable. For more information on the DMA and
configuring for ADC operations refer to the chapter Direct Memory Access Controller
on page 152.

ADC Control Register Definitions

ADC Control Register

The ADC Control register selects the analog input channel and initiates the analog-to-dig-
ital conversion.

Table 85. ADC Control Register (ADCCTL)

BITS

FIELD

CEN

Reserved

VREF

CONT

ANAIN[3:0]

RESET

0000

R/W

R/W

ADDR

F70H

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

166

CEN--Conversion Enable
0 = Conversion is complete. Writing a 0 produces no effect. The ADC automatically clears
this bit to 0 when a conversion has been completed.
1 = Begin conversion. Writing a 1 to this bit starts a conversion. If a conversion is already
in progress, the conversion restarts. This bit remains 1 until the conversion is complete.

Reserved--Must be 0.

VREF
0 = Internal voltage reference generator enabled. The VREF pin should be left uncon-
nected (or capacitively coupled to analog ground) if the internal voltage reference is
selected as the ADC reference voltage.
1 = Internal voltage reference generator disabled. An external voltage reference must be
provided through the VREF pin.

CONT
0 = Single-shot conversion. ADC data is output once at completion of the 5129 system
clock cycles.
1 = Continuous conversion. ADC data updated every 256 system clock cycles.

ANAIN--Analog Input Select
These bits select the analog input for conversion. Not all Port pins in this list are available
in all packages for the Z8F642x family of products. Refer to the Signal and Pin Descrip-
tions chapter for information regarding the Port pins available with each package style. Do
not enable unavailable analog inputs.
0000 = ANA0
0001 = ANA1
0010 = ANA2
0011 = ANA3
0100 = ANA4
0101 = ANA5
0110 = ANA6
0111 = ANA7
1000 = ANA8
1001 = ANA9
1010 = ANA10
1011 = ANA11
11XX = Reserved.

ADC Data High Byte Register

The ADC Data High Byte register (Table 86) contains the upper eight bits of the 10-bit
ADC output. During a single-shot conversion, this value is invalid. Access to the ADC
Data High Byte register is read-only. The full 10-bit ADC result is given by
{ADCD_H[7:0], ADCD_L[7:6]}. Reading the ADC Data High Byte register latches data
in the ADC Low Bits register

PS019906-1003

P r e l i m i n a r y

Analog-to-Digital Converter

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

167

ADCD_H--ADC Data High Byte
This byte contains the upper eight bits of the 10-bit ADC output. These bits are not valid
during a single-shot conversion. During a continuous conversion, the last conversion out-
put is held in this register. These bits are undefined after a Reset.

ADC Data Low Bits Register

The ADC Data Low Bits register (Table 87) contains the lower two bits of the conversion
value. The data in the ADC Data Low Bits register is latched each time the ADC Data
High Byte register is read. Reading this register always returns the lower two bits of the
conversion last read into the ADC High Byte register. Access to the ADC Data Low Bits
register is read-only. The full 10-bit ADC result is given by {ADCD_H[7:0],
ADCD_L[7:6]}.

ADCD_L--ADC Data Low Bits
These are the least significant two bits of the 10-bit ADC output. These bits are undefined
after a Reset.

Reserved
These bits are reserved and are always undefined.

Table 86. ADC Data High Byte Register (ADCD_H)

BITS

FIELD

ADCD_H

RESET

R/W

ADDR

F72H

Table 87. ADC Data Low Bits Register (ADCD_L)

BITS

FIELD

ADCD_L

Reserved

RESET

R/W

ADDR

F73H

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Flash Memory

168

Flash Memory

Overview

The products in the Z8F642x family feature up to 64KB (65,536 bytes) of non-volatile
Flash memory with read/write/erase capability. The Flash memory can be programmed
and erased in-circuit by either user code or through the On-Chip Debugger.

The Flash memory array is arranged in 512-byte per page. The 512-byte page is the mini-
mum Flash block size that can be erased. The Flash memory is also divided into 8 sectors
which can be protected from programming and erase operations on a per sector basis.

Table 88 describes the Flash memory configuration for each device in the Z8F642x fam-
ily. Table 89 lists the sector address ranges. Figure 32 illustrates the Flash memory
arrangement.

Table 88. Flash Memory Configurations

Part Number

Flash Size

Number of

Pages

Program Memory

Addresses

Sector Size

Number of

Sectors

Pages per

Sector

Z8F162x

16k (16,384)

0000H - 3FFFH

2k (2048)

Z8F242x

24k (24,576)

0000H - 5FFFH

4k (4096)

Z8F322x

32k (32,768)

0000H - 7FFFH

4k (4096)

Z8F482x

48k (49,152)

0000H - BFFFH

8k (8192)

Z8F642x

64k (65,536)

128

0000H - FFFFH

8k (8192)

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

170

Information Area

Table 90 describes the Z8F642x family Information Area. This 512-byte Information Area
is accessed by setting bit 7 of the Flash Page Select Register to 1. When access is enabled,
the Information Area is mapped into Program Memory and overlays the 512 bytes at
addresses FE00H to FFFFH. When the Information Area access is enabled, LDC instruc-
tions return data from the Information Area. CPU instruction fetches always comes from
Program Memory regardless of the Information Area access bit. Access to the Information
Area is read-only.

Operation

The Flash Controller provides the proper signals and timing for Byte Programming, Page
Erase, and Mass Erase of the Flash memory. The Flash Controller contains a protection
mechanism, via the Flash Control register (FCTL), to prevent accidental programming or
erasure. The following subsections provide details on the various operations (Lock,
Unlock, Sector Protect, Byte Programming, Page Erase, and Mass Erase).

Table 90. Z8F642x family Information Area Map

Program Memory Address (Hex) Function

FE00H-FE3FH

Reserved

FE40H-FE53H

Part Number
20-character ASCII alphanumeric code
Left justified and filled with zeros

FE54H-FFFFH

Reserved

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

171

Timing Using the Flash Frequency Registers

Before performing a program or erase operation on the Flash memory, the user must first
configure the Flash Frequency High and Low Byte registers. The Flash Frequency regis-
ters allow programming and erasure of the Flash with system clock frequencies ranging
from 20kHz through 20MHz (the valid range is limited to the device operating frequen-
cies).

The Flash Frequency High and Low Byte registers combine to form a 16-bit value,
FFREQ

, to control timing for Flash program and erase operations. The 16-bit Flash Fre-

quency value must contain the system clock frequency in kHz. This value is calculated
using the following equation:.

Flash programming and erasure are not supported for system clock fre-
quencies below 20kHz, above 20MHz, or outside of the device operating
frequency range. The Flash Frequency High and Low Byte registers must
be loaded with the correct value to insure proper Flash programming and
erase operations.

Flash Read Protection

The user code contained within the Flash memory can be protected from external access.
Programming the Flash Read Protect Option Bit prevents reading of user code by the On-
Chip Debugger or by using the Flash Controller Bypass mode. Refer to the Option Bits
chapter and the On-Chip Debugger chapter for more information.

Flash Write/Erase Protection

The Z8F642x family provides several levels of protection against accidental program and
erasure of the Flash memory contents. This protection is provided by the Flash Controller
unlock mechanism, the Flash Sector Protect register, and the Flash Write Protect option
bit.

Flash Controller Unlock Mechanism

At Reset, the Flash Controller locks to prevent accidental program or erasure of the Flash
memory. To program or erase the Flash memory, the Flash controller must be unlocked.
After unlocking the Flash Controller, the Flash can be programmed or erased. Any value
written by user code to the Flash Control register or Flash Page Select Register out of
sequence will lock the Flash Controller.

The proper steps to unlock the Flash Controller from user code are:

1. Write 00H to the Flash Control register to reset the Flash Controller.

FFREQ[15:0]

System Clock Frequency (Hz)

1000

----------------------------------------------------------------------------

Caution:

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

172

2. Write the page to be programmed or erased to the Flash Page Select register.

3. Write the first unlock command 73H to the Flash Control register.

4. Write the second unlock command 8CH to the Flash Control register.

5. Re-write the page written in step 2 to the Flash Page Select register.

Flash Sector Protection

The Flash Sector Protect register can be configured to prevent sectors from being pro-
grammed or erased. Once a sector is protected, it cannot be unprotected by user code. The
Flash Sector Protect register will be cleared after reset and any previously written protec-
tion values will be lost. User code should write this register in their initialization routine if
they want to enable sector protection.

The Flash Sector Protect register shares its Register File address with the Flash Page
Select register. The Flash Sector Protect register is accessed by writing the Flash Control
register with 5EH. Once the Flash Sector Protect register is selected, it can be accessed at
the Flash Page Select Register address. When user code writes the Flash Sector Protect
register, bits can only be set to 1. Thus, sectors can be protected, but not unprotected, via
register write operations. Writing a value other than 5EH to the Flash Control register will
de-select the Flash Sector Protect register and re-enable access to the Flash Page Select
register.

The proper steps to setup the Flash Sector Protect register from user code are:

1. Write 00H to the Flash Control register to reset the Flash Controller.

2. Write 5EH to the Flash Control register to select the Flash Sector Protect register.

3. Read and/or write the Flash Sector Protect register which is now at Register File

address FF9H.

4. Write 00H to the Flash Control register to return the Flash Controller to its reset state.

Flash Write Protection Option Bit

The Flash Write Protect option bit can be enabled to block all program and erase opera-
tions from user code. Refer to the Option Bits chapter for more information.

Byte Programming

When the Flash Controller is unlocked, writes to Program Memory from user code will
program a byte into the Flash if the address is located in the unlocked page. An erased
Flash byte contains all ones (

FFH

). The programming operation can only be used to

change bits from one to zero. To change a Flash bit (or multiple bits) from zero to one
requires a Page Erase or Mass Erase operation.

Byte Programming can be accomplished using the eZ8 CPU's LDC or LDCI instructions.
Refer to the eZ8 CPU User Manual for a description of the LDC and LDCI instructions.

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

173

While the Flash Controller programs the Flash memory, the eZ8 CPU idles but the system
clock and on-chip peripherals continue to operate. Interrupts that occur when a Program-
ming operation is in progress will be serviced once the Programming operation is com-
plete. To exit Programming mode and lock the Flash Controller, write 00H to the Flash
Control register.

User code cannot program Flash Memory on a page that lies in a protected sector. When
user code writes memory locations, only addresses located in the unlocked page will be
programmed. Memory writes outside of the unlocked page are ignored.

Each memory location should not be programmed more than twice before
an erase occurs.

The proper steps to program the Flash from user code are:

1. Write 00H to the Flash Control register to reset the Flash Controller.

2. Write the page of memory to be programmed to the Flash Page Select register.

3. Write the first unlock command 73H to the Flash Control register.

4. Write the second unlock command 8CH to the Flash Control register.

5. Re-write the page written in step 2 to the Flash Page Select register.

6. Write Program Memory using LDC or LDCI instructions to program the Flash.

7. Repeat step 6 to program additional memory locations on the same page.

8. Write 00H to the Flash Control register to lock the Flash Controller.

Page Erase

The Flash memory can be erased one page (512 bytes) at a time. Page Erasing the Flash
memory sets all bytes in that page to the value FFH. The Flash Page Select register identi-
fies the page to be erased. While the Flash Controller executes the Page Erase operation,
the eZ8 CPU idles but the system clock and on-chip peripherals continue to operate. The
eZ8 CPU resumes operation after the Page Erase operation completes. Interrupts that
occur when the Page Erase operation is in progress will be serviced once the Page Erase
operation is complete. When the Page Erase operation is complete, the Flash Controller
returns to its locked state. Only pages located in unprotected sectors can be erased.

The proper steps to perform a Page Erase operation are:

1. Write 00H to the Flash Control register to reset the Flash Controller.

2. Write the page to be erased to the Flash Page Select register.

3. Write the first unlock command 73H to the Flash Control register.

4. Write the second unlock command 8CH to the Flash Control register.

Caution:

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

174

5. Re-write the page written in step 2 to the Flash Page Select register.

6. Write the Page Erase command 95H to the Flash Control register.

Mass Erase

The Flash memory cannot be Mass Erased by user code.

Flash Controller Bypass

The Flash Controller can be bypassed and the control signals for the Flash memory
brought out to the GPIO pins. Bypassing the Flash Controller allows faster Programming
algorithms by controlling the Flash programming signals directly.

Flash Controller Bypass is recommended for gang programming applications and large
volume customers who do not require in-circuit programming of the Flash memory.

Please refer to the document entitled Third-Party Flash Programming Support for Z8
Encore!TM for more information on bypassing the Flash Controller. This document is
available for download at

www.zilog.com

Flash Controller Behavior in Debug Mode

The following changes in behavior of the Flash Controller occur when the Flash Control-
ler is accessed using the On-Chip Debugger:

The Flash Write Protect option bit is ignored.

The Flash Sector Protect register is ignored for programming and erase operations.

Programming operations are not limited to the page selected in the Flash Page Select
register.

Bits in the Flash Sector Protect register can be written to one or zero.

The second write of the Flash Page Select register to unlock the Flash Controller is not
necessary.

The Flash Page Select register can be written when the Flash Controller is unlocked.

The Mass Erase command is enabled.

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

177

Flash Page Select Register

The Flash Page Select (FPS) register (Table 93) selects one of the 128 available Flash
memory pages to be erased or programmed. Each Flash Page contains 512 bytes of Flash
memory. During a Page Erase operation, all Flash memory locations with the 7 most sig-
nificant bits of the address given by the PAGE field will be erased to

FFH

The Flash Page Select register shares its Register File address with the Flash Sector Pro-
tect Register. The Flash Page Select register cannot be accessed when the Flash Sector
Protect register is enabled.

INFO_EN--Information Area Enable
0 = Information Area is not selected.
1 = Information Area is selected. The Information area is mapped into the Program Mem-
ory address space at addresses FE00H through FFFFH.

PAGE--Page Select
This 7-bit field selects the Flash memory page for Programming and Page Erase opera-
tions. Program Memory Address[15:9] = PAGE[6:0].

Table 93. Flash Page Select Register (FPS)

BITS

FIELD

INFO_EN

PAGE

RESET

R/W

R/W

ADDR

FF9H

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

178

Flash Sector Protect Register

The Flash Sector Protect register (Table 94) protects Flash memory sectors from being
programmed or erased from user code. The Flash Sector Protect register shares its Regis-
ter File address with the Flash Page Select register. The Flash Sector protect register can
be accessed only after writing the Flash Control register with 5EH.

User code can only write bits in this register to 1 (bits cannot be cleared to 0 by user code).

SECTn--Sector Protect
0 = Sector n can be programmed or erased from user code.
1 = Sector n is protected and cannot be programmed or erased from user code.

* User code can only write bits from 0 to 1.

Table 94. Flash Sector Protect Register (FPROT)

BITS

FIELD

SECT7

SECT6

SECT5

SECT4

SECT3

SECT2

SECT1

SECT0

RESET

R/W

R/W1

ADDR

FF9H

R/W1 = Register is accessible for Read operations. Register can be written to 1 only (via user code).

PS019906-1003

P r e l i m i n a r y

Flash Memory

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

179

Flash Frequency High and Low Byte Registers

The Flash Frequency High and Low Byte registers (Tables 95 and 96) combine to form a
16-bit value, FFREQ, to control timing for Flash program and erase operations. The 16-bit
Flash Frequency registers should be written with the system clock frequency in kHz for
Program and Erase operations. Calculate the Flash Frequency value using the following
equation:

Flash programming and erasure is not supported for system clock frequen-
cies below 20kHz, above 20MHz, or outside of the valid operating fre-
quency range for the device. The Flash Frequency High and Low Byte
registers must be loaded with the correct value to insure proper program
and erase times.

FFREQH and FFREQL--Flash Frequency High and Low Bytes
These 2 bytes, {FFREQH[7:0], FFREQL[7:0]}, contain the 16-bit Flash Frequency value.

Table 95. Flash Frequency High Byte Register (FFREQH)

BITS

FIELD

FFREQH

RESET

R/W

R/W

ADDR

FFAH

Table 96. Flash Frequency Low Byte Register (FFREQL)

BITS

FIELD

FFREQL

RESET

R/W

R/W

ADDR

FFBH

FFREQ[15:0]

FFREQH[7:0],FFREQL[7:0]

{

}

System Clock Frequency

1000

---------------------------------------------------------------

Caution:

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Option Bits

180

Option Bits

Overview

Option Bits allow user configuration of certain aspects of the Z8F642x family operation.
The feature configuration data is stored in the Program Memory and read during Reset.
The features available for control via the Option Bits are:

Watch-Dog Timer time-out response selectioninterrupt or Reset.

Watch-Dog Timer enabled at Reset.

The ability to prevent unwanted read access to user code in Program Memory.

The ability to prevent accidental programming and erasure of the user code in
Program Memory.

Voltage Brown-Out configuration-always enabled or disabled during STOP mode to
reduce STOP mode power consumption.

Oscillator mode selection-for high, medium, and low power crystal oscillators, or
external RC oscillator.

Operation

Option Bit Configuration By Reset

Each time the Option Bits are programmed or erased, the device must be Reset for the
change to take place. During any reset operation (System Reset, Short Reset, or STOP
Mode Recovery), the Option Bits are automatically read from the Program Memory and
written to Option Configuration registers. The Option Configuration registers control
operation of the devices within the Z8F642x family. Option Bit control is established
before the device exits Reset and the eZ8 CPU begins code execution. The Option Config-
uration registers are not part of the Register File and are not accessible for read or write
access.

Option Bit Address Space

The first two bytes of Program Memory at addresses

0000H

(Table 97)and

0001H

(Table 98) are reserved for the user Option Bits. The byte at Program Memory address

PS019906-1003

P r e l i m i n a r y

Option Bits

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

181

0000H

configures user options. The byte at Program Memory address

0001H

is reserved

for future use and must be left in its unprogrammed state.

Program Memory Address 0000H

WDT_RES--Watch-Dog Timer Reset
0 = Watch-Dog Timer time-out generates an interrupt request. Interrupts must be globally
enabled for the eZ8 CPU to acknowledge the interrupt request.
1 = Watch-Dog Timer time-out causes a Short Reset. This setting is the default for unpro-
grammed (erased) Flash.

WDT_AO--Watch-Dog Timer Always On
0 = Watch-Dog Timer is automatically enabled upon application of system power. Watch-
Dog Timer can not be disabled except during STOP Mode (if configured to power down
during STOP Mode).
1 = Watch-Dog Timer is enabled upon execution of the WDT instruction. Once enabled,
the Watch-Dog Timer can only be disabled by a Reset or STOP Mode Recovery. This set-
ting is the default for unprogrammed (erased) Flash.

OSC_SEL[1:0]--Oscillator Mode Selection
00 = On-chip oscillator configured for use with external RC networks (<4MHz).
01 = Minimum power for use with very low frequency crystals (32KHz to 1.0MHz).
10 = Medium power for use with medium frequency crystals or ceramic resonators
(0.5MHz to 10.0MHz).
11 = Maximum power for use with high frequency crystals (8.0MHz to 20.0MHz). This
setting is the default for unprogrammed (erased) Flash.

VBO_AO--Voltage Brown-Out Protection Always On
0 = Voltage Brown-Out Protection is disabled in STOP mode to reduce total power con-
sumption.
1 = Voltage Brown-Out Protection is always enabled including during STOP mode. This
setting is the default for unprogrammed (erased) Flash.

Table 97. Option Bits At Program Memory Address 0000H

BITS

FIELD

WDT_RES WDT_AO

OSC_SEL[1:0]

VBO_AO

Reserved

FWP

RESET

R/W

R/W

ADDR

Program Memory 0000H

Note: U = Unchanged by Reset. R/W = Read/Write.

PS019906-1003

P r e l i m i n a r y

Option Bits

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

182

RP--Read Protect
0 = User program code is inaccessible. Limited control features are available through the
On-Chip Debugger.
1 = User program code is accessible. All On-Chip Debugger commands are enabled. This
setting is the default for unprogrammed (erased) Flash.

FWP--Flash Write Protect

Program Memory Address 0001H

Reserved
These Option Bits are reserved for future use and must always be 1. This setting is the
default for unprogrammed (erased) Flash.

FWP

Description

Programming, Page Erase, and Mass Erase via User Code is disabled. Mass Erase is
available through the On-Chip Debugger.

Programming, Page Erase, and Mass Erase are enabled for all of Flash Program
Memory.

Table 98. Options Bits at Program Memory Address 0001H

BITS

FIELD

Reserved

RESET

R/W

R/W

ADDR

Program Memory 0001H

Note: U = Unchanged by Reset. R/W = Read/Write.

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

184

Operation

OCD Interface

The On-Chip Debugger uses the DBG pin for communication with an external host. This
one-pin interface is a bi-directional open-drain interface that transmits and receives data.
Data transmission is half-duplex, in that transmit and receive cannot occur simultaneously.
The serial data on the DBG pin is sent using the standard asynchronous data format
defined in RS-232. This pin can interface the Z8F642x family products to the serial port of
a host PC using minimal external hardware.Two different methods for connecting the
DBG pin to an RS-232 interface are depicted in Figures 34 and 35.

For operation of the On-Chip Debugger, all power pins (V

and AV

)

must be supplied with power, and all ground pins (V

and AV

) must be

properly grounded.
The DBG pin is open-drain and must always be connected to V

through

an external pull-up resistor to ensure proper operation.

Figure 34. Interfacing the On-Chip Debugger's DBG Pin with an RS-232 Interface (1)

Caution:

RS-232 TX

RS-232 RX

RS-232

Transceiver

DBG Pin

10K Ohm

Diode

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

185

Figure 35. Interfacing the On-Chip Debugger's DBG Pin with an RS-232 Interface (2)

Debug Mode

The operating characteristics of the Z8F642x family devices in Debug mode are:

The eZ8 CPU fetch unit stops, idling the eZ8 CPU, unless directed by the OCD to
execute specific instructions.

The system clock operates unless in STOP mode.

All enabled on-chip peripherals operate unless in STOP mode.

Automatically exits HALT mode.

Constantly refreshes the Watch-Dog Timer, if enabled.

Entering Debug Mode

The device enters Debug mode following any of the following operations:

Writing the DBGMODE bit in the OCD Control Register to 1 using the OCD interface.

eZ8 CPU execution of a BRK (Breakpoint) instruction (when enabled).

Match of PC to OCDCNTR register (when enabled)

OCDCNTR register decrements to

0000H

(when enabled)

If the DBG pin is Low when the device exits Reset, the On-Chip Debugger
automatically puts the device into Debug mode.

Exiting Debug Mode

The device exits Debug mode following any of the following operations:

Clearing the DBGMODE bit in the OCD Control Register to 0.

RS-232 TX

RS-232 RX

RS-232

Transceiver

DBG Pin

10K Ohm

Open-Drain

Buffer

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

186

Power-on reset

Voltage Brown Out reset

Asserting the RESET pin Low to initiate a Reset.

Driving the DBG pin Low while the device is in STOP mode initiates a System Reset.

OCD Data Format

The OCD interface uses the asynchronous data format defined for RS-232. Each character
is transmitted as 1 Start bit, 8 data bits (least-significant bit first), and 1 Stop bit
(Figure 36).

Figure 36. OCD Data Format

OCD Auto-Baud Detector/Generator

To run over a range of baud rates (bits per second) with various system clock frequencies,
the On-Chip Debugger has an Auto-Baud Detector/Generator. After a reset, the OCD is
idle until it receives data. The OCD requires that the first character sent from the host is
the character

80H

. The character

80H

has eight continuous bits Low (one Start bit plus 7

data bits). The Auto-Baud Detector measures this period and sets the OCD Baud Rate
Generator accordingly.

The Auto-Baud Detector/Generator is clocked by the system clock. The minimum baud
rate is the system clock frequency divided by 512. For optimal operation, the maximum
recommended baud rate is the system clock frequency divided by 8. The theoretical maxi-
mum baud rate is the system clock frequency divided by 4. This theoretical maximum is
possible for low noise designs with clean signals. Table 99 lists minimum and recom-
mended maximum baud rates for sample crystal frequencies.

Table 99. OCD Baud-Rate Limits

System Clock Frequency

(MHz)

Recommended Maximum Baud Rate

(kbits/s)

Minimum Baud Rate

(kbits/s)

20.0

2500

39.1

1.0

125.0

1.96

0.032768 (32KHz)

4.096

0.064

START

STOP

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

187

If the OCD receives a Serial Break (nine or more continuous bits Low) the Auto-Baud
Detector/Generator resets. The Auto-Baud Detector/Generator can then be reconfigured
by sending

80H

OCD Serial Errors

The On-Chip Debugger can detect any of the following error conditions on the DBG pin:

Serial Break (a minimum of nine continuous bits Low)

Framing Error (received Stop bit is Low)

Transmit Collision (OCD and host simultaneous transmission detected by the OCD)

When the OCD detects one of these errors, it aborts any command currently in progress,
transmits a Serial Break 4096 system clock cycles long back to the host, and resets the
Auto-Baud Detector/Generator. A Framing Error or Transmit Collision may be caused by
the host sending a Serial Break to the OCD. Because of the open-drain nature of the inter-
face, returning a Serial Break break back to the host only extends the length of the Serial
Break if the host releases the Serial Break early.

The host should transmit a Serial Break on the DBG pin when first connecting to the
Z8F642x family device or when recovering from an error. A Serial Break from the host
resets the Auto-Baud Generator/Detector but does not reset the OCD Control register. A
Serial Break leaves the device in Debug mode if that is the current mode. The OCD is held
in Reset until the end of the Serial Break when the DBG pin returns High. Because of the
open-drain nature of the DBG pin, the host can send a Serial Break to the OCD even if the
OCD is transmitting a character.

Breakpoints

Execution Breakpoints are generated using the BRK instruction (opcode 00H). When the
eZ8 CPU decodes a BRK instruction, it signals the On-Chip Debugger. If Breakpoints are
enabled, the OCD idles the eZ8 CPU and enters Debug mode. If Breakpoints are not
enabled, the OCD ignores the BRK signal and the BRK instruction operates as an NOP.

If breakpoints are enabled, the OCD can be configured to automatically enter Debug
mode, or to loop on the break instruction. If the OCD is configured to loop on the BRK
instruction, then the CPU is still enabled to service DMA and interrupt requests.

The loop on BRK instruction can be used to service interrupts in the background. For
interrupts to be serviced in the background, there cannot be any breakpoints in the inter-
rupt service routine. Otherwise, the CPU stops on the breakpoint in the interrupt routine.
For interrupts to be serviced in the background, interrupts must also be enabled. Debug-
ging software should not automatically enable interrupts when using this feature, since
interrupts are typically disabled during critical sections of code where interrupts should
not occur (such as adjusting the stack pointer or modifying shared data).

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

188

Software can poll the IDLE bit of the OCDSTAT register to determine if the OCD is loop-
ing on a BRK instruction. When software wants to stop the CPU on the BRK instruction it
is looping on, software should not set the DBGMODE bit of the OCDCTL register. The
CPU may have vectored to and be in the middle of an interrupt service routine when this
bit gets set. Instead, software should clear the BRKLP bit. This allows the CPU to finish
the interrupt service routine it may be in and return the BRK instruction. When the CPU
returns to the BRK instruction it was previously looping on, it automatically sets the
DBGMODE bit and enter Debug mode.

Software should detect that the majority of the OCD commands are still disabled when the
eZ8 CPU is looping on a BRK instruction. The eZ8 CPU must be stopped and the part
must be in Debug mode before these commands can be issued.

Breakpoints in Flash Memory

The BRK instruction is opcode

00H

, which corresponds to the fully programmed state of a

byte in Flash memory. To implement a Breakpoint, write

00H

to the desired address, over-

writing the current instruction. To remove a Breakpoint, the corresponding page of Flash
memory must be erased and reprogrammed with the original data.

OCDCNTR Register

The On-Chip Debugger contains a multipurpose 16-bit Counter Register. It can be used
for the following:

Count system clock cycles between Breakpoints.

Generate a BRK when it counts down to zero.

Generate a BRK when its value matches the Program Counter.

When configured as a counter, the OCDCNTR register starts counting when the On-Chip
Debugger leaves Debug mode and stops counting when it enters Debug mode again or
when it reaches the maximum count of

FFFFH

. The OCDCNTR register automatically

resets itself to

0000H

when the OCD exits Debug mode if it is configured to count clock

cycles between breakpoints.

The OCDCNTR register is used by many of the OCD commands. It counts the
number of bytes for the register and memory read/write commands. It holds the
residual value when generating the CRC. Therefore, if the OCDCNTR is being
used to generate a BRK, its value should be written as a last step before leaving
Debug mode.

Because this register is overwritten by various OCD commands, it should only be used to
generate temporary breakpoints, such as stepping over CALL instructions or running to a
specific instruction and stopping.

Caution:

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

189

On-Chip Debugger Commands

The host communicates to the On-Chip Debugger by sending OCD commands using the
DBG interface. During normal operation, only a subset of the OCD commands are avail-
able. In Debug mode, all OCD commands become available unless the user code and con-
trol registers are protected by programming the Read Protect Option Bit (RP). The Read
Protect Option Bit prevents the code in memory from being read out of the Z8F642x fam-
ily products. When this option is enabled, several of the OCD commands are disabled.
Table 100 contains a summary of the On-Chip Debugger commands. Each OCD com-
mand is described in further detail in the bulleted list following Table 100. Table 100 indi-
cates those commands that operate when the device is not in Debug mode (normal
operation) and those commands that are disabled by programming the Read Protect
Option Bit.

Table 100. On-Chip Debugger Commands

Debug Command

Command Byte

Enabled when NOT

in Debug mode?

Disabled by

Read Protect Option Bit

Read OCD Revision

00H

Yes

Write OCD Counter Register

01H

Read OCD Status Register

02H

Yes

Read Runtime Counter

03H

Write OCD Control Register

04H

Yes

Cannot clear DBGMODE bit

Read OCD Control Register

05H

Yes

Write Program Counter

06H

Disabled

Read Program Counter

07H

Disabled

Write Register

08H

Only writes of the Flash Memory Control

registers are allowed. Additionally, only the

Mass Erase command is allowed to be

written to the Flash Control register.

Read Register

09H

Disabled

Write Program Memory

0AH

Disabled

Read Program Memory

0BH

Disabled

Write Data Memory

0CH

Disabled

Read Data Memory

0DH

Disabled

Read Program Memory CRC

0EH

Reserved

0FH

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

190

In the following bulleted list of OCD Commands, data and commands sent from the host
to the On-Chip Debugger are identified by '

DBG

Command/Data

'. Data sent from the

On-Chip Debugger back to the host is identified by '

DBG

Data

Read OCD Revision (00H)--The Read OCD Revision command determines the
version of the On-Chip Debugger. If OCD commands are added, removed, or
changed, this revision number changes.

DBG

00H

DBG

OCDREV[15:8] (Major revision number)

DBG

OCDREV[7:0] (Minor revision number)

Write OCD Counter Register (01H)--The Write OCD Counter Register command
writes the data that follows to the OCDCNTR register. If the device is not in Debug
mode, the data is discarded.

DBG

01H

DBG

OCDCNTR[15:8]

DBG

OCDCNTR[7:0]

Read OCD Status Register (02H)--The Read OCD Status Register command reads
the OCDSTAT register.

DBG

02H

DBG

OCDSTAT[7:0]

Read OCD Counter Register (03H)--The OCD Counter Register can be used to
count system clock cycles in between Breakpoints, generate a BRK when it counts
down to zero, or generate a BRK when its value matches the Program Counter. Since
this register is really a down counter, the returned value is inverted when this register
is read so the returned result appears to be an up counter. If the device is not in Debug
mode, this command returns

FFFFH

DBG

03H

DBG

~OCDCNTR[15:8]

DBG

~OCDCNTR[7:0]

Write OCD Control Register (04H)--The Write OCD Control Register command
writes the data that follows to the OCDCTL register. When the Read Protect Option
Bit is enabled, the DBGMODE bit (OCDCTL[7]) can only be set to 1, it cannot be

Step Instruction

10H

Disabled

Stuff Instruction

11H

Disabled

Execute Instruction

12H

Disabled

Reserved

13H - FFH

Table 100. On-Chip Debugger Commands

Debug Command

Command Byte

Enabled when NOT

in Debug mode?

Disabled by

Read Protect Option Bit

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

191

cleared to 0 and the only method of putting the device back into normal operating
mode is to reset the device.

DBG

04H

DBG

OCDCTL[7:0]

Read OCD Control Register (05H)--The Read OCD Control Register command
reads the value of the OCDCTL register.

DBG

05H

DBG

OCDCTL[7:0]

Write Program Counter (06H)--The Write Program Counter command writes the
data that follows to the eZ8 CPU's Program Counter (PC). If the device is not in
Debug mode or if the Read Protect Option Bit is enabled, the Program Counter (PC)
values are discarded.

DBG

06H

DBG

ProgramCounter[15:8]

DBG

ProgramCounter[7:0]

Read Program Counter (07H)--The Read Program Counter command reads the
value in the eZ8 CPU's Program Counter (PC). If the device is not in Debug mode or
if the Read Protect Option Bit is enabled, this command returns

FFFFH

DBG

07H

DBG

ProgramCounter[15:8]

DBG

ProgramCounter[7:0]

Write Register (08H)--The Write Register command writes data to the Register File.
Data can be written 1-256 bytes at a time (256 bytes can be written by setting size to
zero). If the device is not in Debug mode, the address and data values are discarded. If
the Read Protect Option Bit is enabled, then only writes to the Flash Control Registers
are allowed and all other register write data values are discarded.

DBG

08H

DBG

{4'h0,Register Address[11:8]}

DBG

Size[7:0]

DBG

1-256 data bytes

Read Register (09H)--The Read Register command reads data from the Register
File. Data can be read 1-256 bytes at a time (256 bytes can be read by setting size to
zero). If the device is not in Debug mode or if the Read Protect Option Bit is enabled,
this command returns

FFH

for all the data values.

DBG

09H

DBG

{4'h0,Register Address[11:8]

DBG

Size[7:0]

DBG

1-256 data bytes

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

192

Write Program Memory (0AH)--The Write Program Memory command writes data
to Program Memory. This command is equivalent to the LDC and LDCI instructions.
Data can be written 1-65536 bytes at a time (65536 bytes can be written by setting size
to zero). The on-chip Flash Controller must be written to and unlocked for the
programming operation to occur. If the Flash Controller is not unlocked, the data is
discarded. If the device is not in Debug mode or if the Read Protect Option Bit is
enabled, the data is discarded.

DBG

0AH

DBG

Program Memory Address[15:8]

DBG

Program Memory Address[7:0]

DBG

Size[15:8]

DBG

Size[7:0]

DBG

1-65536 data bytes

Read Program Memory (0BH)--The Read Program Memory command reads data
from Program Memory. This command is equivalent to the LDC and LDCI
instructions. Data can be read 1-65536 bytes at a time (65536 bytes can be read by
setting size to zero). If the device is not in Debug mode or if the Read Protect Option
Bit is enabled, this command returns

FFH

for the data.

DBG

0BH

DBG

Program Memory Address[15:8]

DBG

Program Memory Address[7:0]

DBG

Size[15:8]

DBG

Size[7:0]

DBG

1-65536 data bytes

Write Data Memory (0CH)--The Write Data Memory command writes data to Data
Memory. This command is equivalent to the LDE and LDEI instructions. Data can be
written 1-65536 bytes at a time (65536 bytes can be written by setting size to zero). If
the device is not in Debug mode or if the Read Protect Option Bit is enabled, the data
is discarded.

DBG

0CH

DBG

Data Memory Address[15:8]

DBG

Data Memory Address[7:0]

DBG

Size[15:8]

DBG

Size[7:0]

DBG

1-65536 data bytes

Read Data Memory (0DH)--The Read Data Memory command reads from Data
Memory. This command is equivalent to the LDE and LDEI instructions. Data can be
read 1-65536 bytes at a time (65536 bytes can be read by setting size to zero). If the
device is not in Debug mode, this command returns

FFH

for the data.

DBG

0DH

DBG

Data Memory Address[15:8]

DBG

Data Memory Address[7:0]

DBG

Size[15:8]

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

193

DBG

Size[7:0]

DBG

1-65536 data bytes

Read Program Memory CRC (0EH)--The Read Program Memory CRC command
computes and returns the CRC (cyclic redundancy check) of Program Memory using
the 16-bit CRC-CCITT polynomial. If the device is not in Debug mode, this command
returns

FFFFH

for the CRC value. Unlike most other OCD Read commands, there is a

delay from issuing of the command until the OCD returns the data. The OCD reads the
Program Memory, calculates the CRC value, and returns the result. The delay is a
function of the Program Memory size and is approximately equal to the system clock
period multiplied by the number of bytes in the Program Memory.

DBG

0EH

DBG

CRC[15:8]

DBG

CRC[7:0]

Step Instruction (10H)--The Step Instruction command steps one assembly
instruction at the current Program Counter (PC) location. If the device is not in Debug
mode or the Read Protect Option Bit is enabled, the OCD ignores this command.

DBG

10H

Stuff Instruction (11H)--The Stuff Instruction command steps one assembly
instruction and allows specification of the first byte of the instruction. The remaining
0-4 bytes of the instruction are read from Program Memory. This command is useful
for stepping over instructions where the first byte of the instruction has been
overwritten by a Breakpoint. If the device is not in Debug mode or the Read Protect
Option Bit is enabled, the OCD ignores this command.

DBG

11H

DBG

opcode[7:0]

Execute Instruction (12H)--The Execute Instruction command allows sending an
entire instruction to be executed to the eZ8 CPU. This command can also step over
Breakpoints. The number of bytes to send for the instruction depends on the opcode. If
the device is not in Debug mode or the Read Protect Option Bit is enabled, the OCD
ignores this command

DBG

12H

DBG

1-5 byte opcode

On-Chip Debugger Control Register Definitions

OCD Control Register

The OCD Control register (Table 101) controls the state of the On-Chip Debugger. This
register enters or exits Debug mode and enables the BRK instruction. It can also reset the
Z8F642x family device.

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

194

A "reset and stop" function can be achieved by writing

81H

to this register. A "reset and

go" function can be achieved by writing

41H

to this register. If the device is in Debug

mode, a "run" function can be implemented by writing

40H

to this register.

DBGMODE--Debug Mode
Setting this bit to 1 causes the device to enter Debug mode. When in Debug mode, the eZ8
CPU stops fetching new instructions. Clearing this bit causes the eZ8 CPU to start running
again. This bit is automatically set when a BRK instruction is decoded and Breakpoints
are enabled. If the Read Protect Option Bit is enabled, this bit can only be cleared by reset-
ting the device, it cannot be written to 0.
0 = The Z8F642x family device is operating in Normal mode.
1 = The Z8F642x family device is in Debug mode.

BRKEN--Breakpoint Enable
This bit controls the behavior of the BRK instruction (opcode 00H). By default, Break-
points are disabled and the BRK instruction behaves like a NOP. If this bit is set to 1 and a
BRK instruction is decoded, the OCD takes action dependent upon the BRKLOOP bit.
0 = BRK instruction is disabled.
1 = BRK instruction is enabled.

DBGACK--Debug Acknowledge
This bit enables the debug acknowledge feature. If this bit is set to 1, then the OCD sends
an Debug Acknowledge character (

FFH

) to the host when a Breakpoint occurs.

0 = Debug Acknowledge is disabled.
1 = Debug Acknowledge is enabled.

BRKLOOP--Breakpoint Loop
This bit determines what action the OCD takes when a BRK instruction is decoded if
breakpoints are enabled (BRKEN is 1). If this bit is 0, then the DBGMODE bit is automat-
ically set to 1 and the OCD entered Debug mode. If BRKLOOP is set to 1, then the eZ8
CPU loops on the BRK instruction.
0 = BRK instruction sets DBGMODE to 1.
1 = eZ8 CPU loops on BRK instruction.

BRKPC--Break when PC == OCDCNTR
If this bit is set to 1, then the OCDCNTR register is used as a hardware breakpoint. When
the program counter matches the value in the OCDCNTR register, DBGMODE is auto-

Table 101. OCD Control Register (OCDCTL)

BITS

FIELD

DBGMODE

BRKEN DBGACK BRKLOOP

BRKPC

BRKZRO Reserved

RST

RESET

R/W

R/W

PS019906-1003

P r e l i m i n a r y

On-Chip Debugger

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

195

matically set to 1. If this bit is set, the OCDCNTR register does not count when the CPU is
running.
0 = OCDCNTR is setup as counter
1 = OCDCNTR generates hardware break when PC == OCDCNTR

BRKZRO--Break when OCDCNTR ==

0000H

If this bit is set, then the OCD automatically sets the DBGMODE bit when the OCD-
CNTR register counts down to

0000H

. If this bit is set, the OCDCNTR register is not reset

when the part leaves DEBUG Mode.
0 = OCD does not generate BRK when OCDCNTR decrements to 0000H
1 = OCD sets DBGMODE to 1 when OCDCNTR decrements to 0000H

Reserved
These bits are reserved and must be 0.

RST--Reset
Setting this bit to 1 resets the Z8F642x family device. The device goes through a normal
Power-On Reset sequence with the exception that the On-Chip Debugger is not reset. This
bit is automatically cleared to 0 when the reset finishes.
0 = No effect.
1 = Reset the Z8F642x family device.

OCD Status Register

The OCD Status register (Table 102) reports status information about the current state of
the debugger and the system.

IDLE--CPU idling
This bit is set if the part is in Debug mode (DBGMODE is 1), or if a BRK instruction
occurred since the last time OCDCTL was written. This can be used to determine if the
CPU is running or if it is idling.
0 = The eZ8 CPU is running.
1 = The eZ8 CPU is either stopped or looping on a BRK instruction.

HALT--HALT Mode
0 = The device is not in HALT mode.
1 = The device is in HALT mode.

Table 102. OCD Status Register (OCDSTAT)

BITS

FIELD

IDLE

HALT

RPEN

Reserved

RESET

R/W

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

On-Chip Oscillator

197

On-Chip Oscillator

Overview

The products in the Z8F642x family feature an on-chip oscillator for use with external
crystals with frequencies from 32KHz to 20MHz. In addition, the oscillator can support
external RC networks with oscillation frequencies up to 4MHz or ceramic resonators with
oscillation frequencies up to 20MHz. This oscillator generates the primary system clock
for the internal eZ8 CPU and the majority of the on-chip peripherals. Alternatively, the
X

input pin can also accept a CMOS-level clock input signal (32kHz20MHz). If an

external clock generator is used, the X

OUT

pin must be left unconnected.

When configured for use with crystal oscillators or external clock drivers, the frequency of
the signal on the X

input pin determines the frequency of the system clock (that is, no

internal clock divider). In RC operation, the system clock is driven by a clock divider
(divide by 2) to ensure 50% duty cycle.

Operating Modes

The Z8F642x family products support 4 different oscillator modes:

On-chip oscillator configured for use with external RC networks (<4MHz).

Minimum power for use with very low frequency crystals (32KHz to 1.0MHz).

Medium power for use with medium frequency crystals or ceramic resonators
(0.5MHz to 10.0MHz).

Maximum power for use with high frequency crystals or ceramic resonators (8.0MHz
to 20.0MHz).

The oscillator mode is selected via user-programmable Option Bits. Please refer to the
Option Bits chapter for information.

Crystal Oscillator Operation

Figure 37 illustrates a recommended configuration for connection with an external funda-
mental-mode, parallel-resonant crystal operating at 20MHz. Recommended 20MHz crys-
tal specifications are provided in Table 103. Resistor R1 is optional and limits total power
dissipation by the crystal. The printed circuit board layout must add no more than 4pF of

PS019906-1003

P r e l i m i n a r y

On-Chip Oscillator

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

199

Oscillator Operation with an External RC Network

Figure 38 illustrates a recommended configuration for connection with an external resis-
tor-capacitor (RC) network.

Figure 38. Connecting the On-Chip Oscillator to an External RC Network

An external resistance value of 15k

is recommended for oscillator operation with an

external RC network. The minimum resistance value to ensure operation is 10k

. The

typical oscillator frequency can be estimated from the values of the resistor (R in k

) and

capacitor (C in pF) elements using the following equation:

Figure 39 illustrates the typical (3.3V and 25

C) oscillator frequency as a function of the

capacitor (C in pF) employed in the RC network assuming a 15k

external resistor. For

very small values of C, the parasitic capacitance of the oscillator XIN pin and the printed
circuit board should be included in the estimation of the oscillator frequency.

Oscillator Frequency (kHz)

×10

1.5 R C

(

)

--------------------------------

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

201

Electrical Characteristics

All data in this chapter is pre-qualification and pre-characterization and is subject to
change.

Absolute Maximum Ratings

Stresses greater than those listed in Table 104 may cause permanent damage to the device.
These ratings are stress ratings only. Operation of the device at any condition outside those
indicated in the operational sections of these specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
For improved reliability, unused inputs must be tied to one of the supply voltages (V

Table 104. Absolute Maximum Ratings

Parameter

Minimum Maximum

Units

Notes

Ambient temperature under bias

-40

+105

Storage temperature

+150

Voltage on any pin with respect to V

0.3

+5.5

Voltage on V

pin with respect to V

0.3

+3.6

Maximum current on input and/or inactive output pin

µA

Maximum output current from active output pin

-25

+25

80-Pin QFP Maximum Ratings at -40°C to 70°C

Total power dissipation

550

Maximum current into V

or out of V

150

80-Pin QFP Maximum Ratings at 70°C to 105°C

Total power dissipation

200

Maximum current into V

or out of V

Notes:

1. This voltage applies to all pins except the following: VDD, AVDD, pins supporting analog input (Ports B and H),

RESET, and where noted otherwise.

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

202

68-Pin PLCC Maximum Ratings at -40°C to 70°C

Total power dissipation

1.0

Maximum current into V

or out of V

275

68-Pin PLCC Maximum Ratings at 70

C to 105

Total power dissipation

500

Maximum current into V

or out of V

140

64-Pin LQFP Maximum Ratings at -40°C to 70°C

Total power dissipation

1.0

Maximum current into V

or out of V

275

64-Pin LQFP Maximum Ratings at 70

C to 105

Total power dissipation

540

Maximum current into V

or out of V

150

44-Pin PLCC Maximum Ratings at -40°C to 70°C

Total power dissipation

750

Maximum current into V

or out of V

200

44-Pin PLCC Maximum Ratings at 70

C to 105

Total power dissipation

295

Maximum current into V

or out of V

44-pin LQFP Maximum Ratings at -40°C to 70°C

Total power dissipation

750

Maximum current into V

or out of V

200

44-pin LQFP Maximum Ratings at 70

C to 105

Total power dissipation

410

Maximum current into V

or out of V

114

Table 104. Absolute Maximum Ratings (Continued)

Parameter

Minimum Maximum

Units

Notes

Notes:

1. This voltage applies to all pins except the following: VDD, AVDD, pins supporting analog input (Ports B and H),

RESET, and where noted otherwise.

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

203

DC Characteristics

Table 105 lists the DC characteristics of the Z8F642x family products. All voltages are
referenced to V

, the primary system ground.

Table 105. DC Characteristics

Symbol Parameter

= -40

C to 105

Units Conditions

Minimum Typical Maximum

Supply Voltage

3.0

3.6

IL1

Low Level Input Voltage

-0.3

0.3*V

For all input pins except RESET,
DBG, XIN

IL2

Low Level Input Voltage

-0.3

0.2*V

For RESET, DBG, and XIN.

IH1

High Level Input Voltage

0.7*V

5.5

Port A, C, D, E, F, and G pins.

IH2

High Level Input Voltage

0.7*V

+0.3

Port B and H pins.

IH3

High Level Input Voltage

0.8*V

+0.3

RESET, DBG, and XIN pins

OL1

Low Level Output Voltage
Standard Drive

0.4

= 2mA; VDD = 3.0V

High Output Drive disabled.

OH1

High Level Output Voltage
Standard Drive

2.4

= -2mA; VDD = 3.0V

High Output Drive disabled.

OL2

Low Level Output Voltage
High Drive

0.6

= 20mA; VDD = 3.3V

High Output Drive enabled
T

= -40

C to +70

OH2

High Level Output Voltage
High Drive

2.4

= -20mA; VDD = 3.3V

High Output Drive enabled;
T

= -40

C to +70

OL3

Low Level Output Voltage
High Drive

0.6

= 15mA; VDD = 3.3V

High Output Drive enabled;
T

= +70

C to +105

OH3

High Level Output Voltage
High Drive

2.4

= 15mA; VDD = 3.3V

High Output Drive enabled;
T

= +70

C to +105

Input Leakage Current

-5

µA V

= 3.6V;

= VDD or VSS

Tri-State Leakage Current

-5

µA V

= 3.6V

PAD

GPIO Port Pad Capacitance

8.0

XIN

XIN Pad Capacitance

8.0

XOUT

XOUT Pad Capacitance

9.5

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

206

Figure 41 illustrates the typical current consumption in HALT mode while operating at
25ºC, 3.3V, versus the system clock frequency.

On-Chip Peripheral AC and DC Electrical Characteristics

Table 106 Power-On Reset and Voltage Brown-Out electrical characteristics and timing.
Table 107 lists the Reset and STOP Mode Recovery pin timing.

TBD

Figure 41. Nominal HALT Mode ICC Versus System Clock Frequency

Table 106. Power-On Reset and Voltage Brown-Out Electrical Characteristics and Timing

Symbol Parameter

= -40

C to 105

Units Conditions

Minimum Typical

Maximum

POR

Power-On Reset Voltage
Threshold

2.40

2.70

2.90

= V

POR

VBO

Voltage Brown-Out Reset
Voltage Threshold

2.30

2.60

2.85

= V

VBO

POR

to V

VBO

hysteresis

100

Starting V

voltage to

ensure valid Power-On
Reset.

ANA

Power-On Reset Analog
Delay

> V

POR

; T

POR

Digital

Reset delay follows T

ANA

POR

Power-On Reset Digital
Delay

10.2

512 WDT Oscillator cycles
(50KHz) + 16 System Clock
cycles (20MHz)

VBO

Voltage Brown-Out Pulse
Rejection Period

< V

VBO

to generate a

Reset.

RAMP

Time for VDD to transition
from V

to V

POR

to ensure

valid Reset

0.10

100

1 Data in the typical column is from characterization at 3.3V and 0

C. These values are provided for design guidance

only and are not tested in production.

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

207

Table 108 list the Flash Memory electrical characteristics and timing. Table 109 lists the
Watch-Dog Timer electrical characteristics and timing.

Table 107. Reset and STOP Mode Recovery Pin Timing

Symbol Parameter

= -40

C to 105

Units Conditions

Minimum Typical Maximum

RESET

RESET pin assertion to
initiate a System Reset.

CLK

Not in STOP Mode.
T

CLK

= System Clock period.

SMR

STOP Mode Recovery pin
Pulse Rejection Period

RESET, DBG, and GPIO pins
configured as SMR sources.

Table 108. Flash Memory Electrical Characteristics and Timing

Parameter

= 3.0 - 3.6V

= -40

C to 105

Units Notes

Minimum Typical Maximum

Flash Byte Read Time

Flash Byte Program Time

Flash Page Erase Time

Flash Mass Erase Time

200

Writes to Single Address Before
Next Erase

Flash Row Program Time

Cumulative program time for
single row cannot exceed limit
before next erase. This parameter
is only an issue when bypassing
the Flash Controller.

Data Retention

100

years

Endurance

10,000

cycles Program / erase cycles

Table 109. Watch-Dog Timer Electrical Characteristics and Timing

Symbol Parameter

= 3.0 - 3.6V

= -40

C to 105

Units Conditions

Minimum Typical

Maximum

WDT

WDT Oscillator Frequency

kHz

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

208

Table 110 lists the Analog-to-Digital Converter electrical characteristics and timing.

Table 110. Analog-to-Digital Converter Electrical Characteristics and Timing

Symbol Parameter

= 3.0 - 3.6V

= -40

C to 105

Units Conditions

Minimum Typical

Maximum

Resolution

bits

External V

REF

= 3.0V;

<= 3.0

Differential Nonlinearity
(DNL)

-1.0

1.0

LSB

External V

REF

= 3.0V;

<= 3.0

Integral Nonlinearity (INL)

-3.0

3.0

LSB

External V

REF

= 3.0V;

<= 3.0

DC Offset Error

-35

DC Offset Error

-50

44-pin LQFP, 44-pin
PLCC, and 68-pin PLCC
packages.

REF

Internal Reference Voltage

2.0

Single-Shot Conversion
Time

5129

cycles

System clock cycles

Continuous Conversion Time

256

cycles

System clock cycles

Sampling Rate

System Clock / 256

Signal Input Bandwidth

3.5

kHz

Analog Source Impedance

Zin

Input Impedance

150

REF

External Reference Voltage

AVDD

AVDD <= VDD. When
using an external reference
voltage, decoupling
capacitance should be
placed from VREF to
AVSS.

REF

Current draw into VREF pin
when driving with external
source.

25.0

40.0

Analog source impedance affects the ADC offset voltage (because of pin leakage) and input settling time.

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

209

AC Characteristics

The section provides information on the AC characteristics and timing. All AC timing
information assumes a standard load of 50pF on all outputs. Table 111 lists the Z8F642
family AC characteristics and timing.

Table 111. AC Characteristics

Symbol Parameter

= 3.0 - 3.6V

= -40

C to 105

Units Conditions

Minimum Maximum

sysclk

System Clock Frequency

20.0

MHz

Read-only from Flash memory.

0.032768

20.0

MHz

Program or erasure of the Flash
memory.

XTAL

Crystal Oscillator Frequency

1.0

20.0

MHz

System clock frequencies below
the crystal oscillator minimum
require an external clock driver.

XIN

System Clock Period

CLK

= 1/F

sysclk

XINH

System Clock High Time

CLK

= 50ns

XINL

System Clock Low Time

CLK

= 50ns

XINR

System Clock Rise Time

CLK

= 50ns

XINF

System Clock Fall Time

CLK

= 50ns

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

210

General Purpose I/O Port Input Data Sample Timing

Figure 42 illustrates timing of the GPIO Port input sampling. The input value on a GPIO
Port pin is sampled on the rising edge of the system clock. The Port value is then available
to the eZ8 CPU on the second rising clock edge following the change of the Port value.
Table 112 List the GPIO port input timing.

Figure 42. Port Input Sample Timing

Table 112. GPIO Port Input Timing

Parameter

Abbreviation

Delay (ns)

Min

Max

S_PORT

Port Input Transition to XIN Rise Setup Time
(Not pictured)

H_PORT

XIN Rise to Port Input Transition Hold Time
(Not pictured)

SMR

GPIO Port Pin Pulse Width to Insure STOP Mode
Recovery
(for GPIO Port Pins enabled as SMR sources)

µs

System

TCLK

Port Pin

Port Value

Changes to 0

0 Value May Be Read

From Port Input

Input Value

Port Input Data

Clock

Data Register

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

216

UART Timing

Figure 48 and Table 118 provide timing information for UART pins for the case where the
Clear To Send input pin (CTS) is used for flow control. In this example, it is assumed that
the Driver Enable polarity has been configured to be Active Low and is represented here
by DE. The CTS to DE assertion delay (T1) assumes the UART Transmit Data register has
been loaded with data prior to CTS assertion.

Figure 48. UART Timing with CTS

Table 118. UART Timing with CTS

Parameter Abbreviation

Delay (ns)

Minimum

Maximum

CTS Fall to DE Assertion Delay

2 * XIN period 2 * XIN period

+ 1 Bit period

DE Assertion to TXD Falling Edge (Start) Delay 1 Bit period

1 Bit period +
1 * XIN period

End of Stop Bit(s) to DE Deassertion Delay

1 * XIN period 2 * XIN period

TXD

(Output)

CTS

(Input)

Start

Bit 0

Bit 7

Parity

Stop

Bit 1

End of

Stop Bit(s)

PS019906-1003

P r e l i m i n a r y

Electrical Characteristics

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

217

Figure 49 and Table 119 provide timing information for UART pins for the case where the
Clear To Send input signal (CTS) is not used for flow control. In this example, it is
assumed that the Driver Enable polarity has been configured to be Active Low and is rep-
resented here by DE. DE asserts after the UART Transmit Data Register has been written.
DE remains asserted for multiple characters as long as the Transmit Data register is writ-
ten with the next character before the current character has completed.

Figure 49. UART Timing without CTS

Table 119. UART Timing without CTS

Parameter Abbreviation

Delay (ns)

Minimum

Maximum

DE Assertion to TXD Falling Edge (Start) Delay

1 Bit period

1 Bit period +

1 * XIN period

End of Stop Bit(s) to DE Deassertion Delay

1 * XIN period

2 * XIN period

TXD

(Output)

Start

Bit 0

Bit 7

Parity

Stop

Bit 1

End of

Stop Bit(s)

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

218

eZ8 CPU Instruction Set

Assembly Language Programming Introduction

The eZ8 CPU assembly language provides a means for writing an application program
without having to be concerned with actual memory addresses or machine instruction for-
mats. A program written in assembly language is called a source program. Assembly lan-
guage allows the use of symbolic addresses to identify memory locations. It also allows
mnemonic codes (opcodes and operands) to represent the instructions themselves. The
opcodes identify the instruction while the operands represent memory locations, registers,
or immediate data values.

Each assembly language program consists of a series of symbolic commands called state-
ments. Each statement can contain labels, operations, operands and comments.

Labels can be assigned to a particular instruction step in a source program. The label iden-
tifies that step in the program as an entry point for use by other instructions.

The assembly language also includes assembler directives that supplement the machine
instruction. The assembler directives, or pseudo-ops, are not translated into a machine
instruction. Rather, the pseudo-ops are interpreted as directives that control or assist the
assembly process.

The source program is processed (assembled) by the assembler to obtain a machine lan-
guage program called the object code. The object code is executed by the eZ8 CPU. An
example segment of an assembly language program is detailed in the following example.

Assembly Language Source Program Example

JP START

; Everything after the semicolon is a comment.

START:

; A label called "START". The first instruction (

JP START

) in this

; example causes program execution to jump to the point within the
; program where the

START

label occurs.

LD R4, R7

; A Load (LD) instruction with two operands. The first operand,
; Working Register R4, is the destination. The second operand,
; Working Register R7, is the source. The contents of R7 is
; written into R4.

LD 234H, #%01

; Another Load (LD) instruction with two operands.
; The first operand, Extended Mode Register Address

234H

; identifies the destination. The second operand, Immediate Data

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

219

; value

01H

, is the source. The value

01H

is written into the

; Register at address

234H

Assembly Language Syntax

For proper instruction execution, eZ8 CPU assembly language syntax requires that the
operands be written as `destination, source'. After assembly, the object code usually has
the operands in the order 'source, destination', but ordering is opcode-dependent. The fol-
lowing instruction examples illustrate the format of some basic assembly instructions and
the resulting object code produced by the assembler. This binary format must be followed
by users that prefer manual program coding or intend to implement their own assembler.

Example 1: If the contents of Registers 43H and 08H are added and the result is stored in
43H, the assembly syntax and resulting object code is:

Example 2: In general, when an instruction format requires an 8-bit register address, that
address can specify any register location in the range 0 - 255 or, using Escaped Mode
Addressing, a Working Register R0 - R15. If the contents of Register 43H and Working
Register R8 are added and the result is stored in 43H, the assembly syntax and resulting
object code is:

See the device-specific Product Specification to determine the exact register file range
available. The register file size varies, depending on the device type.

eZ8 CPU Instruction Notation

In the eZ8 CPU Instruction Summary and Description sections, the operands, condition
codes, status flags, and address modes are represented by a notational shorthand that is
described in Table 120.

Assembly Language Syntax Example 1

Assembly Language Code ADD

43H,

08H

(ADD dst, src)

Object Code

(OPC src, dst)

Assembly Language Syntax Example 2

Assembly Language Code ADD

43H,

(ADD dst, src)

Object Code

(OPC src, dst)

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

220

Table 121 contains additional symbols that are used throughout the Instruction Summary
and Instruction Set Description sections.

Table 120. Notational Shorthand

Notation Description

Operand Range

Bit

b represents a value from 0 to 7 (000B to 111B).

Condition Code

See Condition Codes overview in the eZ8 CPU User
Manual.

Direct Address

Addrs

Addrs. represents a number in the range of 0000H to
FFFFH

Extended Addressing Register

Reg

Reg. represents a number in the range of 000H to
FFFH

Immediate Data

#Data

Data is a number between 00H to FFH

Indirect Working Register

@Rn

n = 0 15

Indirect Register

@Reg

Reg. represents a number in the range of 00H to FFH

Irr

Indirect Working Register Pair

@RRp

p = 0, 2, 4, 6, 8, 10, 12, or 14

IRR

Indirect Register Pair

@Reg

Reg. represents an even number in the range 00H to
FEH

Polarity

Polarity is a single bit binary value of either 0B or 1B.

Working Register

n = 0 15

Reg

Reg. represents a number in the range of 00H to FFH

Relative Address

X represents an index in the range of +127 to 128
which is an offset relative to the address of the next
instruction

Working Register Pair

RRp

p = 0, 2, 4, 6, 8, 10, 12, or 14

Reg

Reg. represents an even number in the range of 00H to
FEH

Vector

Vector Address

Vector

Vector represents a number in the range of 00H to FFH

Indexed

#Index

The register or register pair to be indexed is offset by
the signed Index value (#Index) in a +127 to -128
range.

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

222

Condition Codes

The C, Z, S and V flags control the operation of the conditional jump (JP cc and JR cc)
instructions. Sixteen frequently useful functions of the flag settings are encoded in a 4-bit
field called the condition code (cc), which forms Bits 7:4 of the conditional jump instruc-
tions. The condition codes are summarized in Table 122. Some binary condition codes can
be created using more than one assembly code mnemonic. The result of the flag test oper-
ation decides if the conditional jump is executed.

Table 122. Condition Codes

Binary

Hex

Assembly
Mnemonic Definition

Flag Test Operation

0000

Always False

0001

Less Than

(S XOR V) = 1

0010

Less Than or Equal

(Z OR (S XOR V)) = 1

0011

ULE

Unsigned Less Than or Equal

(C OR Z) = 1

0100

Overflow

V = 1

0101

Minus

S = 1

0110

Zero

Z = 1

0110

Equal

Z = 1

0111

Carry

C = 1

0111

ULT

Unsigned Less Than

C = 1

1000

T (or blank) Always True

1001

Greater Than or Equal

(S XOR V) = 0

1010

Greater Than

(Z OR (S XOR V)) = 0

1011

UGT

Unsigned Greater Than

(C = 0 AND Z = 0) = 1

1100

NOV

No Overflow

V = 0

1101

Plus

S = 0

1110

Non-Zero

Z = 0

1110

Not Equal

Z = 0

1111

No Carry

C = 0

1111

UGE

Unsigned Greater Than or Equal C = 0

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

223

eZ8 CPU Instruction Classes

eZ8 CPU instructions can be divided functionally into the following groups:

Arithmetic

Bit Manipulation

Block Transfer

CPU Control

Load

Logical

Program Control

Rotate and Shift

Tables 123 through 130 contain the instructions belonging to each group and the number
of operands required for each instruction. Some instructions appear in more than one table
as these instruction can be considered as a subset of more than one category. Within these
tables, the source operand is identified as 'src', the destination operand is 'dst' and a con-
dition code is 'cc'.

Table 123. Arithmetic Instructions

Mnemonic

Operands

Instruction

ADC

dst, src

Add with Carry

ADCX

dst, src

Add with Carry using Extended Addressing

ADD

dst, src

Add

ADDX

dst, src

Add using Extended Addressing

dst, src

Compare

CPC

dst, src

Compare with Carry

CPCX

dst, src

Compare with Carry using Extended Addressing

CPX

dst, src

Compare using Extended Addressing

dst

Decimal Adjust

DEC

dst

Decrement

DECW

dst

Decrement Word

INC

dst

Increment

INCW

dst

Increment Word

MULT

dst

Multiply

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

224

SBC

dst, src

Subtract with Carry

SBCX

dst, src

Subtract with Carry using Extended Addressing

SUB

dst, src

Subtract

SUBX

dst, src

Subtract using Extended Addressing

Table 124. Bit Manipulation Instructions

Mnemonic

Operands

Instruction

BCLR

bit, dst

Bit Clear

BIT

p, bit, dst

Bit Set or Clear

BSET

bit, dst

Bit Set

BSWAP

dst

Bit Swap

CCF

Complement Carry Flag

RCF

Reset Carry Flag

SCF

Set Carry Flag

TCM

dst, src

Test Complement Under Mask

TCMX

dst, src

Test Complement Under Mask using Extended Addressing

dst, src

Test Under Mask

TMX

dst, src

Test Under Mask using Extended Addressing

Table 125. Block Transfer Instructions

Mnemonic

Operands

Instruction

LDCI

dst, src

Load Constant to/from Program Memory and Auto-Increment
Addresses

LDEI

dst, src

Load External Data to/from Data Memory and Auto-Increment
Addresses

Table 123. Arithmetic Instructions (Continued)

Mnemonic

Operands

Instruction

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

225

Table 126. CPU Control Instructions

Mnemonic

Operands

Instruction

CCF

Complement Carry Flag

Disable Interrupts

Enable Interrupts

HALT

HALT Mode

NOP

No Operation

RCF

Reset Carry Flag

SCF

Set Carry Flag

SRP

src

Set Register Pointer

STOP

STOP Mode

WDT

Watch-Dog Timer Refresh

Table 127. Load Instructions

Mnemonic Operands Instruction

CLR

dst

Clear

dst, src

Load

LDC

dst, src

Load Constant to/from Program Memory

LDCI

dst, src

Load Constant to/from Program Memory and Auto-Increment
Addresses

LDE

dst, src

Load External Data to/from Data Memory

LDEI

dst, src

Load External Data to/from Data Memory and Auto-Increment
Addresses

LDX

dst, src

Load using Extended Addressing

LEA

dst, X(src) Load Effective Address

POP

dst

Pop

POPX

dst

Pop using Extended Addressing

PUSH

src

Push

PUSHX

src

Push using Extended Addressing

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

227

eZ8 CPU Instruction Summary

Table 131 summarizes the eZ8 CPU instructions. The table identifies the addressing
modes employed by the instruction, the effect upon the Flags register, the number of CPU
clock cycles required for the instruction fetch, and the number of CPU clock cycles
required for the instruction execution.

Table 130. Rotate and Shift Instructions

Mnemonic

Operands

Instruction

BSWAP

dst

Bit Swap

dst

Rotate Left

RLC

dst

Rotate Left through Carry

dst

Rotate Right

RRC

dst

Rotate Right through Carry

SRA

dst

Shift Right Arithmetic

SRL

dst

Shift Right Logical

SWAP

dst

Swap Nibbles

Table 131. eZ8 CPU Instruction Summary

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

ADC dst, src

dst

dst + src + C

ADCX dst, src

dst

dst + src + C

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

228

ADD dst, src

dst

dst + src

ADDX dst, src

dst

dst + src

AND dst, src

dst

dst AND src

ANDX dst, src

dst

dst AND src

BCLR bit, dst

dst[bit]

BIT p, bit, dst

dst[bit]

BRK

Debugger Break

BSET bit, dst

dst[bit]

BSWAP dst

dst[7:0]

dst[0:7]

X *

BTJ p, bit, src, dst if src[bit] = p

PC + X

BTJNZ bit, src, dst if src[bit] = 1

PC + X

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

229

BTJZ bit, src, dst

if src[bit] = 0
PC

PC + X

CALL dst

SP -2

@SP

dst

IRR

CCF

CLR dst

dst

00H

COM dst

dst

~dst

CP dst, src

dst - src

CPC dst, src

dst - src - C

1F A2

1F A3

1F A4

1F A5

1F A6

1F A7

CPCX dst, src

dst - src - C

1F A8

1F A9

CPX dst, src

dst - src

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

230

DA dst

dst

DA(dst)

* X

DEC dst

dst

dst - 1

DECW dst

dst

dst - 1

IRR

IRQCTL[7]

DJNZ dst, RA

dst

dst 1

if dst

PC + X

0A-FA

IRQCTL[7]

HALT

HALT Mode

INC dst

dst

dst + 1

0E-FE

INCW dst

dst

dst + 1

IRR

IRET

FLAGS

@SP

SP + 1

@SP

SP + 2

IRQCTL[7]

JP dst

dst

IRR

JP cc, dst

if cc is true
PC

dst

0D-FD

JR dst

PC + X

JR cc, dst

if cc is true
PC

PC + X

0B-FB

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

231

LD dst, rc

dst

src

0C-FC

X(r)

LDC dst, src

dst

src

Irr

LDCI dst, src

dst

src

r + 1

rr + 1

Irr

LDE dst, src

dst

src

Irr

LDEI dst, src

dst

src

r + 1

rr + 1

Irr

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

232

LDX dst, src

dst

src

IRR

X(rr)

IRR

LEA dst, X(src)

dst

src + X

X(r)

X(rr)

MULT dst

dst[15:0]

dst[15:8] * dst[7:0]

NOP

No operation

OR dst, src

dst

dst OR src

ORX dst, src

dst

dst OR src

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

233

POP dst

dst

@SP

SP + 1

POPX dst

dst

@SP

SP + 1

PUSH src

SP 1

@SP

src

PUSHX src

SP 1

@SP

src

RCF

RET

@SP

SP + 2

RL dst

RLC dst

RR dst

RRC dst

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

D7 D6 D5 D4 D3 D2 D1 D0

dst

D7 D6 D5 D4 D3 D2 D1 D0

dst

D7 D6 D5 D4 D3 D2 D1 D0

dst

D7 D6 D5 D4 D3 D2 D1 D0

dst

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

234

SBC dst, src

dst

dst src - C

SBCX dst, src

dst

dst src - C

SCF

SRA dst

SRL dst

1F C0

1F C1

SRP src

src

STOP

STOP Mode

SUB dst, src

dst

dst src

SUBX dst, src

dst

dst src

SWAP dst

dst[7:4]

dst[3:0]

X *

* X

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

D7 D6 D5 D4 D3 D2 D1 D0

dst

D7 D6 D5 D4 D3 D2 D1 D0

dst

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

235

TCM dst, src

(NOT dst) AND src

TCMX dst, src

(NOT dst) AND src

TM dst, src

dst AND src

TMX dst, src

dst AND src

TRAP Vector

SP 2

@SP

SP 1

@SP

FLAGS

@Vector

Vector

WDT

Table 131. eZ8 CPU Instruction Summary (Continued)

Assembly
Mnemonic

Symbolic Operation

Address Mode

Opcode(s)

(Hex)

Flags

Fetch

Cycles

Instr.

Cycles

dst

src

C Z S V D H

Flags Notation:

* = Value is a function of the result of the operation.
- = Unaffected
X = Undefined

0 = Reset to 0
1 = Set to 1

PS019906-1003

P r e l i m i n a r y

eZ8 CPU Instruction Set

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

237

Flags Register

The Flags Register contains the status information regarding the most recent arithmetic,
logical, bit manipulation or rotate and shift operation. The Flags Register contains six bits
of status information that are set or cleared by CPU operations. Four of the bits (C, V, Z
and S) can be tested for use with conditional jump instructions. Two flags (H and D) can-
not be tested and are used for Binary-Coded Decimal (BCD) arithmetic.

The two remaining bits, User Flags (F1 and F2), are available as general-purpose status
bits. User Flags are unaffected by arithmetic operations and must be set or cleared by
instructions. The User Flags cannot be used with conditional Jumps. They are undefined at
initial power-up and are unaffected by Reset. Figure 50 illustrates the flags and their bit
positions in the Flags Register.

Interrupts, the Software Trap (TRAP) instruction, and Illegal Instruction Traps all write
the value of the Flags Register to the stack. Executing an Interrupt Return (IRET) instruc-
tion restores the value saved on the stack into the Flags Register.

U = Undefined

Figure 50. Flags Register

V D H F2 F1

Flags Register

Bit

Half Carry Flag

Decimal Adjust Flag

Overflow Flag

Sign Flag

Zero Flag

Carry Flag

User Flags

PS019906-1003

P r e l i m i n a r y

Opcode Maps

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

240

Figure 52. First Opcode Map

3.3

R2,R1

3.4

IR2,R1

2.3

r1,r2

2.4

r1,Ir2

CPX

4.3

ER2,ER1

CPX

4.3

IM,ER1

3.3

R1,IM

3.4

IR1,IM

RRC

2.2

RRC

2.3

IR1

Lower Nibble (Hex)

Uppe

r Nibb

(
H

x
)

BRK

1.2

SRP

2.2

ADD

2.3

r1,r2

ADD

2.4

r1,Ir2

ADD

3.3

R2,R1

ADD

3.4

IR2,R1

ADD

3.3

R1,IM

ADD

3.4

IR1,IM

ADDX

4.3

ER2,ER1

ADDX

4.3

IM,ER1

DJNZ

2.3

r1,X

2.2

cc,X

2.2

r1,IM

3.2

cc,DA

INC

1.2

NOP

1.2

RLC

2.2

RLC

2.3

IR1

ADC

2.3

r1,r2

ADC

2.4

r1,Ir2

ADC

3.3

R2,R1

ADC

3.4

IR2,R1

ADC

3.3

R1,IM

ADC

3.4

IR1,IM

ADCX

4.3

ER2,ER1

ADCX

4.3

IM,ER1

INC

2.2

INC

2.3

IR1

SUB

2.3

r1,r2

SUB

2.4

r1,Ir2

SUB

3.3

R2,R1

SUB

3.4

IR2,R1

SUB

3.3

R1,IM

SUB

3.4

IR1,IM

SUBX

4.3

ER2,ER1

SUBX

4.3

IM,ER1

DEC

2.2

DEC

2.3

IR1

SBC

2.3

r1,r2

SBC

2.4

r1,Ir2

SBC

3.3

R2,R1

SBC

3.4

IR2,R1

SBC

3.3

R1,IM

SBC

3.4

IR1,IM

SBCX

4.3

ER2,ER1

SBCX

4.3

IM,ER1

2.2

2.3

IR1

2.3

r1,r2

2.4

r1,Ir2

3.3

R2,R1

3.4

IR2,R1

3.3

R1,IM

3.4

IR1,IM

ORX

4.3

ER2,ER1

ORX

4.3

IM,ER1

POP

2.2

POP

2.3

IR1

AND

2.3

r1,r2

AND

2.4

r1,Ir2

AND

3.3

R2,R1

AND

3.4

IR2,R1

AND

3.3

R1,IM

AND

3.4

IR1,IM

ANDX

4.3

ER2,ER1

ANDX

4.3

IM,ER1

COM

2.2

COM

2.3

IR1

TCM

2.3

r1,r2

TCM

2.4

r1,Ir2

TCM

3.3

R2,R1

TCM

3.4

IR2,R1

TCM

3.3

R1,IM

TCM

3.4

IR1,IM

TCMX

4.3

ER2,ER1

TCMX

4.3

IM,ER1

PUSH

2.2

PUSH

2.3

IR2

2.3

r1,r2

2.4

r1,Ir2

3.3

R2,R1

3.4

IR2,R1

3.3

R1,IM

3.4

IR1,IM

TMX

4.3

ER2,ER1

TMX

4.3

IM,ER1

DECW

2.5

RR1

DECW

2.6

IRR1

LDE

2.5

r1,Irr2

LDEI

2.9

Ir1,Irr2

LDX

3.2

r1,ER2

LDX

3.3

Ir1,ER2

LDX

3.4

IRR2,R1

LDX

3.5

IRR2,IR1

LDX

3.4

r1,rr2,X

LDX

3.4

rr1,r2,X

2.2

2.3

IR1

LDE

2.5

r2,Irr1

LDEI

2.9

Ir2,Irr1

LDX

3.2

r2,ER1

LDX

3.3

Ir2,ER1

LDX

3.4

R2,IRR1

LDX

3.5

IR2,IRR1

LEA

3.3

r1,r2,X

LEA

3.5

rr1,rr2,X

INCW

2.5

RR1

INCW

2.6

IRR1

CLR

2.2

CLR

2.3

IR1

XOR

2.3

r1,r2

XOR

2.4

r1,Ir2

XOR

3.3

R2,R1

XOR

3.4

IR2,R1

XOR

3.3

R1,IM

XOR

3.4

IR1,IM

XORX

4.3

ER2,ER1

XORX

4.3

IM,ER1

LDC

2.5

r1,Irr2

LDCI

2.9

Ir1,Irr2

LDC

2.5

r2,Irr1

LDCI

2.9

Ir2,Irr1

2.3

IRR1

LDC

2.9

Ir1,Irr2

3.4

r1,r2,X

PUSHX

3.2

ER2

SRA

2.2

SRA

2.3

IR1

POPX

3.2

ER1

3.4

r2,r1,X

CALL

2.6

IRR1

BSWAP

2.2

CALL

3.3

3.2

R2,R1

3.3

IR2,R1

BIT

2.2

p,b,r1

2.3

r1,Ir2

LDX

4.2

ER2,ER1

LDX

4.2

IM,ER1

3.2

R1,IM

3.3

IR1,IM

2.2

2.3

IR1

MULT

2.8

RR1

3.3

R2,IR1

TRAP

2.6

Vector

2.3

Ir1,r2

BTJ

3.3

p,b,r1,X

BTJ

3.4

p,b,Ir1,X

SWAP

2.2

SWAP

2.3

IR1

RCF

1.2

WDT

1.2

STOP

1.2

HALT

1.2

RET

1.4

IRET

1.5

SCF

1.2

CCF

1.2

Opcode

See 2nd

Map

PS019906-1003

P r e l i m i n a r y

Packaging

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

244

Figure 56 illustrates the 44-pin PLCC (plastic lead chip carrier) package available for the
Z8F1621, Z8F2421, Z8F3221, Z8F4821, and Z8F6421 devices.

Figure 56. 44-Lead Plastic Lead Chip Carrier Package (PLCC)

Figure 56 illustrates the 64-pin LQFP (low-profile quad flat package) available for the
Z8F1622, Z8F2422, Z8F3222, Z8F4822, and Z8F6422 devices.

Figure 57. 64-Lead Low-Profile Quad Flat Package (LQFP)

0.020/0.014

0.045/0.025

0.032/0.026

R 1.14/0.64

.028/.020

0.51/0.36

0.81/0.66

3. DIMENSION : MM

2. LEADS ARE COPLANAR WITHIN 0.004".

1. CONTROLLING DIMENSION : INCH

NOTES:

INCH

45°

0.71/0.51

1.321/1.067

0.052/0.042

I
M. FRO

CENT

CEN

RAD

I
I

D/E

0.650

0.600

D1/E1

1.27 BSC

16.51

15.24

16.00

16.66

0.050 BSC

0.630

0.656

MIN

0.168

0.095

0.685

SYMBOL

MILLIMETER

4.27

2.41

17.40

MIN

2.92

17.65

4.57

MAX

0.115

0.695

0.180

INCH

MAX

E HE

0-7°

DETAIL A

PS019906-1003

P r e l i m i n a r y

Ordering Information

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

247

Ordering Information

Table 133. Ordering Information

Part

Flash

KB (Bytes)

RAM

KB (Bytes)

Max. Speed

(MHz)

Temp

(

Voltage

(V)

Package

Part Number

Z8 Encore!

with 16KB Flash, Standard Temperature

Z8 Encore!

16 (16,384) 2 (2048)

to +70

3.0 - 3.6

PDIP-40

Z8F1621PM020SC

Z8 Encore!

16 (16,384) 2 (2048)

to +70

3.0 - 3.6

LQFP-44

Z8F1621AN020SC

Z8 Encore!

16 (16,384) 2 (2048)

to +70

3.0 - 3.6

PLCC-44

Z8F1621VN020SC

Z8 Encore!

16 (16,384) 2 (2048)

to +70

3.0 - 3.6

LQFP-64

Z8F1622AR020SC

Z8 Encore!

16 (16,384) 2 (2048)

to +70

3.0 - 3.6

PLCC-68

Z8F1622VS020SC

Z8 Encore!

with 24KB Flash, Standard Temperature

Z8 Encore!

24 (24,576

2 (2048)

to +70

3.0 - 3.6

PDIP-40

Z8F2421PM020SC

Z8 Encore!

24 (24,576) 2 (2048)

to +70

3.0 - 3.6

LQFP-44

Z8F2421AN020SC

Z8 Encore!

24 (24,576) 2 (2048)

to +70

3.0 - 3.6

PLCC-44

Z8F2421VN020SC

Z8 Encore!

24 (24,576) 2 (2048)

to +70

3.0 - 3.6

LQFP-64

Z8F2422AR020SC

Z8 Encore!

24 (24,576) 2 (2048)

to +70

3.0 - 3.6

PLCC-68

Z8F2422VS020SC

Z8 Encore!

with 32KB Flash, Standard Temperature

Z8 Encore!

32 (32,768) 2 (2048)

to +70

3.0 - 3.6

PDIP-40

Z8F3221PM020SC

Z8 Encore!

32 (32,768) 2 (2048)

to +70

3.0 - 3.6

LQFP-44

Z8F3221AN020SC

Z8 Encore!

32 (32,768) 2 (2048)

to +70

3.0 - 3.6

PLCC-44

Z8F3221VN020SC

Z8 Encore!

32 (32,768) 2 (2048)

to +70

3.0 - 3.6

LQFP-64

Z8F3222AR020SC

Z8 Encore!

32 (32,768) 2 (2048)

to +70

3.0 - 3.6

PLCC-68

Z8F3222VS020SC

Z8 Encore!

with 48KB Flash, Standard Temperature

Z8 Encore!

48 (49,152) 4 (2048)

to +70

3.0 - 3.6

PDIP-40

Z8F4821PM020SC

Z8 Encore!

48 (49,152) 4 (4096)

to +70

3.0 - 3.6

LQFP-44

Z8F4821AN020SC

Z8 Encore!

48 (49,152) 4 (4096)

to +70

3.0 - 3.6

PLCC-44

Z8F4821VN020SC

Z8 Encore!

48 (49,152) 4 (4096)

to +70

3.0 - 3.6

LQFP-64

Z8F4822AR020SC

Z8 Encore!

48 (49,152) 4 (4096)

to +70

3.0 - 3.6

PLCC-68

Z8F4822VS020SC

Z8 Encore!

48 (49,152) 4 (4096)

to +70

3.0 - 3.6

QFP-80

Z8F4823FT020SC

PS019906-1003

P r e l i m i n a r y

Ordering Information

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

248

Z8 Encore!

with 64KB Flash, Standard Temperature

Z8 Encore!

64 (65,536) 4 (2048)

to +70

3.0 - 3.6

PDIP-40

Z8F6421PM020SC

Z8 Encore!

64 (65,536) 4 (4096)

to +70

3.0 - 3.6

LQFP-44

Z8F6421AN020SC

Z8 Encore!

64 (65,536) 4 (4096)

to +70

3.0 - 3.6

PLCC-44

Z8F6421VN020SC

Z8 Encore!

64 (65,536) 4 (4096)

to +70

3.0 - 3.6

LQFP-64

Z8F6422AR020SC

Z8 Encore!

64 (65,536) 4 (4096)

to +70

3.0 - 3.6

PLCC-68

Z8F6422VS020SC

Z8 Encore!

64 (65,536) 4 (4096)

to +70

3.0 - 3.6

QFP-80

Z8F6423FT020SC

Z8 Encore!

with 16KB Flash, Extended Temperature

Z8 Encore!

16 (16,384) 2 (2048)

-40

to +105

3.0 - 3.6

PDIP-40

Z8F1621PM020EC

Z8 Encore!

16 (16,384) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-44

Z8F1621AN020EC

Z8 Encore!

16 (16,384) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-44

Z8F1621VN020EC

Z8 Encore!

16 (16,384) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-64

Z8F1622AR020EC

Z8 Encore!

16 (16,384) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-68

Z8F1622VS020EC

Z8 Encore!

with 24KB Flash, Extended Temperature

Z8 Encore!

24 (24,576) 2 (2048)

-40

to +105

3.0 - 3.6

PDIP-40

Z8F2421PM020EC

Z8 Encore!

24 (24,576) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-44

Z8F2421AN020EC

Z8 Encore!

24 (24,576) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-44

Z8F2421VN020EC

Z8 Encore!

24 (24,576) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-64

Z8F2422AR020EC

Z8 Encore!

24 (24,576) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-68

Z8F2422VS020EC

Z8 Encore!

with 32KB Flash, Extended Temperature

Z8 Encore!

32 (32,768) 2 (2048)

-40

to +105

3.0 - 3.6

PDIP-40

Z8F3221PM020EC

Z8 Encore!

32 (32,768) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-44

Z8F3221AN020EC

Z8 Encore!

32 (32,768) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-44

Z8F3221VN020EC

Z8 Encore!

32 (32,768) 2 (2048)

-40

to +105

3.0 - 3.6

LQFP-64

Z8F3222AR020EC

Z8 Encore!

32 (32,768) 2 (2048)

-40

to +105

3.0 - 3.6

PLCC-68

Z8F3222VS020EC

Table 133. Ordering Information (Continued)

Part

Flash

KB (Bytes)

RAM

KB (Bytes)

Max. Speed

(MHz)

Temp

(

Voltage

(V)

Package

Part Number

PS019906-1003

P r e l i m i n a r y

Ordering Information

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

249

To gain access to technical and customer support, hardware and software development
tools, visit the ZiLOG web site at

www.zilog.com

. The latest released version of ZDS can

be downloaded from this site.

Z8 Encore!

with 48KB Flash, Extended Temperature

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

PDIP-40

Z8F4821PM020EC

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

LQFP-44

Z8F4821AN020EC

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

PLCC-44

Z8F4821VN020EC

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

LQFP-64

Z8F4822AR020EC

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

PLCC-68

Z8F4822VS020EC

Z8 Encore!

48 (49,152) 4 (4096)

-40

to +105

3.0 - 3.6

QFP-80

Z8F4823FT020EC

Z8 Encore!

with 64KB Flash, Extended Temperature

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

PDIP-40

Z8F6421PM020EC

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

LQFP-44

Z8F6421AN020EC

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

PLCC-44

Z8F6421VN020EC

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

LQFP-64

Z8F6422AR020EC

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

PLCC-68

Z8F6422VS020EC

Z8 Encore!

64 (65,536) 4 (4096)

-40

to +105

3.0 - 3.6

QFP-80

Z8F6423FT020EC

Z8 Encore!

Development Tools

Z8 Encore!

Evaluation Kit

Z864200100KIT

Table 133. Ordering Information (Continued)

Part

Flash

KB (Bytes)

RAM

KB (Bytes)

Max. Speed

(MHz)

Temp

(

Voltage

(V)

Package

Part Number

PS019906-1003

P r e l i m i n a r y

Ordering Information

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

250

Part Number Description

ZiLOG part numbers consist of a number of components, as indicated in the following
examples:

Example: Part number Z8F6421AN020SC is an 8-bit microcontroller product in an LQFP package,
using 44 pins, operating with a maximum 20MHz external clock frequency over a 0ºC to +70ºC
temperature range and built using the Plastic-Standard environmental flow.

Precharacterization Product

The product represented by this document is newly introduced and ZiLOG has not com-
pleted the full characterization of the product. The document states what ZiLOG knows
about this product at this time, but additional features or nonconformance with some
aspects of the document might be found, either by ZiLOG or its customers in the course of
further application and characterization work. In addition, ZiLOG cautions that delivery
might be uncertain at times, due to start-up yield issues.

ZiLOG, Inc.

ZiLOG Base Products
Z8

ZiLOG 8-bit microcontroller product

F6421

Product Number

Package

Pin Count

020

Speed

E or S

Temperature

Environmental Flow

Packages

A = LQFP
F = QFP
P = PDIP
V = PLCC

Pin Count

M = 40 pins
N = 44 pins
R = 64 pins
S = 68 pins
T = 80 pins

Speed

020 = 20MHz

Temperature

E = -40ºC to +105ºC
S = 0ºC to +70ºC

Environmental Flow C = Plastic-Standard

PS019906-1003

P r e l i m i n a r y

Customer Feedback Form

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

253

Problem Description or Suggestion

Provide a complete description of the problem or your suggestion. If you are reporting a specific problem,
include all steps leading up to the occurrence of the problem. Attach additional pages as necessary.

______________________________________________________________________________________

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

254

Index

Symbols

221

Numerics

10-bit ADC

40-lead plastic dual-inline package

242

44-lead low-profile quad flat package

243

44-lead plastic lead chip carrier package

244

64-lead low-profile quad flat package

244

68-lead plastic lead chip carrier package

245

80-lead quad flat package

246

absolute maximum ratings

201

AC characteristics

209

ADC

223

architecture

162

automatic power-down

163

block diagram

163

continuous conversion

164

control register

165

control register definitions

165

data high byte register

166

data low bits register

167

DMA control

165

electrical characteristics and timing

208

operation

163

single-shot conversion

163

ADCCTL register

165

ADCDH register

166

ADCDL register

167

ADCX

223

ADD

223

add - extended addressing

223

add with carry

223

add with carry - extended addressing

223

additional symbols

221

address space

ADDX

223

analog signals

analog-to-digital converter (ADC)

162

AND

226

ANDX

226

arithmetic instructions

223

assembly language programming

218

assembly language syntax

219

221

220

baud rate generator, UART

110

BCLR

224

binary number suffix

221

BIT

224

bit

220

clear

224

manipulation instructions

224

set

224

set or clear

224

swap

224

test and jump

226

test and jump if non-zero

226

test and jump if zero

226

bit jump and test if non-zero

226

bit swap

227

block diagram

block transfer instructions

224

BRK

226

BSET

224

BSWAP

224

227

BTJ

226

BTJNZ

226

BTJZ

226

CALL procedure

226

capture mode

capture/compare mode

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

255

220

CCF

225

characteristics, electrical

201

clear

225

clock phase (SPI)

129

CLR

225

COM

226

compare

compare - extended addressing

223

compare mode

compare with carry

223

compare with carry - extended addressing

223

complement

226

complement carry flag

224

225

condition code

220

continuous conversion (ADC)

164

continuous mode

control register definition, UART

111

control register, I2C

148

counter modes

223

CPC

223

CPCX

223

CPU and peripheral overview

CPU control instructions

225

CPX

223

customer feedback form

252

customer information

252

220

223

data register, I2C

146

DC characteristics

203

debugger, on-chip

183

DEC

223

decimal adjust

223

decrement

223

decrement and jump non-zero

226

decrement word

223

DECW

223

destination operand

221

device, port availability

225

direct address

220

direct memory access controller

152

disable interrupts

225

DJNZ

226

DMA

address high nibble register

156

configuring for DMA_ADC data transfer

154

confiigurting DMA0-1 data transfer

153

control of ADC

165

control register

154

control register definitions

154

controller

DMA_ADC address register

158

DMA_ADC control register

159

DMA_ADC operation

153

end address low byte register

157

I/O address register

156

operation

152

start/current address low byte register

157

status register

160

DMAA_STAT register

160

DMAACTL register

159

DMAxCTL register

155

DMAxEND register

158

DMAxH register

156

DMAxI/O address (DMAxIO)

156

DMAxIO register

156

DMAxSTART register

157

document number description

251

dst

221

225

electrical characteristics

201

ADC

208

flash memory and timing

207

GPIO input data sample timing

210

watch-dog timer

207

enable interrupt

225

220

extended addressing register

220

external pin reset

eZ8 CPU features

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

256

eZ8 CPU instruction classes

223

eZ8 CPU instruction notation

219

eZ8 CPU instruction set

218

eZ8 CPU instruction summary

227

FCTL register

175

features, Z8 Encore!

first opcode map

240

FLAGS

221

flags register

221

flash

controller

option bit address space

180

option bit configuration - reset

180

program memory address 0000H

181

program memory address 0001H

182

flash memory

168

arrrangement

169

byte programming

172

code protection

171

configurations

168

control register definitions

175

controller bypass

174

electrical characteristics and timing

207

flash control register

175

flash status register

176

frequency high and low byte registers

179

mass erase

174

operation

170

operation timing

171

page erase

173

page select register

177

FPS register

177

FSTAT register

176

gated mode

general-purpose I/O

GPIO

alternate functions

architecture

control register definitions

input data sample timing

210

interrupts

port A-H address registers

port A-H alternate function sub-registers

port A-H control registers

port A-H data direction sub-registers

port A-H high drive enable sub-registers

port A-H input data registers

port A-H output control sub-registers

port A-H output data registers

port A-H STOP mode recovery sub-registers

port availability by device

port input timing

210

port output timing

211

221

HALT

225

halt mode

225

hexadecimal number prefix/suffix

221

I2C

10-bit address read transaction

145

10-bit address transaction

143

10-bit addressed slave data transfer format

143

10-bit receive data format

145

7-bit address transaction

142

7-bit address, reading a transaction

144

7-bit addressed slave data transfer format

142

7-bit receive data transfer format

144

baud high and low byte registers

149

151

C status register

147

control register definitions

146

controller

140

controller signals

interrupts

141

operation

140

SDA and SCL signals

140

stop and start conditions

141

I2CBRH register

150

151

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

257

I2CBRL register

150

I2CCTL register

148

I2CDATA register

147

I2CSTAT register

147

220

immediate data

220

immediate operand prefix

221

INC

223

increment

223

increment word

223

INCW

223

indexed

220

indirect address prefix

221

indirect register

220

indirect register pair

220

indirect working register

220

indirect working register pair

220

infrared encoder/decoder (IrDA)

121

instruction set, ez8 CPU

218

instructions

ADC

223

ADCX

223

ADD

223

ADDX

223

AND

226

ANDX

226

arithmetic

223

BCLR

224

BIT

224

bit manipulation

224

block transfer

224

BRK

226

BSET

224

BSWAP

224

227

BTJ

226

BTJNZ

226

BTJZ

226

CALL

226

CCF

224

225

CLR

225

COM

226

223

CPC

223

CPCX

223

CPU control

225

CPX

223

DEC

223

DECW

223

225

DJNZ

226

225

HALT

225

INC

223

INCW

223

IRET

226

225

LDC

225

LDCI

224

225

LDE

225

LDEI

224

LDX

225

LEA

225

load

225

logical

226

MULT

223

NOP

225

226

ORX

226

POP

225

POPX

225

program control

226

PUSH

225

PUSHX

225

RCF

224

225

RET

226

227

RLC

227

rotate and shift

227

RRC

227

SBC

224

SCF

224

225

SRA

227

SRL

227

SRP

225

STOP

225

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

258

SUB

224

SUBX

224

SWAP

227

TCM

224

TCMX

224

TMX

224

TRAP

226

watch-dog timer refresh

225

XOR

226

XORX

226

instructions, eZ8 classes of

223

interrupt control register

interrupt controller

architecture

interrupt assertion types

interrupt vectors and priority

operation

software interrupt assertion

interrupt edge select register

interrupt port select register

interrupt request 0 register

interrupt request 1 register

interrupt request 2 register

interrupt return

226

interrupt vector listing

interrupts

not acknowledge

141

receive

141

SPI

132

transmit

141

UART

108

introduction

220

IrDA

architecture

121

block diagram

121

control register definitions

125

operation

122

receiving data

123

transmitting data

122

IRET

226

IRQ0 enable high and low bit registers

IRQ1 enable high and low bit registers

IRQ2 enable high and low bit registers

IRR

220

Irr

220

226

jump, conditional, relative, and relative conditional

226

225

LDC

225

LDCI

224

225

LDE

225

LDEI

224

225

LDX

225

LEA

225

load

225

load constant

224

load constant to/from program memory

225

load constant with auto-increment addresses

225

load effective address

225

load external data

225

load external data to/from data memory and auto-
increment addresses

224

load external to/from data memory and auto-incre-
ment addresses

225

load instructions

225

load using extended addressing

225

logical AND

226

logical AND/extended addressing

226

logical exclusive OR

226

logical exclusive OR/extended addressing

226

logical instructions

226

logical OR

226

logical OR/extended addressing

226

low power modes

LQFP

44 lead

243

64 lead

244

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

259

master interrupt enable

master-in, slave-out and-in

128

memory

program

MISO

128

mode

capture

capture/compare

continuous

counter

gated

one-shot

PWM

modes

MOSI

128

MULT

223

multiply

223

multiprocessor mode, UART

106

NOP (no operation)

225

not acknowledge interrupt

141

notation

220

IRR

220

Irr

220

vector

220

notational shorthand

220

OCD

architecture

183

auto-baud detector/generator

186

baud rate limits

186

block diagram

183

breakpoints

187

commands

189

control register

193

data format

186

DBG pin to RS-232 Interface

184

debug mode

185

debugger break

226

interface

184

serial errors

187

status register

195

timing

212

OCD commands

execute instruction (12H)

193

read data memory (0DH)

192

read OCD control register (05H)

191

read OCD revision (00H)

190

read OCD status register (02H)

190

read program counter (07H)

191

read program memory (0BH)

192

read program memory CRC (0EH)

193

read register (09H)

191

read runtime counter (03H)

190

step instruction (10H)

193

stuff instruction (11H)

193

write data memory (0CH)

192

write OCD control register (04H)

190

write program counter (06H)

191

write program memory (0AH)

192

write register (08H)

191

on-chip debugger

on-chip debugger (OCD)

183

on-chip debugger signals

on-chip oscillator

197

one-shot mode

opcode map

abbreviations

239

cell description

238

first

240

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

260

second after 1FH

241

Operational Description

100

226

ordering information

247

ORX

226

oscillator signals

220

packaging

LQFP

44 lead

243

64 lead

244

PDIP

242

PLCC

44 lead

244

68 lead

245

QFP

246

part number description

250

part selection guide

221

PDIP

242

peripheral AC and DC electrical characteristics

206

PHASE=0 timing (SPI)

130

PHASE=1 timing (SPI)

131

pin characteristics

PLCC

44 lead

244

68-lead

245

polarity

220

POP

225

pop using extended addressing

225

POPX

225

port availability, device

port input timing (GPIO)

210

port output timing, GPIO

211

power supply signals

power-down, automatic (ADC)

163

power-on and voltage brown-out

206

power-on reset (POR)

problem description or suggestion

253

product information

252

program control instructions

226

program counter

221

program memory

PUSH

225

push using extended addressing

225

PUSHX

225

PWM mode

PxADDR register

PxCTL register

QFP

246

220

RCF

224

225

receive

10-bit data format (I2C)

145

7-bit data transfer format (I2C)

144

IrDA data

123

receive interrupt

141

receiving UART data-interrupt-driven method

104

receiving UART data-polled method

104

137

156

220

ADC control (ADCCTL)

165

ADC data high byte (ADCDH)

166

ADC data low bits (ADCDL)

167

baud low and high byte (I2C)

149

151

baud rate high and low byte (SPI)

139

control (SPI)

134

control, I2C

148

data, SPI

133

DMA status (DMAA_STAT)

160

DMA_ADC address

158

DMA_ADC control DMAACTL)

159

DMAx address high nibble (DMAxH)

156

DMAx control (DMAxCTL)

155

DMAx end/address low byte (DMAxEND)

158

DMAx start/current address low byte register
(DMAxSTART)

157

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

261

flash control (FCTL)

175

flash high and low byte (FFREQH and FRE-
EQL)

179

flash page select (FPS)

177

flash status (FSTAT)

176

GPIO port A-H address (PxADDR)

GPIO port A-H alternate function sub-registers

58
GPIO port A-H control address (PxCTL)

GPIO port A-H data direction sub-registers

I2C baud rate high (I2CBRH)

150

151

I2C control (I2CCTL)

148

I2C data (I2CDATA)

147

I2C status

147

I2C status (I2CSTAT)

147

I2Cbaud rate low (I2CBRL)

150

mode, SPI

137

OCD control

193

OCD status

195

SPI baud rate high byte (SPIBRH)

139

SPI baud rate low byte (SPIBRL)

139

SPI control (SPICTL)

135

SPI data (SPIDATA)

134

SPI status (SPISTAT)

136

status, I2C

147

status, SPI

136

UARTx baud rate high byte (UxBRH)

118

UARTx baud rate low byte (UxBRL)

118

UARTx Control 0 (UxCTL0)

114

117

UARTx control 1 (UxCTL1)

116

UARTx receive data (UxRXD)

112

UARTx status 0 (UxSTAT0)

112

UARTx status 1 (UxSTAT1)

114

UARTx transmit data (UxTXD)

111

watch-dog timer control (WDTCTL)

watch-dog timer reload high byte (WDTH)

watch-dog timer reload low byte (WDTL)

watch-dog timer reload upper byte (WDTU)

220

221

reset

and STOP mode characteristics

and STOP mode recovery

carry flag

224

controller

sources

RET

226

return

226

return information

252

227

RLC

227

rotate and shift instuctions

227

rotate left

227

rotate left through carry

227

rotate right

227

rotate right through carry

227

221

220

227

220

RRC

227

SBC

224

SCF

224

225

SCK

128

SDA and SCL (IrDA) signals

140

second opcode map after 1FH

241

serial clock

128

serial peripheral interface (SPI)

126

set carry flag

224

225

set register pointer

225

shift right arithmatic

227

shift right logical

227

signal descriptions

single-sho conversion (ADC)

163

SIO

slave data transfer formats (I2C)

143

slave select

129

software trap

226

source operand

221

SPI

architecture

126

baud rate generator

133

baud rate high and low byte register

139

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

262

clock phase

129

configured as slave

127

control register

134

control register definitions

133

data register

133

error detection

132

interrupts

132

mode fault error

132

mode register

137

multi-master operation

131

operation

127

overrun error

132

signals

128

single master, multiple slave system

127

single master,single slave system

126

status register

136

timing, PHASE = 0

130

timing, PHASE=1

131

SPI controller signals

SPI mode (SPIMODE)

137

SPIBRH register

139

SPIBRL register

139

SPICTL register

135

SPIDATA register

134

SPIMODE register

137

SPISTAT register

136

SRA

227

src

221

SRL

227

SRP

225

SS, SPI signal

128

stack pointer

221

status register, I2C

147

STOP

225

STOP mode

225

STOP mode recovery

sources

using a GPIO port pin transition

using watch-dog timer time-out

SUB

224

subtract

224

subtract - extended addressing

224

subtract with carry

224

subtract with carry - extended addressing

224

SUBX

224

SWAP

227

swap nibbles

227

symbols, additional

221

system and core resets

TCM

224

TCMX

224

test complement under mask

224

test complement under mask - extended addressing

224
test under mask

224

test under mask - extended addressing

224

timer signals

timers

architecture

block diagram

capture mode

capture/compare mode

compare mode

continuous mode

counter mode

counter modes

gated mode

one-shot mode

operating mode

PWM mode

reading the timer count values

reload high and low byte registers

timer control register definitions

timer output signal operation

timers 0-3

control 0 registers

control 1 registers

high and low byte registers

224

TMX

224

transmit

IrDA data

122

transmit interrupt

141

transmitting UART data-polled method

102

transmitting UART dat-interrupt-driven method

PS019906-1003

P r e l i m i n a r y

Index

Z8F642x/Z8F482x/Z8F322x/Z8F242x/Z8F162x

Z8 Encore!

263

103
TRAP

226

UART

architecture

100

asynchronous data format without/with parity

102
baud rate generator

110

baud rates table

119

control register definitions

111

controller signals

data format

101

interrupts

108

multiprocessor mode

106

receiving data using interrupt-driven method

104
receiving data using the polled method

104

transmitting data usin the interrupt-driven
method

103

transmitting data using the polled method

102

x baud rate high and low registers

118

x control 0 and control 1 registers

114

x status 0 and status 1 registers

112

114

UxBRH register

118

UxBRL register

118

UxCTL0 register

114

117

UxCTL1 register

116

UxRXD register

112

UxSTAT0 register

112

UxSTAT1 register

114

UxTXD register

111

vector

220

voltage brown-out reset (VBR)

watch-dog timer

approximate time-out delay

approximate time-out delays

CNTL

control register

electrical characteristics and timing

207

interrupt in noromal operation

interrupt in STOP mode

operation

refresh

225

reload unlock sequence

reload upper, high and low registers

reset

reset in normal operation

reset in STOP mode

time-out response

WDTCTL register

WDTH register

WDTL register

working register

220

working register pair

220

WTDU register

220

XOR

226

XORX

226

Z8 Encore!

block diagram

features

introduction

part selection guide
