900 - 2200 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2006 Synergy Microwave Corporation
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO90220-5
FEATURES:
Exceptional Phase Noise Performance
Small Size, Surface Mount
Lead Free REL-PRO
Technology
Phase Noise
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
100
1000
10000
100000
1000000
10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
900.6MHz/1.17V
1125.4MHz/4V
1342.4MHz/7V
1642.7MHz/11V
1958.2MHz/16V
2200.4MHz/22.32V
SPECIFICATIONS
Frequency
900 - 2200 MHz
Package #
278LF
Tuning Voltage (Full Band)
0.5 - 24 VDC
Bias Voltage
+5 VDC @ 35 mA (Max)
Output Power
+4 dBm (Min)
Tuning Sensitivity
24 - 82 MHz/V (Typ)
Output Impedance
50 Ohms (Nom)
Harmonic Suppression
15 dBc (Typ)
Frequency Pulling
5 MHz (Typ @ 1.75:1 VSWR)
Frequency Pushing
5 MHz/V (Typ)
Phase Noise @ 10 kHz
-98 dBc/Hz (Typ)
Operating Temperature Range
-40 to +85 C
Guaranteed Tuning Specifications
Tuning Voltage ( V )
Frequency ( MHz )
0.5
900 (Max)
5
1100 (Min)
8
1250 (Min)
12
1500 (Min)
15
1750 (Min)
18
1900 (Min)
24
2200 (Min)
900 - 2200 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2006 Synergy Microwave Corporation
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO90220-5

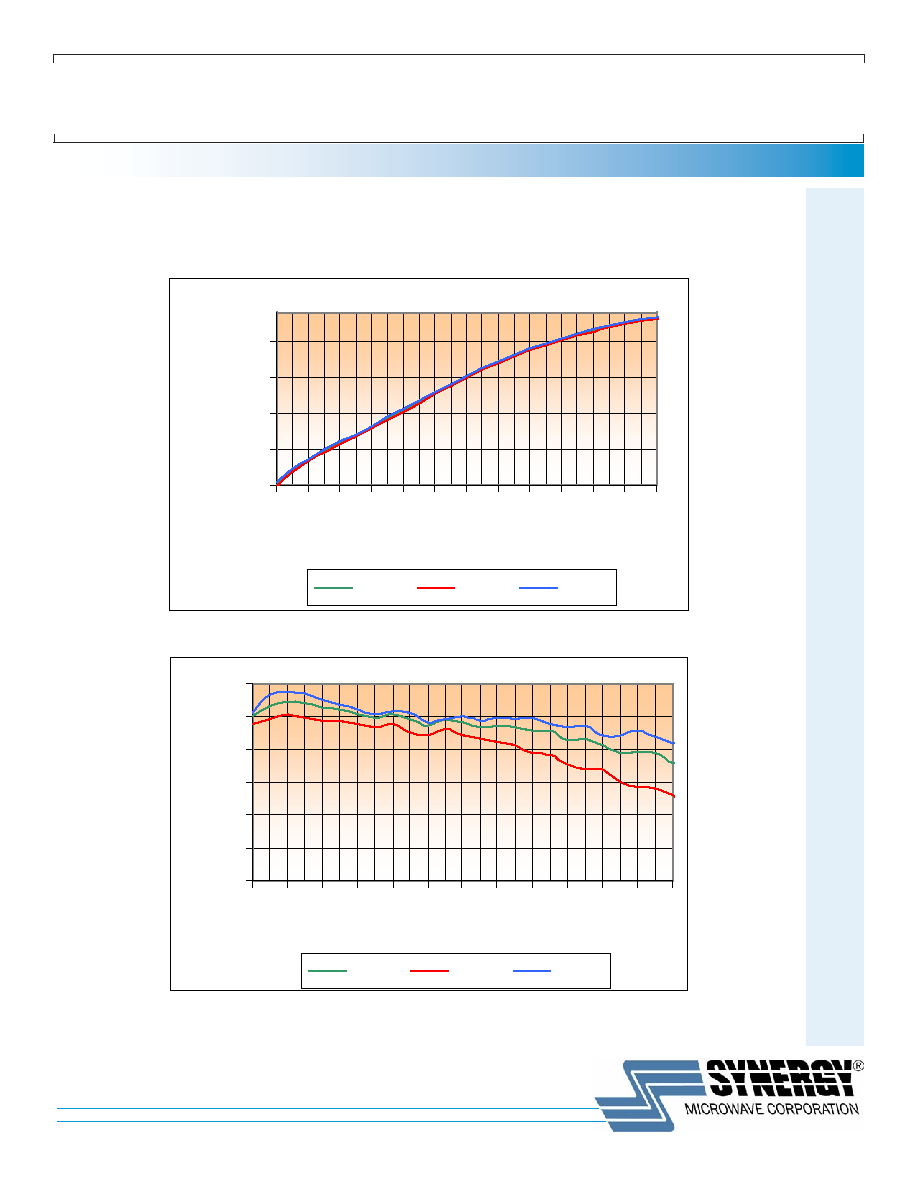

P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S
0
2
4
6
8
10
12
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Output Power (dBm)
+25C
+85C
-40C
750
1070
1390
1710
2030
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Frequency (MHz)
+25C
+85C
-40C
900 - 2200 MHz
WIDE BANDWIDTH
201 McLean Boulevard Paterson, New Jersey 07504 Tel: (973) 881-8800 Fax: (973) 881-8361
E-Mail: sales@synergymwave.com World Wide Web: http://www.synergymwave.com
Copyright 2006 Synergy Microwave Corporation
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO90220-5
P
E
R
F
O
R
M
A
N
C
E
P
L
O
T
S
0.00
20.00
40.00
60.00
80.00
100.00
120.00
140.00
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
Tuning Sensitivity
(MHz/V)
+25C
+85C
-40C
-50
-45
-40
-35
-30
-25
-20
-15
-10
-5
0
0 2 4 6 8 10 12 14 16 18 20 22 24
Control Voltage (Vdc)
2nd Harmonic
Suppression (dBc)
+25C
+85C
-40C
