Voltage Controlled Solidtron (VCS)
Features:
* Surface mount 24pin LLCC package
* 2,000 A peak pulse current
* 1,400 V
AK
* 50 ns typical turn-on time
* > 50 kA/us di/dt
* < 1uA Leakage current at 1.5kV @ 75 C
o
The VCS features the high peak current capability and low on-state voltage drop common to SCR thyristors
combined with extremely high di/dt capability. This solid-state device exhibits extremely low jitter and high
reliability. Solidtrons are ideally suited for fast capacitor discharge applications.
The industry standard 24-pin LCC package allows for assembly of the Solidtron using automated insertion
equipment.

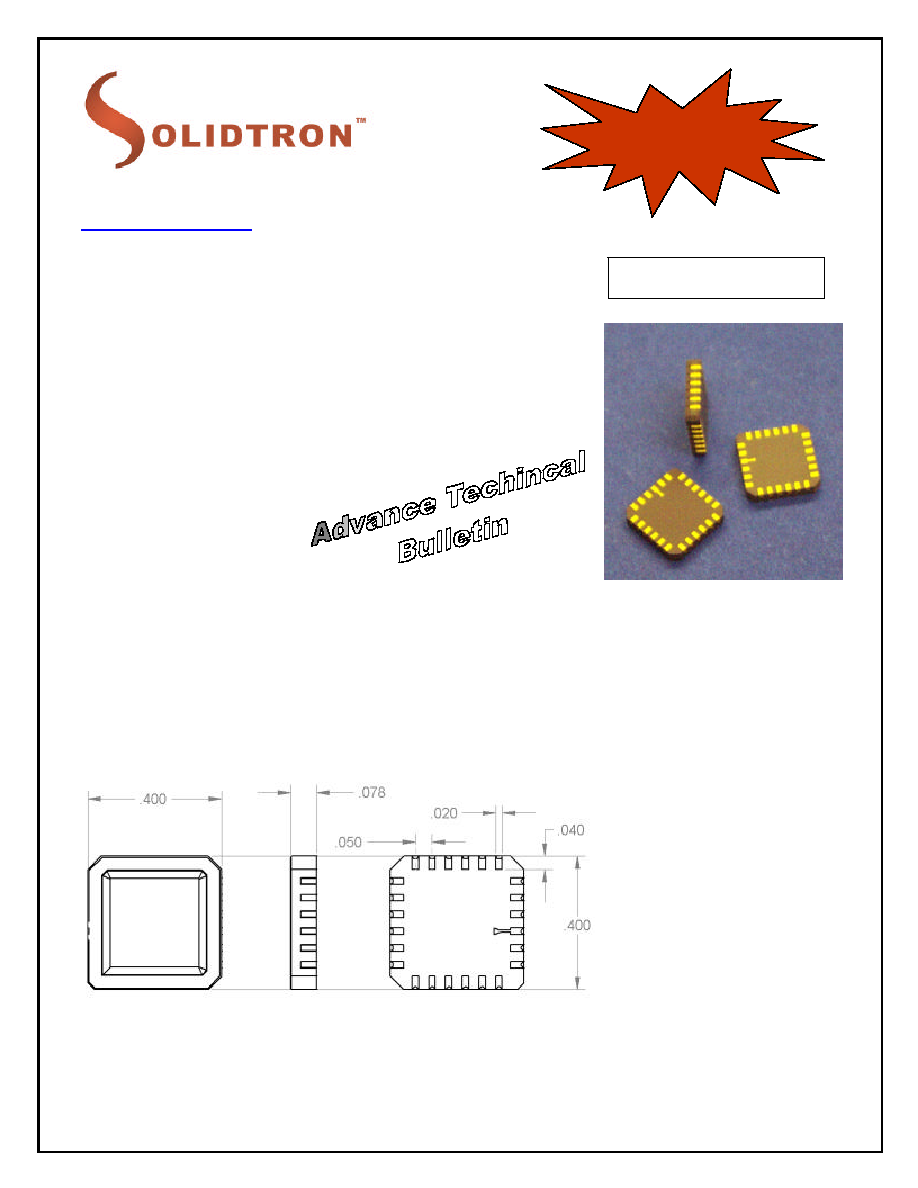

Package Outline
Tolerance +/- 2 mils,
all units in inches
Advanced Pulse Power Devices
New Product
Release
Part# VCSLC05N20A10
pin 24
pin 1
Gate
- 1
Gate rtn - 24
Cathode - 16 thru 22
Anode - 4 thru 11
NC
- 2, 3, 12 thru 15
